The EcoFlow 5kVA 48V Power Kits Give Your RV 4000W of AC Power and Room for Up to 45kWh of Storage

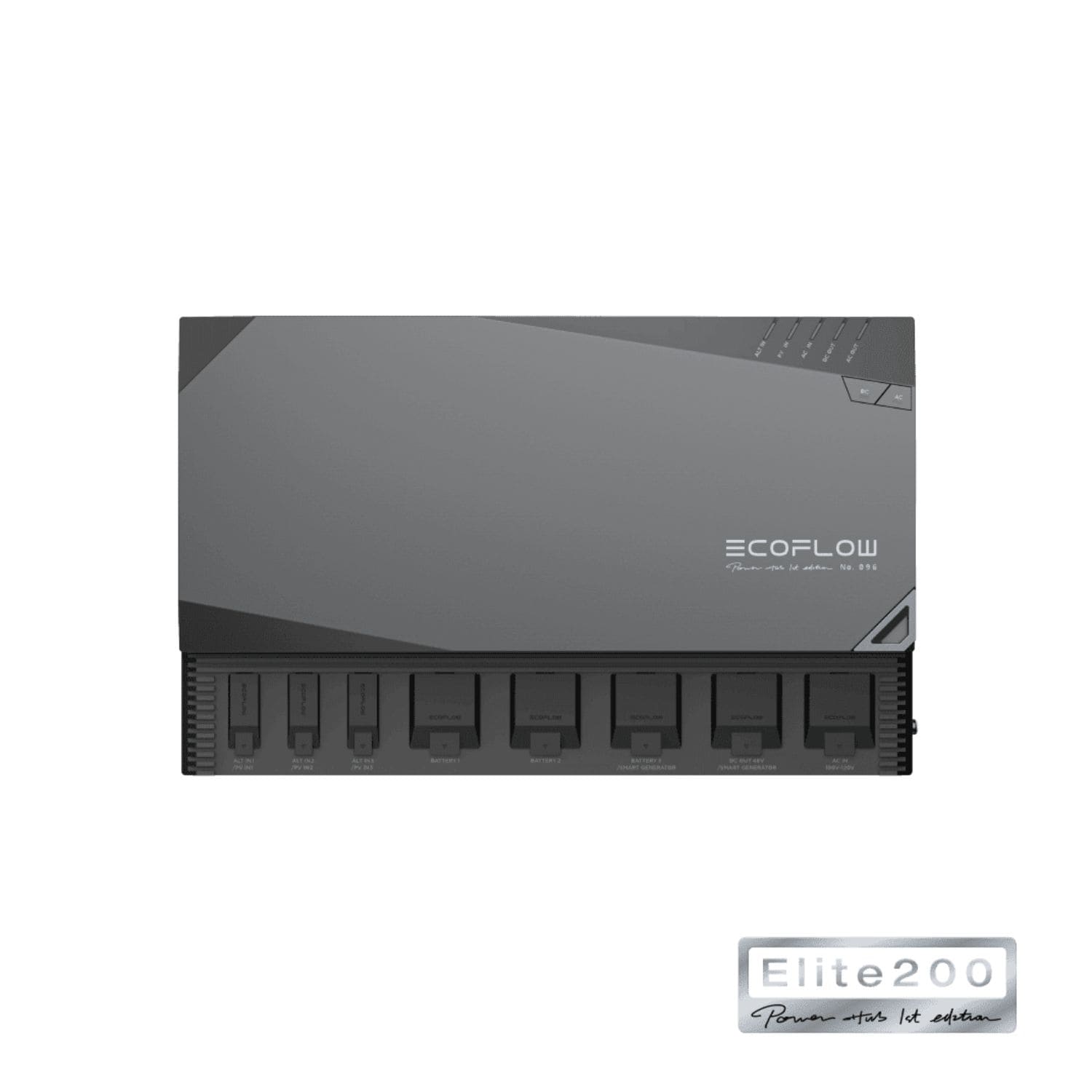

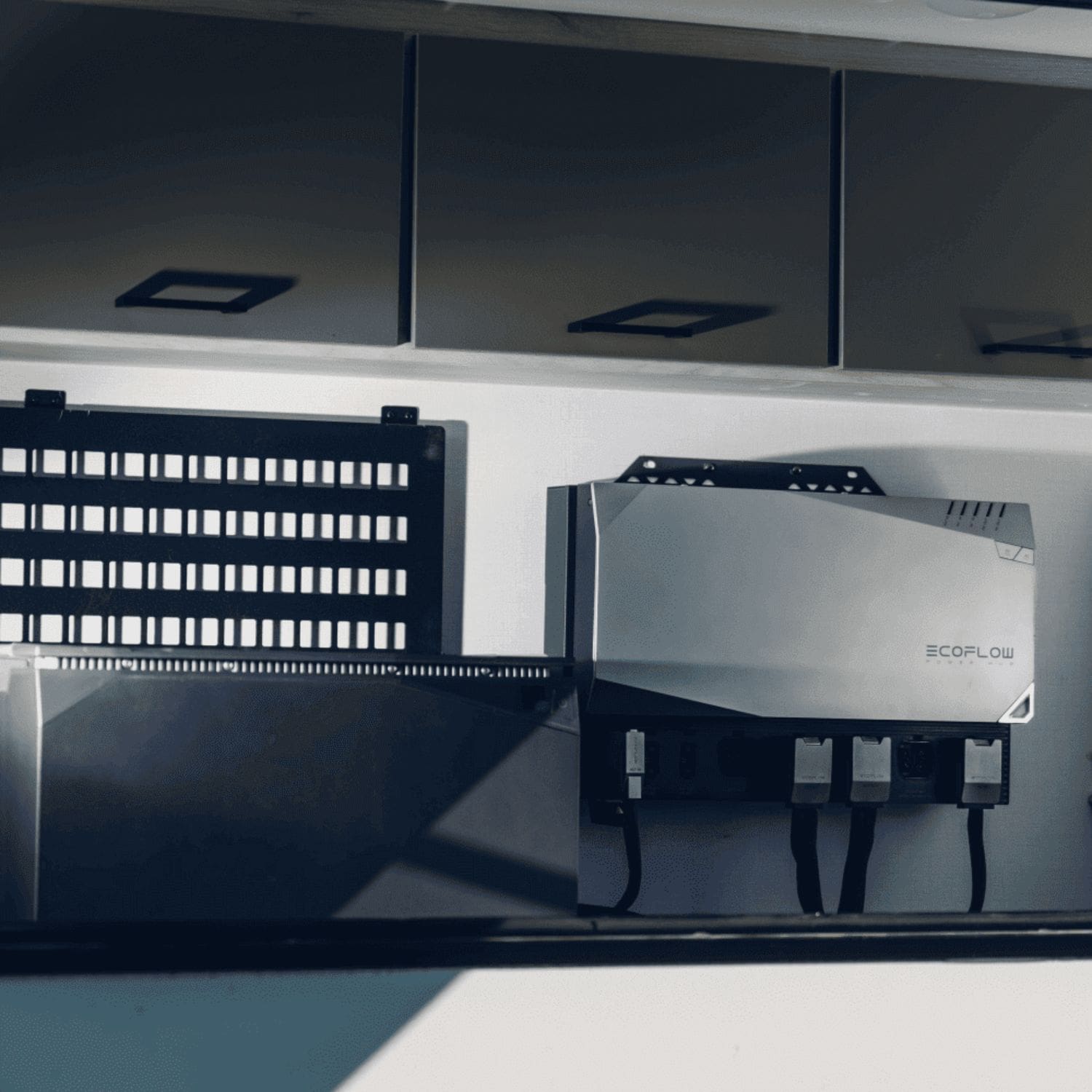

The EcoFlow 5kVA 48V Power Kits are an integrated, plug-and-play 48V power system for vans and motorhomes, built around the EcoFlow Power Hub 5kVA. The hub combines an inverter-charger, a DC-DC battery charger with MPPT, a DC-DC step-down converter and two MPPT solar charge controllers, and it delivers up to 4000W and 5000VA of AC output.
EcoFlow designs the system for everything from camper vans and pickups to Class A and Class C motorhomes, and its manual also covers marine use. This page offers the system as an Auto Kit, a 30A RV Kit or a 50A RV Kit, plus EcoFlow's 30A and 50A RV Kit with Console combos, which add the Power Kit Console and the battery capacity named in the option.
EcoFlow 5kVA 48V Power Kits Features
4000W of AC Output With X-Fusion Power Assist
The Power Hub 5kVA delivers 120V AC at up to 4000W and 5000VA, with 33.3A of continuous output and surge of 7500VA for 380ms, up to 10000VA. EcoFlow says the system can run two 13500 BTU RV air conditioners at the same time without a soft starter. When shore power falls short, X-Fusion runs the inverter in parallel with the grid for up to 5kVA of output.
Stack From 5kWh to 45kWh
The Power Hub connects up to three EcoFlow 2kWh or 5kWh LFP batteries directly. Add the EcoFlow Power Dock to its battery ports and the system supports up to 9 batteries, which EcoFlow puts at 5kWh to 45kWh of storage.
Solar and Alternator Charging on Three Ports

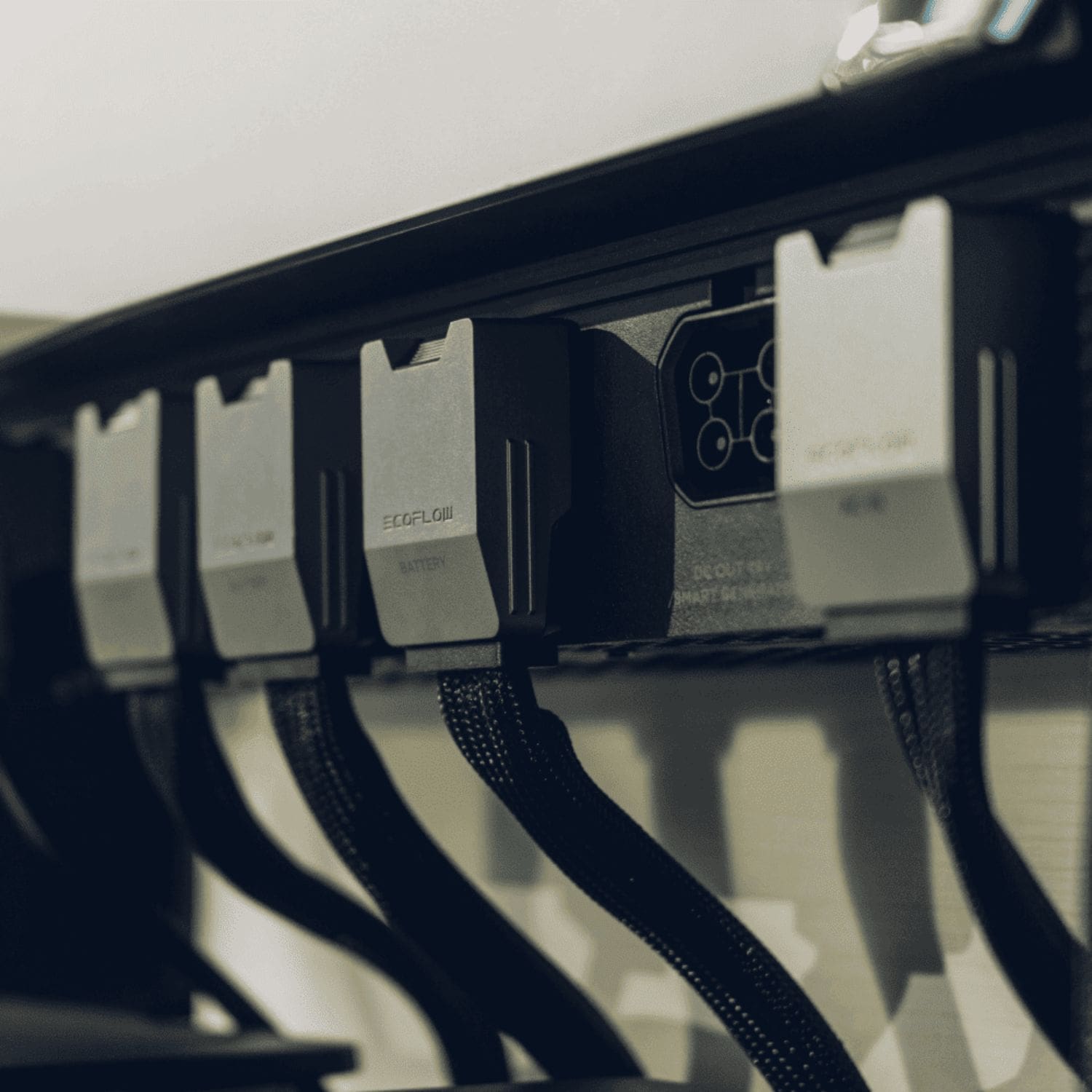

The three PV IN / ALT IN ports take 13-60V, rated at 4000W on port 1 and 1600W each on ports 2 and 3, and the hub identifies whether solar or an alternator is connected. EcoFlow says 4800W of solar fully charges a 5kWh battery in almost 1 hour. With your original and a second alternator, it quotes up to 6000W while you drive and a 10kWh system charged in 1.6 hours. The hub supports 12V, 24V and 48V alternator systems.
Shore Power and Generator Charging
The AC input works with 30A and 50A shore power inlets and accepts up to 4000W for charging. EcoFlow says a 4000W shore power charge tops up a single 5kWh battery in 1.25 hours, and an EcoFlow Smart Generator (Dual Fuel) at 3200W fully charges a 5kWh battery in 1.6 hours. The AC input also takes third-party generators. With several sources connected, the hub charges from solar first, then AC, the alternator and generator DC.
Automatic Switchover on Shore Power
With shore power connected and AC output on, the system runs in bypass mode, passing up to 50A through to your AC loads while shore power charges the batteries. If shore power drops, the system transfers to inverter power and restores AC output within 30 ms.
DC Power at 12V, 24V and 48V
The 12V/24V output supplies 13.6V at 100A (1360W max) or 26.4V at 60A (1584W max) to the AC/DC Smart Distribution Panel. A separate DC OUT 48V port provides up to 3168W for third-party 48V appliances. A USB-A port powers a GPS module or a 5V fan.
Smart Control and Battery Protection
Control the system in the EcoFlow app over Wi-Fi or Bluetooth, or on a 7-inch or 10-inch EcoFlow PowerInsight screen. With EcoFlow's 30/50A AC/DC Smart Distribution Panel, you can control all 16 DC branches from the app or PowerInsight. The LFP batteries use a CTC (cell-to-chassis) structure and EcoFlow's X-Guard BMS, which guards against low and high temperature, over-discharge, overcharge, short circuit and overcurrent.
Real-World Applications
Motorhomes. Run rooftop air conditioners, an induction cooker or an electric oven in a Class A or Class C motorhome, with up to 45kWh of storage.

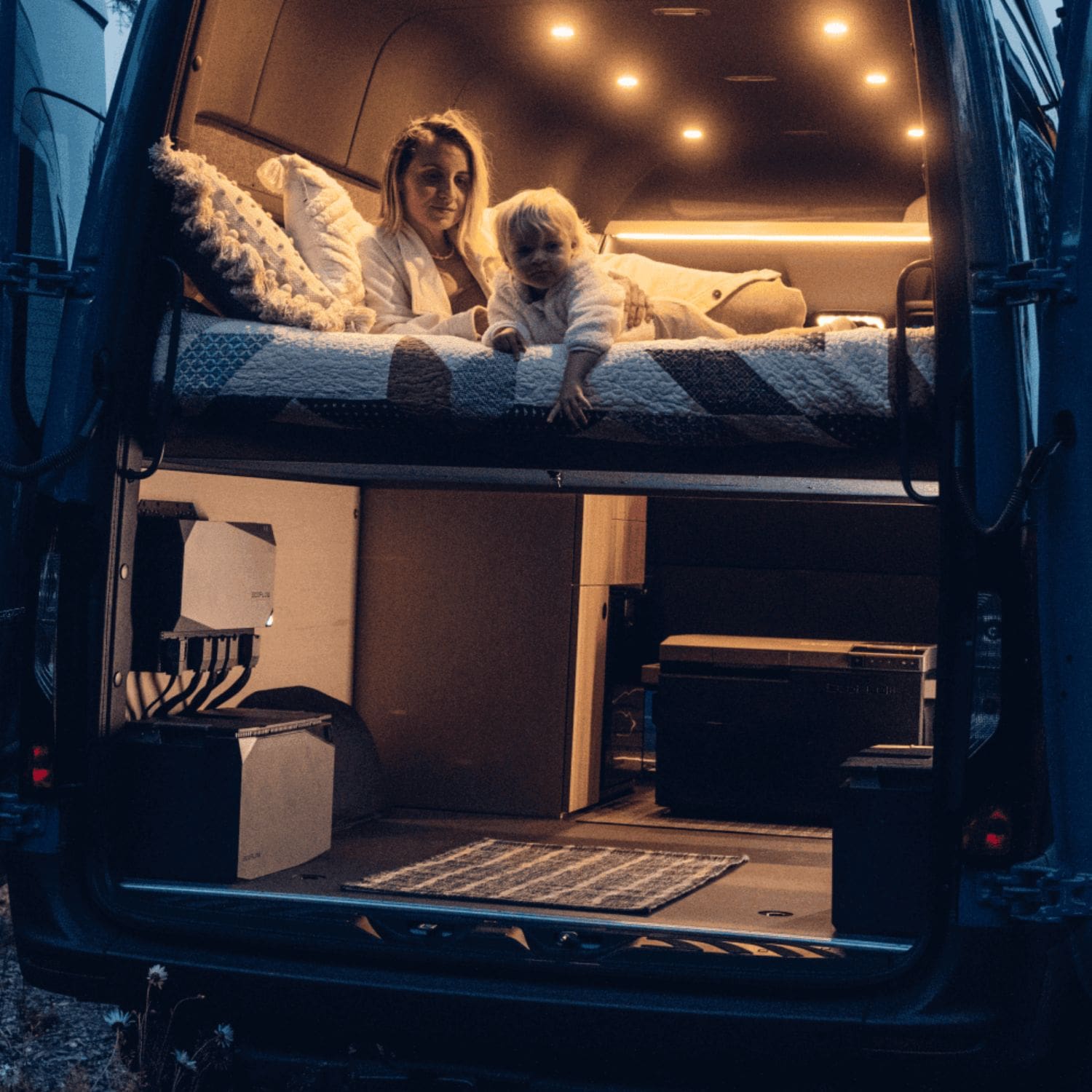

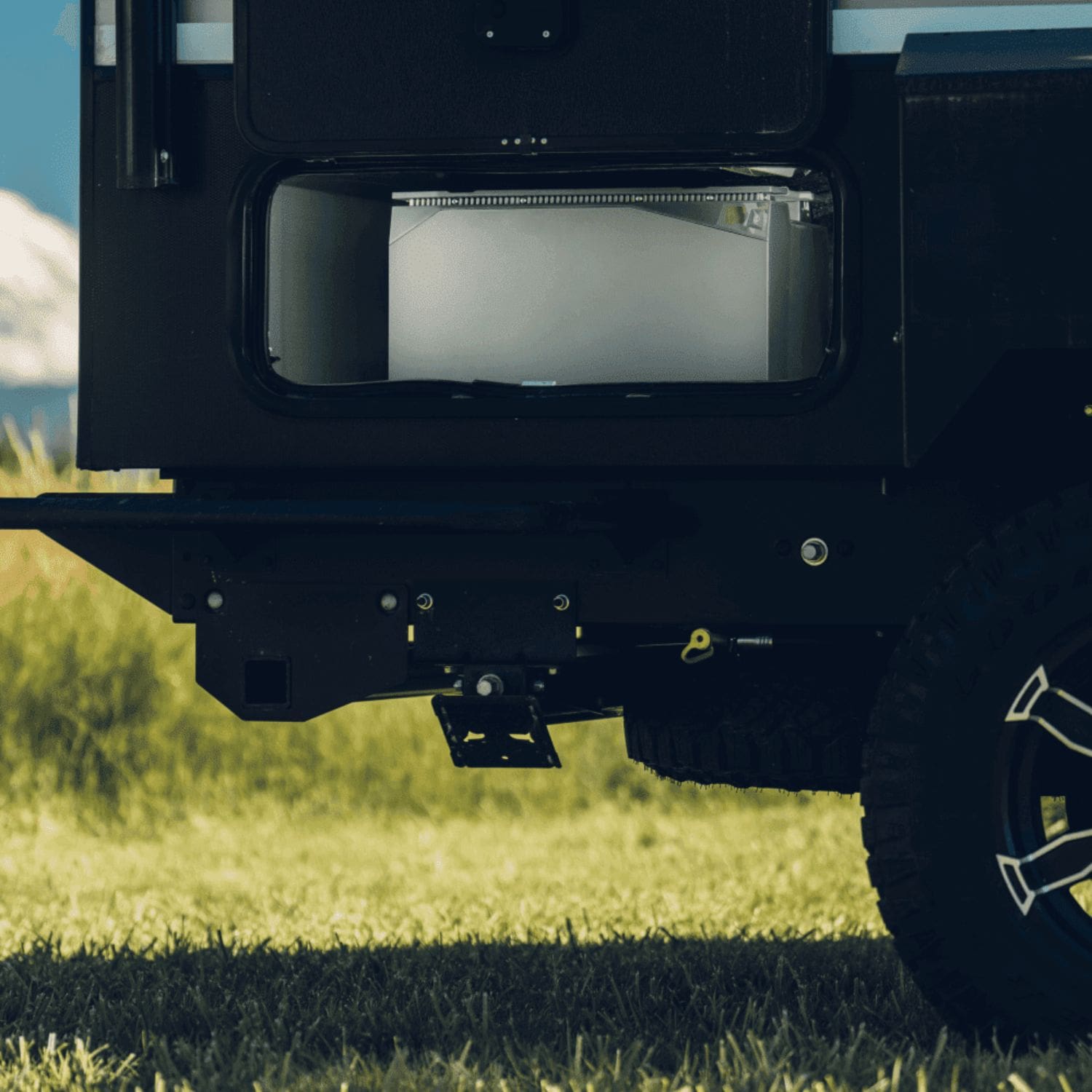

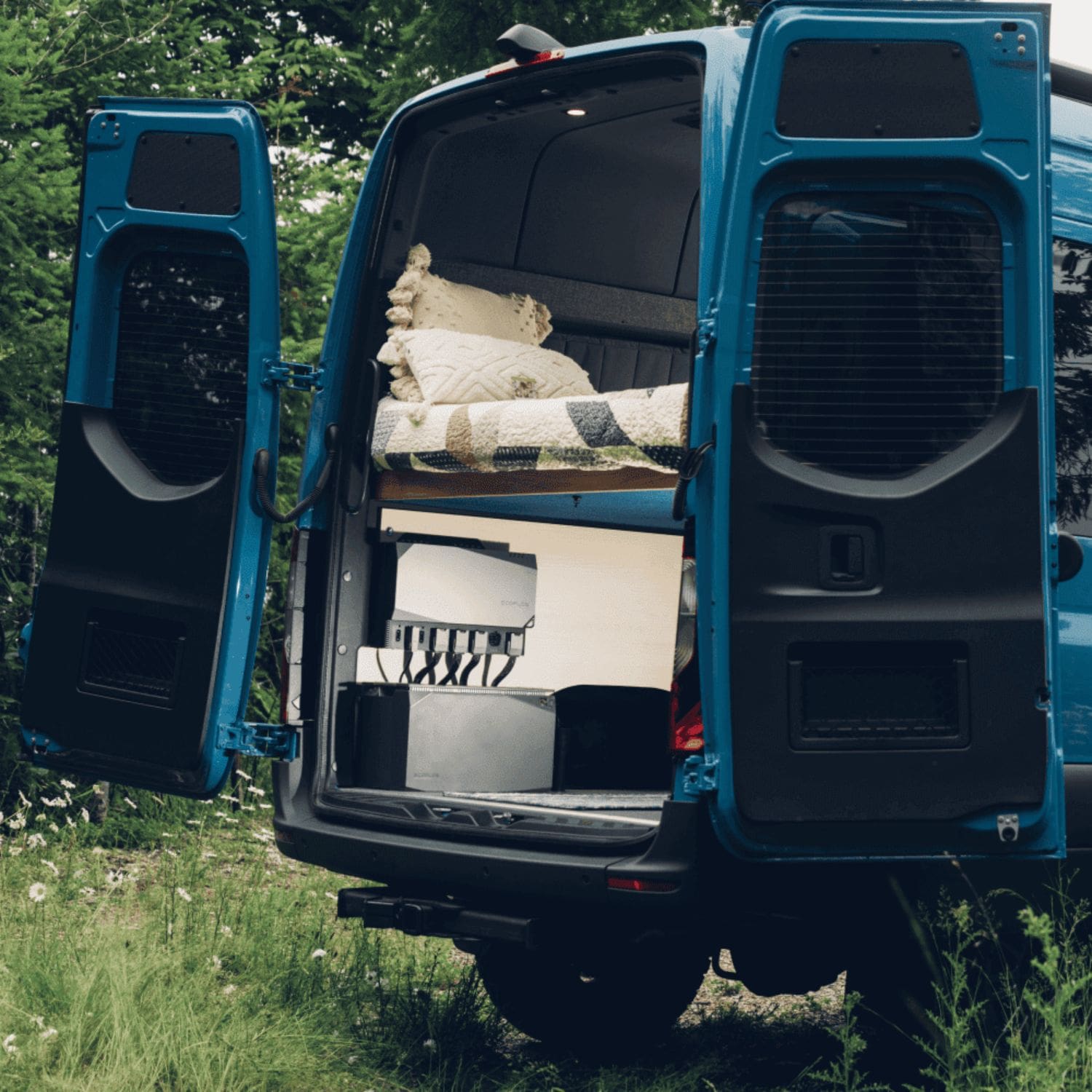

Camper vans and pickups. EcoFlow shows Power Kits installed in a Class B van and a pickup.
Campgrounds. Plug into a 30A or 50A shore power inlet, and let X-Fusion add inverter power when the shore supply can't keep up.
Boats. EcoFlow's manual describes the Power Kits system for RVs and marine systems.
How It Compares to Common Alternatives
Versus an on-board RV generator. An on-board generator burns fuel and needs routine maintenance. Power Kits store energy from solar, your alternator and shore power, and EcoFlow rates the system as quiet as 48 dB at 1 meter with a 60% load (2400W).
Versus separate components. A traditional build wires a separate inverter-charger, battery charger, step-down converter and solar charge controllers. The Power Hub 5kVA puts them in one unit.
Is This Power System the Right Fit
Professional installation. EcoFlow says installations must be carried out by certified and experienced professionals, not as a DIY project.
Placement. The hub is not waterproof and not ignition protected, so don't install it in a compartment with a gasoline engine or tank. In an enclosed space it needs an air inlet and outlet, with a fan at the inlet.
Cables and parts. EcoFlow notes that charge, main out and battery cables, a network cable, a BATTERY connector and a Smart Generator Adapter might need to be purchased separately. Check what your kit includes.
Size and weight. The Power Hub 5kVA weighs about 34.6 lb (15.7 kg) and measures 18.9 x 5.9 x 11.8 in.
Temperature. It charges and discharges from -13°F to 140°F (-25°C to 60°C) and derates above 104°F (40°C).
This may be a good fit if
You want to run high-draw RV appliances such as air conditioners
You plan to store 5kWh to 45kWh
You charge from solar, your alternator and shore power
You will have a qualified professional install it
Common Questions

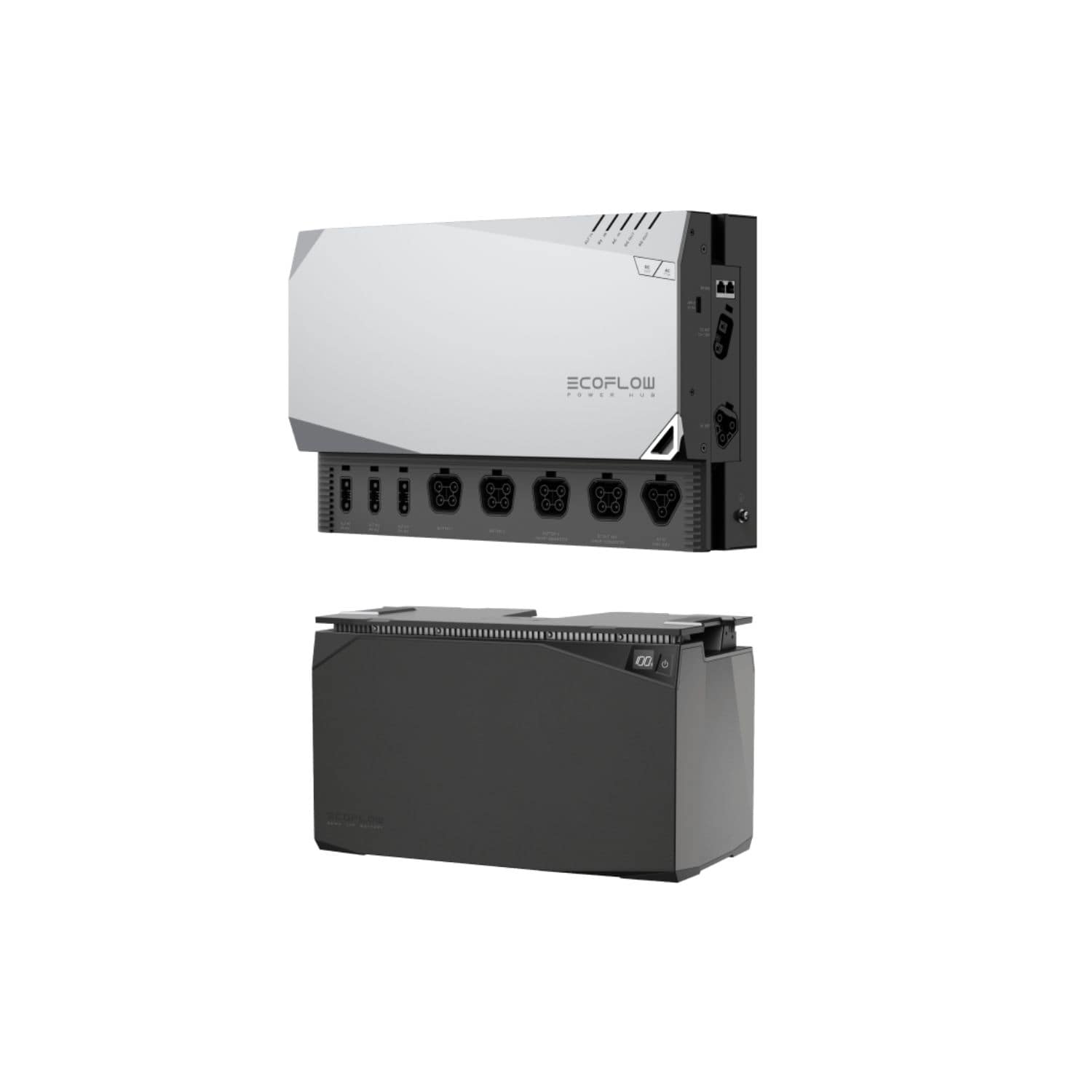

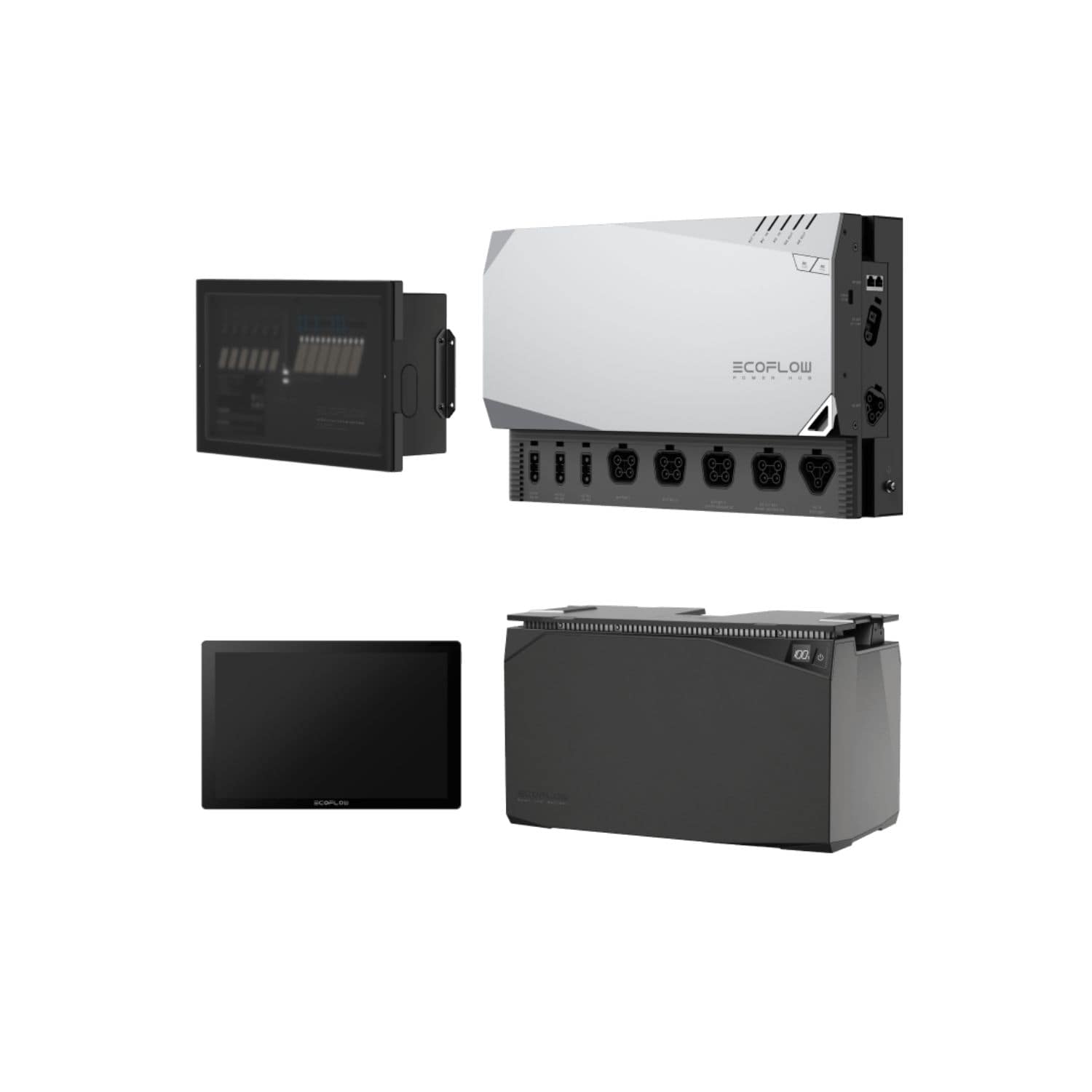

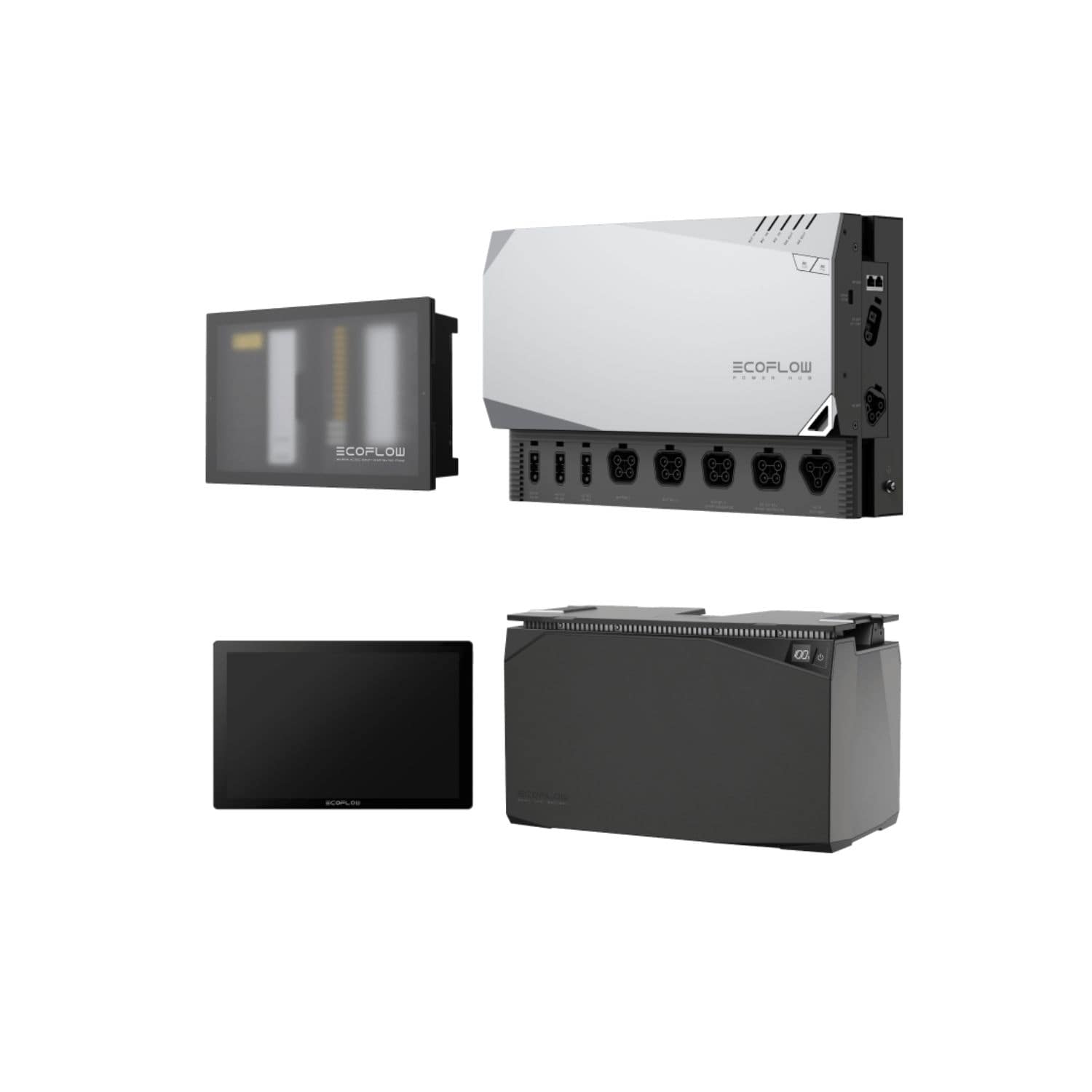

How Do the Auto Kit, 30A RV Kit and 50A RV Kit Differ?
Each option bundles a different set of Power Kits 5kVA components. The Power Hub works with both 30A and 50A shore power inlets. Ask the Outbound Power team to confirm what comes with the option you're considering.
What Are the Console Combos?
EcoFlow lists 30A RV Kit with Console combos at 4kWh, 6kWh, 7kWh, 8kWh, 10kWh and 15kWh, and 50A RV Kit with Console combos at 10kWh and 15kWh. Each pairs the RV kit with the EcoFlow Power Kit Console and the battery capacity in its name. EcoFlow does not publish a parts list for them, so ask our team before you order if you need the exact contents.
How Many Batteries Can I Connect?
The Power Hub connects three 2kWh or 5kWh LFP batteries directly. With the EcoFlow Power Dock, the system supports up to 9 batteries, which EcoFlow puts at up to 45kWh.
Will It Charge From My Alternator While Parked?
By default, a built-in mobility sensor lets the alternator charge the system only while the vehicle is moving. To charge while parked and idling, turn on Charge While Idling in the EcoFlow app or on the console.
Can I Install It on a Boat?
EcoFlow's manual covers marine use. It calls for a dry, stable location with room for heat to dissipate, no installation directly over lead-acid batteries, and overcurrent protection and battery switches that follow ABYC standards.
What Warranty Does It Have?
EcoFlow lists a 5-year comprehensive warranty for the Power Kits 5kVA system.
What's Included
1 x EcoFlow 5kVA 48V Power Kit (Auto Kit, 30A RV Kit or 50A RV Kit, depending on the option you choose)
Optional: EcoFlow Power Kit Console and the battery capacity named in the option (30A or 50A RV Kit with Console combos)
High-Output RV Power Without Generator Noise
The EcoFlow 5kVA 48V Power Kits pair a 4000W Power Hub with LFP storage you can stack from 5kWh to 45kWh and four ways to charge. If you have questions about which kit suits your van, motorhome or boat, the Outbound Power team is happy to help.
EcoFlow 5kVA 48V Power Kits Specifications
System
Options on This Page
Auto, 30A RV, 50A RV, 8 Console combos
System Voltage
48V
Storage Range
5kWh to 45kWh (up to 9 batteries)
Batteries Direct to Hub
Up to 3 (2kWh or 5kWh LFP)
More Than 3 Batteries
Via EcoFlow Power Dock
Noise
As low as 48 dB
Noise Condition
At 1 m with 60% load (2400W)
Power Hub Model
EF-PK-H05-1
AC Output
AC Output
120V~, 60Hz
Rated Output
4000W max, 5000VA max
Continuous Current
33.3A
Surge
7500VA for 380ms, 10000VA max
AC Output (Bypass Mode)
100-120V~, 50A max, 50/60Hz
X-Fusion (Power Assist)
33.3A, 5000VA max
Transfer to Inverter
Within 30 ms
DC and USB Output
DC Output 12V
13.6V, 100A, 1360W max
DC Output 24V
26.4V, 60A, 1584W max
DC Output 48V
40-57.6V, 55A, 3168W max
USB-A Output
5V, 2.4A max
EF BUS Output (x2)
12V, 1.2A total max
Total Output Power
8752W max
Charging Input
PV/Alternator Input 1
13-60V, 100A, 4000W max
PV/Alternator Inputs 2 and 3
13-60V, 30A, 1600W max per port
AC Input (Charge Only)
100-120V~, 4000W max, 50/60Hz
AC Input (Bypass Mode)
100-120V~, 50A max, 50/60Hz
Shore Power Inlets
30A and 50A supported
Alternator Systems
12V, 24V, 48V
Smart Generator (Battery 3)
40-57.6V, 100A max
Smart Generator (48V Port)
40-57.6V, 70A max
Battery Ports
Battery Ports
3
Charge
40-57.6V, 100A per port, 270A total max
Discharge
40-57.6V, 100A per port, 181A total max
Size and Weight
Power Hub Dimensions
18.9 x 5.9 x 11.8 in (480 x 151 x 300 mm)
Power Hub Weight
Approx. 34.6 lb (15.7 kg)
Environment
Charge Temperature
-13°F to 140°F (-25°C to 60°C)
Discharge Temperature
-13°F to 140°F (-25°C to 60°C)
Derating
Above 104°F (40°C)
Storage Temperature
-13°F to 158°F (-25°C to 70°C)
Operating Humidity
0-95% RH (non-condensing)
Altitude
Up to 2,000 m (6,562 ft)
IP Rating
IP20
Connectivity
Wireless
Wi-Fi (2.4GHz, 5GHz), Bluetooth
Control
EcoFlow app, PowerInsight 7-in or 10-in
Certifications
Power Hub Safety Standards
UL458, UL1012, UL1778
LFP Batteries
UL1973
Distribution Panel
UL67
Warranty
Warranty
5 years
