The EcoFlow Power Kit Console Puts Your Power Kit System on One Wall-Mounted 7-Inch Touch Screen
The EcoFlow Power Kit Console is a wall-mounted touch screen that monitors EcoFlow Power Kits in real time. From it you can switch the system's energy storage on or off, change settings and view usage data.
It suits anyone running an EcoFlow Power Kit who wants one fixed place to check battery level and power flow. It weighs about 1 lb with its bracket and measures 8 x 4.5 x 0.9 in.
EcoFlow Power Kit Console Features

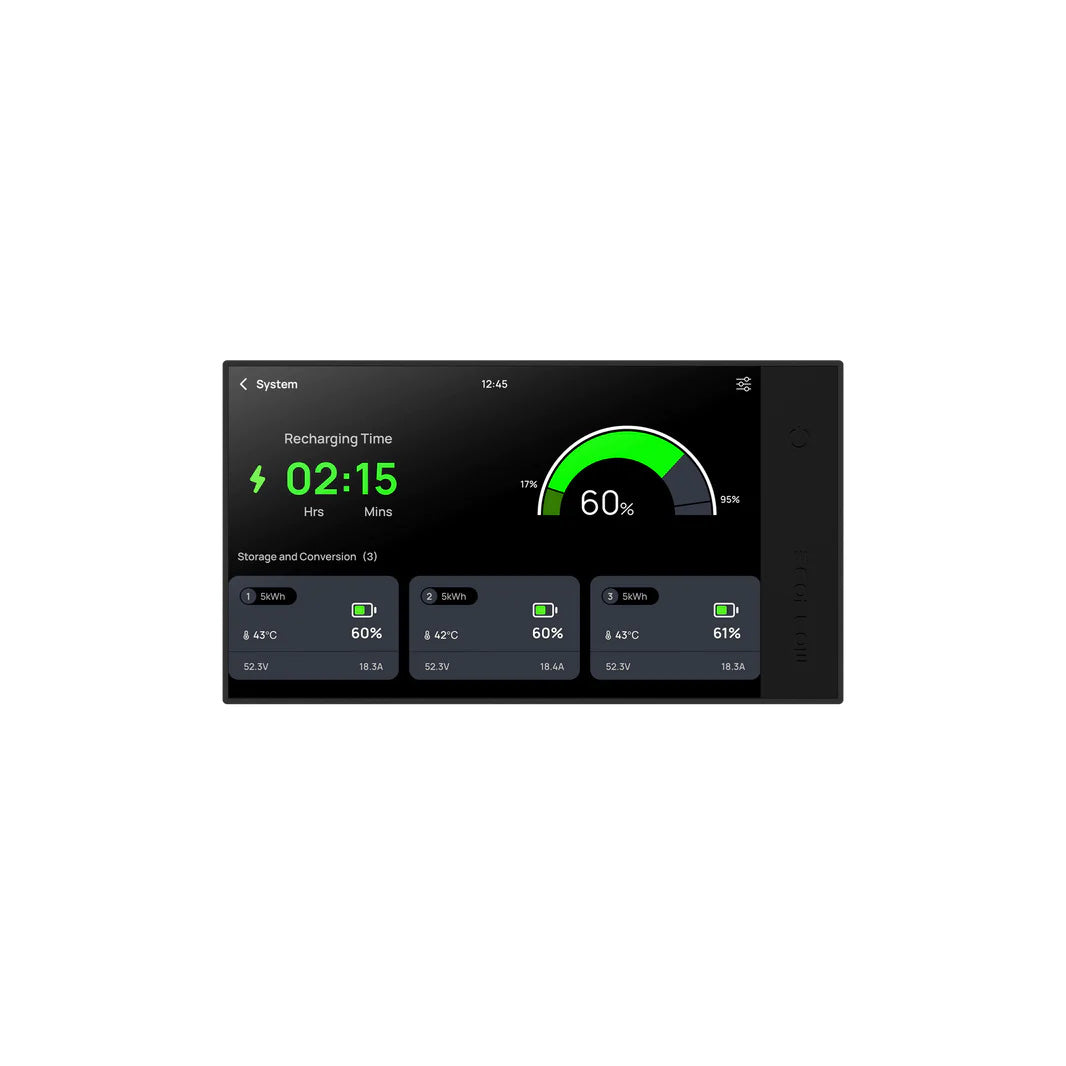

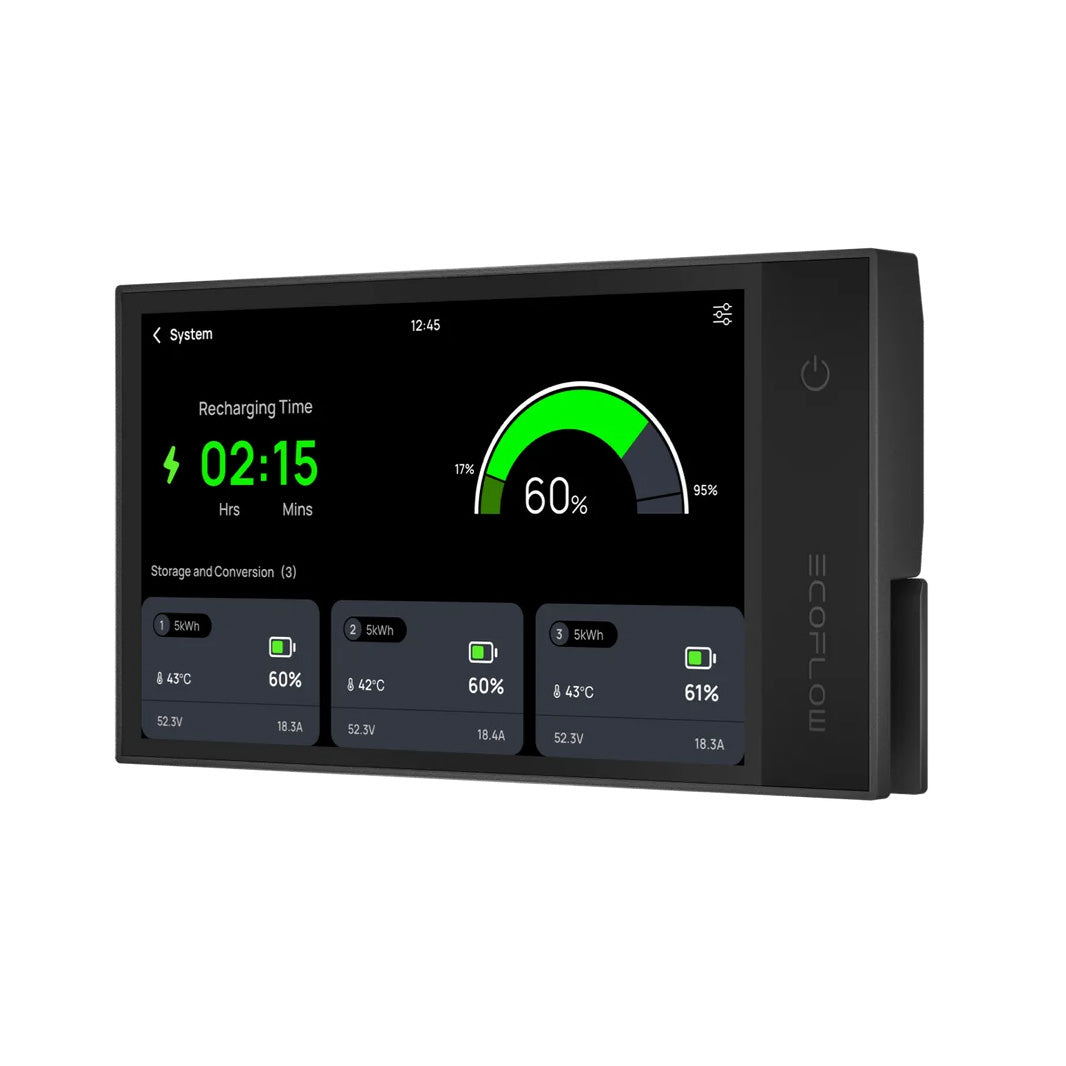

7-Inch IPS Touch Screen
The 7-inch (diagonal) IPS touch screen has a 1024 x 600 resolution. A short press of the power button turns the screen on or off, and a 3-second hold powers the console on or off.
Real-Time System Data
The screen shows battery level, remaining charging and discharging time, and input and output power, so you can see how much energy is left at a glance.
Control Outputs and Charge Limits
Switch the AC and DC outputs, set the DC output voltage, set the AC input and set the battery's discharge and charge limits. EcoFlow notes the software may vary slightly as functions are updated.
One Cable for Data and Power
The RJ45 CAN Bus port carries system communication and powers the console at 12V/1A, 12W max. The included 6 m (20 ft) cable lets you mount the console away from the main equipment.
Quick-Mount Bracket
The bracket fixes to the wall with adhesive or screws. Plug in the cable, line up the console's buckles with the bracket slots and slide it down into place.
USB Ports and Wi-Fi Updates
The USB-C port accepts 5V/2A as a backup power supply or for a software upgrade, and the USB-A port supplies 5V/1A for some USB peripherals such as a MiFi module. Software updates install over Wi-Fi from the Settings menu.
Real-World Applications
Daily status checks. See battery level, remaining time and power flow from where the console is mounted.
Battery care. Set discharge and charge limits so the battery works within the range you choose.
Switching loads. Turn the AC and DC outputs on or off from the screen.
Mobile internet. Power a MiFi module from the USB-A port.
How It Compares to Common Alternatives
Versus checking a phone. A phone has to be in your hand and connected. The console stays mounted and wired to the system, so the data is there whenever you wake the screen.
Versus a basic battery monitor. A basic monitor shows battery status. The console also switches outputs and sets charge limits for the whole Power Kit system.
Is This Console the Right Fit
-
Power Kit accessory. It monitors and controls EcoFlow Power Kits and is not a power source.
-
Fixed installation. Mount the bracket horizontally on a wall in a dry, well-ventilated place, with the power off.
-
Temperature. It operates at -4°F to 122°F (-20°C to 50°C). Avoid high humidity, strong magnetic fields and strong static electricity.
-
Cable standard. Replace a failed cable with a network cable that meets the connection standard.
This may be a good fit if
- You run an EcoFlow Power Kit system
- You want a fixed screen for battery and power data
- You want to switch outputs and set charge limits by touch
Common Questions
How Is the Console Powered?
It takes 12V power through the RJ45 CAN Bus port, the same cable that carries system data. The USB-C port can serve as a backup power supply.
How Do I Update the Software?
Tap the Settings icon at the top right of the home page, connect to Wi-Fi, check for online updates and tap Upgrade.
What If the Console Can't Read System Data?
Upgrade all system modules to the latest version and check the network cable. Replace it with one that meets the connection standard if it has failed.
What's Included
- 1 x EcoFlow Power Kit Console
- 1 x Bracket
- 1 x Adhesive
- 4 x M4*16 Screws (2 for Installation, 2 Spare)
- 1 x RJ45 CAN Bus Cable (6 m / 20 ft)
- 1 x User Manual
Clear Control of Your Power Kit System
The EcoFlow Power Kit Console gives your Power Kit a mounted touch screen for live battery data, output switching and charge limits over one RJ45 CAN Bus cable. If you have questions about where to mount it, the Outbound Power team is happy to help.
EcoFlow Power Kit Console Specifications
|
| General |
| Model |
EFM100-MT |
| Works With |
EcoFlow Power Kits |
| Display |
| Screen |
7 in (diagonal) IPS touch screen |
| Screen Size |
154.2 x 85.9 mm (6 x 3.4 in) |
| Screen Resolution |
1024 x 600 |
| Touch Control |
Supported |
| Ports and Power |
| RJ45 CAN Bus Port |
DC input, 12V/1A, 12W max |
| USB-C Port |
DC input, 5V/2A, 10W max |
| USB-C Use |
Backup power supply or software upgrade |
| USB-A Port |
DC output, 5V/1A, 5W max |
| Included Cable |
RJ45 CAN Bus, 6 m (20 ft) |
| Software Updates |
Online, over Wi-Fi |
| Size and Weight |
| Dimensions |
204.5 x 113.3 x 22.3 mm (8 x 4.5 x 0.9 in) |
| Net Weight |
450 g (1 lb), bracket included |
| Installation |
| Mounting |
Fixed, with included bracket |
| Bracket Fixing |
Adhesive or M4*16 screws |
| Bracket Position |
Horizontal, on a wall |
| Location |
Dry, well-ventilated |
| Environment |
| Operating Temperature |
-4°F to 122°F (-20°C to 50°C) |
| Compliance |
| Certifications |
CE, UL, FCC |
| FCC Rules |
Part 15 |
