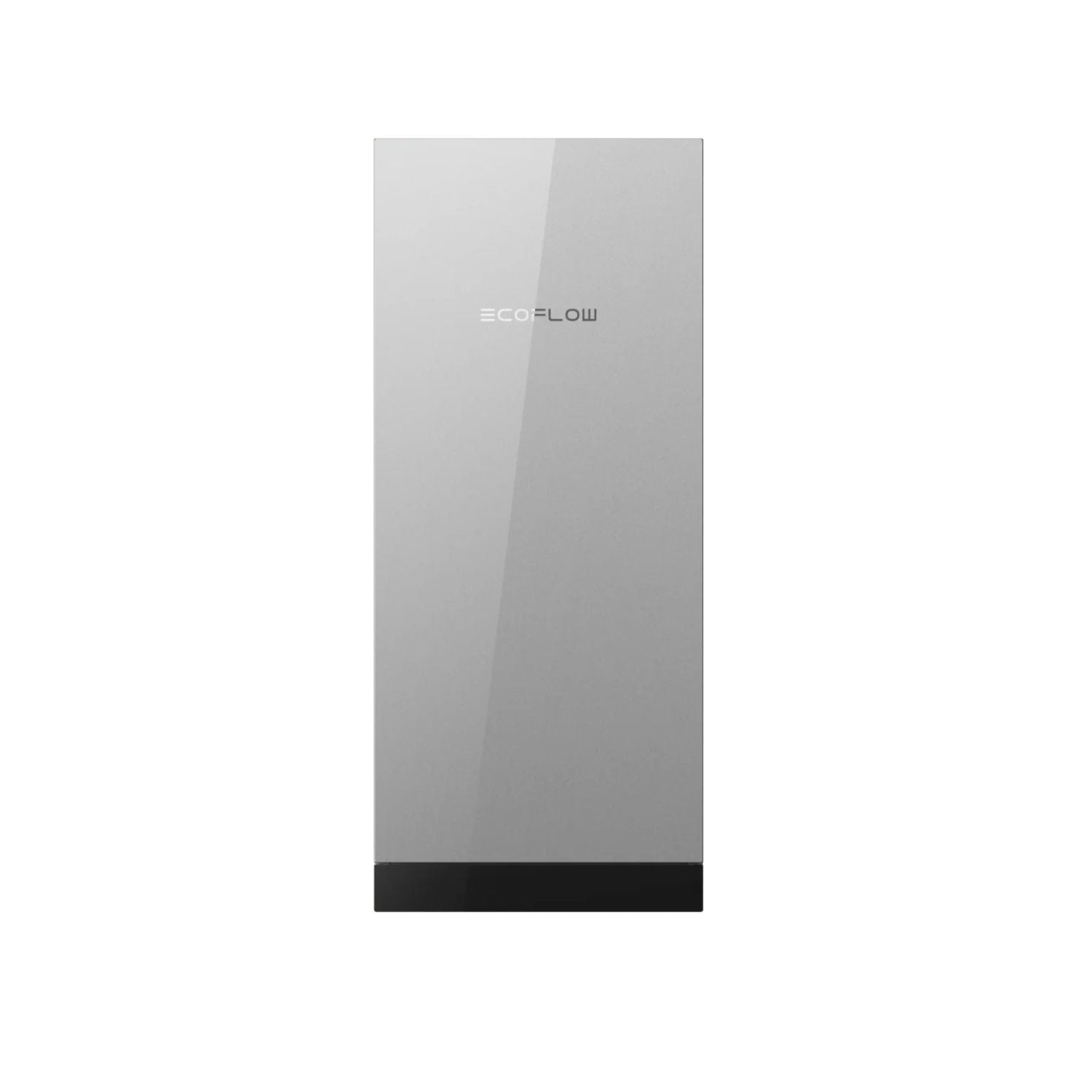

The EcoFlow Smart Gateway Keeps Most of Your Home Running on Battery Power With a 200A Transfer Switch
The EcoFlow Smart Gateway (200A) is a smart transfer switch for home backup. Its 200A relay keeps most household appliances running through your existing main panel during an outage, and its 6 smart circuits can shut off non-essential, high-power loads automatically to stretch your backup time. The included Smart Inlet Box connects up to three DELTA Pro Ultra or DELTA Pro Ultra X units, plus a generator.
It suits homeowners who want backup for most of the house while keeping their existing main panel. EcoFlow says whole-home power is available only when the Smart Gateway is paired with the DELTA Pro Ultra X, and the gateway requires a professional installation.
EcoFlow Smart Gateway Features
200A Relay for Most Household Loads

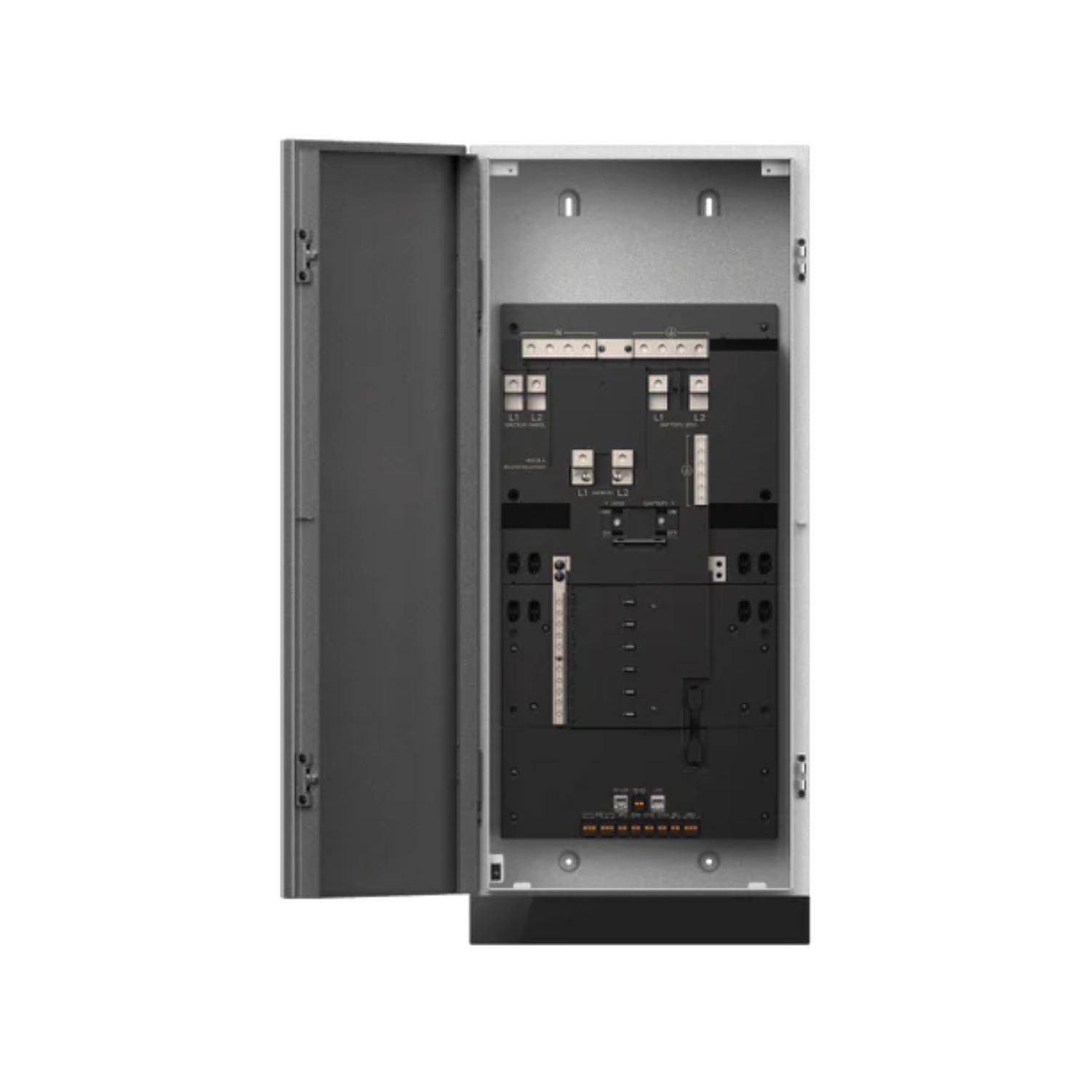

One 200A relay connects the gateway to your main panel, so most household loads stay powered during a blackout. The gateway accepts 120/240V split-phase service with up to 160A continuous on the grid lugs, a 200A maximum overcurrent device and a 240A busbar.
6 Smart Circuits for High-Power Loads
EcoFlow recommends the 6 smart circuits for non-essential, high-power loads. Set each one to Grid, which always stays on grid power, or Auto, which switches to battery by priority in an outage. If the battery is overloaded, some Auto circuits switch back to grid power one by one, by priority.
20ms Switchover With the DELTA Pro Ultra X
With EPS (Emergency Power Supply) mode on, the system switches to battery power within 20ms. EPS mode is available only with the DELTA Pro Ultra X; with EPS mode off, the switch takes about 5 seconds. EcoFlow bases the switchover time on lab testing and says it varies with wiring, load type and installation.
Smart Inlet Box for Up to Three Power Stations

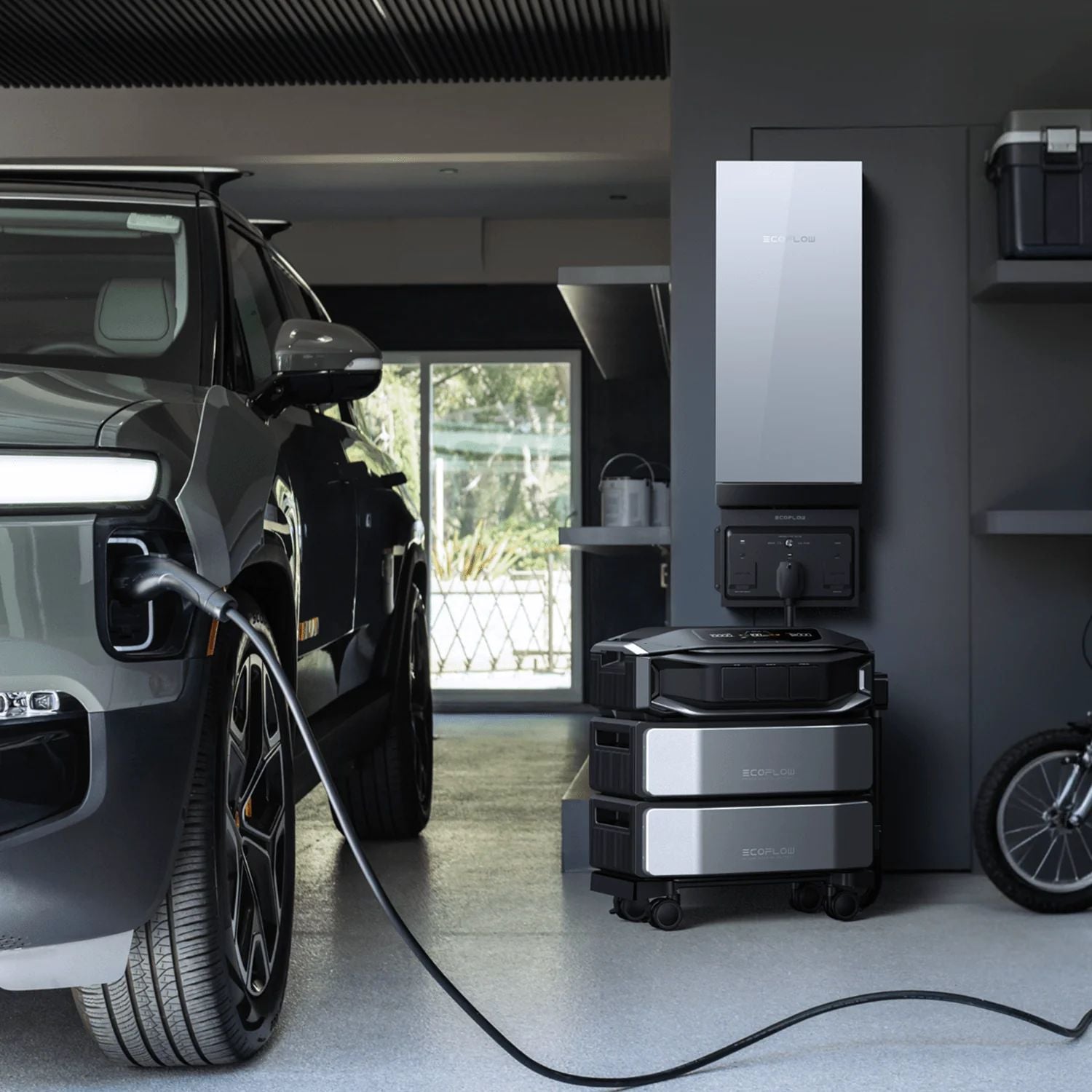

The included Smart Inlet Box has three 5P8 power ports, an emergency stop button and status lights, and it can sit up to 98 ft (30 m) from the gateway. Up to three DELTA Pro Ultra or DELTA Pro Ultra X units, including mixed models, plug into it. Their own AC outlets are disabled while connected.
Generator and Solar Ready
Connect a 240V split-phase generator to the inlet box's generator port to power your home and charge your batteries at the same time, after a self-check of about 25 seconds. With a current transformer, the gateway tracks rooftop solar output and sends surplus solar to your DELTA Pro Ultra X. EcoFlow notes that solar integration varies with your inverter, wiring and installer setup.
Priorities, Storm Guard and Savings Modes
Sort circuits into Must Have, Nice to Have and Non-Priority. Storm Guard charges your batteries to 100% when severe weather is forecast within 24 hours. TOU, Self-Powered and Scheduled Tasks modes manage the battery above a backup reserve level you set (50% by default).
Rainproof Enclosure for Indoor or Outdoor Mounting

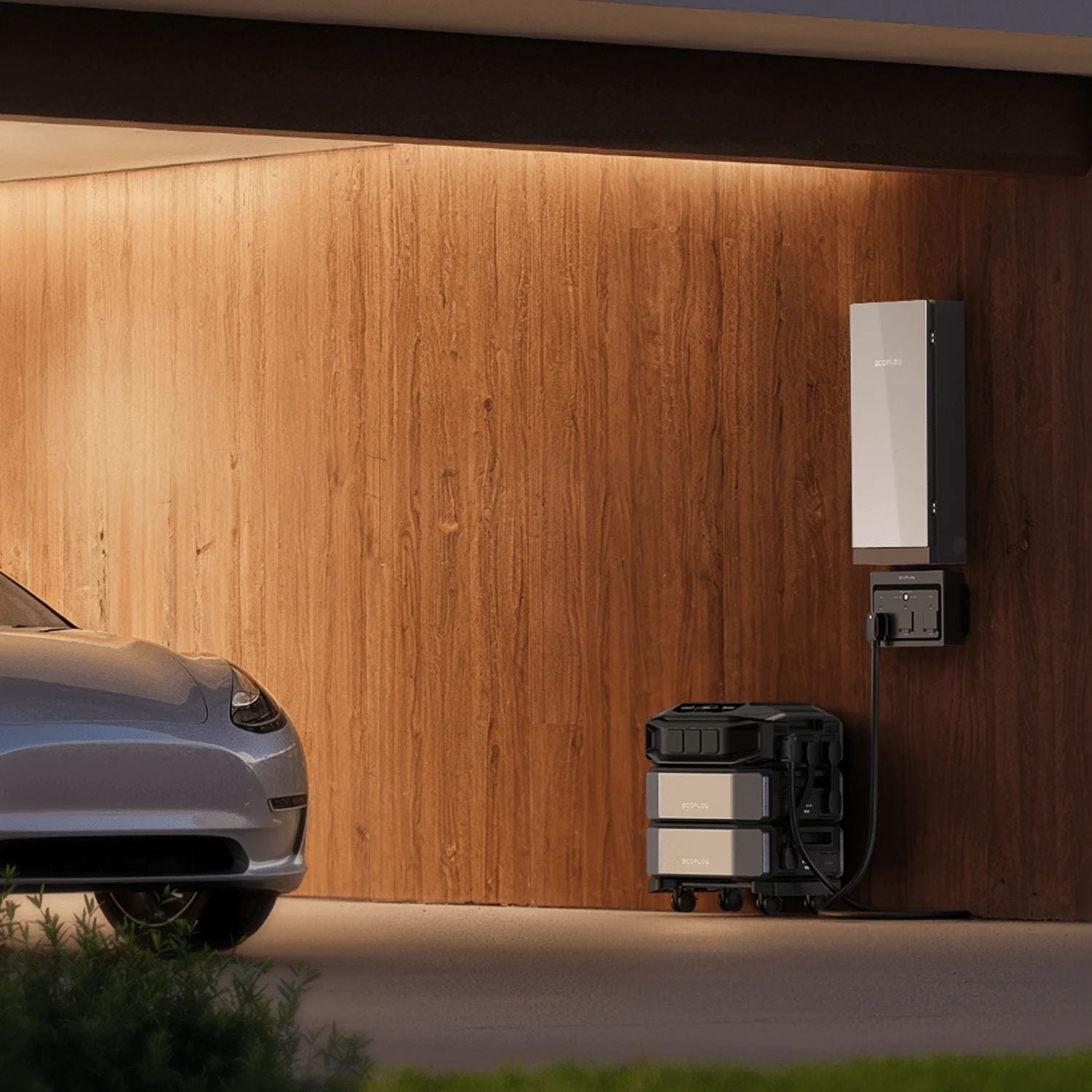

The gateway has a NEMA 3R rainproof enclosure for indoor or outdoor surface mounting and operates from -22°F to 122°F. The Smart Inlet Box has a NEMA 1 enclosure and installs indoors near the batteries.
Real-World Applications
Backup without a panel swap. Keep your main panel and let the gateway's 200A relay carry most household loads during an outage.
Longer runtime from the same batteries. Put non-essential, high-power loads on the smart circuits so they turn off automatically when the grid goes down.
Time-of-use rate plans. TOU mode builds a daily strategy from solar output, household use and electricity prices, storing energy when it costs less and powering the home when it costs more.
Generator backup. Add a split-phase generator rated 3kW to 12kW to keep the house running and the batteries charging through a long outage.
How It Compares to Common Alternatives
Versus a manual transfer switch. A manual switch needs someone at home to change over during an outage. The Smart Gateway switches on its own and lets you manage circuits from the EcoFlow app.
Versus replacing your main panel with a smart panel. A full smart panel gives circuit-by-circuit control of every breaker. The Smart Gateway connects to your existing main panel through its 200A relay and controls 6 circuits directly.
Is This Transfer Switch the Right Fit
-
Professional installation. EcoFlow says only qualified electrical personnel may install and service the gateway and Smart Inlet Box, so plan on a licensed electrician, a site survey and a permit.
-
Breakers not in the box. The installer supplies a 100–200A main breaker, plug-in branch breakers up to 100A, wiring and CAT6 cable.
-
Compatible power stations. It connects to the DELTA Pro Ultra and DELTA Pro Ultra X, up to three units. EPS mode needs the DELTA Pro Ultra X.
-

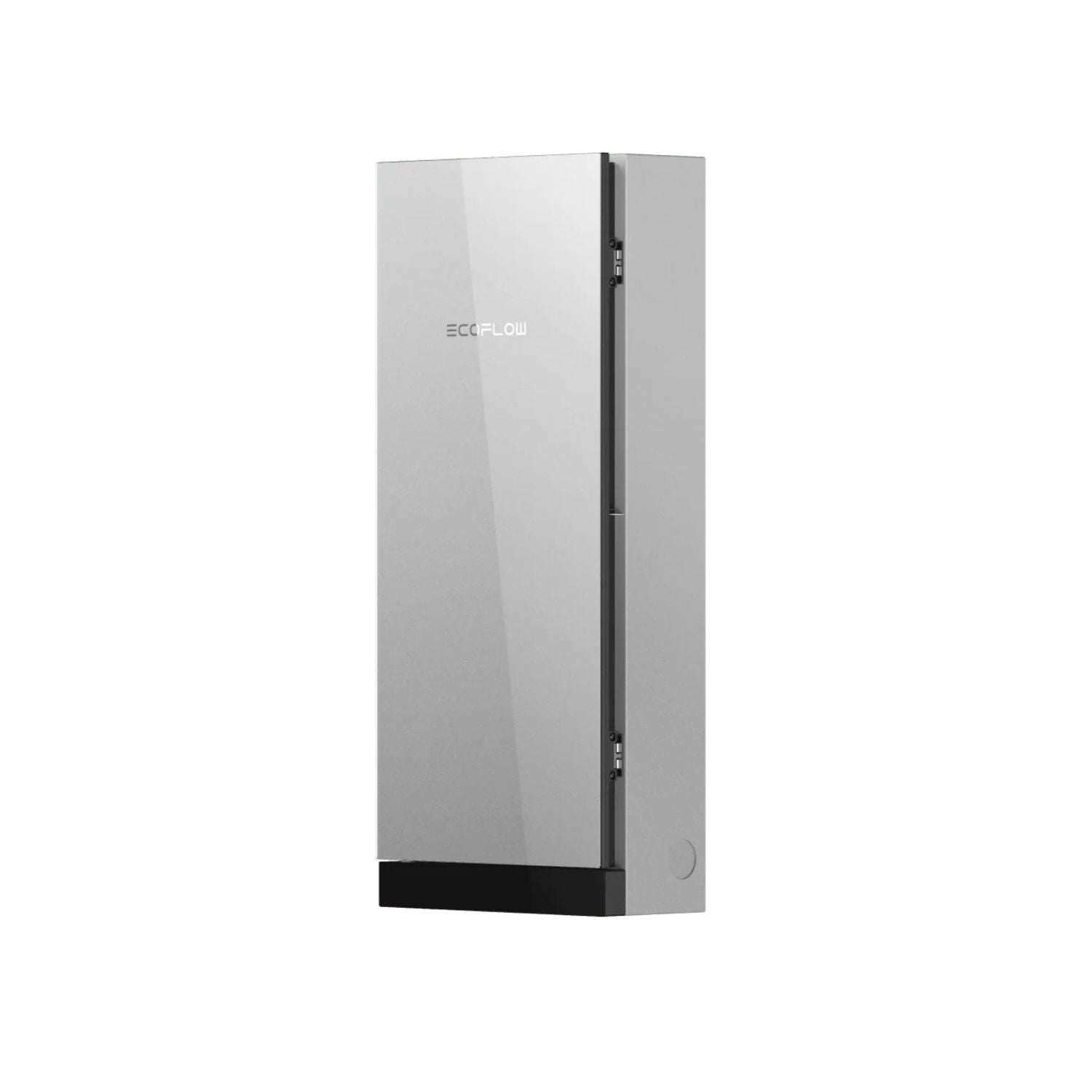

Size and weight. It measures 35.63 x 15.16 x 7.40 in and weighs 65.5 lb (29.7 kg). It is for surface mounting only.
-
Medical equipment. Do not connect life-support or medical equipment to circuits that can be switched remotely.
This may be a good fit if
- You want backup for most of your home and plan to keep your main panel
- You own or plan to buy a DELTA Pro Ultra X
- You have a few high-power loads you can shed in an outage
- You want a split-phase generator input
Common Questions
Which Circuits Should Go on the 6 Smart Circuits?
EcoFlow recommends non-essential, high-power devices, so they can switch off automatically in an outage and extend your backup time. Plan each circuit's mode before installation, because Scheduled Tasks works only on circuits set to Auto.
Can It Be Used as Service Equipment?
Yes. EcoFlow lists it as suitable for use as service equipment, except in Canada. It can also work as a subpanel once the installer removes the neutral-ground bond.
Which Generators Can I Connect?
A 240V split-phase generator. EcoFlow says it tested the gateway with mainstream portable and standby generators rated up to 12kW, and results vary by model and wiring. Generators with a bonded neutral need the bond removed first.
What Warranty Does It Have?
EcoFlow lists a 10-year warranty for the Smart Gateway.
What's Included
- 1 x EcoFlow Smart Gateway (200A), Door and Deadfront Cover Packed Separately
- 1 x EcoFlow Smart Inlet Box
- 1 x EcoFlow Smart Inlet Box Connection Cable (5P8 Port to 5P8 Port)
- 1 x Mark-Off Template
- 1 x Breaker Hold-Down
- 9 x Screws ST5.5x32 mm
- 4 x Screws M3x8 mm
- 1 x Screw PT4x10 mm
- 2 x Waterproof Sealing Stickers
Simple, Automatic Backup for Most of Your Home
The EcoFlow Smart Gateway pairs a 200A transfer relay with 6 smart circuits, automatic switchover and a generator input for your DELTA Pro Ultra X or DELTA Pro Ultra system. If you have questions about compatibility or planning your installation, the Outbound Power team is happy to help.
EcoFlow Smart Gateway Specifications
|
| Electrical |
| Model |
EF-ATS-001 |
| Transfer Relay |
200A |
| Rated Input Voltage |
120/240V split phase |
| Rated Input Voltage (3-Phase) |
208Y/120V, 3W (from 3-phase 4W) |
| Rated Frequency |
60Hz |
| Grid Connection |
L1/L2/N/GND |
| Max Continuous (Grid Lugs) |
160A |
| Max OCPD (Grid) |
200A |
| Max Continuous (Battery Lugs) |
150A |
| Busbar Rating |
240A |
| Max Short-Circuit Current |
22kA rms |
| Circuits and Connections |
| Smart Circuits |
6 x 60A |
| Circuits, Inputs Connected |
2 x 80A, plus 4 x 60A loads |
| Branch Input Rating |
80A max continuous (100A OCPD) |
| Branch Output Rating |
60A max continuous (80A OCPD) |
| Circuit Modes |
Grid or Auto |
| Switchover Time (EPS On) |
Within 20ms |
| EPS On Switchover Condition |
DELTA Pro Ultra X only |
| Switchover Time (EPS Off) |
About 5 seconds |
| Smart Inlet Box Ports |
3 x 5P8 (one for generator input) |
| Communication |
Bluetooth, WLAN, Ethernet, CAN, RS485 |
| Compatibility |
| Power Stations |
Up to 3 units |
| Compatible Models |
DELTA Pro Ultra or DELTA Pro Ultra X |
| Mixed Models |
Allowed |
| Generator |
240V split phase, 3-12kW |
| Rooftop Solar |
Tracking with current transformers |
| Rooftop Solar Ports |
CT-L1, CT-L2 |
| Main Breaker (Not Included) |
Eaton CSR, 100-200A |
| Branch Breakers (Not Included) |
Plug-in, up to 100A, AFCI/GFCI supported |
| Installation |
| Use |
Service equipment (except in Canada) or subpanel |
| Mounting |
Surface only |
| Gateway Enclosure |
NEMA 3R, rainproof (indoor or outdoor) |
| Smart Inlet Box Enclosure |
NEMA 1 (indoor) |
| Max Inlet Box-Gateway Distance |
98 ft (30 m) |
| Installer |
Qualified electrical personnel only |
| Certifications |
UL 67, UL 869A, UL 916, UL 1741 |
| Environment |
| Operating Temperature |
-22°F to 122°F (-30°C to 50°C) |
| Storage Temperature |
-22°F to 122°F (-30°C to 50°C) |
| Operating Humidity |
Up to 100% RH, condensing |
| Max Operating Altitude |
9,842 ft (3,000 m) |
| Size and Weight |
| Dimensions |
35.63 x 15.16 x 7.40 in (905 x 385 x 188 mm) |
| Net Weight |
65.5 lb (29.7 kg) |
| Warranty |
| Warranty |
10 years |
