EMP Shield 24 Volt DC Protection Guards Your 24V Charge Controller, Inverter or Battery Bank Against EMP and Lightning Surges
The DC-24V-W is a single-circuit unit from EMP Shield's DC series, built for 24 volt equipment. EMP Shield made it for inverters or charge controllers with an operational range of 24 volts, and its battery instructions also cover 24V battery systems. Three leads connect it across the DC circuit you want to protect.
It is meant for people who make and store their own DC power. EMP Shield names a standalone solar system, an off-grid cabin, a battery bank and a mobile power setup as the kinds of systems its DC line is for. If your setup is built around 24 volts, this is the voltage point that matches it.
EMP Shield 24 Volt DC Protection Features
Matched to 24V Controllers, Inverters and Batteries
EMP Shield sells its DC models at set voltage points, and this one sits at 24V. You can pair it with a 24V charge controller or inverter, or connect it to a 24V battery system. The front label spells out the wiring as +24VDC red, -24VDC black and GND green.
Three Protection Modes on One Circuit
EMP Shield lists positive-to-negative, positive-to-ground and negative-to-ground protection for its DC units. A surge is covered whether it appears between the two DC conductors or between either conductor and ground.
228kA Surge Capacity per Phase
EMP Shield rates the DC series for a 228kA surge capacity per phase and a nominal discharge current (In) of 114kA per circuit.
Shunts Over-Voltage in Less Than One Nanosecond
EMP Shield says the unit detects an over-voltage event and begins shunting the excess energy in less than one nanosecond. It calls this SightSpeed technology. That energy is moved away from your controller, inverter and batteries.
EMP, Solar Flare and Lightning Protection per EMP Shield
EMP Shield says its DC units cover all three phases of an EMP (E1, E2 and E3), CMEs or solar flares, lightning and power surges. According to EMP Shield, testing took place at Keystone Compliance against MIL-STD-188-125-1, MIL-STD-464C, MIL-STD-461G and RS-105, with field levels of 50 kV/m and 90 kV/m. Keystone does not personally endorse any products, EMP Shield notes. EMP Shield adds that the Department of Homeland Security has listed its products in an EMP resilience report.
IP66-Rated for Outdoor Mounting

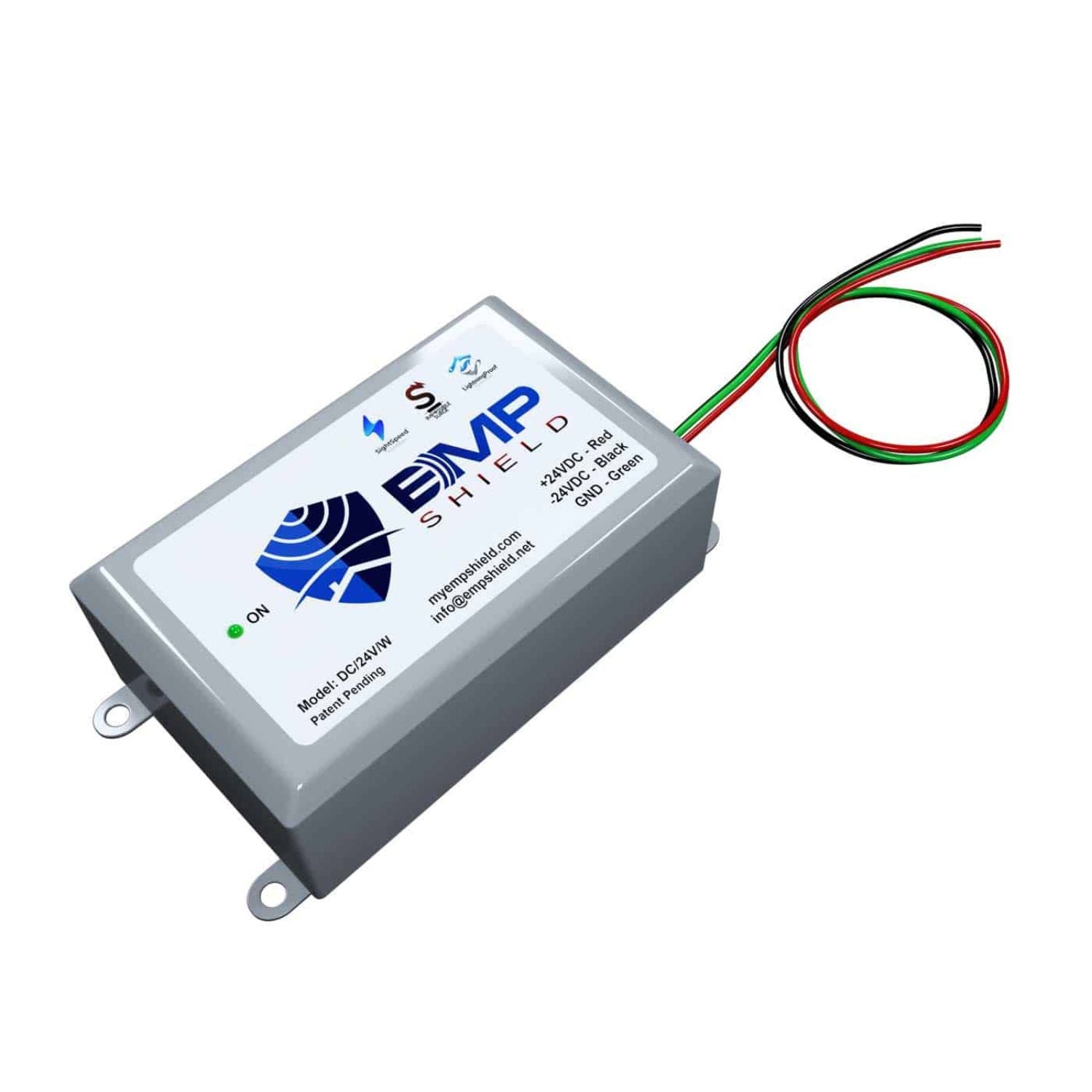

EMP Shield gives the enclosure an IP66 rating and says this model can be used outdoors in extreme weather. The gray housing has four mounting tabs and a cable fitting for the leads.
Real-World Applications
Off-grid cabins and standalone solar. EMP Shield's DC line is aimed at off-grid solar systems like a cabin array. When the charge controller in that system runs in the 24V range, the DC-24V-W connects across its input.
24V battery backup. EMP Shield lists residential, commercial and industrial battery backup systems for its DC series. A 24V bank needs only one unit, even if it is made of many batteries.
RVs, campers and boats. EMP Shield names RV, camper and marine applications for its DC units. If the battery system in your rig or boat is 24V, this model matches it.
Off-grid wind. Wind energy systems sit next to solar on EMP Shield's list, so a wind setup feeding a 24V controller or bank fits too.
Practical Comparison
Single 24V DC Versus Dual 24V DC
EMP Shield's Dual DC models combine two DC units in one device to save space, and a Dual version is offered at 24V. Choose the single DC-24V-W when you have one 24V circuit to protect. Look at the Dual 24V model if you have two circuits at that voltage and want one enclosure.
24V DC Unit Versus a Faraday Bag
A Faraday bag or cage protects spare electronics only while they sit unplugged inside it. The DC-24V-W stays connected while the system runs, so the installed equipment keeps its protection every day.
DC-Side Protection Versus a Plug-In Surge Strip
A plug-in power strip surge protector works at an AC wall outlet. It never sees the DC wiring between your solar panels, charge controller and batteries. The DC-24V-W connects right on that DC side.
Buyer Guidance
Choosing by Battery Voltage or Device Input
For a battery or battery bank, EMP Shield says to select the unit by the voltage of the battery system. Batteries can be connected in several ways to create different voltages, so confirm yours is 24V before you buy. For a solar array, EMP Shield says to choose by the maximum input voltage of the first device after the PV array. That is usually the charge controller on an off-grid system or the inverter on a grid-tied one. If that maximum input is above this model's 24V point, ask our team which EMP Shield voltage fits.
Where It Connects
On a battery system, red goes to battery positive, black to battery negative and green to ground. On a solar system, EMP Shield's diagram places the unit across the charge controller's PV input. EMP Shield's protection policy lists installation by a licensed electrician among its conditions, so it makes sense to have one do the work.
This May Be A Good Fit If
- Your battery system is wired for 24V
- Your charge controller or inverter works in the 24V range
- You have one DC circuit to protect
- You want a unit rated for outdoor mounting by EMP Shield
Common Questions
How Many Units Does a 24V Battery Bank Need?
One. EMP Shield says a single unit protects a battery system, even when that system holds many batteries.
What If My Batteries Are Wired to a Different Voltage?
EMP Shield's battery instructions cover its 12V, 24V and 48V DC models, so check your system voltage and choose the one that matches.
What Does the Warranty Cover?
EMP Shield gives a 10-year limited warranty against defects in materials and workmanship and will repair or replace the unit. A unit ruined by lightning is replaced for $50 in exchange for the destroyed one. A separate EMP Shield protection policy can pay up to $25,000 for damaged connected electronics when its conditions are met.
What's Included
- 1 x EMP Shield DC-24V-W Unit
Dependable Protection for Your 24V System
EMP Shield 24 Volt DC Protection puts a dedicated surge path across your 24V controller, inverter or battery bank, with EMP Shield's published 228kA rating behind it. If you are unsure which voltage your system needs, the Outbound Power team can help you sort it out.
EMP Shield 24 Volt DC Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model Number |
DC/24V/W |
| SKU |
DC-24V-W |
| Series |
EMP Shield DC (single circuit) |
| Dual Version |
Dual/DC/24V/W |
| Electrical |
| System Type |
DC |
| Operating Range |
24 volts (inverters or charge controllers) |
| Battery Use |
24V battery systems, 1 unit per battery system |
| Battery Guide Models |
12V, 24V and 48V DC models |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response Time |
Begins shunting in less than 1 nanosecond (EMP Shield, SightSpeed) |
| Protection |
| Threats Covered (per EMP Shield) |
EMP E1, E2 and E3; CMEs (solar flares); lightning; power surges |
| Testing (per EMP Shield) |
Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Test Field Levels (per EMP Shield) |
50 kV/m and 90 kV/m |
| Listing (per EMP Shield) |
Listed by the Department of Homeland Security in its EMP resilience report |
| Installation |
| Connection |
Across DC positive, negative and ground |
| Red Wire |
Positive (+24VDC) |
| Black Wire |
Negative (-24VDC) |
| Green Wire |
Ground (GND) |
| Solar Placement |
Across the charge controller PV input (EMP Shield diagram) |
| Solar Selection Rule |
Maximum input voltage of the first device after the PV array |
| Battery Selection Rule |
Voltage of the battery or battery system |
| Indicator |
Green ON LED |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield's rating) |
| Outdoor Use |
Can be used outdoors in extreme weather (EMP Shield) |
| Enclosure |
Gray, 4 mounting tabs, cable fitting |
| Leads |
3 wire leads (red, black, green) |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship (EMP Shield) |
| Lightning Replacement |
$50 with the destroyed unit (EMP Shield) |
| Connected Equipment Policy |
Up to $25,000 when policy conditions are met (EMP Shield) |
EMP Shield DC-24V-W Manuals
Solar Installation Diagram
Battery Installation Diagram
