EMP Shield 3-Phase 120-208V EMP Protection Guards Surface-Mounted Three-Phase Panels With A Status Light For Every Phase

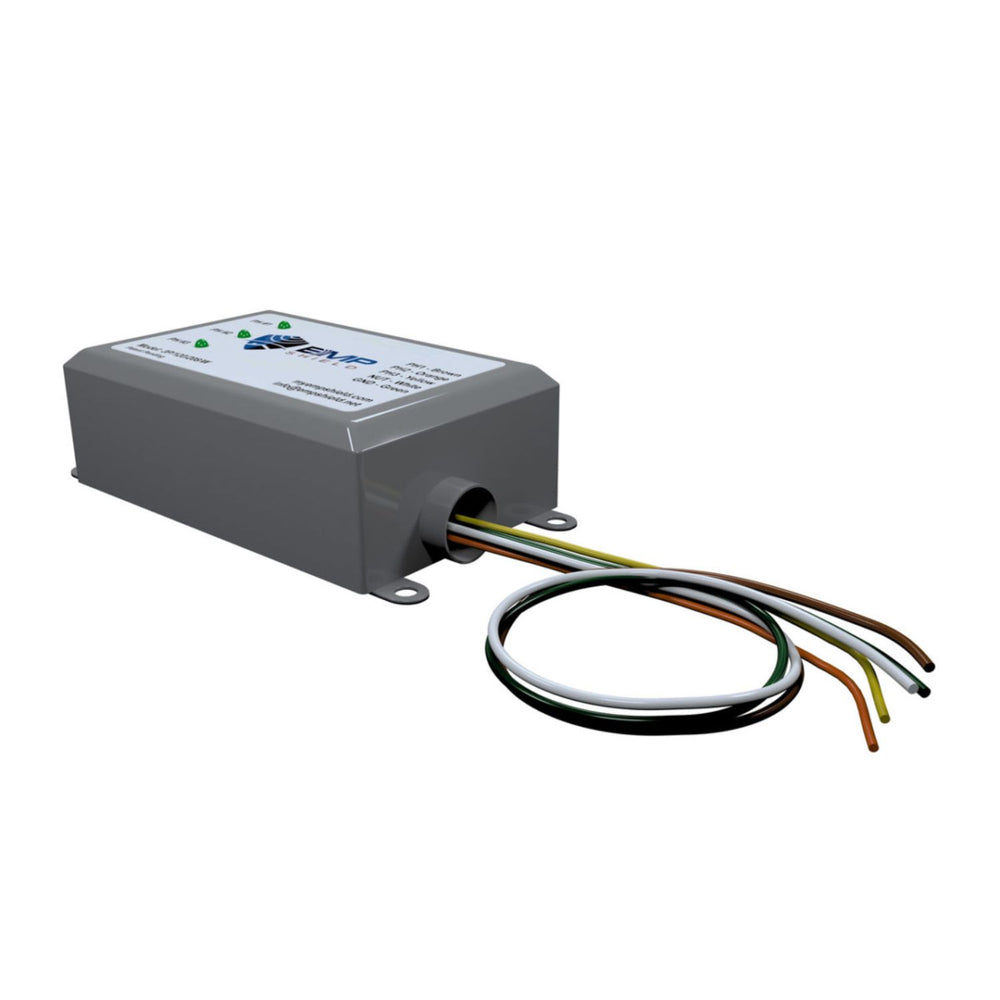

The 3P-120-208-W is EMP Shield's wired industrial unit for three-phase 120/208V AC power panels. It mounts beside a surface-mounted panel and connects through a conduit fitting. EMP Shield says it protects against all phases of an EMP (E1, E2 and E3), coronal mass ejections (CME), lightning and all forms of power surges.
EMP Shield built its 3-Phase Series for businesses, agricultural operations, industrial facilities and remote infrastructure. The company says the series is engineered to safeguard large-scale electrical systems that keep essential operations, equipment and communications going. This W model is the choice when your 120/208V panel is surface-mounted and there is wall space next to it.
EMP Shield 3-Phase 120-208V EMP Protection Features
Made For Surface-Mounted Three-Phase Panels
EMP Shield designed the W model for installation on surface-mounted electrical panels. The unit may be connected with rigid conduit to any conduit port, and EMP Shield says the W version comes with preconnected 12 AWG copper wire, so the leads are ready to run into the panel.
Three Green Lights, One Per Phase

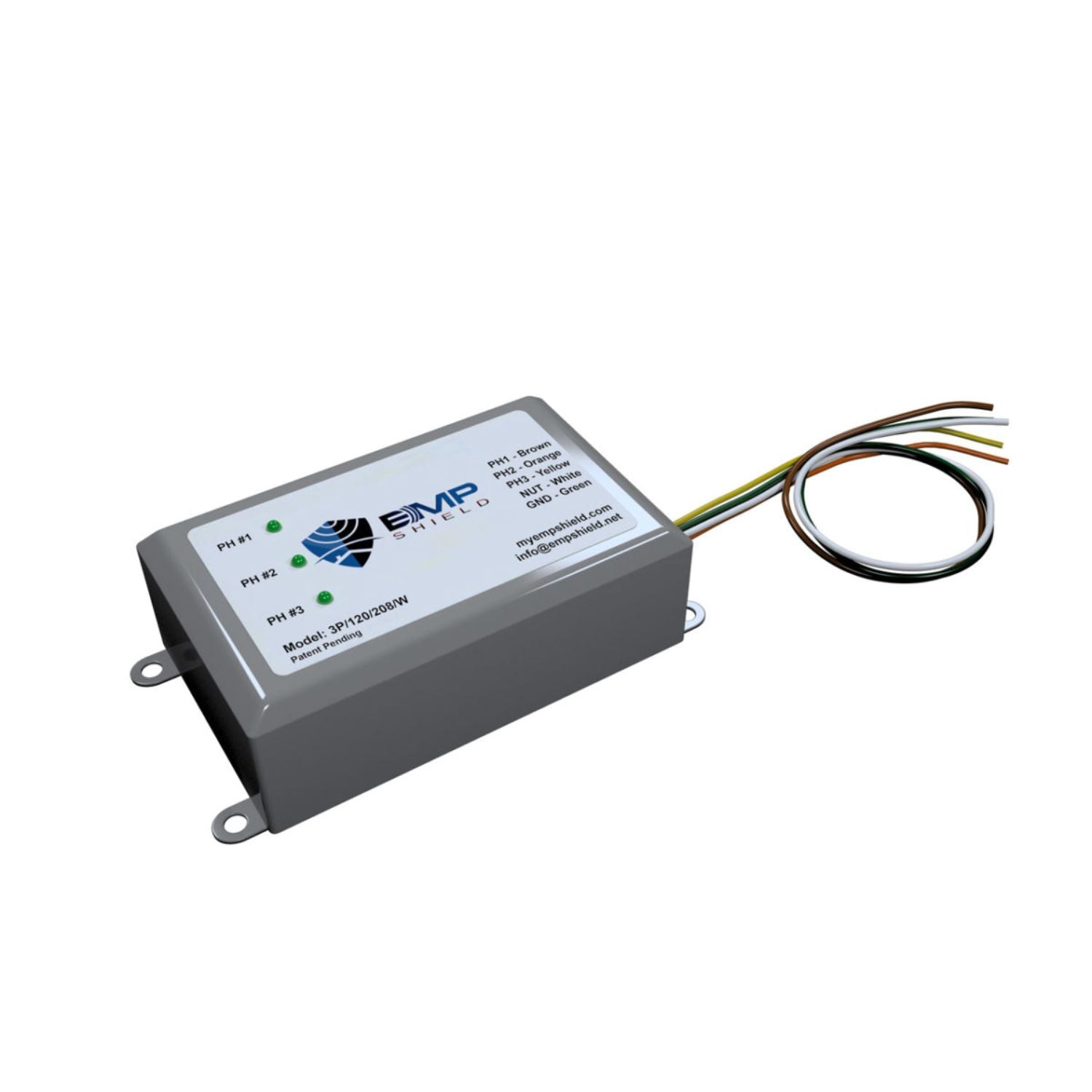

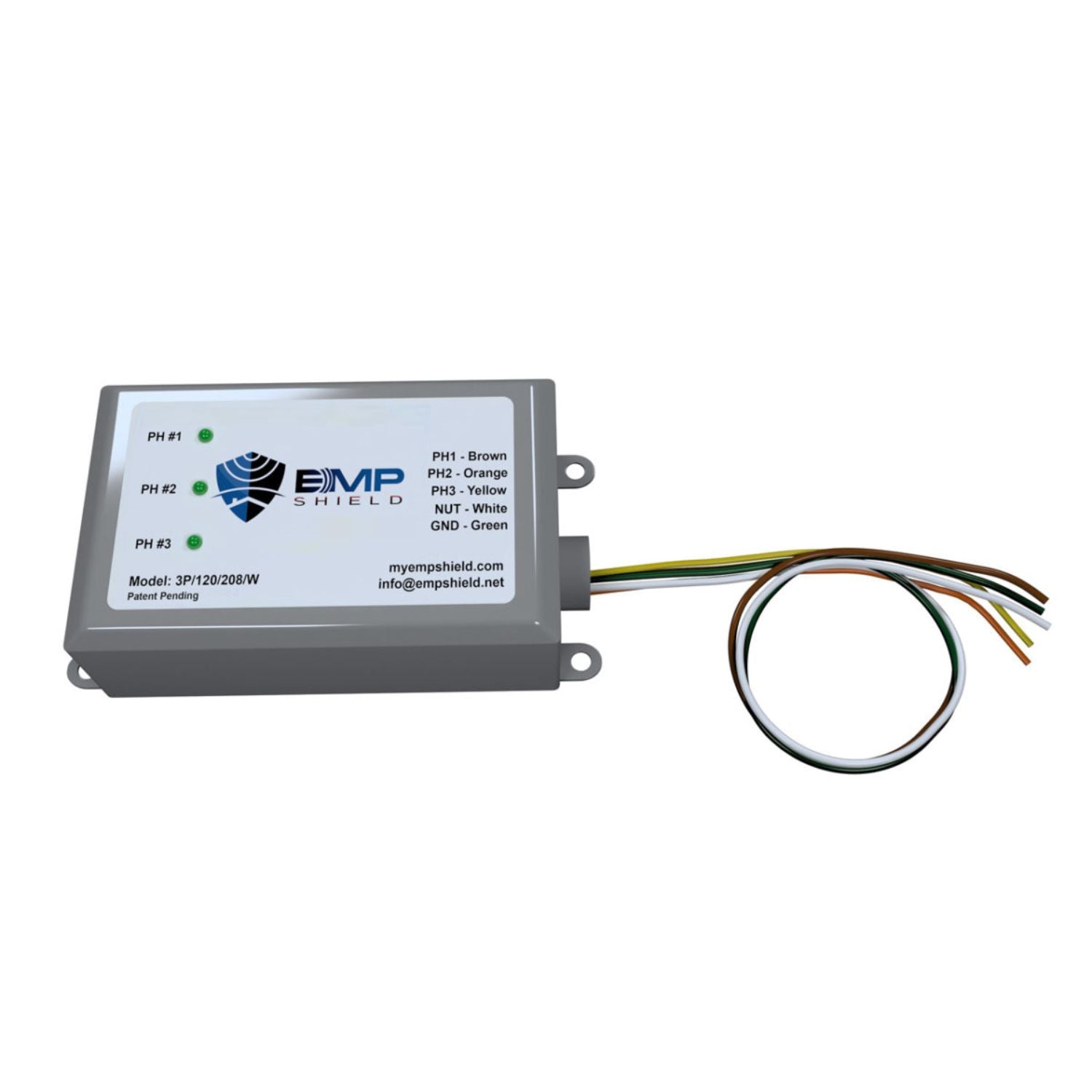

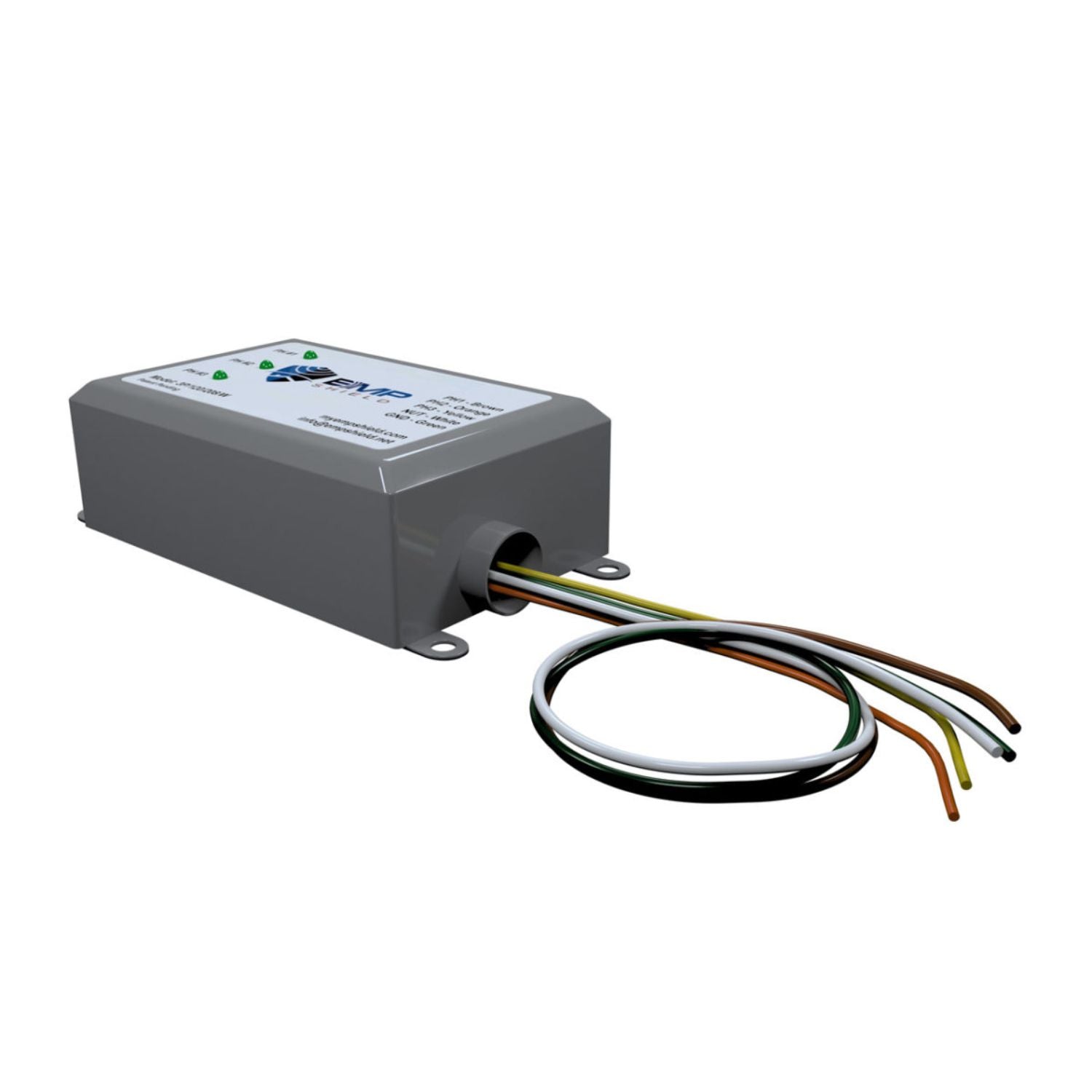

The front of the unit carries three green diagnostic lights marked PH#1, PH#2 and PH#3. After power is restored, EMP Shield says these lights turn on to show the unit is installed and monitoring the incoming supply. Anyone walking past the panel can confirm all three phases at a glance.
228kA Per Phase And 114kA Per Mode
EMP Shield rates the unit for a surge capacity of 228kA per phase and a nominal discharge current of 114kA per mode. It lists three protection modes, phase-to-phase, phase-to-neutral and phase-to-ground.
Independently Fused Solid-State Phases
Each phase has solid-state semiconductor circuitry and its own fuse. EMP Shield says the unit begins shunting over-voltage in less than one nanosecond, and it lists IEEE C62.41-1991 category A and B combination wave suppression.
Compact NEMA 4 Enclosure
EMP Shield gives the main box size as 6 inches wide, 2.5 inches tall and 3.0 inches deep. The NEMA 4 plastic enclosure has one conduit entrance port. EMP Shield is a veteran-owned company that builds its units in Kansas, USA.
Testing And Compliance Claims From EMP Shield
EMP Shield reports testing at Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C and RS-105. It states its products are listed by the Department of Homeland Security in its EMP resilience report, and it describes the 3-phase models as UL 1449 Type 2 compliant.
Real-World Applications
Businesses. A business fed by a 120/208V three-phase panel can cover the equipment its daily work depends on with one unit at that panel.
Agricultural Operations. EMP Shield lists agricultural operations among the places its three-phase series is designed for.
Small Commercial Buildings. EMP Shield says its branch-panel units are designed to protect residential, small commercial and industrial establishments from high-voltage transients.
Service Panels And Transfer Switches. According to EMP Shield, the 3-phase units can connect at a service panel, a motor control center (MCC) or a transfer switch.
Practical Comparison
3-Phase W Model Versus Concealed RL Model
The W model mounts outside a surface-mounted panel with its three lights on its own face. The concealed 3P-120-208-RL is meant for flush-mounted panels, where the unit goes inside the breaker box and a separate LED box shows the phases.
120/208V Model Versus 277/480V Model
EMP Shield makes its 3-Phase Series in two voltages. This unit is for 120/208V three-phase panels. Panels on 277/480V service need EMP Shield's 3P-277-480 models instead.
Panel Unit Versus Point-Of-Use Surge Strips
A surge strip protects only the few devices plugged into it. A panel-connected three-phase unit works where power is distributed, so the circuits that panel feeds are covered.
Buyer Guidance
Confirming Your System Voltage
EMP Shield says to measure panel voltage line to neutral to determine the system voltage, which must not exceed the maximum continuous RMS voltage on the unit's label. If your service turns out to be 277/480V, choose the 277/480V model.
Who Should Install It
EMP Shield recommends professional installation and says the unit is to be installed by a licensed electrician following electrical codes. It goes on a line with a disconnect, such as 20-amp circuit breakers or a 20-amp fused disconnect switch, with each phase lead connected through its own breaker and the neutral lead landed close to the neutral entrance lug. The leads must never connect directly to the service entrance lugs.
This May Be A Good Fit If
- Your building has 120/208V three-phase service
- Your panel is surface-mounted
- You want all three phase lights on the unit itself
- A licensed electrician will do the install
Common Questions
Does It Work On A 277/480V Panel?
No. This model is for 120/208V three-phase panels. EMP Shield offers separate 277/480V three-phase units.
What If The Install Uses Plastic Conduit?
EMP Shield says that with plastic conduit, the green ground wire must be connected to the ground lug, and the green wire inside the enclosure must also be connected to the ground lug. Skipping this may result in fire or shock.
What Does A Dark Phase Light Mean?
If a light shuts off during normal operation, EMP Shield says to have an electrician check whether that phase has power. If power is present, the unit should be replaced or upgraded as soon as possible.
What Warranty Comes With It?
EMP Shield covers the unit with a 10-year limited warranty against defects in materials and workmanship, repairing or replacing it as needed. A unit destroyed by lightning can be replaced for $50 by sending in the destroyed unit. EMP Shield's separate protection policy reimburses damaged connected equipment up to $25,000 if its conditions are met, such as a licensed electrician install and a claim within 30 days.
What's Included
- 1 x EMP Shield 3P-120-208-W 3-Phase Unit With Preconnected Leads
Every Phase Covered And In View
The EMP Shield 3-Phase 120-208V EMP Protection unit brings EMP, CME, lightning and surge protection to a surface-mounted three-phase panel, with a light for each phase on its face. If you want help confirming your service voltage or panel type, the Outbound Power team is glad to help.
EMP Shield 3-Phase 120-208 Volt AC EMP, CME, & Lightning Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model |
3P/120/208V/W |
| SKU |
3P-120-208-W |
| Version |
Wired, surface mount |
| Electrical |
| Voltage |
120/208V AC 3-phase |
| Nominal Discharge Current (In) |
114kA per mode |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Phase-to-Phase, Phase-to-Neutral, Phase-to-Ground |
| Response Time |
Less than 1 nanosecond (per EMP Shield) |
| Phase Fusing |
Each phase independently fused |
| Circuitry |
Solid-state semiconductor, each phase |
| Protection |
| Threats Covered |
EMP (E1, E2, E3), CME, lightning, power surges |
| Surge Standard |
UL 1449 Type 2 compliant (per EMP Shield) |
| Combination Wave |
IEEE C62.41-1991 category A & B |
| Test Lab |
Keystone Compliance (per EMP Shield) |
| Test Standards |
MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Installation |
| Installation |
Professional installation recommended, licensed electrician |
| Connects To |
Service panels, MCCs or transfer switches |
| Disconnect |
20-amp circuit breakers or 20-amp fused disconnect |
| Conductor |
Copper or copper-clad wire only |
| Panel Type |
Surface-mounted panels |
| Mounting |
Beside the panel, rigid conduit to any conduit port |
| Leads |
Preconnected 12 AWG copper wire |
| Diagnostic LEDs |
3 green (PH#1, PH#2, PH#3) on the unit face |
| Voltage Check |
Measure panel voltage line to neutral |
| Neutral Lead |
As close as possible to the neutral entrance lug |
| Panel Cover Clearance |
At least 1 inch |
| Conduit Ports |
1 |
| Physical |
| Main Box Size |
6 in W x 2.5 in H x 3.0 in D |
| Enclosure |
NEMA 4 plastic |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship |
| Lightning Replacement |
$50 with the destroyed unit sent in |
| Connected Equipment Policy |
Up to $25,000, conditions apply |
EMP Shield 3P-120-208-W Manual
