EMP Shield 3-Phase 277-480V Concealed Model Protects Flush-Mounted 277/480V Panels While Remote LEDs Track Every Phase
The 3P-277-480-RL is EMP Shield's concealed three-phase unit for 277/480V AC service. Instead of mounting on the wall, it is secured inside the breaker box of a flush-mounted panel, and a small LED box on the outside shows its status. EMP Shield says the unit protects against the E1, E2 and E3 phases of an EMP, coronal mass ejections (CME), lightning and power surges of all kinds.
The concealed design is for 277/480V facilities where the panel is set into the wall and an external box would be in the way. EMP Shield aims its three-phase series at industrial facilities, remote infrastructure, agricultural operations and businesses that depend on their three-phase power.
EMP Shield 3-Phase 277-480V Concealed Model Features

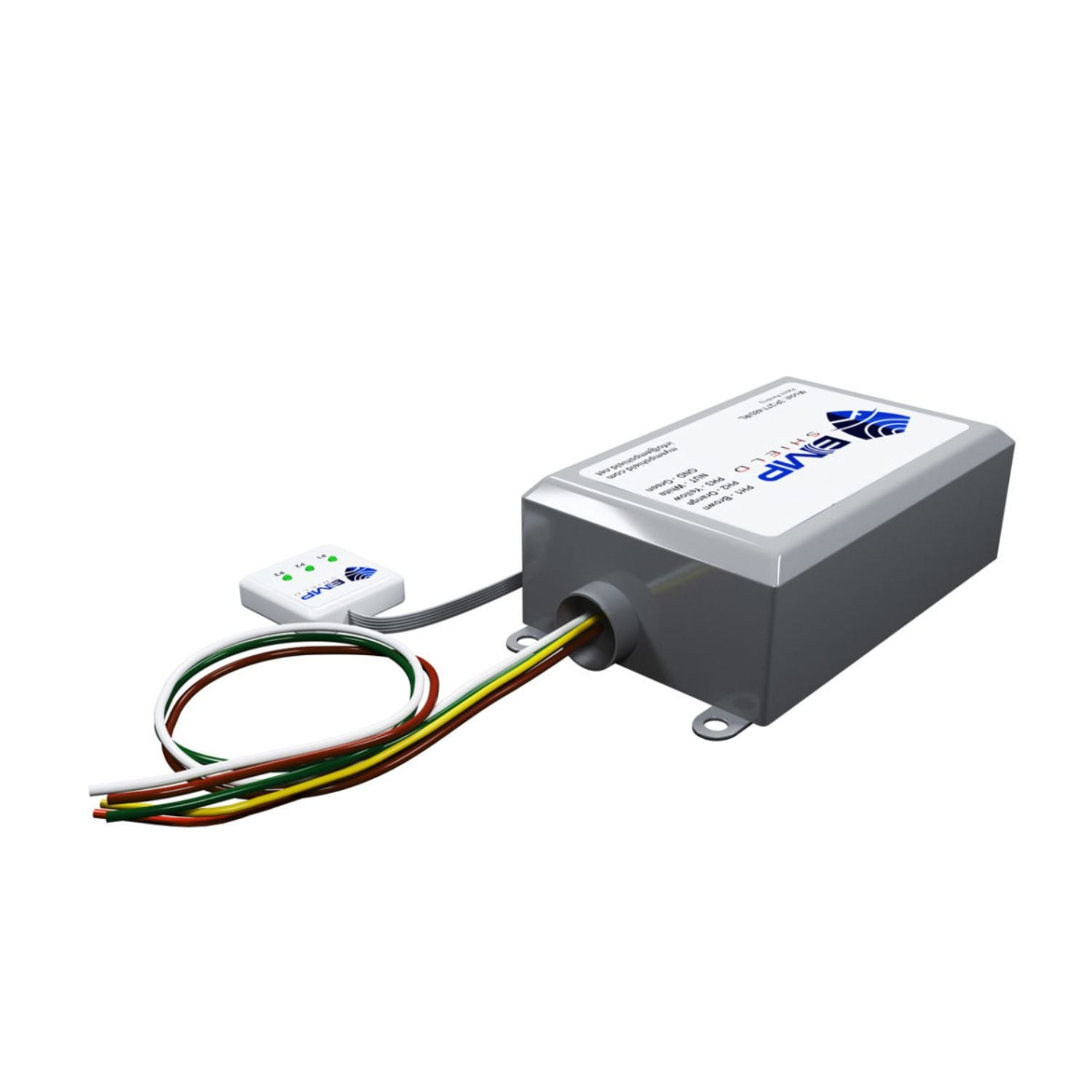

Concealed Inside Flush-Mounted Panels

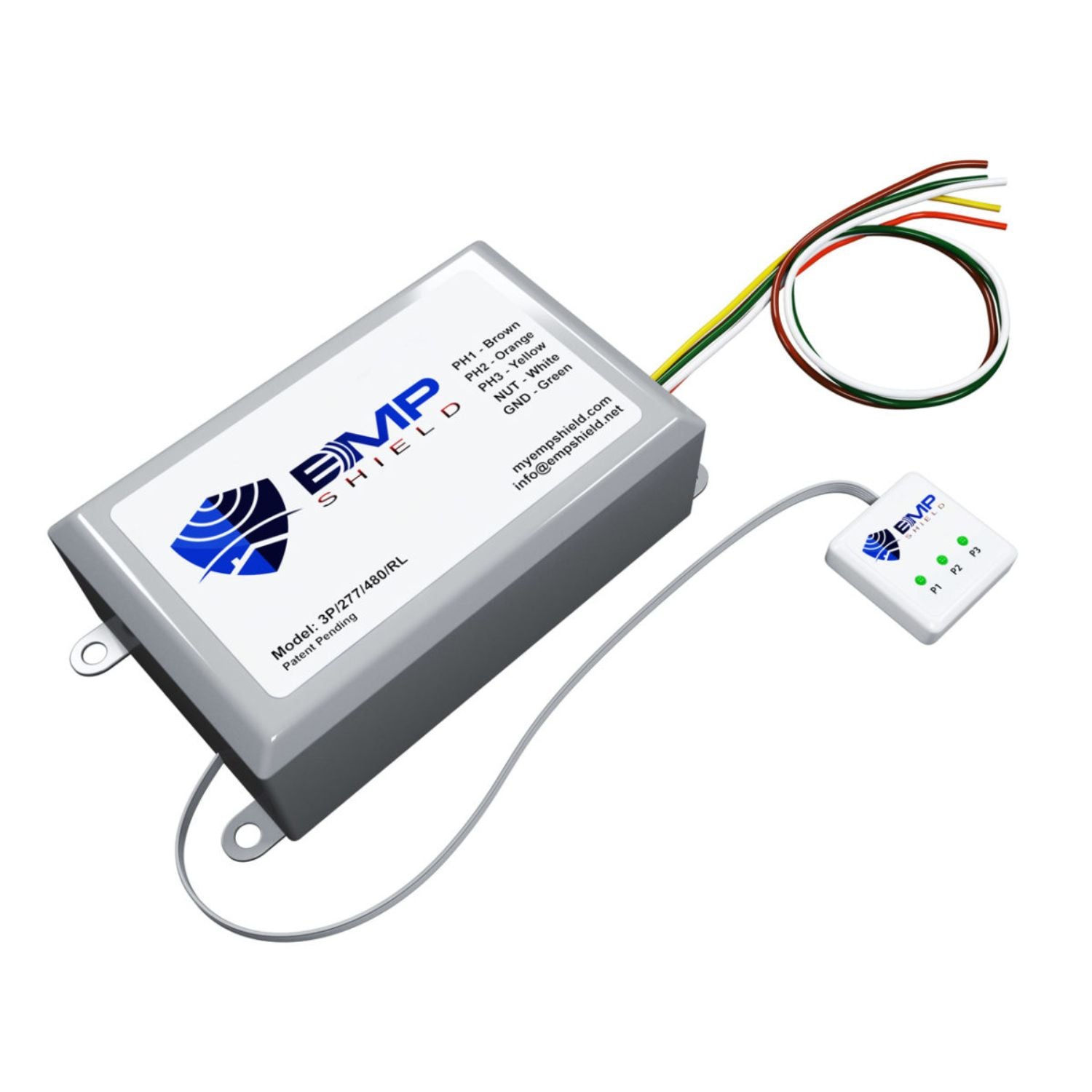

EMP Shield designed this model for installation on flush-mounted electrical panels. For that kind of install, it says the unit is secured inside the breaker box and the LED box is connected on the exterior. Its wiring lands on a terminal block for 12 AWG copper wire, EMP Shield says.
Remote LED Box With P1, P2 And P3

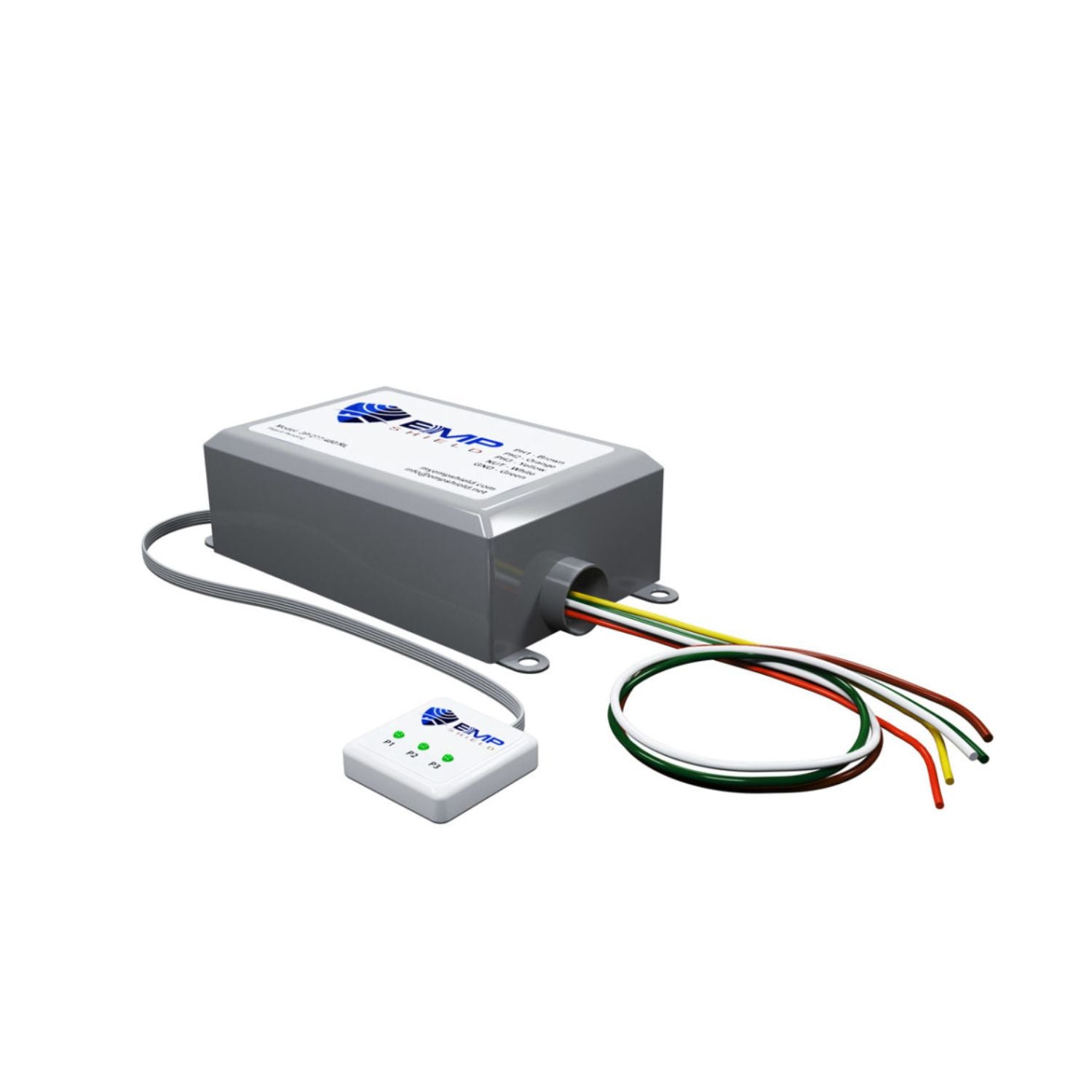

The exterior LED box holds three green lights labeled P1, P2 and P3. EMP Shield says three lights mean three-phase monitoring, and that they turn on once power is restored to show the unit is active on your incoming supply.
228kA Per Phase Across Three Modes
EMP Shield's ratings for the series are 228kA surge capacity per phase and 114kA nominal discharge current per mode. The unit covers phase-to-phase, phase-to-neutral and phase-to-ground paths.
Sub-Nanosecond Response With Fused Phases
EMP Shield says the unit detects over-voltage and begins shunting it in less than one nanosecond. Solid-state semiconductor circuitry serves each phase, each phase has its own fuse, and EMP Shield lists IEEE C62.41-1991 category A and B combination wave suppression.
NEMA 4 Enclosure Made In Kansas
The housing is a NEMA 4 plastic enclosure with one conduit entrance port. EMP Shield, which is veteran-owned, builds the unit in Kansas, USA.
Test And Listing Claims From EMP Shield
EMP Shield reports that Keystone Compliance tested its technology to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C and RS-105, noting that Keystone does not personally endorse any products. EMP Shield also says it is listed by Homeland Security in its EMP resilience report and calls the 3-phase models UL 1449 Type 2 compliant.
Real-World Applications
Remote Infrastructure. EMP Shield includes remote infrastructure in the series' intended uses. With the unit inside the panel, a technician only needs to look at the LED box to see all three phases.
Industrial Facilities. For industrial sites, EMP Shield says the series guards critical three-phase systems against EMPs, lightning and high-voltage surges.
Service Panels, MCCs And Transfer Switches. Service panels, motor control centers (MCCs) and transfer switches are the connection points EMP Shield gives for its three-phase units.
Agricultural Operations. Farms with 277/480V three-phase service fall within the agricultural uses EMP Shield names for this series.
Practical Comparison
Concealed 277/480V Model Versus Wired 277/480V Model
The wired 3P-277-480-W mounts beside a surface-mounted panel and shows its lights on its own cover, with preconnected leads. This RL model is for flush-mounted panels, goes inside the breaker box and uses a terminal block plus an exterior LED box.
Panel-Mounted Unit Versus Plug-In Surge Protectors
Plug-in surge protectors only cover what is plugged into them. A unit connected at a three-phase panel watches all three phases where power enters the branch circuits.
277/480V Concealed Versus 120/208V Concealed
EMP Shield also offers a concealed model for 120/208V three-phase service, the 3P-120-208-RL. Pick the one that matches the voltage measured at your panel.
Buyer Guidance
Verifying 277/480V Service
EMP Shield asks installers to measure panel voltage line to neutral to determine the system voltage. That voltage must stay within the maximum continuous RMS voltage printed on the unit's label.
Who Should Install It
EMP Shield recommends professional installation and states that a licensed electrician should install the unit to code. The line must be served by a disconnect such as 20-amp breakers or a 20-amp fused disconnect switch. EMP Shield also asks for at least one inch of clearance from the edge of the panel cover and lead lengths kept as short as possible.
This May Be A Good Fit If
- Your site has 277/480V three-phase service
- Your panel is flush-mounted in the wall
- You want phase status visible outside the panel
- A licensed electrician will install it
Common Questions
Where Does The LED Box Go?
On the exterior of the breaker box. EMP Shield says the unit is secured inside the box and the LED box connects on the outside so the lights can be seen.
Which Breakers Should It Use?
EMP Shield recommends 20-amp breakers selected as close as possible to each service entrance lug. They add failure protection and give a disconnect for servicing, and they may share the unit and branch circuit leads.
What Should Happen If A Light Goes Dark?
EMP Shield says an electrician should check whether that phase still has power. If it does, the unit should be replaced or upgraded as soon as possible.
What Does EMP Shield's Warranty Cover?
EMP Shield warrants the unit for 10 years against defects in materials and workmanship and repairs or replaces defective units. Lightning damage that destroys the unit is handled with a $50 replacement once the destroyed unit is sent in. EMP Shield's separate protection policy offers up to $25,000 for damaged connected electronics under its conditions, which include a licensed electrician install and a claim within 30 days.
What's Included
- 1 x EMP Shield 3P-277-480-RL Concealed 3-Phase Unit With Remote LED Box
Hidden Protection With Every Phase In View
The EMP Shield 3-Phase 277-480V Concealed Model brings EMP, CME, lightning and surge protection to a flush-mounted 277/480V panel from inside the breaker box, with remote lights for all three phases. If you have questions about voltage, panel style or installation, the Outbound Power team is happy to help.
EMP Shield 3-Phase 277-480 Volt Concealed Model With External LEDs Specifications
|
| Model |
| Brand |
EMP Shield |
| Model |
3P/277/480V/RL |
| SKU |
3P-277-480-RL |
| Version |
Concealed, remote LED |
| Electrical |
| Voltage |
277/480V AC 3-phase |
| Nominal Discharge Current (In) |
114kA per mode |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Phase-to-Phase, Phase-to-Neutral, Phase-to-Ground |
| Response Time |
Less than 1 nanosecond (per EMP Shield) |
| Phase Fusing |
Each phase independently fused |
| Circuitry |
Solid-state semiconductor, each phase |
| Protection |
| Threats Covered |
EMP (E1, E2, E3), CME, lightning, power surges |
| Surge Standard |
UL 1449 Type 2 compliant (per EMP Shield) |
| Combination Wave |
IEEE C62.41-1991 category A & B |
| Test Lab |
Keystone Compliance (per EMP Shield) |
| Test Standards |
MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Installation |
| Installation |
Professional installation recommended, licensed electrician |
| Connects To |
Service panels, MCCs or transfer switches |
| Disconnect |
20-amp circuit breakers or 20-amp fused disconnect |
| Conductor |
Copper or copper-clad wire only |
| Panel Type |
Flush-mounted panels |
| Mounting |
Inside the breaker box |
| LED Box |
Mounts on the panel exterior |
| Wiring |
Terminal block, 12 AWG copper wire |
| Diagnostic LEDs |
3 green (P1, P2, P3) in the remote LED box |
| Voltage Check |
Measure panel voltage line to neutral |
| Breaker Location |
As close as possible to each service entrance lug |
| Lead Routing |
Leads as short as possible |
| Panel Cover Clearance |
At least 1 inch |
| Conduit Ports |
1 |
| Physical |
| Enclosure |
NEMA 4 plastic |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship |
| Lightning Replacement |
$50 with the destroyed unit sent in |
| Connected Equipment Policy |
Up to $25,000, conditions apply |
