EMP Shield 48 Volt DC Protection Helps Keep Your 48V Battery Bank, Inverter and Charge Controller Running After a Surge
EMP Shield's DC-48V-W protects a single DC circuit that runs at 48 volts. The company built it for inverters or charge controllers with an operational range of 48 volts, and its battery guide includes the 48V model for protecting a battery system. A red positive lead, a black negative lead and a green ground lead tie it into your system.
This model is for owners of 48V solar, wind and battery backup systems, whether residential, commercial or industrial. EMP Shield also names telecom and communication towers and remote monitoring stations among the uses for its DC series. Where the DC equipment at a site like that runs at 48V, this unit is the one sized for it.
EMP Shield 48 Volt DC Protection Features
Built Around the 48V Voltage Point

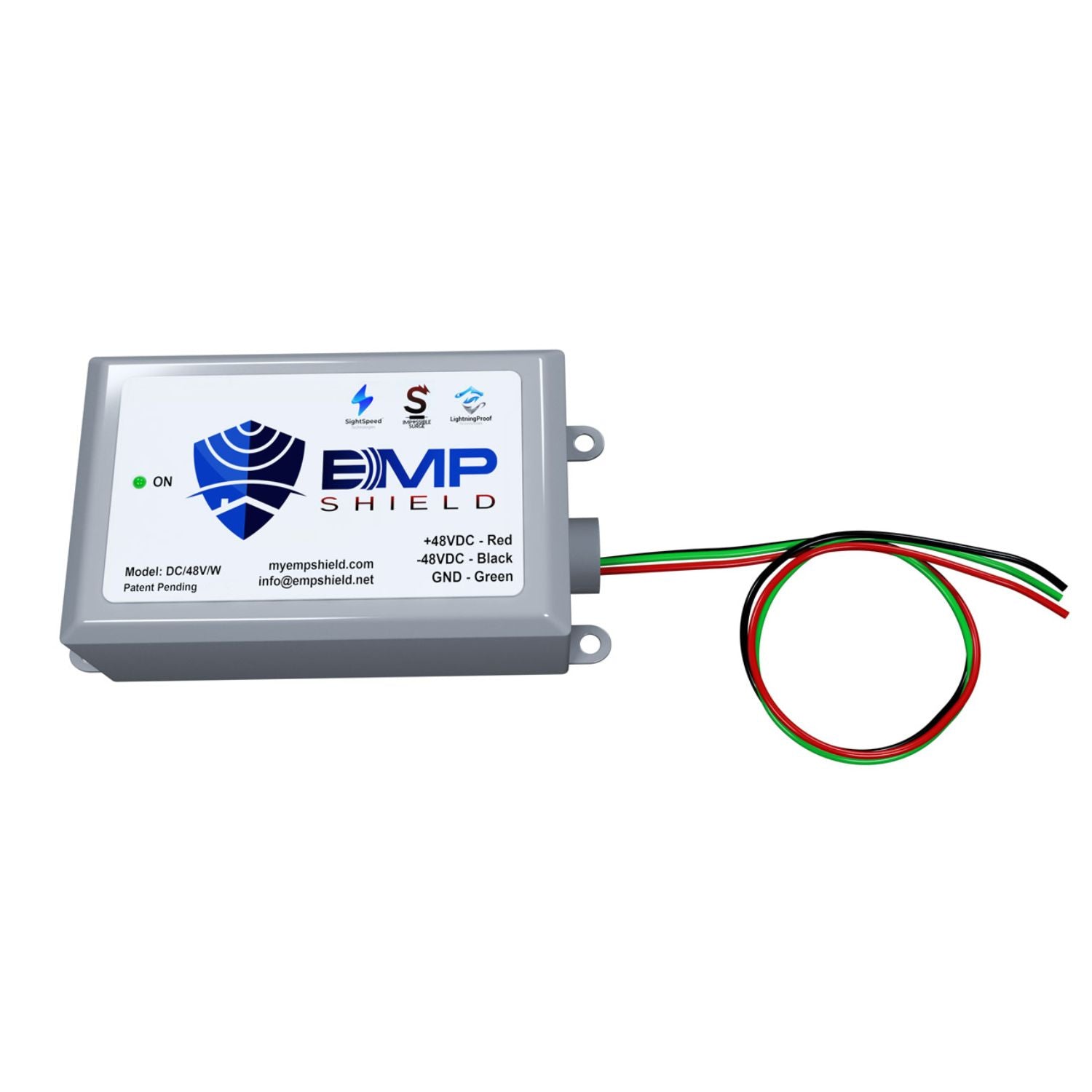

EMP Shield's DC lineup runs from 12V up to 1000V, and this unit covers the 48V step. Its front label reads +48VDC red, -48VDC black and GND green, so each lead's job is printed on the unit itself.
Positive, Negative and Ground Paths Covered
EMP Shield lists three protection modes for the series. They are positive-to-negative, positive-to-ground and negative-to-ground. Together they cover the paths a surge can take through a two-wire DC circuit with a ground.
114kA Nominal Discharge Current per Circuit
For its DC models, EMP Shield gives a nominal discharge current (In) of 114kA per circuit and a surge capacity of 228kA per phase. EMP Shield describes that upper figure as withstanding up to 228,000 amps per phase.
SightSpeed Response Under One Nanosecond
EMP Shield's SightSpeed technology begins shunting over-voltage in less than one nanosecond, by the company's account. Excess energy is directed away from the batteries, inverter and charge controller it is connected to.
Broad Threat Coverage per EMP Shield
The company states the unit covers E1, E2 and E3 EMP phases, CMEs or solar flares, lightning strikes and power surges. The standards EMP Shield reports testing to at Keystone Compliance are MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C and RS-105, including field levels of 50 kV/m and 90 kV/m. EMP Shield notes that Keystone Compliance does not personally endorse products. It also says the Department of Homeland Security lists EMP Shield in its EMP resilience report.
Outdoor-Ready IP66 Enclosure

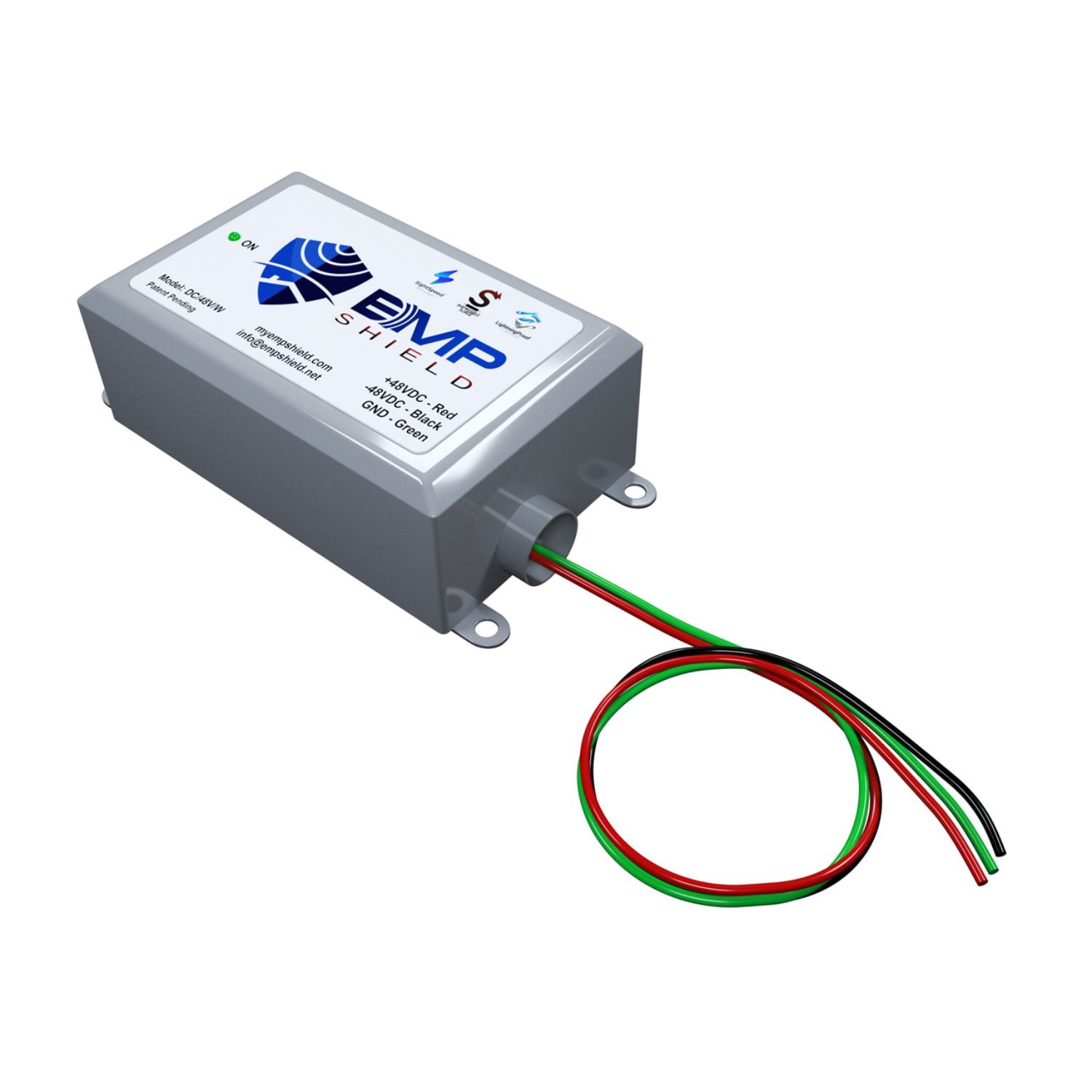

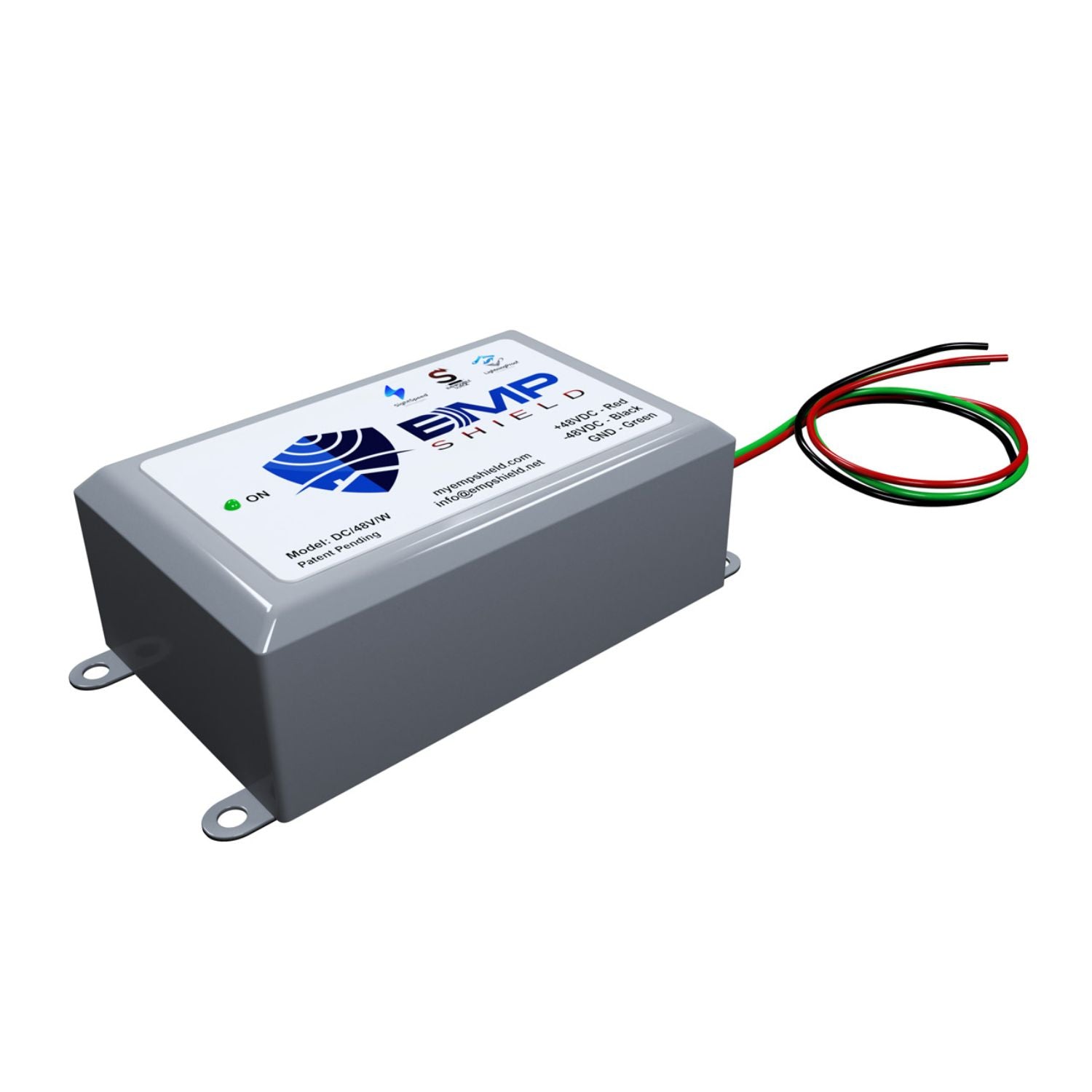

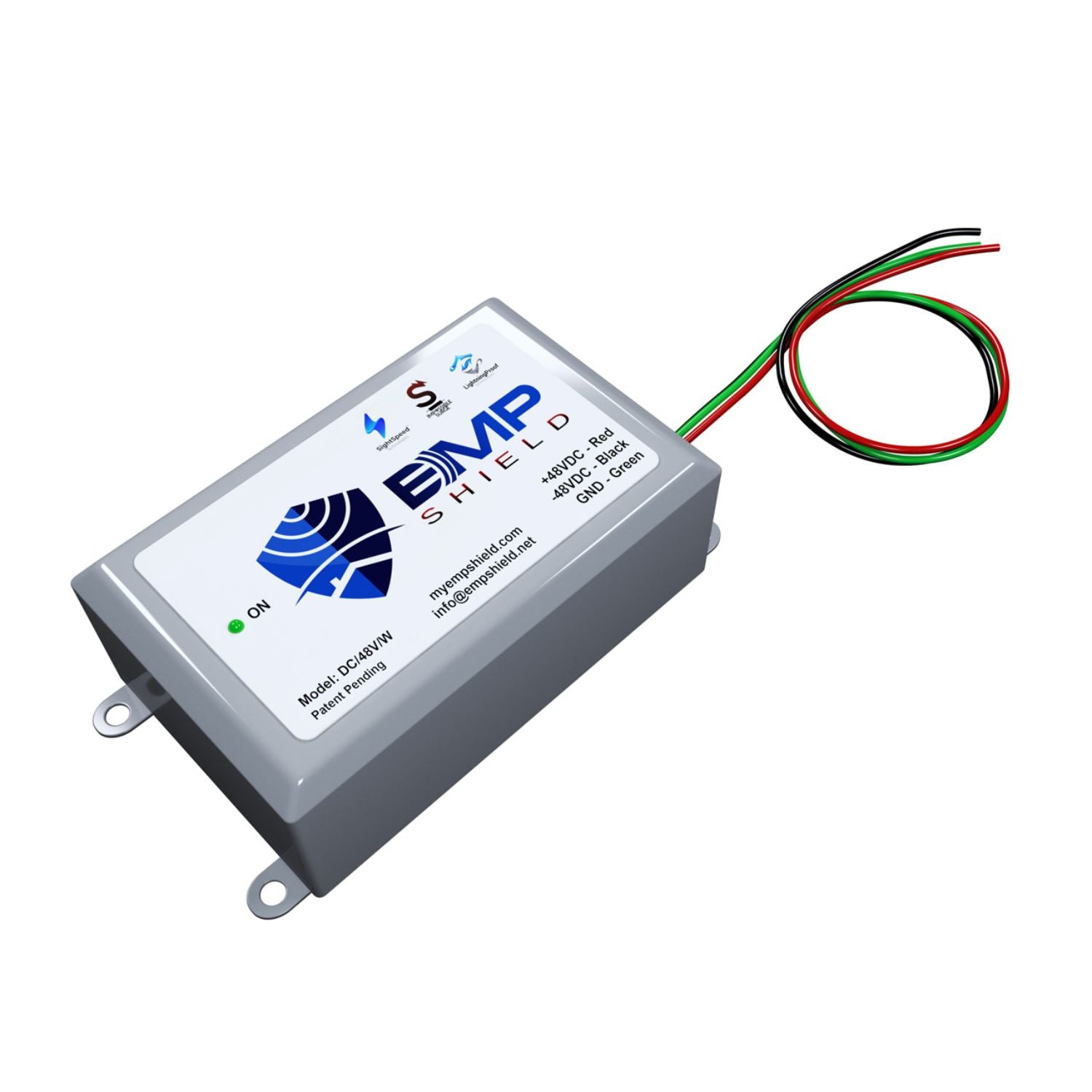

EMP Shield rates the enclosure IP66 and says the unit can be used outdoors in extreme weather. Four tabs on the gray housing let you fasten it down, and the three leads leave through a fitting at one end.
Real-World Applications
Home battery backup. A residential 48V battery bank that carries your home through an outage takes one DC-48V-W, connected to its positive, negative and ground.
Commercial and industrial backup. Battery backup systems at businesses and industrial sites are on EMP Shield's list as well. One unit covers a 48V battery system no matter how many batteries make up the bank.
Off-grid solar and wind. Off-grid solar and wind energy systems lead EMP Shield's list of DC uses. A 48V charge controller or inverter in one of those systems matches this model.
Telecom and remote monitoring. EMP Shield names telecom and communication towers and remote monitoring stations for its DC series. If that equipment draws on a 48V DC system, this is the matching voltage.
Practical Comparison
DC-48V-W Versus the Dual 48V DC Model
EMP Shield's Dual DC units house two DC models in one device to save space, and there is a Dual model at 48V. The single DC-48V-W fits one 48V circuit. If you need two 48V circuits covered from a single enclosure, compare it with the Dual 48V.
48V DC Unit Versus a Faraday Cage
A Faraday cage or bag shelters spare gear that sits disconnected inside it. A battery bank that powers your home or site has to stay connected to do its job. The DC-48V-W protects that live system in place.
DC Protection Versus a Plug-In Power Strip
A plug-in surge strip guards the AC devices plugged into it. It has no connection to the 48V DC wiring between your batteries, inverter and charge controller. This unit connects across that DC circuit directly.
Buyer Guidance
Confirming Your System Voltage
EMP Shield says to choose by the voltage of your battery or battery system when protecting batteries. Because batteries can be wired in different ways to reach different voltages, check that your bank is truly 48V before ordering. On the solar side, EMP Shield's rule is the maximum input voltage of the first device after the PV array, usually a charge controller off-grid or an inverter on a grid-tied system. If that number is higher than 48V, contact our team to find the right EMP Shield voltage.
Who Should Install It
EMP Shield's battery diagram runs red to positive, black to negative and green to ground. Its solar diagram puts the unit across the charge controller's PV input. A licensed electrician install is one of the conditions in EMP Shield's protection policy, so plan the job with one.
This May Be A Good Fit If
- You run a 48V battery bank for backup power
- Your inverter or charge controller works at 48V
- You manage telecom or monitoring gear on 48V DC
- You want one unit for the whole battery system
Common Questions
Does a 48V Bank With Many Batteries Need More Than One Unit?
No. EMP Shield says only one unit is needed to protect a battery system, even when it is built from many batteries.
Can It Be Mounted Outside?
EMP Shield says yes. It gives the enclosure an IP66 rating and lists it for outdoor use in extreme weather.
What Are EMP Shield's Warranty Terms?
EMP Shield covers defects in materials and workmanship for 10 years under a limited warranty, with repair or replacement. When lightning destroys a unit, EMP Shield swaps it for $50 once you return the damaged one. On top of that, a separate EMP Shield policy may cover damaged connected electronics up to $25,000, provided its conditions are met.
What's Included
- 1 x EMP Shield DC-48V-W Unit
Steady Protection for 48V Power
EMP Shield 48 Volt DC Protection gives your 48V battery bank, inverter or charge controller a surge path rated by EMP Shield at 228kA, in an enclosure built for outdoor use. For help confirming your system voltage or planning the install, reach out to the Outbound Power team.
EMP Shield 48 Volt DC Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model Number |
DC/48V/W |
| SKU |
DC-48V-W |
| Series |
EMP Shield DC (single circuit) |
| Dual Version |
Dual/DC/48V/W |
| Series Voltage Points |
12V, 24V, 48V, 90-120V, 220-300V, 300-420V, 600V, 1000V |
| Electrical |
| System Type |
DC |
| Operating Range |
48 volts (inverters or charge controllers) |
| Battery Use |
48V battery systems, 1 unit per battery system |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase (up to 228,000 amps per phase, per EMP Shield) |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response Time |
Begins shunting in less than 1 nanosecond (EMP Shield, SightSpeed) |
| Protection |
| Threats Covered (per EMP Shield) |
EMP E1, E2 and E3; CMEs (solar flares); lightning; power surges |
| Testing (per EMP Shield) |
Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Test Field Levels (per EMP Shield) |
50 kV/m and 90 kV/m |
| Listing (per EMP Shield) |
Listed by the Department of Homeland Security in its EMP resilience report |
| Installation |
| Connection |
Across DC positive, negative and ground |
| Red Wire |
Positive (+48VDC) |
| Black Wire |
Negative (-48VDC) |
| Green Wire |
Ground (GND) |
| Solar Placement |
Across the charge controller PV input (EMP Shield diagram) |
| Solar Selection Rule |
Maximum input voltage of the first device after the PV array |
| Battery Selection Rule |
Voltage of the battery or battery system |
| Indicator |
Green ON LED |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield's rating) |
| Outdoor Use |
Can be used outdoors in extreme weather (EMP Shield) |
| Enclosure |
Gray, 4 mounting tabs, cable fitting |
| Leads |
3 wire leads (red, black, green) |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship (EMP Shield) |
| Lightning Replacement |
$50 with the destroyed unit (EMP Shield) |
| Connected Equipment Policy |
Up to $25,000 when policy conditions are met (EMP Shield) |
