EMP Shield 600 Volt DC Protection Helps Defend Large Solar Arrays and the Inverters They Feed From EMP and Lightning Surges

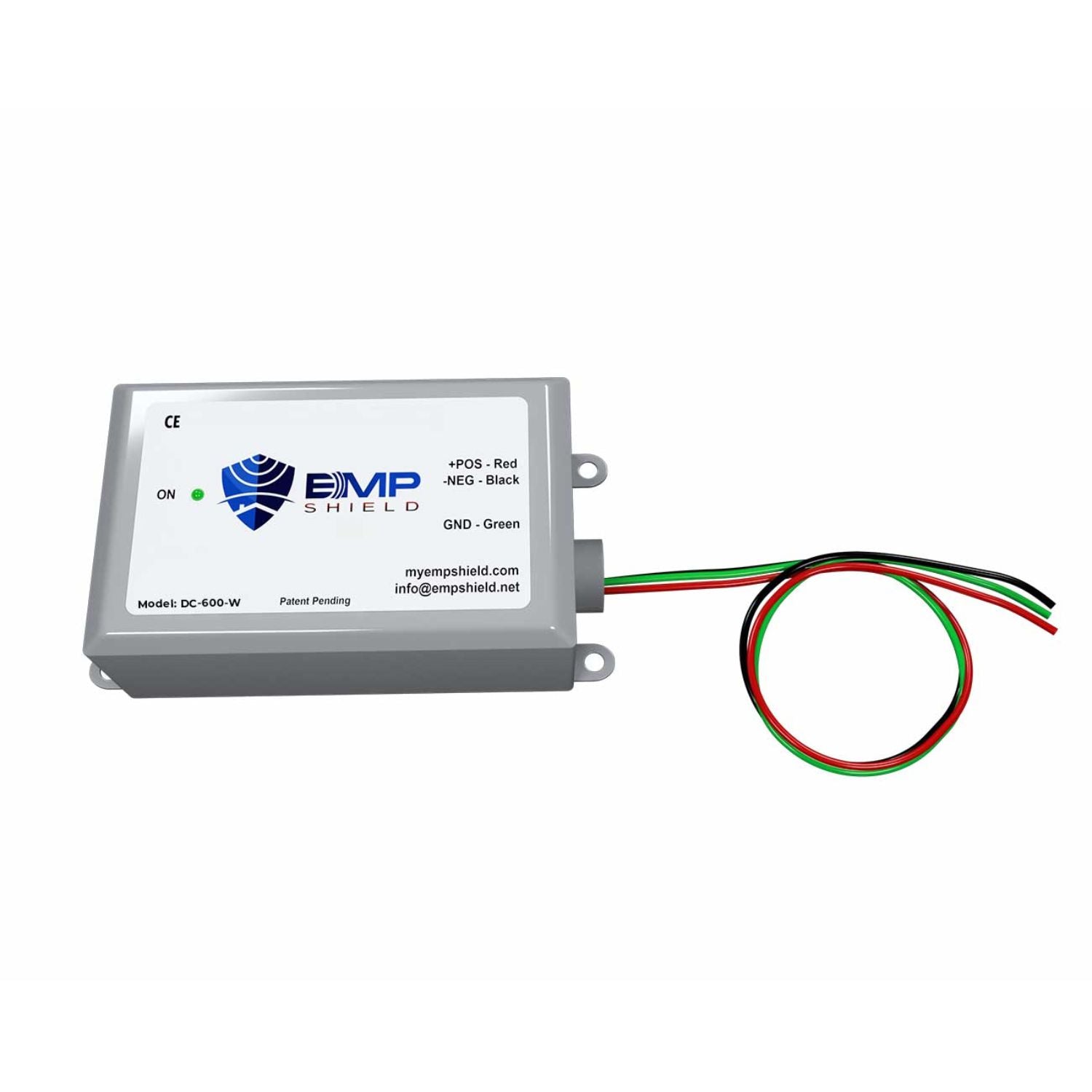

EMP Shield presents the DC-600-W as its 600 volt DC unit for large solar applications. It is a single-circuit model from the company's DC series, labeled DC/600V/W, with red for positive, black for negative and green for ground. It connects across the DC input of the equipment your array feeds.
Owners and operators of bigger solar systems are the main audience. EMP Shield's DC series is aimed at off-grid solar and wind, residential, commercial and industrial battery backup, and critical infrastructure. When the first device after your PV array sits at EMP Shield's 600V point, this is the model to look at.
EMP Shield 600 Volt DC Protection Features
Built for Large Solar Applications
EMP Shield names this unit for large solar applications. In its DC lineup, 600V sits between the 300-420V model and the 1000V model, giving higher-voltage arrays their own matching step.
Across the PV Input of the First Device
EMP Shield's solar wiring diagram shows its DC unit on the PV input of the charge controller, red to positive, black to negative and green to ground. In a grid-tied system, EMP Shield says the first device after the array is generally the inverter instead.
Protection on Every DC Path
The DC series carries three protection modes in EMP Shield's specifications. Positive-to-negative, positive-to-ground and negative-to-ground are all included.
228kA Surge Capacity per Phase
EMP Shield's published DC ratings are a 228kA surge capacity per phase and a 114kA nominal discharge current (In) per circuit. The company puts the surge figure as up to 228,000 amps per phase.
Nanosecond-Class Response and EMP Coverage
Over-voltage shunting begins in less than one nanosecond, EMP Shield says, through what it calls SightSpeed technology. Covered threats on EMP Shield's list are all three EMP phases (E1, E2 and E3), solar flares or CMEs, lightning and power surges. EMP Shield says its products went through testing at Keystone Compliance for MIL-STD-188-125-1, RS-105, MIL-STD-464C and MIL-STD-461G, at 50 kV/m and 90 kV/m. That lab, EMP Shield clarifies, does not personally endorse any products. The company also states its products appear in the Department of Homeland Security's EMP resilience report as listed products.
IP66 Enclosure for Hot and Cold Climates

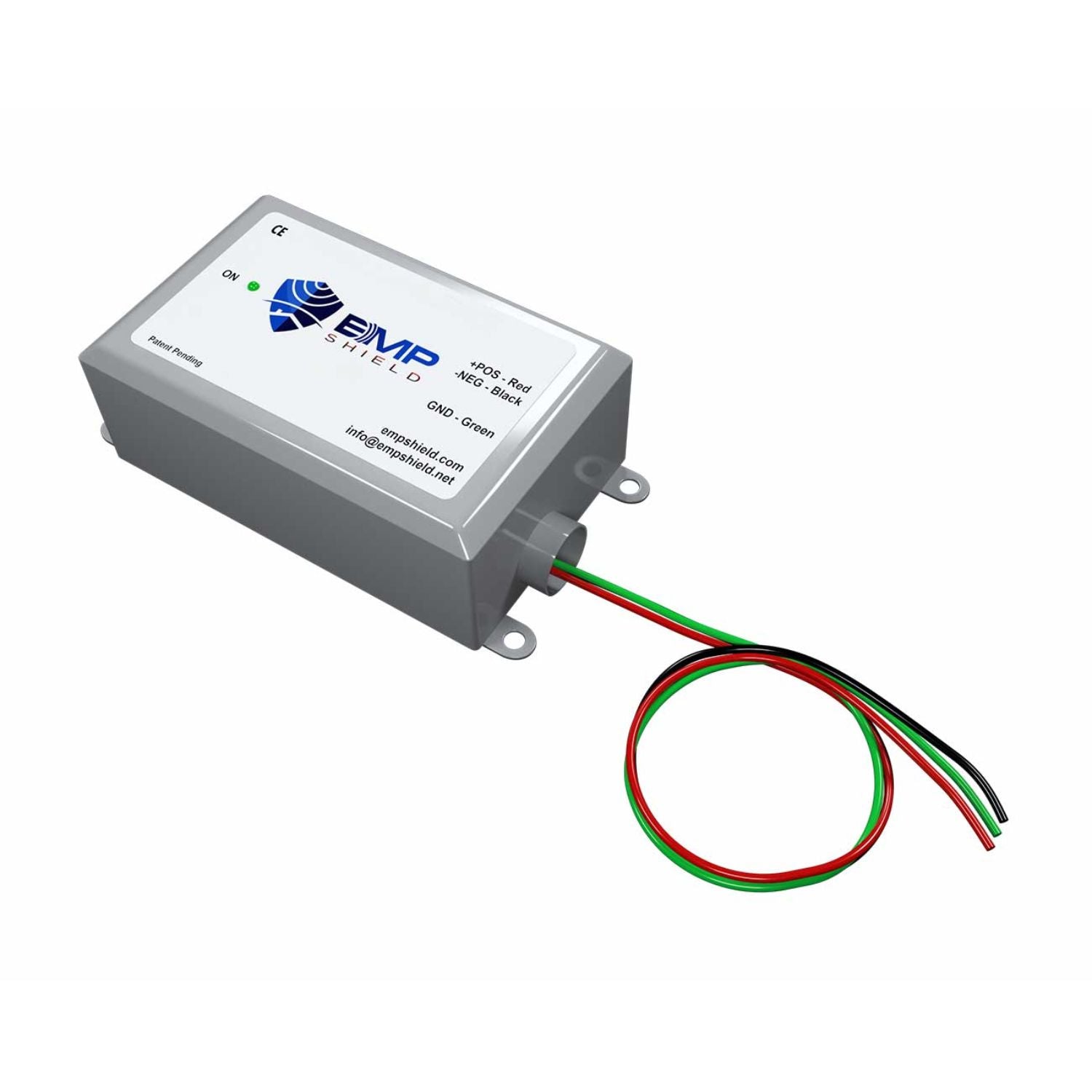

EMP Shield shows an IP66 rating for its units and says they are for use in extreme hot and cold climate conditions. Mounting is by four tabs on the gray housing, and one fitting carries all three leads out.
Real-World Applications
Large solar systems. This is the use EMP Shield puts in the product's name. If the equipment after the array is rated at EMP Shield's 600V point, the unit goes across that input.
Grid-tied inverters. On grid-tied systems the inverter usually comes first after the panels, per EMP Shield. A grid-tied inverter in the 600V class is a fit for this model.
Commercial and industrial backup power. EMP Shield's DC applications extend to battery backup at commercial and industrial scale. Where solar feeds that backup through 600V equipment, this unit covers the input.
Critical infrastructure. Critical infrastructure appears on EMP Shield's list as well. Solar-powered sites in that category with 600V input equipment can use this model.
Practical Comparison
600V DC Versus EMP Shield's 1000V DC
EMP Shield's next voltage point above this one is 1000V. Let the maximum input voltage of your first device after the array decide between them. If you are unsure which applies, ask our team before ordering.
Single 600V DC Versus Dual 600V DC
EMP Shield also offers a Dual 600V unit that builds two DC models into one device to save space. The single DC-600-W covers one circuit. Consider the Dual when two 600V circuits need protection side by side.
600V DC Unit Versus a Faraday Cage
A Faraday cage protects only what is stored inside it, and a working solar array cannot be stored away. The DC-600-W protects connected equipment while it keeps producing power.
Buyer Guidance
Confirming the 600V Match
EMP Shield ties model choice to the maximum input voltage of the first device after the PV array. Find that rating on your charge controller or inverter. EMP Shield does not publish an operating range for this model beyond its 600V designation, so contact the Outbound Power team if your equipment's rating does not clearly line up.
Who Should Install It
Have a licensed electrician make the connection on a system this size. That also lines up with EMP Shield's protection policy, which names a licensed electrician install as one of its conditions.
This May Be A Good Fit If
- You run a large solar array
- Your inverter or charge controller is rated at 600V
- You manage commercial or industrial backup power
- You have one 600V DC input to protect
Common Questions
Which Device Do I Check for the Voltage?
Look at whatever comes first after the PV array. In EMP Shield's guidance, off-grid systems typically start with a charge controller and grid-tied systems with an inverter.
How Many Circuits Does One Unit Protect?
One. For two 600V circuits, EMP Shield's Dual 600V model combines two units in one device.
What Warranty Does It Carry?
Under EMP Shield's 10-year limited warranty, defects in materials and workmanship are repaired or the unit is replaced. If lightning destroys the unit, a replacement costs $50 with the destroyed unit returned. Damaged connected electronics may also be reimbursed up to $25,000 through EMP Shield's separate protection policy, when its conditions apply.
What's Included
- 1 x EMP Shield DC-600-W Unit
Protection Sized for Large Solar
EMP Shield 600 Volt DC Protection gives a large solar system a rated surge path at the input of its 600V equipment, built to EMP Shield's IP66 rating. If you want help matching your array to the right EMP Shield model, the Outbound Power team is ready to assist.
EMP Shield 600 Volt DC Protection For Large Solar Applications Specifications
|
| Model |
| Brand |
EMP Shield |
| Model Number |
DC/600V/W |
| SKU |
DC-600-W |
| Series |
EMP Shield DC (single circuit) |
| Intended Use |
Large solar applications (EMP Shield) |
| Dual Version |
Dual/DC/600V/W |
| Series Voltage Points |
12V, 24V, 48V, 90-120V, 220-300V, 300-420V, 600V, 1000V |
| Neighboring Models |
DC/300-420V/W (below), DC/1000V/W (above) |
| Electrical |
| System Type |
DC |
| Voltage |
600V |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase (up to 228,000 amps per phase, per EMP Shield) |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response Time |
Begins shunting in less than 1 nanosecond (EMP Shield, SightSpeed) |
| Protection |
| Threats Covered (per EMP Shield) |
EMP E1, E2 and E3; CMEs (solar flares); lightning; power surges |
| Testing (per EMP Shield) |
Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Test Field Levels (per EMP Shield) |
50 kV/m and 90 kV/m |
| Listing (per EMP Shield) |
Listed by the Department of Homeland Security in its EMP resilience report |
| Installation |
| Connection |
Across DC positive, negative and ground |
| Red Wire |
Positive (+POS) |
| Black Wire |
Negative (-NEG) |
| Green Wire |
Ground (GND) |
| Solar Placement |
Across the charge controller PV input (EMP Shield diagram) |
| Selection Rule |
Maximum input voltage of the first device after the PV array |
| First Device (Off-Grid) |
Usually the charge controller |
| First Device (Grid-Tied) |
Usually the inverter |
| Indicator |
Green ON LED |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield's rating) |
| Climate |
Extreme hot and cold climate conditions (EMP Shield) |
| Enclosure |
Gray, 4 mounting tabs, cable fitting |
| Leads |
3 wire leads (red, black, green) |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship (EMP Shield) |
| Lightning Replacement |
$50 with the destroyed unit (EMP Shield) |
| Connected Equipment Policy |
Up to $25,000 when policy conditions are met (EMP Shield) |
