EMP Shield DC 220-300 Volt EMP Protection Covers the PV Input of Higher-Voltage Charge Controllers and Inverters
The DC-220-300-W protects one DC circuit in a solar or wind system that operates between 220 and 300 volts. Its intended equipment, per EMP Shield, is an inverter or charge controller with an operational range of 220-300 volts. On its label, the model reads DC/220-300V/W, with the positive lead in red, the negative in black and the ground in green.
This unit suits owners whose PV array feeds a device rated in that 220-300V band. According to EMP Shield, that device is usually the charge controller on an off-grid system and the inverter on a grid-tied one. It belongs to EMP Shield's DC series, which the company aims at off-grid solar and wind, battery backup and critical infrastructure.
EMP Shield DC 220-300 Volt EMP Protection Features
Made for the 220-300V Operating Band
EMP Shield's DC voltage points step from 90-120V to 220-300V and then to 300-420V. This model covers the middle of those three. Matching the unit to your equipment's input range is how EMP Shield sets up protection for each system.
Wired Between the Array and Your Equipment
In EMP Shield's single solar system drawing, the DC unit connects across the charge controller's PV input. The red lead lands on positive, the black lead on negative and the green lead on ground. That places the unit on the wiring between the array and the controller.
Positive, Negative and Ground Modes
EMP Shield gives its DC units three protection modes. Over-voltage is handled positive-to-negative, positive-to-ground and negative-to-ground.
Rated for 228kA per Phase
Per EMP Shield, the DC series carries a surge capacity of 228kA per phase, or up to 228,000 amps per phase in the company's words. EMP Shield pairs that with a nominal discharge current (In) of 114kA per circuit.
Fast Response and Wide Threat Coverage
EMP Shield says the unit begins shunting over-voltage in less than one nanosecond, using what it calls SightSpeed technology. It lists protection from E1, E2 and E3 EMP phases, solar flares or CMEs, lightning and power surges. At Keystone Compliance, EMP Shield reports, its products were tested to RS-105, MIL-STD-188-125-1, MIL-STD-461G and MIL-STD-464C at 50 kV/m and 90 kV/m. EMP Shield is clear that Keystone Compliance gives no personal endorsement to any product. EMP Shield's products are also listed in the Department of Homeland Security's EMP resilience report, the company states.
Built for Outdoor Installs

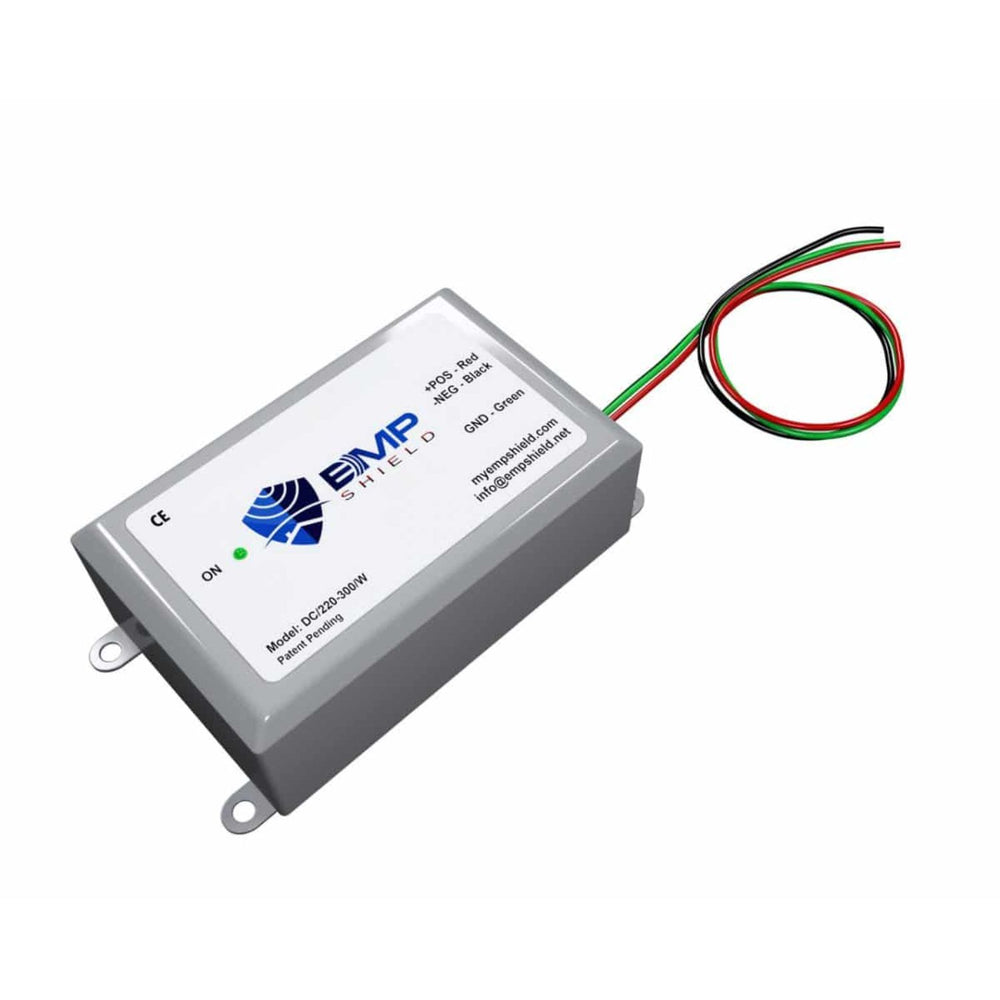

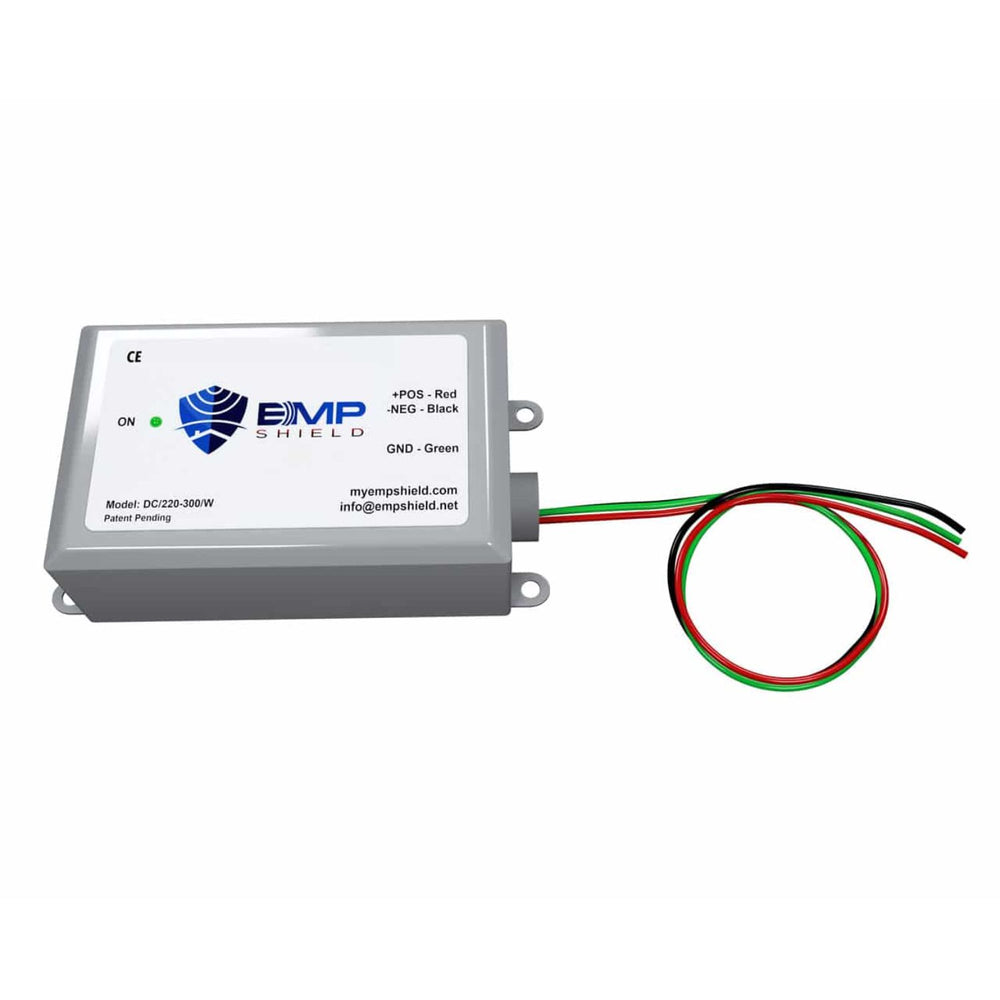

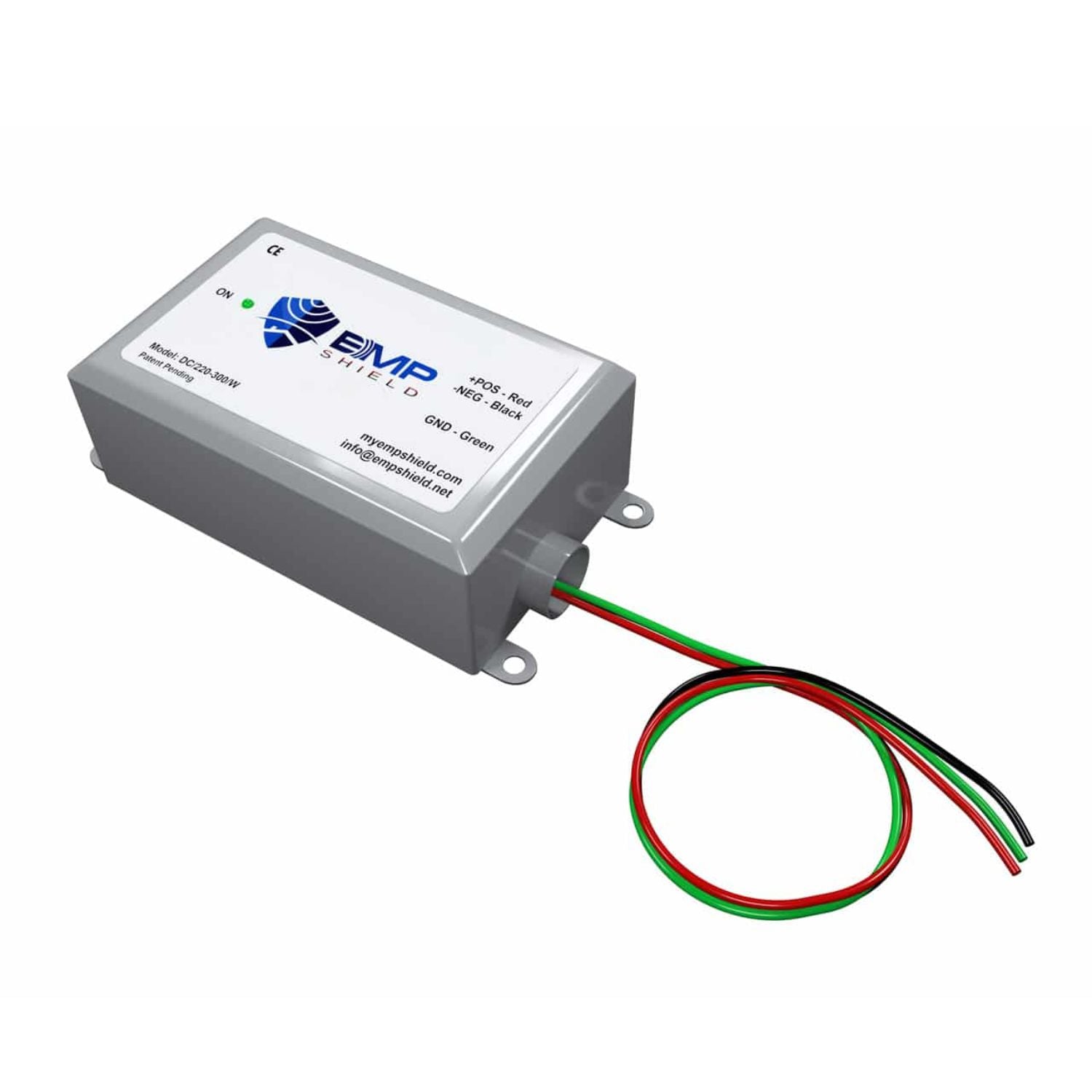

The IP66 rating EMP Shield assigns to the enclosure comes with its note that the unit can be used outdoors in extreme weather. Corner tabs let you fasten the gray housing to a mounting surface, and a fitting on one end carries the leads.
Real-World Applications
Grid-tied solar. For grid-tied systems, EMP Shield says the inverter is typically the first device after the array. If your inverter's maximum input falls between 220 and 300V, this unit goes across that input.
Off-grid solar and wind. EMP Shield puts off-grid solar and wind at the top of its DC applications. A charge controller in that 220-300V band makes this the matching model.
Solar-charged battery backup. Battery backup systems for homes, businesses and industry appear on EMP Shield's DC list. Where solar charges the bank through a 220-300V controller or inverter, this unit protects that input.
Critical infrastructure. EMP Shield also lists critical infrastructure. Solar equipment at those sites with a 220-300V input is a fit.
Practical Comparison
DC 220-300V Versus DC 300-420V
These are neighboring EMP Shield voltage points, and both include 300V. Choose by your device's maximum input voltage. When that number sits right at 300V, check with our team before you order so we can confirm the model with EMP Shield.
Single DC 220-300V Versus Dual DC 220-300V
A Dual 220-300V model puts two EMP Shield DC units into one device to save space. This single unit fits one circuit. Go with the Dual if two 220-300V circuits need coverage in one enclosure.
DC 220-300V Unit Versus a Faraday Cage
A Faraday cage only shields what is closed up inside it. Panels, controllers and inverters must stay connected to make power. The DC-220-300-W protects that equipment in service.
Buyer Guidance
Finding Your Maximum Input Voltage
Check the spec sheet or label of the first device after your PV array and note its maximum input voltage. EMP Shield says that number decides the model. If it falls in the 220-300V range, this unit is the match.
Who Should Install It
A licensed electrician should handle the connection to your PV input. EMP Shield's protection policy lists installation by a licensed electrician among its claim conditions.
This May Be A Good Fit If
- Your inverter or charge controller works at 220-300V
- You have a grid-tied or off-grid solar system
- You want protection on one DC input circuit
- Your equipment is mounted outdoors
Common Questions
Can I Use This Model on a Battery Bank?
EMP Shield lists this model for inverters and charge controllers with a 220-300V operating range. For battery-only connections, ask the Outbound Power team which EMP Shield model applies.
What Happens If Lightning Destroys the Unit?
EMP Shield replaces a lightning-destroyed unit for $50 when you send the old one back. Apart from lightning, its 10-year limited warranty covers defects in materials and workmanship with repair or replacement. There is also a separate EMP Shield protection policy that may pay up to $25,000 toward damaged connected electronics, subject to its conditions.
Does It Have a Status Light?
Yes. A green LED marked ON sits on the front label, next to the EMP Shield logo.
What's Included
- 1 x EMP Shield DC-220-300-W Unit
Rated Protection for Your 220-300V Input
EMP Shield DC 220-300 Volt EMP Protection adds a rated surge path at the input of your 220-300V charge controller or inverter, ready for outdoor mounting by EMP Shield's rating. If you would like a second set of eyes on your system voltage, the Outbound Power team is happy to help.
EMP Shield DC 220-300 Volt Solar & Wind System EMP Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model Number |
DC/220-300V/W |
| SKU |
DC-220-300-W |
| Series |
EMP Shield DC (single circuit) |
| Dual Version |
Dual/DC/220-300V/W |
| Series Voltage Points |
12V, 24V, 48V, 90-120V, 220-300V, 300-420V, 600V, 1000V |
| Neighboring Models |
DC/90-120V/W (below), DC/300-420V/W (above) |
| Electrical |
| System Type |
DC |
| Operating Range |
220-300 volts (inverters or charge controllers) |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase (up to 228,000 amps per phase, per EMP Shield) |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response Time |
Begins shunting in less than 1 nanosecond (EMP Shield, SightSpeed) |
| Protection |
| Threats Covered (per EMP Shield) |
EMP E1, E2 and E3; CMEs (solar flares); lightning; power surges |
| Testing (per EMP Shield) |
Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Test Field Levels (per EMP Shield) |
50 kV/m and 90 kV/m |
| Listing (per EMP Shield) |
Listed by the Department of Homeland Security in its EMP resilience report |
| Installation |
| Connection |
Across DC positive, negative and ground |
| Red Wire |
Positive (+POS) |
| Black Wire |
Negative (-NEG) |
| Green Wire |
Ground (GND) |
| Solar Placement |
Across the charge controller PV input (EMP Shield diagram) |
| Selection Rule |
Maximum input voltage of the first device after the PV array |
| First Device (Off-Grid) |
Usually the charge controller |
| First Device (Grid-Tied) |
Usually the inverter |
| Indicator |
Green ON LED |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield's rating) |
| Outdoor Use |
Can be used outdoors in extreme weather (EMP Shield) |
| Enclosure |
Gray, 4 mounting tabs, cable fitting |
| Leads |
3 wire leads (red, black, green) |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship (EMP Shield) |
| Lightning Replacement |
$50 with the destroyed unit (EMP Shield) |
| Connected Equipment Policy |
Up to $25,000 when policy conditions are met (EMP Shield) |
