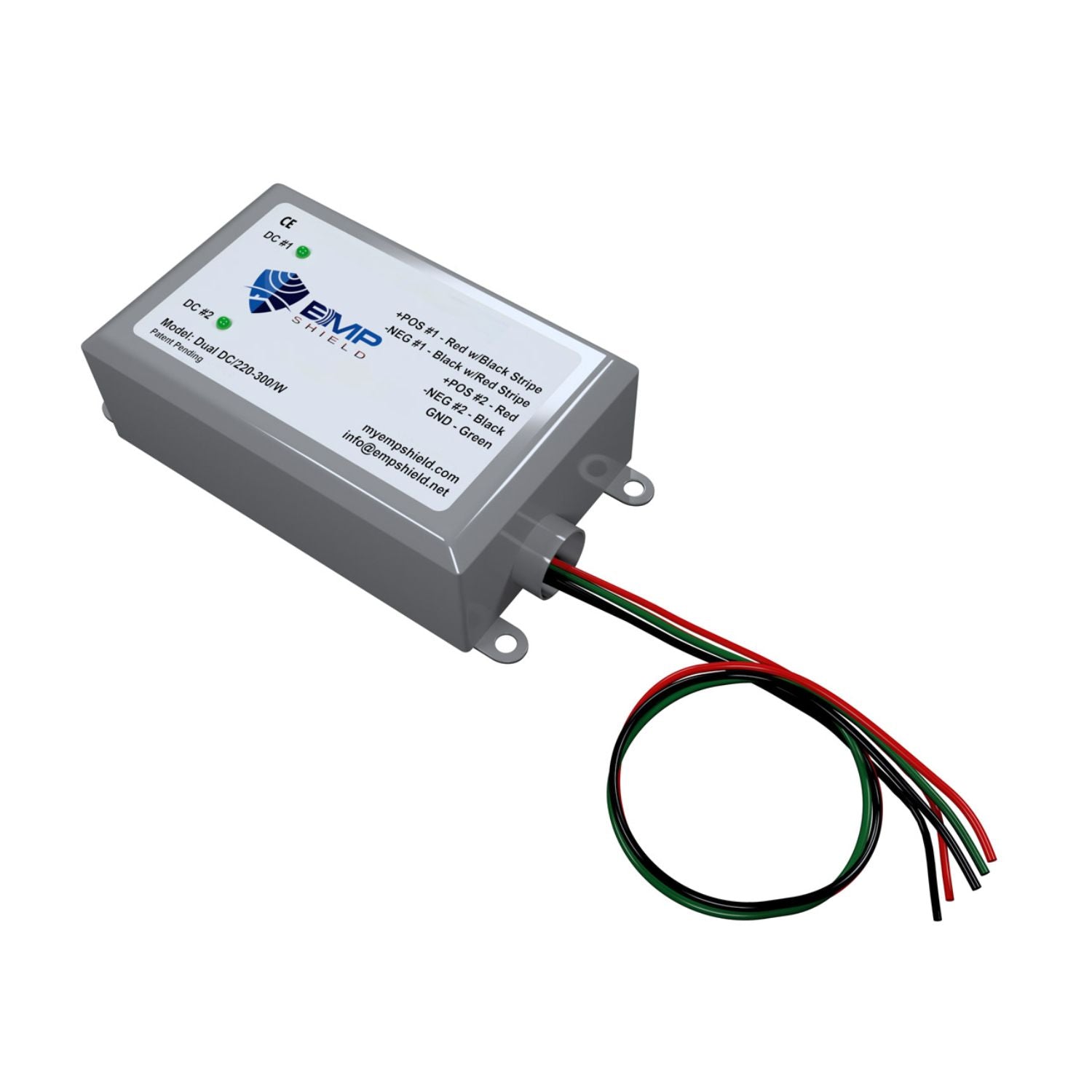

EMP Shield Dual 220-300 Volt DC Protection Places Two 220-300V Circuits In One Weather-Rated Housing
EMP Shield's Dual/DC/220-300V/W combines two DC EMP Shields at the 220-300V voltage point in one device. EMP Shield says its dual models are for solar systems with two matching inverters or charge controllers, and it names this one for solar panel and wind systems.
Owners of 220-300V systems with paired equipment are the main audience here. Rather than mounting two single shields side by side, you mount one housing that carries both circuits, which EMP Shield says is the space-saving purpose of its Dual DC design. The leads of each circuit attach at DC positive, negative and ground.
EMP Shield Dual 220-300 Volt DC Protection Features

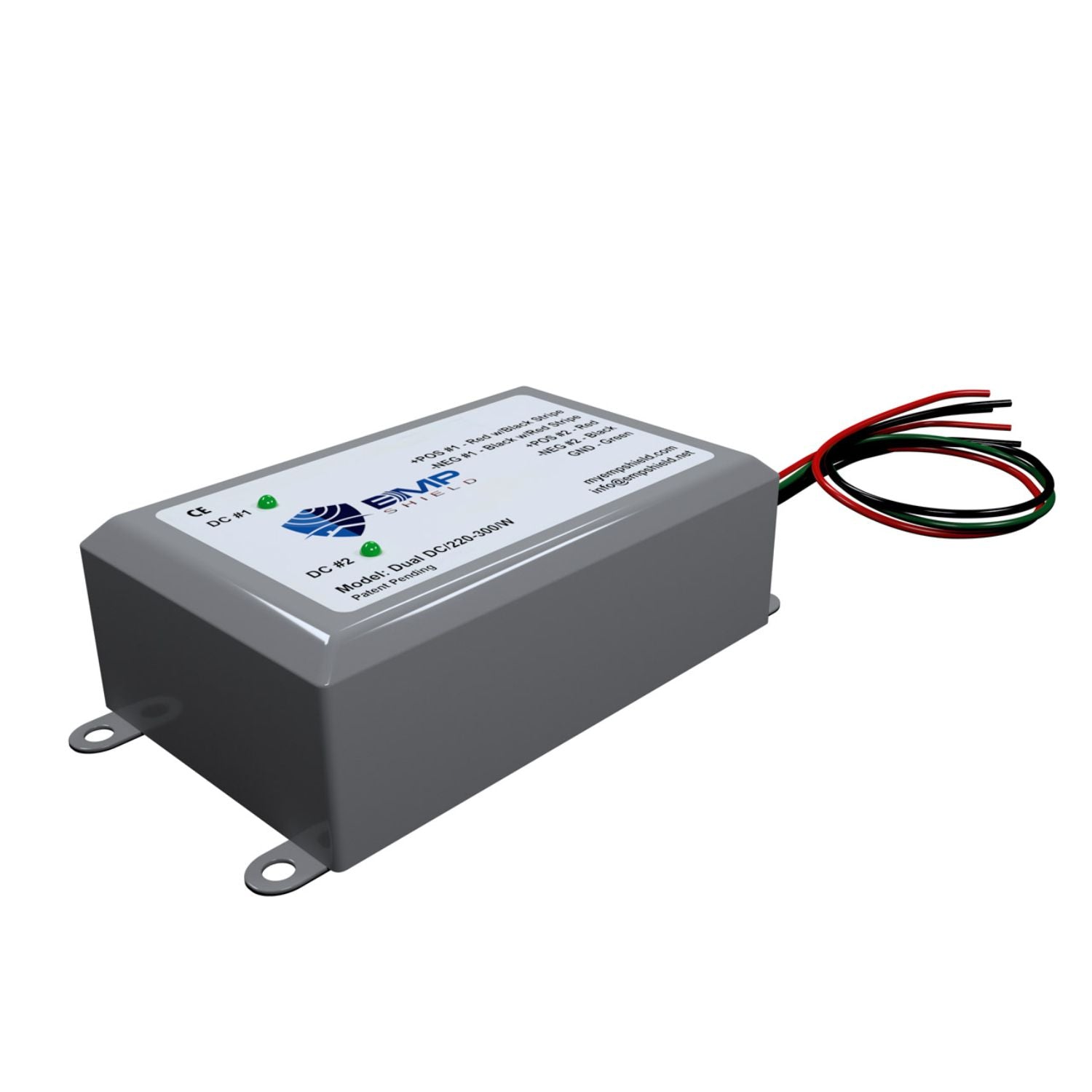

One Device, Two 220-300V Circuits
Two full DC EMP Shields share this enclosure. Each one has its own positive and negative leads, while a single green lead grounds the pair, as EMP Shield's dual drawing shows.
Ratings Of 114kA And 228kA
EMP Shield publishes a nominal discharge current (In) of 114kA per circuit for the DC family, along with a surge capacity of 228kA per phase. This model shares those figures.
SightSpeed Over-Voltage Shunting
SightSpeed is EMP Shield's name for the technology that, by its account, starts shunting over-voltage in less than one nanosecond. The aim is to keep a sudden spike from passing into your 220-300V devices.
Protection From Each Conductor To Ground
EMP Shield's three listed modes cover positive to negative, positive to ground and negative to ground. A surge on either DC conductor, or between them, falls within those modes.
IP66 Enclosure For Outdoor Sites
The enclosure is IP66-rated by EMP Shield, which says the unit can be used outdoors in extreme weather and in extreme hot and cold climate conditions.
Made In Kansas By A Veteran-Owned Company
The label reads "Veteran Owned Kansas Company" and "Proudly Made In America." EMP Shield states its units are made in Kansas, USA.
Real-World Applications
Solar Panel And Wind Systems. Both are on EMP Shield's list of uses for its DC series, and both appear in this model's name. A system that feeds two matching 220-300V devices from its array fits the dual.
Commercial Battery Backup Systems. EMP Shield names commercial and industrial battery backup systems among its DC applications. If such a system charges through a matched pair of 220-300V devices, one dual unit can cover both.
Oil And Gas Stations. Oil and gas stations are also on EMP Shield's list. For a station whose DC power runs through two matching devices in this voltage range, the dual keeps both circuits in a single enclosure.
Practical Comparison
EMP Shield Dual 220-300V Versus Two Single 220-300V Units
EMP Shield makes a single DC/220-300V/W as well. Two singles would each need their own mounting spot and ground wire. The dual delivers the same two circuits with one housing and one ground lead, which is the space savings EMP Shield designs it for.
EMP Shield Dual 220-300V Versus Dual 300-420V
These neighboring models carry the same EMP Shield ratings, and the voltage point is what sets them apart. Read the maximum input voltage on the first device after your PV array, then pick the model that matches it.
EMP Shield Dual 220-300V Versus A Faraday Cage
A Faraday cage shelters only the electronics you put inside it. Inverters and charge controllers in a working 220-300V system can't be shut away like that. The dual unit connects to their DC circuits and stays in service while they run.
Buyer Guidance
Choosing The 220-300V Model
EMP Shield ties model choice to one number, the maximum input voltage of the first device downstream of the PV array. Off-grid, that device is usually a charge controller. Grid-tied, it's usually an inverter. Choose this dual when you have two of those devices, they match, and their voltage fits the 220-300V point.
Who Should Install It
Plan on a licensed electrician. A licensed electrician install is one of the listed conditions of EMP Shield's $25,000 connected equipment policy, and EMP Shield's dual drawing shows the unit tying into both charge controllers' PV inputs.
This May Be A Good Fit If
- Two matching devices after your array run in the 220-300V range
- You'd rather mount one housing than two
- Your system is solar, wind or commercial battery backup
- The unit will sit outdoors or in harsh conditions
Common Questions
How Is It Wired To Two Charge Controllers?

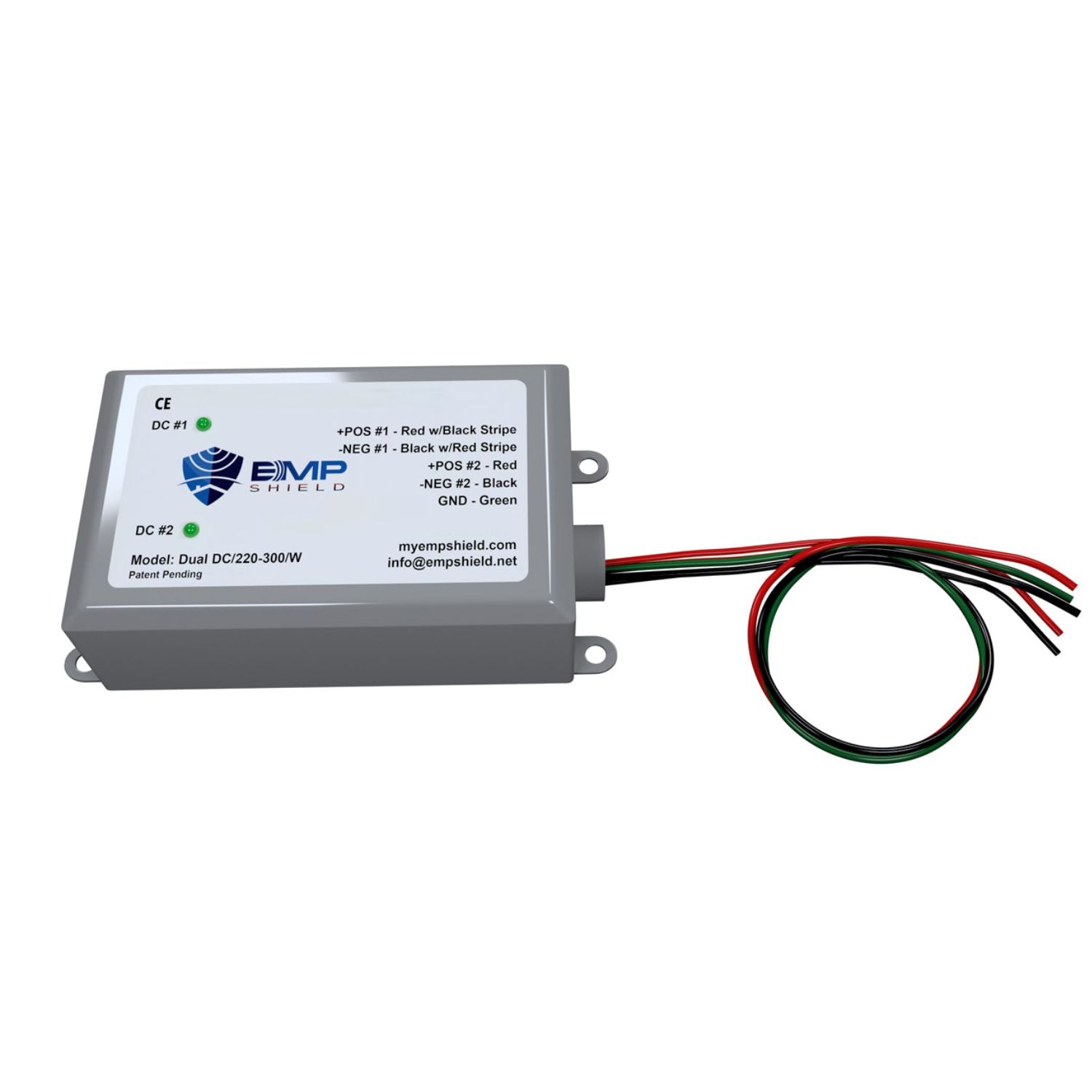

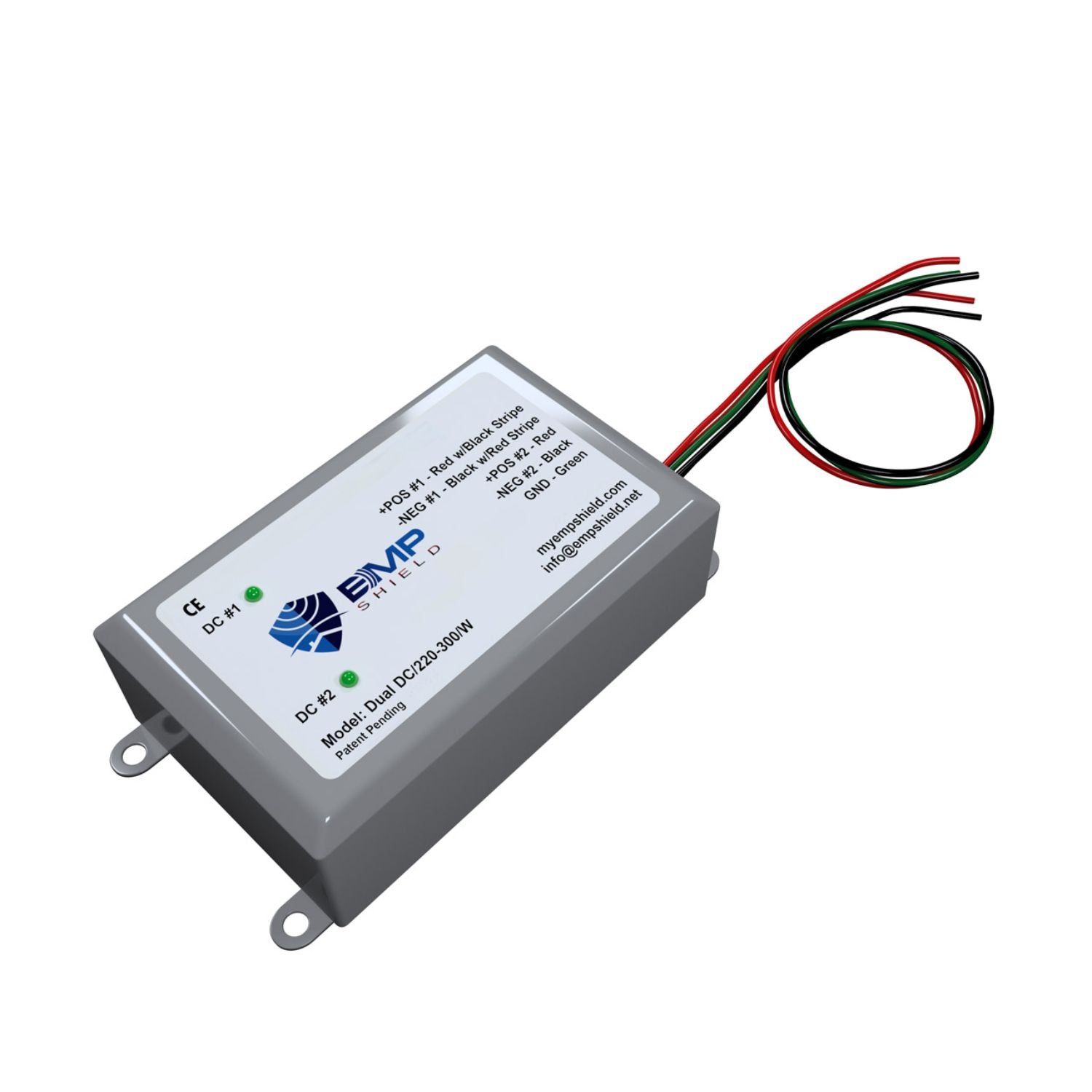

Each charge controller's PV input gets one pair of leads. The label lists +POS #1 as red with a black stripe, -NEG #1 as black with a red stripe, +POS #2 as red and -NEG #2 as black. The green GND lead goes to ground.
What Happens If Lightning Destroys The Unit?
EMP Shield says it will replace a lightning-destroyed unit for $50 once the destroyed unit is sent in. Defects in materials and workmanship are covered by EMP Shield's 10-year limited warranty. EMP Shield also runs a separate protection policy that can reimburse up to $25,000 for damaged connected electronics, provided its conditions are met, one being a claim within 30 days.
Which Standards Does EMP Shield Report Testing To?
EMP Shield names MIL-STD-188-125-1, MIL-STD-464C, MIL-STD-461G and RS-105, with testing at Keystone Compliance, which, EMP Shield is careful to say, does not endorse products. On the listing side, EMP Shield says the Department of Homeland Security includes it in an EMP Resilience Report.
Does It Address EMP As Well As Lightning?
Yes, by EMP Shield's account. Its stated coverage spans all three EMP phases (E1, E2 and E3) along with CMEs, solar flares, lightning and power surges.
What's Included
- 1 x EMP Shield Dual DC 220-300V Unit
Two 220-300V Circuits, One Installation
For a matched pair of 220-300V devices, the EMP Shield Dual 220-300 Volt DC Protection unit covers both circuits from one enclosure with one ground lead. Reach out to the Outbound Power team with your equipment model numbers, and we'll help you confirm it's the right match.
EMP Shield Dual 220-300 Volt DC Solar Panel & Wind Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model |
Dual/DC/220-300V/W |
| SKU |
Dual-DC-220-300-W |
| Type |
Dual DC (2 DC EMP Shields in one unit) |
| Named For (EMP Shield) |
Solar panel and wind systems |
| Electrical |
| Voltage Point |
220-300V DC |
| Intended Use (EMP Shield) |
2 matching inverters or charge controllers |
| Protected Circuits |
2 (DC #1 and DC #2) |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response (EMP Shield) |
Begins shunting over-voltage in less than 1 nanosecond (SightSpeed) |
| Protection |
| Threats Addressed (EMP Shield) |
EMP (E1, E2, E3), CMEs, solar flares, lightning, power surges |
| Testing (EMP Shield) |
Keystone Compliance - MIL-STD-188-125-1, MIL-STD-464C, MIL-STD-461G, RS-105 |
| DHS Listing (EMP Shield) |
Listed in DHS EMP Resilience Report |
| Installation |
| Connection |
Across DC positive / negative / ground |
| Location (EMP Shield drawing) |
Charge controller PV input of each system |
| Selection Rule (EMP Shield) |
Max input voltage of first device after the PV array |
| Circuit #1 Leads |
+POS Red w/Black Stripe, -NEG Black w/Red Stripe |
| Circuit #2 Leads |
+POS Red, -NEG Black |
| Ground |
1 Green wire (GND), shared |
| Indicator Lights |
DC #1 and DC #2 (green) |
| Installer |
Licensed electrician (EMP protection policy condition) |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield) |
| Outdoor Use (EMP Shield) |
Extreme weather, hot and cold climates |
| Made In |
Kansas, USA (veteran-owned company) |
| Warranty |
| Limited Warranty (EMP Shield) |
10 years, defects in materials and workmanship |
| Lightning Replacement (EMP Shield) |
$50 with destroyed unit |
| Connected Equipment Policy (EMP Shield) |
Up to $25,000, conditions apply (claim within 30 days) |
EMP Shield Dual-DC-220-300-W Manual
