EMP Shield Dual 48 Volt DC Protection Shields A Matched Pair Of 48V Charge Controllers Or Inverters With One Device
Two DC EMP Shields share one housing in the EMP Shield Dual 48V (model Dual/DC/48V/W, SKU Dual-DC-48V-W). EMP Shield names it for solar and wind systems and says it belongs on systems with two matching inverters or charge controllers that have an operational voltage of 48V.
It's aimed at owners and installers of 48V setups laid out with twin controllers or twin inverters. EMP Shield designs its DC series to help keep energy storage systems, charge controllers, inverters and connected devices safe and operational when EMPs, lightning strikes or power surges hit. The dual 48V lets one unit cover both devices.
EMP Shield Dual 48 Volt DC Protection Features
Made For 48V Solar And Wind Systems
Off-grid solar and wind energy systems sit first on EMP Shield's list of uses for its DC series, and this dual model carries both in its name. Each 48V circuit is wired across positive, negative and ground, the connection EMP Shield specifies for the series.
A Separate Circuit For Each 48V Device
Inside the housing are two complete DC EMP Shields. The label numbers them DC #1 and DC #2, and each has its own green light and its own pair of leads.
Rated At 114kA Per Circuit
EMP Shield gives the series a nominal discharge current of 114kA per circuit. Surge capacity is listed at 228kA per phase.
Detection And Shunting In Under A Nanosecond
According to EMP Shield, its SightSpeed technology detects an over-voltage event and begins shunting it in less than one nanosecond. The excess energy is shunted away from your 48V equipment.
Positive, Negative And Ground Modes
EMP Shield lists positive-to-negative, positive-to-ground and negative-to-ground as the protection modes. Those three modes address surges across the DC pair and between each conductor and earth ground.

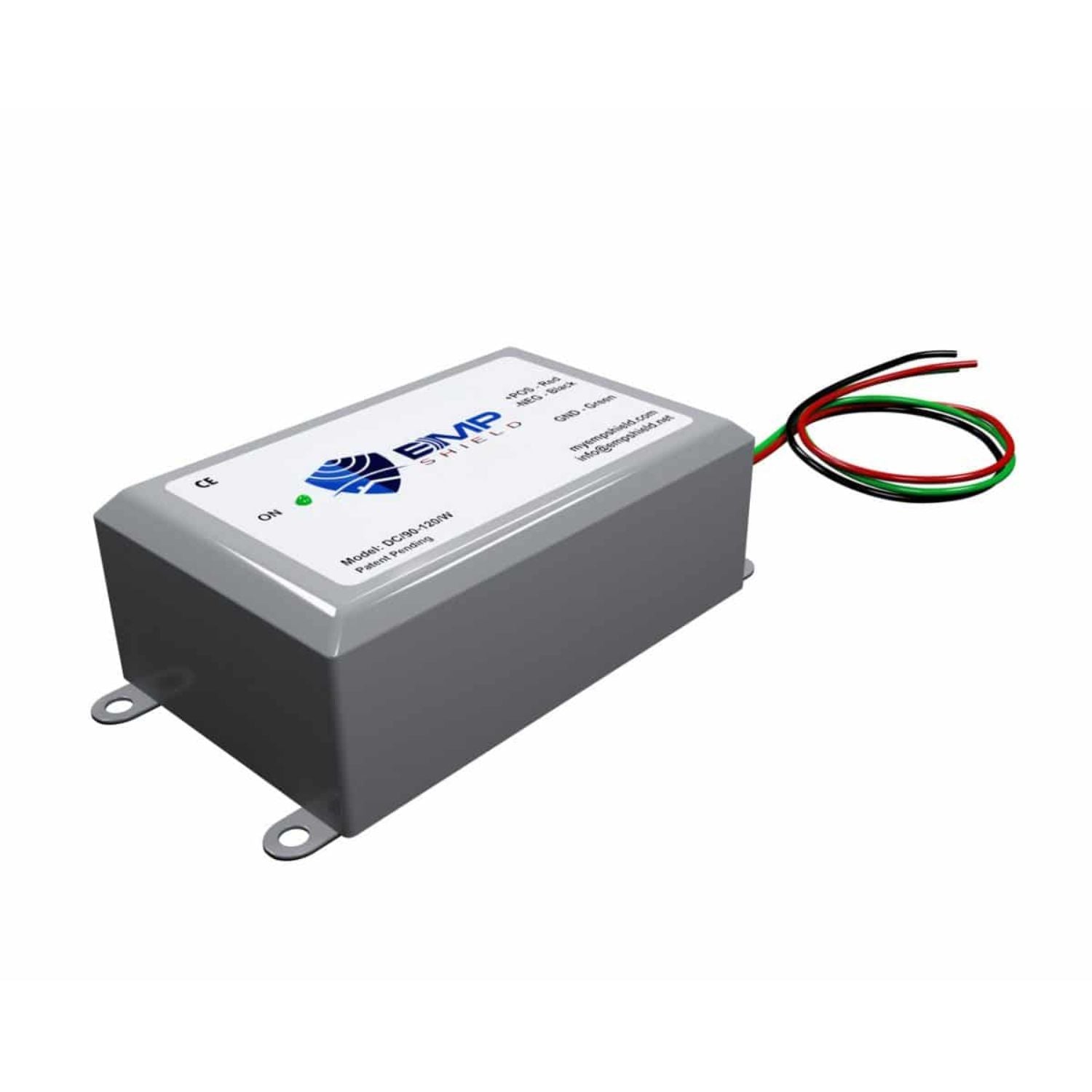

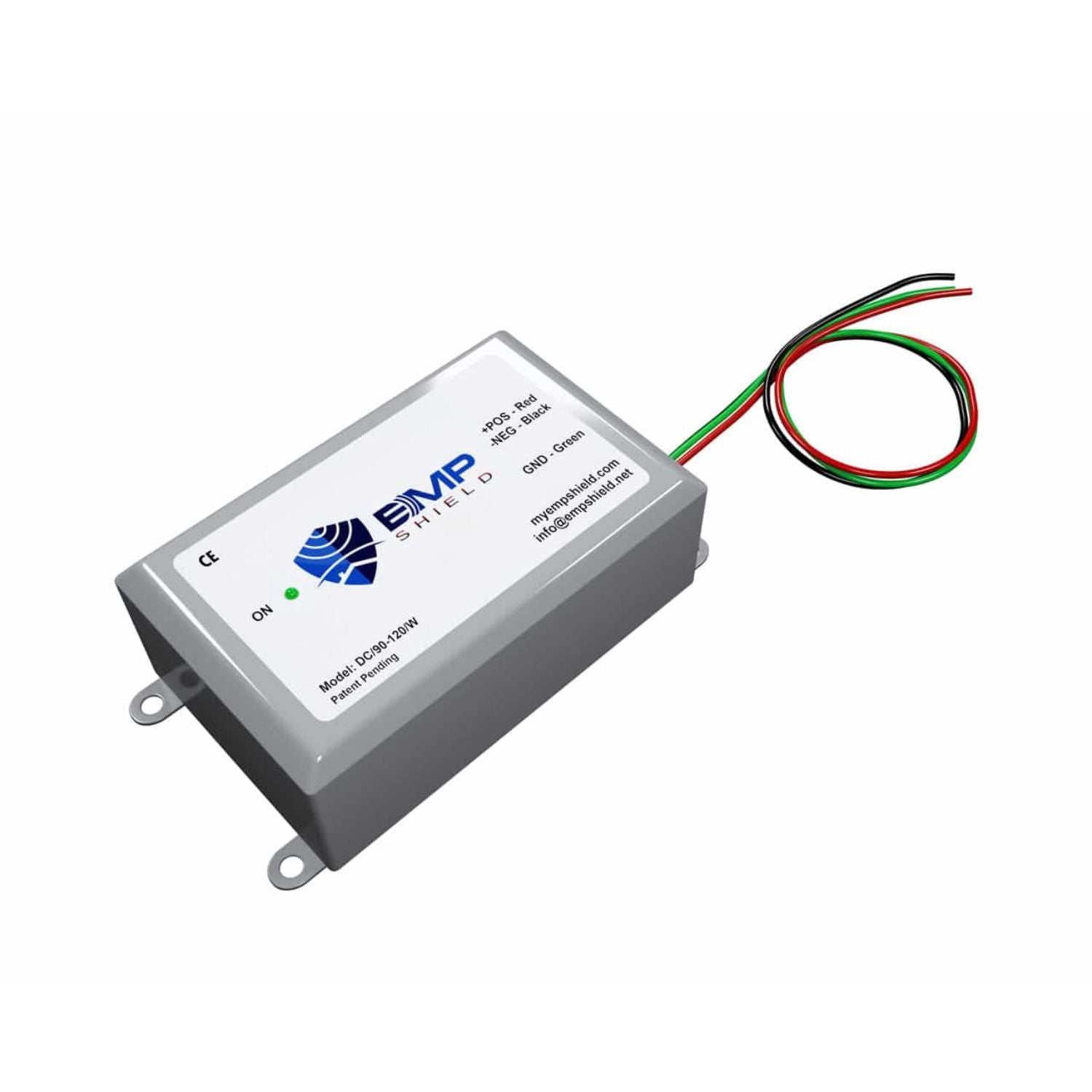

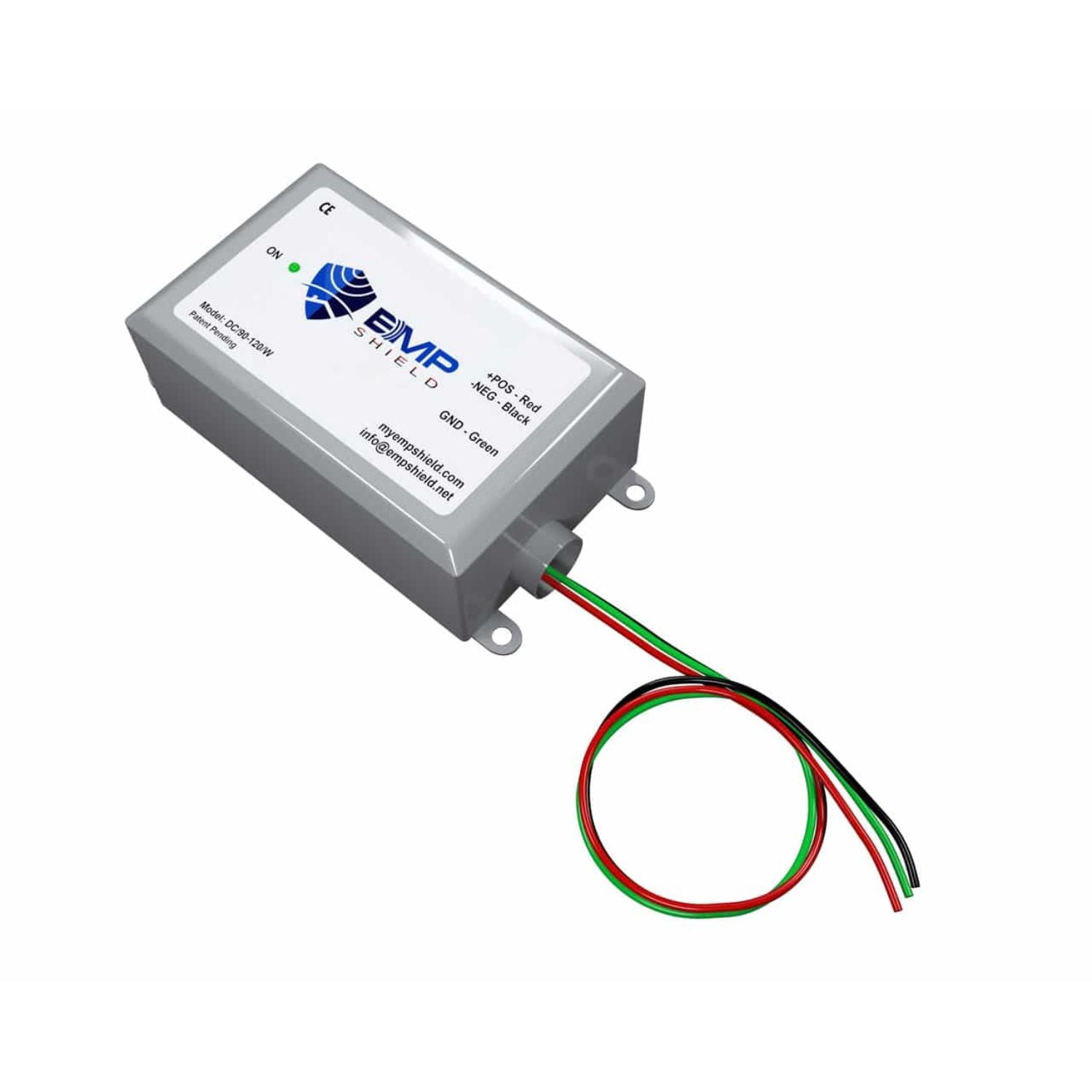

IP66 Housing Built In Kansas
EMP Shield rates the gray enclosure IP66 and lists it for use in extreme hot and cold climate conditions. The company builds its units in Kansas, USA, and describes itself as veteran-owned.
Real-World Applications
Off-Grid Solar And Wind Systems. A 48V off-grid system with two identical charge controllers can connect both PV inputs to this one unit, matching the solar and wind use EMP Shield names for it.
Residential, Commercial And Industrial Battery Backup. All three kinds of battery backup system are on EMP Shield's list. When a 48V backup system uses a matched pair of charge controllers or inverters, the dual covers both.
Telecom And Communication Towers. EMP Shield lists telecom and communication towers among the places its DC protection is intended for. A tower site running two matching 48V devices can use the dual in place of two singles.
Practical Comparison
EMP Shield Dual 48V Versus A Single 48V Unit
The single 48V model (DC/48V/W) protects one device. The dual 48V holds two of those circuits in one device, which EMP Shield says is designed to save space. Choose the single for one 48V charge controller or inverter and the dual for a matched pair.
EMP Shield Dual 48V Versus Dual 24V
EMP Shield lists the same 114kA per circuit rating across the series, so the real difference between these two duals is the voltage point. Pick the one that matches your devices, using EMP Shield's rule of selecting by the maximum input voltage of the first device after the PV array.
EMP Shield Dual 48V Versus A Faraday Cage
A Faraday cage protects electronics placed inside it, which is a fit for equipment kept in storage. A 48V solar or wind system has to stay connected to produce power, so the dual unit is wired into its live DC circuits.
Buyer Guidance
Check The Voltage Before You Order
Start with the two devices right after your PV array. EMP Shield says to choose a shield by the maximum input voltage of that first device, which is usually a charge controller off-grid or an inverter in a grid-tied system. EMP Shield pairs this dual with two matching 48V devices, measured by operational voltage.
Installation Basics
EMP Shield's dual drawing shows two separate solar systems, each with panels, a charge controller and a battery. The unit's two lead pairs go to the two charge controller PV inputs, and its one green wire goes to ground. A licensed electrician should do the wiring, since EMP Shield's $25,000 protection policy names that as one of its conditions.
This May Be A Good Fit If
- Two identical 48V charge controllers or inverters follow your array
- You run solar, wind or battery backup at 48V
- You prefer one housing over two separate units
- You want an enclosure EMP Shield rates IP66
Common Questions
Does It Work With Wind Systems?
EMP Shield names this model for solar and wind systems. Its dual installation drawing shows a solar layout only, so ask the Outbound Power team if you need help applying it to a wind setup.
How Do I Know Which Leads Go To Which Device?
The label spells it out. +POS #1 is red with a black stripe and -NEG #1 is black with a red stripe. +POS #2 is solid red and -NEG #2 is solid black. GND is green and serves both circuits.
What Testing Does EMP Shield Report?
EMP Shield reports testing at Keystone Compliance to MIL-STD-188-125-1, MIL-STD-464C, MIL-STD-461G and RS-105, with RS-105 tests at 50 kV/m and 90 kV/m. EMP Shield adds that Keystone Compliance does not endorse products. EMP Shield adds that Homeland Security lists it in the department's EMP Resilience Report.
What Are EMP Shield's Warranty Terms?
EMP Shield covers defects in materials and workmanship for 10 years and repairs or replaces the unit. A unit destroyed by lightning can be replaced for $50 by sending in the destroyed one. Damaged connected electronics fall under a separate EMP Shield protection policy worth up to $25,000, with conditions such as a licensed electrician install and a claim within 30 days.
What's Included
- 1 x EMP Shield Dual DC 48V Unit
Matched 48V Devices, One Protective Housing
Each 48V device in a matched pair gets its own protected circuit from the one housing of the EMP Shield Dual 48 Volt DC Protection unit. Send the Outbound Power team your equipment details, and we'll help you confirm the fit.
EMP Shield Dual 48 Volt DC For Solar & Wind Systems Specifications
|
| Model |
| Brand |
EMP Shield |
| Model |
Dual/DC/48V/W |
| SKU |
Dual-DC-48V-W |
| Type |
Dual DC (2 DC EMP Shields in one unit) |
| Named For (EMP Shield) |
Solar and wind systems |
| Electrical |
| Voltage Point |
48V DC |
| Intended Use (EMP Shield) |
2 matching inverters or charge controllers, 48V operational voltage |
| Protected Circuits |
2 (DC #1 and DC #2) |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response (EMP Shield) |
Begins shunting over-voltage in less than 1 nanosecond (SightSpeed) |
| Protection |
| Threats Addressed (EMP Shield) |
EMP (E1, E2, E3), CME / solar flares, lightning, power surges |
| Testing (EMP Shield) |
Keystone Compliance - MIL-STD-188-125-1, MIL-STD-464C, MIL-STD-461G, RS-105 |
| RS-105 Test Levels (EMP Shield) |
50 kV/m and 90 kV/m |
| DHS Listing (EMP Shield) |
Listed in DHS EMP Resilience Report |
| Installation |
| Connection |
Across DC positive / negative / ground |
| Location (EMP Shield drawing) |
Charge controller PV input of each system |
| Selection Rule (EMP Shield) |
Max input voltage of first device after the PV array |
| Circuit #1 Leads |
+POS Red w/Black Stripe, -NEG Black w/Red Stripe |
| Circuit #2 Leads |
+POS Red, -NEG Black |
| Ground |
1 Green wire (GND), shared |
| Indicator Lights |
DC #1 and DC #2 (green) |
| Installer |
Licensed electrician (EMP protection policy condition) |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield) |
| Climate (EMP Shield) |
Extreme hot and cold conditions |
| Made In |
Kansas, USA (veteran-owned company) |
| Warranty |
| Limited Warranty (EMP Shield) |
10 years, defects in materials and workmanship |
| Lightning Replacement (EMP Shield) |
$50 with destroyed unit |
| Connected Equipment Policy (EMP Shield) |
Up to $25,000, conditions apply (claim within 30 days) |
EMP Shield Dual-DC-48V-W Manual
