EMP Shield DC 300-420 Volt EMP Protection Adds a Rated Surge Path to Solar and Wind Equipment With a 300-420V Input

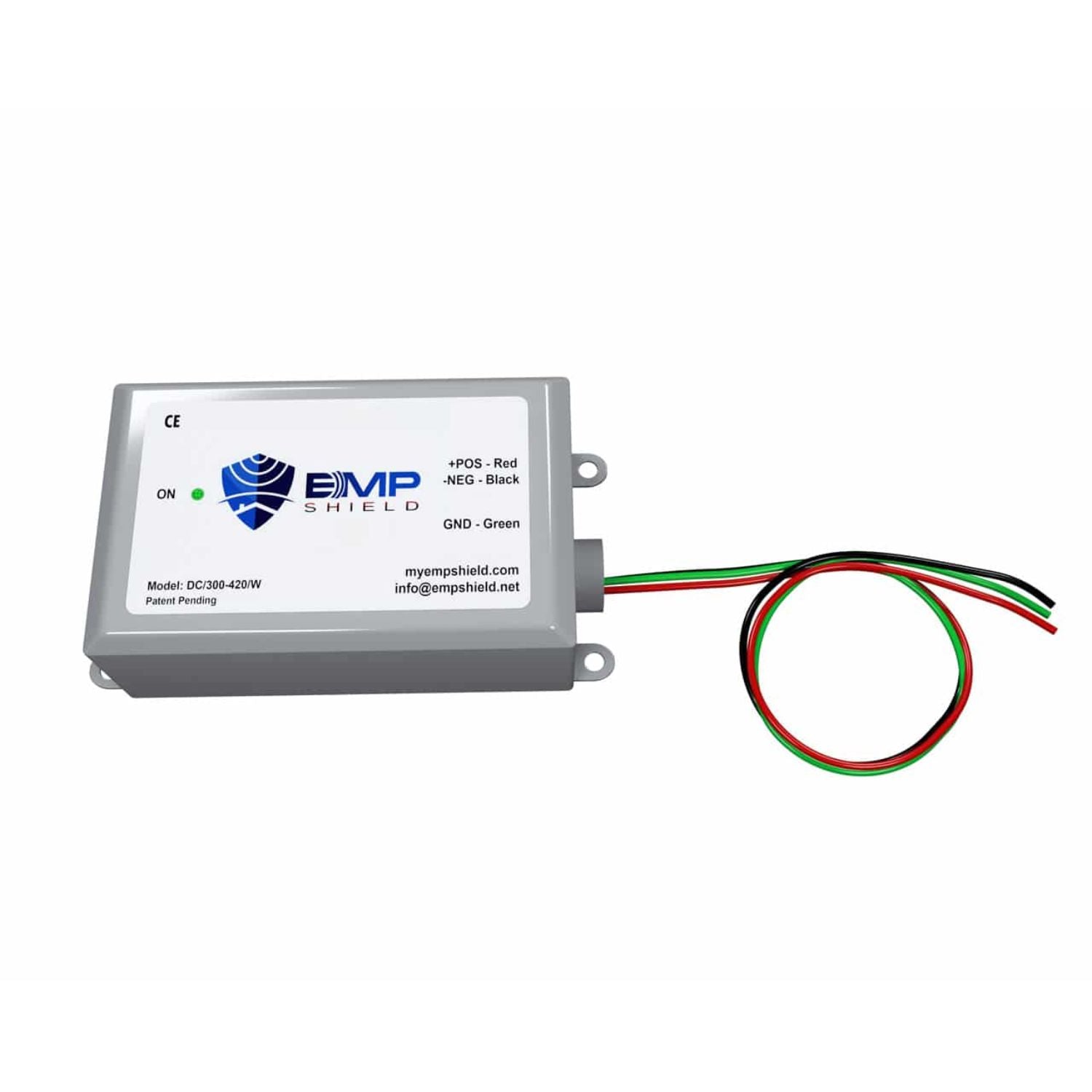

The DC-300-420-W is a single DC protection unit from EMP Shield for solar and wind gear that runs from 300 to 420 volts. According to EMP Shield, the target equipment is any inverter or charge controller whose operational range is 300-420 volts. The front label reads DC/300-420V/W and marks the wiring as +POS red, -NEG black and GND green.
If the first device after your array has a maximum input in this range, this is the EMP Shield model built for it. That device is generally a charge controller in an off-grid system or an inverter in a grid-tied system, by EMP Shield's guidance. The unit is part of EMP Shield's DC series for off-grid solar and wind, battery backup and critical infrastructure.
EMP Shield DC 300-420 Volt EMP Protection Features
Covers the 300-420V Step
Within EMP Shield's DC lineup, 300-420V sits above the 220-300V model and below the 600V model. Picking the step that matches your equipment's input is the heart of choosing an EMP Shield DC unit.
Mounts Across the Controller's PV Input
EMP Shield's single solar system diagram shows its DC unit across the PV input of the charge controller, with green running to ground. Positive connects to red and negative to black. The panels feed the controller, and the unit sits on that same pair of conductors.
Three Modes of DC Protection
EMP Shield specifies positive-to-negative, positive-to-ground and negative-to-ground modes for the DC series. All three combinations of the two conductors and ground are covered.
114kA In and 228kA Surge Capacity
The DC series is rated by EMP Shield at 114kA nominal discharge current (In) per circuit. Its surge capacity is 228kA per phase, which EMP Shield also states as withstanding up to 228,000 amps per phase.
Sub-Nanosecond Reaction per EMP Shield
EMP Shield credits its SightSpeed technology with starting to shunt over-voltage in less than one nanosecond. The company lists E1, E2 and E3 EMP, CMEs or solar flares, lightning and power surges as covered threats. Its testing, EMP Shield reports, was done at Keystone Compliance to MIL-STD-461G, MIL-STD-464C, MIL-STD-188-125-1 and RS-105 at 50 kV/m and 90 kV/m. Keystone itself endorses no products, EMP Shield is careful to note. A Department of Homeland Security listing in that agency's EMP resilience report is another claim EMP Shield makes for its products.
IP66 Housing for Outdoor Arrays

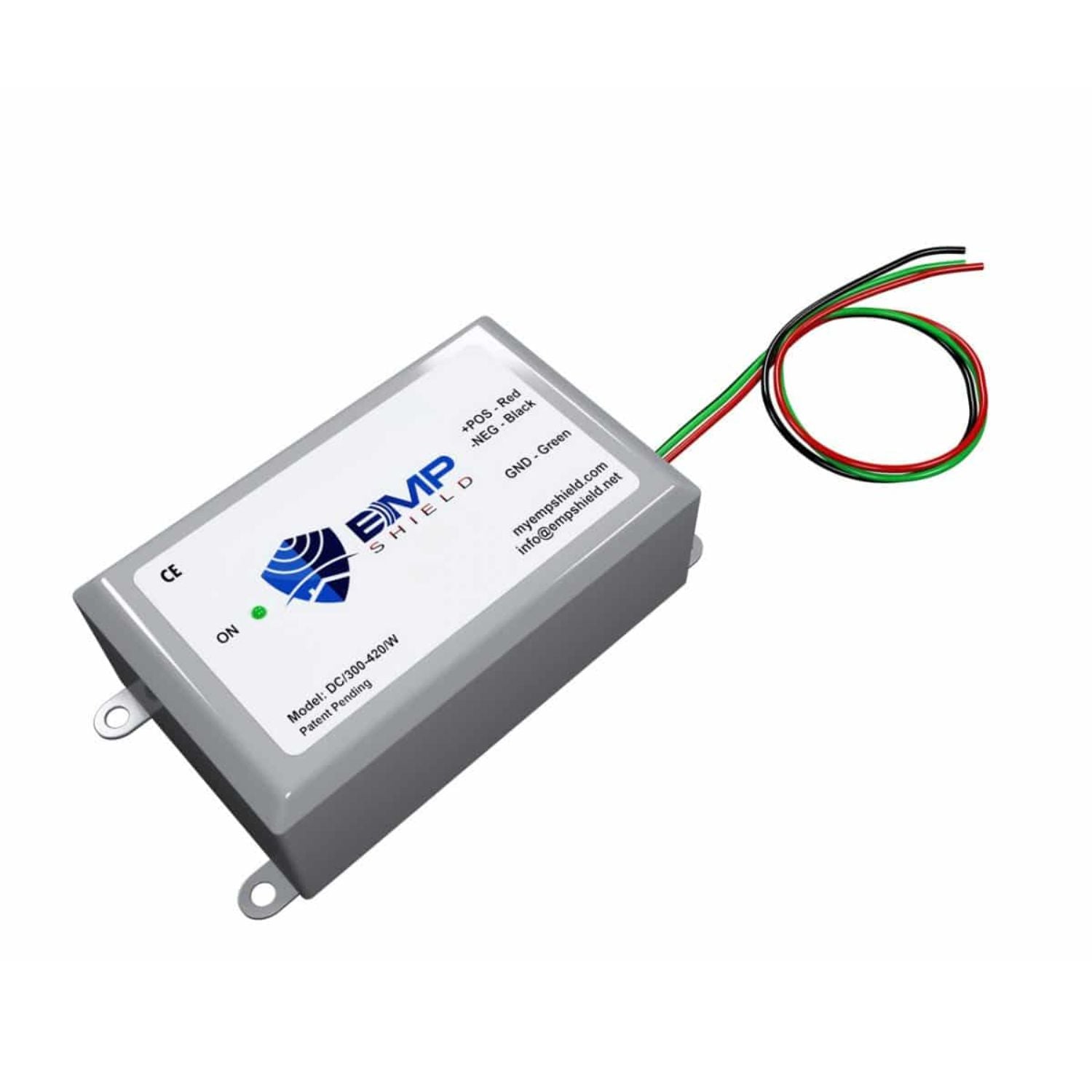

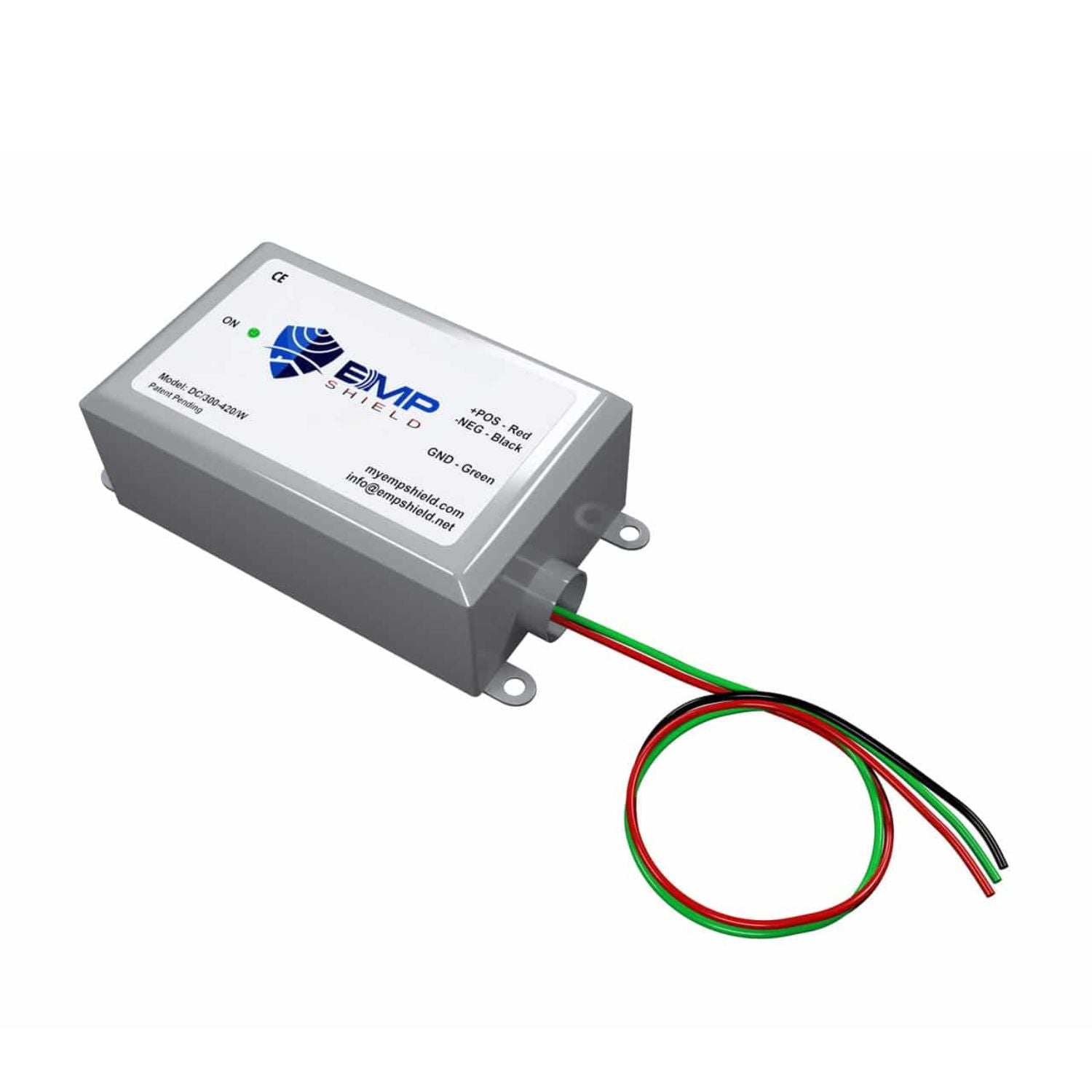

EMP Shield lists an IP66 rating for the enclosure and says the model can be used outdoors in extreme weather. A gray body with four mounting tabs keeps the install tidy, and the leads exit through one fitting.
Real-World Applications
Off-grid arrays with a 300-420V controller. In off-grid solar, EMP Shield looks to the charge controller to set the model. A controller whose input works in the 300-420V range pairs with this unit.
Grid-tied inverters. Grid-tied systems usually start with the inverter right after the array, according to EMP Shield. An inverter input between 300 and 420V is a fit.
Commercial and industrial backup. EMP Shield names commercial and industrial battery backup systems among its DC applications. When a solar input in that backup system runs at 300-420V, this unit protects it.
Wind and remote sites. Wind energy systems and remote monitoring stations are on EMP Shield's DC list too. Equipment at those sites with a 300-420V input can use this model.
Practical Comparison
DC 300-420V Versus DC 220-300V
The two models share the 300V point at their edges. A device whose maximum input is above 300V and no higher than 420V points to this unit. If yours is right at 300V, ask our team so we can confirm with EMP Shield.
Single DC 300-420V Versus Dual DC 300-420V
EMP Shield also makes a Dual 300-420V model, which joins two DC units in one space-saving device. The single DC-300-420-W handles one circuit. When two 300-420V circuits need coverage, compare the Dual.
DC 300-420V Unit Versus a Plug-In Surge Strip
A plug-in power strip surge protector is made for AC devices at a wall outlet. The DC conductors between your array and controller never pass through it. This unit is built to connect to those conductors.
Buyer Guidance
Matching the Model to Your Equipment
Start with the maximum input voltage of the first device after your PV array, as EMP Shield instructs. Compare it with the 300-420V range. A match means this unit fits, and anything outside the range means another EMP Shield voltage point is needed.
Installation
Plan on a licensed electrician for the PV input connection. EMP Shield's protection policy includes a licensed electrician install among the conditions for a claim.
This May Be A Good Fit If
- Your charge controller or inverter works at 300-420V
- You run solar or wind at a home, business or remote site
- You have one DC input to protect
- You want a unit EMP Shield rates IP66
Common Questions
How Do I Know My System Needs the 300-420V Model?
Look up the maximum input voltage of your charge controller or inverter, whichever comes first after the PV array. If it falls inside 300-420V, this model matches.
Is There a Status Light on the Unit?
A green LED labeled ON appears on the front of the unit, beside the EMP Shield logo.
What Are the Warranty and Policy Terms?
EMP Shield backs the unit with a 10-year limited warranty on materials and workmanship, repairing or replacing a defective unit. Lightning damage that destroys it qualifies for a $50 replacement when the destroyed unit is returned. A separate EMP Shield policy may reimburse connected electronics up to $25,000 when its listed conditions are satisfied.
What's Included
- 1 x EMP Shield DC-300-420-W Unit
Rated Protection at 300-420V
EMP Shield DC 300-420 Volt EMP Protection places a rated surge path on the PV input of your 300-420V controller or inverter, in an IP66 housing by EMP Shield's rating. Questions about voltage matching or the install? The Outbound Power team is here to help.
EMP Shield Single DC 300-420 Volt Solar & Wind EMP Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model Number |
DC/300-420V/W |
| SKU |
DC-300-420-W |
| Series |
EMP Shield DC (single circuit) |
| Dual Version |
Dual/DC/300-420V/W |
| Series Voltage Points |
12V, 24V, 48V, 90-120V, 220-300V, 300-420V, 600V, 1000V |
| Neighboring Models |
DC/220-300V/W (below), DC/600V/W (above) |
| Electrical |
| System Type |
DC |
| Operating Range |
300-420 volts (inverters or charge controllers) |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase (up to 228,000 amps per phase, per EMP Shield) |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response Time |
Begins shunting in less than 1 nanosecond (EMP Shield, SightSpeed) |
| Protection |
| Threats Covered (per EMP Shield) |
EMP E1, E2 and E3; CMEs (solar flares); lightning; power surges |
| Testing (per EMP Shield) |
Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Test Field Levels (per EMP Shield) |
50 kV/m and 90 kV/m |
| Listing (per EMP Shield) |
Listed by the Department of Homeland Security in its EMP resilience report |
| Installation |
| Connection |
Across DC positive, negative and ground |
| Red Wire |
Positive (+POS) |
| Black Wire |
Negative (-NEG) |
| Green Wire |
Ground (GND) |
| Solar Placement |
Across the charge controller PV input (EMP Shield diagram) |
| Selection Rule |
Maximum input voltage of the first device after the PV array |
| First Device (Off-Grid) |
Usually the charge controller |
| First Device (Grid-Tied) |
Usually the inverter |
| Indicator |
Green ON LED |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield's rating) |
| Outdoor Use |
Can be used outdoors in extreme weather (EMP Shield) |
| Enclosure |
Gray, 4 mounting tabs, cable fitting |
| Leads |
3 wire leads (red, black, green) |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship (EMP Shield) |
| Lightning Replacement |
$50 with the destroyed unit (EMP Shield) |
| Connected Equipment Policy |
Up to $25,000 when policy conditions are met (EMP Shield) |
