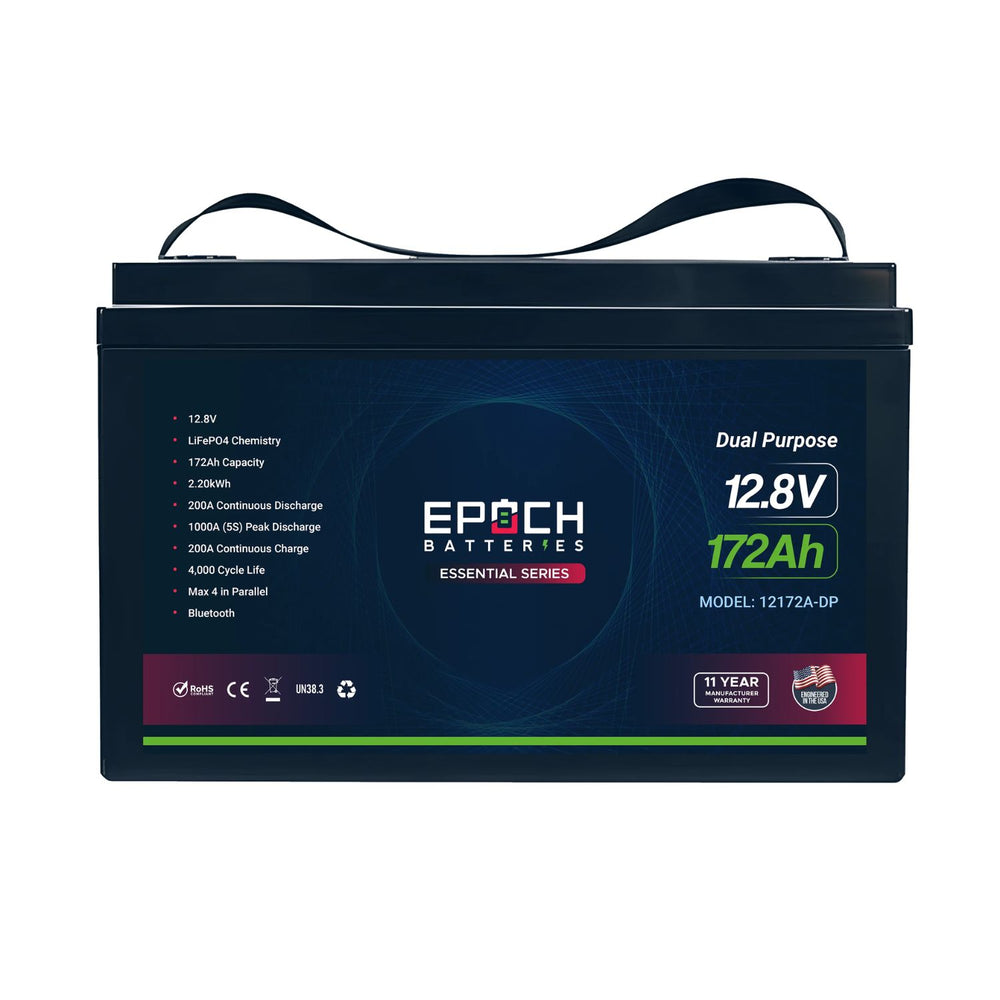

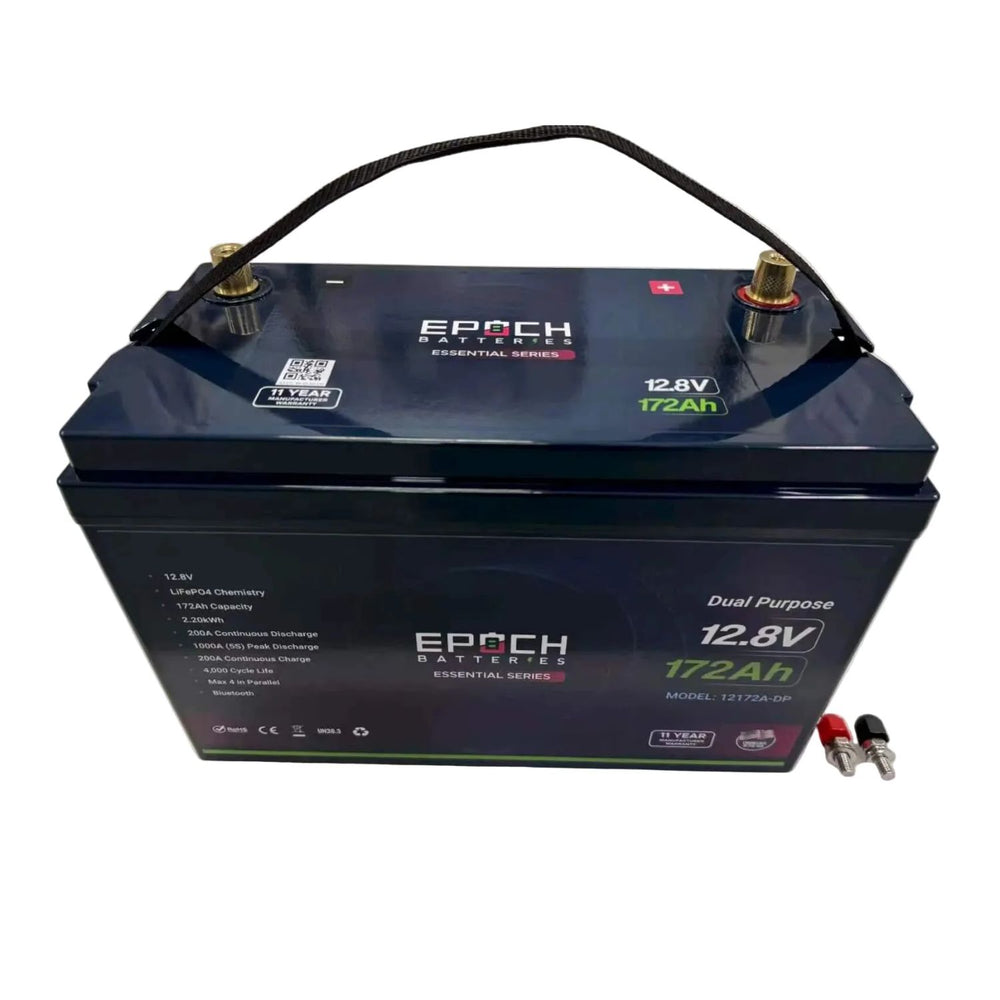

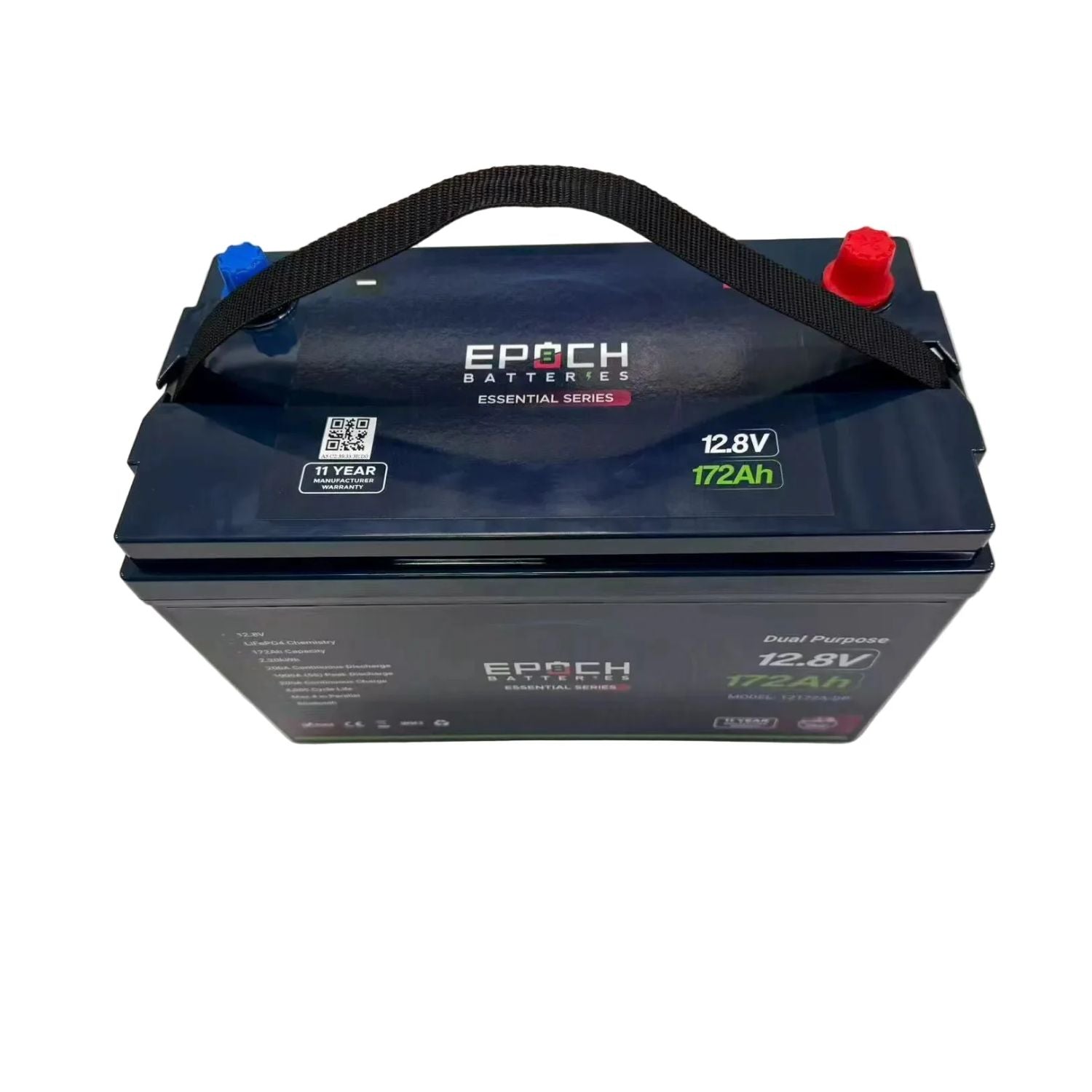

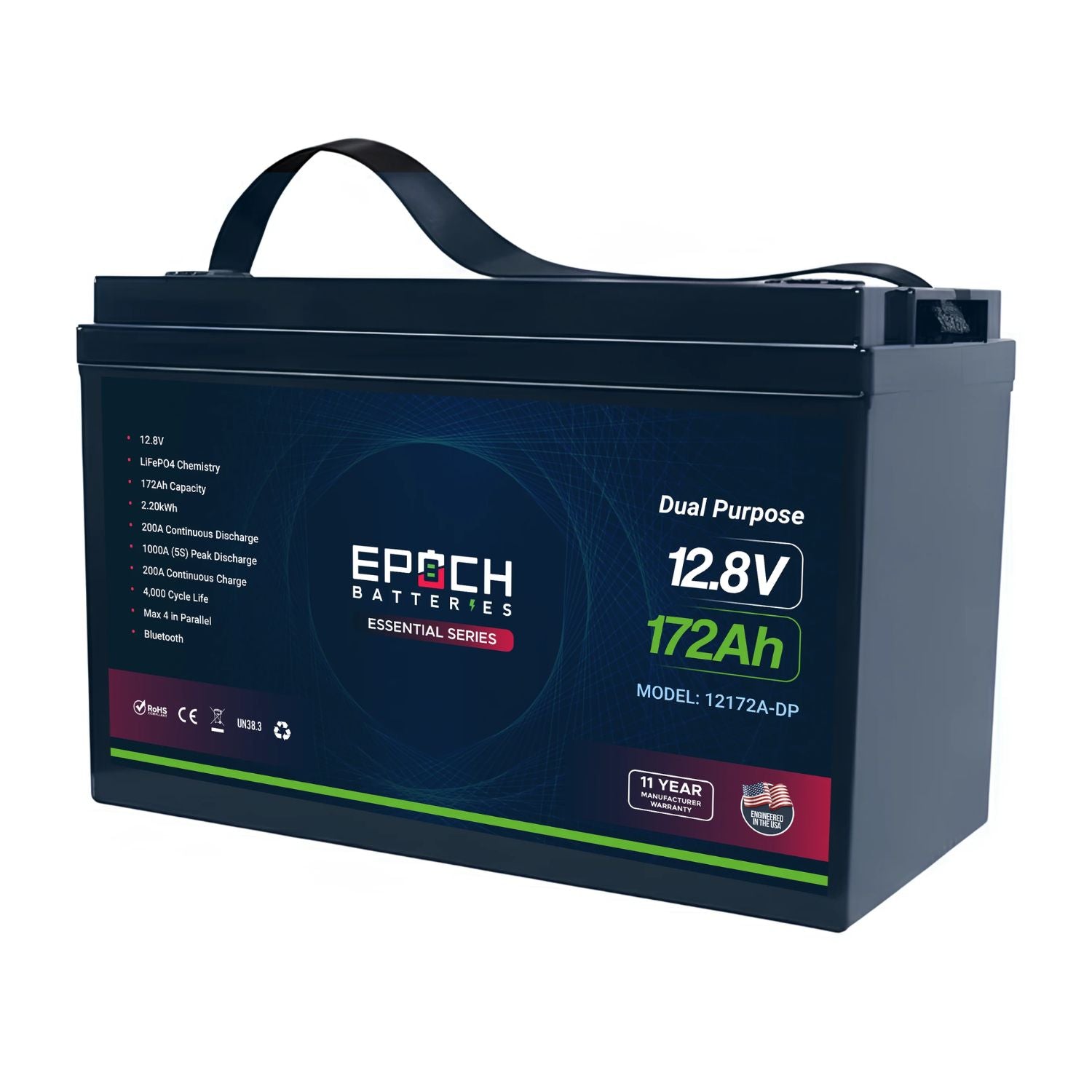

The Epoch Batteries 12V 172Ah (2.20kWh) Dual Purpose LiFePO4 Battery Combines Engine Cranking and Deep-Cycle House Power in One Group 31 Case
The Epoch 12172A-DP is an Essential Series lithium iron phosphate battery rated at 12.8V nominal and 172Ah, for 2.20kWh (2,202Wh) of stored energy in a BCI Group 31 case that weighs 40 lb. It combines engine cranking (1,000A for up to 5 seconds) with 200A continuous deep-cycle output, Bluetooth monitoring and an IP65 enclosure.
It's made for boats that want one battery for starting and house loads: bass boats, pontoons, skiffs and center consoles, plus RV, van, solar and backup systems where cranking capability is also useful. It has no internal heater, it connects in parallel only, and it is not a drop-in replacement for every lead-acid installation.
Epoch Batteries 12V 172Ah (2.20kWh) Dual Purpose LiFePO4 Battery Features
Cranking Power for Compatible Outboards
The battery delivers 1,000A for up to 5 seconds, for engine cranking only, and Epoch lists it as approx. 1,000 CCA equivalent based on that 5-second rating. Epoch's compatibility target is outboards up to 250hp when the engine's battery requirements, alternator output, wiring and charging profile match.
200A Continuous for House Loads
It supplies 200A maximum continuous for fish finders, GPS, radios, livewell and bilge pumps, lighting and other 12V loads. Any load lasting longer than 5 seconds must stay at or below 200A. When the battery also starts the engine, keep enough charge in reserve to start it.
200A Charging
It accepts up to 200A continuous charge from all sources combined, with up to 86A (0.5C) recommended. A charger below 86A is suitable; it simply takes longer. Some alternators are not designed to charge lithium directly, so use a DC-to-DC charger or lithium-ready regulation where needed.
IP65 Dust-Tight, Water-Jet-Resistant Enclosure
The IP65 enclosure is dust-tight and protected against low-pressure water jets from any direction, for many marine battery hatches and center-console compartments. It is not submersible, so do not submerge or pressure-wash it, or install it where standing water can collect, such as a bilge.
Bluetooth Monitoring
The free Epoch Li-Ion app for iOS and Android shows state of charge, voltage, current, temperature and BMS status or protection events, so you can check how much power remains before you head back to the ramp.
Group 31 Footprint at 40 lb
The case measures 12.91 x 6.22 x 8.46 in (328 x 158 x 215 mm) and weighs 40 lb (18.14 kg), with M8 female terminals torqued to 8–12 N·m (71–106 in-lb).
Long Cycle Life and an 11-Year Limited Warranty
Epoch rates it for 4,000+ cycles with no watering, acid service or lead-acid equalization. It carries an 11-year limited warranty: 3 years of free replacement, then 40% off MSRP on a replacement battery through Year 11. Register within 90 days of purchase for full coverage.
Real-World Applications
Bass boats, pontoons and skiffs. Start a compatible outboard and run electronics, livewell and bilge pumps and lighting from one battery instead of separate starting and house batteries.
Center consoles and fishing boats. Power fish finders, GPS and radios all day. Epoch's planning estimates use 80% of nominal energy (1,761Wh): about 17.6 hours at 100W, 7.0 hours at 250W and 3.5 hours at 500W.
RV, van and overland house power. Use it as 12V house power where fitment and charging profiles match, with every charging source programmed for LiFePO4.
12V house banks. Connect up to 4 matched batteries in parallel for 688Ah and 8.81kWh at 12.8V.
How It Compares to Common Alternatives
Versus separate starting and house batteries. One 40 lb Group 31 battery handles both jobs, which frees up compartment space. Size the main fuse, battery switch and cables for engine cranking current as well as house loads.
Versus a deep-cycle-only lithium battery. This model uses a cranking-capable BMS rated for 1,000A for up to 5 seconds, while still giving 172Ah of deep-cycle capacity.
Versus a Group 31 lead-acid or AGM battery. It needs no watering or acid service. Confirm tray size, lid clearance, hold-down, cable routing and the charger and alternator profile before replacing one.
Is This Dual Purpose Battery the Right Fit
-
Engine requirements. Check your outboard or engine maker's minimum CCA, reserve capacity, charging voltage, alternator output and lithium compatibility. Charge fully before the first starting test, and keep a backup plan for critical starting offshore or in remote areas.
-
Parallel only. Up to 4 matched 12172A-DP batteries in parallel. Series wiring is not approved, so it must not be used to build 24V, 36V or 48V systems.
-
Charger settings. 14.2–14.6V bulk/absorption, ending at C/20 (about 8.6A) or 15 minutes, whichever comes first, float disabled (preferred) or 13.4–13.8V, re-bulk 13.2V, equalization and temperature compensation disabled. The 15.0V figure is a maximum input rating, not a charger target.
-
Cold charging. No internal heating. The battery is rated to charge from -5°C (23°F), but program chargers to charge only between 0°C and 55°C (32°F and 131°F). The BMS blocks charging when it is too cold, and it can still discharge down to -20°C (-4°F).
-
Installation. Mount it upright and secured, away from engine and exhaust heat, and install a DC-rated fuse or breaker as close as practical to the positive terminal.
This may be a good fit if
- You want one battery for starting and electronics
- Your boat has a Group 31 battery tray
- Your engine maker's battery requirements match
- You don't need to charge below freezing
Common Questions
Can It Start a Gas Outboard?
Epoch rates it for 1,000A for up to 5 seconds for engine cranking, and its compatibility target is outboards up to 250hp when the engine's battery requirements, alternator output, wiring and charging profile match.
Can My Outboard's Alternator Charge It?
The battery accepts up to 200A, so confirm the alternator's temperature, duty cycle and output limits and that the charging system is compatible with LiFePO4. Some systems need a lithium-ready regulator or a DC-to-DC charger.
Can I Wire It in Series for a 24V or 36V Trolling Motor?
No. Series wiring is not approved for this model. You can connect up to 4 matched batteries in parallel for a larger 12V bank.
How Should I Store It?
Store it at 0°C to 35°C (32°F to 95°F) at about 50% state of charge or higher, with loads and chargers disconnected. Check it at least every 3 months, since batteries left uncharged for more than three months are excluded from warranty coverage.
What's Included
- 1 x Epoch 12V 172Ah Dual Purpose LiFePO4 Battery (12172A-DP)
One Battery for Starting and All-Day Electronics
The Epoch Batteries 12V 172Ah (2.20kWh) Dual Purpose LiFePO4 Battery combines 1,000A cranking, 200A continuous house power, Bluetooth monitoring and an IP65 enclosure in a 40 lb Group 31 case. If you have questions about your engine's requirements, alternator charging or tray fit, the Outbound Power team is happy to help.
Epoch 12172A-DP Specifications
|
| Electrical |
| Model |
12172A-DP |
| Series |
Essential Series |
| Battery type |
Dual-purpose cranking and deep-cycle |
| Group size |
BCI Group 31 |
| Chemistry |
LiFePO4 (lithium iron phosphate) |
| Cell type |
Prismatic LiFePO4 |
| Cell configuration |
4S1P |
| Nominal voltage |
12.8V |
| Nominal capacity |
172Ah |
| Stored energy |
2,202Wh (2.20kWh) nominal |
| Runtime planning energy |
About 1,761Wh (80% of nominal) |
| Operating voltage range |
10.0–14.6V |
| Maximum charge input |
15.0V (maximum input rating, not a charger target) |
| Cycle life |
4,000+ cycles |
| Internal heating |
No |
| Charge and Discharge |
| Maximum continuous discharge |
200A (about 2,560W DC at 12.8V) |
| Peak discharge |
1,000A for up to 5 s, engine cranking only |
| Cranking capability |
Approx. 1,000 CCA equivalent (Epoch rating) |
| Loads longer than 5 s |
200A or less |
| Maximum continuous charge |
200A, all sources combined |
| Recommended charge current |
Up to 86A (0.5C) |
| Recommended charge, banks |
Up to 50% of bank capacity (172A 2P, 258A 3P, 344A 4P) |
| Series connection |
Not approved for this model |
| Parallel connection |
Up to 4 matched batteries |
| Maximum 4P bank |
688Ah / 8.81kWh at 12.8V |
| Engine compatibility target |
Outboards up to 250hp when requirements match |
| Recommended Charge Settings |
| Charger type |
12V LiFePO4 or programmable profile |
| Bulk / absorption voltage |
14.2–14.6V |
| Absorption end |
C/20 (about 8.6A) or 15 min, whichever comes first |
| Float voltage |
Disabled (preferred) or 13.4–13.8V |
| Re-bulk voltage |
13.2V (if programmable) |
| Equalization |
Disabled |
| Temperature compensation |
0 mV/°C (disabled) |
| BMS high-voltage cutoff |
14.6V |
| SOC recalibration voltage |
14.6V |
| Charger temperature setting |
0 to 55°C (32 to 131°F) |
| Alternator charging |
DC-to-DC charger or lithium-ready regulation where needed |
| Temperature |
| Charge (battery rating) |
−5 to 55°C (23 to 131°F) |
| Charge (charger programming) |
0 to 55°C (32 to 131°F) |
| Low-temperature charging |
BMS blocks charging when too cold (no heater) |
| Discharge |
−20 to 60°C (−4 to 140°F) |
| Storage (recommended) |
0 to 35°C (32 to 95°F) |
| Long-term storage |
About 50% state of charge or higher |
| BMS and Protection |
| Battery management |
Built-in smart BMS |
| Protection |
Overcharge, over-discharge, over-current, short circuit |
| Temperature |
High- and low-temperature disconnects |
| Low-temperature charge protection |
Enabled |
| External protection |
DC-rated fuse or breaker close to the positive terminal |
| Fuse and switch sizing |
For engine cranking current and house loads |
| Communication and Monitoring |
| Bluetooth |
Built in |
| App |
Epoch Li-Ion (iOS and Android) |
| App readings |
State of charge, voltage, current, temperature |
| App status |
BMS state and protection events |
| Size and Weight |
| Dimensions (L x W x H) |
12.91 in x 6.22 in x 8.46 in (328 x 158 x 215 mm) |
| Weight |
40 lb (18.14 kg) |
| Terminals |
M8 female |
| Terminal torque |
8–12 N·m (71–106 in-lb) |
| Mounting orientation |
Upright |
| Case material |
ABS / PC blend, UL94-V0 |
| Enclosure |
IP65 (IEC 60529) |
| Water and dust |
Dust-tight, protected against low-pressure water jets |
| Not rated for |
Submersion, pressure washing or standing water |
| Certifications |
| Cells |
UL 1642 |
| Thermal runaway testing |
UL 9540A (cells) |
| Battery |
IEC 62619:2022 |
| Compliance marks |
CE, RoHS |
| Transport |
UN 38.3, Class 9 |
| Warranty |
| Warranty |
11-year limited warranty |
| Years 1–3 |
Free replacement |
| Years 4–11 |
40% off MSRP on a replacement battery |
| Registration |
Within 90 days of purchase for full coverage |
