Epoch Batteries 12V 300Ah (3.84kWh) LiFePO4 Battery | Essential Series | Bluetooth | Heated

|
SKU: 12300A-H
$1,249.00

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.

We Beat Any Price

Found the same price or less? Just ask & we'll beat it.

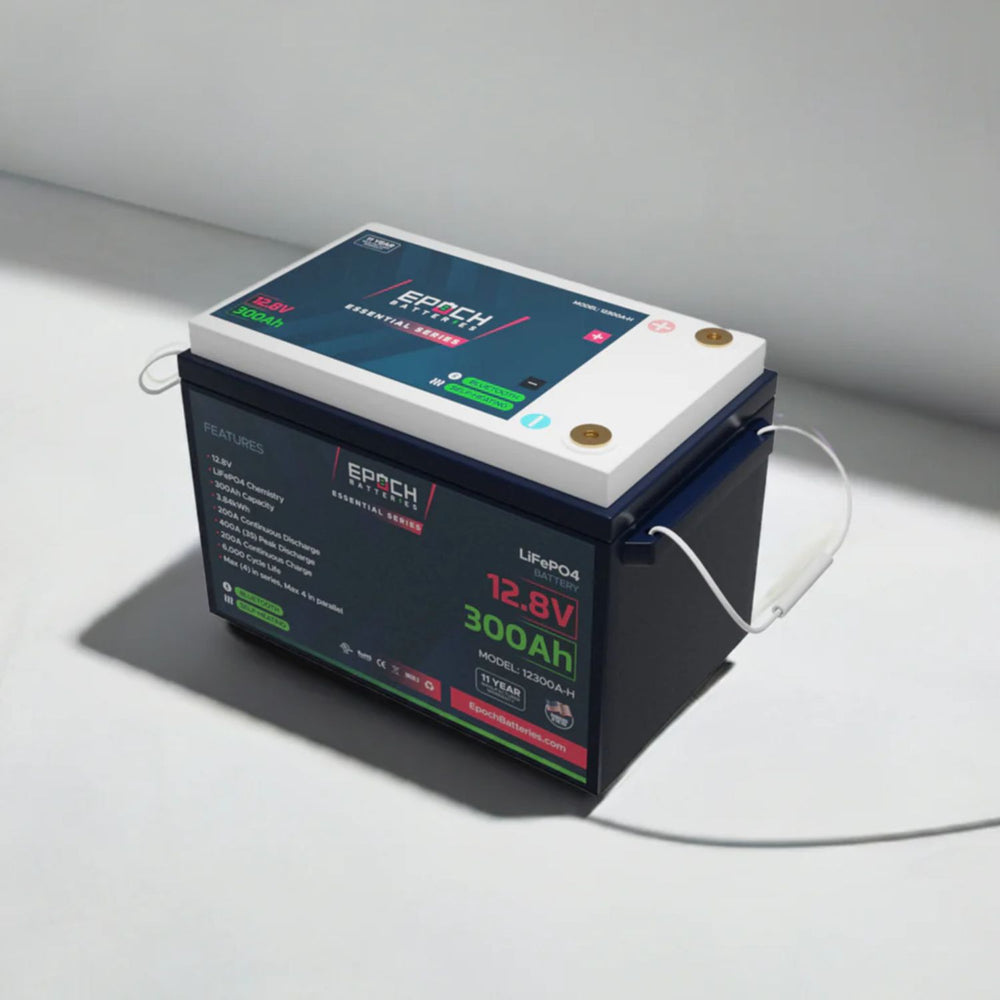

Epoch Batteries 12V 300Ah Essential Series lithium battery angled view with its white lid and rope end handles

The Epoch Batteries 12V 300Ah (3.84kWh) LiFePO4 Battery Puts 3.84kWh, Self-Heating and Bluetooth in One Group 31 Case

The Epoch 12300A-H is an Essential Series lithium iron phosphate battery rated at 12.8V nominal and 300Ah, for 3.84kWh (3,840Wh) of stored energy in a BCI Group 31 case that weighs 58 lb. It combines internal heating for cold-weather charging, Bluetooth monitoring with a shunt built into the BMS, 200A continuous output and an IP54 enclosure.

It's made for high-capacity 12V deep-cycle systems: RV, camper and van house power, marine house power, solar storage and backup. One battery can take the place of a multi-battery 12V bank behind a single BMS. It fits many Group 31 installations, but it is not a drop-in replacement for every lead-acid or AGM battery, and it is not cranking-rated.


Epoch Batteries 12V 300Ah (3.84kWh) LiFePO4 Battery Features

200A Continuous for 12V Inverter Systems

Epoch rates it for 200A maximum continuous discharge, with 150A (0.5C) recommended for sustained loads, and 400A for up to 3 seconds. At 12.8V, 200A is about 2,560W of DC output before inverter losses, so Epoch says one battery commonly suits 12V inverter systems in the 2,000W to 2,400W class with proper cabling, fusing and load management.

Self-Heating for Charging Below Freezing

The cells never accept charge current while any battery temperature reading is below 0°C (32°F). When a charger supplying at least 0.5A is connected, that current powers internal heating pads, and charging resumes automatically at 5°C (41°F). The heater never uses stored battery energy. With heating, the charge range is -20°C to 55°C (-4°F to 131°F).

Bluetooth Monitoring With a Built-In Shunt

The free Epoch Li-Ion app for iOS and Android shows state of charge, voltage, current, temperature and battery status. A shunt built into the BMS measures current to 0.2A accuracy on discharge, so you don't need an external shunt monitor. The Bluetooth PIN is printed on the battery's lid and can be changed in the app.

200A Charging

It accepts up to 200A continuous charge from all sources combined, with 100A recommended. When solar, shore power and alternator charging run together, keep their combined current within 200A and your wiring limits.

Group 31 Case With Carry Handles

The case measures 13.75 x 7.63 x 10.00 in (349.3 x 193.8 x 254.0 mm), 15.5 in (393.7 mm) long at the handles and 10.5 in (266.7 mm) high with the terminal bolts. It weighs 58 lb (26.3 kg) and uses M8 bolt terminals.

IP54 Enclosure and Smart BMS

The IP54 enclosure is dust protected and splash resistant for protected RV, marine, mobile and outdoor compartments, but it is not submersible. The BMS guards against overcharge, over-discharge, over-current, short circuit (800A at 500µs) and high or low temperature, with a low-voltage disconnect at 10.0V.

Long Cycle Life and an 11-Year Limited Warranty

Epoch rates it for 4,000+ cycles with no watering or acid service. It carries an 11-year limited warranty: 3 years of free replacement, then 40% off MSRP on a replacement battery through Year 11. Register within 90 days of purchase for full coverage.


Real-World Applications

RV and motorhome house power. Run a 2,000W-class inverter, 12V DC loads and appliances, and keep charging in freezing weather from a converter, solar controller or DC-to-DC charger programmed for LiFePO4.

Van, overland and off-grid builds. Store solar energy for cabins, trailers and backup systems. Epoch's planning estimates use 80% of nominal energy, about 3,072Wh (240Ah) per battery: about 30.7 hours at 100W, 12.3 hours at 250W and 6.1 hours at 500W.

Marine house power. Power electronics, lighting, pumps and accessories, or a 12V trolling motor where its current requirements stay within the battery ratings, with the battery kept out of bilge water.

Larger banks. Connect up to 4 in series for a 48V system class or up to 4 in parallel for 1,200Ah, to a maximum 4S4P bank of 16 batteries and about 61.44kWh.


How It Compares to Common Alternatives

Versus three 12V 100Ah batteries. One 300Ah battery stores the same 3.84kWh as three 12V 100Ah lithium batteries, with one BMS to balance and no parallel cables to route between them.

Versus a Group 31 lead-acid or AGM bank. This battery needs no watering or acid service, and the app shows state of charge without a separate monitor. Check tray fit, handle clearance, terminal-bolt height and charger profile first, and never use lead-acid equalization, desulfation or repair modes on it.

Versus a cranking battery. This is a deep-cycle battery for house power and other sustained 12V loads. For engine starting, use a cranking-rated battery.


Is This 12V Battery the Right Fit

  • Series and parallel. Up to 4 in series and up to 4 in parallel (4S4P maximum) with matched 12300A-H batteries of similar age, condition and firmware, all at the same state of charge. Never mix them with lead-acid or other models.
  • Charger settings. LiFePO4 profile, 14.2–14.4V bulk/absorption, ending at C/20 (15A) or 15 minutes, whichever comes first, float disabled (preferred) or 13.3–13.6V, re-bulk 13.2V, equalization and temperature compensation off. Use a DC-to-DC charger for alternator charging.
  • Cold charging. If your charger has its own battery temperature sensor, set its limits to 0°C to 55°C (32°F to 131°F) unless it has approved cold-charge logic. While the cells warm, the app may show little or no charge current.
  • Fit and weight. Allow 15.5 in of length at the handles and 10.5 in of height with the terminal bolts. Choose mounting hardware rated for 58 lb (26.3 kg), mount it upright and secured, and torque the M8 terminals to 8–12 N·m (71–106 in-lb).
  • Protection. Fit a fuse or DC-rated breaker as close as practical to the positive terminal, and size loads, cables and fuses to the 200A continuous rating, not the 400A peak.

This may be a good fit if

  • You want 300Ah in a single Group 31 footprint
  • You run a 12V inverter in the 2,000W class
  • You charge in freezing weather
  • You want to check the battery from your phone

Common Questions

Will the Heater Drain the Battery?

No. The heater runs only while a charger is connected and supplying at least 0.5A, and it draws from that incoming current, never from stored energy. It does not warm the battery during discharge or storage.

How Cold Can It Charge?

The heating system is tested to -20°C (-4°F) and rated for external ambient temperatures down to -40°C (-40°F). The cells themselves never charge below 0°C; the heater warms them first.

Is It Waterproof?

No. IP54 means dust protected and splash resistant. Do not submerge, pressure-wash or install it where standing water can collect.

How Should I Store It?

Store it clean and dry at 0°C to 35°C (32°F to 95°F) at about 50% state of charge or higher, with loads and chargers disconnected. Check it at least every 3 months, since the warranty excludes batteries left uncharged for more than three months.


What's Included

  • 1 x Epoch 12V 300Ah Essential Series LiFePO4 Battery (12300A-H)

A Full 12V House Bank in One Group 31 Battery

The Epoch Batteries 12V 300Ah (3.84kWh) LiFePO4 Battery gives an RV, van or boat 3.84kWh in a Group 31 case, with 200A continuous output, self-heating and Bluetooth monitoring. If you have questions about inverter sizing, charger settings or tray fit, the Outbound Power team is happy to help.


Epoch 12300A-H Specifications

Electrical
Model 12300A-H
Series Essential Series
Battery type Heated Bluetooth deep-cycle (not cranking-rated)
Group size BCI Group 31
Chemistry LiFePO4 (lithium iron phosphate)
Cell type Prismatic LiFePO4
Cell configuration 4S1P
Nominal voltage 12.8V
Nominal capacity 300Ah at 0.2C (60A)
Stored energy 3,840Wh (3.84kWh) nominal
Runtime planning energy About 3,072Wh (240Ah), 80% of nominal
Operating voltage range 10.0–14.6V
Maximum charge voltage 14.6V
Internal resistance ≤30 mΩ
Self-discharge ≤3% per month
Cycle life 4,000+ cycles
Charge and Discharge
Maximum continuous discharge 200A (about 2,560W DC at 12.8V)
Recommended discharge current 150A (0.5C)
Peak discharge 400A for up to 3 s
Inverter class (Epoch guidance) 2,000W to 2,400W, one battery
Maximum continuous charge 200A, all sources combined
Recommended charge current 100A
Series connection Up to 4 (up to 48V system class)
Parallel connection Up to 4 (up to 1,200Ah)
Maximum configuration 4S4P, 16 batteries (about 61.44kWh)
Bank batteries Matched 12300A-H, same state of charge
Recommended Charge Settings
Charger type LiFePO4 profile (no lead-acid, AGM or gel profiles)
Bulk / absorption voltage 14.2–14.4V
Absorption end C/20 (15A) or 15 min, whichever comes first
Float voltage Disabled (preferred) or 13.3–13.6V
Re-bulk voltage 13.2V
Equalization Disabled
Temperature compensation 0 mV/°C (off)
Charger temperature limit 0 to 55°C (32 to 131°F) unless approved cold-charge logic
BMS high-voltage cutoff 14.6V
SOC recalibration voltage 14.6V
Alternator charging DC-to-DC charger programmed for LiFePO4
Temperature
Charge, with heating −20 to 55°C (−4 to 131°F)
Cell charge acceptance Only at or above 0°C (32°F)
Low-temperature charge cut-off 0°C (32°F)
Charging resumes Automatically at 5°C (41°F)
Heater activation Charger connected, supplying at least 0.5A
Heater power source Incoming charge current only
Heating system tested to −20°C (−4°F)
Rated external ambient Down to −40°C (−40°F)
Discharge −20 to 60°C (−4 to 140°F)
Storage (recommended) 0 to 35°C (32 to 95°F)
Long-term storage About 50% state of charge or higher
Operating altitude Below 3,000 m (about 9,840 ft)
BMS and Protection
Overcharge Disconnects or limits operation
Over-discharge Low-voltage disconnect 10.0V; reconnect 12.0V
Inverter / load cutoff 11.2V
Over-current Protects against sustained loads above ratings
Short circuit Rapid cutoff, rated 800A at 500µs
Temperature High- and low-temperature disconnects
External protection Fuse or DC-rated breaker close to the positive terminal
Communication and Monitoring
Bluetooth Built in
App Epoch Li-Ion (iOS and Android)
App readings State of charge, voltage, current, temperature, status
Current sensing BMS-integrated shunt, 0.2A accuracy on discharge
External shunt Not needed
Bluetooth PIN Printed on the battery's lid; changeable in the app
Size and Weight
Dimensions (L x W x H) 13.75 in x 7.63 in x 10.00 in (349.3 x 193.8 x 254.0 mm)
Length at handles 15.5 in (393.7 mm)
Height with terminal bolts 10.5 in (266.7 mm)
Weight 58 lb (26.3 kg)
Terminals M8 bolt
Terminal torque 8–12 N·m (71–106 in-lb)
Mounting orientation Upright
Case material ABS / PC blend, UL94-V0
Enclosure IP54 (IEC 60529)
Water and dust Dust protected, splash resistant
Not rated for Submersion, pressure washing or standing water
Certifications
Cells UL 1642, IEC 62619:2022 (cell level)
Product CE, RoHS
Transport UN 38.3, Class 9
Warranty
Warranty 11-year limited warranty
Years 1–3 Free replacement
Years 4–11 40% off MSRP on a replacement battery
Registration Within 90 days of purchase for full coverage

Epoch 12300A-H User Manual

Epoch 12300A-H User Manual

Epoch 12300A-H Spec Sheet

Epoch 12300A-H Spec Sheet

Epoch 12300A-H Data Sheet

Epoch 12300A-H Data Sheet
