Epoch Batteries 12V 460Ah (5.89kWh) LiFePO4 Battery | Essential Series | Bluetooth | Heated

|
SKU: 12460A-H
$1,599.00

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.

We Beat Any Price

Found the same price or less? Just ask & we'll beat it.

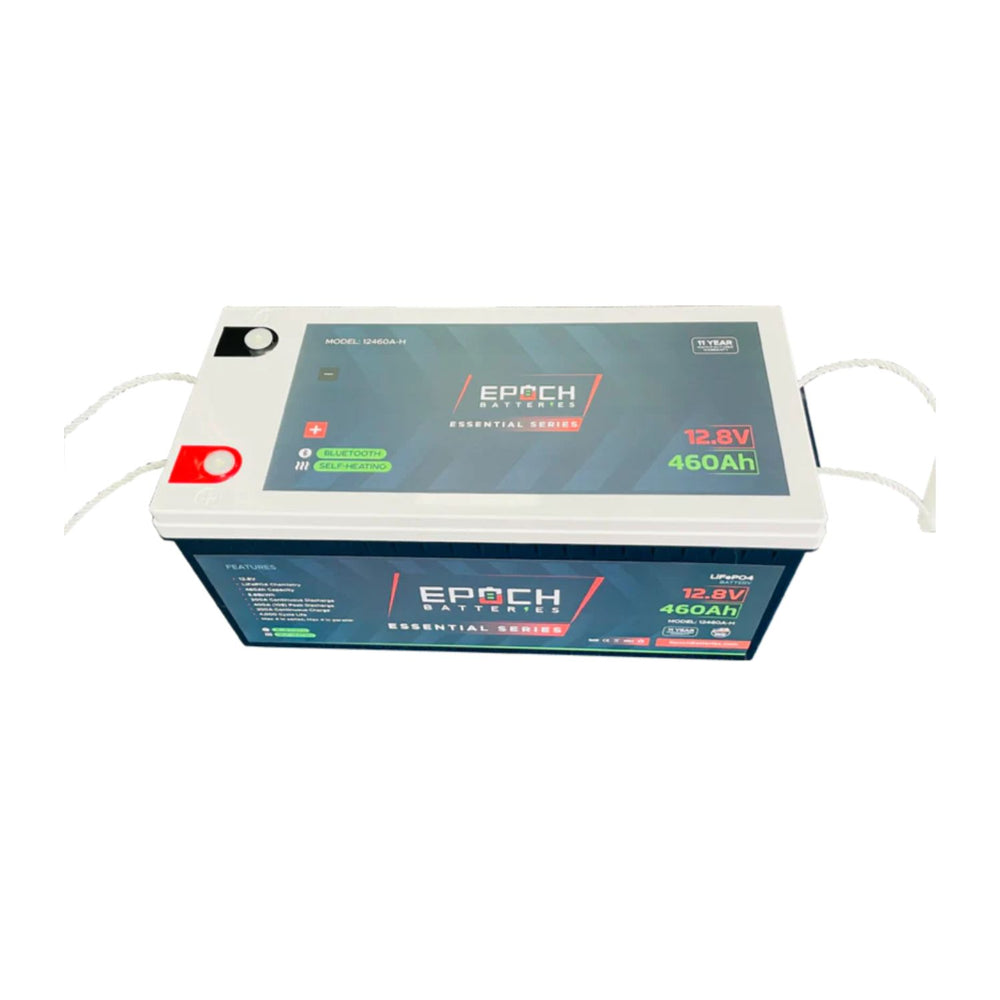

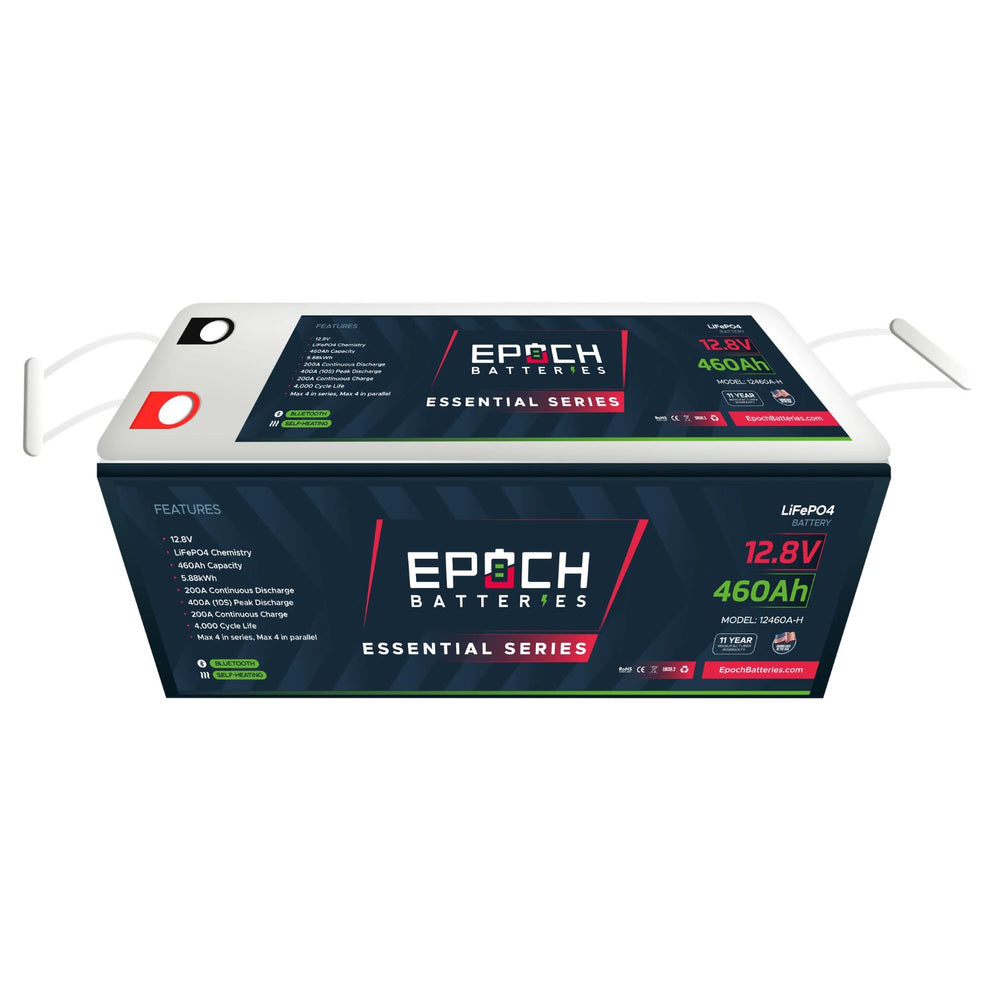

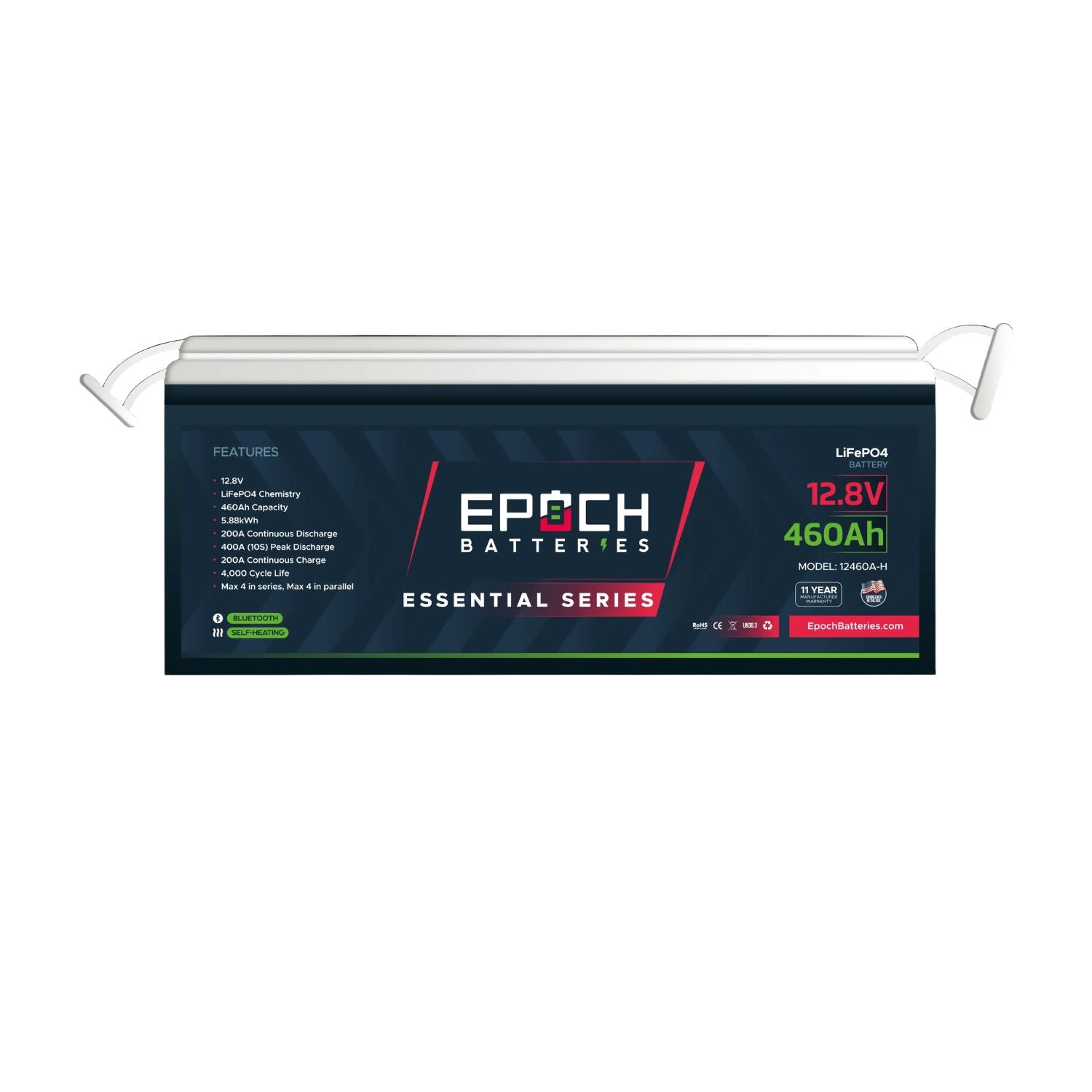

Epoch Batteries 12V 460Ah Essential Series lithium battery front label with white rope end handles

The Epoch Batteries 12V 460Ah (5.89kWh) LiFePO4 Battery Stores 5.89kWh With Self-Heating and Bluetooth in One Group 8D Case

The Epoch 12460A-H is an Essential Series lithium iron phosphate battery rated at 12.8V nominal and 460Ah, for 5.89kWh (5,888Wh) of stored energy in a BCI Group 8D case that weighs 84 lb. It combines internal heating for cold-weather charging, Bluetooth monitoring with a shunt built into the BMS, 200A continuous output and an IP54 enclosure.

It's made for high-capacity 12V house power in Class A, B and C RVs, camper vans, skoolies, truck campers, overland rigs, off-grid cabins and solar banks. One battery can replace a multi-battery bank with fewer connections. It fits many Group 8D installations, but it is not a drop-in replacement for every lead-acid or AGM battery, and it is not cranking-rated.


Epoch Batteries 12V 460Ah (5.89kWh) LiFePO4 Battery Features

5.89kWh in a Single Group 8D Case

The battery measures 20.55 x 9.45 x 8.60 in (522.0 x 240.0 x 218.4 mm) and weighs 84 lb (38.1 kg), with M8 female terminals. Its 4S2P prismatic cell layout stores 460Ah, rated at 0.2C (92A), behind one BMS.

200A Continuous for Large 12V Inverters

Epoch rates it for 200A maximum continuous discharge, with 138A (0.3C) recommended for sustained loads, and 400A for up to 10 seconds for start-up surges. At 12.8V, 200A is about 2,560W of DC output before inverter losses, so Epoch says one battery is commonly suited to 12V inverter systems in the 2,000W to 2,500W class with proper cabling, fusing and load management.

Self-Heating for Charging Below Freezing

The cells never accept charge current while any battery temperature reading is below 0°C (32°F). When a charger supplying at least 0.5A is connected, that current powers internal heating pads, and charging resumes automatically at 5°C (41°F). The heater never uses stored battery energy. With heating, the charge range is -20°C to 55°C (-4°F to 131°F).

Bluetooth Monitoring With a Built-In Shunt

The free Epoch Li-Ion app for iOS and Android shows state of charge, voltage, current, temperature and battery status. A shunt built into the BMS measures current to 0.2A accuracy on discharge, so no external shunt is needed. The Bluetooth PIN is printed on the battery's lid and can be changed in the app.

200A Charging

It accepts up to 200A continuous charge, with 138A (0.3C) recommended. When solar, shore power and alternator charging run together, keep their combined current within 200A and your wiring limits.

IP54 Enclosure and Smart BMS

The IP54 enclosure is dust protected and splash resistant for protected RV battery bays, storage compartments and mobile environments, but it is not submersible. The BMS guards against overcharge, over-discharge, over-current, short circuit and high or low temperature.

Long Cycle Life and an 11-Year Limited Warranty

Epoch rates it for 4,000+ cycles with no watering or acid service. It carries an 11-year limited warranty: 3 years of free replacement, then 40% off MSRP on a replacement battery through Year 11. Register within 90 days of purchase for full coverage.


Real-World Applications

RV and motorhome house power. Run a large 12V inverter for microwaves, induction cooktops and other appliances, and keep charging in freezing weather from solar, shore power or a DC-to-DC charger programmed for LiFePO4.

Camper vans, skoolies and overland rigs. Put 5.89kWh in one under-bed, bench or bay install. Epoch's planning estimates use 80% of nominal energy, about 4,710Wh (368Ah) per battery: about 47.1 hours at 100W, 18.8 hours at 250W and 9.4 hours at 500W.

Off-grid cabins, backup and solar. Store solar energy with LiFePO4-compatible charge controllers and inverter chargers.

Marine house power. Use it where IP54 splash resistance is appropriate, kept out of bilge water.

Larger banks. Connect up to 4 in series for a 48V system class or up to 4 in parallel for 1,840Ah, to a maximum 4S4P bank of 16 batteries and about 94.21kWh.


How It Compares to Common Alternatives

Versus the Epoch Elite 460Ah. Both store 5.89kWh-class energy with Bluetooth and internal heating. Epoch says the Elite adds an IP67 enclosure, higher continuous output and Victron CAN communication. The Essential suits systems that don't need Victron data integration and are installed in protected compartments.

Versus a multi-battery lead-acid bank. One battery means fewer parallel connections, no watering or acid service, and app monitoring of the whole 5.89kWh. Check tray size, cable clearance and charger profile first, and never use lead-acid equalization, desulfation or repair modes on it.

Versus a cranking battery. This is a deep-cycle battery for house power and energy storage. For engine starting, use a cranking-rated battery.


Is This 12V Battery the Right Fit

  • Series and parallel. Up to 4 in series and up to 4 in parallel (4S4P maximum) with matched 12460A-H batteries of similar age, condition and firmware, all at the same state of charge. Never mix them with lead-acid or other models.
  • Charger settings. LiFePO4 profile, 14.2–14.4V bulk/absorption, ending at C/20 (23A) or 15 minutes, whichever comes first, float disabled (preferred) or 13.3–13.6V, re-bulk 13.2V, equalization and temperature compensation off. Use a DC-to-DC charger for alternator charging.
  • Cold charging. If your charger has its own battery temperature sensor, set its limits to 0°C to 55°C (32°F to 131°F) unless it has approved cold-charge logic. While the cells warm, the app may show little or no charge current.
  • Fit and weight. Group 8D is much larger than Group 24 or 27, so measure the bay first. Choose mounting hardware rated for 84 lb (38.1 kg), mount it upright and secured, and torque the M8 terminals to 8–12 N·m (71–106 in-lb).
  • Protection. Fit a fuse or DC-rated breaker as close as practical to the positive terminal, and size loads, cables and fuses to the 200A continuous rating, not the 400A peak.

This may be a good fit if

  • You want to replace a multi-battery 12V bank with one battery
  • Your space fits a Group 8D case
  • You run a 12V inverter in the 2,000W class
  • You charge in freezing weather

Common Questions

Will the Heater Drain the Battery Off-Grid?

No. The heater runs only while a charger is connected and supplying at least 0.5A, and it draws from that incoming current, never from stored energy. It does not warm the battery during discharge or storage.

How Cold Can It Charge?

The heating system is tested to -20°C (-4°F) and rated for external ambient temperatures down to -40°C (-40°F). The cells themselves never charge below 0°C; the heater warms them first.

Is It Waterproof?

No. IP54 means dust protected and splash resistant. Do not submerge, pressure-wash or install it where standing water can collect.

How Should I Store It?

Store it clean and dry at 0°C to 35°C (32°F to 95°F) at about 50% state of charge or higher, with loads and chargers disconnected. Check it at least every 3 months, since the warranty excludes batteries left uncharged for more than three months.


What's Included

  • 1 x Epoch 12V 460Ah Essential Series LiFePO4 Battery (12460A-H)

One Battery for a Full Off-Grid 12V System

The Epoch Batteries 12V 460Ah (5.89kWh) LiFePO4 Battery gives an RV, van or cabin 5.89kWh in one Group 8D case, with 200A continuous output, self-heating and Bluetooth monitoring. If you have questions about inverter sizing, charger settings or fit, the Outbound Power team is happy to help.


Epoch 12460A-H Specifications

Electrical
Model 12460A-H
Series Essential Series
Battery type Heated Bluetooth deep-cycle (not cranking-rated)
Group size BCI Group 8D
Chemistry LiFePO4 (lithium iron phosphate)
Cell type Prismatic LiFePO4
Cell configuration 4S2P
Nominal voltage 12.8V
Nominal capacity 460Ah at 0.2C (92A)
Stored energy 5,888Wh (5.89kWh) nominal
Runtime planning energy About 4,710Wh (368Ah), 80% of nominal
Operating voltage range 10.0–14.6V
Maximum charge voltage 14.6V
Cycle life 4,000+ cycles
Charge and Discharge
Maximum continuous discharge 200A (about 2,560W DC at 12.8V)
Recommended discharge current 138A (0.3C)
Peak discharge 400A for up to 10 s
Inverter class (Epoch guidance) 2,000W to 2,500W, one battery
Maximum continuous charge 200A, all sources combined
Recommended charge current 138A (0.3C)
Series connection Up to 4 (up to 48V system class)
Parallel connection Up to 4 (up to 1,840Ah)
Maximum configuration 4S4P, 16 batteries (about 94.21kWh)
Bank batteries Matched 12460A-H, same state of charge
Recommended Charge Settings
Charger type LiFePO4 profile (no lead-acid, AGM or gel profiles)
Bulk / absorption voltage 14.2–14.4V
Absorption end C/20 (23A) or 15 min, whichever comes first
Float voltage Disabled (preferred) or 13.3–13.6V
Re-bulk voltage 13.2V
Equalization Disabled
Temperature compensation 0 mV/°C (off)
Charger temperature limit 0 to 55°C (32 to 131°F) unless approved cold-charge logic
BMS high-voltage cutoff 14.6V
SOC recalibration voltage 14.6V
Alternator charging DC-to-DC charger programmed for LiFePO4
Temperature
Charge, with heating −20 to 55°C (−4 to 131°F)
Cell charge acceptance Only at or above 0°C (32°F)
Low-temperature charge cut-off 0°C (32°F)
Charging resumes Automatically at 5°C (41°F)
Heater activation Charger connected, supplying at least 0.5A
Heater power source Incoming charge current only
Heating system tested to −20°C (−4°F)
Rated external ambient Down to −40°C (−40°F)
Discharge −20 to 60°C (−4 to 140°F)
Storage (recommended) 0 to 35°C (32 to 95°F)
Long-term storage About 50% state of charge or higher
BMS and Protection
Overcharge Disconnects or limits operation
Over-discharge Disconnects or limits operation
Over-current Protects against sustained loads above ratings
Short circuit Rapid BMS cutoff
Temperature High- and low-temperature disconnects
External protection Fuse or DC-rated breaker close to the positive terminal
Communication and Monitoring
Bluetooth Built in
App Epoch Li-Ion (iOS and Android)
App readings State of charge, voltage, current, temperature, status
Current sensing BMS-integrated shunt, 0.2A accuracy on discharge
External shunt Not needed
Bluetooth PIN Printed on the battery's lid; changeable in the app
Size and Weight
Dimensions (L x W x H) 20.55 in x 9.45 in x 8.60 in (522.0 x 240.0 x 218.4 mm)
Weight 84 lb (38.1 kg)
Terminals M8 female
Terminal torque 8–12 N·m (71–106 in-lb)
Mounting orientation Upright
Case material ABS / PC blend, UL94-V0
Enclosure IP54 (IEC 60529)
Water and dust Dust protected, splash resistant
Not rated for Submersion, pressure washing or standing water
Certifications
Cells UL 1642, IEC 62619:2022 (cell level)
Product CE, RoHS
Transport UN 38.3, Class 9
Warranty
Warranty 11-year limited warranty
Years 1–3 Free replacement
Years 4–11 40% off MSRP on a replacement battery
Registration Within 90 days of purchase for full coverage

Epoch 12460A-H User Manual

Epoch 12460A-H User Manual

Epoch 12460A-H Spec Sheet

Epoch 12460A-H Spec Sheet

Epoch 12460A-H Data Sheet

Epoch 12460A-H Data Sheet
