Epoch Batteries 24V 230Ah (5.89kWh) LiFePO4 Battery | V2 Elite Series | Heated & Bluetooth | Victron Comms

|
SKU: C24230A
$2,399.00

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.

We Beat Any Price

Found the same price or less? Just ask & we'll beat it.

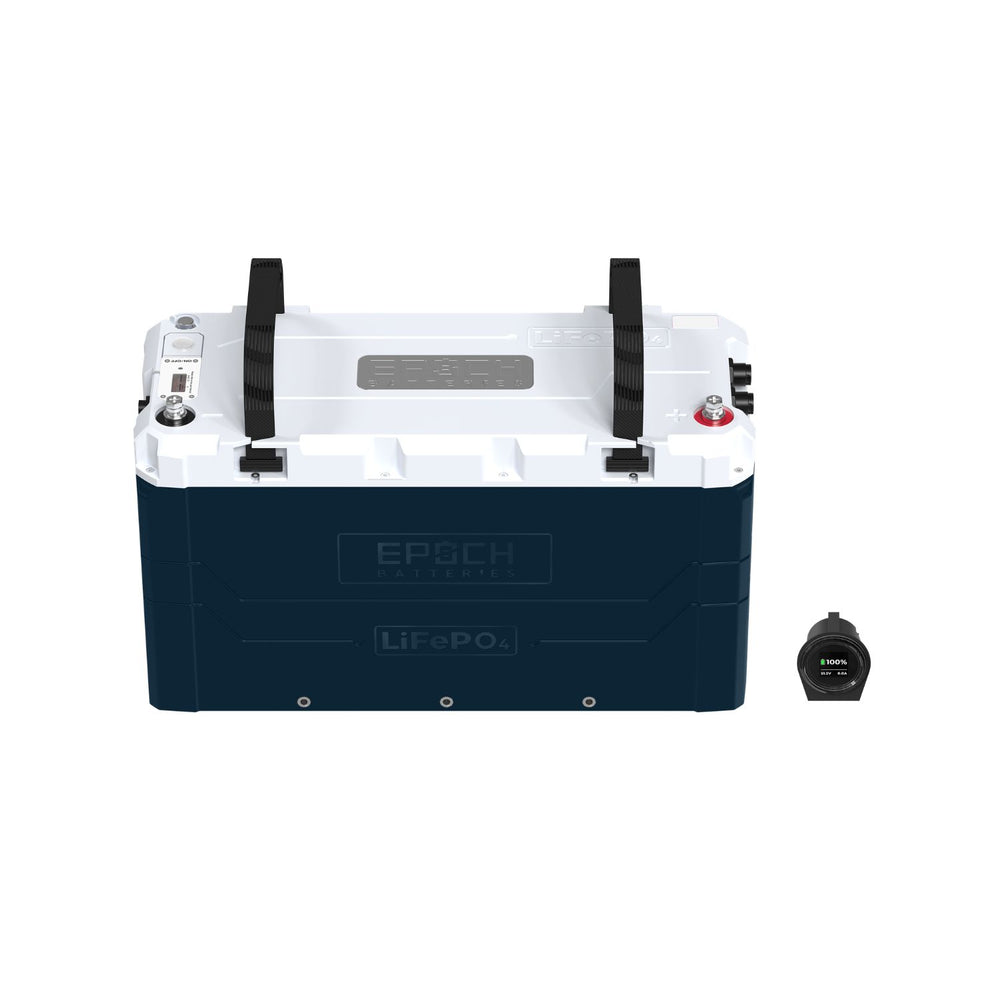

Epoch Batteries 24V 230Ah V2 Elite Series lithium battery in a navy case with a white top and two black lifting straps

The Epoch Batteries 24V 230Ah (5.89kWh) LiFePO4 Battery Gives a 24V System Victron CAN, Self-Heating and Bluetooth in One IP67 Case

The Epoch C24230A is a V2 Elite Series lithium iron phosphate battery rated at 25.6V nominal and 230Ah, for 5,888Wh (5.89kWh) of stored energy in one managed case with one BMS. A single case means fewer interconnects and cleaner routing than a 24V bank of smaller batteries.

It's made for 24V house-power and energy-storage systems in RVs, motorhomes, boats, off-grid cabins, solar banks and home backup, and for 24V trolling motors. It is a deep-cycle battery, not a cranking battery for engine starting.


Epoch Batteries 24V 230Ah (5.89kWh) LiFePO4 Battery Features

Native Victron CAN Communication

The battery connects to a compatible Victron GX device (Cerbo GX, Ekrano GX or Cerbo GX Mk2) over CAN bus at 500 kbit/s, using the included communication harness. With DVCC on and Epoch set as the controlling BMS and battery monitor, it reports its status and sets the charge voltage and current limits of your Victron chargers.

Self-Heating for Charging in the Cold

LiFePO4 cells must not be charged below 0°C (32°F). When a charge source is connected and the cells are too cold, the BMS holds off charging while the internal heater, powered by the charge source, warms them. Charging resumes when the cells reach 5°C (41°F), and with self-heating, charging is supported from -30°C (-22°F) ambient.

IP67 Dust-Tight, Immersion-Rated Enclosure

The enclosure is dust-tight and protected against temporary immersion in up to 1 m of water for 30 minutes. It is not rated for water jets, pressure washing or continuous submersion, so install it where it stays dry in normal use, with all harness connectors fully seated.

110A Continuous Charge and Discharge

Epoch rates it for 110A maximum continuous discharge and 110A maximum continuous charge, about 2,816W DC at 25.6V before inverter losses. It handles a 300A peak discharge and 200A charge for short durations, and the BMS disconnects at 280A discharge or 200A charge after 5 seconds. If your inverter's continuous DC input can exceed 110A, add batteries in parallel.

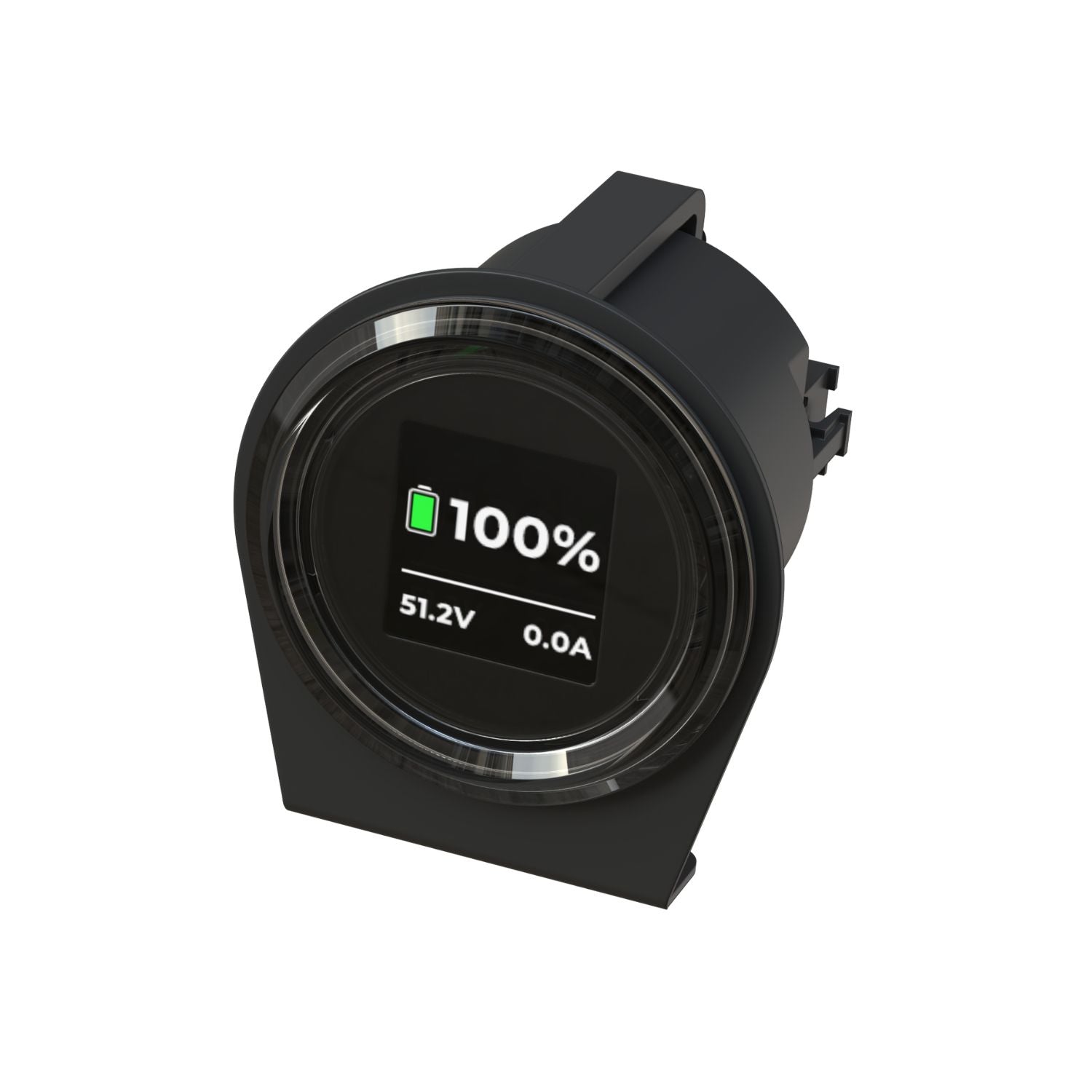

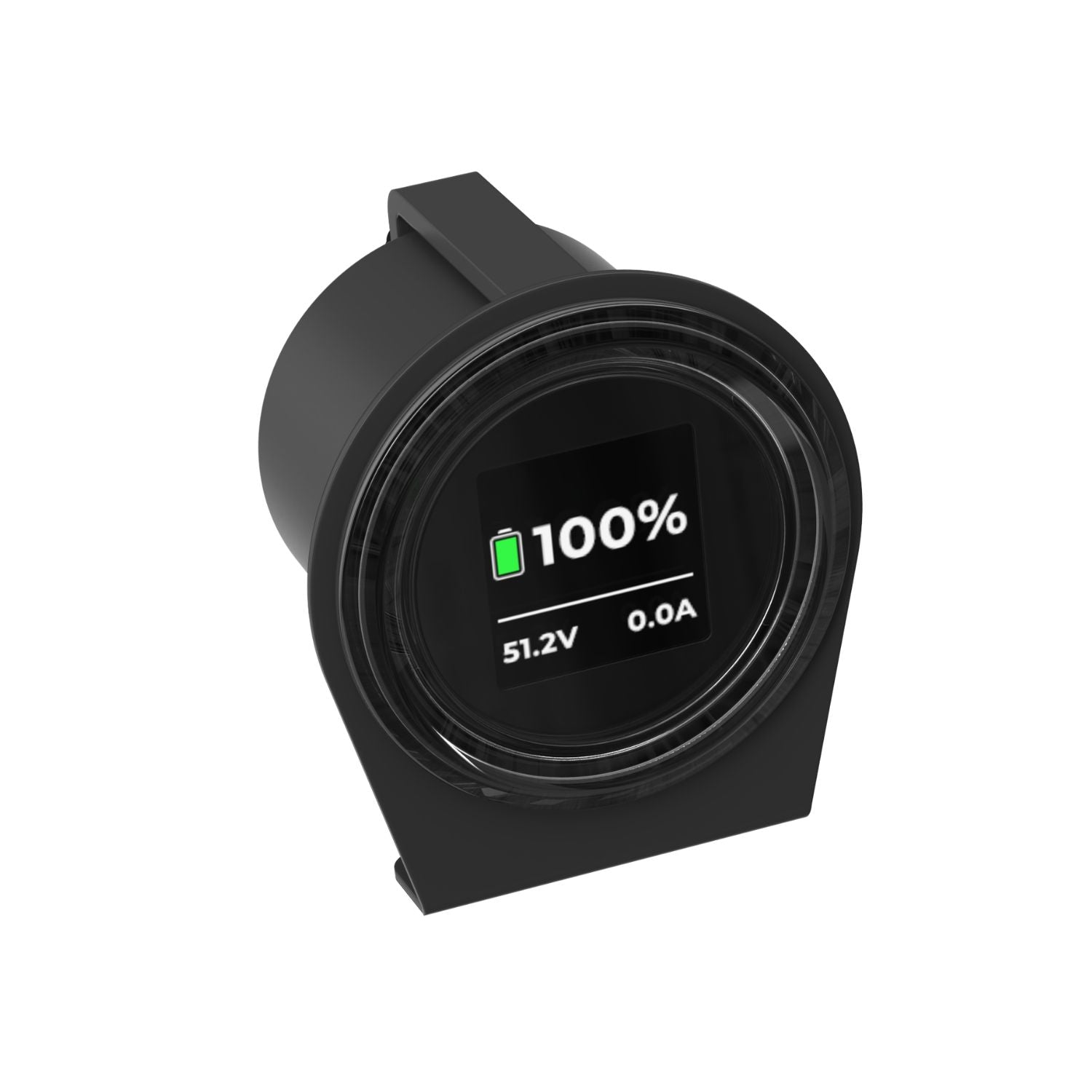

Bluetooth Monitoring Through the Included Gauge

The included mountable battery gauge shows state of charge and links over Bluetooth to the Epoch Li-Ion app (iOS and Android), where the battery appears as C24230A_ followed by its serial number. The app shows voltage, current, power, cell voltages, cell balance, temperatures, history and battery events, and installs firmware updates over the air.

Smart BMS and 270A Internal Fuse

The BMS protects against over- and under-voltage, over-current, short circuit and high or low temperature, backed by a 270A internal fuse (UL 60691). Epoch lists UL 1973 for the pack and UL 1642, UL 9540A and IEC 62619:2022 for the cells. The internal fuse protects the battery, not your cables, so you still need a DC-rated fuse or breaker close to the battery positive.

3,500+ Cycles and an 11-Year Limited Warranty

Epoch rates it for 3,500+ cycles to 70% remaining capacity, with no watering or equalizing. It's backed by an 11-year limited warranty with free repair or replacement in Years 1–5, then 40% off MSRP on a replacement battery in Years 6–11.


Real-World Applications

24V RV and motorhome house power. Run a motorhome, fifth wheel, travel trailer or camper van from one battery, mounted upright and secured against vibration and braking.

Marine house banks and 24V trolling motors. Power electronics and house loads on yachts and cruising boats, or a 24V trolling motor where voltage, current and runtime needs match.

Off-grid solar and cabins. Start with one 5.89kWh battery and grow to as many as 16 in parallel for 3,680Ah and 94.21kWh at 25.6V.

48V-class strings. Wire 2 in series for 51.2V nominal, with every charger, inverter, fuse, switch and conductor rated for the 58.4V the string reaches at full charge.

Home backup. Epoch's planning estimates use 80% of nominal energy (about 4,710Wh) for a constant DC load, before inverter losses: about 9.4 hours at 500W, 4.7 hours at 1,000W and 1.7 hours at 2,816W.


How It Compares to Common Alternatives

Versus a bank of smaller 24V batteries. This battery puts 5.89kWh behind one BMS, with fewer interconnects, fewer connection points and cleaner routing than a bank of small batteries.

Versus the V2-T version (C24230A-A). Epoch's 24V 230Ah V2-T Elite is a different version with its own manual. Check the model number on the label before you follow any procedure.

Versus a Group 8D lead-acid battery. If you're replacing an 8D, confirm tray fit, hold-down and lid clearance first. This battery needs no watering, and lead-acid equalization, desulfation or repair modes must not be used on it.


Is This 24V Battery the Right Fit

  • Bank limits. Up to 16 in parallel or 2 in series, using matched C24230A batteries of the same age, capacity and state of charge, with the DIP switches set for the bank. Series-parallel arrays are not covered by Epoch's published DIP switch settings.
  • Charger settings. Lithium (LiFePO4) CC/CV, 28.4V absorption for at least 15 minutes per battery in the bank, 27.0V float, 26.6V re-bulk, equalization and temperature compensation disabled. Keep every source, and the total of all sources, within 110A continuous. Never charge above 29.2V, and program every charge source, Victron included, in case CAN communication is lost.
  • Cold charging. Below freezing, the heater must warm the cells before charge current flows, so expect a delay before the state of charge starts to rise.
  • Fit and weight. 20.86 x 8.65 x 12.06 in (529.8 x 219.8 x 306.3 mm) including terminal posts, and 97 lb (approx. 44 kg). Lift with two people or a lifting aid and install it upright. The Epoch V2 & V2-T Mounting Hardware (8D battery bracket) fastens to threaded inserts on the case and is sold separately.
  • Installation. Epoch calls for qualified installers. Torque the M8 terminals to 8–12 N·m, and charge the battery fully before first use.

This may be a good fit if

  • You're building or upgrading a 24V house bank
  • You use a Victron Cerbo GX, Ekrano GX or Cerbo GX Mk2
  • You run a 24V trolling motor or marine house loads
  • You need to charge in freezing weather

Common Questions

What Size Inverter Can One Battery Support?

At 25.6V, 110A continuous is about 2,816W DC before inverter losses. Epoch estimates DC input current as AC load divided by (battery voltage x inverter efficiency), so a 2,000W load through a 90%-efficient inverter draws about 87A. If the inverter's continuous DC input can exceed 110A, add batteries in parallel.

How Cold Can It Discharge?

Discharge is rated from -20°C to 55°C (-4°F to 131°F), with no heating needed.

What Happens if CAN Communication Is Lost?

The BMS still protects the battery on its own, and Bluetooth monitoring works with or without a GX device. Your chargers fall back to their programmed settings, which is why each one should be set to Epoch's values.

How Should I Store It?

Charge it to at least 50%, switch it off and disconnect loads and chargers. Store it at 0 to 35°C (32 to 95°F) for up to a year, and check the state of charge at least every 3 months, since the warranty does not cover a battery left uncharged for more than 3 months.


What's Included

  • 1 x Epoch 24V 230Ah V2 Elite LiFePO4 Battery (C24230A)
  • 1 x Communication Harness
  • 1 x Mountable Battery Gauge (Bluetooth State-of-Charge Meter)
  • 1 x Mountable ON/OFF Switch

Heated 24V Storage Built for Victron and Off-Grid Systems

The Epoch Batteries 24V 230Ah (5.89kWh) LiFePO4 Battery gives a 24V system 5.89kWh in one IP67 case, with Victron CAN communication, self-heating and Bluetooth monitoring. If you have questions about charger settings, Victron setup or sizing a bank, the Outbound Power team is happy to help.


Epoch C24230A Specifications

Electrical
Model C24230A
Series V2 Elite Series
Battery type Deep-cycle (not for engine starting)
Chemistry LiFePO4 (lithium iron phosphate)
Cell type Prismatic LiFePO4
Cell configuration 8S1P (230Ah cells)
Nominal voltage 25.6V (3.2V per cell)
Nominal capacity 230Ah
Stored energy 5,888Wh (5.89kWh)
Operating voltage range 20.0–29.2V
Maximum charge voltage 29.2V (3.65V per cell)
Minimum voltage 20.0V (2.5V per cell)
Self-discharge ≤3% per month
Cycle life 3,500+ cycles to 70% remaining capacity
Charge and Discharge
Maximum continuous discharge 110A
Peak discharge 300A (short duration)
Continuous power at 25.6V 2,816W DC (before inverter losses)
Maximum continuous charge 110A per battery, all sources combined
Maximum charge, short duration 200A
BMS discharge over-current trip 280A after 5 s
BMS charge over-current trip 200A after 5 s
Series connection Up to 2 batteries (51.2V nominal)
Full-charge voltage, 2 in series 58.4V
Parallel connection Up to 16 batteries
Maximum parallel bank 3,680Ah / 94.21kWh at 25.6V nominal
Series-parallel Not covered by Epoch's published DIP switch settings
Recommended Charge Settings
Charger type Lithium (LiFePO4) compatible, CC/CV
Bulk / absorption voltage 28.4V
Absorption time At least 15 min per battery in the bank
Float voltage 27.0V
Re-bulk voltage 26.6V
Equalization Disabled
Temperature compensation Disabled (0 mV/°C)
Charge current 110A max. continuous per battery
BMS high-voltage cutoff 29.2V
Victron GX (DVCC) DVCC on; controlling BMS and battery monitor set to Epoch
Alternators DC-DC charger, or alternator regulator set up for lithium
Temperature
Charge (cell temperature) 0 to 55°C (32 to 131°F)
Charge with self-heating (ambient) −30 to 55°C (−22 to 131°F)
Charging resumes after heating Cells at 5°C (41°F)
Self-heating power From the charge source
Discharge −20 to 55°C (−4 to 131°F)
Storage, up to 1 month −20 to 45°C (−4 to 113°F)
Storage, up to 1 year 0 to 35°C (32 to 95°F)
Preferred operating temperature 15 to 25°C (59 to 77°F)
BMS and Protection
Overcharge 3.65 ± 0.01V per cell (29.2V)
Overcharge release 3.45 ± 0.01V per cell (27.6V)
Over-discharge 2.70 ± 0.05V per cell (21.6V)
Over-discharge release 3.00 ± 0.05V per cell (24.0V)
Charge over-current 200A, 5,000 ms delay; release 125A
Discharge over-current 280A, 5,000 ms delay
Short circuit 1,200A
Charge temperature protection Low 0°C (release 5°C); high 55°C (release 50°C)
Discharge temperature protection Low −20°C (release −17°C); high 55°C (release 50°C)
Internal fuse 270A rated, UL 60691 (TEX150-R1N-XBZ)
Internal fuse transient overload 1,200A for 3 s
Self-consumption 20mA powered on; 200µA powered off
Communication and Monitoring
Bluetooth Through the included battery gauge
Battery gauge Mountable, with Bluetooth
App Epoch Li-Ion (iOS and Android)
Battery name in the app C24230A_ followed by the serial number
Bluetooth range Typically about 10 m (33 ft)
CAN bus 500 kbit/s
Victron GX port BMS-CAN or VE.Can
Victron GX devices Cerbo GX, Ekrano GX, Cerbo GX Mk2
Firmware updates Over the air through the app
Controls Power button; mountable ON/OFF switch included
DIP switches 8 (battery role and bank position)
Size and Weight
Dimensions (L x W x H) 20.86 in x 8.65 in x 12.06 in (529.8 x 219.8 x 306.3 mm)
Height note Includes terminal posts
Weight 97 lb (approx. 44 kg)
Terminals M8 threaded
Terminal torque 8–12 N·m (71–106 lbf·in)
Mounting orientation Upright
Mounting points Threaded inserts for the optional bracket
Mounting bracket Epoch V2 & V2-T Mounting Hardware (8D battery bracket), sold separately
Case material ABS + PC blend, UL94 V-0
Enclosure IP67, dust-tight
Water protection Temporary immersion to 1 m for 30 min
Not rated for Water jets, pressure washing or continuous submersion
Certifications
Battery pack UL 1973
Cells UL 1642, UL 9540A, IEC 62619:2022
Internal fuse UL 60691 (TEX150-R1N-XBZ)
Other CE, RoHS
Transport UN 3480, Class 9
Warranty
Warranty 11-year limited warranty
Years 1–5 Free repair or replacement
Years 6–11 40% off MSRP on a replacement battery
Registration Within 90 days of purchase; keep proof of purchase

Epoch C24230A User Manual

Epoch C24230A User Manual

Epoch C24230A Spec Sheet

Epoch C24230A Spec Sheet

Epoch C24230A Data Sheet

Epoch C24230A Data Sheet
