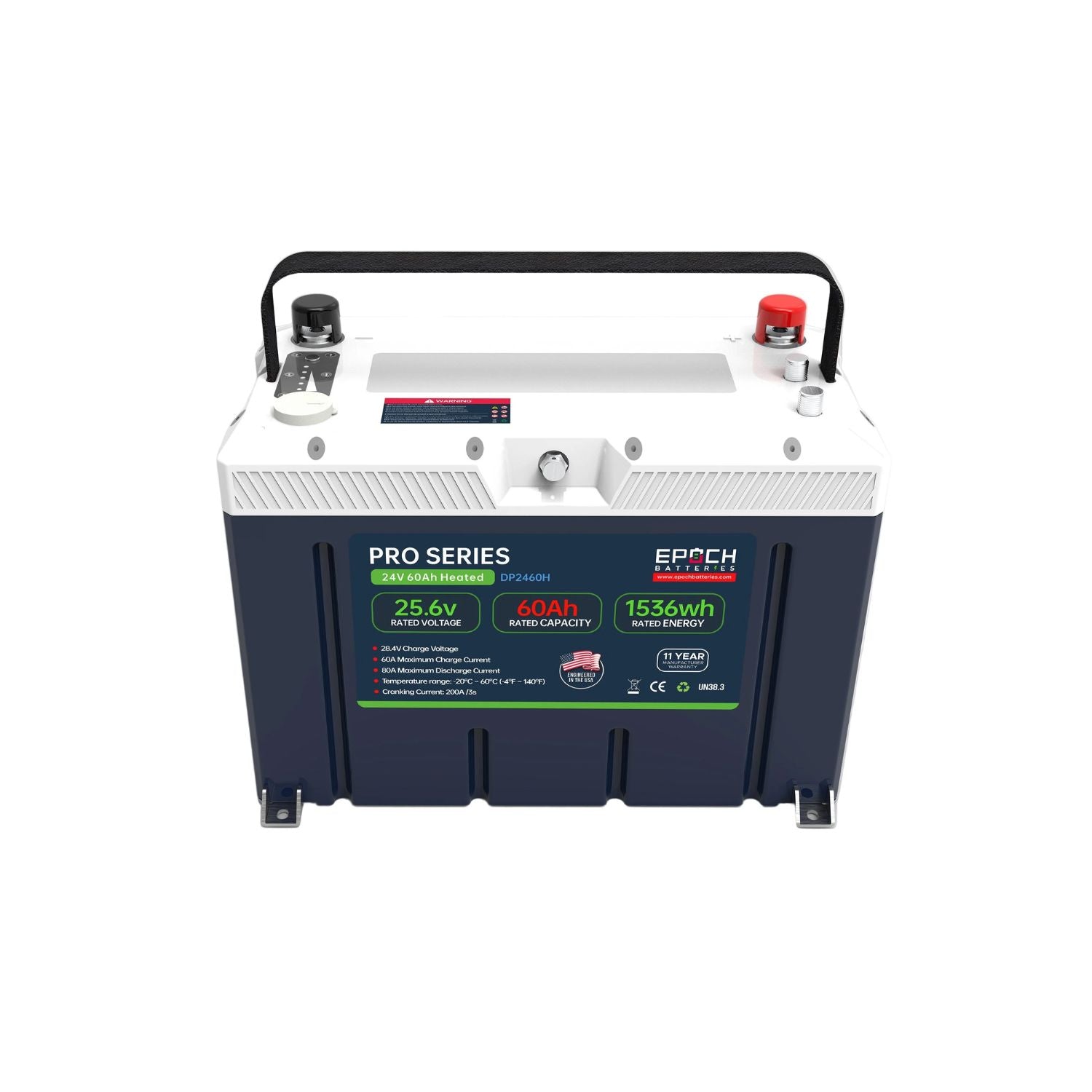

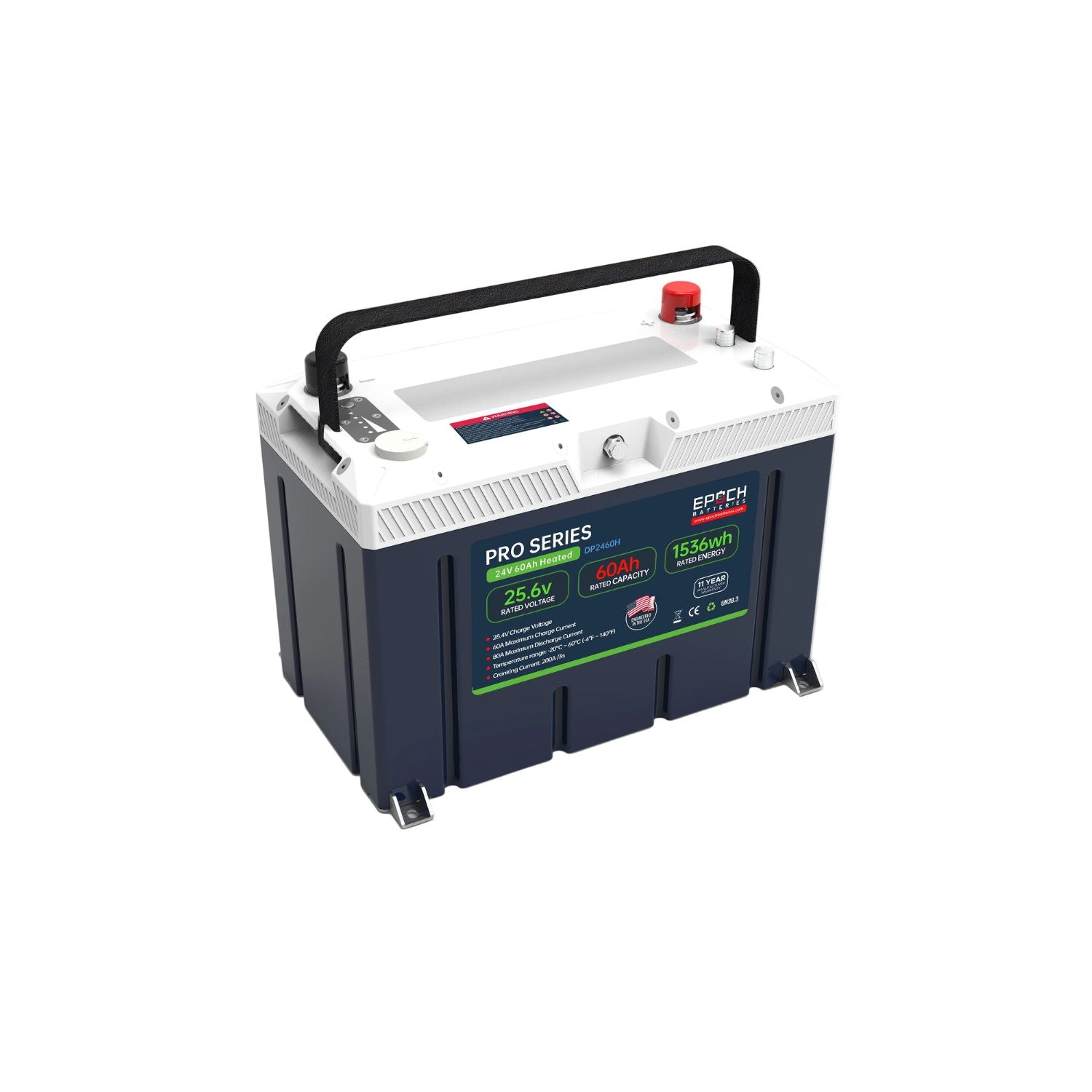

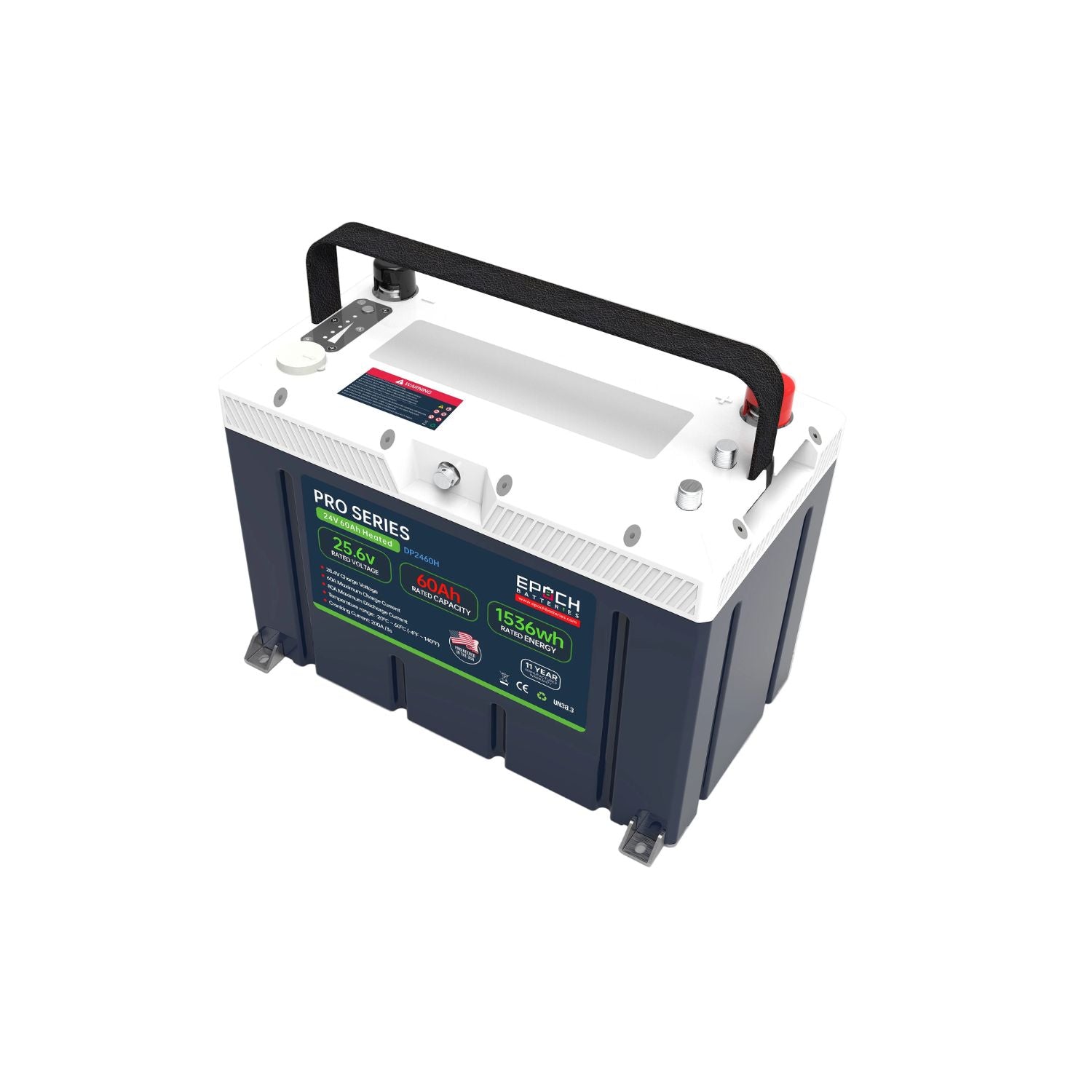

The Epoch Batteries 24V 60Ah (1.54kWh) LiFePO4 Battery Gives 24V Trolling Motors and House Systems One Heated, Bluetooth-Monitored Battery
The Epoch DP2460H is a Pro Series lithium iron phosphate battery rated at 25.6V nominal and 60Ah, for 1.54kWh (1,536Wh) of stored energy in a BCI Group 27 footprint. It delivers 80A continuous and 200A for up to 3 seconds, heats itself for cold-weather charging, and reports to the Epoch Pro app over Bluetooth and to compatible equipment, including Victron systems, over CAN/RS485.
It's made for 24V trolling motors, marine house power, RV, van and overland 24V systems, and 24V solar and off-grid storage. Epoch also lists kayak, skiff, pontoon and fishing-boat installs that need IP67 protection. It is a deep-cycle battery, not a cranking battery.
Epoch Batteries 24V 60Ah (1.54kWh) LiFePO4 Battery Features
One 24V Battery Instead of Two 12V Batteries
At 25.6V nominal, one DP2460H can replace a two-battery 12V lead-acid series bank in compatible systems. The case measures 12.25 x 6.75 x 9 in (311 x 171 x 229 mm) on a BCI Group 27 footprint and weighs 30 lb (13.7 kg).
80A Continuous for 24V Trolling Motors
Epoch rates it for 80A maximum continuous discharge, with 30A recommended for daily use, and 200A for up to 3 seconds for start-up surges such as a motor start. For a trolling motor, the motor's maximum current draw, not its average, must be at or below 80A.
Self-Heating for Cold-Weather Charging
An internal heating film runs only while a charger is connected. In cold weather it warms the battery to 10°C (50°F) and then switches to charging, so the battery charges from -20°C to 55°C (-4°F to 131°F). Leave the charger connected and allow up to 60 minutes. Discharge is rated from -20°C to 60°C (-4°F to 140°F).
Bluetooth Monitoring in the Epoch Pro App
The free Epoch Pro app for iOS and Android shows state of charge, voltage, current, temperature and status alerts, so you can check the battery without a separate gauge. The app also sets up multi-battery networks and installs firmware updates over the air, and the battery works with an optional 5 in touchscreen battery gauge.
CAN/RS485 With Victron-Compatible Communication
Link in and Link out ports network a parallel bank and connect it to an inverter, display, MPPT or other device that needs battery data. Victron-compatible communication depends on the GX device, inverter charger, cable, firmware and configuration, so plan the setup before installation.
IP67 Sealed Case
The sealed case is dust-tight and protected against temporary immersion to 1 m for 30 minutes, with heat-sink fins and a pressure-relief valve. It is not rated for water jets or pressure washing and must not be left submerged, so mount it where standing water can't collect, never in a bilge.
Smart BMS, 6,000+ Cycles and an 11-Year Limited Warranty
The BMS guards against overcharge, over-discharge, over-current, short circuit (cutoff at 800A within 500µs) and high or low temperature. Epoch lists UL 1973 for the pack, UL 1642 and UL 9540A for the cells, and IEC 62619:2022. It's rated for 6,000+ cycles and backed by an 11-year limited warranty: free replacement in Years 1–3, then 40% off MSRP on a replacement battery in Years 4–11.
Real-World Applications
24V trolling motors. Run a 24V motor whose maximum draw stays within 80A continuous, with wiring, fuse, controller and charger matched to the battery. Epoch's planning estimates use 80% of nominal energy (about 1,229Wh): about 2.5 hours at a 500W load and 1.6 hours at 30A (768W), for DC loads at 25°C on a new, fully charged battery.
Marine house power. Power 24V electronics, lighting, pumps, fish finders and navigation equipment, keeping the combined current within the battery rating.
RV, van and overland systems. Use it as 24V auxiliary or house power, with converters, inverter chargers, solar controllers and DC-to-DC chargers all set to 24V LiFePO4 values. An inverter's DC input must stay within 80A, about 2,048W at 25.6V.
Solar and off-grid storage. Start with one battery and add up to 16 in parallel for 960Ah and 24.58kWh at 25.6V nominal in a cabin, trailer or boat.
How It Compares to Common Alternatives
Versus two 12V lead-acid batteries in series. One battery means one case and one set of terminals to wire, with no watering or acid service. It needs a 24V LiFePO4 charge profile, and lead-acid equalization, desulfation and repair modes must not be used.
Versus a 24V battery without heating or Bluetooth. This battery adds self-heating for charging in freezing weather and app readings of state of charge, current and temperature, plus CAN/RS485 communication for connected systems.
Versus a cranking battery. It is a 24V deep-cycle battery. For engine starting, use a cranking-rated battery.
Is This 24V Battery the Right Fit
-
Parallel only. Up to 16 matched DP2460H batteries in parallel. Series wiring is not approved for this model. If any two batteries differ by more than 0.5V, fully charge each one separately and rest it for 1 hour before connecting.
-
Charger settings. A 24V LiFePO4 profile at 28.4–28.8V bulk/absorption, ending at C/20 (3A) or after 15 minutes, float off (preferred) or 26.6–27.2V, 26.4V re-bulk, with equalization and temperature compensation disabled. Charge at up to 30A, never more than 60A from all sources combined, and charge from an alternator through a DC-to-DC charger.
-
Cold charging. The heater needs a connected charger to run, so expect a delay of up to 60 minutes before charge current flows below freezing.
-
Fit and installation. Mount it face up, never on its side or upside down, secured with its bracket (M6 stainless screws recommended). Torque the M8 terminals to 8–10 Nm (71–89 in-lb) and fit a DC-rated fuse or breaker close to the positive terminal.
This may be a good fit if
- You run a 24V trolling motor within 80A
- You want one battery in place of two 12V batteries
- You charge in freezing weather
- You want app monitoring or Victron-compatible data
Common Questions
Can I Wire Two in Series for 48V?
No. Series connection is not approved for this model unless Epoch provides written model-specific approval. Expand capacity with up to 16 batteries in parallel.
Does It Ship Ready to Use?
It ships with the power switch off. Turn it on (the BMS self-check takes up to 10 seconds), fully charge it with a 24V LiFePO4 charger before first use, then confirm its status in the Epoch Pro app.
What Charger Works With It?
A 24V LiFePO4 charger such as the Epoch 24V 15A Lithium Battery Charger, a solar controller with a LiFePO4 or programmable profile, or a converter or inverter charger set to the values above. A charger below the recommended 30A is suitable; it simply takes longer.
How Should I Store It?
Charge it to about 50% or higher, disconnect loads and chargers, switch it off and store it dry at 0 to 35°C (32 to 95°F), for up to 12 months. Check it at least every 3 months, since a battery left uncharged for more than 3 months is excluded from warranty coverage.
What's Included
- 1 x Epoch 24V 60Ah Pro Series LiFePO4 Battery (DP2460H)
Heated 24V Power You Can Check From Your Phone
The Epoch Batteries 24V 60Ah (1.54kWh) LiFePO4 Battery puts 1.54kWh, 80A continuous output, self-heating, Bluetooth and CAN/RS485 communication in one IP67 case. If you have questions about trolling motor current, charger settings or building a parallel bank, the Outbound Power team is happy to help.
Epoch DP2460H Specifications
|
| Electrical |
| Model |
DP2460H |
| Series |
Pro Series |
| Battery type |
Heated Bluetooth deep-cycle (not a cranking battery) |
| Chemistry |
LiFePO4 (lithium iron phosphate) |
| Cell configuration |
8S2P |
| Nominal voltage |
25.6V |
| Nominal capacity |
60Ah |
| Stored energy |
1,536Wh (1.54kWh) |
| Runtime planning energy |
About 1,229Wh (80% of nominal) |
| Operating voltage range |
20.0–29.2V |
| Maximum charge voltage |
29.2V |
| End of discharge |
22.0–23.2V |
| Internal resistance |
≤30 mΩ (1 kHz AC) |
| Self-discharge |
≤3% per month (sleep or off) |
| Operating altitude |
<3,000 m |
| Cycle life |
6,000+ cycles |
| Charge and Discharge |
| Maximum continuous discharge |
80A |
| Recommended daily discharge |
30A |
| Peak discharge |
200A for up to 3 s (start-up surges only) |
| Inverter sizing |
DC input within 80A (about 2,048W at 25.6V) |
| Maximum continuous charge |
60A, all charging sources combined |
| Recommended charge current |
Up to 30A (0.5C) |
| Series connection |
Not approved |
| Parallel connection |
Up to 16 |
| Maximum parallel bank |
960Ah / 24.58kWh at 25.6V nominal |
| Bank matching |
Voltages within 0.5V before connecting |
| Recommended Charge Settings |
| Charger type |
24V LiFePO4 profile |
| Bulk / absorption voltage |
28.4–28.8V |
| Absorption end |
At C/20 (3A) or after 15 min, whichever comes first |
| Float voltage |
Disabled (preferred) or 26.6–27.2V |
| Re-bulk voltage |
26.4V |
| Equalization |
Disabled |
| Temperature compensation |
0 mV/°C (disabled) |
| Charge current, one battery |
Up to 30A recommended |
| Charge current, banks |
Up to 50% of bank capacity |
| BMS high-voltage cutoff |
29.2V |
| SOC recalibration |
29.2V |
| Alternator charging |
DC-to-DC charger |
| Compatible charger |
Epoch 24V 15A Lithium Battery Charger |
| Temperature |
| Charge (with internal heating) |
−20 to 55°C (−4 to 131°F) |
| Self-heating |
Internal heating film, charger connected |
| Heating target |
Warms the battery to 10°C (50°F) before charging |
| Heating time |
Allow up to 60 min |
| Discharge |
−20 to 60°C (−4 to 140°F) |
| Storage (recommended) |
0 to 35°C (32 to 95°F), max. 12 months |
| BMS and Protection |
| Smart BMS |
Built in |
| Voltage and current protection |
Overcharge, over-discharge, over-current |
| Short circuit |
Cutoff at 800A within 500 µs |
| Temperature protection |
High- and low-temperature disconnects |
| Cell balancing |
Passive balancing near full charge |
| External protection |
DC-rated fuse or breaker near the positive terminal |
| Communication and Monitoring |
| Bluetooth |
Yes, Epoch Pro app (iOS and Android) |
| App readings |
State of charge, voltage, current, temperature, status and alerts |
| Firmware updates |
Over the air through the app |
| CAN/RS485 |
Link in / Link out ports |
| Victron |
Victron-compatible communication (depends on GX device, cable, firmware and setup) |
| Indicators |
RUN/ALM light; 4 SOC lights (25% each) |
| Controls |
Power switch (ships OFF); config button |
| Optional display |
5 in touchscreen battery gauge |
| Size and Weight |
| Dimensions (L x W x H) |
12.25 in x 6.75 in x 9 in (311 x 171 x 229 mm) |
| Footprint |
BCI Group 27 |
| Weight |
30 lb (13.7 kg) |
| Terminals |
M8 |
| Terminal torque |
8–10 Nm (71–89 in-lb) |
| Mounting orientation |
Upright (face up); never on its side or upside down |
| Mounting |
Bracket; M6 stainless screws recommended |
| Case |
Sealed, with heat-sink fins and pressure-relief valve |
| Enclosure |
IP67 (IEC 60529) |
| Water and dust |
Dust-tight; temporary immersion to 1 m for 30 min |
| Not rated for |
Water jets, pressure washing or being left submerged |
| Certifications |
| Battery pack |
UL 1973; IEC 62619:2022 |
| Cells |
UL 1642, UL 9540A |
| Compliance marks |
CE, RoHS |
| Transport |
UN 38.3, Class 9 |
| Warranty |
| Warranty |
11-year limited warranty |
| Years 1–3 |
Free replacement |
| Years 4–11 |
40% off MSRP on a replacement battery |
| Registration |
Within 90 days of purchase for full coverage |
