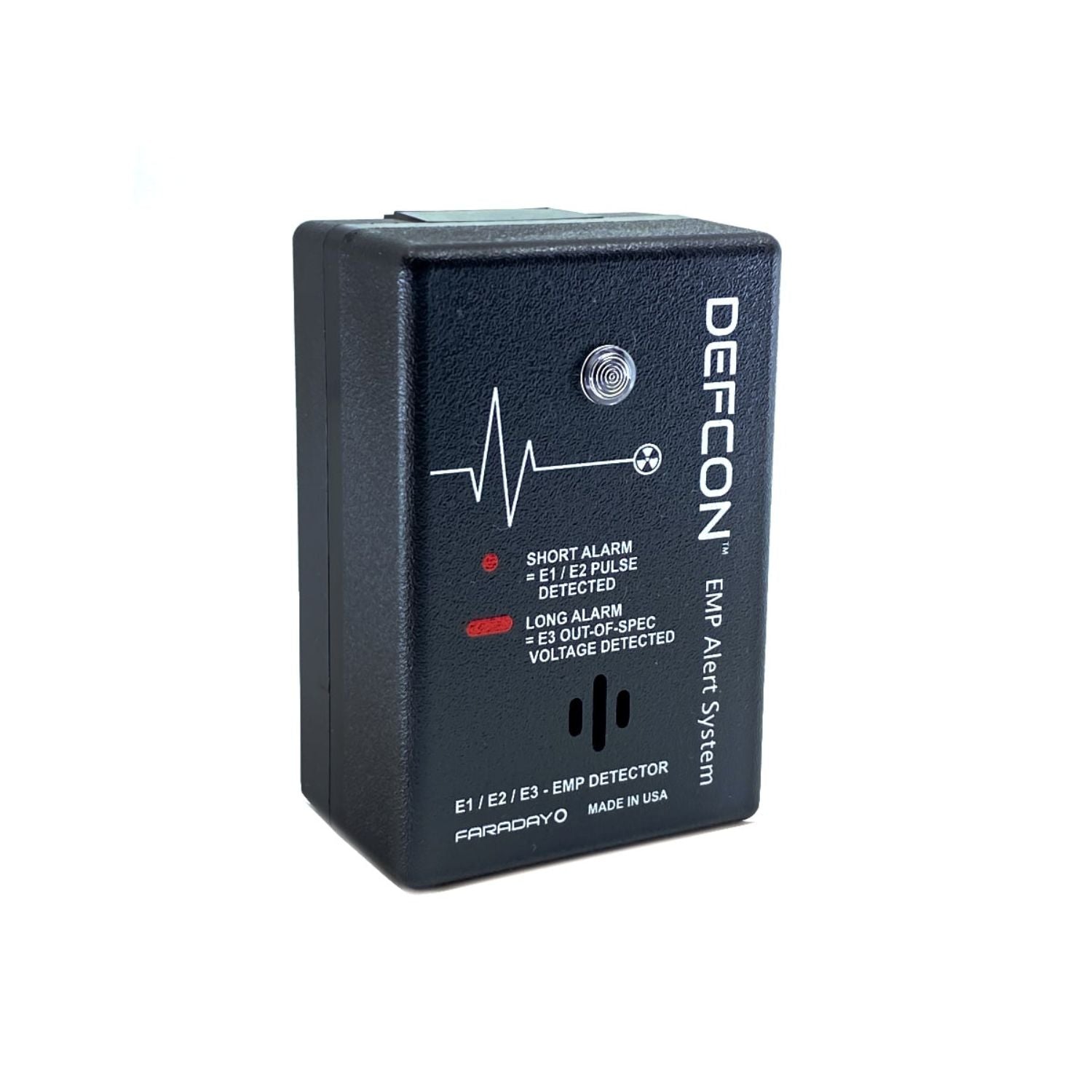

The Faraday Defense DEFCON EMP Alert System Sounds an Alarm When It Detects EMP or CME Disturbances, Giving You Time to Open Your Main Breaker
The DEFCON EMP Alert System is a plug-in detector that Faraday Defense designed to sense electrical disturbances from an electromagnetic pulse (EMP) or a solar coronal mass ejection (CME). It monitors the power lines and the ambient air, and when it detects a disturbance it sounds an 85 dB alarm and lights up red.
It's for homes and businesses that want an early warning. Faraday points out that most people would have no way of knowing an EMP or CME is happening until their electronics stop working. The alarm gives you time to take protective steps, such as opening the main circuit breaker. It plugs into any standard 120-volt AC receptacle and draws less than 50 milliamps.
DEFCON EMP Alert System Features
Detects E1, E2 and E3 Effects
A very high-speed circuit detects E1 and E2 electromagnetic disturbances as brief as nanoseconds in duration. A second circuit continuously monitors the power lines for E3, the sustained energy that can push line voltage out of spec, high or low.
Watches the Power Lines and the Air
The DEFCON monitors your power lines for conducted effects and the ambient air for radiated effects, so it can warn of both EMP and CME disturbances.
Three Distinct Alarms
Each condition has its own sound. A brief "beep" means a very fast E1/E2-type pulse was detected. A long, sustained "beeeeep" means an E3 overvoltage condition. A pulsating "beep-beep-beep" means an E3-induced undervoltage condition. Red lights become visible when any detection occurs, and the label on the front explains the short and long alarms.
85 dB Alarm
The alarm sounds at 85 dB, so it's built to be heard when you need to act quickly.
Hardened Analog Design
The DEFCON contains no digital electronics. Faraday says it is internally hardened with protective devices against powerful electromagnetic disturbances, such as an EMP or CME.
Low Power, Plug-In Setup
There's no wiring. Plug it into a standard 120-volt AC receptacle and it draws less than 50 milliamps, about the same as a 5-watt nightlight. It is designed and manufactured in the USA.
Real-World Applications
Homes. Plug it in, and if voltage levels become dangerously high or low, you get time to open your home's main breaker.
Businesses and shops. Faraday describes the same response for a business, opening the main breaker when the alarm sounds.
Preparedness networks. An alert lets you warn your family or preparedness network, shore up supplies or consider evacuation.
Homes with whole-house surge protection. The alarm adds a warning for sustained E3 energy, which surge protection devices don't cover.
Practical Comparison
DEFCON EMP Alert System Versus a Whole-House Surge Protector
Faraday explains that surge protection devices protect from powerful E1 and E2 conducted transients but not from sustained E3 energy. The DEFCON doesn't replace a surge protector. It complements one by warning you before E3-induced voltages become dangerously high, so you have time to open your main breaker.
DEFCON EMP Alert System Versus Noticing Failures Yourself
In an EMP, the detonation is so high in the atmosphere that you're unlikely to see a flash or hear an explosion. With a CME, there may be warning that it's approaching, but no way to predict its effects on the power lines. Without a detector, the first sign may be electronics that have already stopped working. The DEFCON sounds an alarm when it detects the disturbance.
Buyer Guidance
Where to Plug It In
Any standard 120-volt AC receptacle works. Since the warning is an audible alarm, choose an outlet where you'll hear it, and make sure everyone in the household knows where the main breaker is and what the alarms mean.
This May Be A Good Fit If
- You want an early warning of EMP or CME disturbances
- You already have, or plan, whole-house surge protection
- You want a plug-in device with no wiring
- You'd open your main breaker if voltage became dangerous
Common Questions
Won't an EMP Take Down the Power Grid Right Away?
Faraday says the E1 and E2 pulses are unlikely to take down the grid immediately. It is the sustained E3 energy that drives large currents around the grid, damaging transformers and other infrastructure. The DEFCON is designed to give you time to act while E3 is just beginning.
Will an EMP or CME Destroy the Alert System?
Faraday says it is internally hardened with protective devices against powerful electromagnetic disturbances, and it contains no digital electronics.
How Much Power Does It Use?
It draws less than 50 milliamps of current, about the same as a 5-watt nightlight.
What Should I Do When It Alarms?
A long alarm or a pulsating alarm signals out-of-spec E3 voltage. Faraday's suggested step is to open the main breaker on your home or business. You can also warn others in your family or preparedness network.
What's Included
- 1 x Faraday Defense DEFCON EMP Alert System
An Early Warning for Your Home or Business
The Faraday Defense DEFCON EMP Alert System watches your power lines and the air for EMP and CME disturbances, then sounds one of three 85 dB alarms so you can open your main breaker in time. It plugs into a standard 120-volt outlet and runs on less than 50 milliamps. If you have questions about adding it to your home protection plan, the Outbound Power team is happy to help.
Faraday Defense DEFCON EMP Alert System Specifications
|
| Fit |
| Power Source |
Standard 120-volt AC receptacle |
| Installation |
Plug-in, no wiring |
| Use |
Home or business |
| Electrical |
| Current Draw |
Less than 50 mA |
| Power Use |
About the same as a 5-watt nightlight |
| Detection |
| Events Detected |
EMP and solar coronal mass ejection (CME) |
| E1/E2 Detection |
Very high-speed circuit, disturbances as brief as nanoseconds |
| E3 Detection |
Continuous power line monitoring for out-of-spec voltage |
| Conducted Effects |
Monitors power lines |
| Radiated Effects |
Monitors ambient air |
| Alarms |
| Alarm Volume |
85 dB |
| E1/E2 Pulse |
Brief beep |
| E3 Overvoltage |
Long sustained beep |
| E3 Undervoltage |
Pulsating beep-beep-beep |
| Visual Alert |
Red lights on any detection |
| Construction |
| Design |
Hardened analog, no digital electronics |
| Hardening |
Internal protective devices |
| Made In |
USA (designed and manufactured) |
