The Faraday Defense DEFCON Vehicle + EMP Vehicle Protection Kit Layers Four Transient Protection Devices on One 12-Volt Vehicle
This kit pairs the DEFCON Vehicle, a surge protection device built with metal oxide varistors (MOVs), with Faraday Defense's EMP Vehicle Protection Kit: 1 T.R.A.P., 1 T.R.A.P.-B and 2 high-saturation vehicle ferrites. Faraday designed these devices to help protect a vehicle's electronics from transients such as load changes, lightning strikes, conducted transients and an electromagnetic pulse (EMP).
It's for drivers who want more than one layer of protection on the same vehicle. The DEFCON Vehicle and T.R.A.P.-B connect at the battery, the T.R.A.P. plugs into the 12-volt auxiliary receptacle, and the ferrites add current damping. Each device uses a different approach, so they work alongside each other.
DEFCON Vehicle + EMP Vehicle Protection Kit Features
Three Protection Technologies in One Kit
The T.R.A.P. devices use very fast TVS diodes, rated by Faraday at less than 1 ps typical turn-on speed. The DEFCON Vehicle uses slightly slower but much heftier MOVs, at less than 1 ns typical. Once installed on your vehicle, the ferrites reduce high-frequency transients. Together they cover fast spikes and large surges with different technologies.

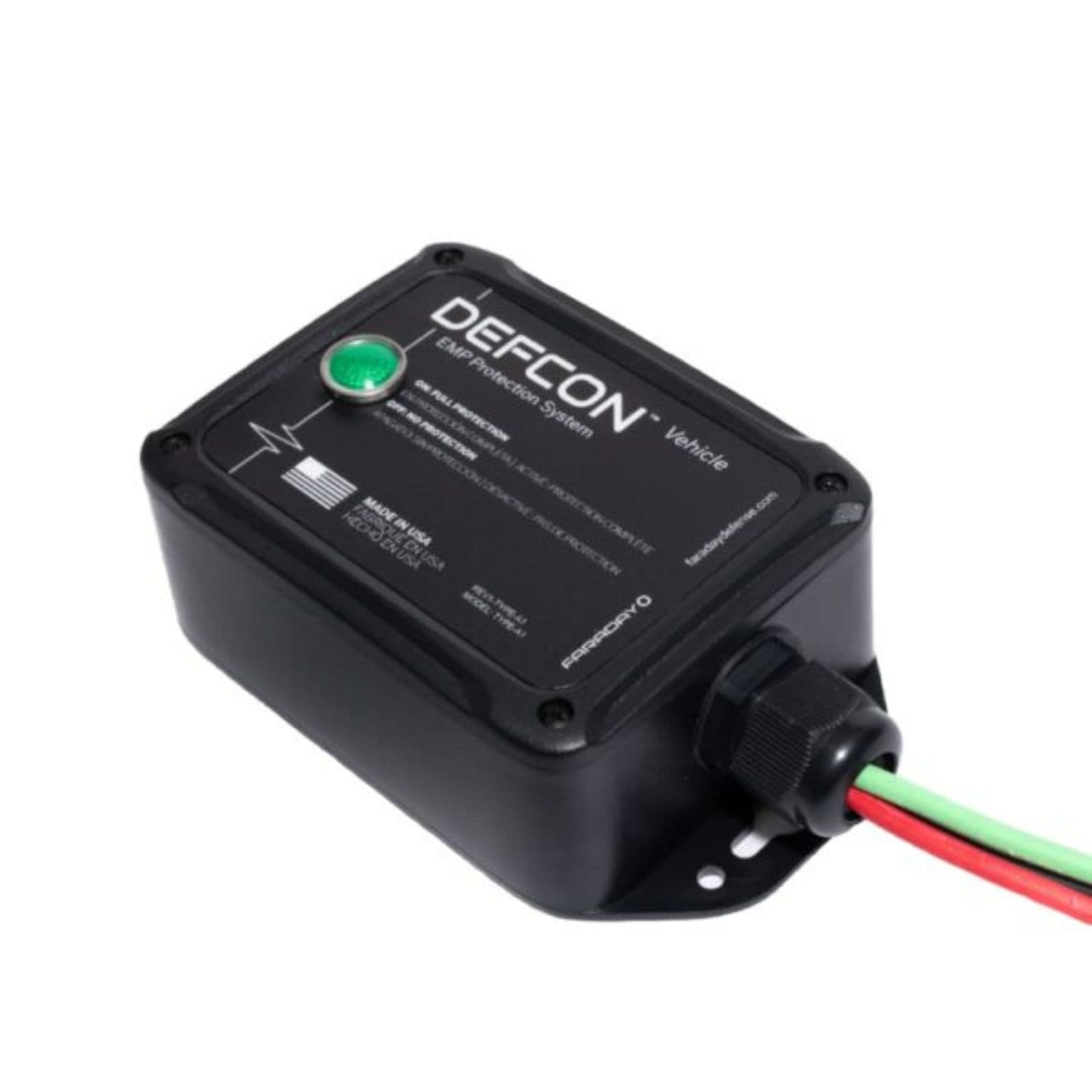

DEFCON Vehicle Handles Large Surges
Faraday rates the DEFCON Vehicle at 270,000 amps of total surge current and more than 2,000 joules of total energy. It shunts over voltage away from your vehicle's electrical system before the voltage can rise high enough to cause damage. Faraday says it offers about 400 times the energy absorption and more than 2,700 times the maximum surge current of the T.R.A.P.-B.

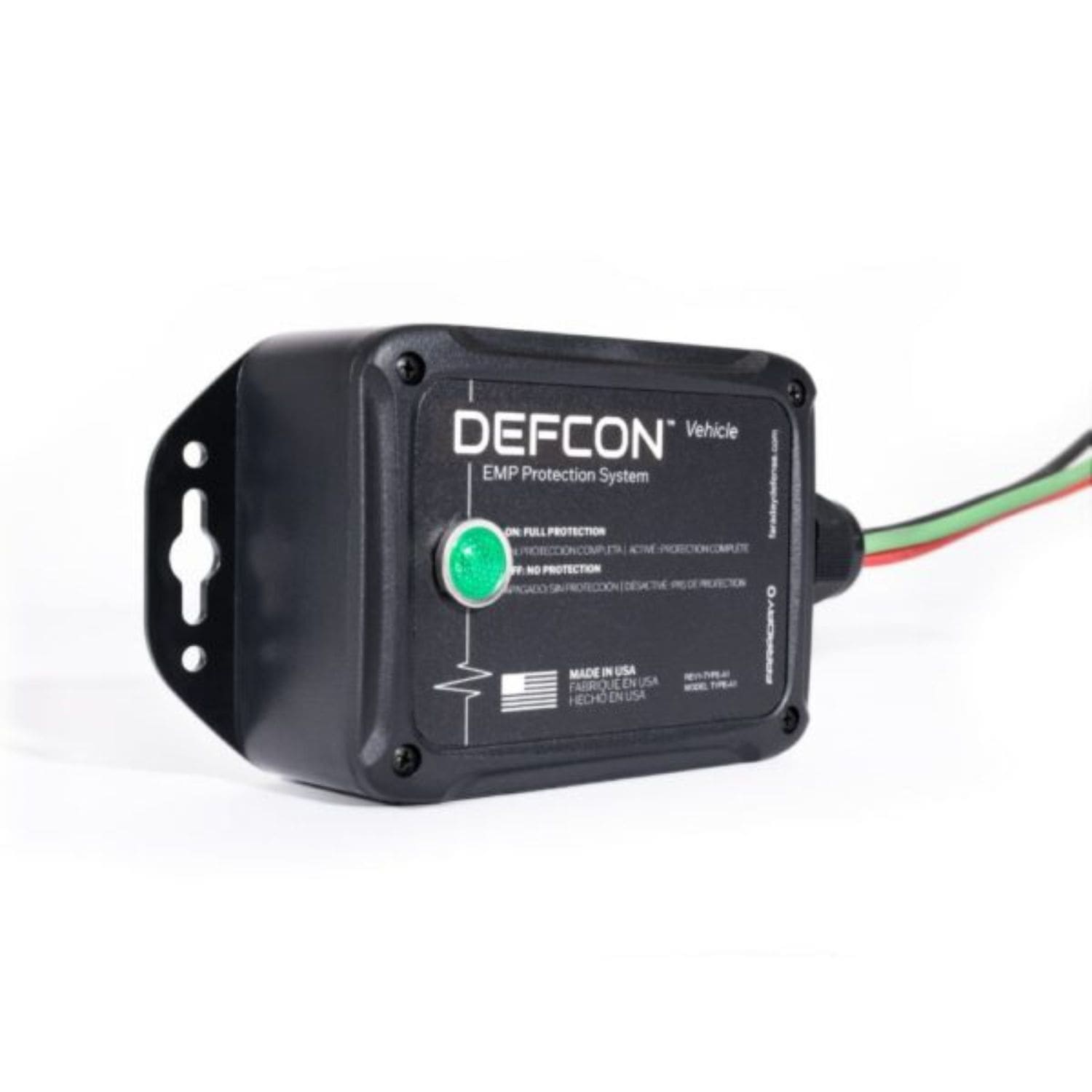

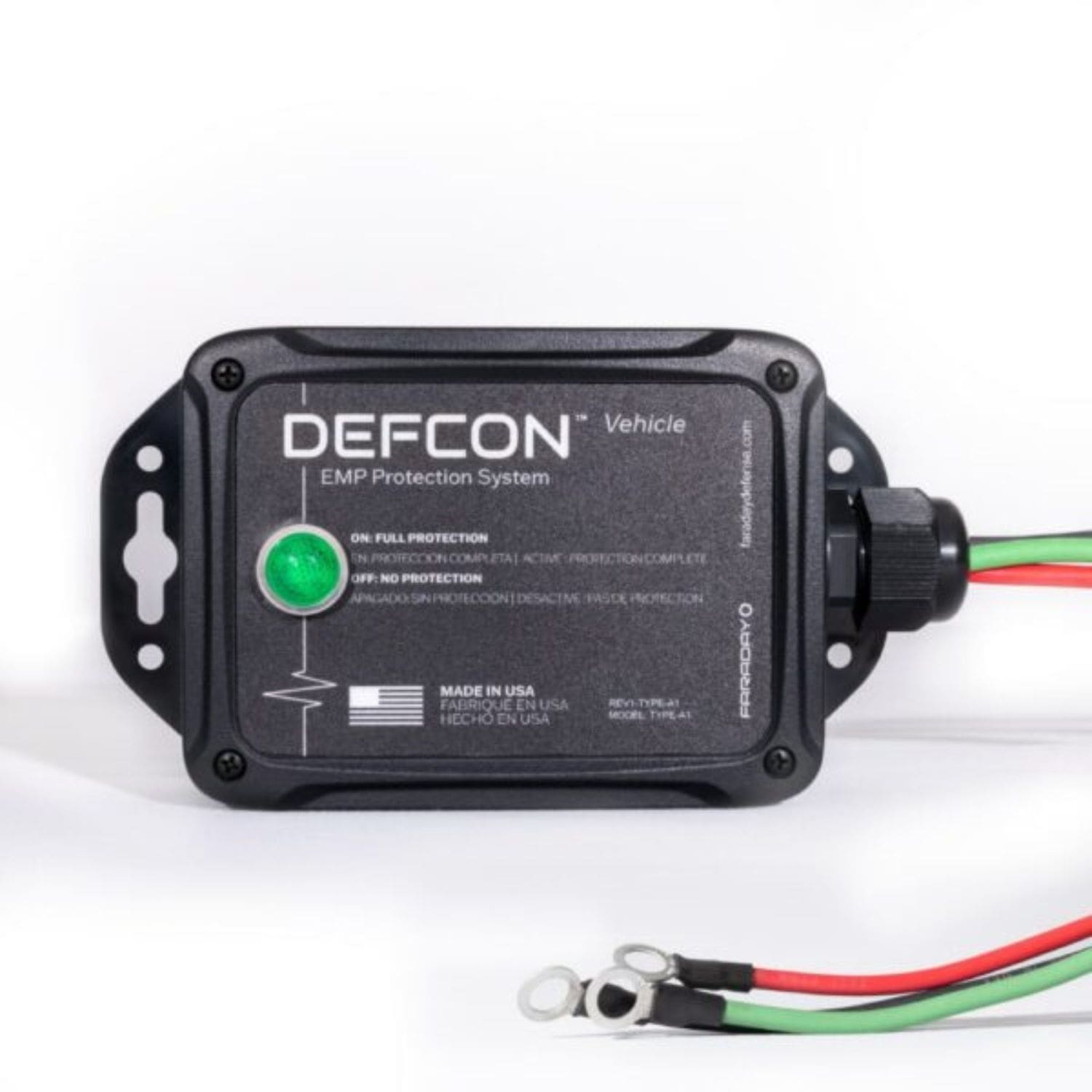

A Light That Shows the DEFCON Is Active
The DEFCON Vehicle has a green power-on light that shows the unit is receiving power and is properly connected to the battery. If the unit is compromised, the light turns off. The T.R.A.P. and T.R.A.P.-B don't have an indicator, so this light is your quick status check under the hood.
T.R.A.P. Plugs Into Your Auxiliary Outlet
The T.R.A.P. (Transient Reducing Auxiliary Plug) goes into your vehicle's 12-volt auxiliary receptacle, the cigarette lighter outlet. Faraday designed it to guard against fast transients from load changes such as your A/C cycling on and off, conducted transients from a charging port, radiated energy from a nearby lightning strike or an overhead EMP.
T.R.A.P.-B Connects at the Battery
The T.R.A.P.-B installs onto your vehicle's battery with two leads and ring terminals. It protects against load changes, lightning strikes, conducted transients and EMP. Both T.R.A.P. devices are hand assembled in the US.
High-Saturation Ferrites Add Current Damping
The two high-saturation, current-damping ferrites reduce high-frequency transients that can reach your vehicle through load changes, lightning or an EMP. Each one sits in a hinged, clip-on housing that closes around a cable. Faraday says the ferrites pair well with the T.R.A.P. devices.
Weatherproofed DEFCON Module

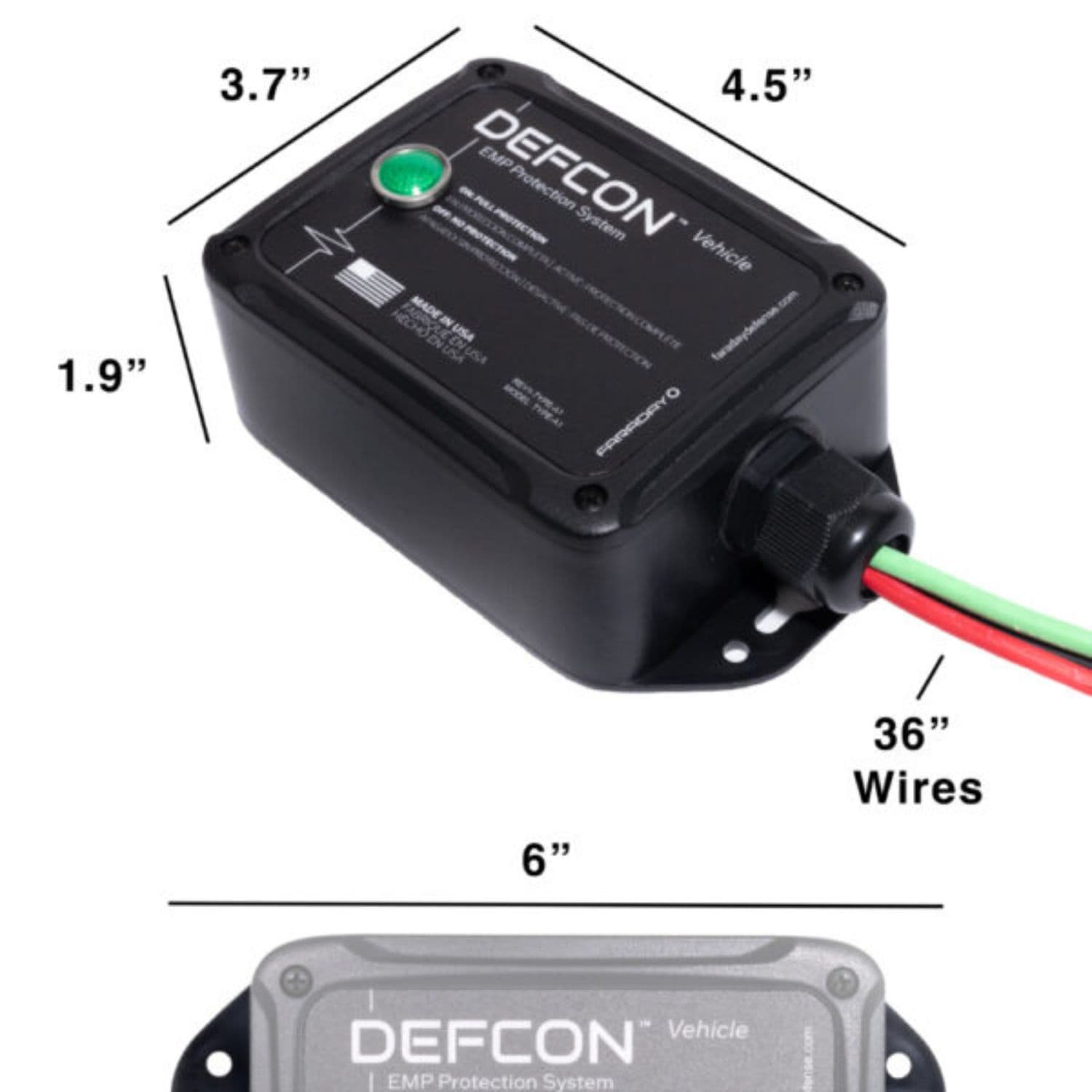

Faraday describes the DEFCON package as weatherproofed, and the module inside is sealed with a potting compound. It uses automotive-grade wire, ring terminals, marine-grade heat shrink tubing and 36 in cables, and it is made in the USA.
Real-World Applications
Daily drivers. Install the kit once, and the devices stay in place to protect your vehicle while it's running and while it's parked.
Lightning-prone areas. Faraday says the DEFCON Vehicle could protect against indirect lightning better than the EMP Vehicle Kit alone, while the T.R.A.P. devices respond very fast to spikes.
Vehicle malfunctions. The DEFCON Vehicle also protects from unwanted transients caused by vehicle malfunctions, on top of what the T.R.A.P. devices and ferrites handle.
Practical Comparison
The Kit Versus the DEFCON Vehicle Alone
The DEFCON Vehicle works as a standalone device, and Faraday built it to supplement the EMP Vehicle Kit. Buying them together adds the faster TVS diode protection of the T.R.A.P. and T.R.A.P.-B, plus two ferrites, to the DEFCON's heavy MOV capacity and power-on light.
The Kit Versus a Single Plug-In Protector
A single plug-in protector covers one connection point with one technology. This kit protects at the battery and at the auxiliary outlet with both TVS diodes and MOVs, adds two ferrites, and the DEFCON's light confirms that it's active.
Buyer Guidance
Checking Your Vehicle
The DEFCON Vehicle runs on 12-15 volts DC and attaches across a standard 12-volt automobile battery. The T.R.A.P. needs a 12-volt auxiliary receptacle. The DEFCON Vehicle is not for home use, and you should never apply AC voltage to it.
Vehicles With Two Batteries
For a diesel engine with two batteries, Faraday recommends one DEFCON Vehicle per battery so both electrical systems are protected. This kit includes one, so plan on a second DEFCON Vehicle for the other battery.
This May Be A Good Fit If
You want layered EMP and transient protection on one vehicle
Your vehicle has a 12-volt battery and an auxiliary outlet
You want a light that shows the protection is active
You'd rather buy the full set at once than piece by piece
Common Questions
Can the DEFCON Vehicle and T.R.A.P.-B Share the Battery?
Yes. Faraday says it is safe for both to be connected to the battery at the same time.
Will the DEFCON Light Drain My Battery?
The indicator light draws 9 milliamps. Faraday notes that a typical car battery holds around 55,000 milliamp-hours, so even if the vehicle sat unused for a full month, the light would draw only about 10% of the battery.
How Is the DEFCON Vehicle Installed?
It attaches across a standard 12-volt automobile battery with positive, negative and ground wires, connects to the chassis and mounts to the vehicle frame. Installation instructions come in the package, along with a link to a video of the installation process.
Does the Kit Protect When the Vehicle Is Off?
Yes. Faraday designed both the EMP Vehicle Kit and the DEFCON Vehicle to protect whether the vehicle is on or off.
What Warranty Does the DEFCON Vehicle Have?
Faraday Defense lists a 10-year limited lifetime warranty for the DEFCON Vehicle.

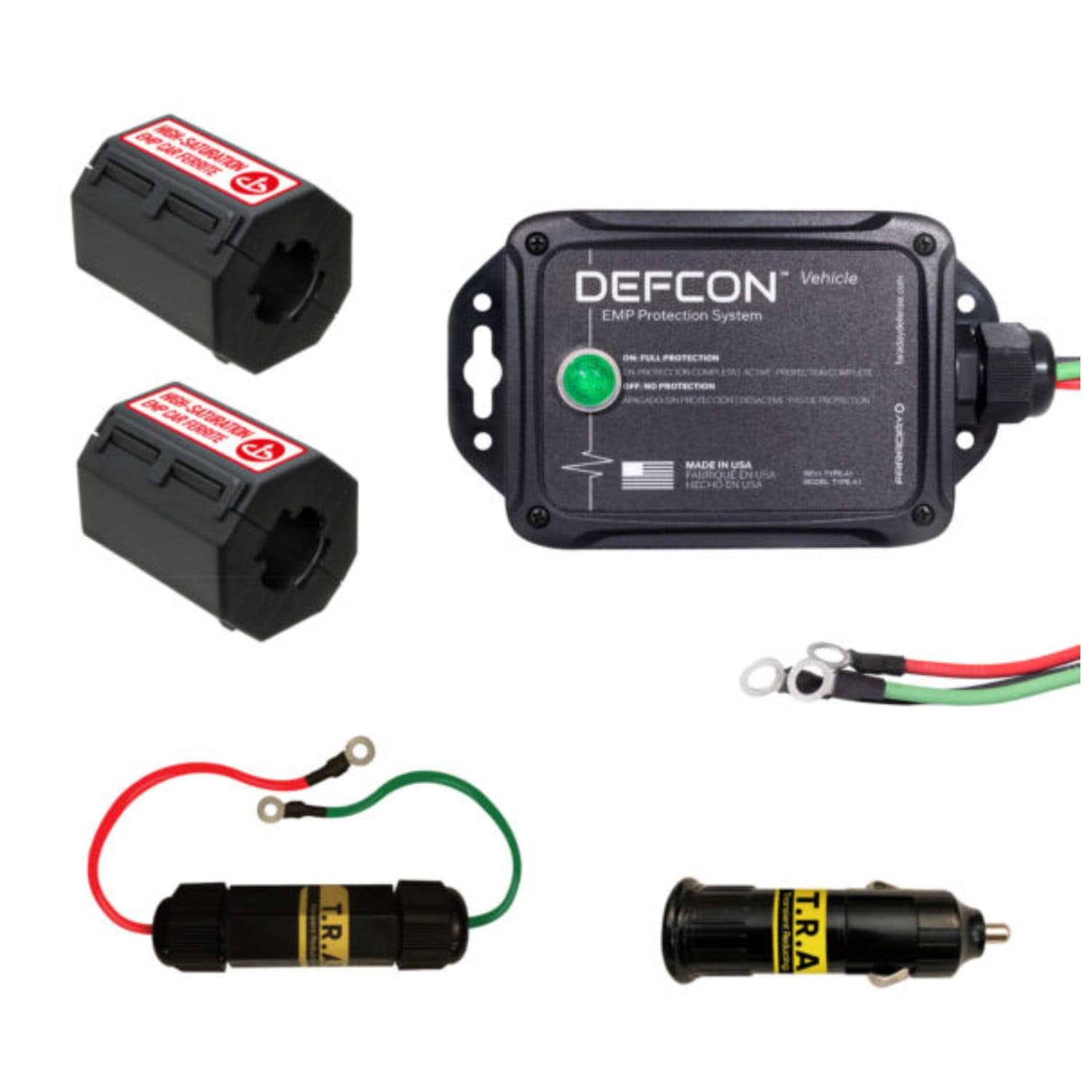

What's Included
1 x Faraday Defense DEFCON Vehicle
1 x T.R.A.P. EMP Vehicle Protection
1 x T.R.A.P.-B EMP Vehicle Protection
2 x High-Saturation Vehicle Ferrites
1 x DEFCON Vehicle Installation Instructions
Layered Protection From Battery to Outlet
The Faraday Defense DEFCON Vehicle + EMP Vehicle Protection Kit puts MOV surge protection rated at 270,000 amps, two fast TVS diode T.R.A.P. devices and two high-saturation ferrites on your 12-volt vehicle in one purchase. If you'd like help planning the install or deciding whether you need a second DEFCON Vehicle, the Outbound Power team is happy to help.
Plugs into 12-volt auxiliary receptacle (cigarette lighter)
Vehicles
Cars, trucks, motorcycles, boats, RVs and other vehicles
Power-On Indicator
No
Assembly
Hand assembled in the US
T.R.A.P.-B
Technology
TVS diode
Energy Absorption
5 J
Surge Current
95 A
Turn-on Speed
Less than 1 ps typical
Installation
Connects across battery terminals
Leads
Two leads with ring terminals
Power-On Indicator
No
Assembly
Hand assembled in the US
High-Saturation Vehicle Ferrites
Quantity
2
Type
High-saturation, current-damping
Function
Reduce high-frequency transients
Housing
Hinged clip-on housing
