The Firman W05583 Gasoline 5500W/6850W Inverter Portable Generator Delivers 120/240V Inverter Power With Remote Start and CO Alert
The Firman W05583 is a gasoline inverter generator with 6850 starting watts and 5500 running watts at 120/240V, and less than 3% total harmonic distortion. A 322cc Firman engine and a 5.3-gallon tank give you up to 10 hours of run time at 25% load, at a rated 67 dB at 25% load.
It is built for RV owners, campers, tailgaters and do-it-yourselfers who need more than a small inverter can supply, and for homeowners who want to restore power through a listed transfer switch. Remote, electric and recoil start, an LED display and CO Alert carbon monoxide shutdown are all standard.
Firman W05583 Gasoline 5500W/6850W Inverter Portable Generator Features

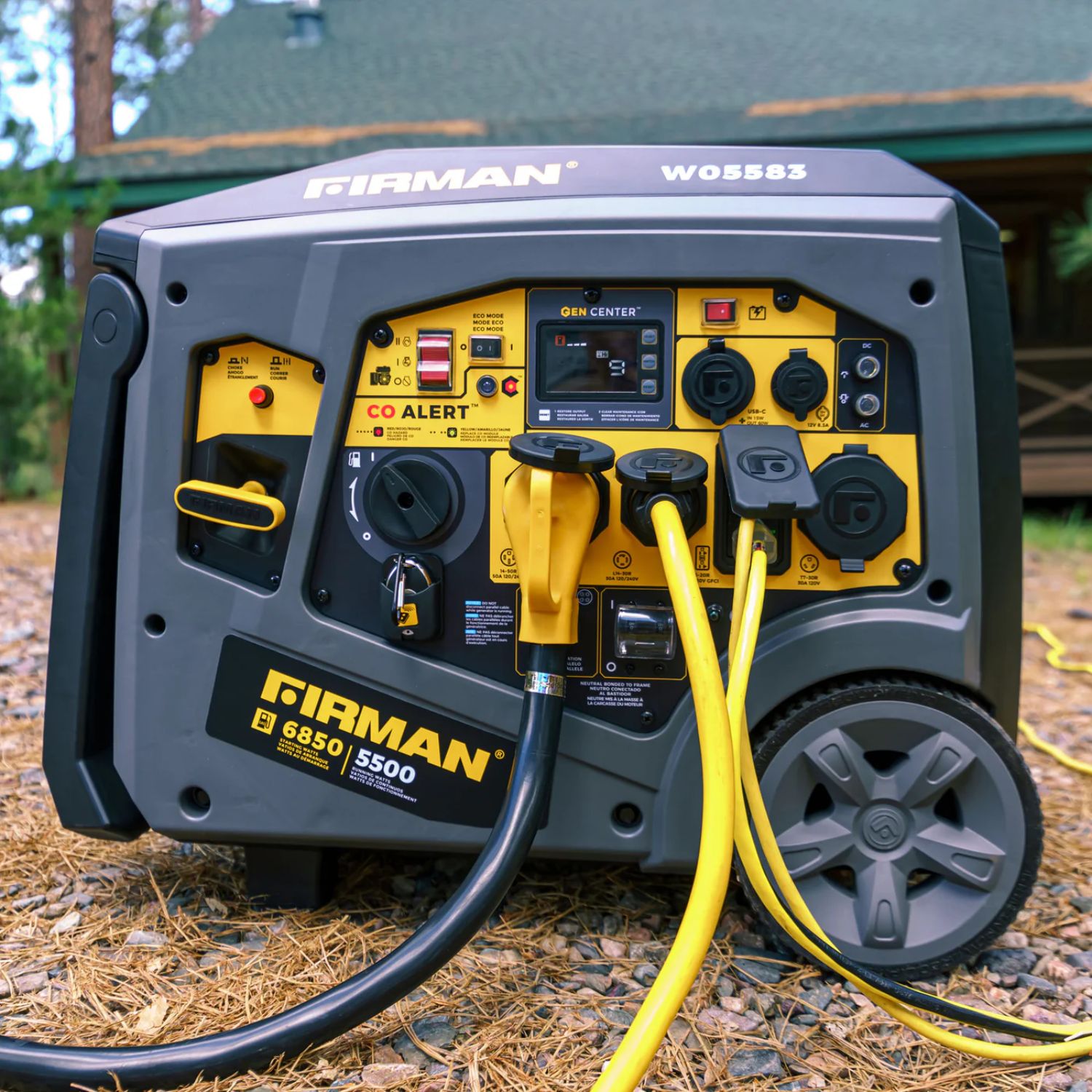

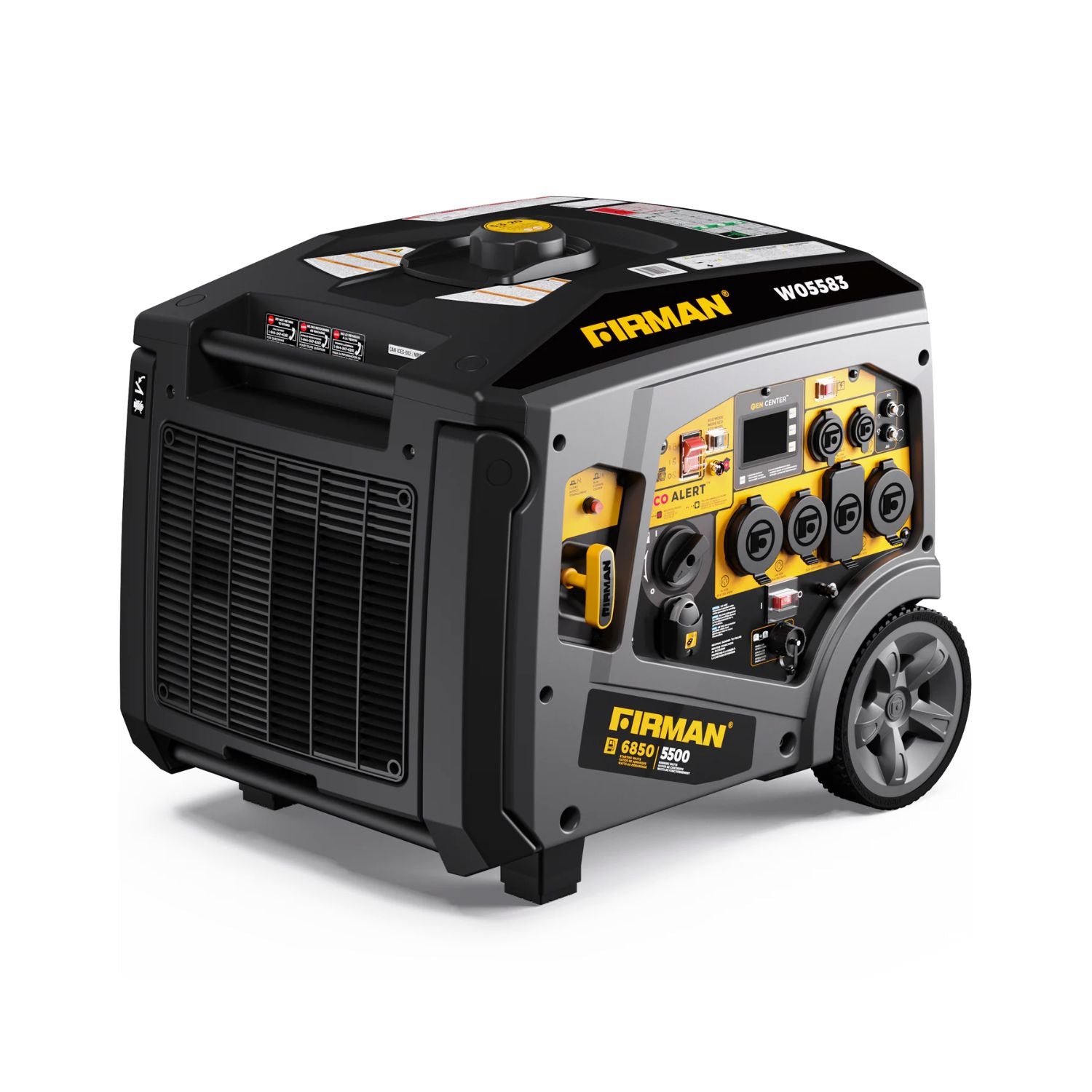

120/240V Power From Four AC Outlets
Two 120/240V outlets, an L14-30R 30A twist lock and a 14-50R 50A outlet, handle 240V tools and transfer switch connections. A TT-30R 30A RV outlet and a 5-20R 20A GFCI duplex cover 120V loads. The L14-30R and TT-30R each supply up to 22.9A, and the 14-50R supplies up to 45.8A in parallel operation.
Home Backup Through a Listed Transfer Switch
You can restore home power by cord-connecting the generator through either 120/240V outlet to a listed transfer switch installed by a licensed electrician. The connection must isolate generator power from utility power and meet all applicable electrical codes. The neutral is bonded to the generator frame.

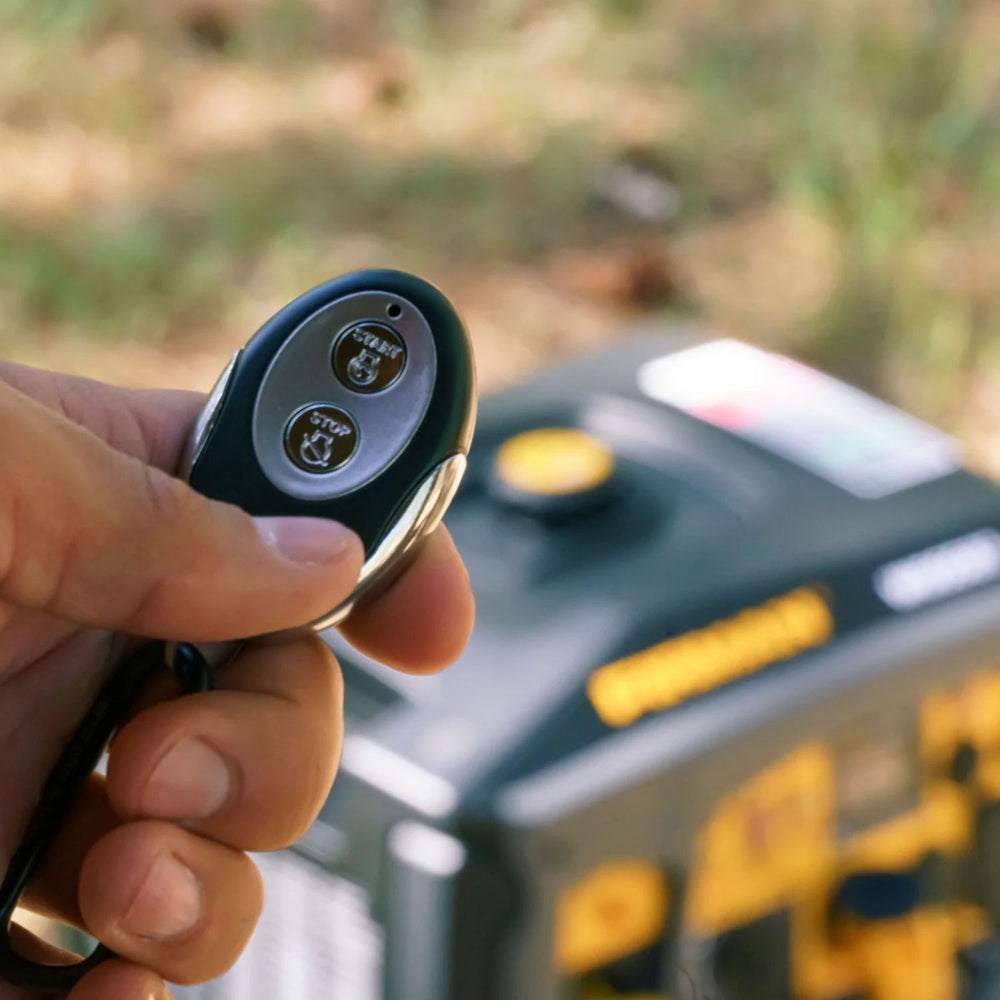

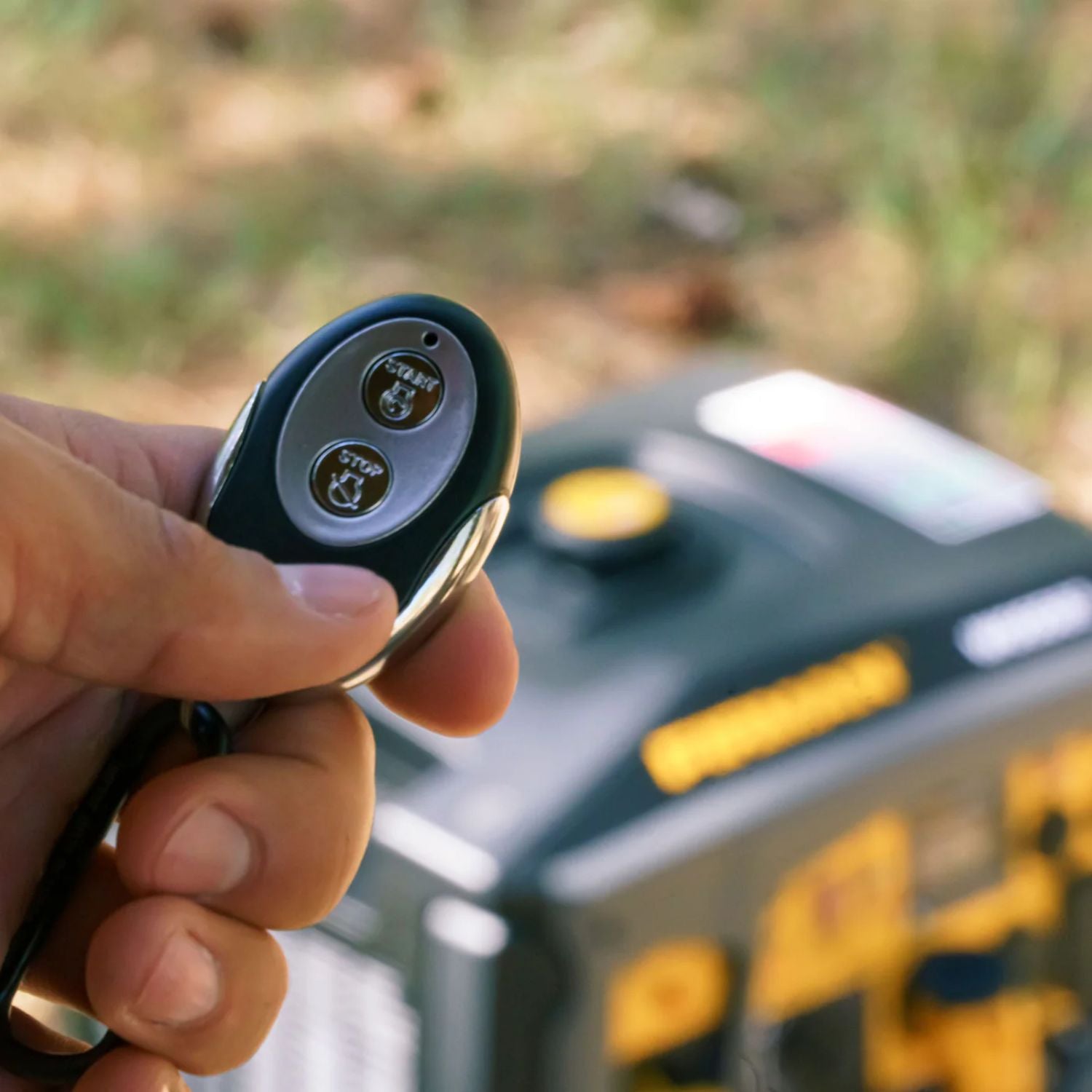

Remote, Electric and Recoil Start
Press START on the remote and the engine turns over for 3 to 5 seconds and starts. You can also use the electric start switch or the recoil starter. A 12V lithium battery runs the starter and charges whenever the engine runs, and you can also charge it through the USB-C port.
Intelligauge LED Display
The display shows voltage, Hertz, power, running hours, remaining run time and remaining fuel. It also flags maintenance reminders, low oil, faults, CO Alert events and ECO mode, so you can check the generator's status at a glance.
USB-C Output for Laptops and Phones
The USB-C port charges laptops, phones and other USB-C devices at 5V, 9V, 12V, 15V or 20V, up to 60W. A 12V DC outlet supplies up to 8.3A for charging 12V automotive-type batteries.
CO Alert and GFCI Protection
CO Alert shuts the engine down automatically if harmful carbon monoxide builds up around the generator or a CO Alert fault occurs. It does not replace carbon monoxide alarms, so keep battery-powered CO alarms in your home. The GFCI duplex tests itself periodically and shows a solid green light when it is working.
Parallel Capability Up to 10000 Watts
Any two Firman 240V inverter generators with parallel ports, including two W05583 units, can be paralleled for up to 10000 watts. A Firman parallel kit is required and is sold separately.
Real-World Applications
Home backup. With a listed transfer switch installed by a licensed electrician, run selected home circuits on 120/240V power during an outage, within 5500 running watts.
RV trips. Plug a 30A RV into the TT-30R outlet, or use the 14-50R outlet for a 50A connection, keeping the total load within the generator's rating.
Workshop and DIY projects. The L14-30R twist lock outlet runs 240V tools outdoors with a locking cord.
Camping and tailgating. Eco mode drops the engine to a low idle when loads are light, and the USB-C port keeps laptops and phones charged.
How It Compares to Common Alternatives
Versus a 120V-only inverter generator. Smaller 120V-only inverters can't run 240V tools or connect to a 120/240V transfer switch. The W05583 adds two 120/240V outlets and 5500 running watts.
Versus running two in parallel. One W05583 covers 5500 running watts. Pair it with another Firman 240V inverter that has parallel ports and a Firman parallel kit for up to 10000 watts.
Versus a conventional open frame generator. An open frame generator of similar size is a common choice for raw wattage. The W05583 adds inverter output under 3% THD, eco mode, an LED display with remaining run time and a 67 dB rating at 25% load.
Is This Inverter Generator the Right Fit
California. It is not certified to ship to California, so we can't sell or ship it to a California address.

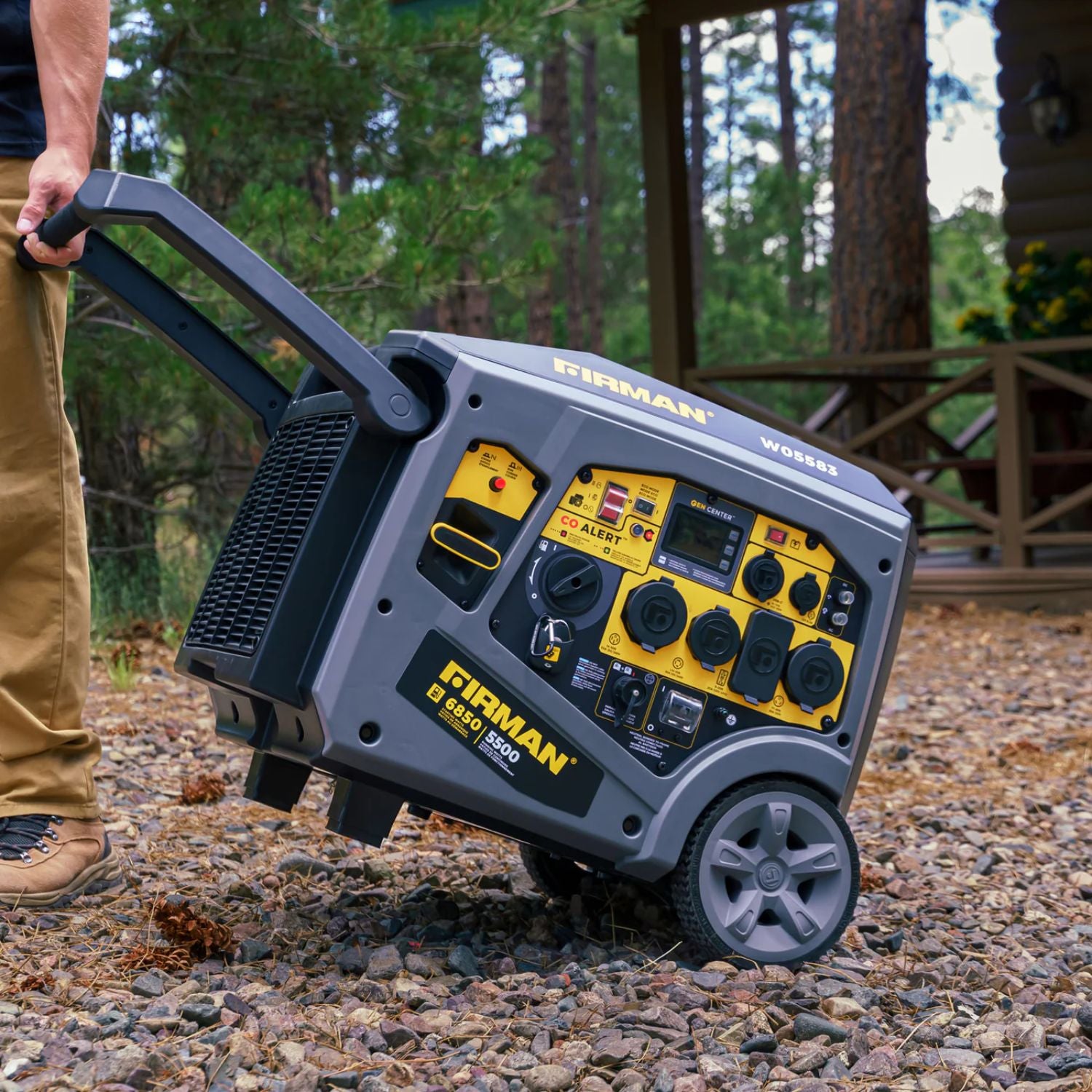

Weight. At 129.2 lbs, use the wheels and folding handle to move it, and plan on help to lift it.
Gasoline only. Use clean, fresh unleaded gasoline of at least 87 octane with no more than 10% ethanol.
Bonded neutral. The neutral is bonded to the frame. Share this with the licensed electrician who installs your transfer switch.
Outdoor use only. Run it outdoors, downwind and at least 20 ft from occupied spaces, with the exhaust pointed away from windows and doors. It is not intended for use at a construction site.
This may be a good fit if
You need 240V outlets from an inverter generator
You plan to back up your home through a transfer switch
You want remote start and an LED status display
You may add a second 240V Firman inverter in parallel
Common Questions
Can the W05583 Power My Home?
It can restore power to your home through a listed transfer switch installed by a licensed electrician, cord-connected through either 120/240V outlet. Choose the circuits you run so the total stays within 5500 running watts.
How Long Does It Run on a Tank of Gas?
Up to 10 hours at 25% load on the 5.3-gallon tank. The Intelligauge display shows remaining run time while it runs.
What Happens If I Overload It?
The "P" light blinks above about 5710W. Above about 5950W it cuts power to the outlets in 10 seconds, and above about 6050W it cuts power in 2 seconds. Reduce the load, then restart.
Can I Charge the Starting Battery Without Running the Engine?
Yes. The battery charges through the USB-C port at up to 15W (5V, 3A). Running the generator about once every two weeks also keeps it charged, since the battery charges whenever the engine runs.
What Warranty Does It Have?
Firman's 3-year limited warranty covers parts and labor for 1 year and parts and technical support for 3 years. Commercial and industrial use is covered for 90 days parts and labor and 180 days parts.
What's Included
1 x Firman W05583 Inverter Generator
1 x Remote Control
1 x Engine Oil Bottle
1 x Oil Funnel
1 x Quick Oil Drain
1 x Tool Kit
1 x 12V Battery Cable
240V Inverter Power on Your Schedule
The Firman W05583 Gasoline 5500W/6850W Inverter Portable Generator gives you 120/240V inverter power, remote start, an LED display and CO Alert in one portable package. If you are planning a transfer switch setup or a parallel pair, the Outbound Power team is happy to help.
Firman W05583 Specifications
Model
Firman W05583
Output
Starting Watts
6850W
Running Watts
5500W
Rated AC Voltage
120/240V
Rated Frequency
60Hz
Phase
Single
Total Harmonic Distortion (THD)
<3%
Power Factor
1
Voltage Regulator
Digital
Alternator Type
Magneto Inductor
Parallel Capable
Yes, with another FIRMAN 240V inverter with parallel ports and a FIRMAN parallel kit (not included)
Parallel Output
Up to 10000 watts with two W05583 units
Engine and Fuel
Engine
FIRMAN 322cc single cylinder, 4-stroke OHV, air cooled
Cylinder Sleeve
Cast iron
Fuel
Unleaded automotive gasoline
Fuel Tank Capacity
5.3 U.S. gallons (20L)
Run Time
Up to 10 hours at 25% load
Lubricating Oil Capacity
35.5 oz (1.05L)
Start Types
Recoil, electric, remote
Battery
12V lithium 1.6AH
Ignition System
Breakless ignition type, flywheel magneto
Carburetor Type
Float
Air Cleaner
Polyurethane type
Eco Mode
Yes (Economy Control switch)
Outlets and Controls
5-20R 120V 20A Duplex GFCI
1
TT-30R 120V 30A RV
1 (22.9A maximum)
L14-30R 120/240V 30A Twist Lock
1 (22.9A maximum)
14-50R 120/240V 50A
1 (45.8A maximum in parallel operation)
USB-C Output
1 (5V, 9V, 12V, 15V, 20V; 60W maximum)
USB-C Battery Charging Input
5V 3A, 15W maximum
12V DC Outlet 8.3A (12V battery charging only)
1
Parallel Operation Outlets
Yes
Display
Intelligauge LED screen (voltage, Hertz, power, running hours, remaining run time, remaining fuel, maintenance, low oil, fault and CO Alert alerts)
Remote Holder
Yes
Circuit Protection
20A and 30A AC circuit breakers, DC circuit breaker
Ground Terminal
Yes
Size and Weight
Weight
129.2 lbs
Noise Level
67 dB at 25% load
Wheels
Never Flat wheels
Handles
Folding handle and fixed carrying handle
Safety and Certifications
CO Alert
Yes, automatic carbon monoxide shutdown
Low Oil Shutdown
Yes
GFCI Protection
5-20R duplex
AC Grounding System
Neutral bonded to frame
Certifications
EPA, cETL, PGMA
Standards
CSA C22.2 No. 100-14; ANSI/PGMA G300-2023
California
Not certified to ship to California
Warranty
Limited Warranty
3 years
Parts and Labor
1 year
Parts and Technical Support
3 years
Commercial and Industrial Use
90 days parts and labor; 180 days parts
Emissions Control System
2 years
