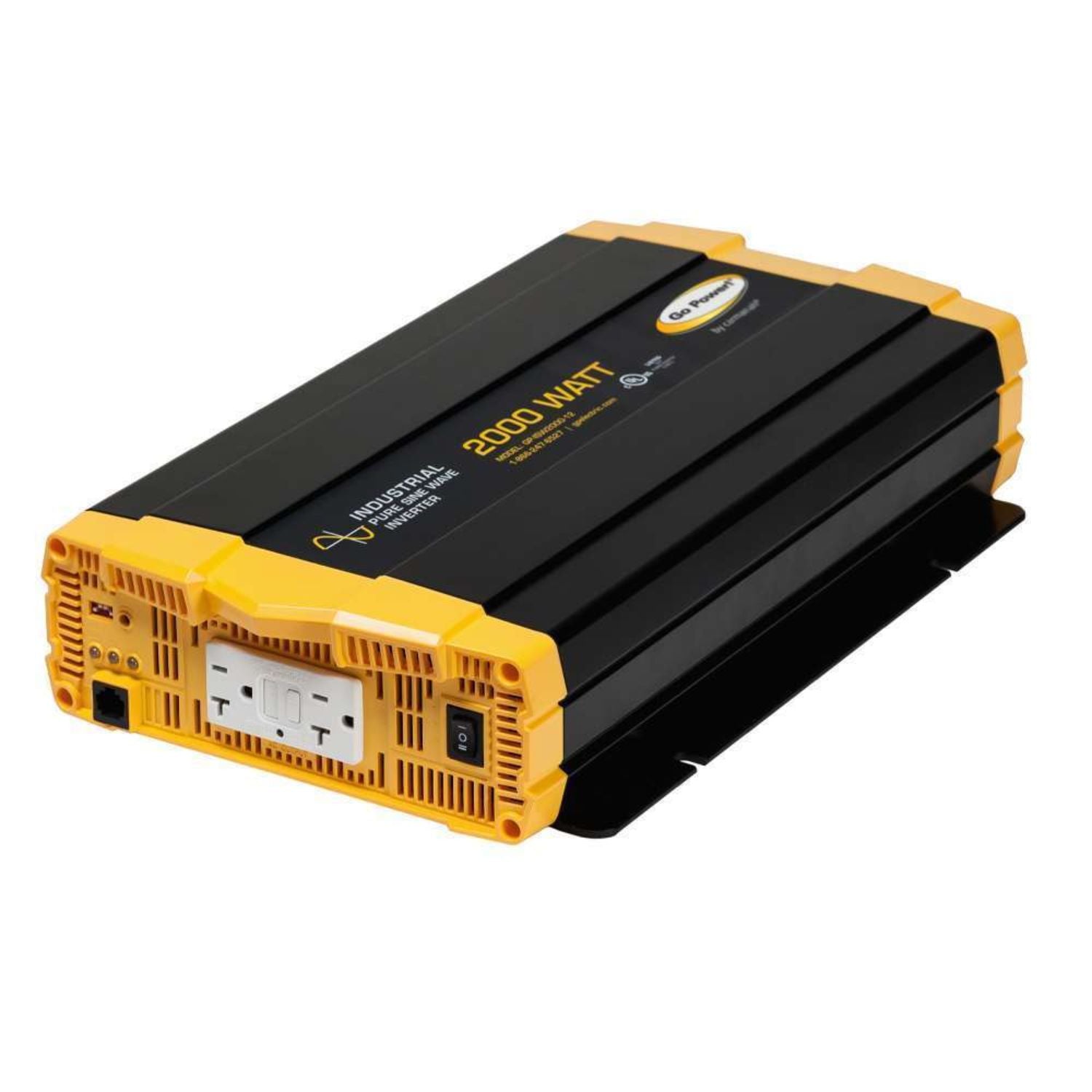

The Go Power! 2000 Watt Industrial Pure Sine Wave Inverter Runs a Full-Size Microwave and More at the Same Time From Your 12V Batteries
The Go Power! 2000 Watt Industrial Pure Sine Wave Inverter (model GP-ISW2000-12) converts 12 volt DC battery power into pure sine wave AC. It delivers 2,000 watts continuously and a 3,500 watt surge, with a dual GFCI outlet on the front panel.
Go Power builds it for RVs, boats, work trucks and fleet vehicles that need to run a full-size microwave plus other loads at the same time. It's certified to UL 458 and carries a 2-year Go Power warranty.
Go Power! 2000 Watt Industrial Pure Sine Wave Inverter Features
Pure Sine Power for Appliances and Electronics

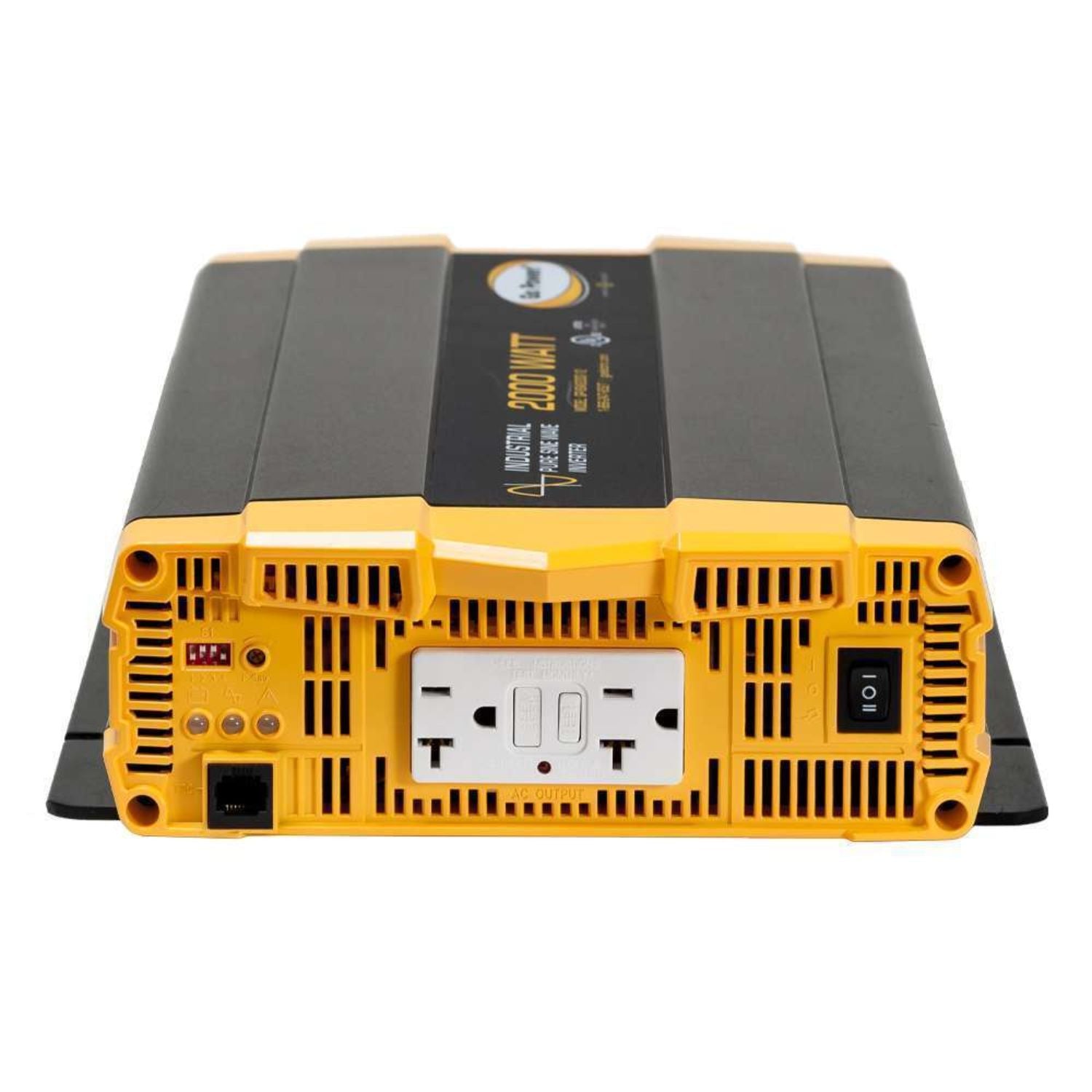

Harmonic distortion stays under 5% at normal load, so microwaves, chargers and electronics get a smooth waveform like household power. Front-panel DIP switches select 100, 110, 115 or 120 VAC and 50 or 60 Hz. Maximum efficiency is 92%.
2,000 Watts Continuous With a 3,500 Watt Surge
The inverter carries 2,000 watts continuously, up to 115% (2,300 VA) for one minute and a 3,500 watt surge for one second. That margin helps compressors and motors start while other loads keep running. A short circuit on the output shuts it down within one second.
Powersave Mode Trims Idle Draw
Idle draw is 1.8 A or less with nothing connected. Turn on Powersave with DIP switch 4 and it falls below 0.1 A until the inverter senses a load. A dial on the front panel sets the wake-up threshold. Expect about a one-second delay before a load starts, which suits TVs and stereos, but the manual says it may not suit bread makers, power tools or blenders.
Status LEDs and Fault Relay Contacts

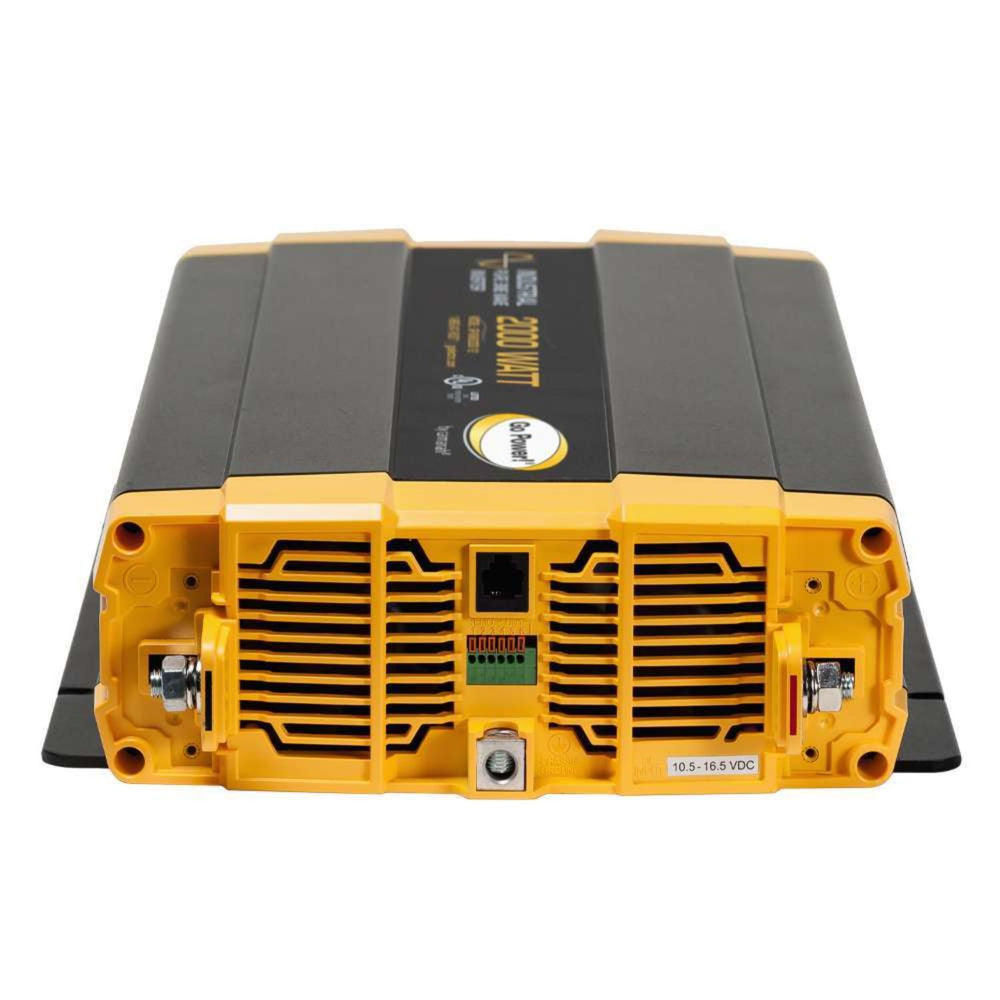

Three LEDs show input voltage, output load and fault status. A 6-port green terminal on the DC end includes dry contacts that switch when a fault occurs, so you can wire in an audible alarm or an indicator light.
Protection on Both Sides
Input protection covers over-voltage, under-voltage and reverse polarity with an internal fuse. Output protection covers short circuits and overloads, and the heat sink is monitored for over- and under-temperature. The low battery alarm and shutdown are set at 10.5 V with restart at 12.5 V, and over-voltage shutdown is 16.5 V. A fan controlled by temperature and load manages heat.
Optional Wired Remote
Move the power switch to REMOTE and plug Go Power's optional GP-SWR-A or GP-ISW-R remote into the remote port. The GP-SWR-A has an on/off switch, an LED status light and 25 feet of cable, so the inverter can stay close to the batteries.
Real-World Applications
RVs. Run a full-size microwave from the house batteries while other loads stay on.
Work trucks and fleet vehicles. Run chargers, electronics and other AC loads on the job, within 2,000 watts total.
Boats. Run galley appliances and electronics together, with the inverter in a dry compartment.
Practical Comparison
GP-ISW2000-12 Versus a Modified Sine Inverter
Go Power says modified sine power is fine for tools and lights but can buzz or damage sensitive electronics. The GP-ISW2000-12 produces pure sine power, so a microwave, TV, laptop and chargers can share it.
GP-ISW2000-12 Versus the GP-ISW3000-12
The GP-ISW3000-12 steps up to 3,000 watts continuous and a 6,000 watt surge, but it uses a hardwire AC output instead of outlets. It's larger at 17.40 x 10.04 x 6.22 inches and 18.08 lb. The GP-ISW2000-12 measures 17.45 x 9.76 x 3.27 inches, weighs 11.55 lb and gives you plug-in GFCI outlets.
GP-ISW2000-12 Versus the GP-ISW2000-24
Both share the 2,000 watt and 3,500 watt ratings in the same case. The 24 volt model runs on 21 to 33 VDC, reaches 93% maximum efficiency and needs #4 AWG cable, where this 12 volt model needs #2/0 AWG. The voltage isn't switchable, so match the model to your bank.
Buyer Guidance
Plan for High DC Current
Go Power estimates this inverter draws about 185 A from a 12 V bank at full load. The manual calls for #2/0 AWG copper cable and a 300 A inline fuse or circuit breaker, with a combined cable length of no more than 10 feet (3 m) and the fuse ideally within 18 inches of the battery's positive terminal. DC overcurrent protection isn't included, and a battery disconnect switch is required unless a circuit breaker serves that role. Go Power pairs this model with the GP-DC-KIT4 install kit, which includes a Class T fuse, fuse block and 10 foot battery cables.
Mounting and Ventilation
Install it indoors or in a dry compartment with air between -4 °F and 104 °F (-20 °C and 40 °C) and at least 4 inches of clearance around the vents. Keep it near the batteries but not in their compartment or directly above them, and mount it with the case horizontal, never vertical. Go Power recommends installation by an RV or marine technician or a professional electrician, and the manual states the inverter isn't intended for life support or other medical equipment.
This May Be A Good Fit If
- You have a 12 volt battery bank sized for about 185 A at full load
- You want to run a full-size microwave plus other loads
- Your loads stay under 2,000 watts running and 3,500 watts at start-up
- You prefer plug-in GFCI outlets to a hardwired output
Common Questions
What Can a 2000 Watt Inverter Run?
Anything whose running watts stay under 2,000 and whose start-up surge stays under 3,500 watts. Go Power's example is a full-size microwave plus other loads at the same time.
Which Install Kit Do I Need?
Go Power names the GP-DC-KIT4 for this model. It includes the Class T fuse, fuse block and 10 foot battery cables.
Is There a 24 Volt Version?
Yes, the GP-ISW2000-24. Each model runs on one battery voltage only, so check your bank before ordering.
What Warranty Does It Carry?
Go Power warrants the GP-ISW2000-12 for two years against defects in materials and workmanship. The manual notes that opening or altering the unit voids the warranty.
What's Included
- 1 x Go Power! GP-ISW2000-12 Industrial Pure Sine Wave Inverter
- 2 x Ring Lugs
- 4 x Phillips Screws
- 2 x DC Terminal Covers
Microwave Power With Room to Spare
The Go Power! 2000 Watt Industrial Pure Sine Wave Inverter gives your 12 volt system 2,000 watts of pure sine power, a 3,500 watt surge and a dual GFCI outlet, with UL 458 certification. If you'd like help sizing the cables, install kit or battery bank, the Outbound Power team is happy to help.
Go Power! 2000 Watt Industrial Pure Sine Wave Inverter Specifications
|
| Model |
GP-ISW2000-12 |
| Output |
| Continuous Output Power |
2000 W (VA) |
| Maximum Output Power (1 min) |
2000 to 2300 VA (100% to 115%) |
| Surge Power (1 sec) |
3500 W (VA) |
| Output Waveform |
Pure sine wave (THD < 5% at normal load) |
| Output Voltage |
100 / 110 / 115 / 120 VAC (DIP switch selectable) |
| Output Frequency |
50 / 60 Hz (DIP switch selectable) |
| Maximum Efficiency |
92% |
| DC Input |
| Nominal Input Voltage |
12 VDC |
| Input Voltage Range |
10.5 to 16.5 VDC |
| No-Load Current Draw |
1.8 A or less |
| Powersave Mode Draw |
Under 0.1 A |
| Low Battery Alarm |
10.5 V (± 0.3 V) |
| Low Battery Shutdown |
10.5 V (± 0.3 V) |
| Low Battery Restart |
12.5 V (± 0.3 V) |
| Over-Voltage Shutdown |
16.5 V (± 0.3 V) |
| Over-Voltage Restart |
14.5 V (± 0.3 V) |
| Battery Current at Full Load |
About 185 A (Go Power estimate) |
| Recommended DC Cable |
#2/0 AWG copper, 10 ft (3 m) max combined length |
| Recommended DC Fuse or Breaker |
300 A inline (Class T fuse recommended) |
| Fuse Location |
Within 18 in (45 cm) of the battery |
| Outlets and Connections |
| AC Output |
Dual GFCI outlet |
| Power Switch |
ON / OFF / REMOTE |
| Remote Port |
Yes (remote sold separately) |
| Remote Control Terminal |
6-port green terminal (inverter on/off) |
| Dry Contact Terminal |
Relay fault output |
| Indicators |
3 LEDs (input voltage, output load, fault) |
| Chassis Ground |
Yes |
| Protection |
| Input Protection |
Over/under voltage, reverse polarity (internal fuse) |
| Output Protection |
Short circuit (1 sec shutdown), overload |
| Temperature Protection |
Over/under temperature (heat sink 80 °C / -20 °C) |
| Over-Temperature Restart |
60 °C heat sink |
| Cooling |
Temperature and load-controlled fan |
| Physical |
| Dimensions (L x W x H) |
17.45 x 9.76 x 3.27 in (443 x 248 x 83 mm) |
| Weight |
11.55 lb (5.24 kg) |
| Operating Temperature |
-4 °F to 104 °F (-20 °C to 40 °C) |
| Storage Temperature |
-22 °F to 158 °F (-30 °C to 70 °C) |
| Storage Humidity |
10% to 95% RH |
| Installation |
Indoor or dry compartment |
| Mounting Orientation |
Horizontal only (do not mount vertically) |
| Ventilation Clearance |
4 in minimum around vents |
| Certifications and Warranty |
| Safety |
UL 458 (6th Edition) |
| EMC |
FCC Part 15 |
| Warranty |
2 years |
Go Power! 2000 Watt Industrial Pure Sine Wave Inverter Manuals and Documents
Go Power! GP-ISW2000-12 Manual
Go Power! GP-ISW2000-12 Spec Sheet
