The Go Power! 800 Watt Solar All-Electric 4 Kit Charges a Large 12V RV Battery Bank With Four 200W Panels and Two 30A MPPT Controllers

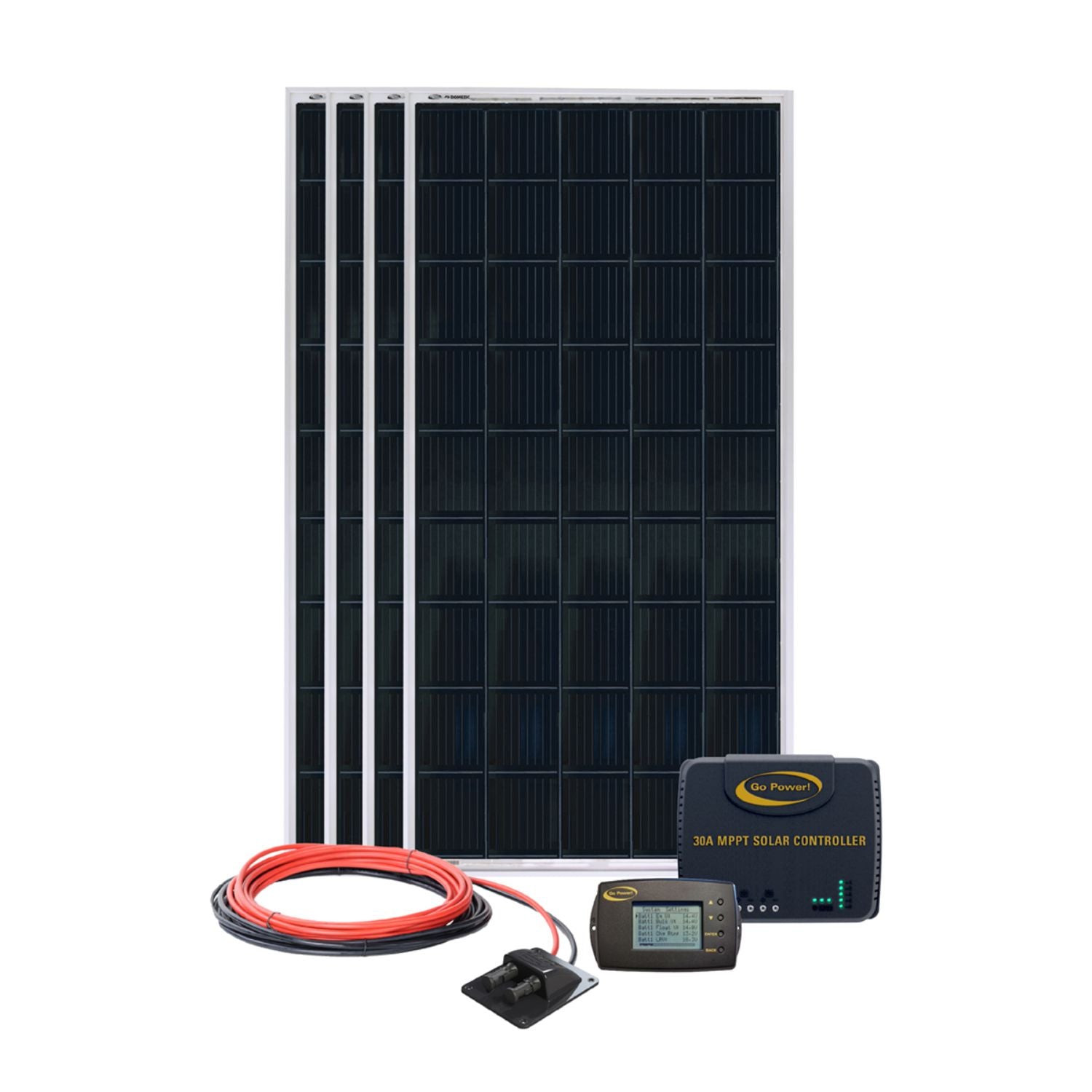

The Go Power! Solar All-Electric 4 Kit is a large RV solar charging kit for a 12-volt system. It includes four GP-PV-200M 200W solar panels, two GP-RVC-30-MPPT solar charge controllers set up for parallel operation, a GP-RVC-R controller remote, two cable entry plates, and the cables and mounting hardware to install them.
Go Power designed this large DC power system for full-time living, including running a residential-size electric refrigerator along with lights, fans or water pumps. It is a solar-only kit. To run AC devices such as a TV or coffee maker off-grid, you need an inverter, sold separately.
Go Power! 800 Watt Solar All-Electric 4 Kit Features
Four 200W Panels for 800W of Solar
Each GP-PV-200M panel is rated 200W, with a maximum power voltage of 20.8V, maximum power current of 9.6A, open circuit voltage of 24.3V and short circuit current of 10.09A. Each panel has 3.3 ft of cable from its junction box and polarized SC connectors, with the polarity symbol embossed near the end of each connector.
Two Strings, Two MPPT Controllers
The panels connect as two strings of two panels in series. Each string runs through its own cable entry plate and 25 ft of 10 AWG solar cable to its own GP-RVC-30-MPPT controller. The included GP-RVC-PC cable links the controllers' RS-485 ports so they run in parallel.
MPPT Controllers Rated to 100V and 30A
Each GP-RVC-30-MPPT can charge at up to 30A. Go Power lists a maximum solar array current of 30A, reduced above 50°C, a maximum solar voltage of 100 Voc and a maximum solar array power of 600/1200W. Keep each string's open circuit voltage at or below 100V and its maximum power current at or below 30A.
A Remote at Your Instrument Panel
The GP-RVC-R solar charge controller remote comes with 25 ft of cable to reach the controllers. Go Power suggests mounting it where you keep other instruments and controls, often the RV's instrumentation panel.
Fused Battery Cables and Roof Hardware
Each controller connects to the battery bank with 9 ft of fused 10 AWG battery cable, with a 30A fuse on the positive side. The kit also includes sixteen mounting feet with bolts, lock nuts and washers, screws for the feet, cable entry plates and cable clamps, tie wraps, UV-resistant cable clamps, and 6 ft and 10 ft solar extension cables.
Real-World Applications
Full-time RV living. Go Power built this kit for full-time living, including a residential-size electric refrigerator plus lights, fans or water pumps, as long as you manage your loads.
A large AGM bank. Go Power recommends its GP-AGM-100-12V or GP-AGM-224-6V batteries with this kit, and shows typical banks of six 12V 100Ah batteries or six 6V 224Ah batteries.
Charging for an existing inverter. If your RV already has an inverter, the kit keeps the batteries that feed it charged from the sun.
Practical Comparison
Solar All-Electric 4 Kit Versus Solar All-Electric 6 Kit
Both kits use the same GP-PV-200M panels and GP-RVC-30-MPPT controllers. The Solar All-Electric 4 Kit has four 200W panels, two GP-RVC-30-MPPT controllers and two cable entry plates. The Solar All-Electric 6 Kit has six panels, three controllers and three cable entry plates. Go Power recommends a battery bank of at least 600Ah for these kits.
Solar-Only Kit Versus a Solar and Inverter System
This kit charges your batteries and supports DC loads such as lights, fans and water pumps. A solar and inverter system adds AC power. With this kit, you add the inverter you choose.
Buyer Guidance
Plan a Battery Bank of 600Ah or More
Batteries are not included. Go Power recommends a battery bank of at least 600Ah, built from GP-AGM-100-12V or GP-AGM-224-6V batteries. Connect the batteries together before connecting the controllers. As with any off-grid system, you'll need to manage your loads so power stays available for essentials like the refrigerator.
Plan the Install
Go Power recommends installation by an RV technician or professional electrician. Mount the panels at least 3 ft back from the front of the RV, on a surface at least 1/2 inch thick, where air conditioners and other fixed obstacles won't shade them. Place each controller no more than 25 ft from its cable entry plate and within 9 ft of the battery, mounted vertically indoors in a dry, weather-tight spot such as the battery compartment. Each controller weighs about 3.14 lb. Wire the panels only as two series strings, since incorrect wiring can damage the system or start a fire.
This May Be A Good Fit If
- You live in your RV full time
- You run a residential electric refrigerator
- You plan a 12V battery bank of 600Ah or more
- You already have an inverter or plan to add one
Common Questions
Does the Kit Include an Inverter or Batteries?
No. It is a solar-only kit. The inverter and the battery bank are sold separately.
How Are the Four Panels Wired?
As two strings of two panels in series. Each string goes through its own cable entry plate to its own controller.
Where Should the Controllers Go?
Indoors in a dry location such as the battery compartment, within 9 ft of the battery and no more than 25 ft from the cable entry plates. Secure them well so they can't come loose while the RV is moving.
Which Batteries Does Go Power Recommend?
The GP-AGM-100-12V or GP-AGM-224-6V batteries, in a bank of at least 600Ah.
What's Included
- 4 x GP-PV-200M 200W Solar Panels
- 2 x GP-RVC-30-MPPT Solar Charge Controllers
- 1 x GP-RVC-R Solar Charge Controller Remote
- 1 x GP-RVC-PC Extension Branch Cable
- 2 x Cable Entry Plates
- 2 x Battery Cables
- 1 x SC-OUTPUT-6 Solar Extension Cable, 6 Ft
- 1 x SC-OUTPUT-10 Solar Extension Cable, 10 Ft
- 16 x Solar Panel Mounting Feet with 1/4 In Bolts, Lock Nuts and Washers
- 40 x #10 x 1 In Screws
- 24 x #8 x 5/8 In Screws
- 16 x Tie Wraps
- 12 x 1/4 In UV-Resistant Cable Clamps
- 12 x 3/8 In Cable Clamps
Solar Built for Full-Time RV Living
The Go Power! 800 Watt Solar All-Electric 4 Kit pairs four 200W panels with two parallel 30A MPPT controllers and a remote to keep a large 12V battery bank charged. If you'd like help sizing your battery bank or choosing an inverter, the Outbound Power team is happy to help.
Go Power! 800 Watt Solar All-Electric 4 Kit Specifications
|
| Model |
SOLAR-AE-4 |
| Kit Contents |
| Solar Panels |
4 x GP-PV-200M, 200 W each |
| Charge Controllers |
2 x GP-RVC-30-MPPT |
| Controller Remote |
GP-RVC-R, 25 ft cable |
| Parallel Cable |
1 x GP-RVC-PC extension branch cable |
| Cable Entry Plates |
2 |
| Battery Cables |
2 |
| Solar Extension Cables |
1 x 6 ft (SC-OUTPUT-6), 1 x 10 ft (SC-OUTPUT-10), SC connectors |
| Mounting |
16 mounting feet, 16 x 1/4 in bolts, 16 lock nuts, 32 washers, 40 #10 x 1 in screws (feet and CEP) |
| Cable Management |
24 #8 x 5/8 in screws, 16 tie wraps, 12 x 1/4 in UV-resistant cable clamps, 12 x 3/8 in cable clamps |
| Solar Panel |
| Total Solar |
800 W |
| Rated Power (Pm, each) |
200 W |
| Max Power Voltage (Vmp) |
20.8 V |
| Max Power Current (Imp) |
9.6 A |
| Open Circuit Voltage (Voc) |
24.3 V |
| Short Circuit Current (Isc) |
10.09 A |
| Panel Lead Length |
3.3 ft from junction box |
| Connectors |
SC, polarized |
| Array Wiring |
2 strings of 2 panels in series, one string per controller |
| Charge Controller |
| Controller Model |
GP-RVC-30-MPPT |
| Type |
MPPT |
| Max Charge Current |
30 A each |
| Max Solar Array Current |
30 A (reduced above 50°C) |
| Max Solar Array Power |
600/1200 W |
| Max Solar Voltage |
100 Voc |
| Max String Current (Imp) |
30 A per controller |
| Parallel Operation |
RS-485 ports linked with GP-RVC-PC cable |
| Weight |
About 3.14 lb each |
| Mounting |
Vertical, indoors, dry weather-tight location |
| Placement |
Within 9 ft of battery, no more than 25 ft from cable entry plate |
| Wiring |
| Solar Cables, CEP to Controller |
25 ft, 10 AWG |
| Battery Cables |
9 ft, fused, 10 AWG, 30A fuse |
| Solar Extension Cables |
10 AWG |
| Battery |
| System Voltage |
12 V |
| Battery Bank |
Not included, at least 600 Ah recommended |
| Recommended Batteries |
GP-AGM-100-12V or GP-AGM-224-6V |
| Typical Banks |
6 x 12V 100Ah or 6 x 6V 224Ah |
| AC Power |
Inverter sold separately |
