The Go Power! Retreat 100 Watt Solar Kit Keeps Your 12V RV Battery Charged From One Compact Rooftop Panel and a 30A Bluetooth Controller

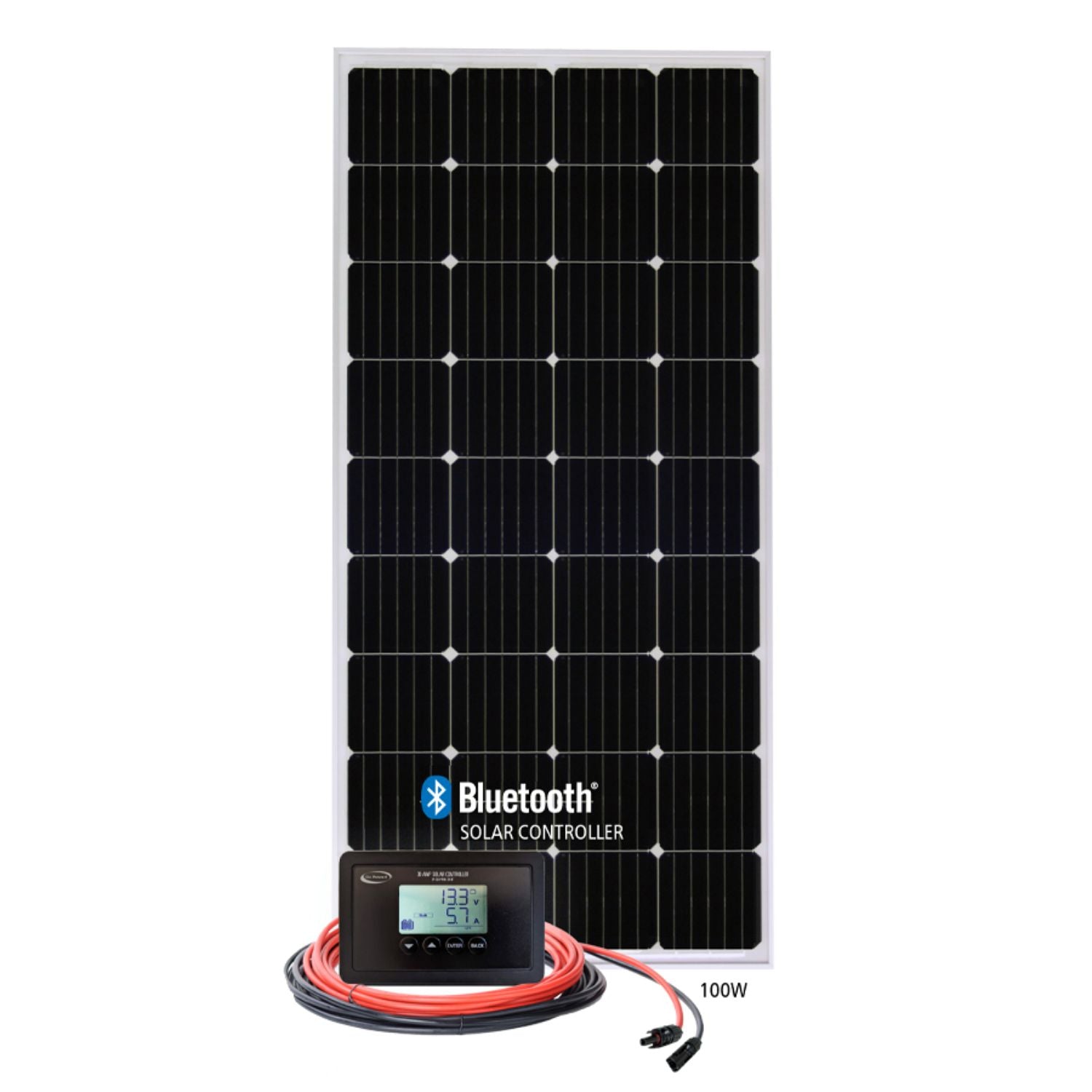

The Go Power! Retreat 100 Watt Solar Kit is a complete solar charging kit for a 12 volt RV battery system. It pairs a 100-watt GP-PV-100M solar panel with a 30-amp digital PWM Bluetooth solar controller (GP-SB-PWM-30), 25 feet each of red and black #10 solar output cable, and GP-MH-4-KB mounting hardware. Go Power rates the kit at 100 watts and 5.43 amps of charge power.
Go Power suggests the Retreat for rooftops where space is limited. The panel turns sunlight into DC electricity, your battery stores it, and the controller keeps the panel from overcharging the battery. Go Power's kit manual covers installation on RVs, campers, trailers, fifth wheels and motor homes.
Go Power! Retreat 100 Watt Solar Kit Features
One 100W Panel Sized for Smaller Roofs

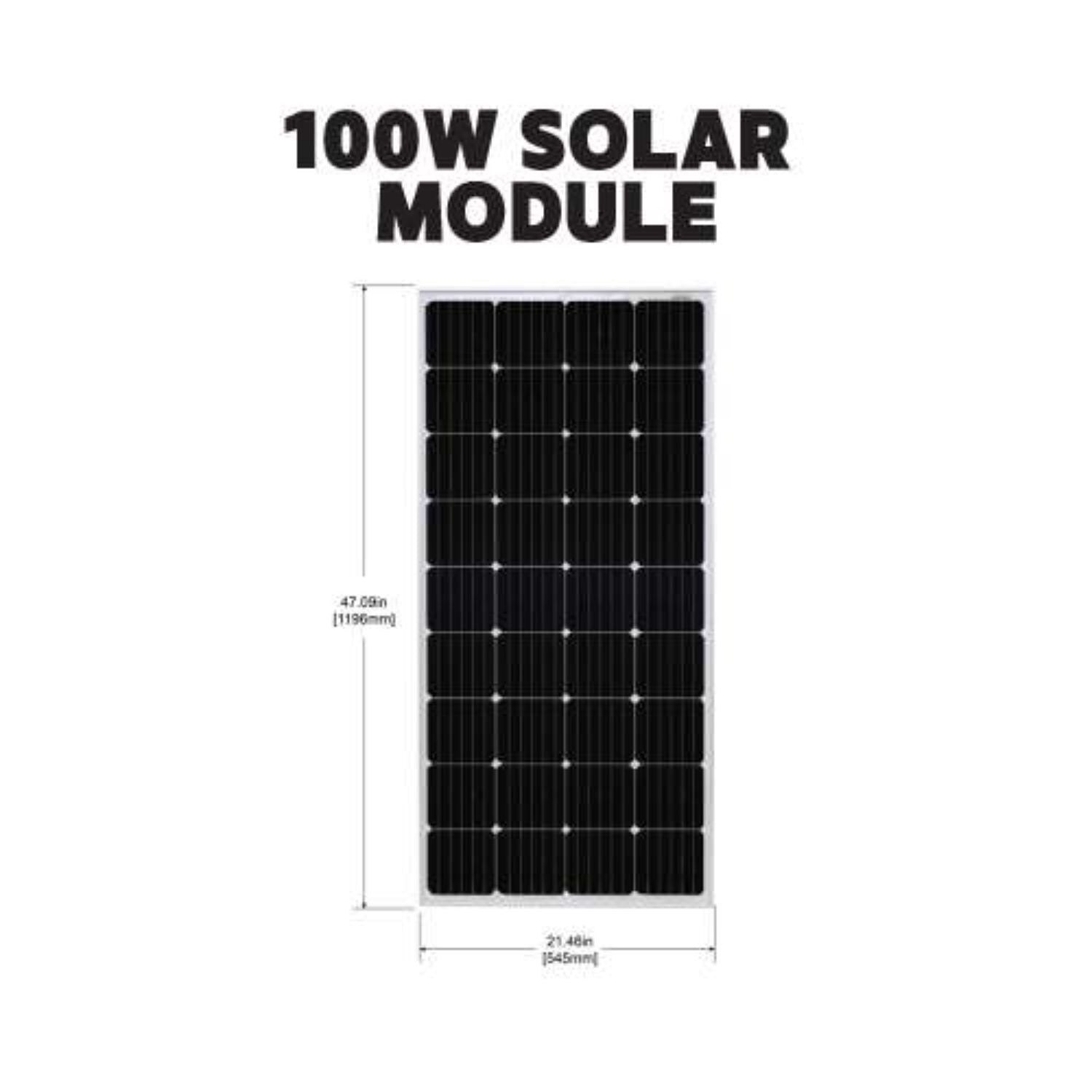

The GP-PV-100M panel measures 47.09 x 21.46 inches (1196 x 545 mm) in Go Power's dimension drawing. Each panel has 3.3 feet of cable coming from its junction box, and the junction box manufacturer rates the box IP67. Go Power recommends placing panels as close together as possible and away from air conditioners and other fixed obstacles, since shading can greatly reduce output.
A 30A PWM Controller With Bluetooth Monitoring

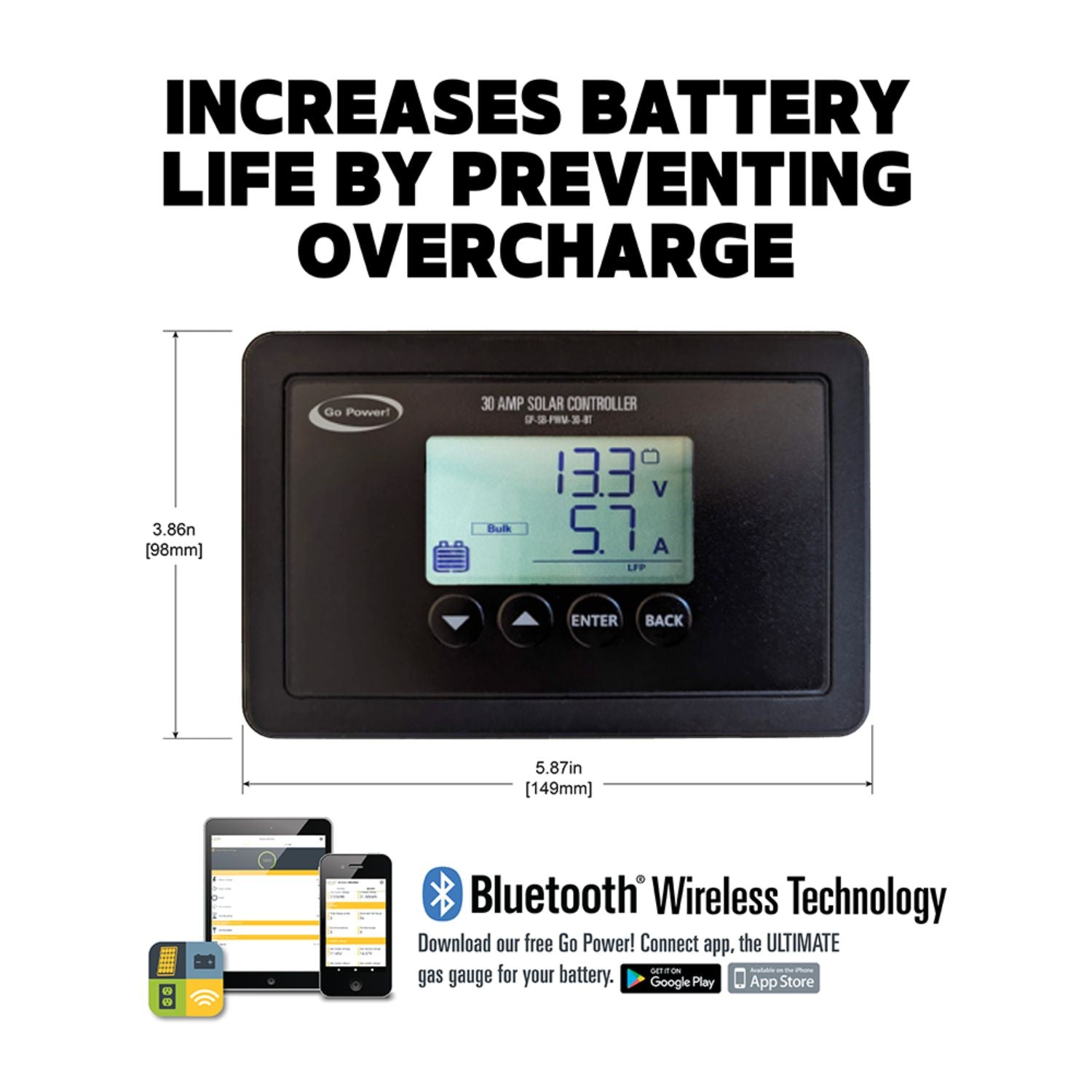

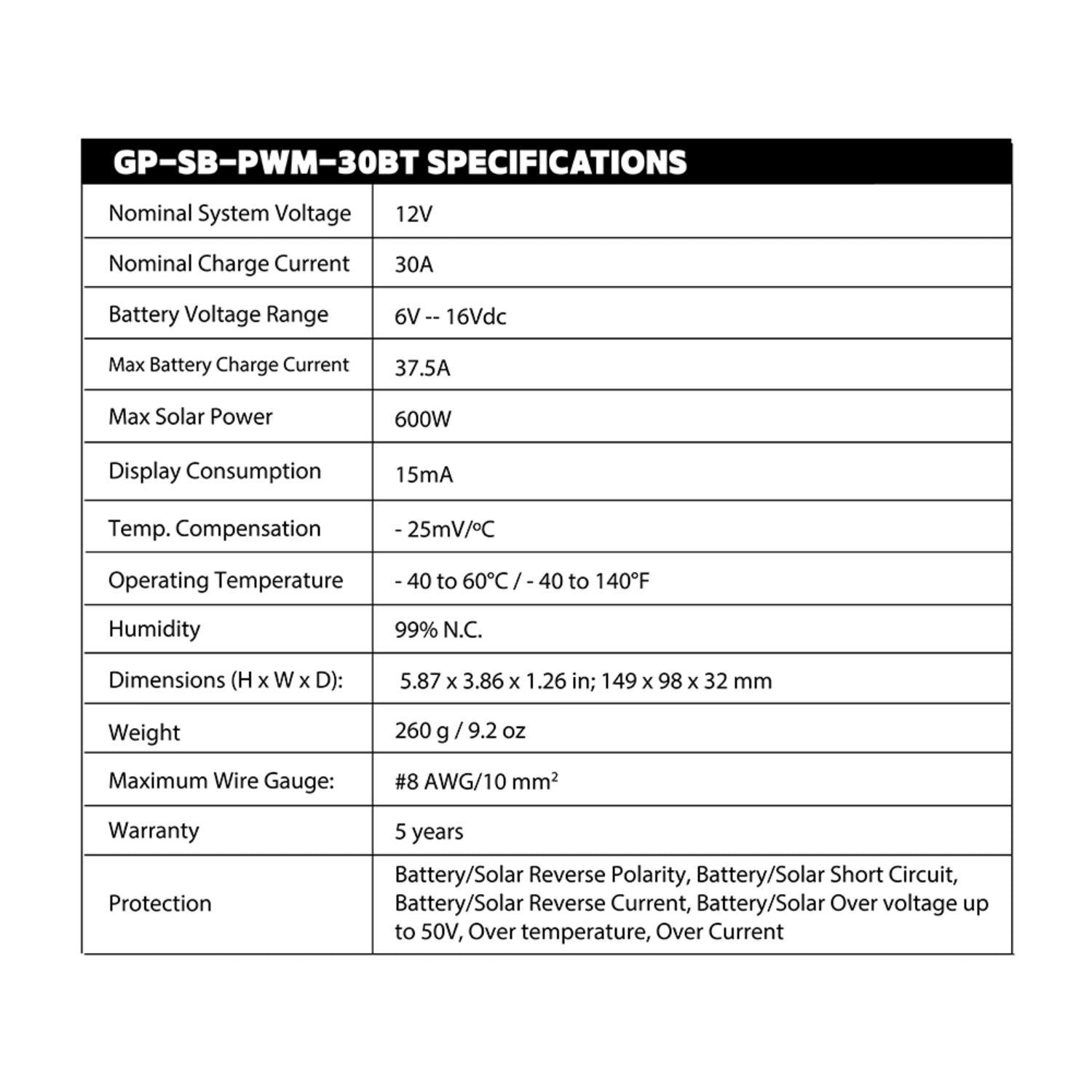

The GP-SB-PWM-30 is a 12 volt, flush-mounted PWM charge controller rated for a continuous solar current input of 30 amps. It installs with a screw cover plate, and Go Power built in Bluetooth for remote system monitoring. The front has a digital display and four buttons, so you can also check charging at the wall.
25 Feet of Red and Black #10 Solar Cable

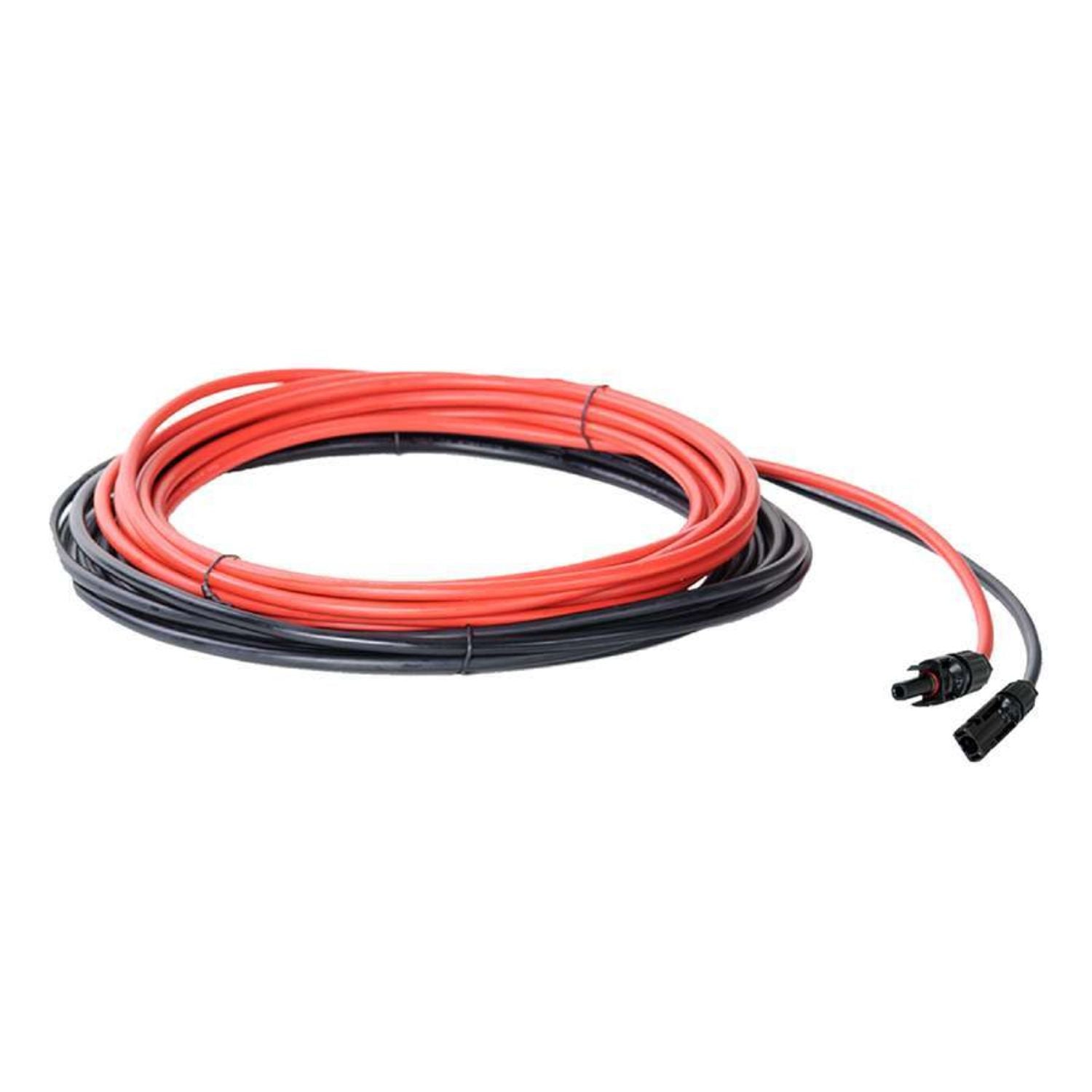

The kit includes 25 feet of red and 25 feet of black #10 solar output cable to run from the roof to the controller. The kit manual says to cut the cables to length at the controller, leaving some slack for strain relief, and use the leftover cable to connect the controller to the battery. If you need more battery cable, Go Power recommends an equivalent 10 gauge wire rated UL/cUL/USE2.
Roof Mounting Hardware Included
The GP-MH-4-KB hardware secures the panel with four mounting feet. Per the kit manual, the feet bolt to the four outer holes in the panel frame with 1/4 inch bolts and lock nuts, then screw down to the roof. Sealant goes under and around each foot for a watertight installation, and all four feet must be used.
Room to Add a Second Panel
Go Power's kit manual shows a Retreat plus Retreat-E layout, where the RETREAT-E expansion kit adds a second panel joined with SC expansion connectors and wired in parallel to the same controller.
Real-World Applications
Small trailers and campers. Put 100 watts of solar on a roof where there isn't room for a larger array, and keep the house battery charged without a campsite hookup.
Weekend trips. Recharge your battery between outings and during short stays away from shore power or a generator, as long as you manage your loads.
Parked RVs in warm climates. Go Power says there's no need to store the solar system in warm climates unless the RV is parked indoors or in very low sunlight. Remove parasitic draws such as a propane detector or clock radio so the panel can keep the batteries topped up.
A first solar system. Start with one panel and a controller, then add a Retreat-E expansion kit if your power needs grow.
Practical Comparison
Retreat Kit Versus the Retreat-E Expansion Kit
The Retreat is the complete starter kit, with the panel, controller, solar cables and mounting hardware. Per the kit manual, the Retreat-E includes a panel, mounting feet with hardware and SC expansion connectors, but no controller and no 25 foot cables, because it connects to the controller you already have.
Retreat Kit Versus a Solar and Inverter System
The Retreat charges your 12V battery and doesn't include an inverter, so it supports the devices that already run from your battery. For extended or full-time travel, Go Power points buyers to its Overlander kit or to a solar system that adds an inverter for AC power.
Buyer Guidance
Plan the Battery Bank and Fuse
Batteries aren't included. The kit manual shows 12V banks made from two or four 12V batteries in parallel, two 6V batteries in series, or four 6V batteries in series and parallel. Go Power calls for a 30A fuse and fuse holder in the positive cable from the controller, as close to the battery as you can safely reach, and recommends connecting the controller directly to the battery. Install the fuse last, after you've checked every connection. As with any off-grid system, you'll need to manage your loads, and your location and season affect how much energy the panel collects.
Plan the Roof Install
Go Power recommends installation by an RV technician or professional electrician. Mount the panel at least 3 feet back from the front of the RV to reduce wind load, on a surface at least 1/2 inch thick. Cover the panel face with an opaque material, such as its shipping box, while you wire it, and check that every roof penetration is sealed.
This May Be A Good Fit If
- You run a 12V battery system in an RV, camper or trailer
- Your roof has limited space for panels
- You want to monitor charging over Bluetooth
- You'd like to start with one panel and expand later
Common Questions
Does the Kit Include a Battery or Inverter?
No. The Retreat charges a 12V battery bank you supply. It doesn't include an inverter.
How Do the Cables Get Into the RV?
The kit manual gives three routes. You can drill a 5/8 inch hole in the side of the refrigerator vent and fit a rubber grommet (not included), thread the cables through the vent screen, or plug them into a cable entry plate if your RV has one.
Can I Add More Panels Later?
Yes. The Retreat-E expansion kit adds a second panel that connects in parallel. Go Power warns that multiple panels must be wired in parallel, and the combined current must stay within the controller's rating.
How Do I Care for the Panel?
Clean it monthly with water and a soft sponge or cloth, and use a mild non-abrasive cleanser for stubborn residue. Go Power doesn't recommend a pressure washer. Check your connections one week after installation, and have the system inspected once a year.
What's Included
- 1 x GP-PV-100M 100W Solar Panel
- 1 x GP-SB-PWM-30 30A PWM Bluetooth Solar Controller
- 1 x 25 Ft Red #10 Solar Output Cable
- 1 x 25 Ft Black #10 Solar Output Cable
- 1 x GP-MH-4-KB Mounting Hardware Kit
Simple Solar Charging for Smaller RV Roofs
The Go Power! Retreat 100 Watt Solar Kit pairs one 100W panel with a 30A Bluetooth PWM controller, solar cable and mounting hardware to keep your 12V battery charged from the sun. If you'd like help sizing your battery bank or planning your install, the Outbound Power team is happy to help.
Go Power! Retreat 100 Watt Solar Kit Specifications
|
| Model |
RETREAT |
| Kit Contents |
| Solar Panel |
1 x GP-PV-100M, 100 W |
| Charge Controller |
1 x GP-SB-PWM-30, 30 A PWM with Bluetooth |
| Solar Output Cable |
25 ft red + 25 ft black, #10 |
| Mounting Hardware |
GP-MH-4-KB (4 mounting feet) |
| Solar Panel |
| Kit Power |
100 W |
| Charge Current |
5.43 A |
| Panel Dimensions |
47.09 x 21.46 in (1196 x 545 mm) |
| Panel Lead Length |
3.3 ft from junction box |
| Junction Box Rating |
IP67 (junction box manufacturer) |
| Panel Connectors |
SC |
| Charge Controller |
| Controller Model |
GP-SB-PWM-30 |
| Controller Type |
Digital PWM |
| Rated Solar Input |
30 A continuous |
| System Voltage |
12 V |
| Mounting |
Flush mount, screw cover plate |
| Monitoring |
Bluetooth, digital display |
| Installation |
| Battery Fuse |
30 A, positive cable, close to the battery |
| Added Battery Cable |
10 gauge, rated UL/cUL/USE2 |
| Mounting Surface |
At least 1/2 in thick |
| Panel Placement |
At least 3 ft from the front of the RV |
| Multiple Panels |
Wired in parallel |
| Expansion Kit |
RETREAT-E |
