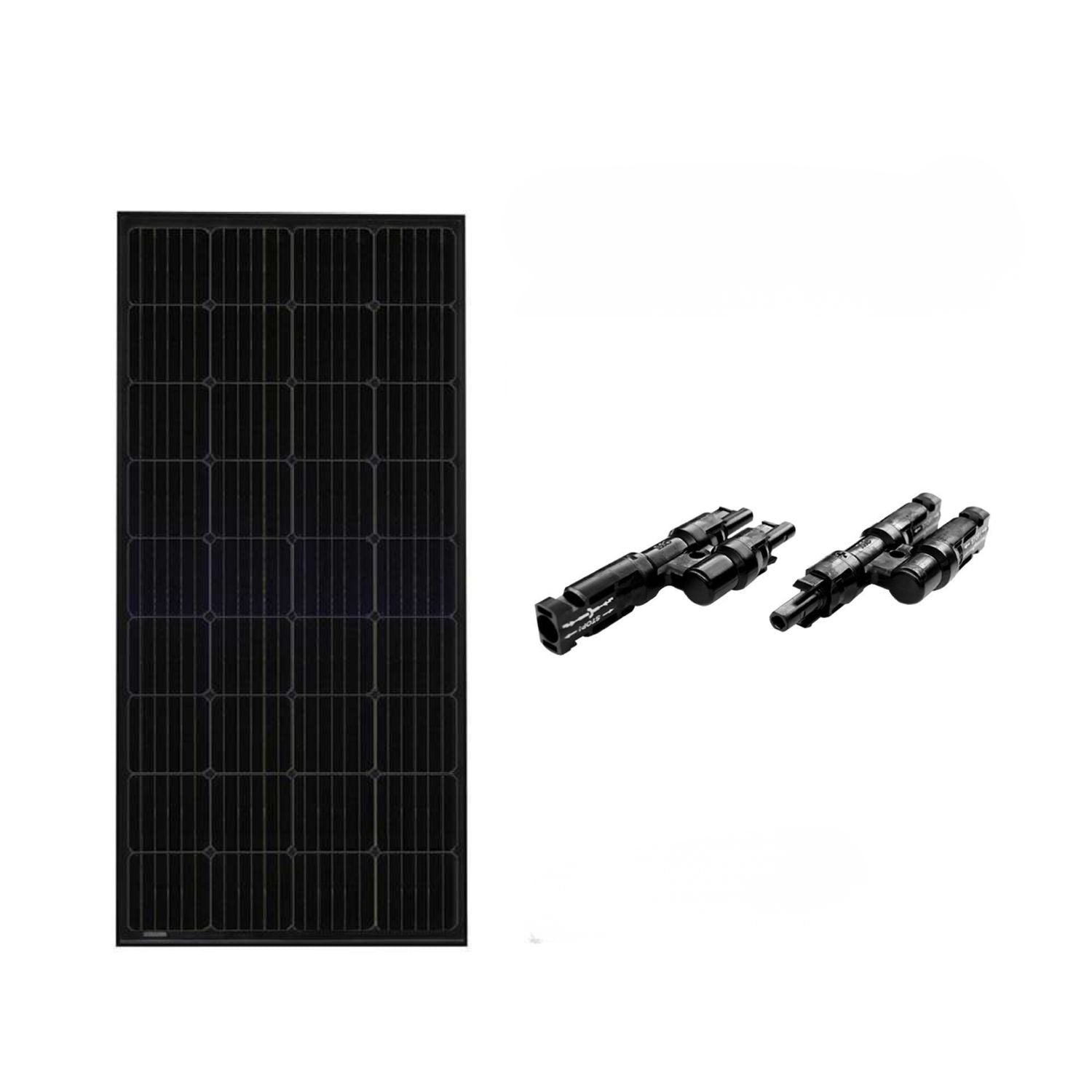

The Go Power! RIGID Eclipse 200 Watt Expansion Kit Adds a Second Black-Frame 200W Panel to Your Eclipse Solar Kit With Plug-In Parallel Connectors
The Go Power! RIGID Eclipse 200 Watt Expansion Kit (GP-ECLIPSE-200E) adds a 200-watt black-frame rigid solar panel to an existing Go Power! Eclipse solar kit. It includes the panel, four mounting feet with their bolts, nuts, washers and roof screws, and two MC4 expansion connectors that join it to your first panel in parallel.
There's no controller in the box, because the new panel feeds the Eclipse kit's 30 amp MPPT controller through your existing 25 foot cables. Go Power's Eclipse manual shows this layout in its Eclipse plus expansion wiring diagram.
Go Power! RIGID Eclipse 200 Watt Expansion Kit Features

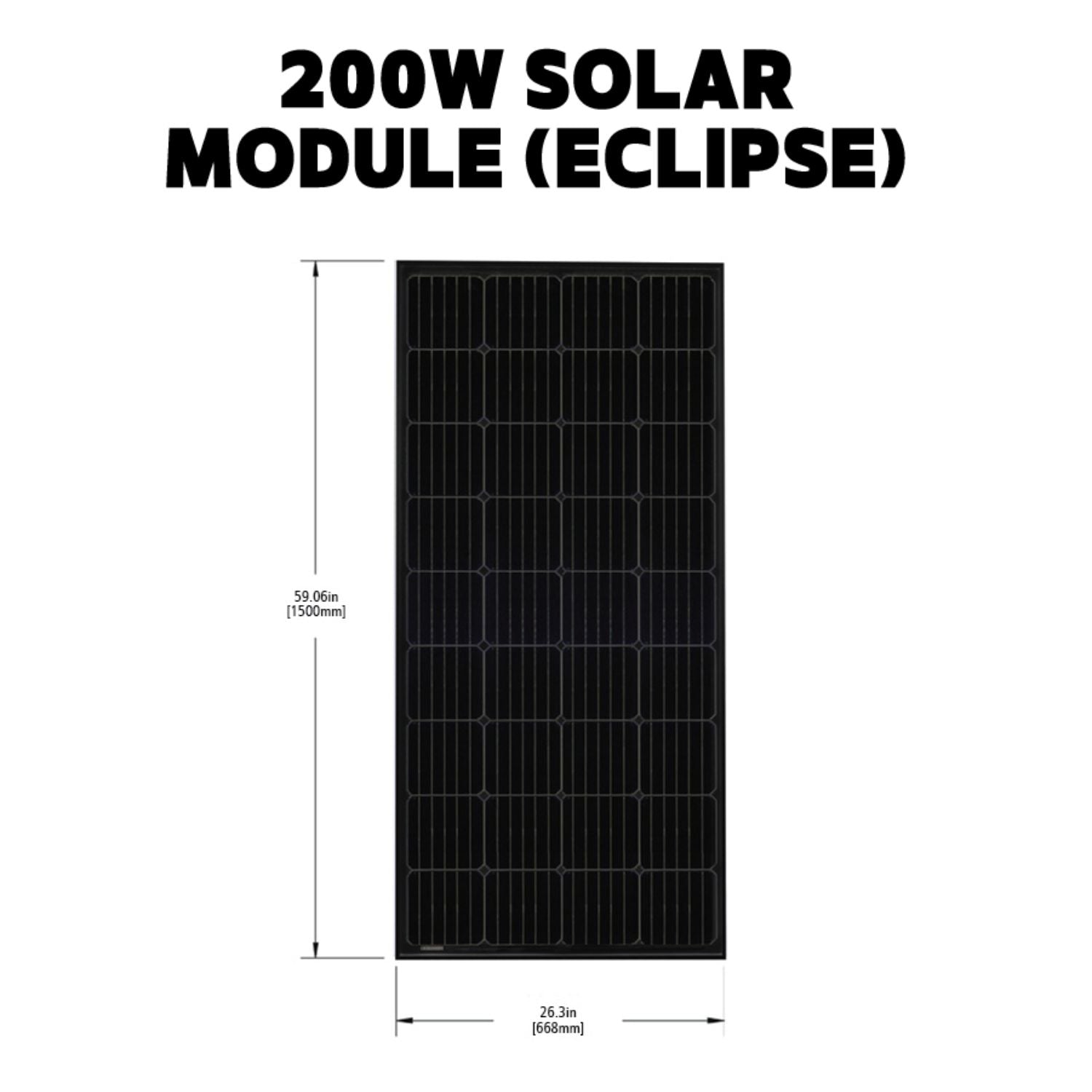

200 More Watts in a Matching Black Frame
The expansion panel is a 200W rigid panel with a black frame. It has 3.3 feet of cable coming from its junction box, and the junction box manufacturer rates the box IP67.

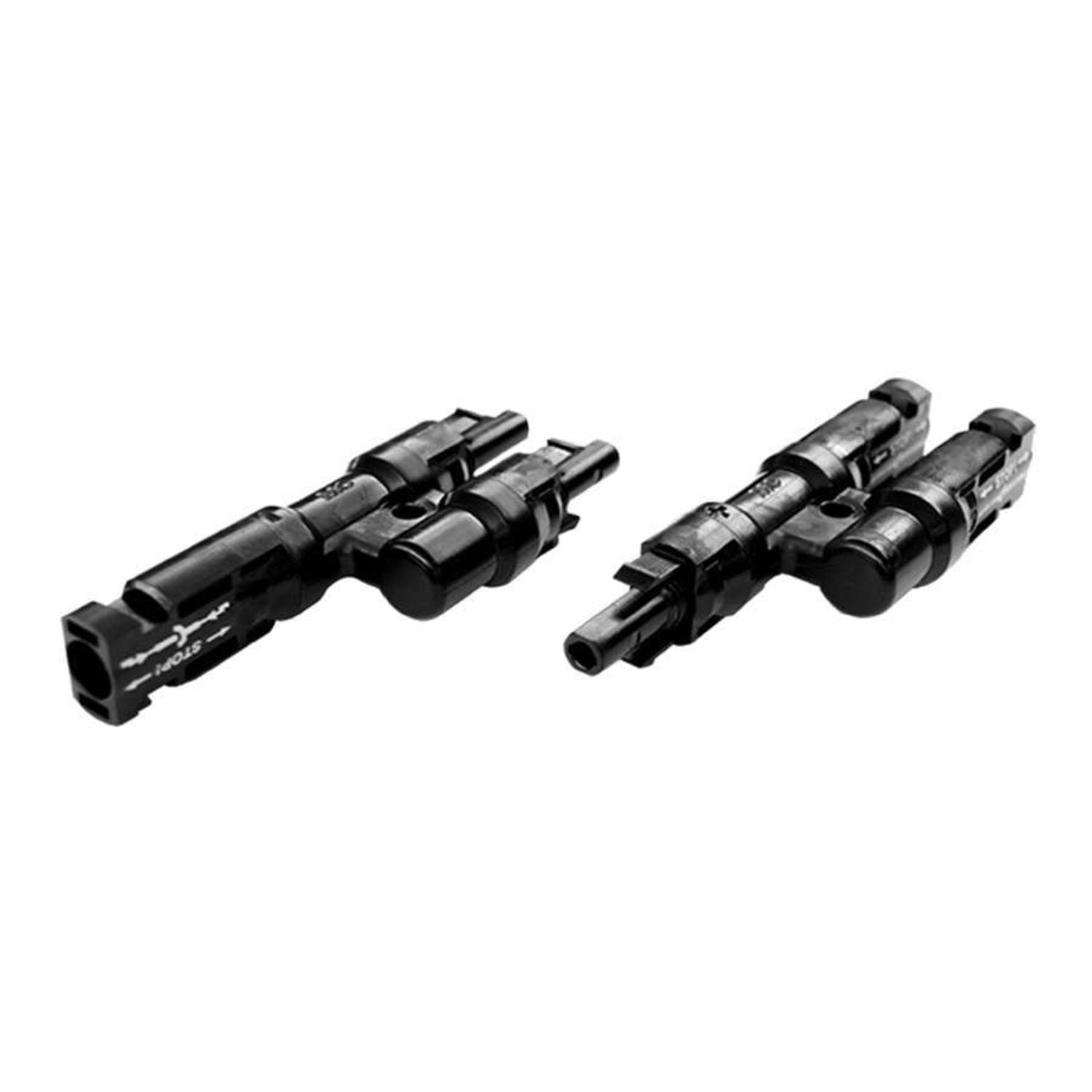

MC4 Expansion Connectors for Parallel Wiring
Two MC4 expansion connectors come in the kit, one with 1 male and 2 female ends and one with 2 male and 1 female end. They join the positive and negative leads of both panels in parallel. Go Power's manual warns that multiple panels must be connected in parallel, because other wiring produces large currents the system's DC fuse isn't designed to handle.
Mounting Feet and Roof Hardware Included
Four mounting feet bolt to the four outer holes in the panel frame with 1/4 inch bolts, lock nuts and washers, tightened with a 7/16 inch wrench. Eight #10-16 x 1 inch screws fasten the feet to the roof, with sealant under and around each foot. All four feet must be securely fastened so the panel can't lift while you're driving.
No Second Controller Needed
The panel plugs into the wiring you already have, so you don't buy another controller, remote or set of 25 foot cables. Just confirm that the combined current of both panels stays within your controller's ratings.
Real-World Applications
Growing an Eclipse kit. Go from one panel to two on the same Eclipse controller, as shown in Go Power's wiring diagram.
Growing loads. Add panel capacity when your daily use has grown, while you keep managing your loads as with any off-grid system.
Expanding in stages. Start with the full Eclipse kit, then add this panel when you're ready for more solar.
Practical Comparison
Eclipse Expansion Kit Versus the Full Eclipse Kit
Per the Eclipse manual's parts checklist, the full kit includes a panel, an MPPT 30 amp solar charge controller, a solar controller remote, 25 foot red and black extension cables, a fuse holder with a 30A fuse, and the splices, terminals and clamps to wire it. The expansion kit includes only the panel, its mounting hardware and the two expansion connectors.
Expansion Kit Versus a Second Complete Kit
A second complete kit would bring another controller and cable set you don't need when your controller has room. The expansion kit adds just the panel and connectors, and Go Power's manual points you to a suitable controller alternative only if your combined panels would exceed your controller's ratings.
Buyer Guidance
Check Your Controller's Ratings
Go Power's manual has you add up the short circuit current of all panels in parallel, multiply by 1.25, and keep the result within the controller's amperage rating. The combined maximum power current of the panels must also stay at or below 30A. If you're not sure your system has room, the Outbound Power team can help you check.
Plan the Placement
Place the new panel as close to the first panel as possible, since longer runs may need solar extension cables. Mount it at least 3 feet back from the front of the RV, on a fire-resistant surface at least 1/2 inch thick, where air conditioners won't shade it. Orient the junction box at the panel's uppermost position. Go Power recommends installation by an RV technician or professional electrician.
This May Be A Good Fit If
You already have a Go Power! Eclipse solar kit
Your controller has room for more current
You'd like a black-frame panel
Your roof has room for a second 200W panel
Common Questions
Does It Include a Controller or Cables?
No. It includes the panel, mounting hardware and two expansion connectors. It uses the controller and 25 foot cables from your Eclipse kit.
How Does It Connect to My First Panel?
The two MC4 expansion connectors join both panels in parallel, and the combined output runs through your existing cables to the controller.
What Should I Do Before Connecting It?
Cover both panels completely with an opaque material, such as their shipping boxes, to stop them producing electricity while you work.
How Do I Care for the Panels?
Clean them monthly with water and a soft sponge or cloth, and more often in dry, dusty months. Go Power doesn't recommend a pressure washer. Have the system inspected once a year.
What's Included
1 x 200W Black-Frame Rigid Solar Panel
4 x Solar Panel Mounting Feet
4 x 1/4 In Bolts
4 x 1/4 In Lock Nuts
8 x 1/4 In Washers
8 x #10-16 x 1 In Screws
1 x MC4 Expansion Connector, 1 Male and 2 Female
1 x MC4 Expansion Connector, 2 Male and 1 Female
More Panel Power on One Controller
The Go Power! RIGID Eclipse 200 Watt Expansion Kit adds a black-frame 200W panel, mounting hardware and parallel connectors to the Eclipse kit already on your RV. If you'd like help checking your controller's capacity or planning the layout, the Outbound Power team is happy to help.

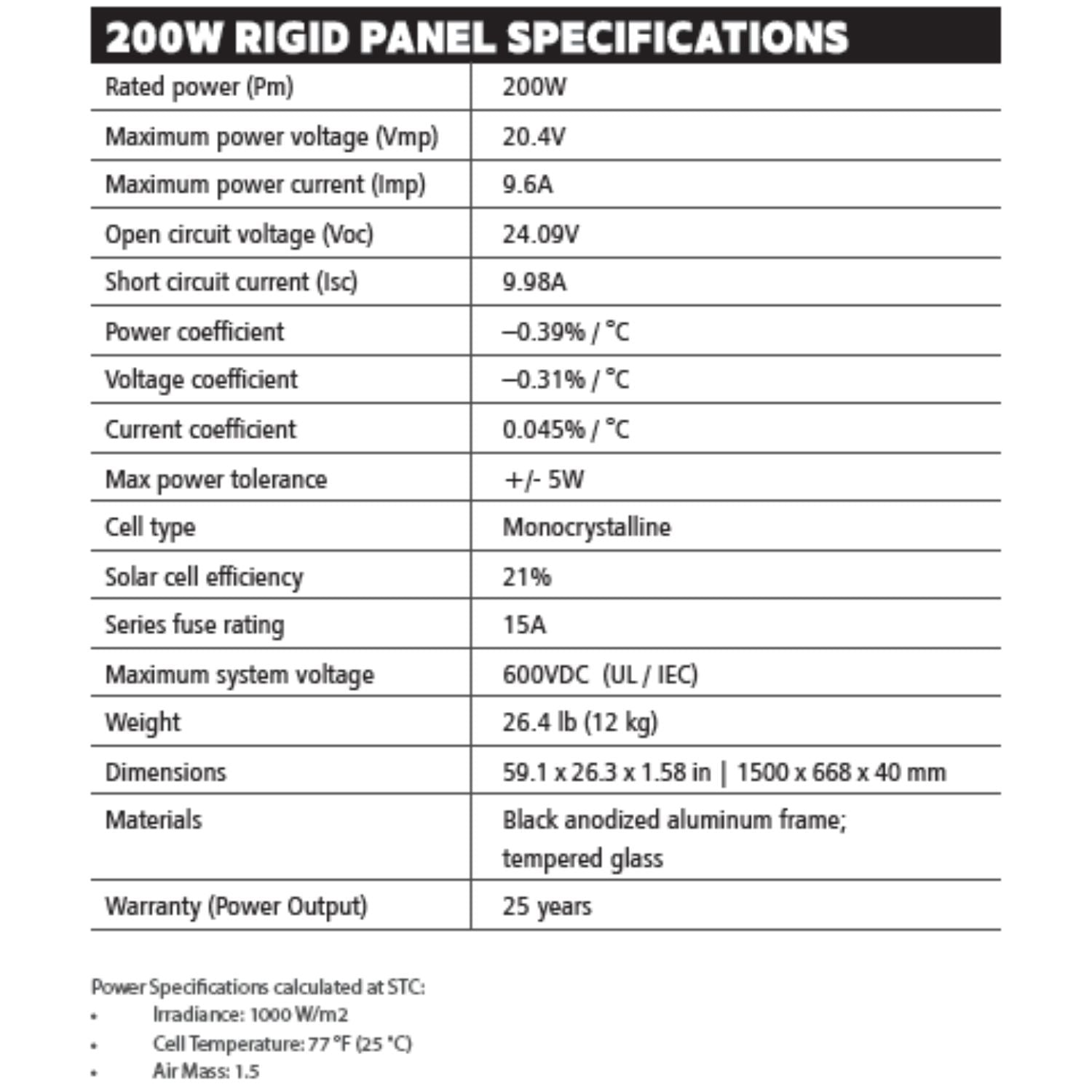

Go Power! RIGID Eclipse 200 Watt Expansion Kit Specifications
Model
GP-ECLIPSE-200E
Kit Contents
Solar Panel
1 x 200 W rigid, black frame
Expansion Connectors
1 x 1 male/2 female, 1 x 2 male/1 female, MC4
Mounting Hardware
4 mounting feet, 4 x 1/4 in bolts, 4 x 1/4 in lock nuts, 8 x 1/4 in washers, 8 x #10-16 x 1 in screws
Charge Controller
Not included
Roof-to-Controller Cables
Not included
Solar Panel
Rated Power
200 W
Panel Type
Rigid
Frame Color
Black
Panel Lead Length
3.3 ft from junction box
Junction Box Rating
IP67 (junction box manufacturer)
Wiring
Parallel with existing panel
Installation
Pairs With
Eclipse solar kit (30 A MPPT controller)
Combined Panel Imp
30 A maximum
Mounting Surface
At least 1/2 in thick, fire resistant
Panel Placement
At least 3 ft from the front of the RV
Foot Nut Wrench
7/16 in
Go Power! RIGID Eclipse 200 Watt Expansion Kit Manual
