The Go Power! Solar Elite 400 Watt Charging System Pairs 400W of Solar With a 2000W Inverter Charger So Your RV Has Power On and Off the Grid
The Go Power! Solar Elite is a complete RV solar and inverter charger system for extended and full-time RVing. It combines two 200W monocrystalline solar panels, a 30A Bluetooth PWM solar controller and the GP-IC-2000-12 inverter charger, which puts a 2000W pure sine wave inverter, a 100A battery charger and an automatic transfer switch in one unit.
Solar charges your 12V battery bank through the controller. Off-grid, the inverter charger turns battery power into AC for your breaker panel. When you plug into shore power or start a generator, it switches over, passes power through to your panel and charges your batteries. The system works with 30A and 50A shore service.
Current Model. Go Power! now offers the Go Power! Solar Elite AIC 400 Watt Solar and 2000 Watt Inverter Charger System as the current version of this system.
Go Power! Solar Elite 400 Watt Charging System Features

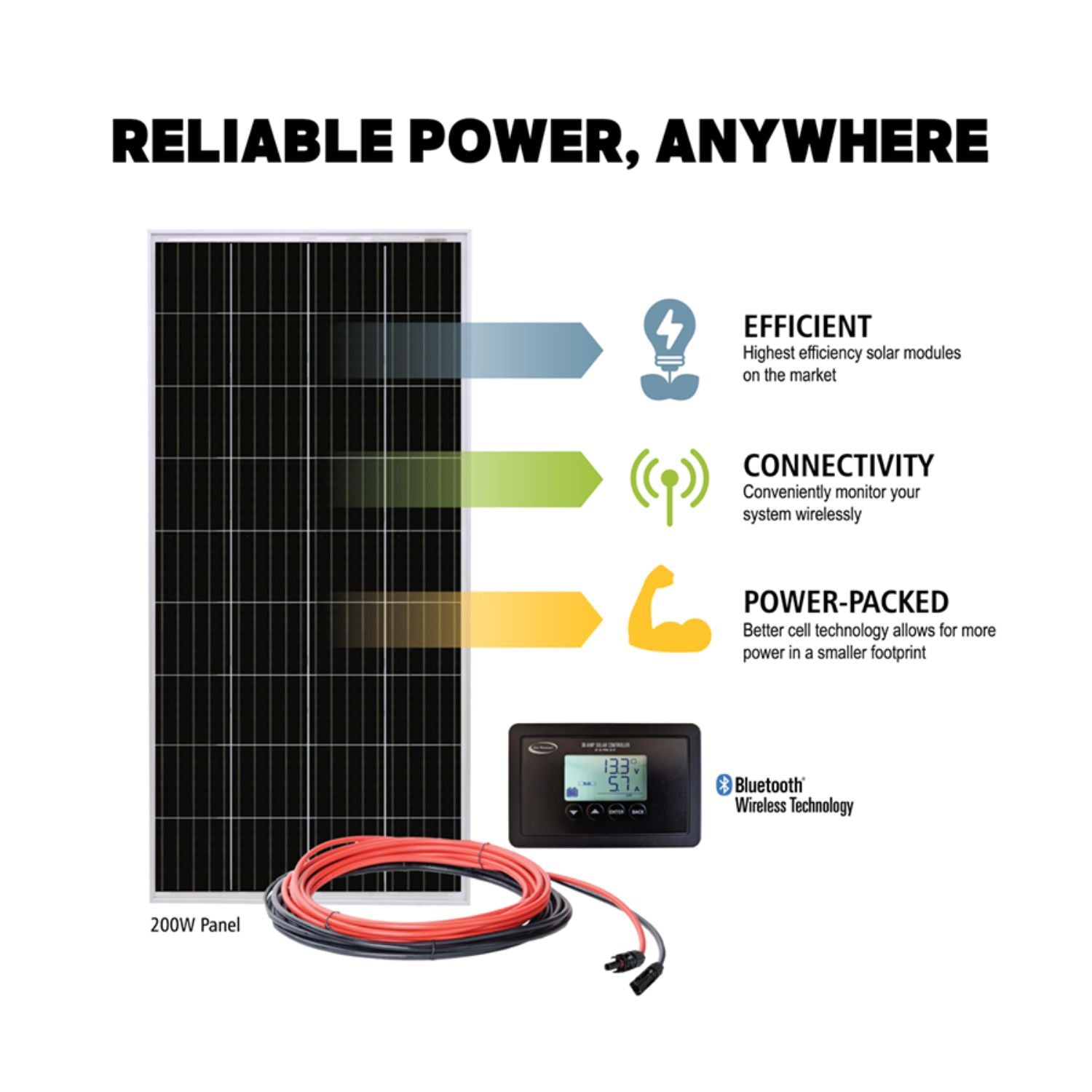

400 Watts of Monocrystalline Solar

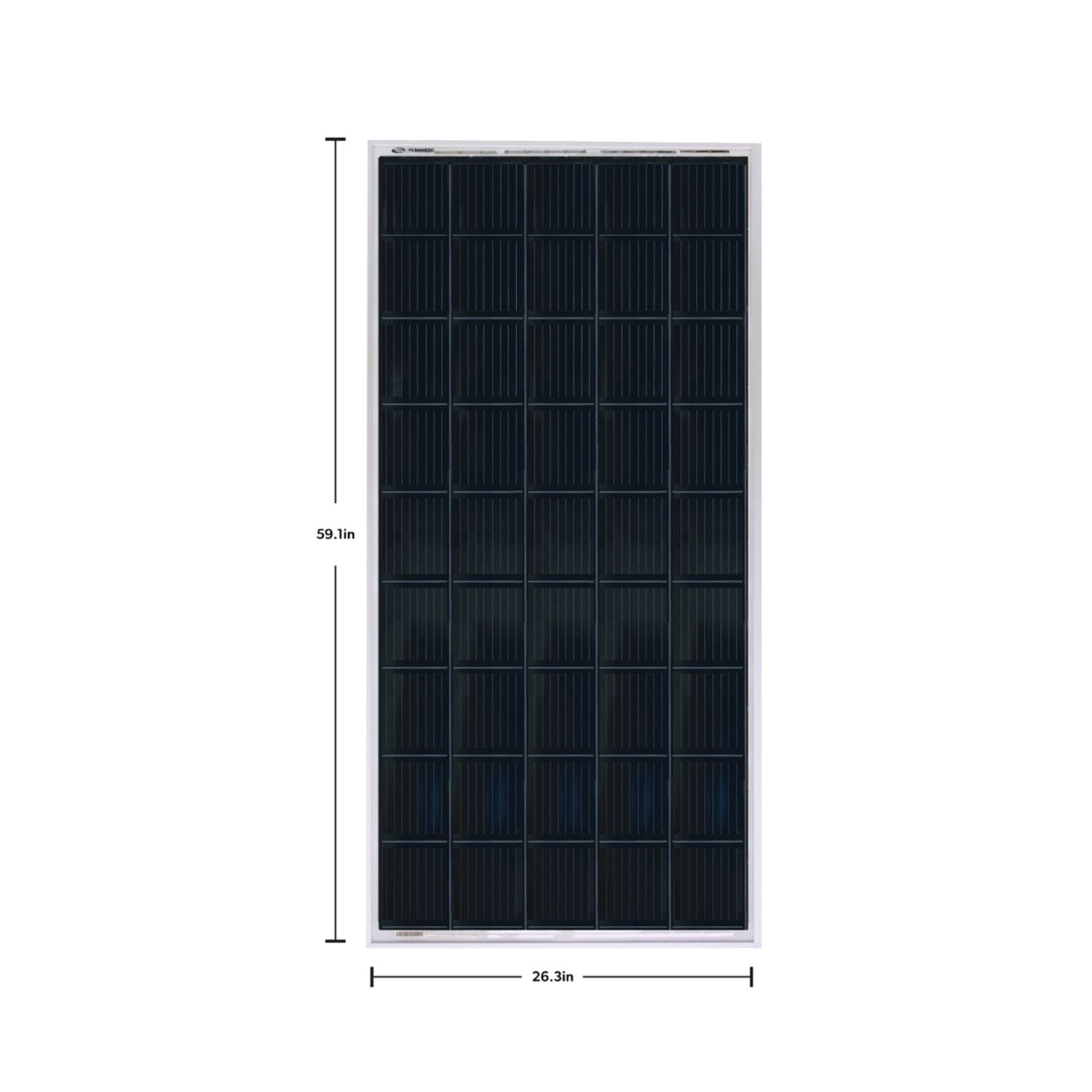

Two GP-PV-200M panels are each rated 200W at 9.62A and 20.8V, for 400W and 19.2A combined. Each panel measures 59.06 x 26.3 x 1.57 inches, weighs 26.4 lb and uses SC solar connectors. Go Power estimates the pair puts about 120Ah a day into a 12V battery on a sunny spring or summer day, and about 48Ah a day in fall and winter.

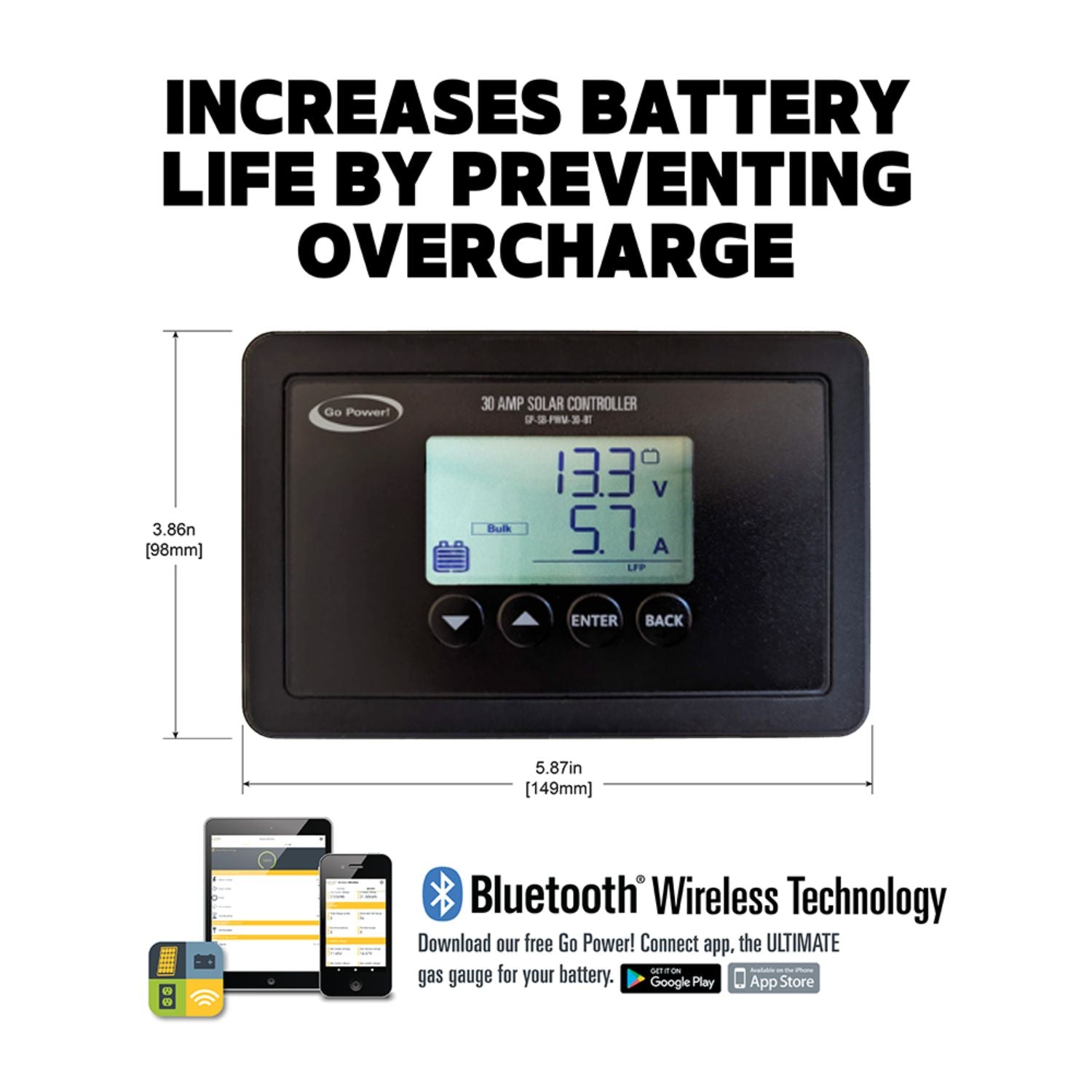

A Bluetooth PWM Controller With Lithium Support
The GP-SB-PWM-30-BT is a 12V flush-mount controller rated for 30A of solar current and up to 600W of 12V solar. Its backlit LCD shows charging current, battery voltage and state of charge, and Bluetooth connects it to the Go Power! Connect app. It offers sealed/gel, AGM, flooded and LiFePO4 charging profiles.

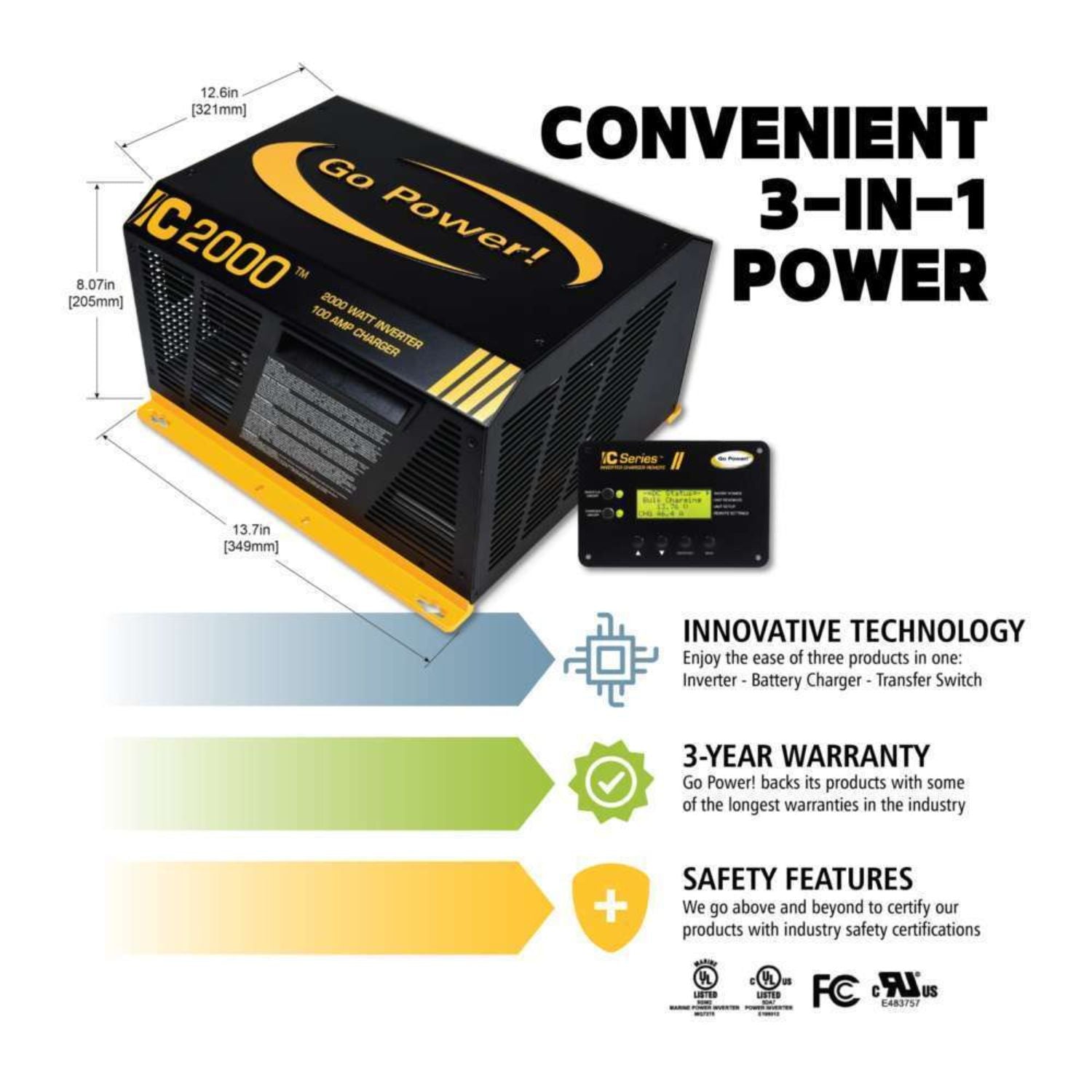

Inverter, Charger and Transfer Switch in One Unit
The GP-IC-2000-12 delivers 2000W of pure sine wave power with 4000W of surge, and peak inverter efficiency is 90%. Go Power lists UL 458 and UL 1741 (with Marine Supplement), CSA 22.2 No. 107.1-01 and FCC Part 15 Class B for this inverter charger.
A 100A Charger for Shore Power and Generator Time
On 120 VAC shore power or a generator, the built-in charger delivers up to 100A to your batteries. It is power factor corrected at 0.97, uses 3-stage charging with manual equalize, and adjusts charge voltage with a remote battery temperature sensor.
A Transfer Switch With Two 50A Legs
The automatic transfer switch has two 50A legs (240V split-phase) and switches in 16 milliseconds. Go Power says this lets you pass through up to 12,000 watts on a 100A, 240V service, and it works with any 30A service as well.
A Remote With a 4-Line Display
The GP-ICR-50 remote has a 4-line digital display and a 50 ft cable. You can change settings and modes, watch battery charging, AC input and inverter status in real time, and check the unit's health and temperature. Battery type and charge settings on the inverter charger are adjustable only with this remote.
Real-World Applications
Fridge camping. Go Power estimates a 12V compressor fridge plus lights, fan, pump and device charging at about 75Ah a day, which 400W of solar covers on a sunny summer day.
Cold nights with the furnace. Add about 4 hours of furnace blower and Go Power's estimate rises to about 100Ah a day, still covered daily in summer.
Cooking and TV off-grid. Go Power says the 2000W inverter runs a microwave, coffee maker, TV and laptops. By its figures, a 1000W microwave uses about 15Ah from a 12V battery for every 10 minutes it runs.
Campgrounds and generators. Plug in and the 100A charger refills your bank while the transfer switch passes power to your panel. Roof air conditioning needs shore power or a generator.
Practical Comparison
Solar Elite Versus Weekender ISW
Go Power's model comparison lists the Weekender ISW at 200W of solar with a 1500W inverter, a separate 30A transfer switch and no built-in charger. The Solar Elite doubles the solar to 400W and adds a 2000W inverter charger with a 100A charger and a transfer switch with two 50A legs, so it charges on shore power without your RV's converter.
Solar Elite Versus Solar Extreme
The Solar Extreme in the same comparison has 600W of solar and a 3000W GP-IC-3000 inverter charger with a 125A charger, also with two 50A legs. The Solar Elite has 400W, a 2000W inverter and a 100A charger, and its controller still has room for one more 200W panel.
Buyer Guidance
Size Your Battery Bank
Go Power suggests at least 200Ah of lithium or 400Ah of AGM for the Solar Elite. The inverter charger's manual calls for a 200Ah bank for light to moderate loads under 1000W and recommends 400Ah for loads over 1000W. Its charger presets cover gel, flooded and two AGM settings plus a custom setting through the remote, and its safety instructions say to charge only lead-acid type batteries, so talk to the Outbound Power team before you switch to lithium.
Plan the Install

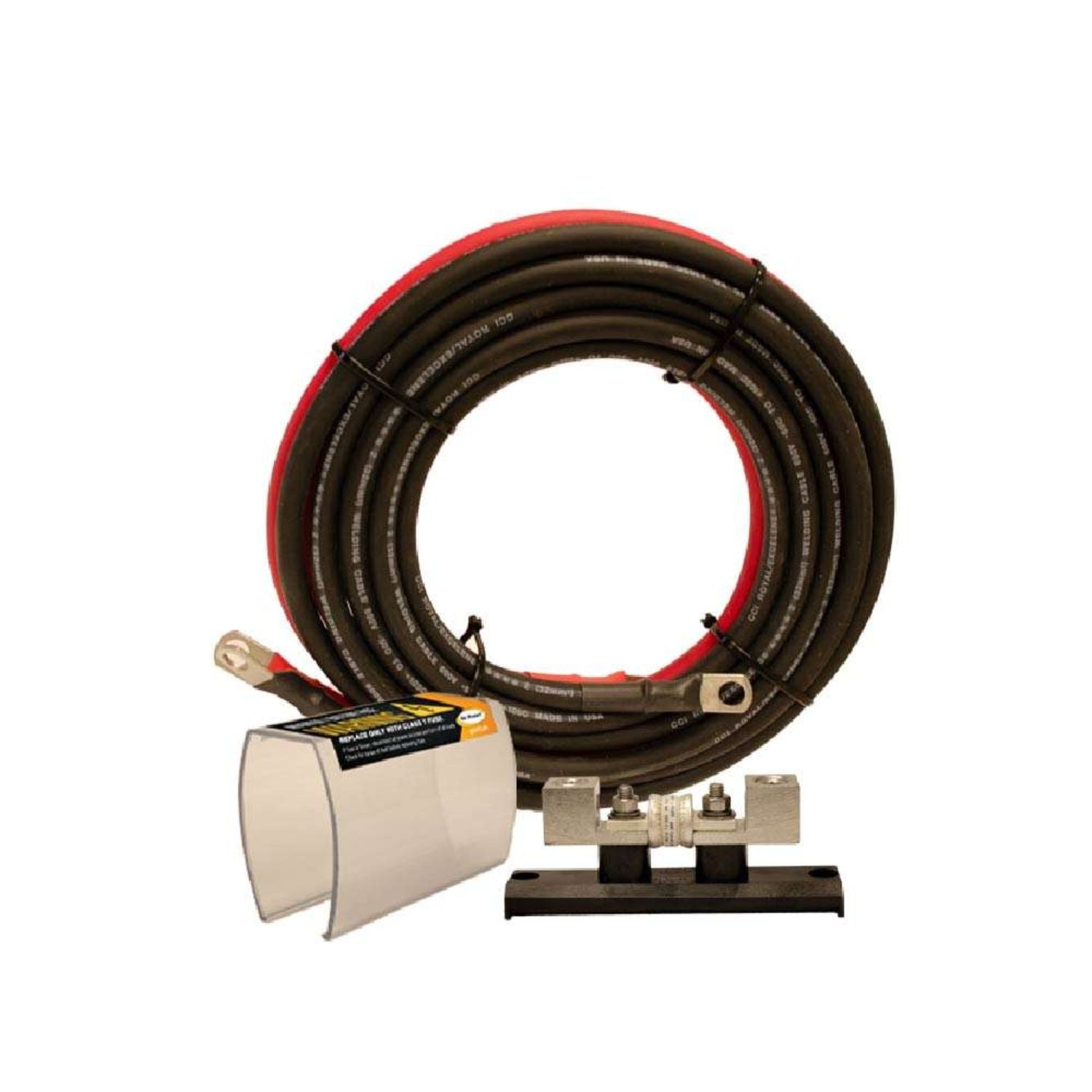

Go Power recommends installation by an RV technician or professional electrician. The GP-DC-KIT4 supplies the 300A Class T fuse and 10 ft 2/0 AWG cables the inverter charger's manual calls for. Mount the inverter charger where the air stays between 0°C and 50°C, with at least 6 inches of clearance around the vents and never directly above the batteries. It is not reverse polarity protected, so mark your positive and negative cables.
This May Be A Good Fit If
- You camp off-grid for several days at a time
- Your RV has 30A or 50A shore service
- You want a built-in charger instead of a separate converter
- You run 200Ah or more of lithium or 400Ah or more of AGM
- You may add one more 200W panel later
Common Questions
Will It Work on a 30A RV?
Yes. The transfer switch has two 50A legs (240V split-phase), so it works with 50A service and with any 30A service.
Can I Add More Solar?
Yes, one more 200W panel. The 30A controller accepts up to 600W of 12V solar. Earlier Solar Elite builds used smaller panels, so check with the Outbound Power team before mixing panel sizes.
Can It Connect to a PowerTrak Display?
Yes. Go Power lists the GP-IC-RVC-ADAPTER and GP-IC-RVC-HARNESS to connect the IC series inverter charger to an RV-C network so a PowerTrak display can monitor it.
What Fuse Protects the Inverter Charger?
The GP-DC-KIT4 install kit uses a 300A Class T fuse with 2/0 AWG cables.

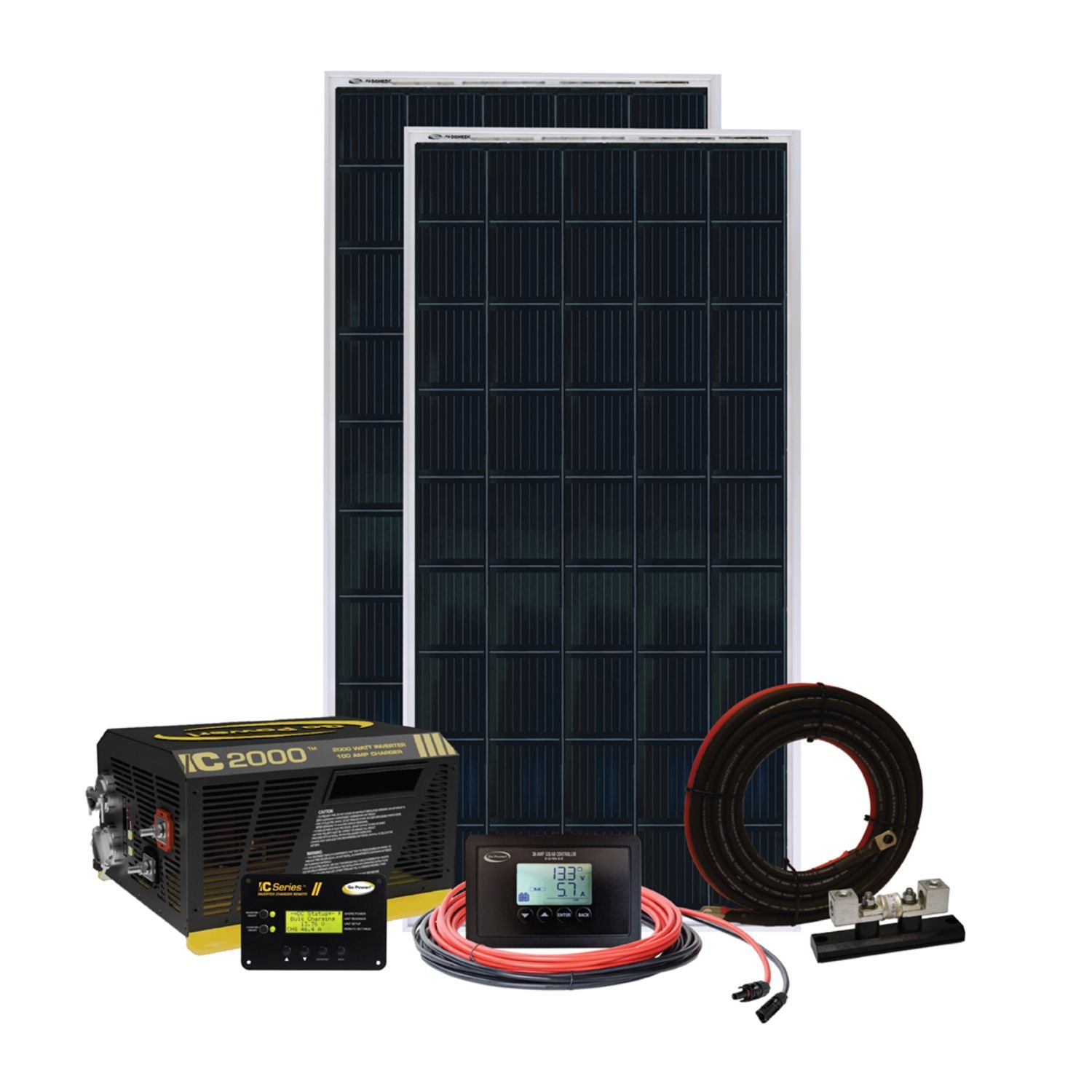

What's Included
- 2 x 200W Monocrystalline Solar Panels (GP-PV-200M)
- 1 x 30A PWM Solar Charge Controller with Bluetooth (GP-SB-PWM-30-BT)
- 1 x 2000W Pure Sine Wave Inverter Charger with 100A Charger and Dual 50A Transfer Switch (GP-IC-2000-12)
- 1 x Inverter Charger Remote with 50 Ft Cable (GP-ICR-50)
- 1 x Inverter Install Kit with 300A Class T Fuse and 2/0 AWG Cables (GP-DC-KIT4)

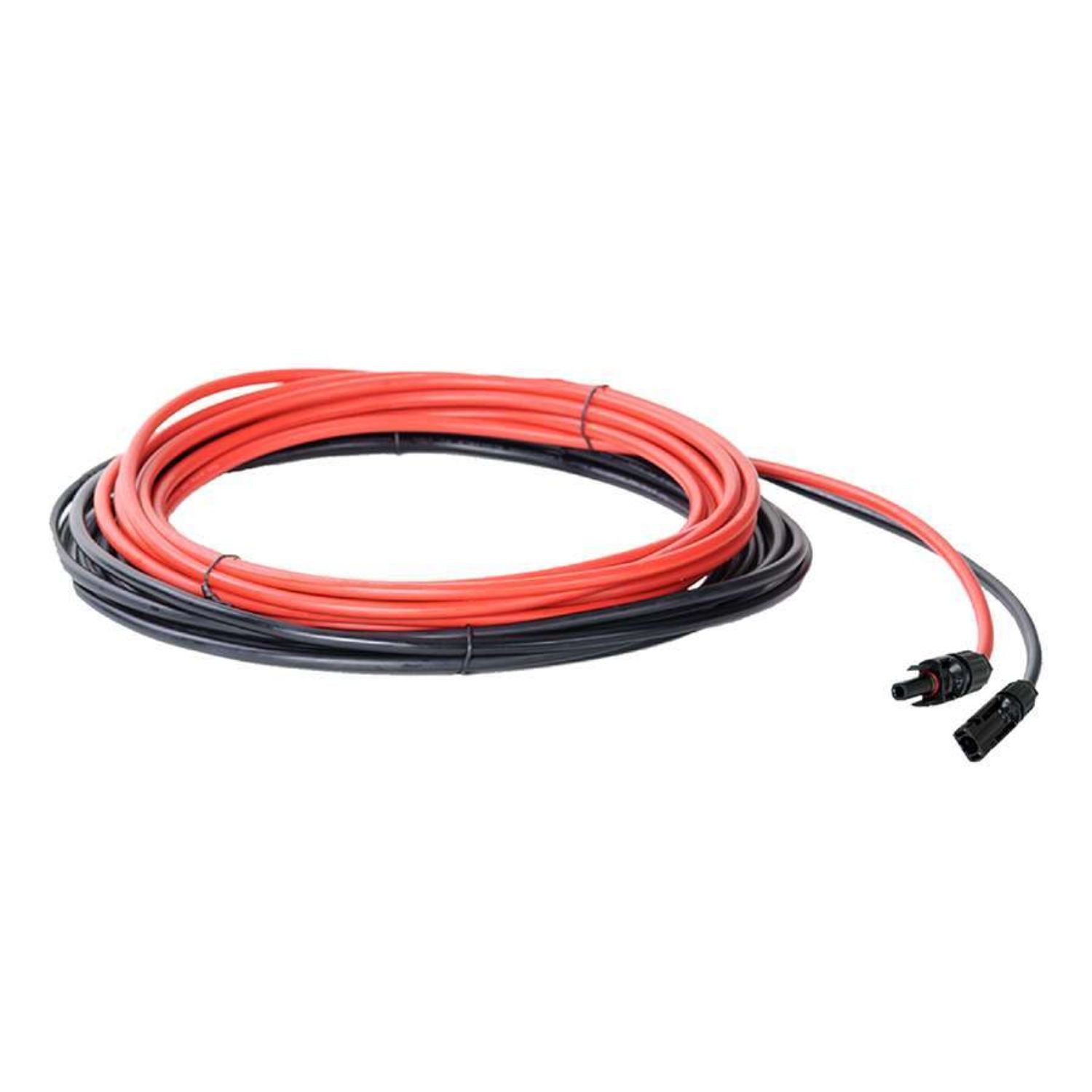

- 1 x 25 Ft Red Positive SC Solar Cable
- 1 x 25 Ft Black Negative SC Solar Cable
- 1 x SC Expansion Connector (1 Male, 2 Female)
- 1 x SC Expansion Connector (2 Male, 1 Female)
- 1 x Fuse Holder with 30A Fuse

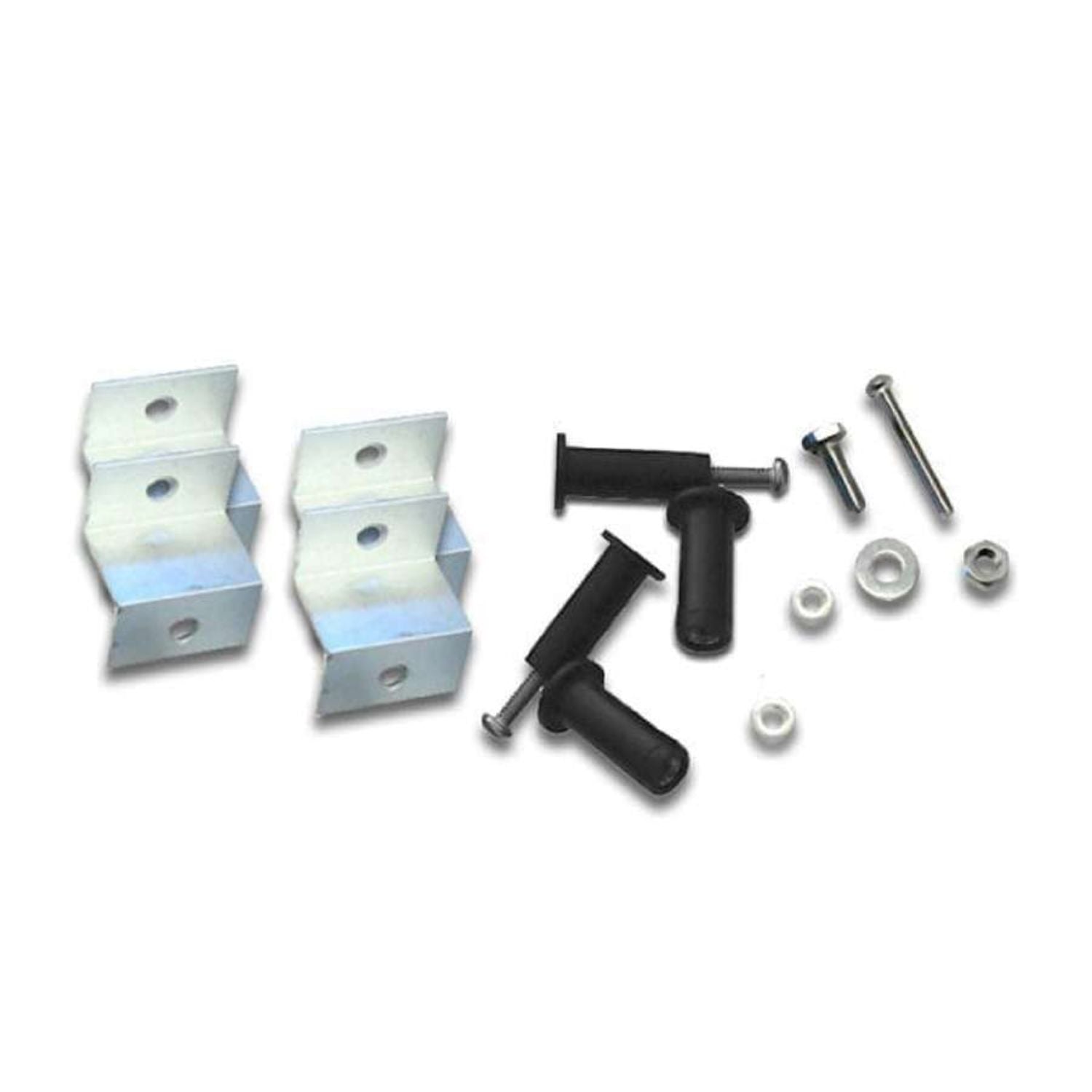

- 8 x Solar Panel Mounting Feet with Bolts, Lock Nuts, Washers and Screws
- 1 x Wiring Set (Butt Splices, Heat Shrink, Tie Wraps, Cable Clamps and Ring Terminals)
Solar and Shore Charging in One RV System
The Go Power! Solar Elite 400 Watt Charging System brings 400W of solar, a 30A Bluetooth PWM controller and a 2000W inverter charger with a 100A charger and dual 50A transfer switch together for 12V RVs. If you'd like help sizing your battery bank or planning the install, the Outbound Power team is happy to help.

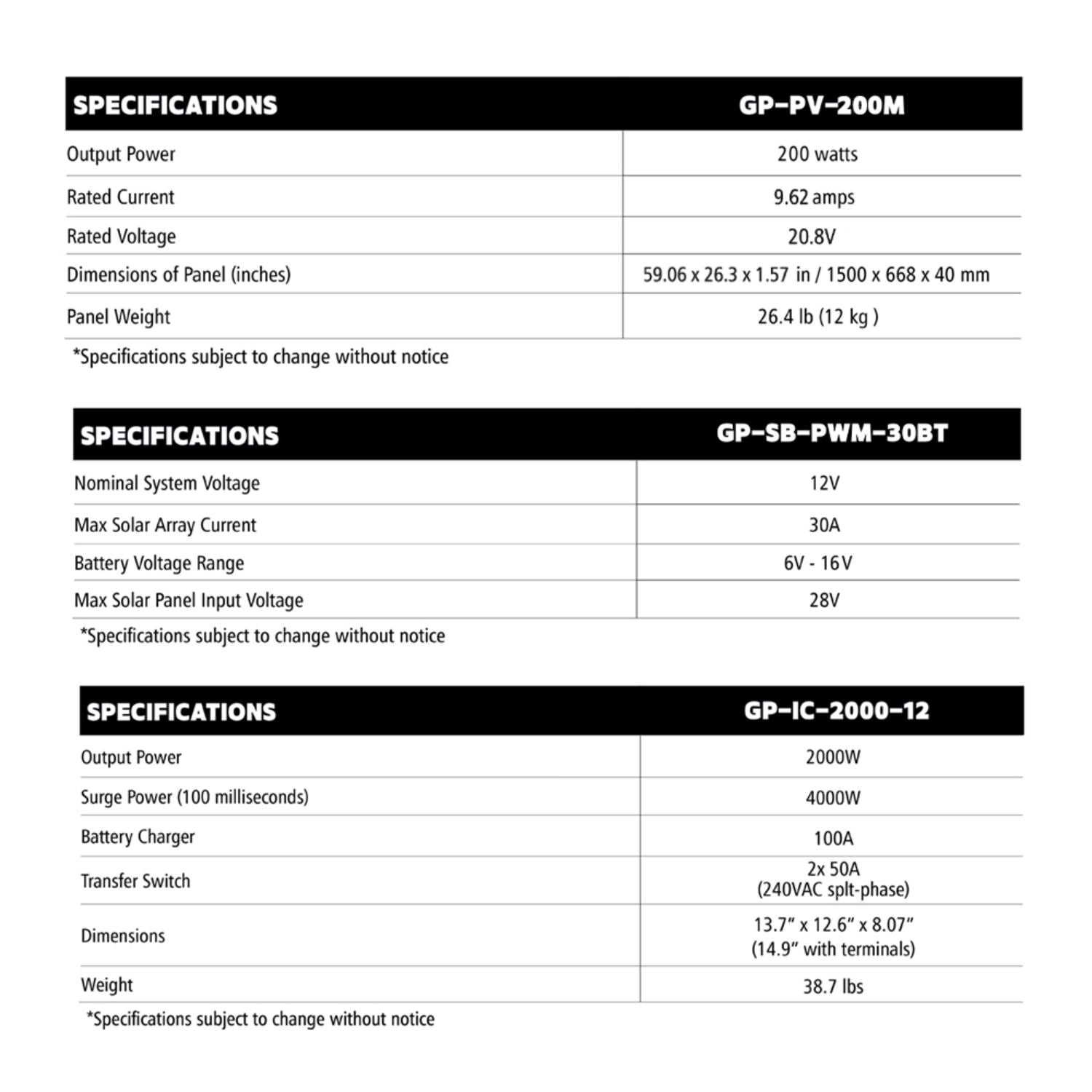

Go Power! Solar Elite 400 Watt Charging System Specifications
|
| Model |
SOLAR ELITE |
| Kit Contents |
| Solar Panels |
2 x 200W monocrystalline (GP-PV-200M) |
| Solar Controller |
GP-SB-PWM-30-BT, 30A PWM with Bluetooth |
| Inverter Charger |
GP-IC-2000-12, 2000W pure sine wave, 100A charger, 2 x 50A transfer switch |
| Remote |
GP-ICR-50, 4-line digital display, 50 ft cable |
| Inverter Install Kit |
GP-DC-KIT4, 300A Class T fuse, 10 ft 2/0 AWG cables |
| Solar Cables |
25 ft red and 25 ft black, SC connectors |
| Expansion Connectors |
2 SC branch connectors (1M/2F and 2M/1F) |
| Mounting |
8 mounting feet with bolts, lock nuts, washers and screws |
| Solar Panel |
| Total Solar |
400 W, 19.2 A |
| Rated Power (each) |
200 W |
| Cell Type |
Monocrystalline |
| Rated Current (each) |
9.62 A |
| Rated Voltage (each) |
20.8 V |
| Connectors |
SC (solar connector) |
| Dimensions (each) |
59.06 x 26.3 x 1.57 in (1500 x 668 x 40 mm) |
| Weight (each) |
26.4 lb (12 kg) |
| Charge Controller |
| Type |
PWM, 12 V, single bank, flush mount |
| Rated Solar Current |
30 A |
| Max Solar Input |
600 W @ 12 V |
| Max PV Input Voltage |
35 V |
| Battery Profiles |
Sealed/gel, AGM, flooded, LiFePO4 |
| Display |
Backlit LCD (charging current, battery voltage, state of charge) |
| Connectivity |
Bluetooth, Go Power! Connect app |
| Inverter |
| Continuous Output |
2000 W (up to 104°F / 40°C) |
| Surge |
4000 W (100 ms), 3400 W (5 s) |
| Waveform |
Pure sine wave |
| AC Output |
115 VAC, 60 Hz |
| Peak Efficiency |
90% |
| DC Input Range |
9-17 VDC |
| No-Load Power |
25 W normal, 5 W sleep |
| Reverse Polarity Protection |
None (mark cables) |
| Charger |
| Output Current |
100 A |
| AC Input |
120 VAC nominal (80-140 VAC), 15 A |
| Power Factor Correction |
0.97 typical |
| Charge Control |
3-stage with manual equalize |
| Temperature Compensation |
Remote battery sensor |
| Battery Presets |
Gel, flooded, AGM 1, AGM 2, custom (custom via GP-ICR-50) |
| Battery Type (Safety Instructions) |
Charge only lead-acid type rechargeable batteries |
| Transfer Switch |
| Rating |
2 legs at 50 A each (240 V split-phase) |
| Transfer Time |
16 ms |
| Pass-Through |
Up to 12,000 W on 100 A, 240 V shore service |
| Shore Service |
30 A or 50 A |
| Physical |
| Inverter Charger Dimensions |
13.7 x 12.6 x 8.07 in (14.9 in with terminals) |
| Inverter Charger Weight |
38.71 lb (17.6 kg) |
| Install Location |
0°C to 50°C air temperature, 6 in clearance around vents |
| System |
| System Voltage |
12 V |
| Suggested Battery Bank |
400 Ah AGM or 200 Ah lithium |
| Inverter Charger Battery Guidance |
200 Ah for loads under 1000 W, 400 Ah for loads over 1000 W |
| Daily Solar Harvest (Go Power estimate) |
About 120 Ah spring/summer, 48 Ah fall/winter, 12 V battery |
| Recommended DC Cable and Fuse |
2/0 AWG, 300A Class T, 10 ft combined max |
| Certifications and Warranty |
| Inverter Charger Certifications |
UL 458, UL 1741 (with Marine Supplement), CSA 22.2 No. 107.1-01, FCC Part 15 Class B |
| Solar Panels |
25 years limited power output |
| Solar Controller |
5 years |
| Remote (GP-ICR-50) |
3 years |
