The Renogy Complete 400W 12V RV Solar Kit Includes Panels, MPPT Controller, Inverter and 2.4kWh of Batteries
The Renogy Complete 400W 12V RV Solar Kit is a true all-in-one off-grid power system. Every option includes four Renogy 16BB N-type 100W panels, a Rover Li 40A MPPT charge controller with BT-2 Bluetooth module, a 2000W 12V pure sine wave inverter, two 12V 100Ah batteries (2.4kWh total), and all the cables, fuses, connectors and Z-bracket mounts needed to tie it together. All components come pre-matched and ready to install.
Choose between two battery options. The AGM version includes two sealed 12V 100Ah deep cycle AGM batteries plus a 500A battery monitor with shunt. The Lithium version includes two Renogy 12V 100Ah smart LiFePO4 batteries with built-in Bluetooth and self-heating. Renogy estimates the 400W array produces about 2,000 to 2,500Wh per day with 5 to 6 peak sun hours.
Renogy Complete 400W RV Solar Kit Features

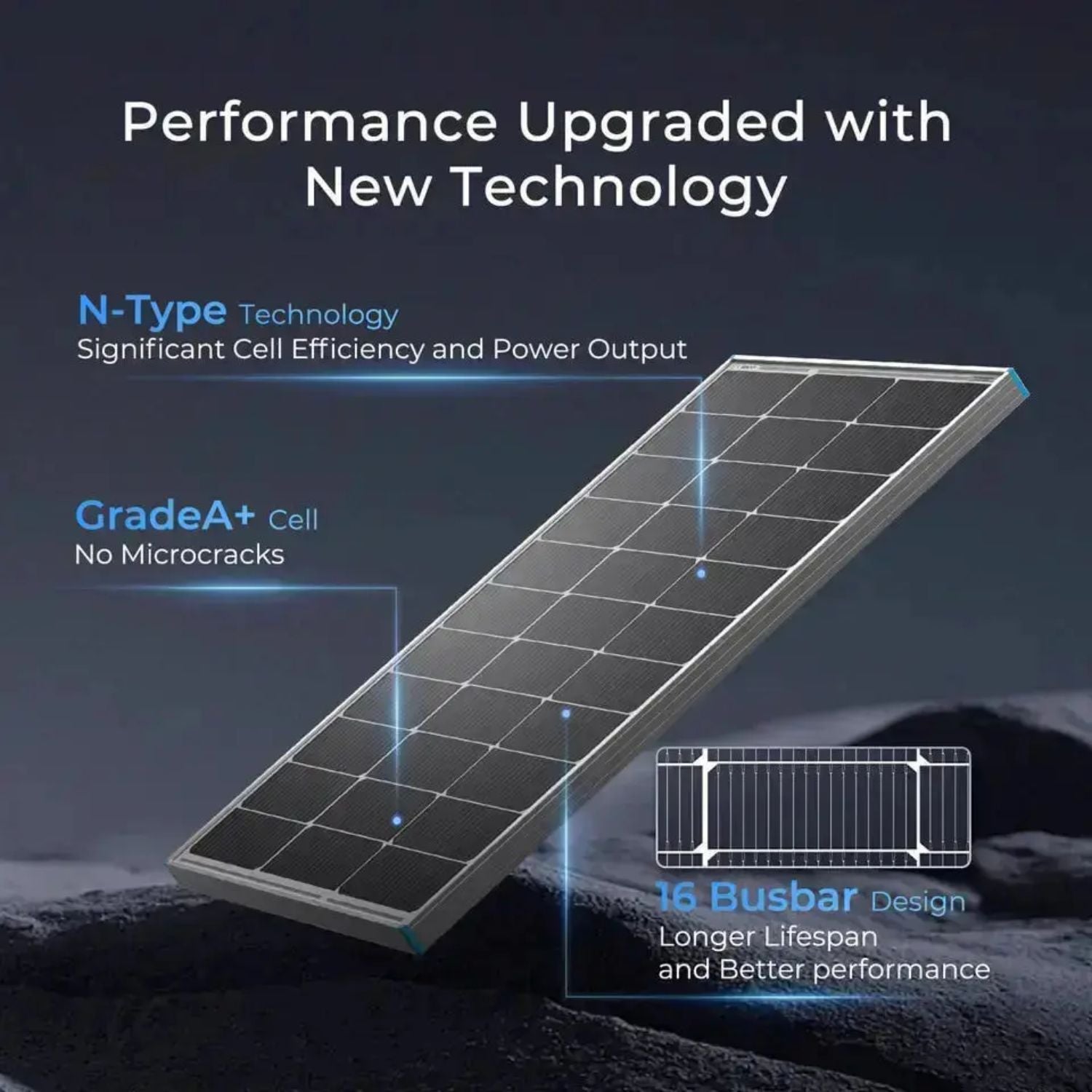

Four 16BB N-Type 100W Panels
N-type cells deliver high efficiency in heat and low light. An aluminum alloy frame with PA66 GB30 reinforced corners handles bumps and vibration on the road and makes the panels safer to handle.

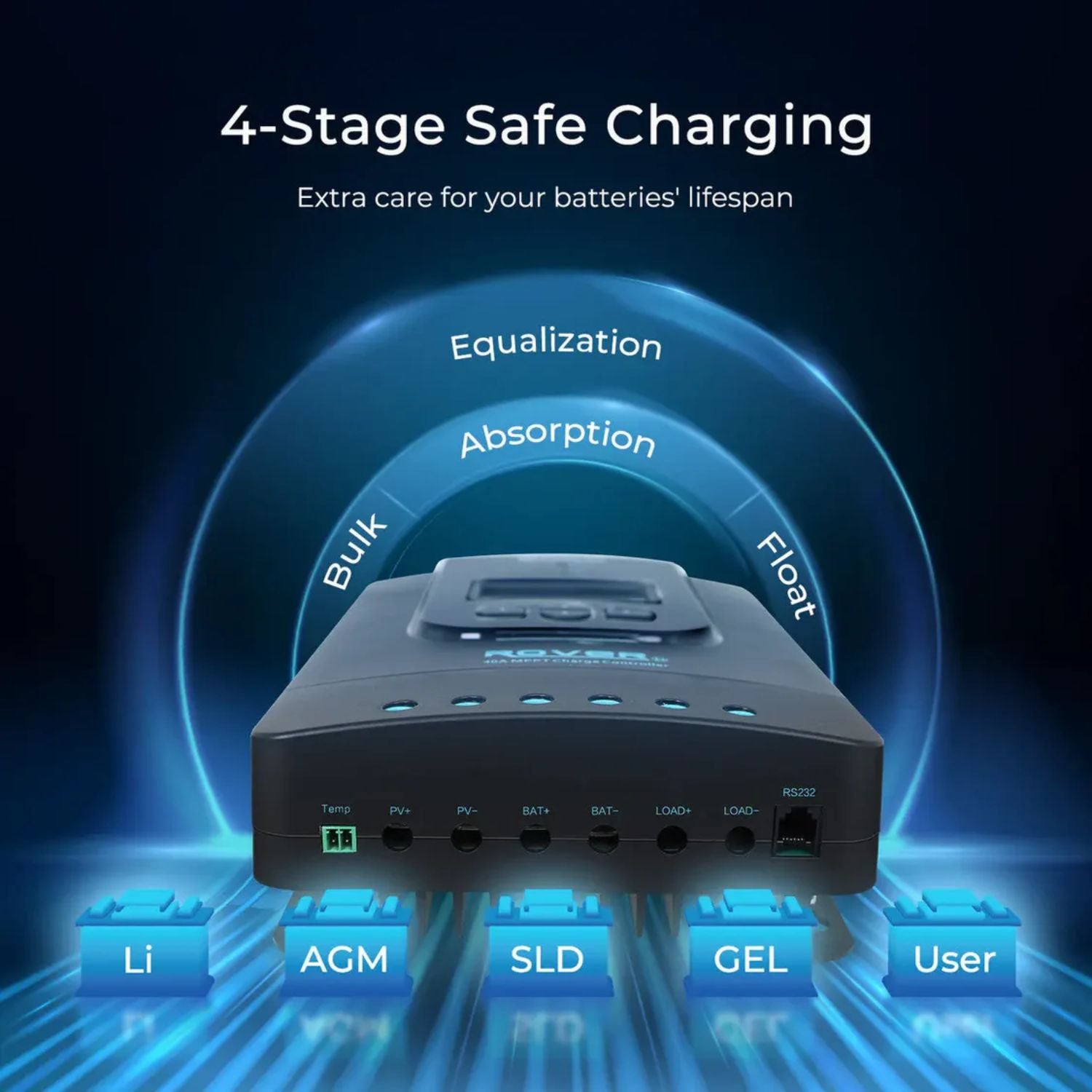

Rover Li 40A MPPT Controller
The Rover auto-detects 12V or 24V systems, accepts up to 100V of solar input and supports up to 520W at 12V. Strong heat dissipation keeps it running efficiently in extreme temperatures, and the BT-2 module adds app monitoring.

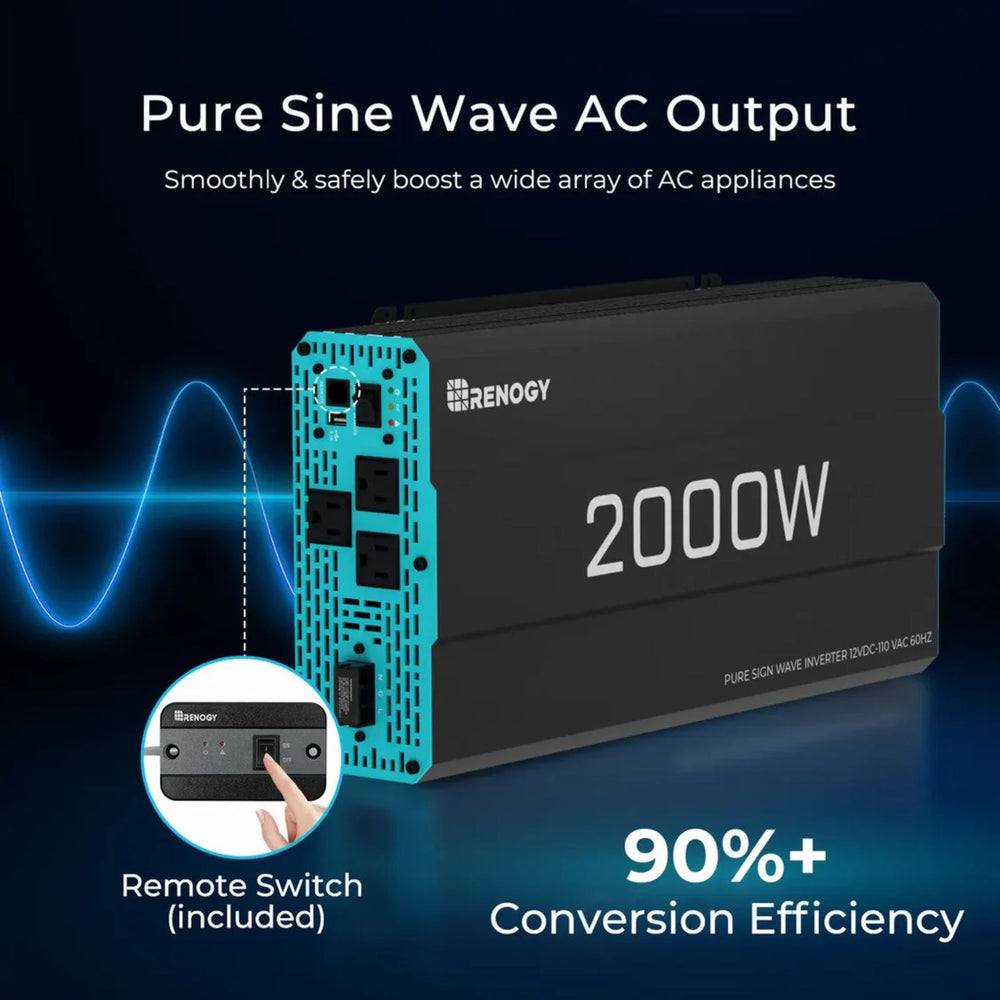

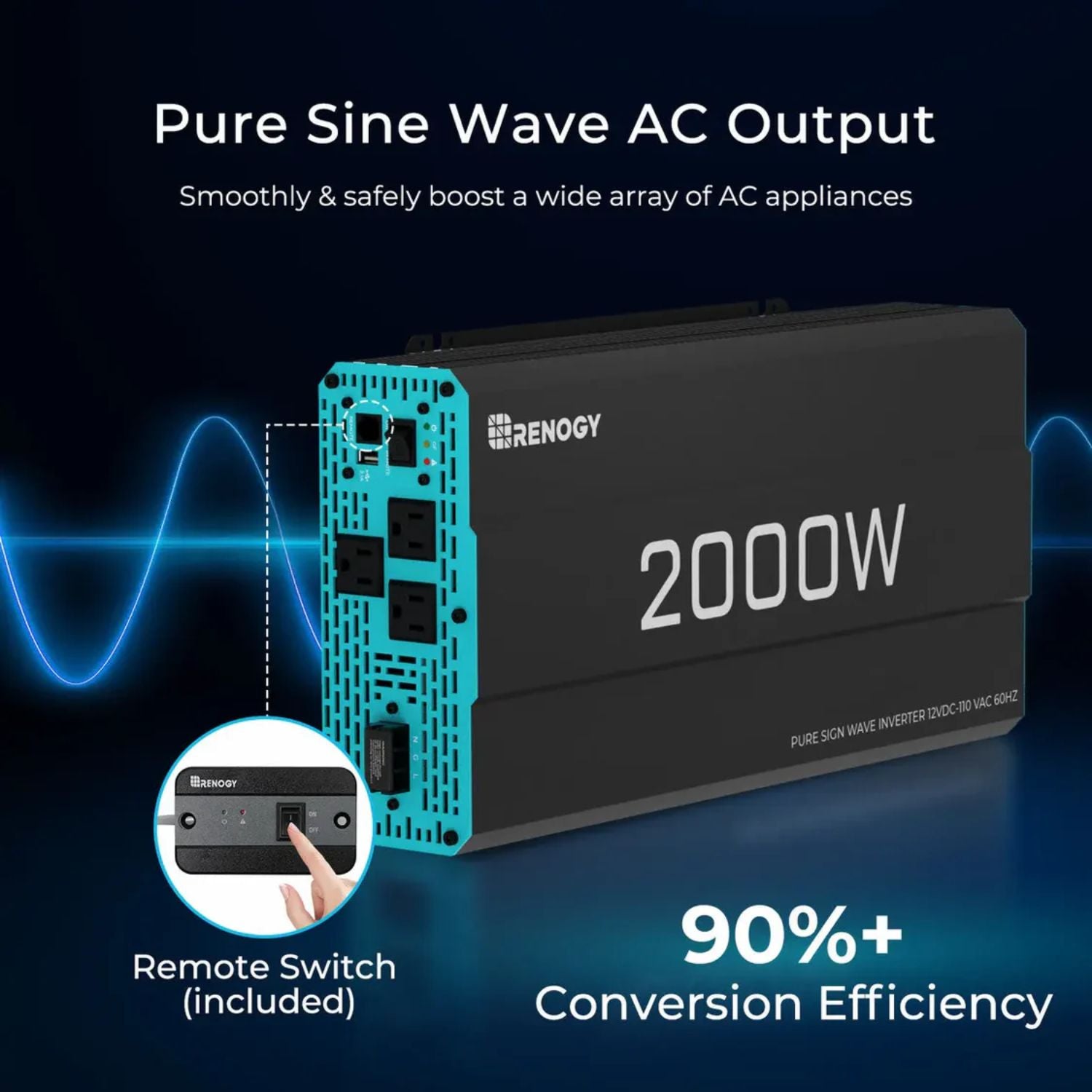

2000W Pure Sine Wave Inverter
The inverter delivers 2,000W continuous and 4,000W peak at 115V AC, enough to run a microwave, coffee maker, TV, laptops and power tools with clean, grid-quality power.
2.4kWh Battery Bank
Two 12V 100Ah batteries store 2.4kWh. The AGM option is sealed and maintenance-free. The Lithium option weighs far less per battery, offers far longer cycle life, monitors itself over Bluetooth and heats itself for cold-weather charging.
Complete Wiring and Protection
Adaptor and tray cables, battery interconnect and inverter cables, a 40A ANL fuse, a 30A in-line PV fuse and three pairs of Y branch connectors are all included.
Real-World Applications
RVs and travel trailers. Run AC outlets, a fridge and electronics without shore power.
Cabins and sheds. Set up a complete off-grid system in one purchase.
Tiny homes and vans. Get matched solar, storage and AC power in a single kit.
Home backup. Keep lights, a router and essentials running during outages.
How It Compares to Common Alternatives
AGM versus Lithium. The AGM kit costs less up front and needs no BMS, but AGM batteries are heavy and should only be discharged to about 50%. The Lithium kit uses nearly all of its 2.4kWh, lasts thousands of cycles and charges in freezing weather.
Versus buying components separately. The kit pre-matches panels, controller, inverter, batteries and cables, saving research and guesswork.
Versus portable power stations. Power stations are simpler but harder to expand. This kit can grow with more panels and batteries.
Is This Kit the Right Fit
-
Space and weight. AGM batteries weigh 63.9 lbs each. Lithium batteries weigh 26.9 lbs each. Plan a secure battery compartment.
-

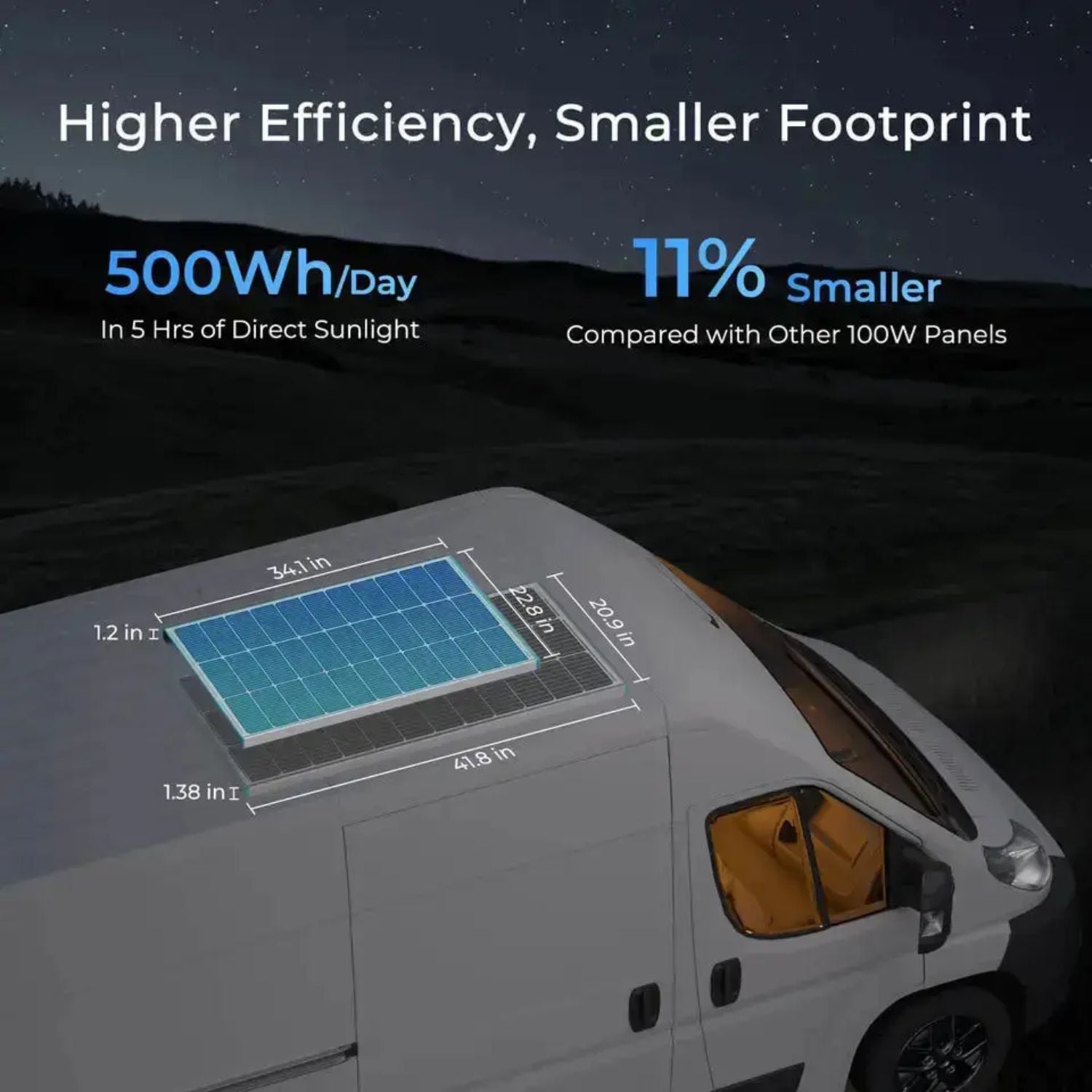

Roof space. Four panels need roughly 34.1 x 91.2 inches in a row, plus clearance.
-
Expansion. Add panels within the Rover's 520W limit at 12V, or add batteries as your needs grow.
This may be a good fit if
- You want a complete solar, battery and inverter system in one box
- You need 120V AC power off-grid
- You want to choose between AGM and lithium storage
- You prefer pre-matched components
Common Questions
What Can I Run With This Kit?
LED lighting, phones, laptops, a TV and an energy-efficient or mini refrigerator. Larger appliances may need more solar or battery capacity.
How Much Power Does It Produce Daily?
Roughly 2,000 to 2,500Wh with 5 to 6 peak sun hours, depending on location, weather and panel angle.
Can It Run a Refrigerator?
Many energy-efficient refrigerators and mini fridges work well, as long as you account for starting surge and have enough battery storage for nights.

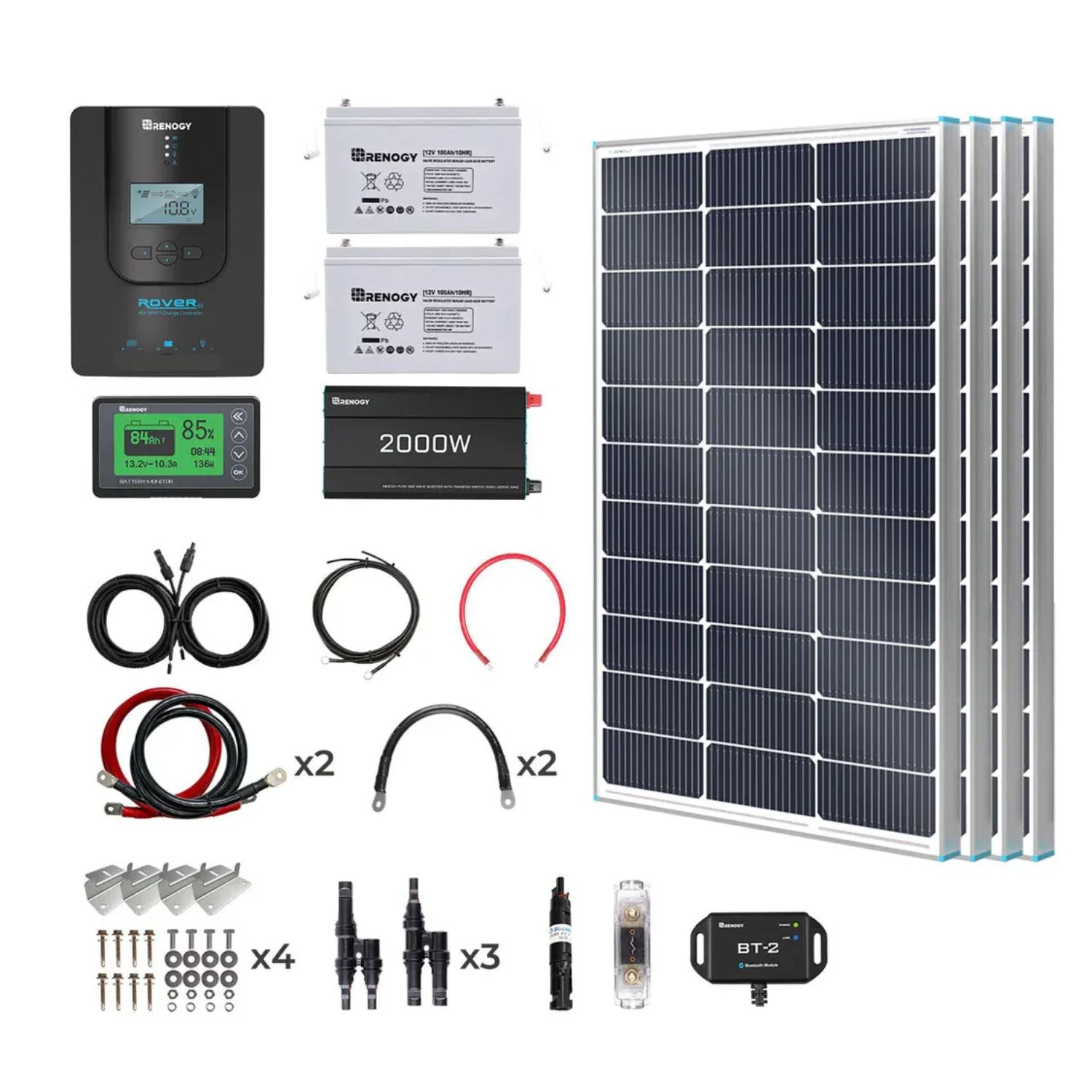

What's Included
Both Versions
- 4 x Renogy 16BB N-Type 100W Solar Panels
- 1 x Renogy Rover Li 40A MPPT Solar Charge Controller
- 1 x Renogy BT-2 Bluetooth Module
- 1 x Renogy 2000W 12V Pure Sine Wave Inverter
- Z Mounting Brackets for 4 Panels
- 3 x Pairs of Solar Y Branch Connectors (MMF + FFM)
- 1 x 20ft 10 AWG Solar Adaptor Kit
- 1 x 8ft 8 AWG Battery to Charge Controller Tray Cables
- 2 x 16in 4 AWG Copper Battery Interconnect Cables (5/16 in lugs)
- 1 x 1ft 8 AWG ANL Fuse Cable with Double Ring Terminals (3/8 in lugs)
- 1 x 40A ANL Fuse Set with Fuse
- 1 x 30A Waterproof In-Line Solar Fuse Holder with Fuse
- 2 x Battery Inverter Cables (3/8 in lugs)
AGM Version Adds
- 2 x Renogy 12V 100Ah Deep Cycle AGM Batteries
- 1 x Renogy 500A Battery Monitor with Shunt

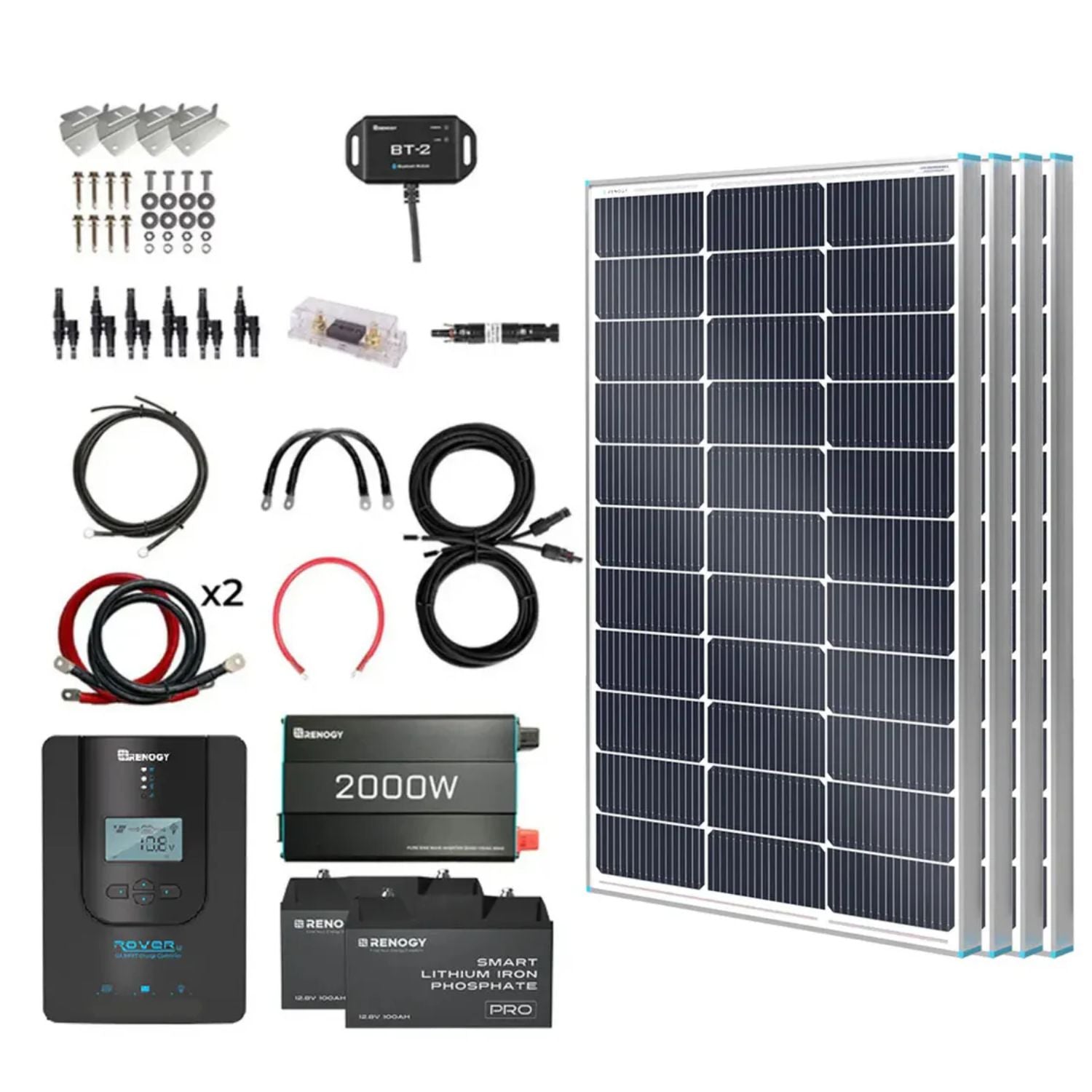

Lithium Version Adds
- 2 x Renogy 12V 100Ah Smart Lithium Batteries with Bluetooth and Self-Heating
Everything You Need for Off-Grid Power
The Renogy Complete 400W 12V RV Solar Kit brings solar panels, an MPPT controller, a 2000W inverter and a 2.4kWh battery bank together in one ready-to-install system. At Outbound Power, we help customers choose between AGM and lithium and plan future expansion. If you have questions, our team is happy to help.
Renogy Complete RV Solar Kit 400W 12V Specifications
|
| Kit Models |
RKIT400DAP2 (AGM), RKIT400DLP2 (Lithium) |
| Estimated Daily Output |
2,000 to 2,500Wh (5 to 6 peak sun hours) |

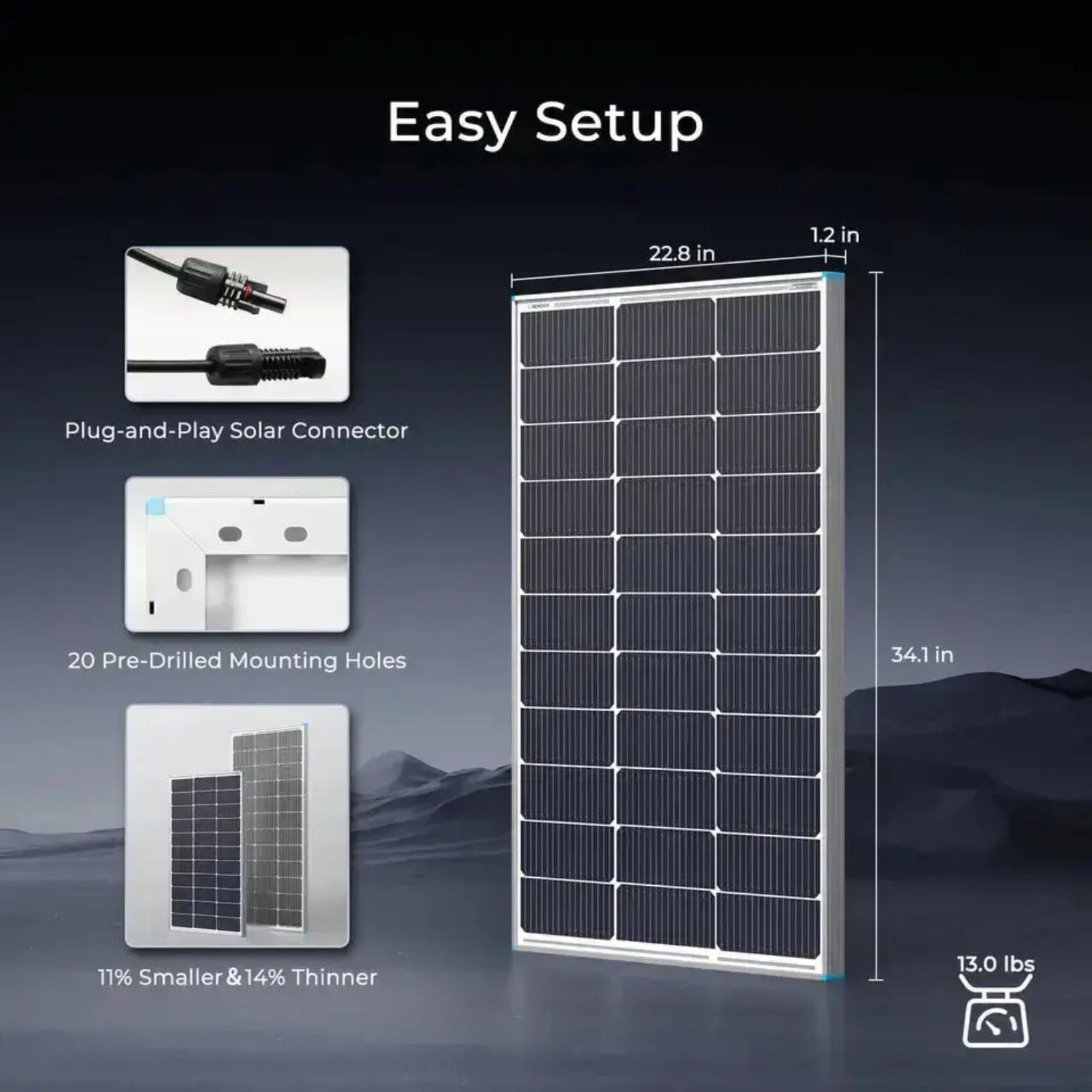

| 16BB N-Type 100W Solar Panel (x4) |
| Max Power at STC |
100W each (400W total) |
| Open Circuit Voltage (Voc) |
22.79V |
| Short Circuit Current (Isc) |
5.31A |
| Optimum Operating Voltage (Vmp) |
19.97V |
| Optimum Operating Current (Imp) |
5.01A |
| Dimensions |
34.1 x 22.8 x 1.2 in (865 x 578 x 30 mm) |
| Weight |
13.0 lbs (5.9 kg) each |
| Rover Li 40A MPPT Charge Controller |
| Nominal System Voltage |
12V/24V auto-recognition |
| Max PV Input Voltage |
100VDC |
| Max Battery Voltage |
32V |
| Rated Charge Current |
40A |
| Max PV Input Power |
520W at 12V; 1,040W at 24V |
| 2000W 12V Pure Sine Wave Inverter |
| Continuous Output Power |
2,000W |
| Peak Power |
4,000W |
| Output Voltage |
115V AC |
| Dimensions |
17.8 x 8.6 x 4 in |
| Weight |
11.7 lbs |

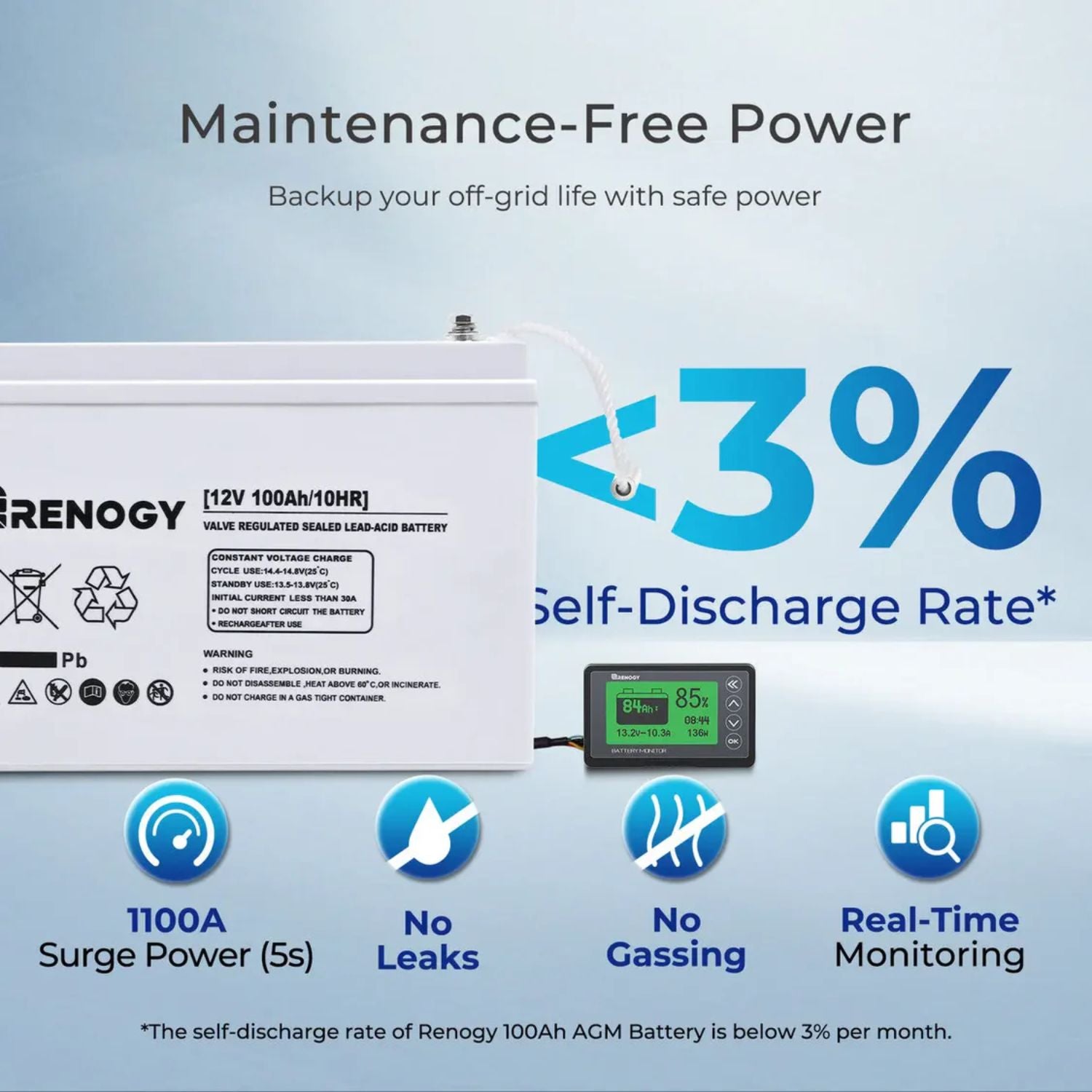

| 12V 100Ah Deep Cycle AGM Battery (AGM Version, x2) |
| Rated Capacity |
100Ah (10-hour rate to 10.5V) |
| Cycle Use Voltage |
14.4V to 14.8V |
| Dimensions |
13.1 x 6.9 x 8.6 in (332 x 175 x 219 mm) |
| Weight |
63.9 lbs (29 kg) each |
| 12V 100Ah Smart Lithium Battery (Lithium Version, x2) |
| Chemistry |
Lithium iron phosphate, Bluetooth and self-heating |
| Rated Capacity |
100Ah |
| Voltage Range |
10V to 14.8V |
| Dimensions |
10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm) |
| Weight |
26.9 lbs (12.2 kg) each |
