The Renogy CORE Series 12V 300Ah LiFePO4 Battery Comes in a Compact Mini Version or a Self-Heating Core Version
The Renogy CORE Series 12V 300Ah LiFePO4 Battery with Low-Temperature Protection puts 3.84kWh of lithium iron phosphate storage into one battery, so a single unit can replace an old three-battery lead-acid setup. Both versions are rated for 5,000 cycles at 80% depth of discharge, use a 200A battery management system and can be expanded to a 61.44kWh bank.

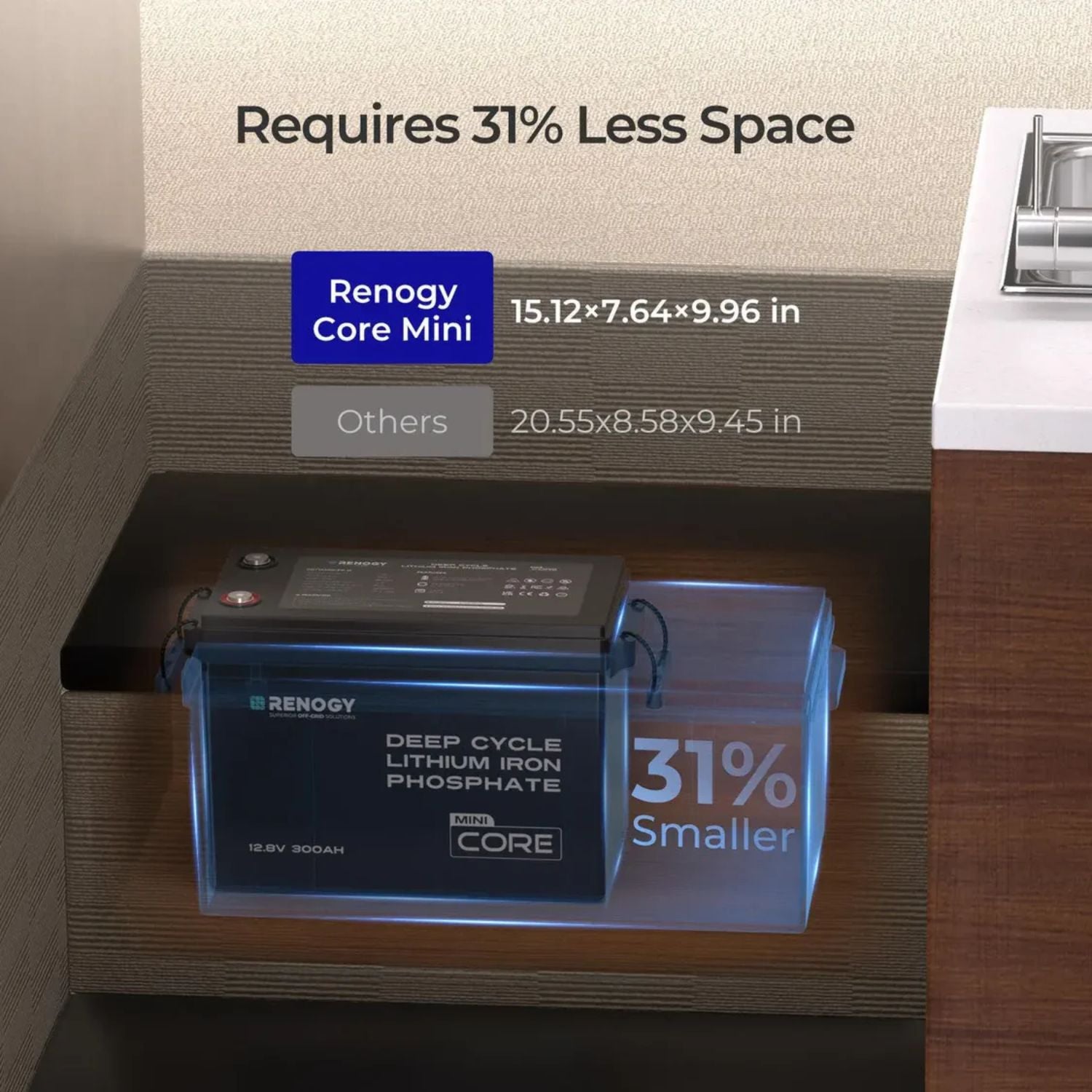

Choose the 300Ah Mini for the lightest, most compact option. At 55.1 lbs and 15.12 x 7.64 x 9.96 inches, it is about 31% smaller than comparable 300Ah batteries and fits many 8D and 4D battery boxes. Choose the 300Ah Core (Self-Heating) if you camp, live or store your system where temperatures drop below freezing. Its 200W heating elements warm the cells so it can keep charging in the cold. Each version is offered in 1, 2 or 4 packs.
Renogy CORE Series 12V 300Ah Battery Features

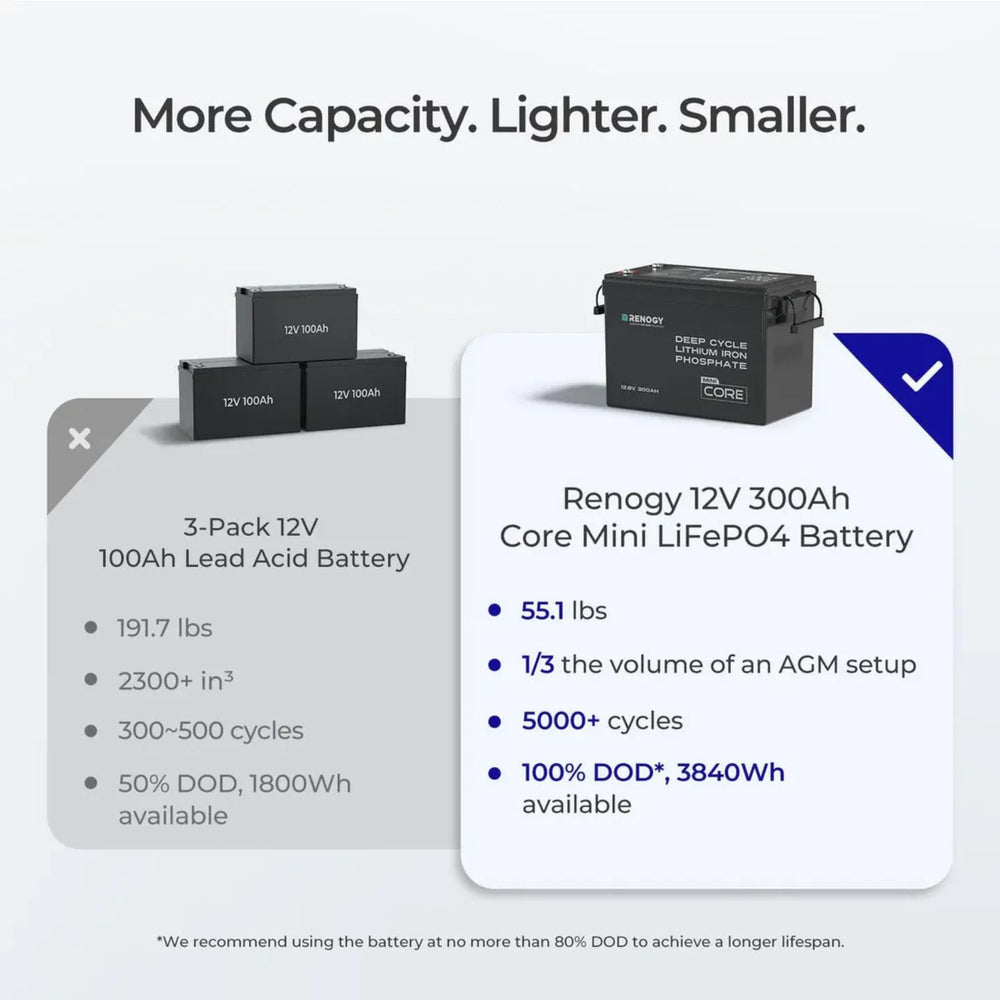

One Battery Instead of Three
A single 300Ah battery delivers about three times the usable energy of a typical lead-acid setup with just two cable connections. With one battery there is no imbalance between batteries to manage.

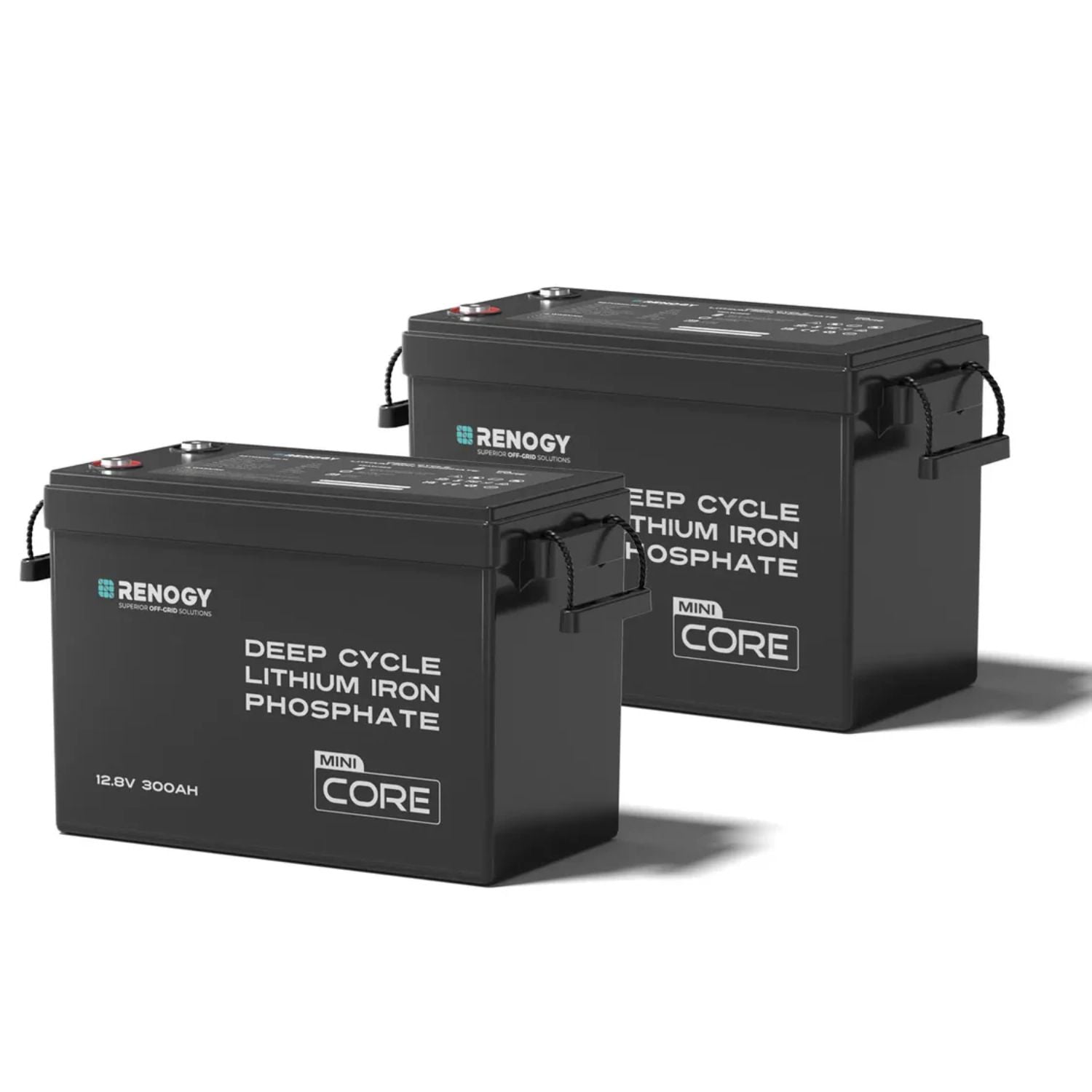

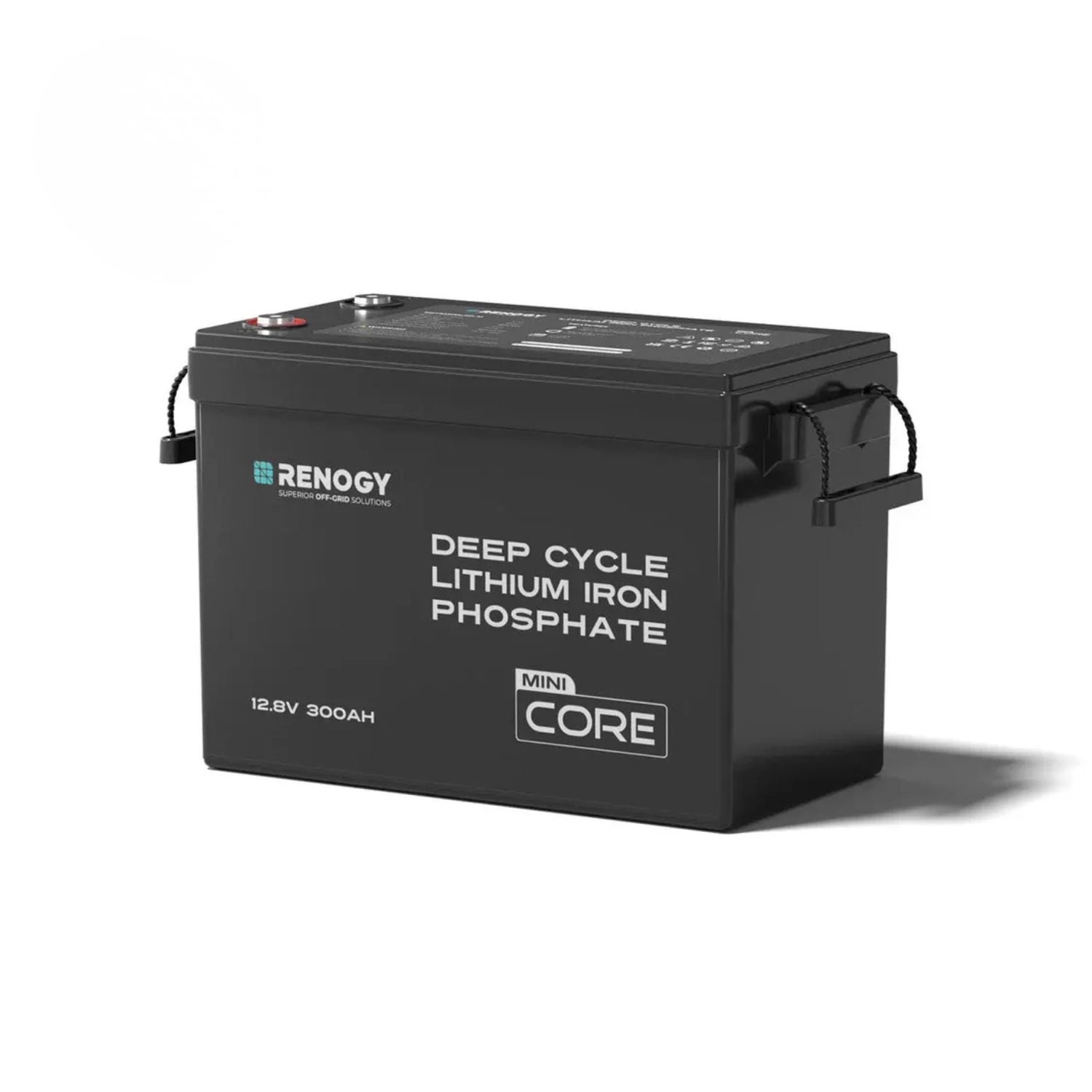

Light and Compact Mini Version

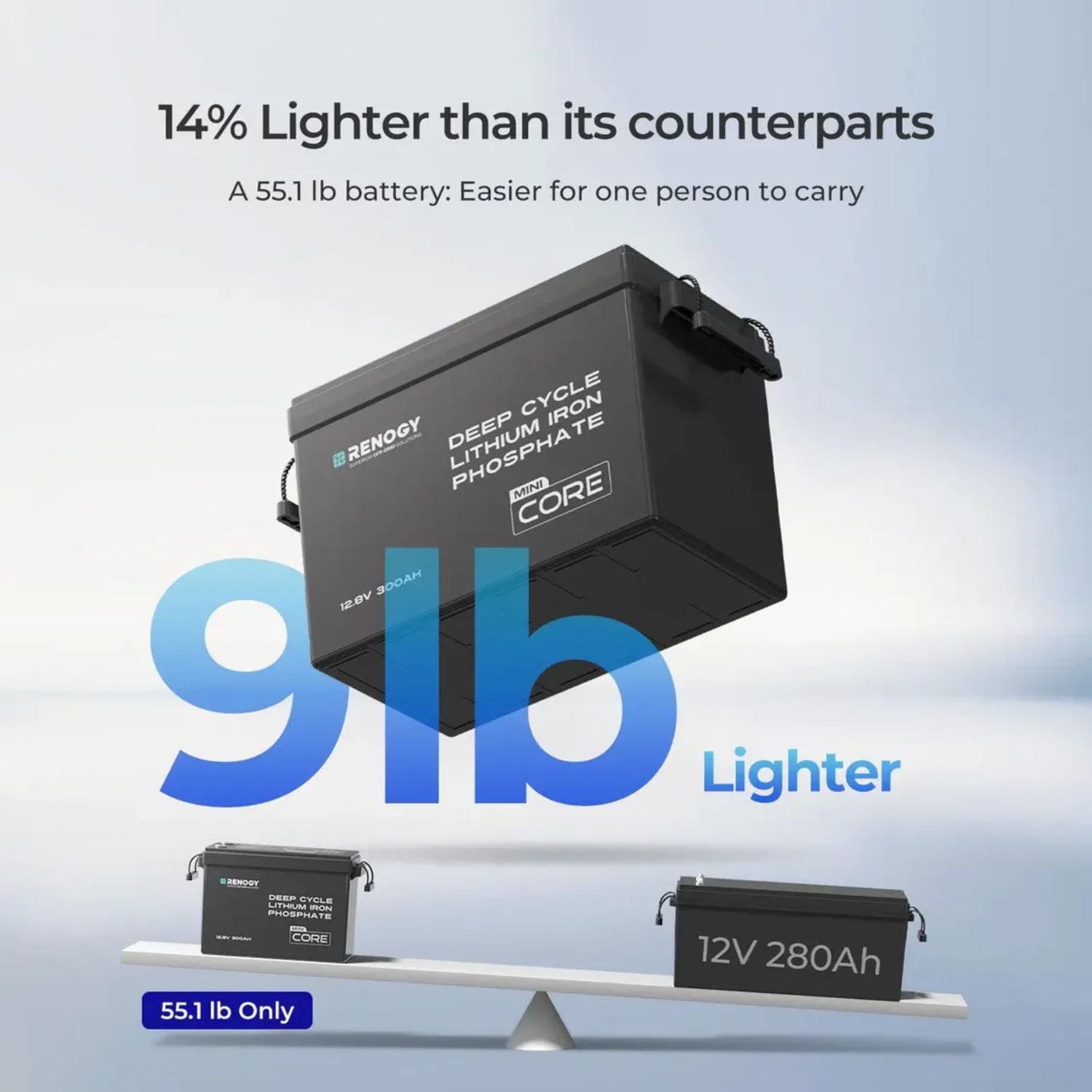

The Mini weighs 55.1 lbs, about 57% less than a 12V 200Ah lead-acid battery and light enough for one person to carry. Its compact case leaves more room for wiring and maintenance.

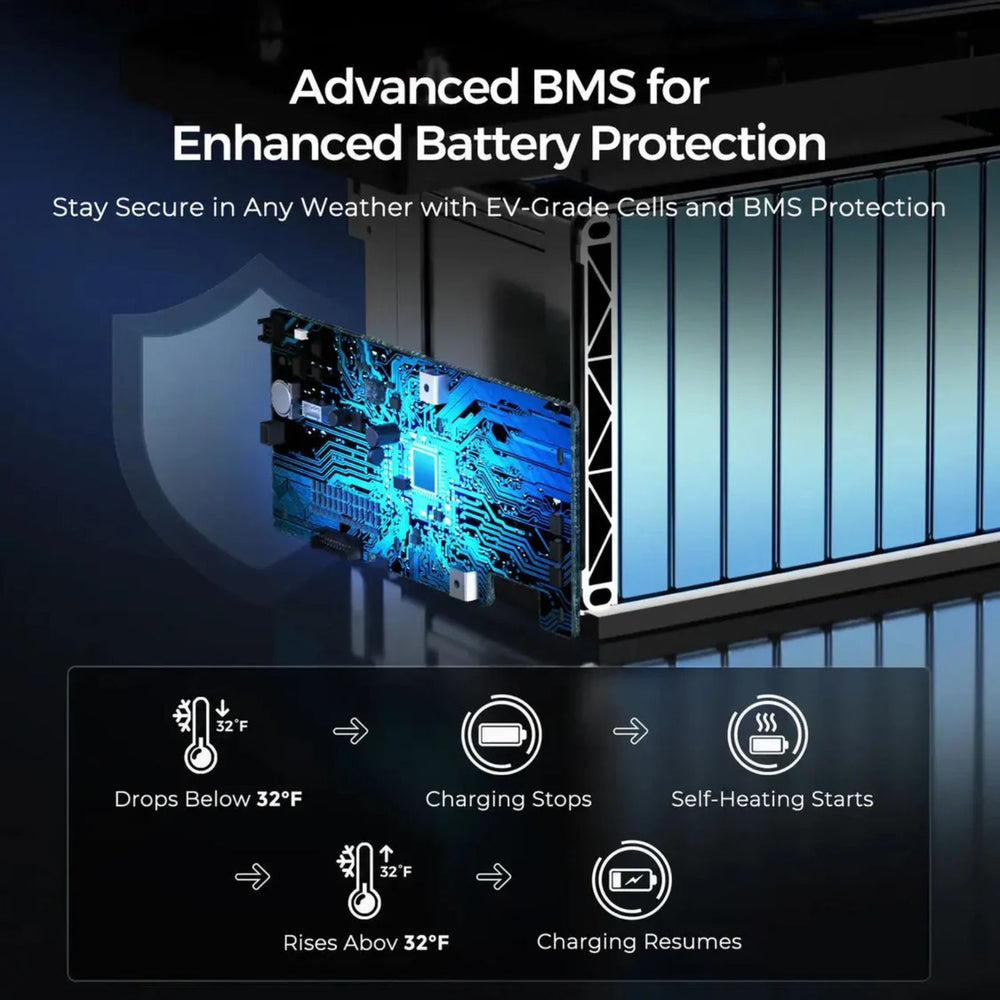

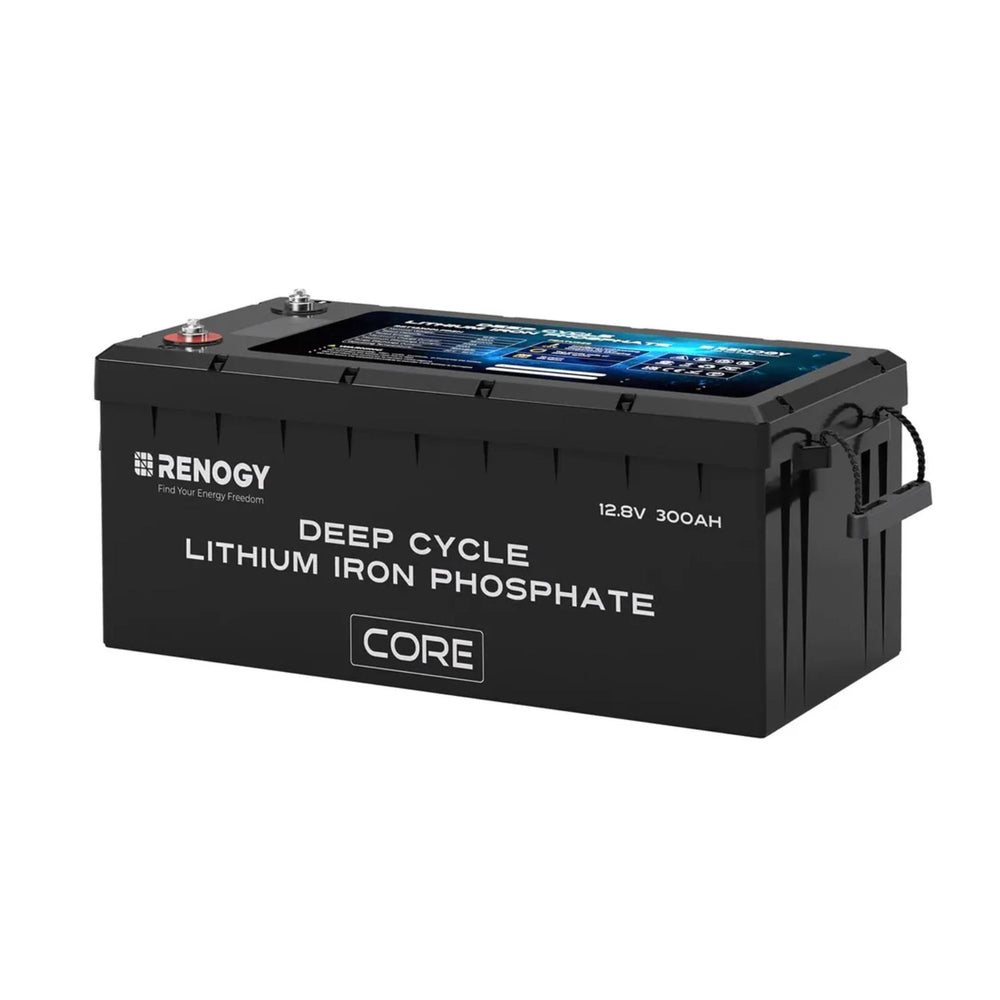

Self-Heating Core Version

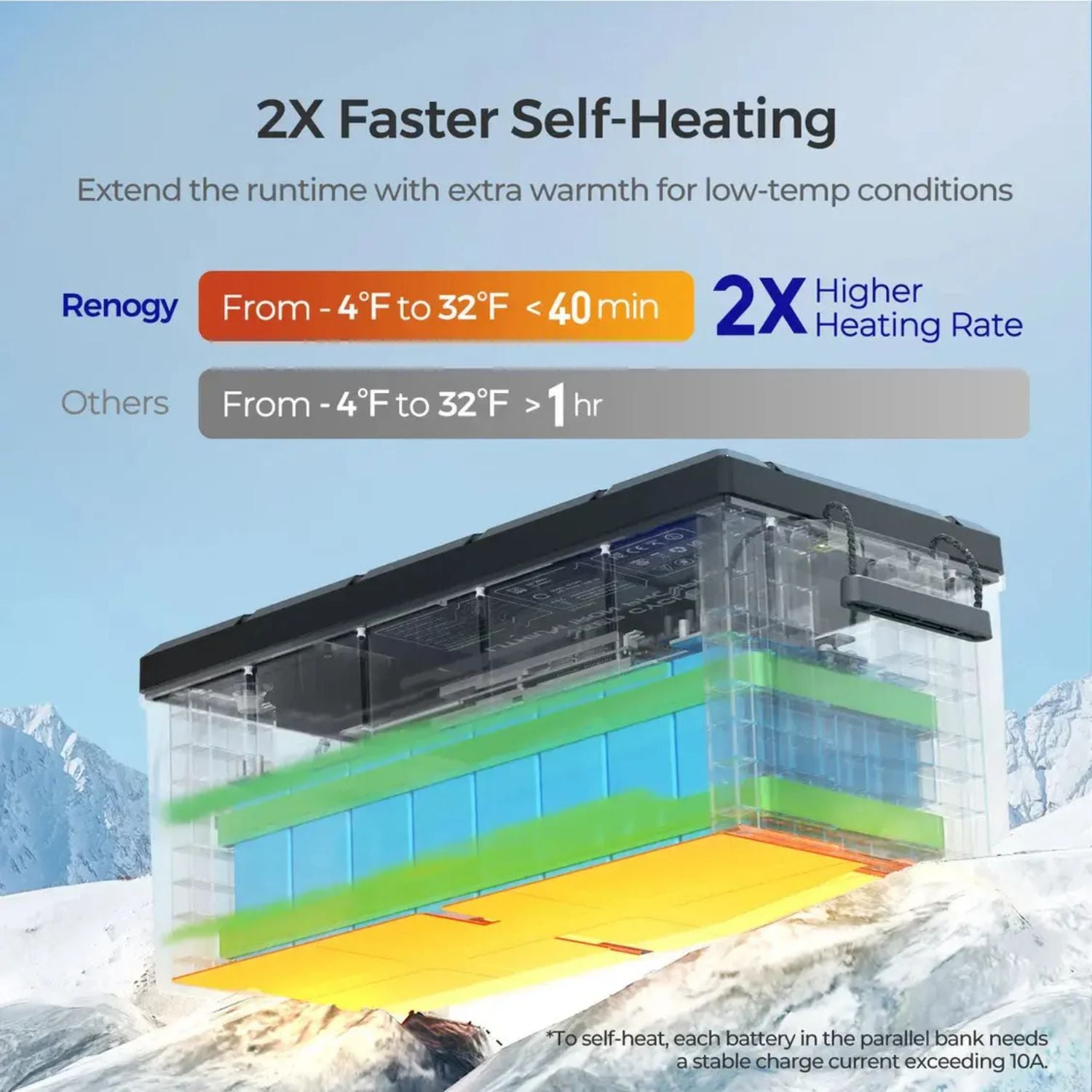

The Core version's 200W heaters switch on at 32°F (0°C) when the battery receives a stable charge current above 10A, letting it charge in freezing weather.

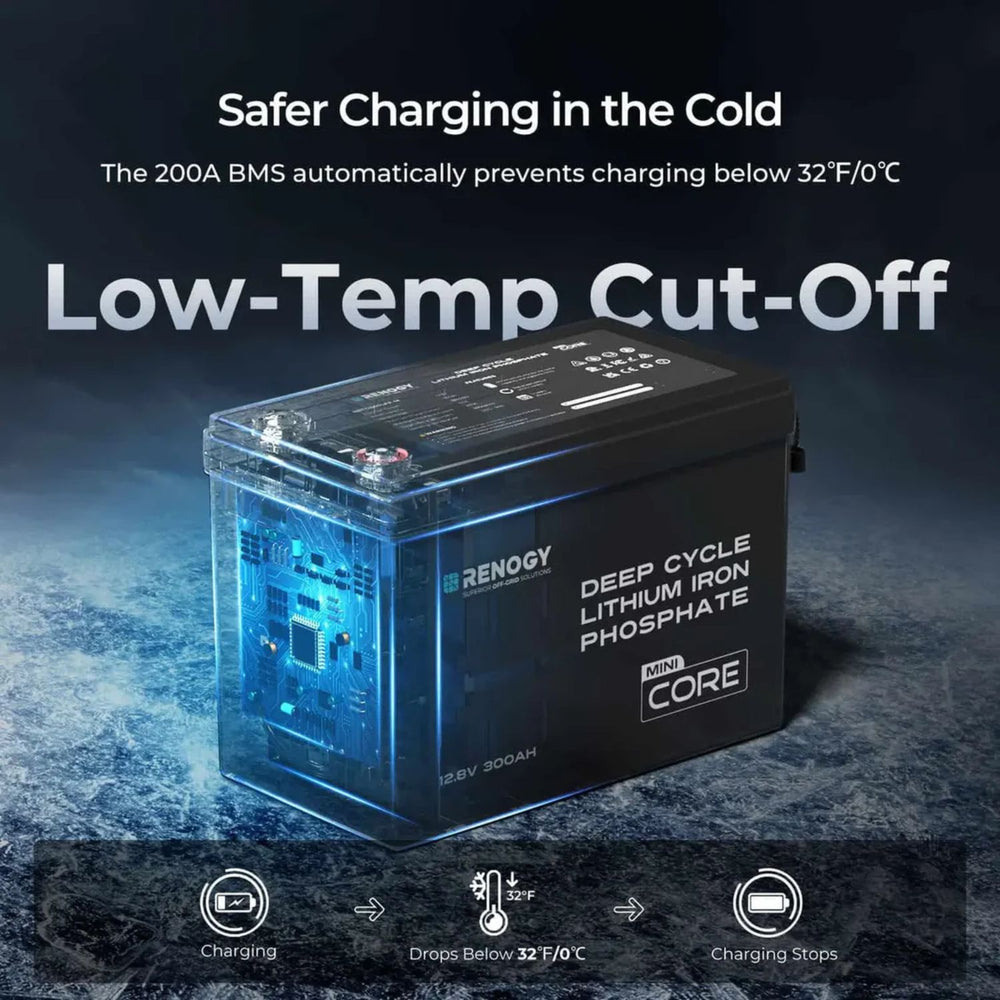

Low-Temperature Protection
Both versions include a BMS with low-temperature cut-off, so the battery protects itself in the cold without you having to shut it down manually.
5,000 Cycle Rated Life
Rated for 5,000 cycles at 80% depth of discharge with EV-grade cells and IP65 protection, either version should provide many years of daily use.

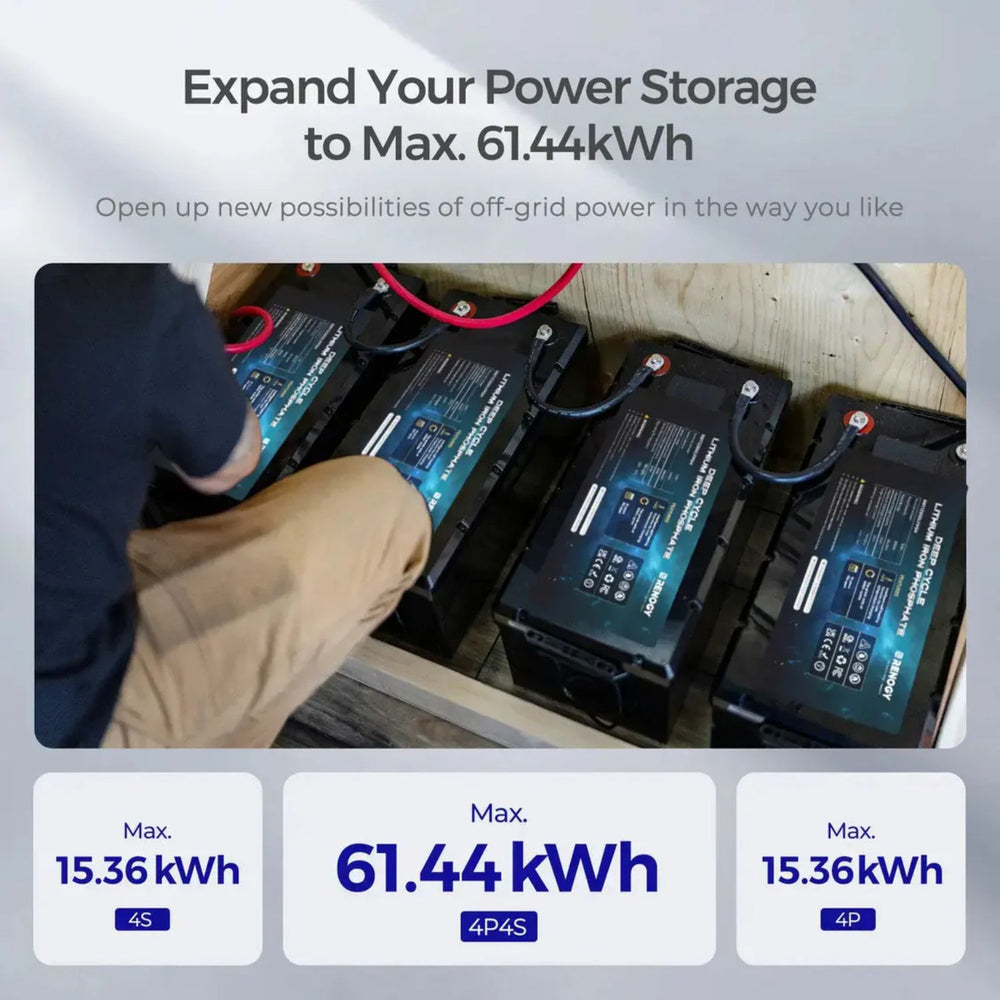

Expand Up to 61.44kWh
Connect up to 4 batteries in series for 24V, 36V or 48V, up to 4 in parallel, or 16 in a 4S4P bank. Use batteries of the same model.
Real-World Applications

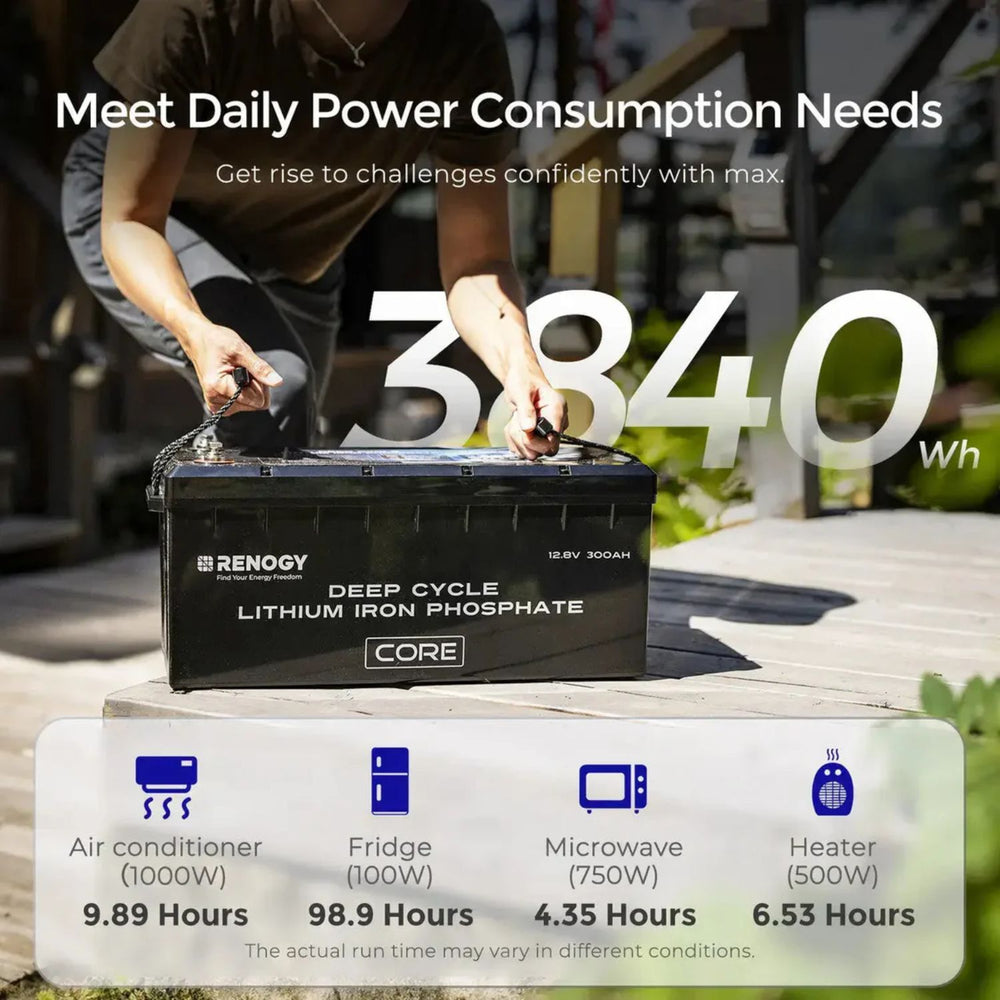

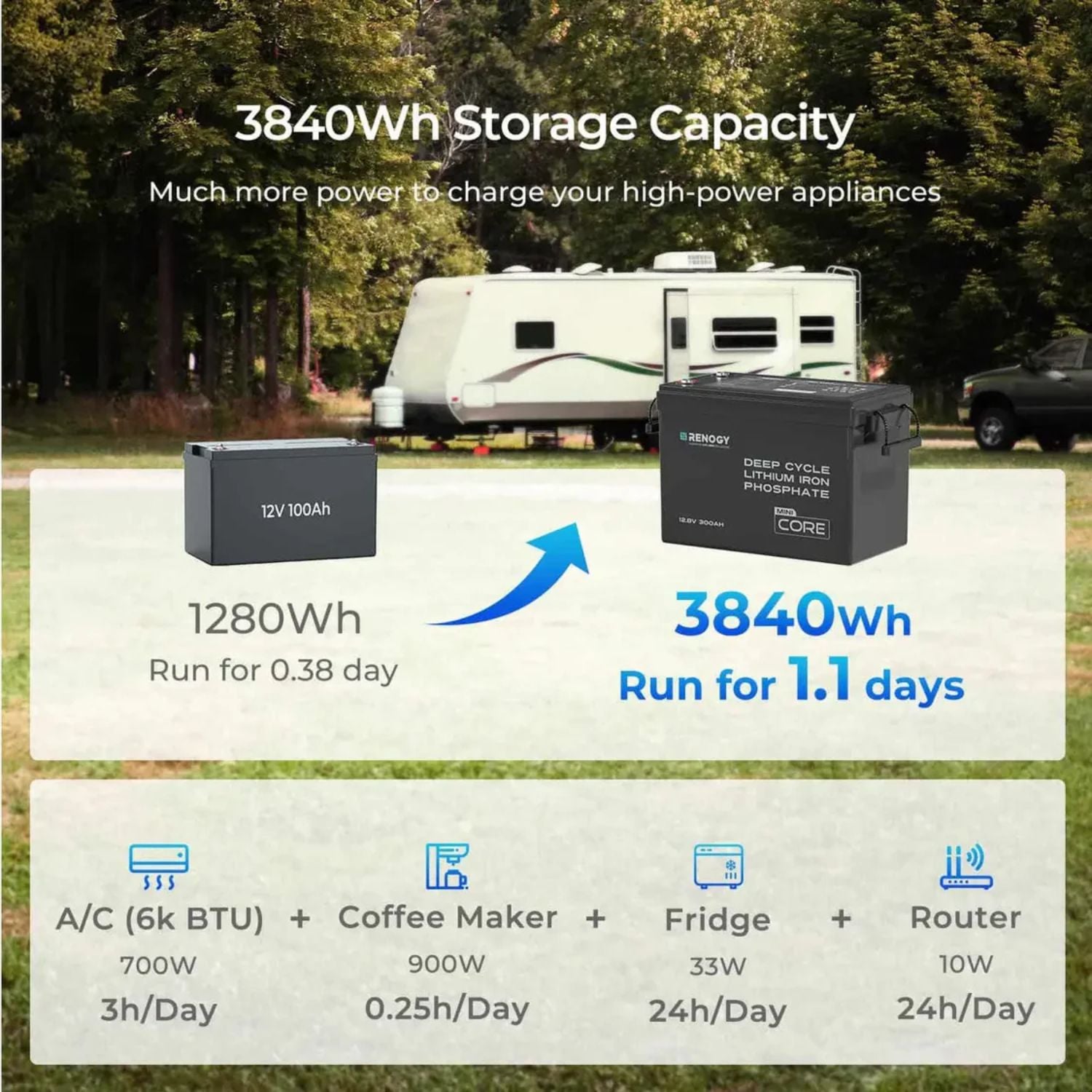

RVs and campers. Two batteries provide 7,680Wh, which Renogy says can run a refrigerator, microwave, coffee maker and air conditioner for 24 hours or more.
Boats. Power navigation, lighting, heating and onboard essentials, with the Mini fitting standard marine battery boxes.
Cabins and off-grid homes. Build a 24V or 48V bank for a solar system.
Home backup. Store enough energy to keep a refrigerator, lights and electronics going through an outage.
How It Compares to Common Alternatives
Mini versus Core. The Mini is lighter and smaller but does not heat itself and charges from 32°F up. The Core adds self-heating and a 200A charge rating but is larger at 20.55 x 9.45 x 8.62 inches and 60.63 lbs.

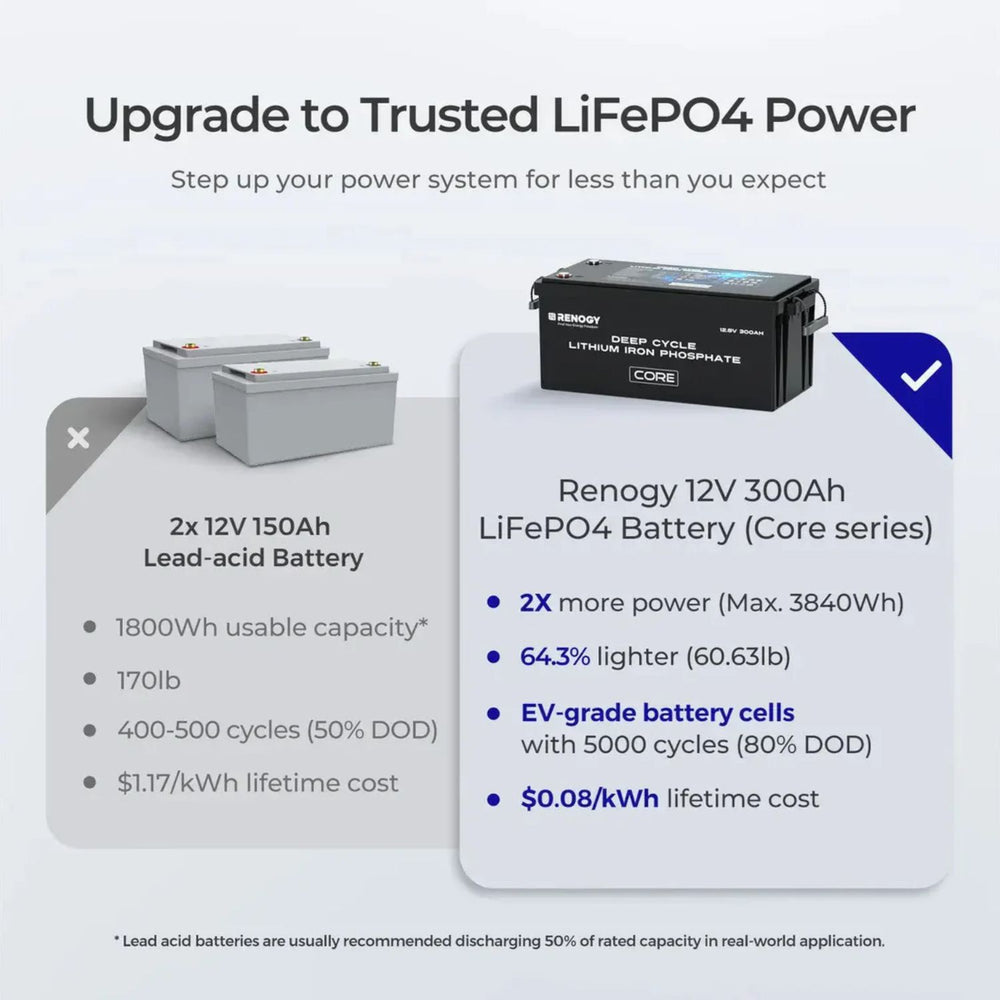

Versus lead-acid batteries. A lead-acid bank of similar usable capacity weighs far more, needs maintenance and lasts a fraction as long.
Versus 12V 200Ah batteries. A 200Ah battery is smaller and costs less, but you would need two to beat one 300Ah battery's capacity.
Is This Battery the Right Fit
-
Climate. If you need to charge below 32°F, choose the Core (Self-Heating) version.
-
Space. Measure your battery compartment. The Mini fits many 8D and 4D boxes.
-
Charging. Use a lithium-compatible charge controller or charger. The Mini accepts up to 150A and the Core up to 200A.
-
Monitoring. Neither version has Bluetooth. Add a Renogy 500A Battery Monitor with Shunt for state-of-charge readings.
This may be a good fit if
- You want a large 12V bank in a single battery
- You are replacing several lead-acid batteries
- You need a compact battery or cold-weather charging
- You plan to build a 24V or 48V system
Common Questions
Will Four 100W Solar Panels Work With This Battery?
Yes, as long as your solar charge controller can handle the panels' output. Never connect panels directly to a battery.
Can I Build a 48V System?
Yes. Wire four batteries in series for 48V and add strings in parallel for up to 61.44kWh.
Can I Add a Bluetooth Module?
No. Use a 500A battery monitor with shunt, sold separately.
How Do I Recharge It?
Charge from solar, a DC-DC charger or an AC-DC charger, using a charger designed for lithium iron phosphate batteries.
What's Included

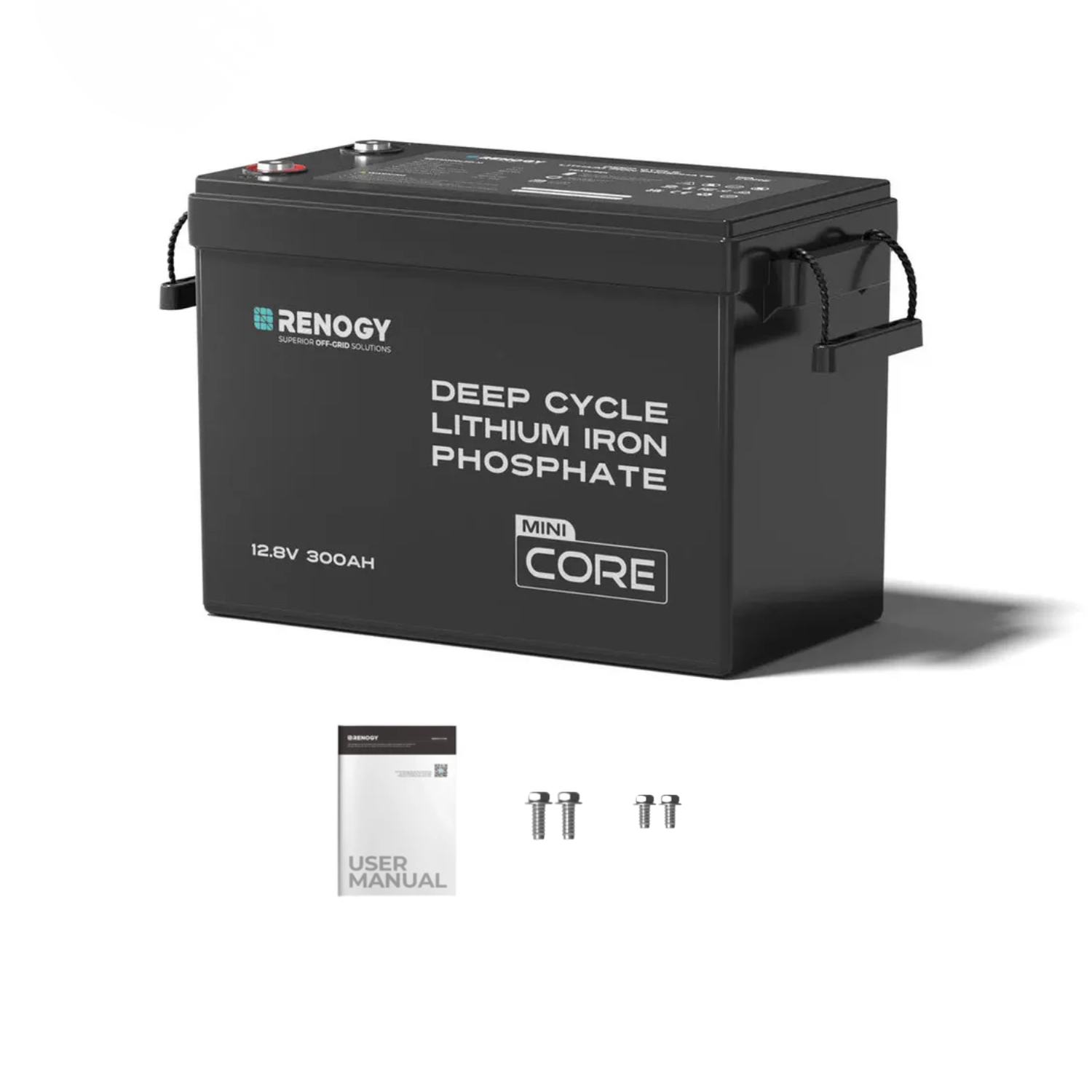

300Ah Mini (per battery)
- 1 x Renogy CORE Mini 12.8V 300Ah Lithium Iron Phosphate Battery
- 2 x Long Terminal Bolts (M8 x 1.25 x 16 mm)
- 2 x Terminal Bolts (M8 x 1.25 x 12 mm)
- 1 x User Manual

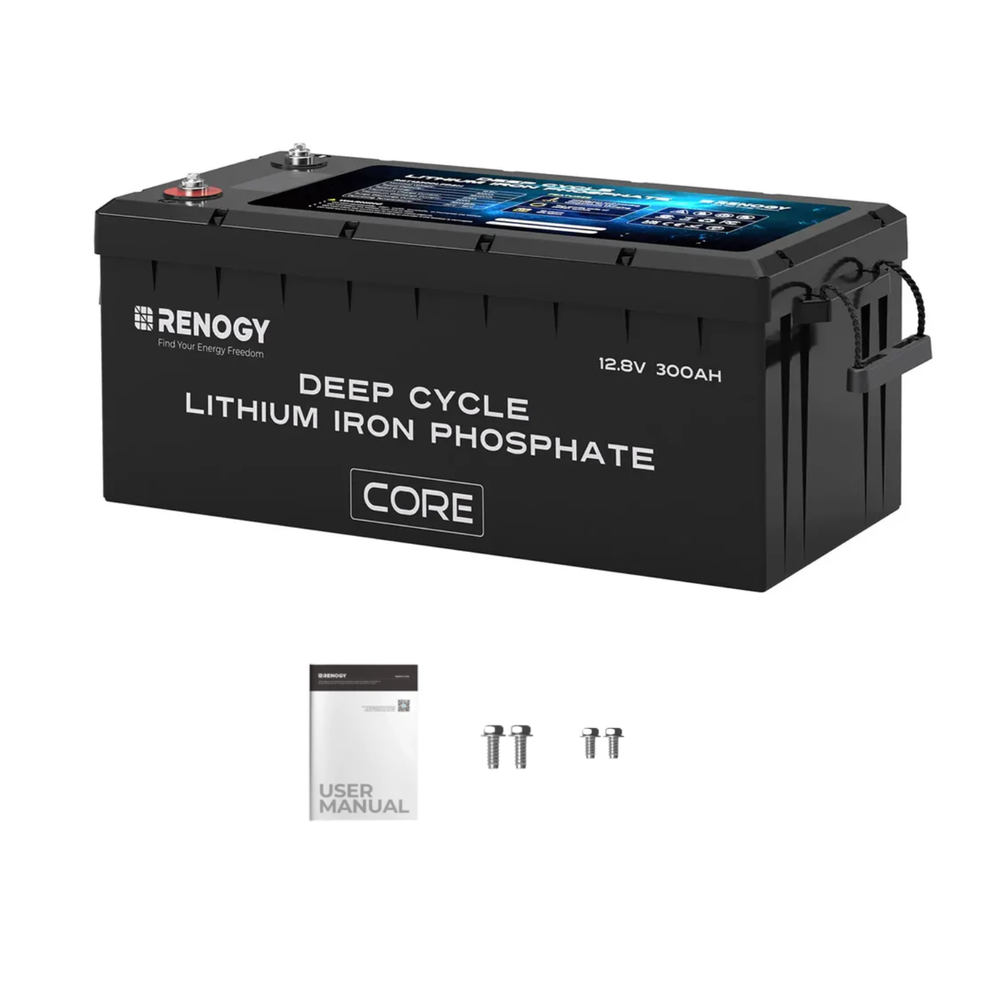

300Ah Core Self-Heating (per battery)
- 1 x Renogy CORE 12V 300Ah Self-Heating Lithium Iron Phosphate Battery
- 2 x Long Terminal Bolts
- 2 x Insulating Sleeves
- 1 x User Manual

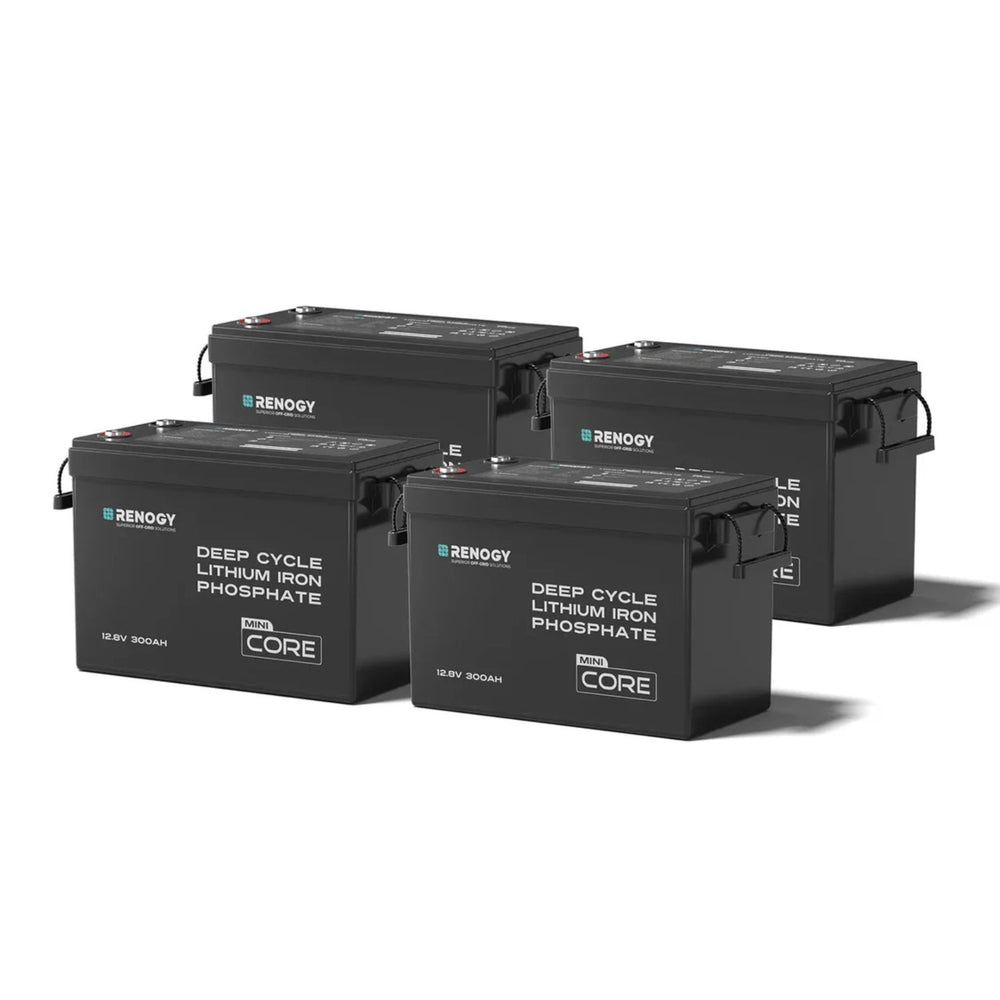

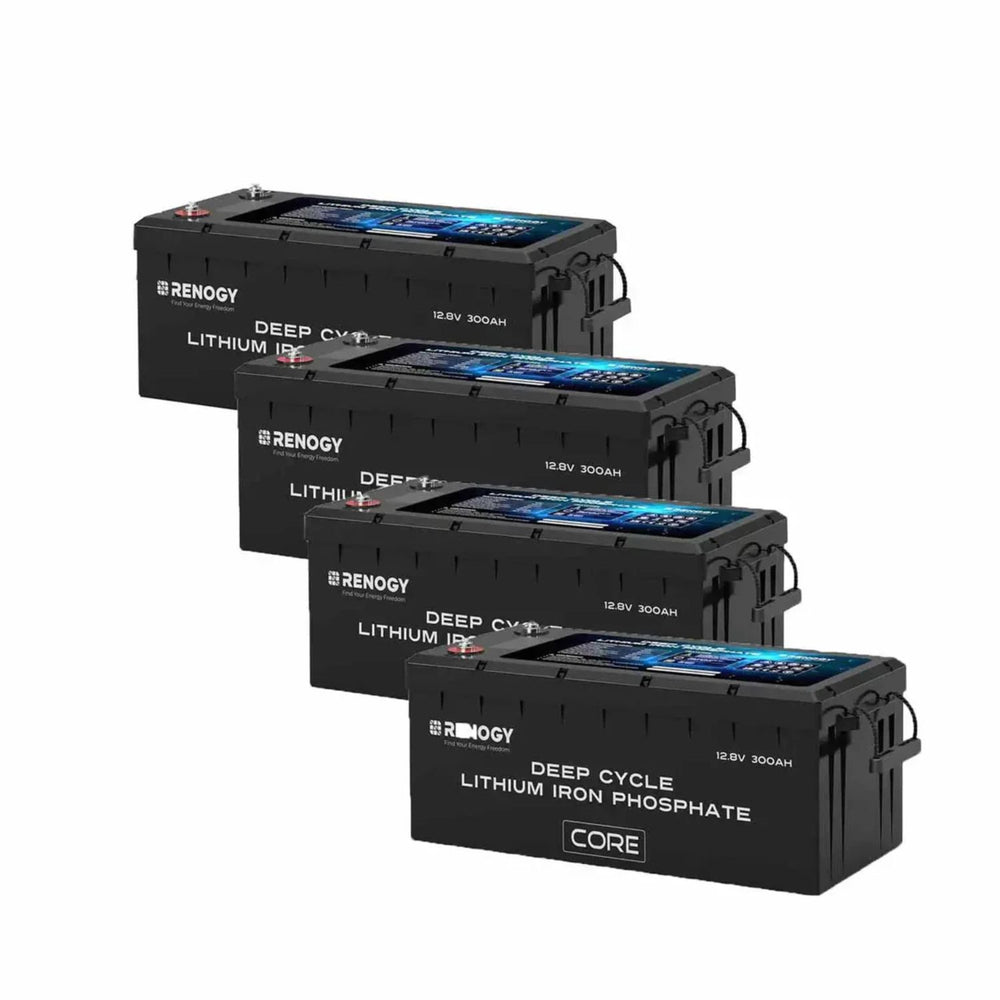

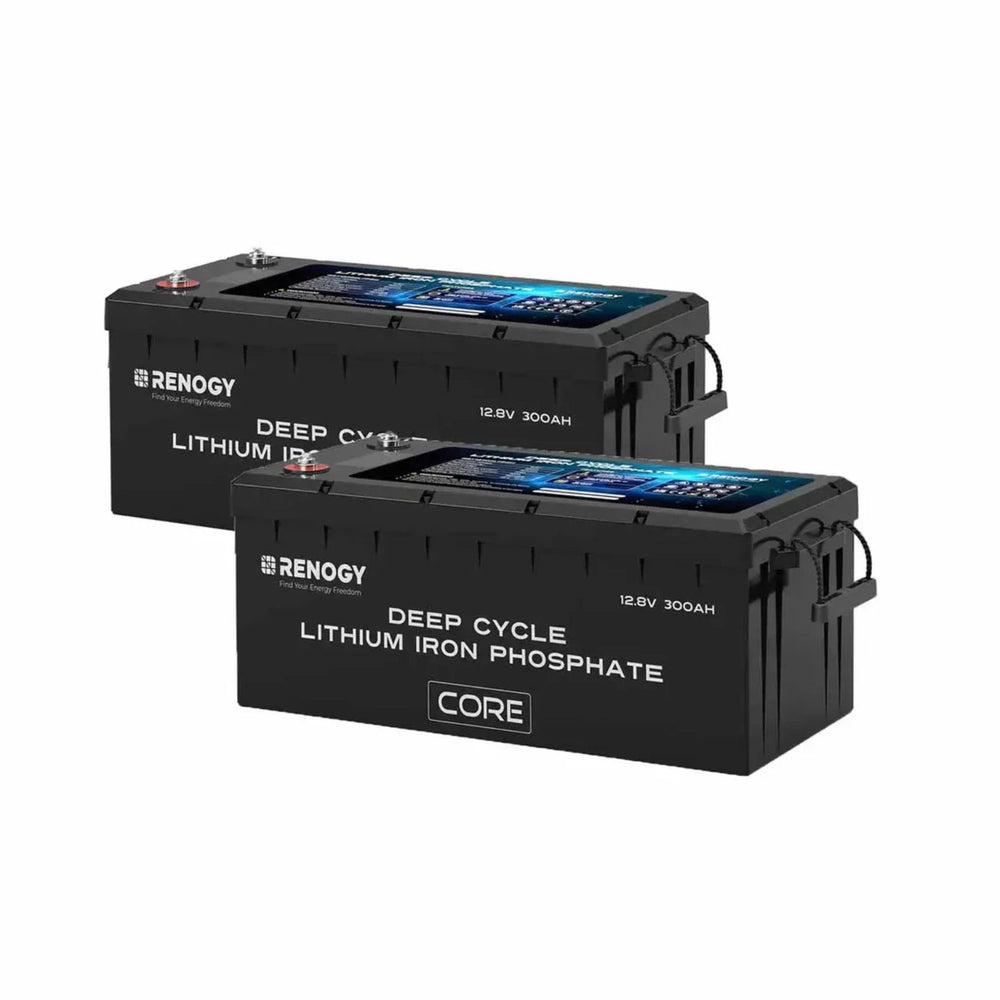

2 Pack and 4 Pack options include 2 or 4 batteries, each with its own accessories.
A 300Ah Lithium Battery Sized for Your Space and Climate
The Renogy CORE Series 12V 300Ah LiFePO4 Battery lets you choose between a compact Mini and a self-heating Core, with the same 5,000-cycle lithium chemistry and expansion up to 61.44kWh. At Outbound Power, we help customers choose the right battery bank, charger and inverter. If you have questions, our team is happy to help.
Renogy 12V 300Ah LiFePO4 Battery Specifications
|
| 300Ah Mini |
| Model |
RBT12300LFP-M-US |
| Chemistry |
Lithium iron phosphate (LiFePO4) |
| Nominal Voltage |
12.8V |
| Rated Capacity |
300Ah (0.5C, 25°C) |
| Energy |
3,840Wh |
| Cycle Life |
5,000 cycles at 80% DOD (0.5C, 25°C) |
| Voltage Range |
10V to 14.8V |
| Max Charge Current |
150A |
| Max Discharge Current |
200A |
| Peak Discharge Current |
380A for 10 seconds |
| Self-Heating |
No (low-temperature charge cut-off) |
| Charge Temperature Range |
32°F to 140°F (0°C to 60°C) |
| Discharge Temperature Range |
-4°F to 149°F (-20°C to 65°C) |
| Storage Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Operating Humidity |
10% to 95% |
| Connection |
Series and parallel up to 4S4P (61.44kWh max) |
| Terminal Bolts |
M8 x 1.25 x 12 mm and M8 x 1.25 x 16 mm |
| Recommended Terminal Torque |
70.8 in-lbs (8 N·m) |
| Dimensions |
15.12 x 7.64 x 9.96 in (384 x 194 x 253 mm) |
| Weight |
55.1 lbs (25.0 kg) |
| Protection Rating |
IP65 |
| Certifications |
MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS, UKCA |
| 300Ah Core (Self-Heating) |
| Model |
RBT12300LFPSH-US |
| Rated Capacity |
300Ah (0.5C, 25°C) |
| Charge Voltage |
14.4V |
| Max Charge Current |
200A |
| Max Discharge Current |
200A |
| Cycle Life |
5,000 cycles at 80% DOD |
| Self-Heating |
Yes, 200W heater, activates at 32°F (0°C) with charge current above 10A |
| Charge Temperature Range |
-4°F to 131°F (-20°C to 55°C) with self-heating |
| Discharge Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range |
-13°F to 149°F (-25°C to 65°C) |
| Connection |
Up to 4 in series, 4 in parallel or 16 in 4S4P |
| Dimensions |
20.55 x 9.45 x 8.62 in (522 x 240 x 219 mm) |
| Weight |
60.63 lbs (27.5 kg) |
| Protection Rating |
IP65 |
| Certifications |
MSDS, UN38.3, FCC, CE, PSE, UKCA |
| Both Versions |
| Bluetooth |
No (optional 500A Battery Monitor with Shunt) |
| Warranty |
5-year prorated material and workmanship warranty |
