The Renogy CORE Series 48V 50Ah Self-Heating Lithium Battery Is a Simple Building Block for 48V Solar Systems

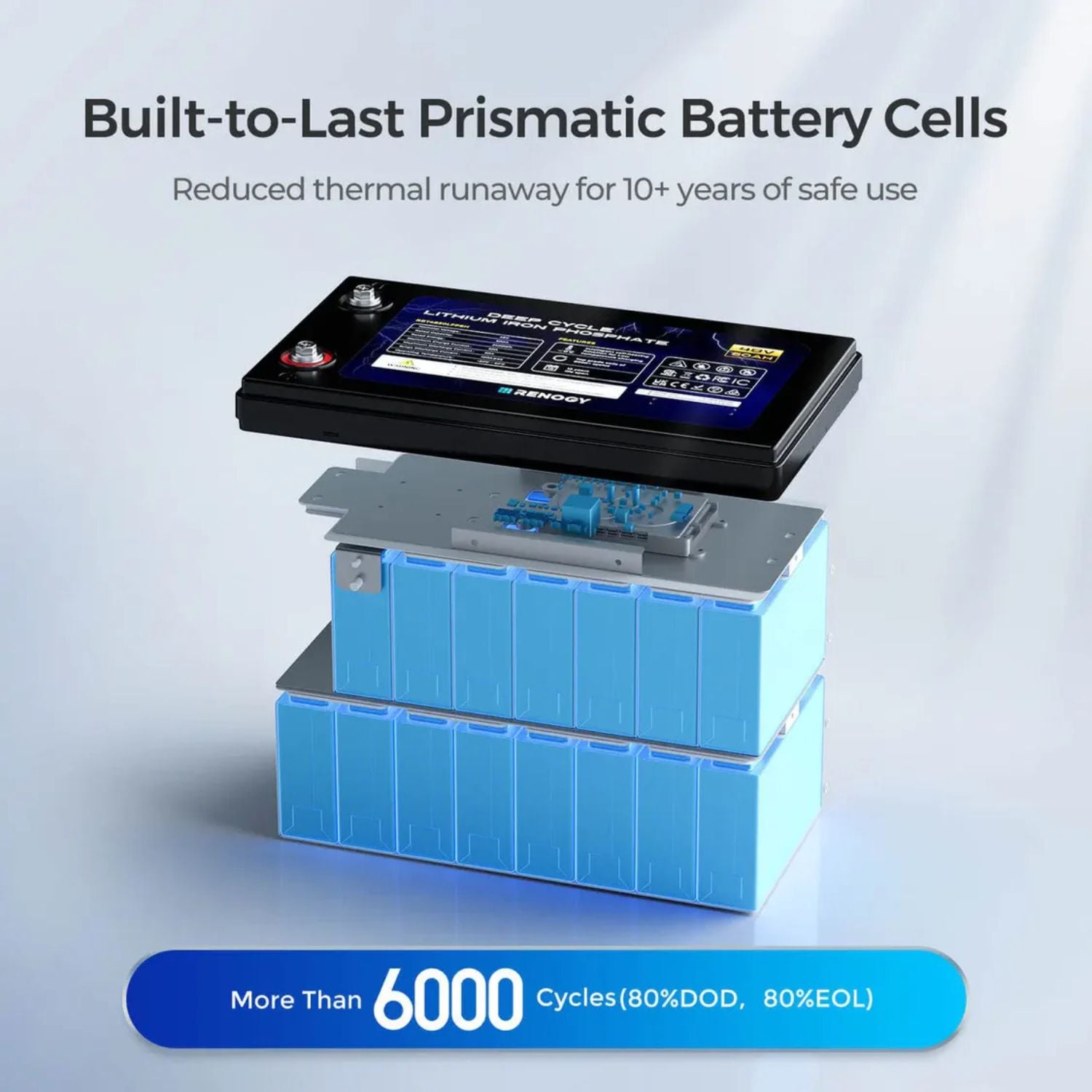

The Renogy CORE Series 48V 50Ah Self-Heating Smart Lithium Iron Phosphate Battery stores 2,400Wh at 48V, enough to run tools, lights and appliances in sheds, cabins, RVs and off-grid homes. Top-tier LiFePO4 pouch cells are rated for more than 6,000 cycles at 80% depth of discharge, and built-in heating pads let the battery charge safely when temperatures fall below freezing.

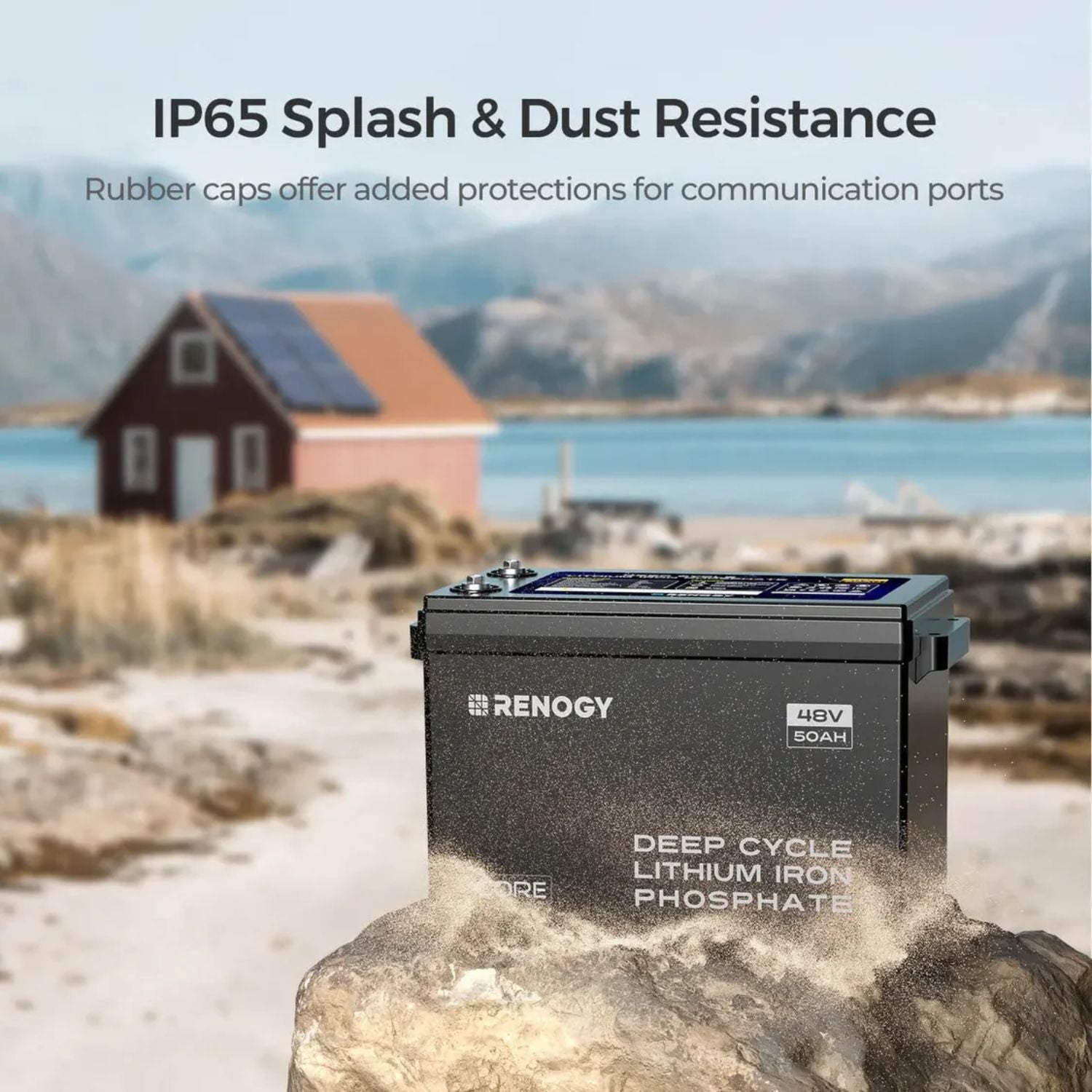

Connect up to 8 batteries in parallel for 19.2kWh of storage. Automatic cell balancing keeps charging even across every cell, a battery management system guards against faults, and an IP65 case resists water and dust. A one-touch switch turns the battery and its BMS on and off for safer storage.
Renogy CORE Series 48V 50Ah Battery Features
Native 48V Power
A 48V system draws a quarter of the current of a 12V system for the same power. That means thinner, less expensive cables, lower losses and the ability to run larger loads such as air conditioners, refrigerators and power tools through a 48V inverter.

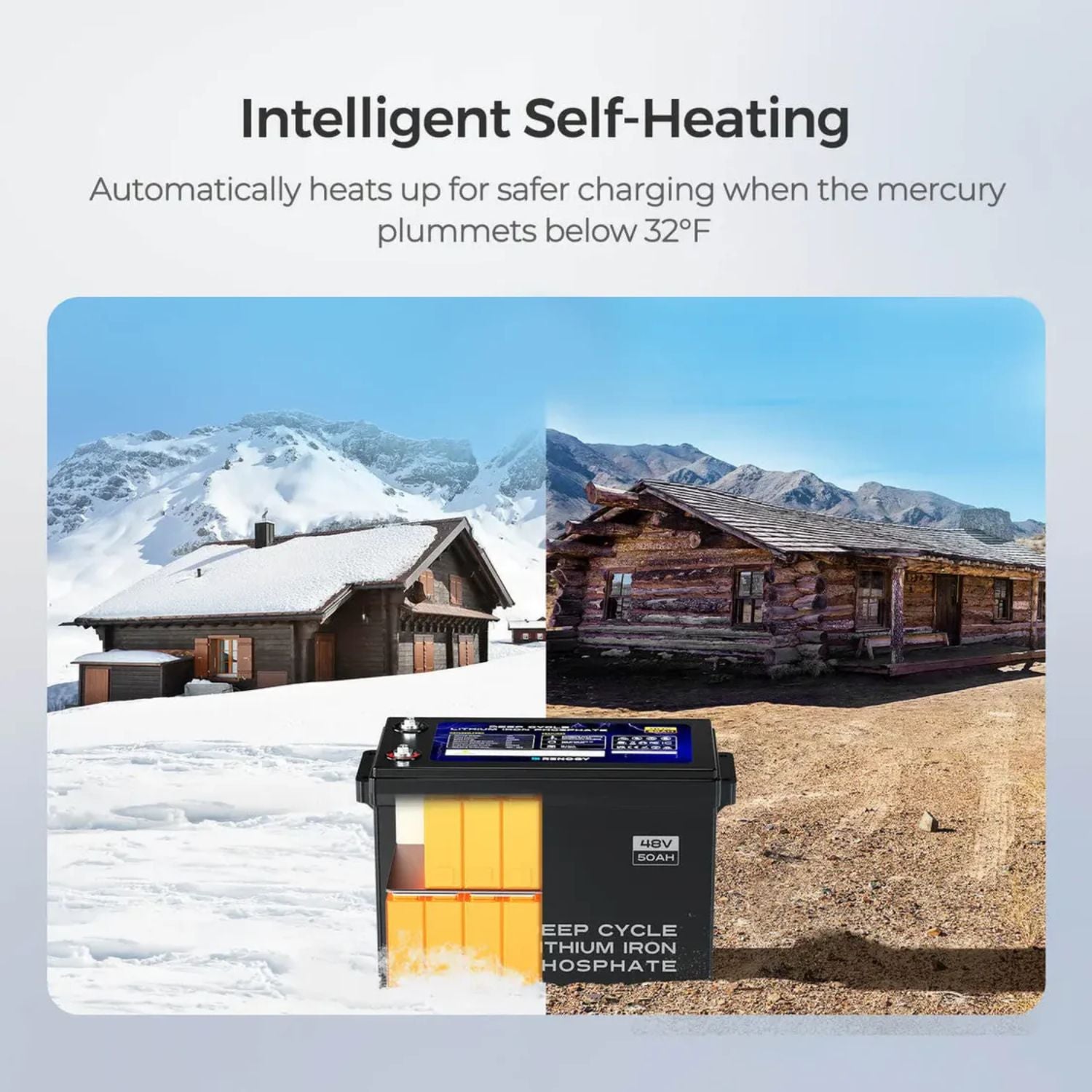

Self-Heating for Cold Climates
Built-in heating pads warm the cells so the battery can charge safely below 32°F without sacrificing long-term performance.
Pouch Cell Design
Pouch cells are housed in a lightweight aluminum-polymer film. If a cell is damaged, gas and heat can escape through a sealing port rather than building up pressure inside a rigid can.
Automatic Cell Balancing
Uniform charging across the internal cells maximizes usable capacity and service life, and makes parallel connection of multiple batteries safe and straightforward.

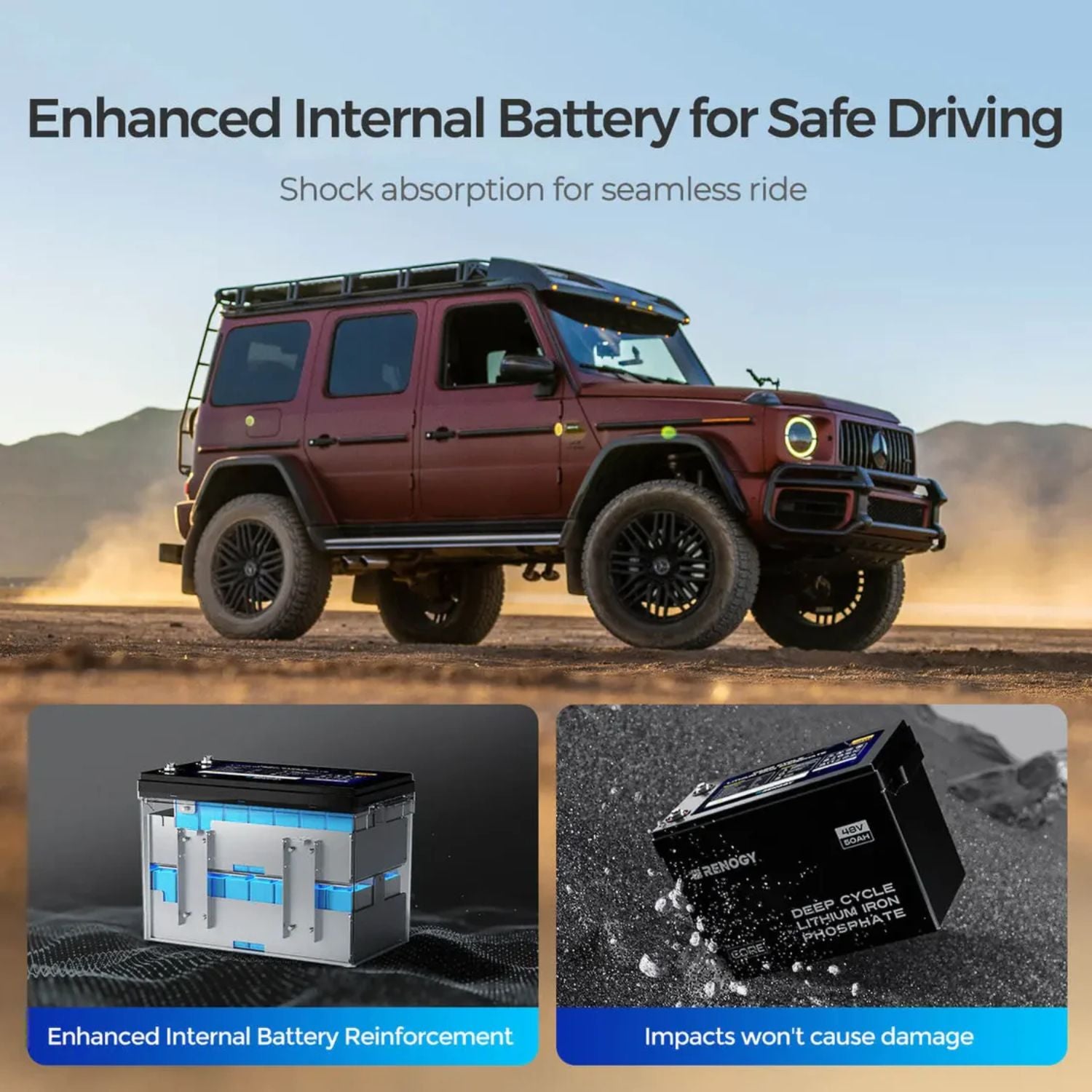

Tested for Durability
Renogy tests the battery for drop resistance, electromagnetic compatibility, forced overcharge and discharge, and crash conditions.

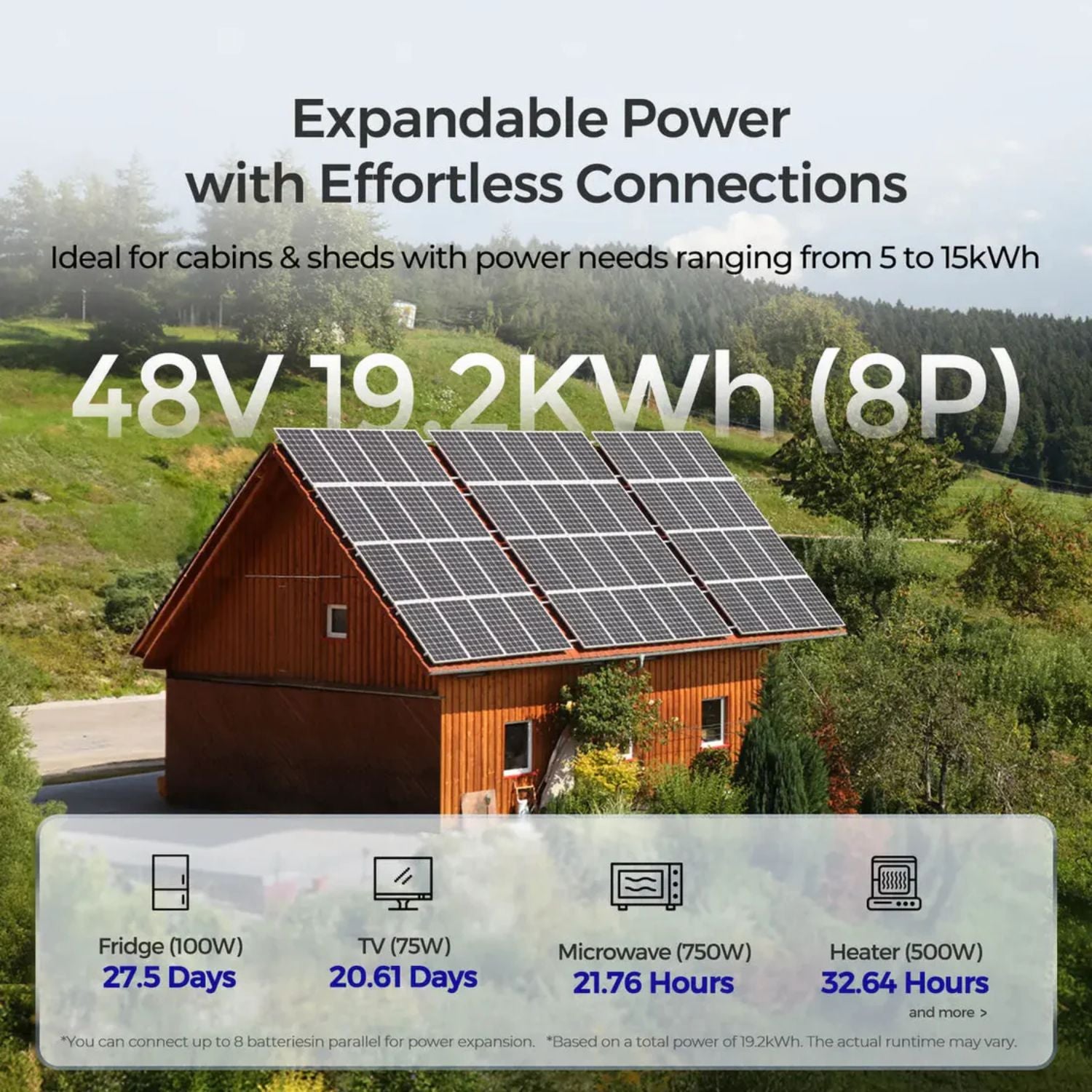

Expandable to 19.2kWh
Add batteries in parallel, up to 8 in total, as your energy needs grow.
Real-World Applications
Tool sheds and workshops. Pair with solar panels and a 48V inverter to run power tools, lights and chargers.
Remote cabins. Replace a noisy generator with a quiet, expandable battery bank for weekend and seasonal use.

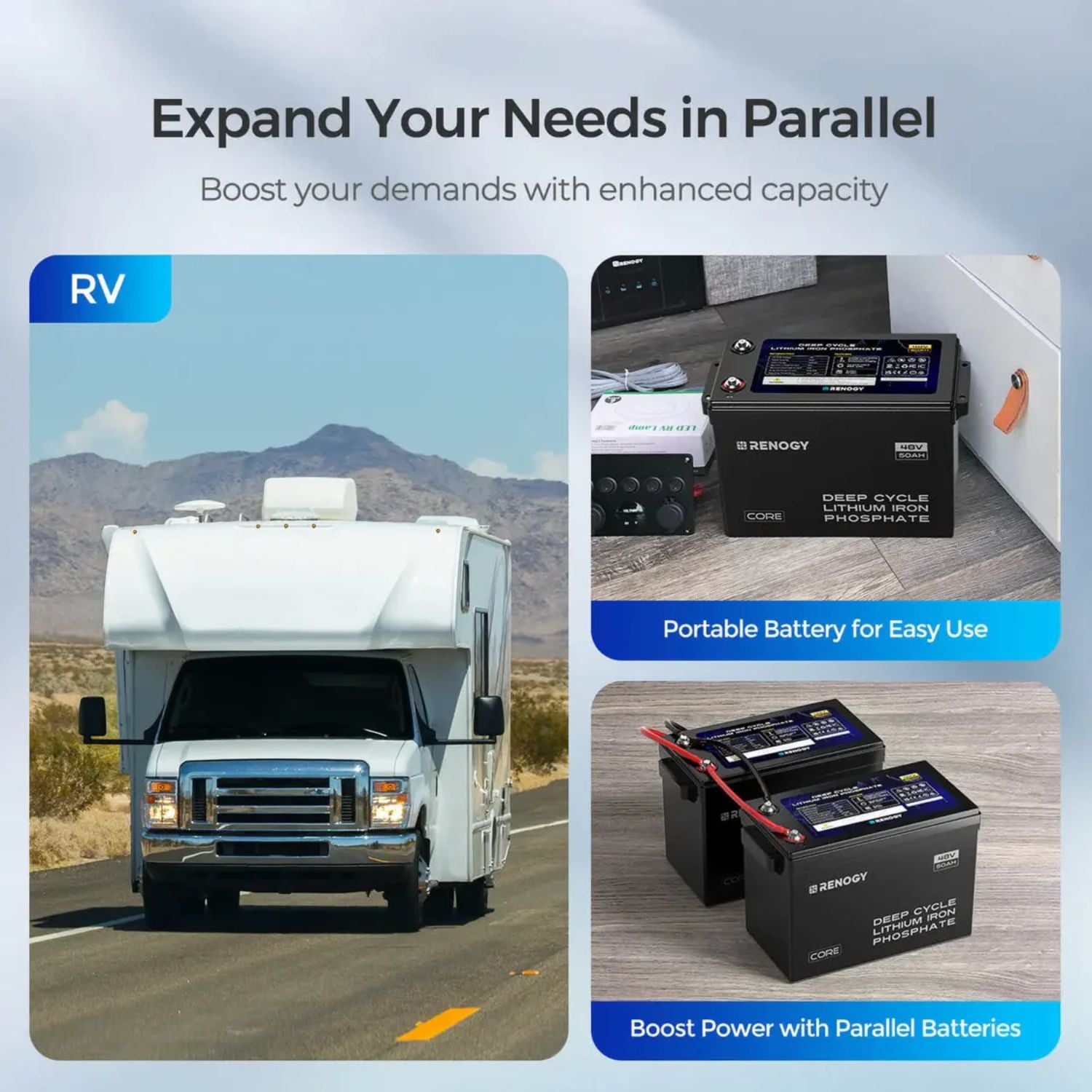

RVs and vans with 48V systems. Run high-draw appliances such as air conditioners and induction cooktops more efficiently.
Home backup. Store solar energy or grid power for essential circuits during outages.
How It Compares to Common Alternatives
Versus four 12V batteries in series. Four 12V batteries can make 48V, but they take more space, more interconnect cables and more balancing. One 48V battery is simpler.
Versus lead-acid 48V banks. Lead-acid banks weigh far more, need maintenance and last a fraction as long. This battery gives more usable energy for less over its life.
Versus larger 48V rack batteries. Rack batteries hold more energy per unit but cost more and often need a cabinet. The 50Ah size is easier to carry and add one at a time.
Is This Battery the Right Fit
-
System voltage. Your inverter, charge controller or charger must be designed for 48V LiFePO4 batteries.
-
Current. Each battery supplies up to 50A continuously, about 2,400W. Add batteries in parallel for larger inverters.
-
Charging. Charge cut-off voltage is 54V with up to 50A of charge current.
-
Monitoring. The battery has no Bluetooth or communication port. A 500A battery monitor is available as an add-on for state-of-charge readings.
This may be a good fit if
- You are building a 48V solar system
- You want to start small and add capacity over time
- Your batteries will be in an unheated shed, cabin or RV
- You want long cycle life with no maintenance
Common Questions
How Many Batteries Can I Connect?
Up to 8 in parallel, for 19.2kWh. Automatic balancing helps the batteries share the load evenly.
What Does the Switch Button Do?
It turns the battery and its BMS on and off with one touch, reducing wear and improving safety when the battery is in storage.
Why Choose 48V Instead of 12V?
48V systems can power larger appliances with lower current, allowing thinner cables, lower losses and safer wiring.
What Should I Do When It Arrives?
Charge it right away, since it may arrive at a low state of charge. For long storage, keep it at 30% to 50% and check it every three months.

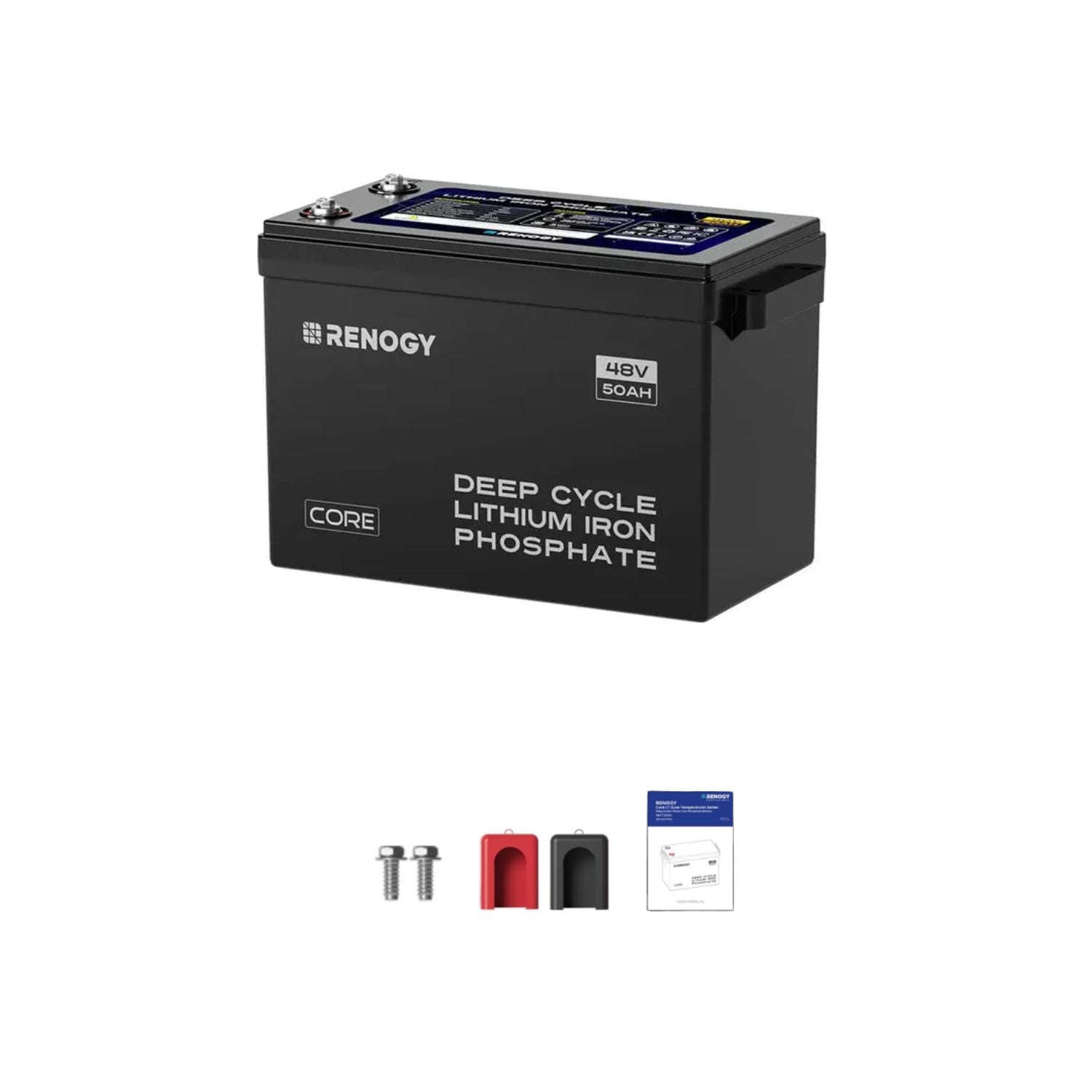

What's Included
- 1 x Renogy CORE Series 48V 50Ah Smart Lithium Iron Phosphate Battery
- 2 x Long Terminal Bolts (M8 x 1.25 x 20 mm)
- 2 x Insulating Sleeves
- 1 x User Manual

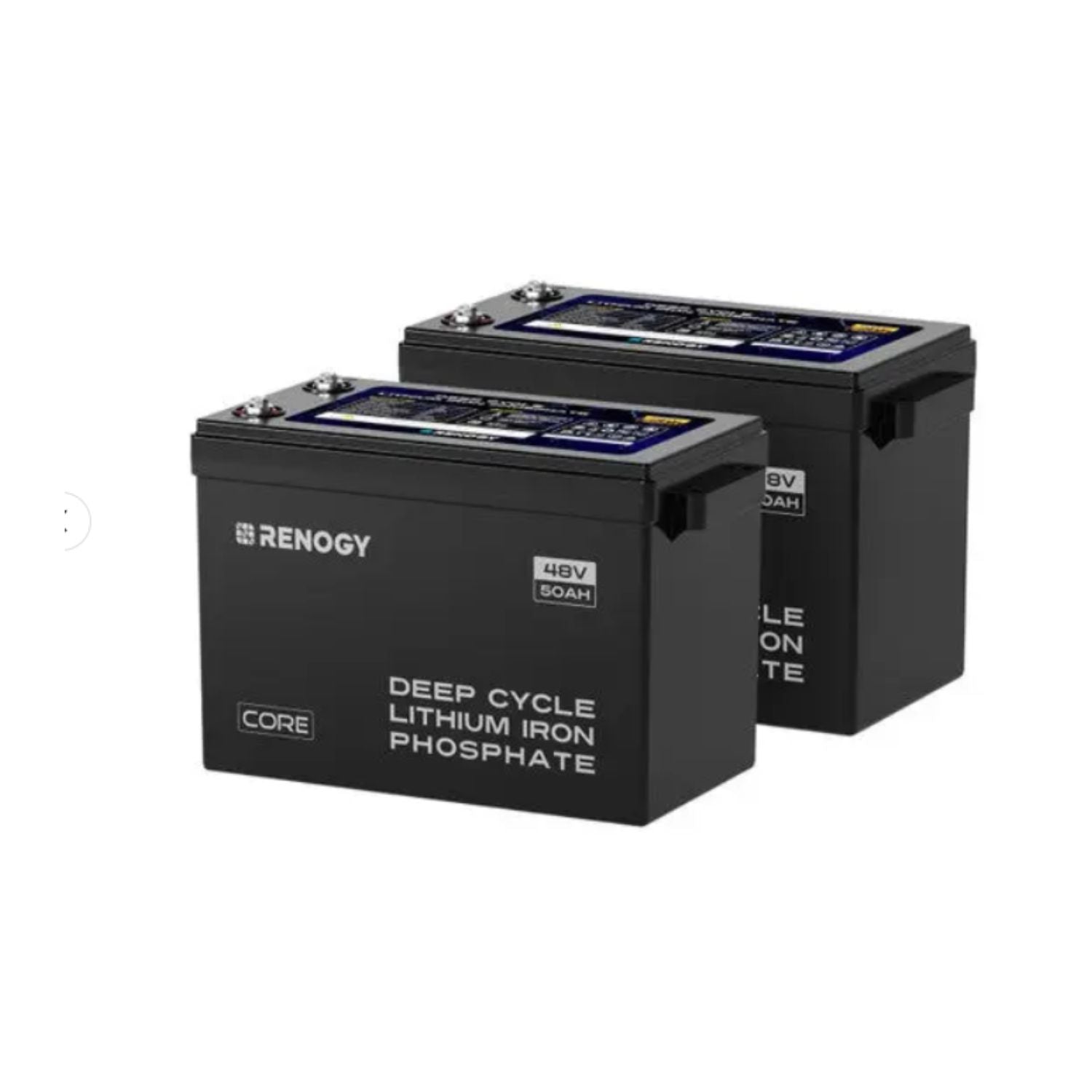

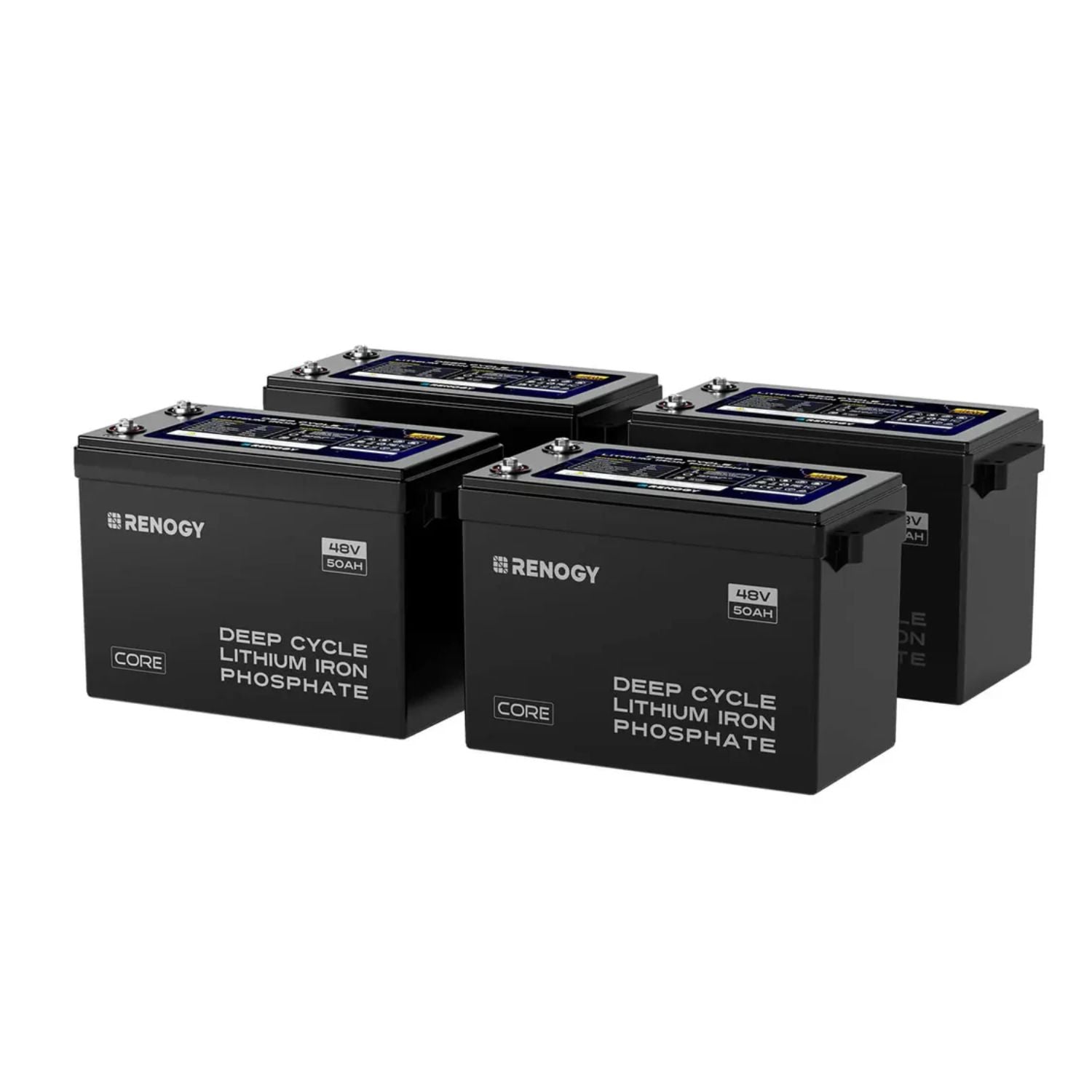

2 Pack and 4 Pack options include 2 or 4 batteries, each with its own accessories.
Scalable 48V Lithium Storage for Off-Grid Living
The Renogy CORE Series 48V 50Ah battery gives you long-lasting, cold-ready lithium storage that grows with your system, one battery at a time. At Outbound Power, we help customers design 48V solar systems and match batteries to inverters and charge controllers. If you have questions, our team is happy to help.
Renogy 48V 50Ah Smart Lithium Battery Specifications
|
| Model |
RBT4850LFPSH-US |
| Chemistry |
Lithium iron phosphate (LiFePO4), pouch cells |
| Nominal Voltage |
48V |
| Rated Capacity |
50Ah |
| Energy |
2,400Wh |
| Cycle Life |
More than 6,000 cycles at 80% DOD, 80% EOL (0.5C/0.5C, 25°C) |
| Voltage Range |
42V to 55.5V |
| Charge Cut-Off Voltage |
54V |
| Max Continuous Charge Current |
50A |
| Max Continuous Discharge Current |
50A |
| Self-Heating |
Yes |
| Cell Balancing |
Automatic |
| Connection |
Parallel only, up to 8 batteries (19.2kWh) |
| Charge Temperature Range |
32°F to 131°F (0°C to 55°C) cell temperature, with self-heating below 32°F |
| Discharge Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range |
-13°F to 149°F (-25°C to 65°C) |
| Operating Humidity |
5% to 95% |
| Bluetooth and Communication Port |
No |
| Power Switch |
Yes |
| Dimensions (L x W x H) |
15.1 x 7.6 x 9.8 in (384 x 195 x 248 mm) |
| Weight |
51.4 lbs (23.3 kg) |
| Terminal Bolts |
M8 (x2) |
| Housing Material |
ABS |
| Protection Rating |
IP65 |
| Certifications |
MSDS, UN38.3, FCC, IC, UKCA, CE, PSE, RoHS |
| Warranty |
5-year prorated material and workmanship warranty |
