The Renogy CORE Mini 12.8V 100Ah Lithium Battery Fits a Group 22NF Space, With an Optional Self-Heating Version

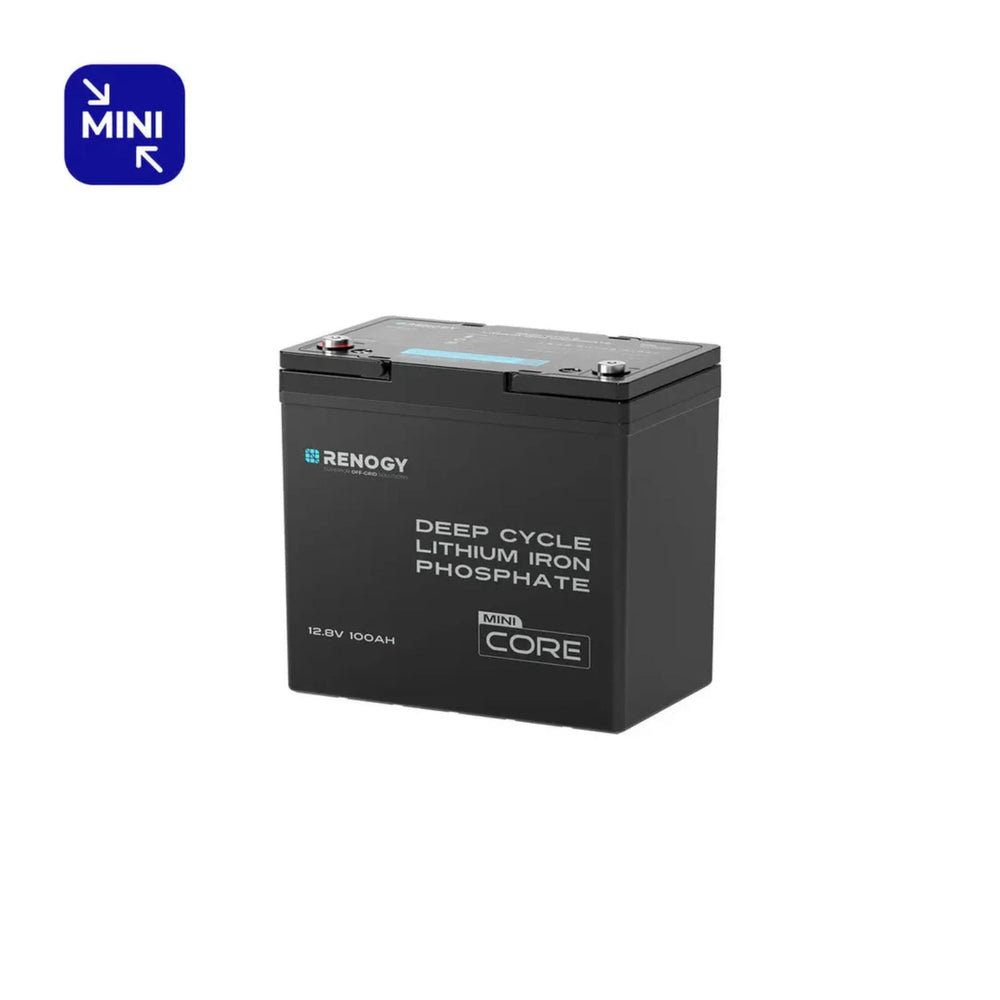

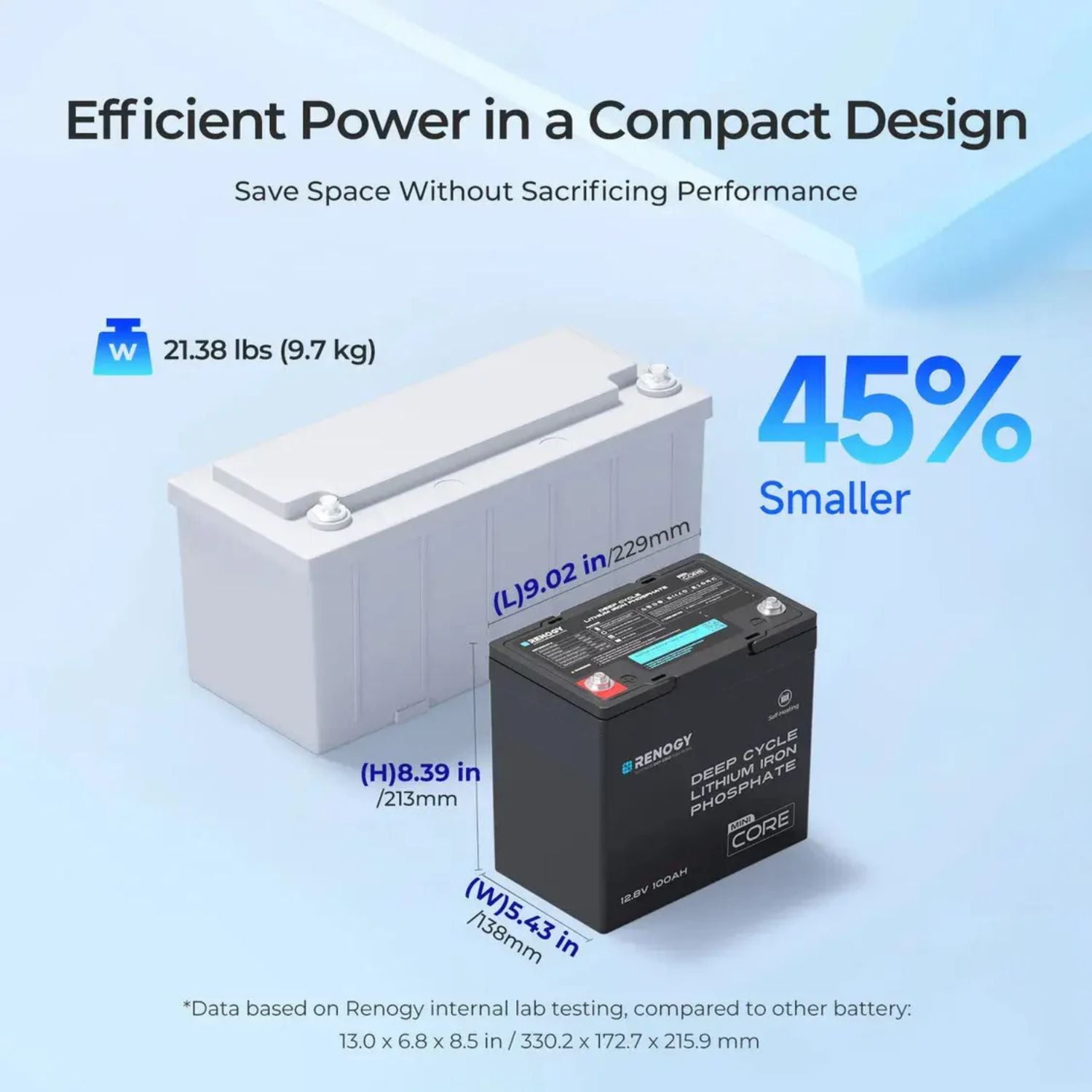

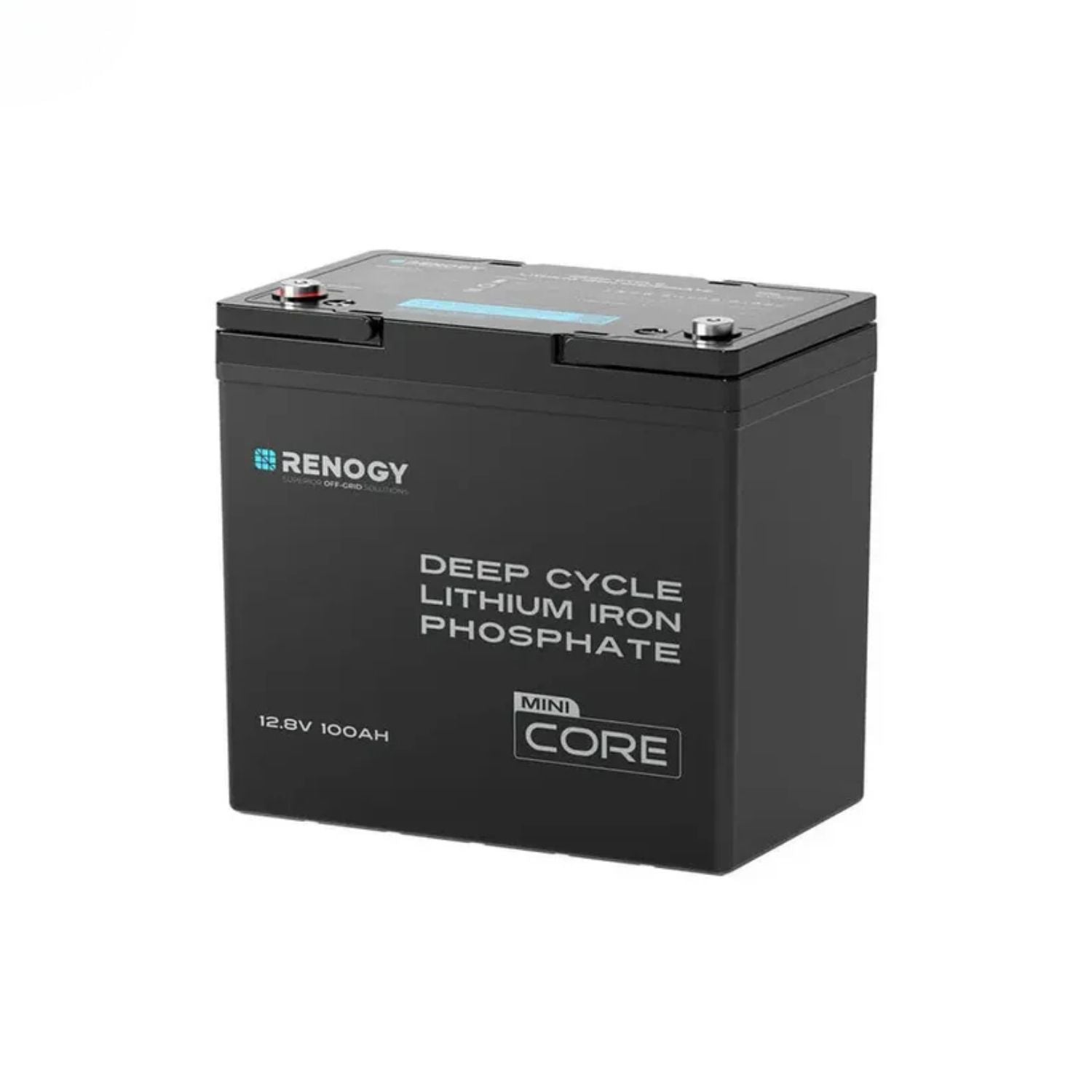

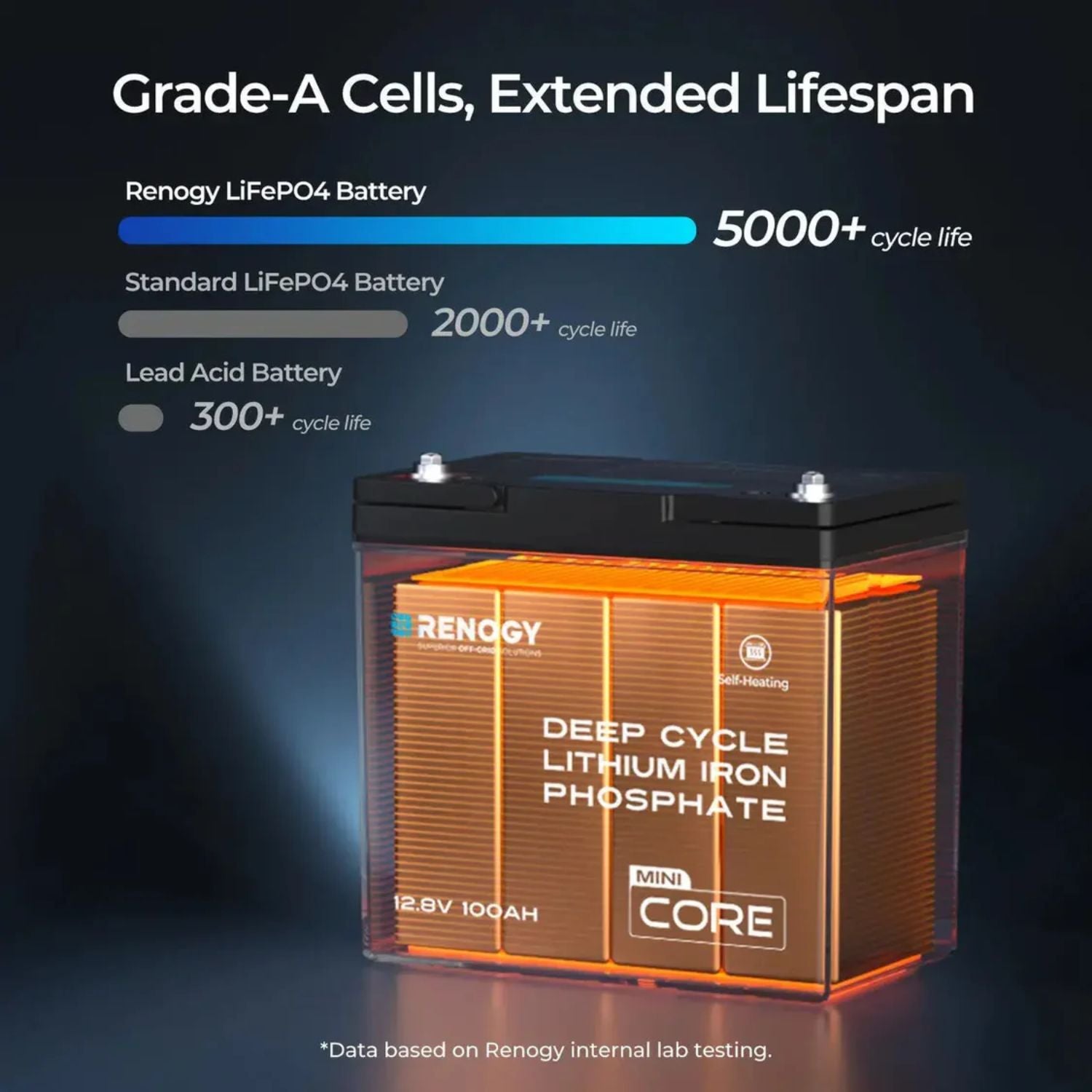

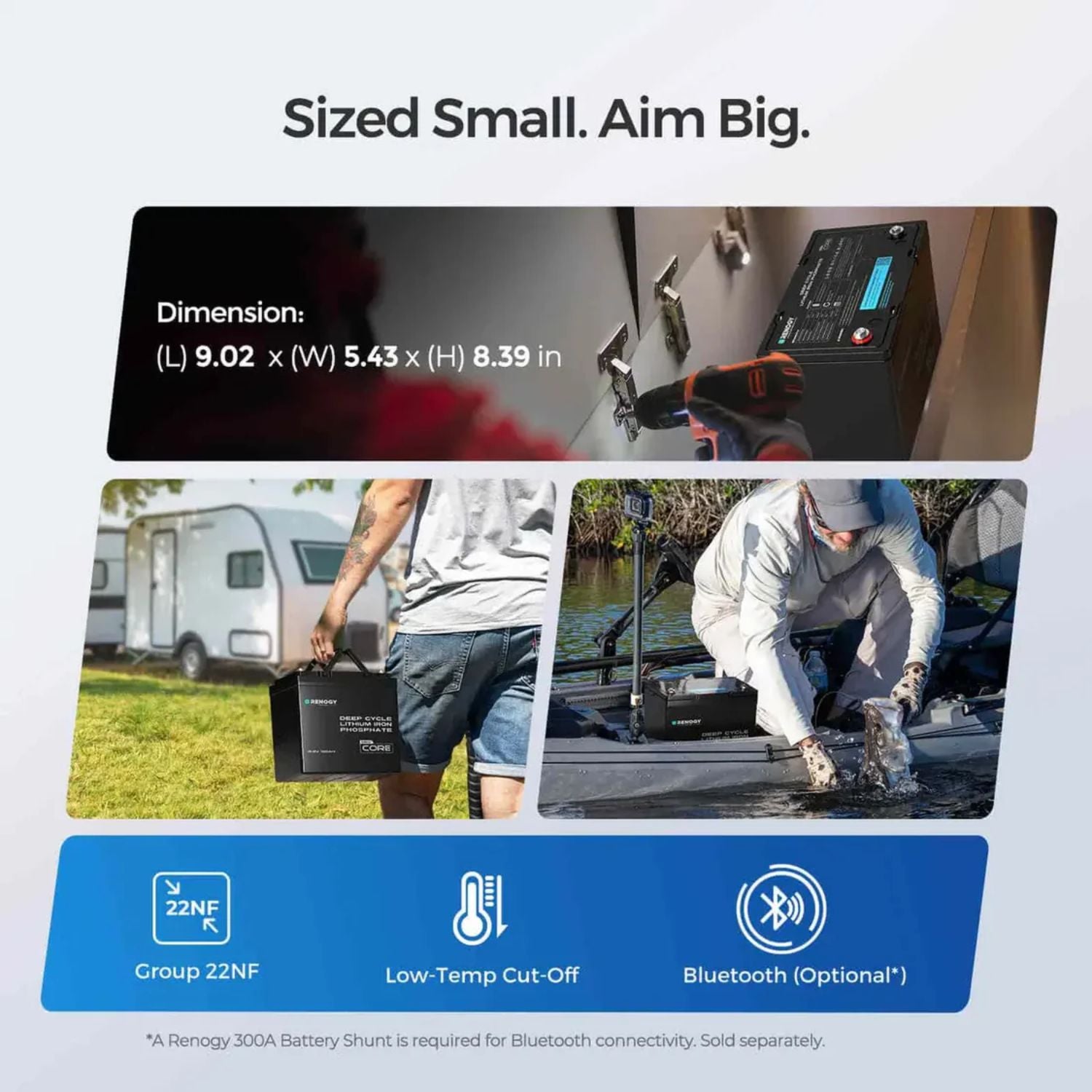

The Renogy CORE Series Mini Size 12.8V 100Ah Lithium Iron Phosphate Battery is Renogy's most compact 100Ah battery. It fits a Group 22NF footprint at 9.02 x 5.43 x 8.39 inches, weighs about 21.8 lbs and stores 1,280Wh. Prismatic EV-grade cells are rated for 5,000 cycles at 80% depth of discharge, and a 300A surge rating handles the start-up current of demanding appliances.

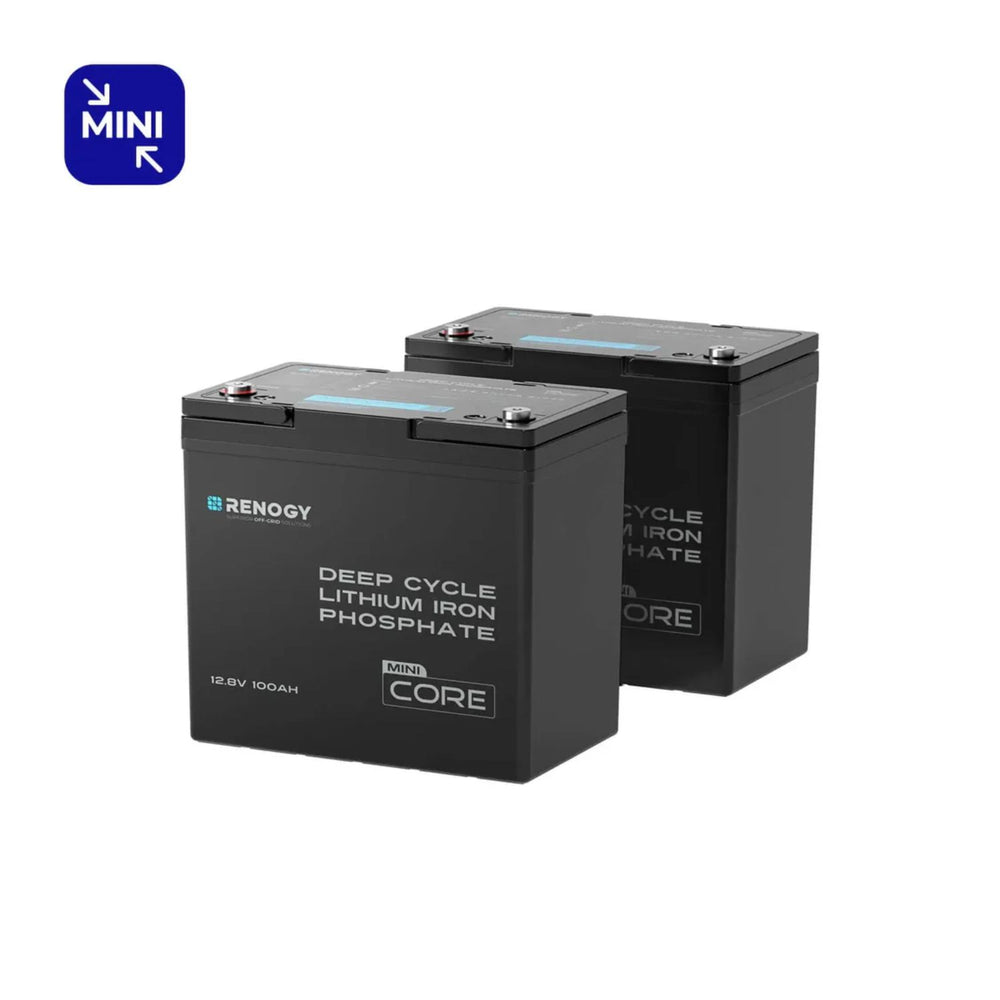

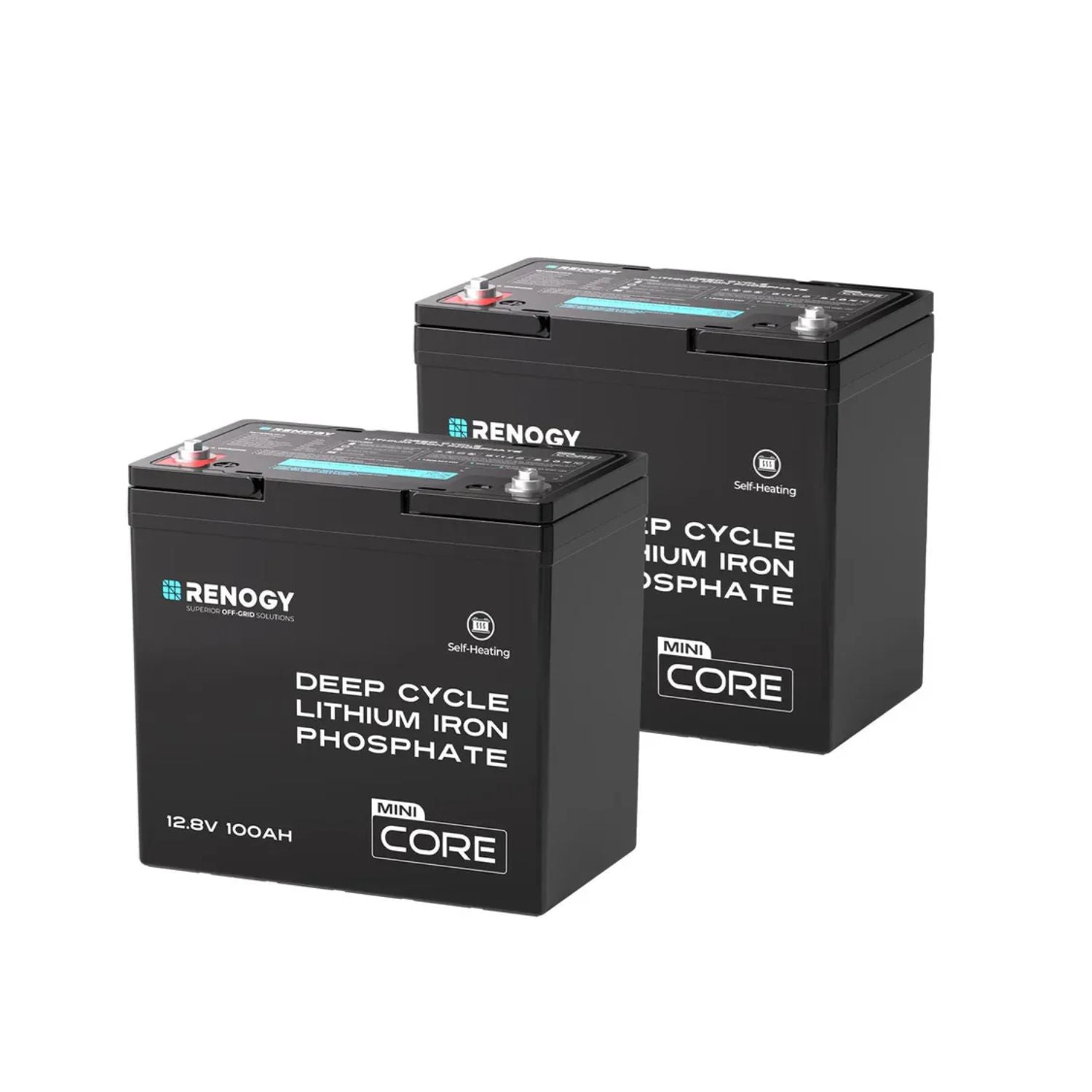

Choose the 100Ah Mini for compact, low-temperature-protected lithium power. Choose the 100Ah Mini (Self-Heating), built with Renogy's DuoHeat Tech, if you need to charge in freezing weather. Its dual 110W heating pads let it charge in air temperatures as low as -22°F. Both versions come in 1, 2 or 4 packs. The 100Ah Mini with Battery Monitor option adds a Renogy 500A Battery Monitor With Shunt for charge readings on an LCD display.
Renogy CORE Mini 12.8V 100Ah Battery Features
Group 22NF Size

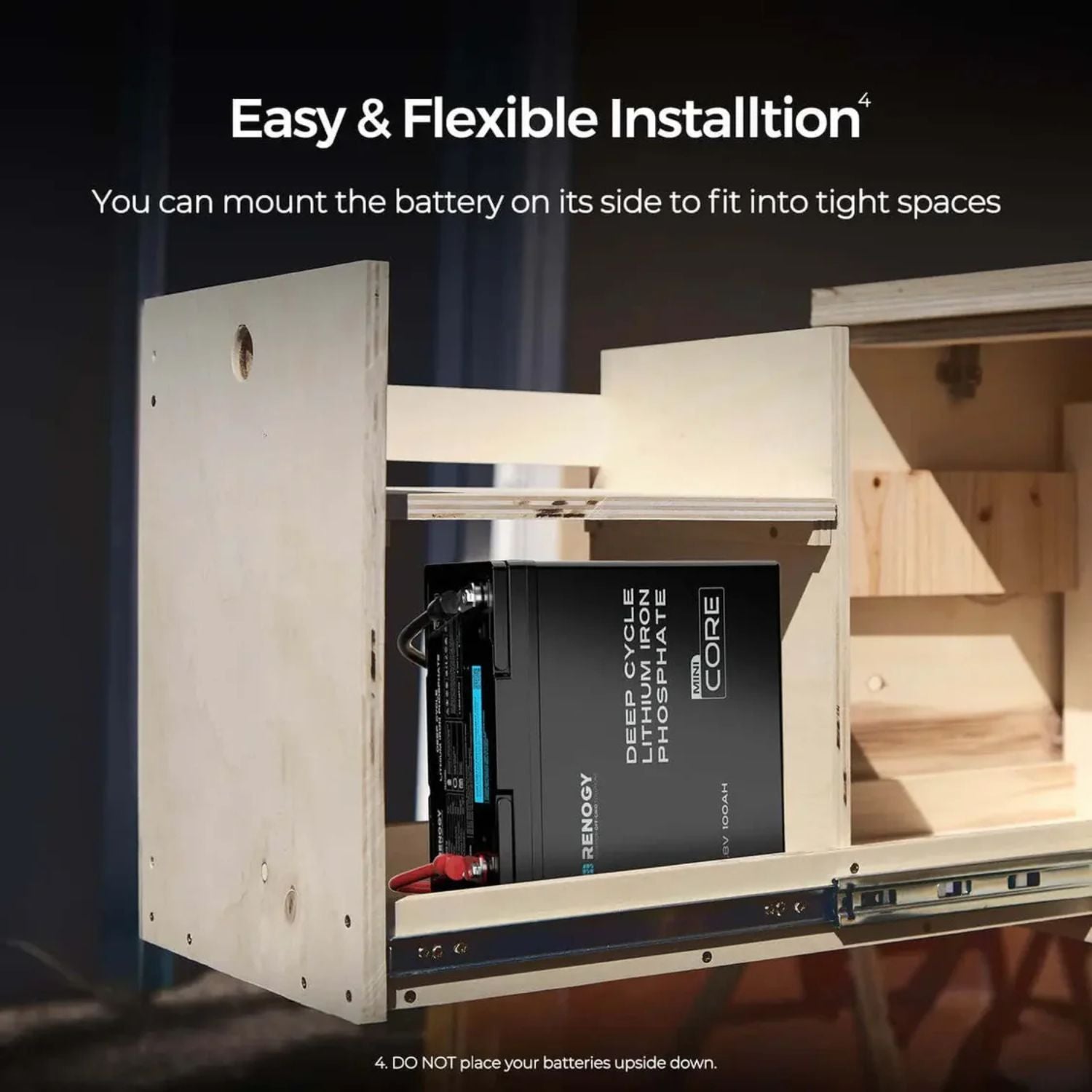

The Mini is far smaller than a typical 100Ah battery, which makes it a good fit for teardrop trailers, kayaks, small boats and tight compartments. It can be mounted in multiple orientations to make the most of the space you have.

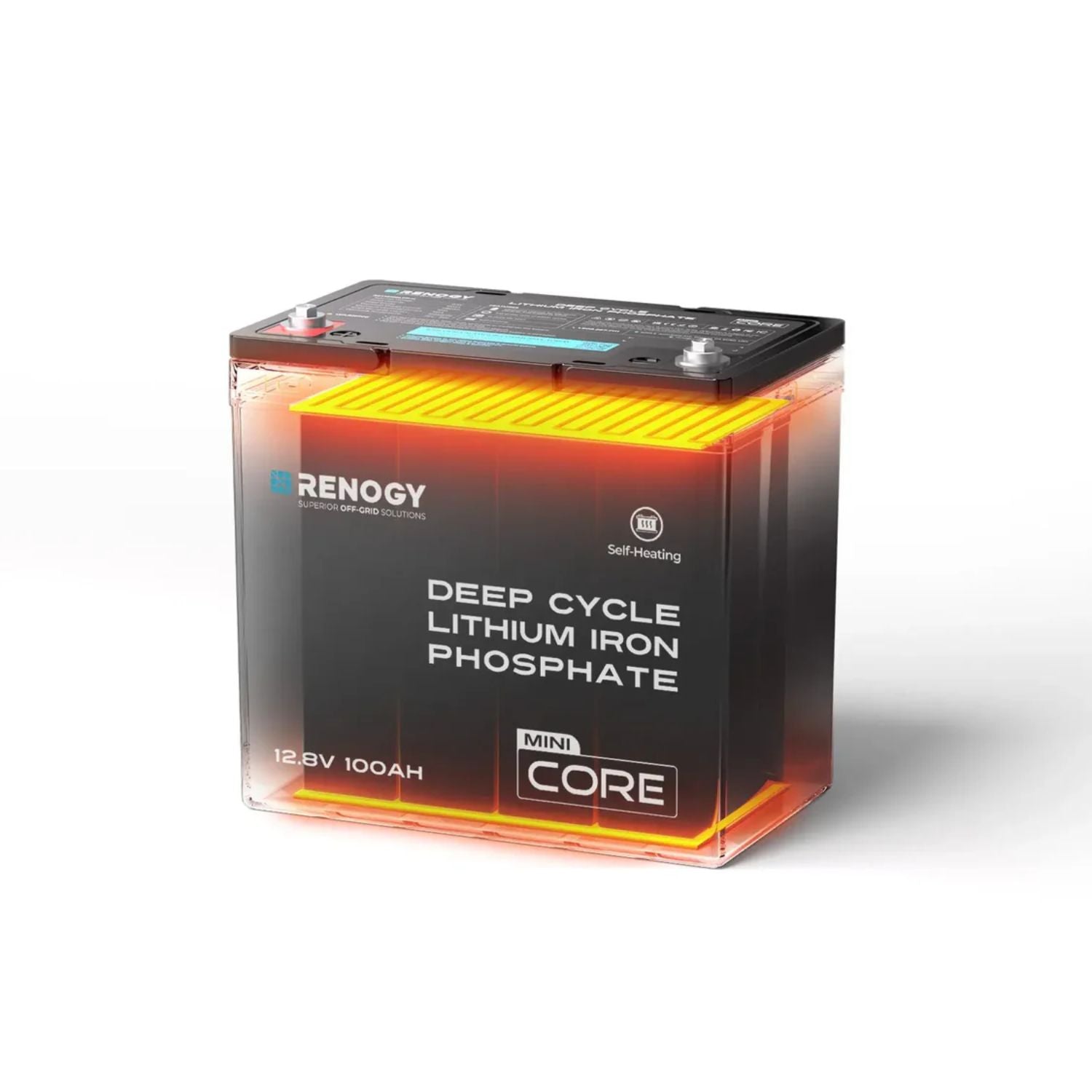

DuoHeat Self-Heating Option

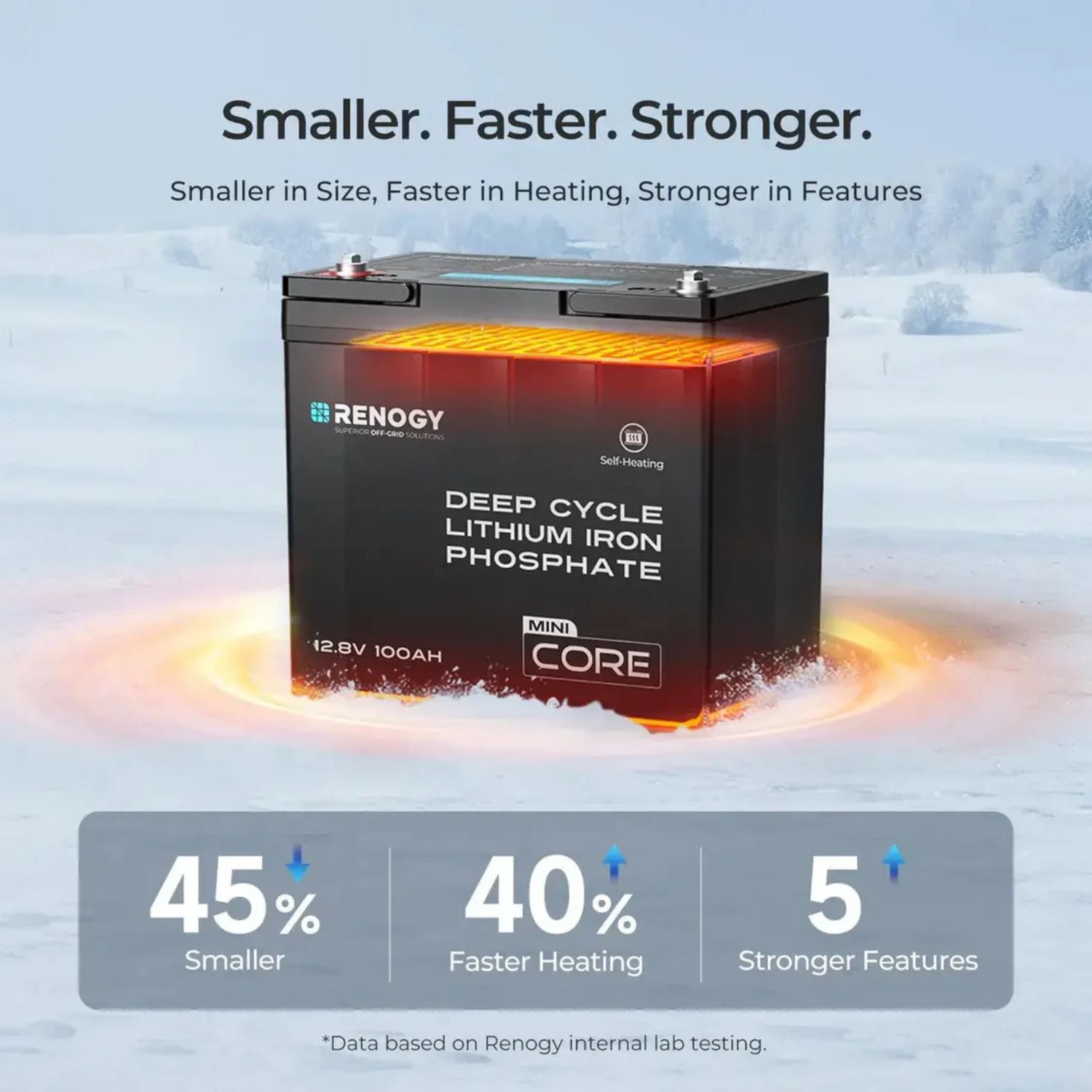

On the self-heating version, dual heating pads switch on when cell temperature falls to 41°F and switch off at 50°F. The battery can charge while it heats itself, so it keeps accepting solar or alternator charge in air temperatures down to -22°F.

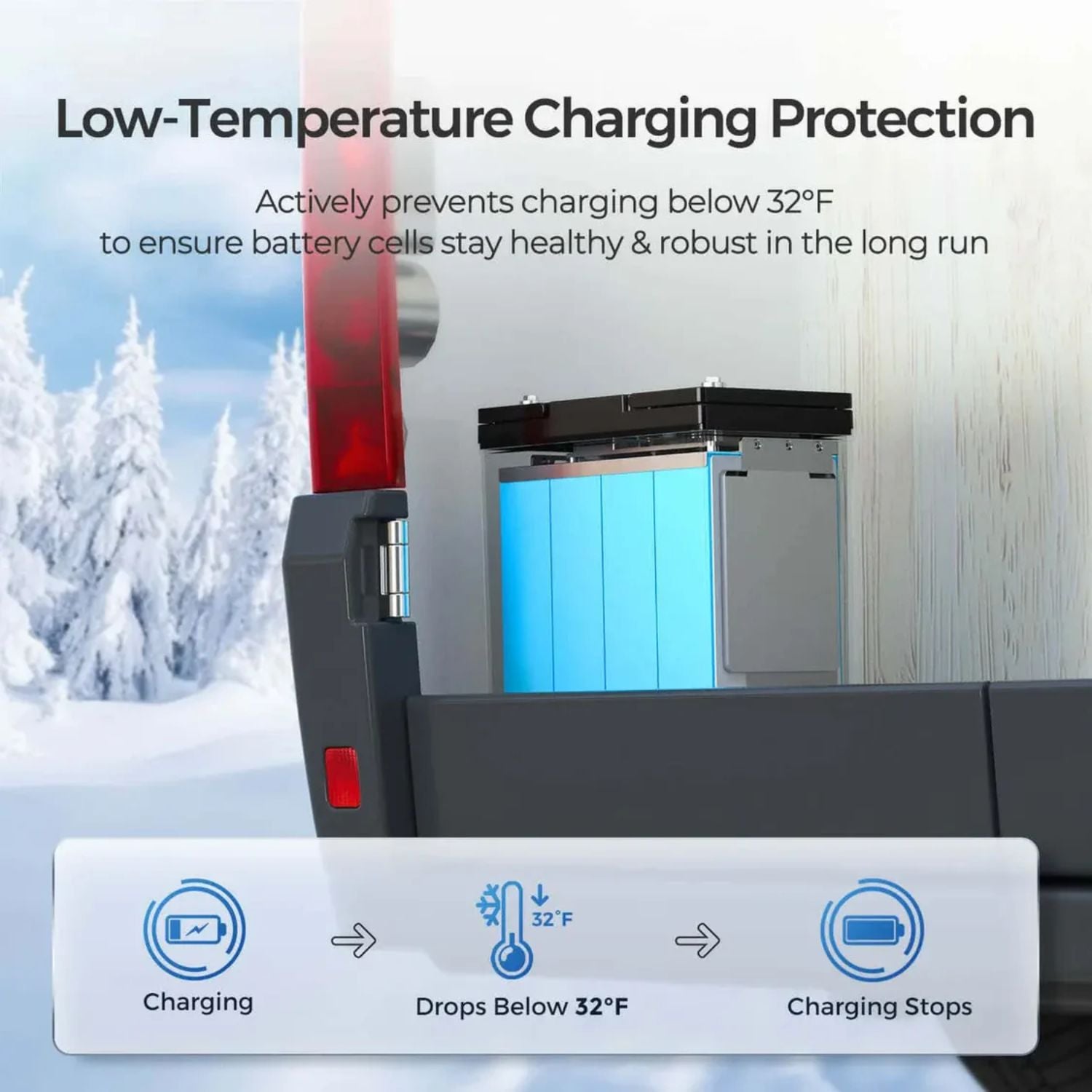

Low-Temperature Protection
The standard Mini blocks charging below 32°F automatically, protecting the cells in winter.
300A Peak Surge
Both versions supply 100A continuously and 300A for short bursts to start motors and high-surge appliances.
Rugged, Vibration-Resistant Build

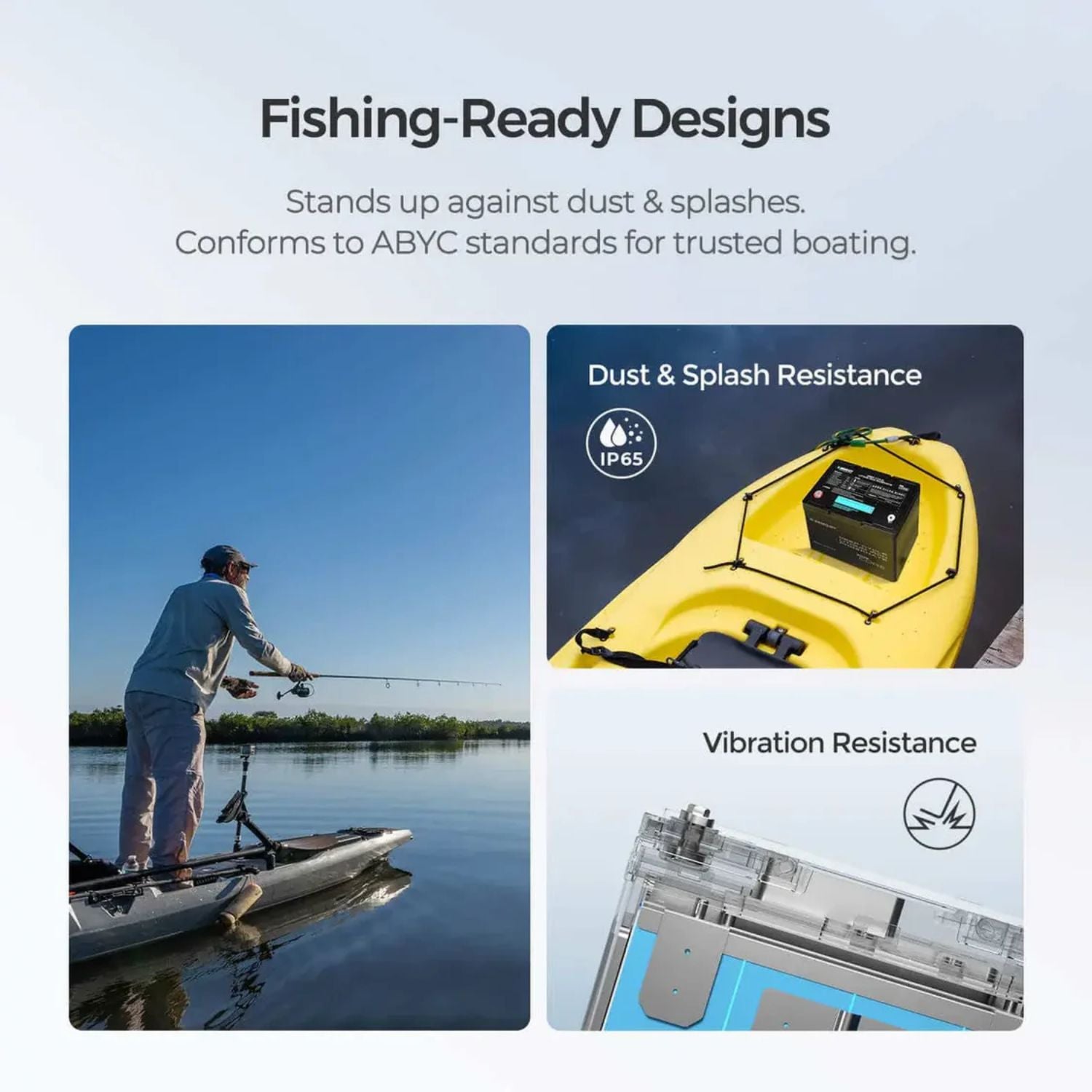

Metal cell spacers prevent damage on rough roads and in choppy water, and the IP65 case resists dust and splashes.
Expand Up to 20.48kWh
Connect up to 16 batteries in a 4S4P arrangement for 24V, 36V or 48V systems with up to 20.48kWh. Use batteries of the same model.
Real-World Applications
Teardrop trailers and compact RVs. Get lithium house power in a battery small enough for tight trailer compartments.

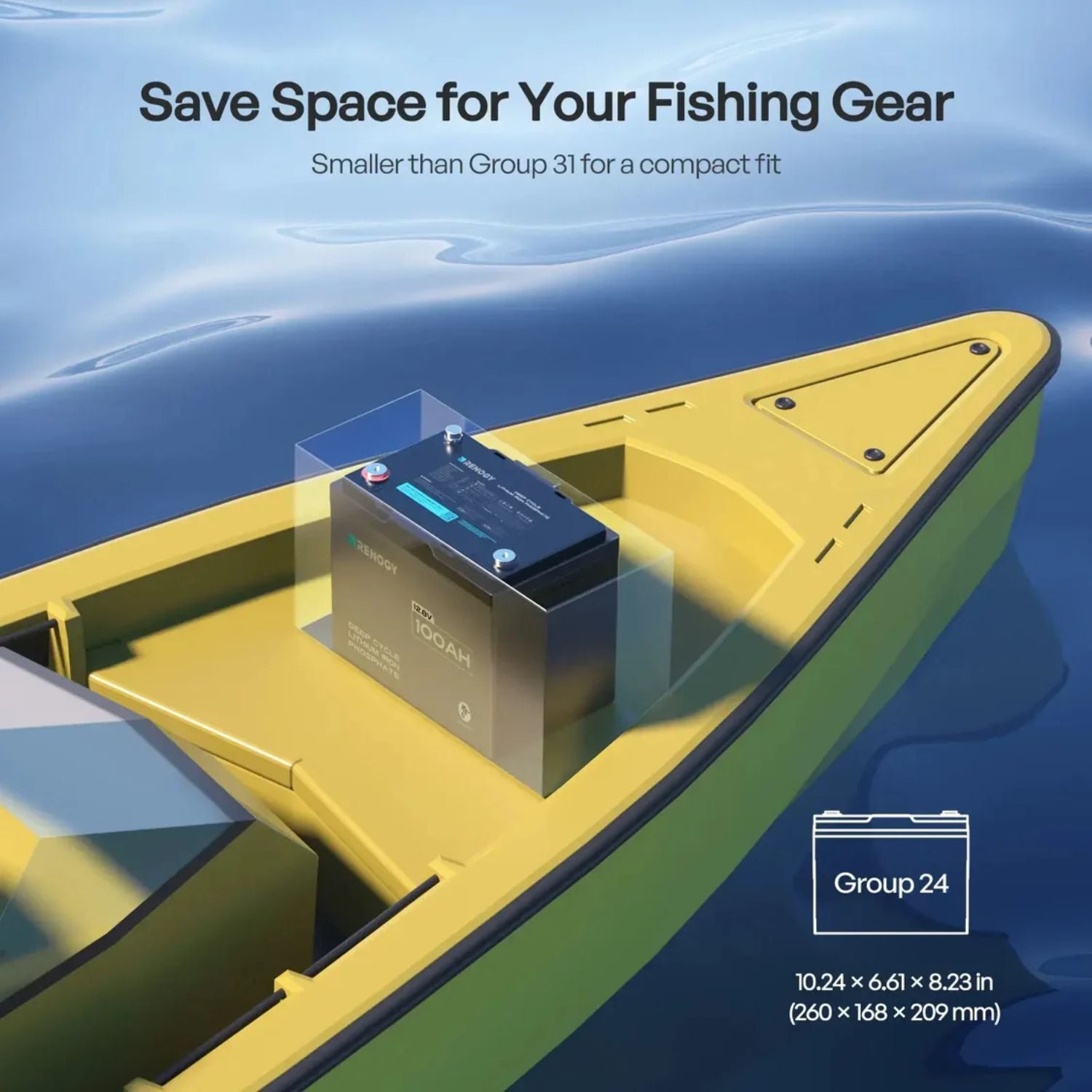

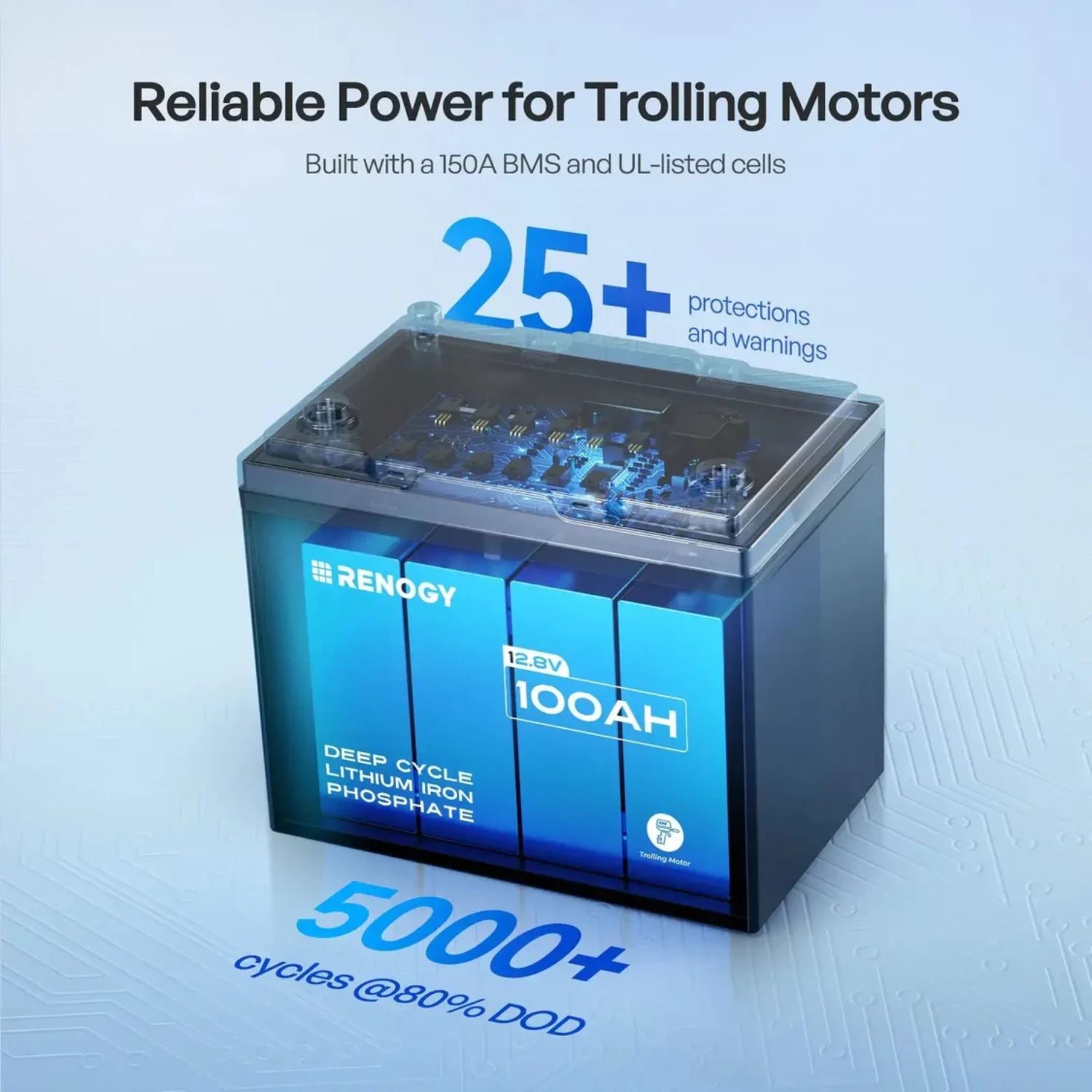

Kayak and boat fishing. Power trolling motors, fish finders and livewell pumps.
Vans and overland rigs. Add an auxiliary battery for a fridge, lights and charging.
Cold-climate camping. The self-heating version keeps charging on winter trips and in unheated storage.
How It Compares to Common Alternatives
Mini versus Mini (Self-Heating). Both share the same size and output. The standard Mini stops charging below 32°F. The self-heating version charges down to -22°F air temperature.
Versus a 100Ah lead-acid battery. Lead-acid is much heavier and bulkier, delivers about half its rated capacity and lasts a fraction as long.
Versus a 200Ah battery. A 200Ah battery doubles the energy but takes up much more space. The Mini is the better pick when space and weight matter most.
Is This Battery the Right Fit
-
Charging. Use a lithium-compatible charger. Both versions accept up to 100A.
-
Climate. Choose the self-heating version if you need to charge below freezing.
-
Clearance. Leave 2 to 4 inches above the battery and 8 inches on the terminal side.
-

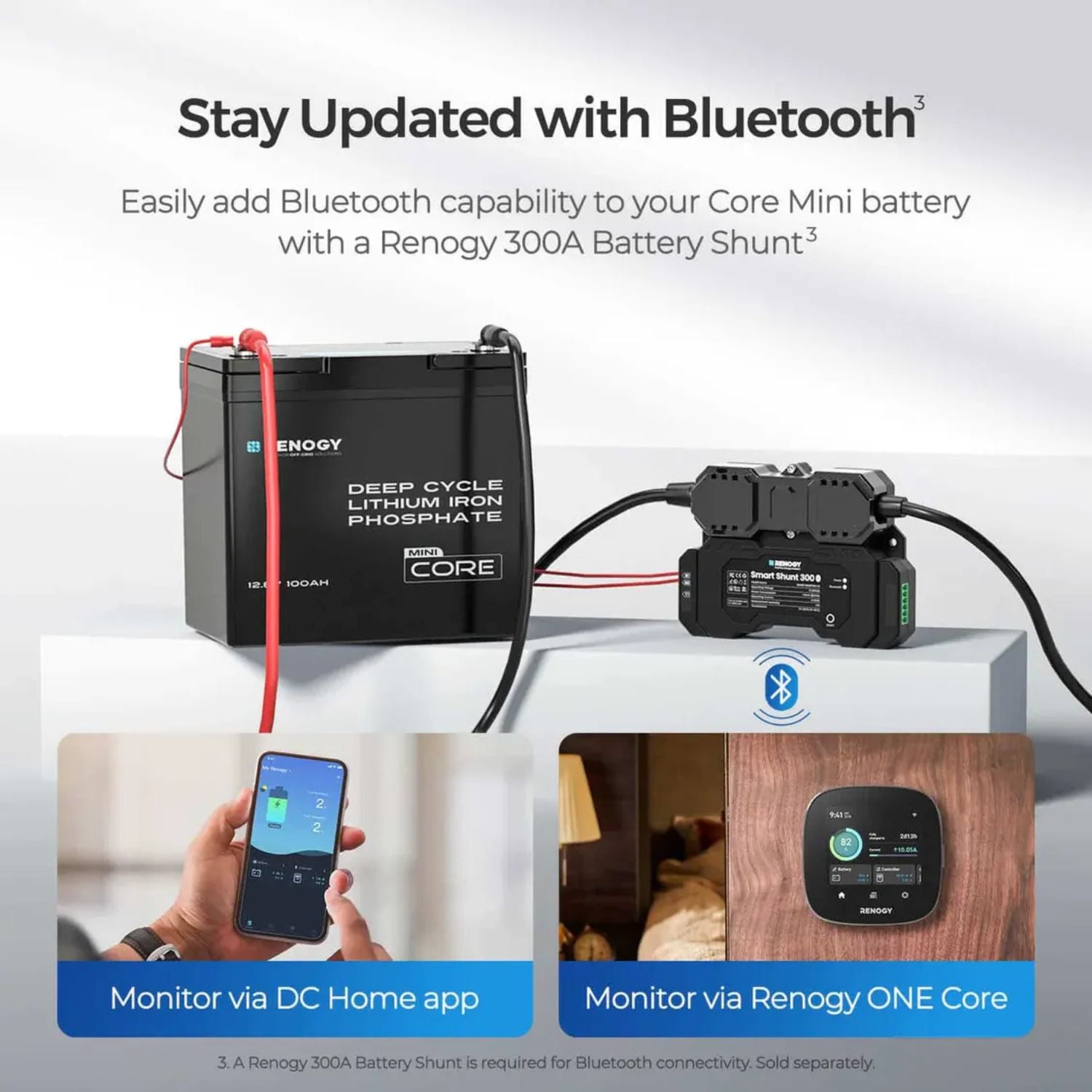

Monitoring. No Bluetooth port. Add a Renogy 300A Battery Shunt to track the battery in the app, or choose the option with a 500A Battery Monitor for an LCD readout.
This may be a good fit if
- You need 100Ah of lithium power in a small space
- You run a trolling motor, fish finder or teardrop trailer
- You camp in cold weather and need to charge below freezing
- You want to replace a heavy lead-acid battery
Common Questions
Can I Use It in a 24V System?
Yes. Connect two in series for 24V, or build up to a 4S4P bank with 16 batteries.

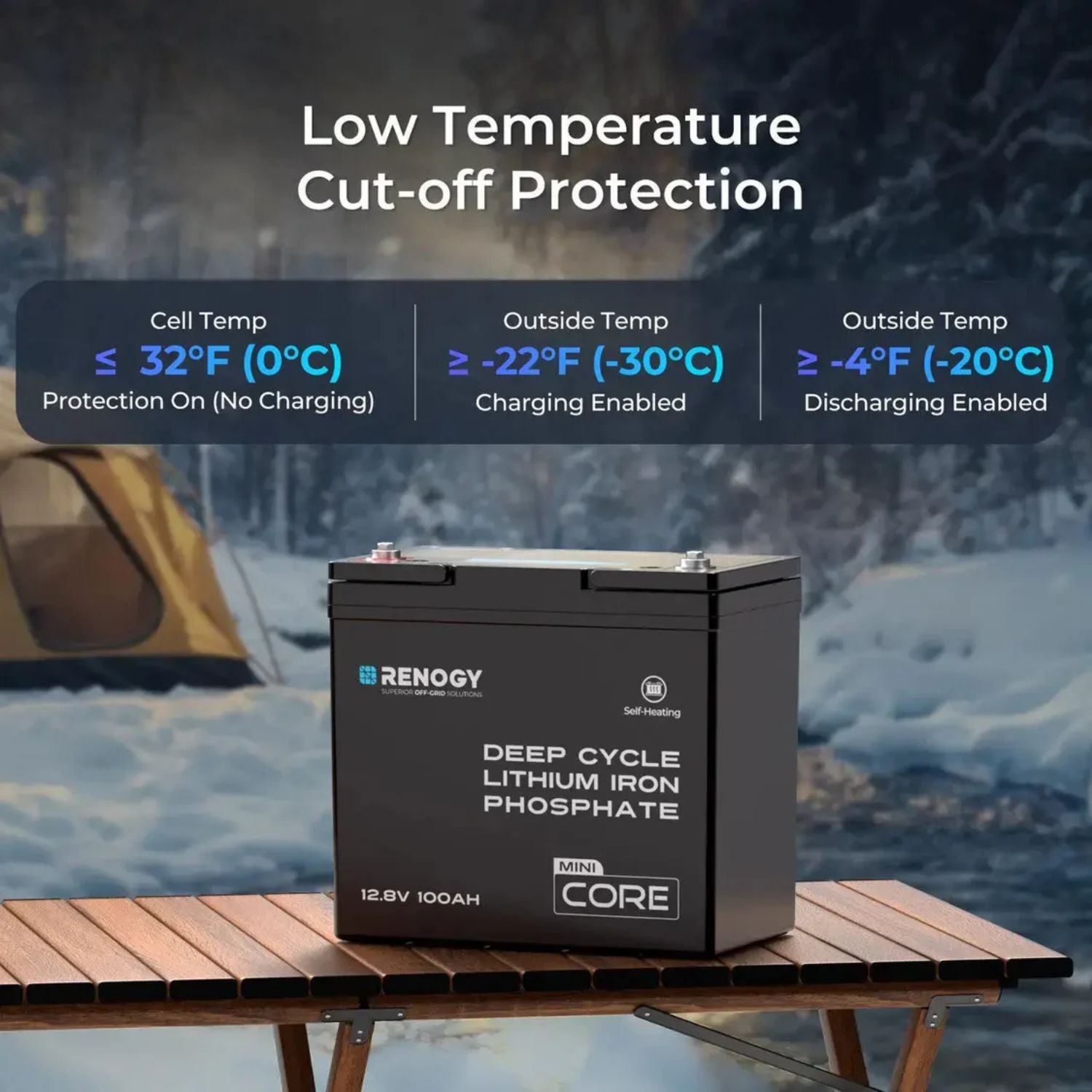

When Does the Self-Heating Turn On?
The heating pads turn on when cell temperature drops to 41°F and turn off at 50°F. If the cells fall below 32°F, charging pauses until the heaters warm them back up.
Can I Monitor It From My Phone?
Not directly. Pair it with a Renogy 300A Battery Shunt, sold separately, to see battery status in the app.
How Do I Recharge It?
Use solar with a lithium-compatible charge controller, a DC-DC charger or an AC-DC lithium charger.
What's Included
100Ah Mini (per battery)
- 1 x Renogy CORE Mini 12.8V 100Ah Lithium Iron Phosphate Battery
- 2 x Long Terminal Bolts (M8 x 1.25 x 15 mm)
- 1 x User Manual
100Ah Mini Self-Heating (per battery)
- 1 x Renogy CORE Mini 12V 100Ah LiFePO4 Battery with DuoHeat Tech
- 2 x Terminal Bolts (M8 x 1.25 x 12 mm)
- 2 x Insulating Sleeves
- 1 x User Manual
100Ah Mini with Battery Monitor
- 1 x Renogy CORE Mini 12.8V 100Ah Lithium Iron Phosphate Battery
- 2 x Long Terminal Bolts (M8 x 1.25 x 15 mm)
- 1 x User Manual
- 1 x Renogy 500A Battery Monitor LCD Interface
- 1 x 500A Shunt/Sampler
- 1 x Shielded Wire
- 1 x B+ Wire
- 1 x Shunt Holder

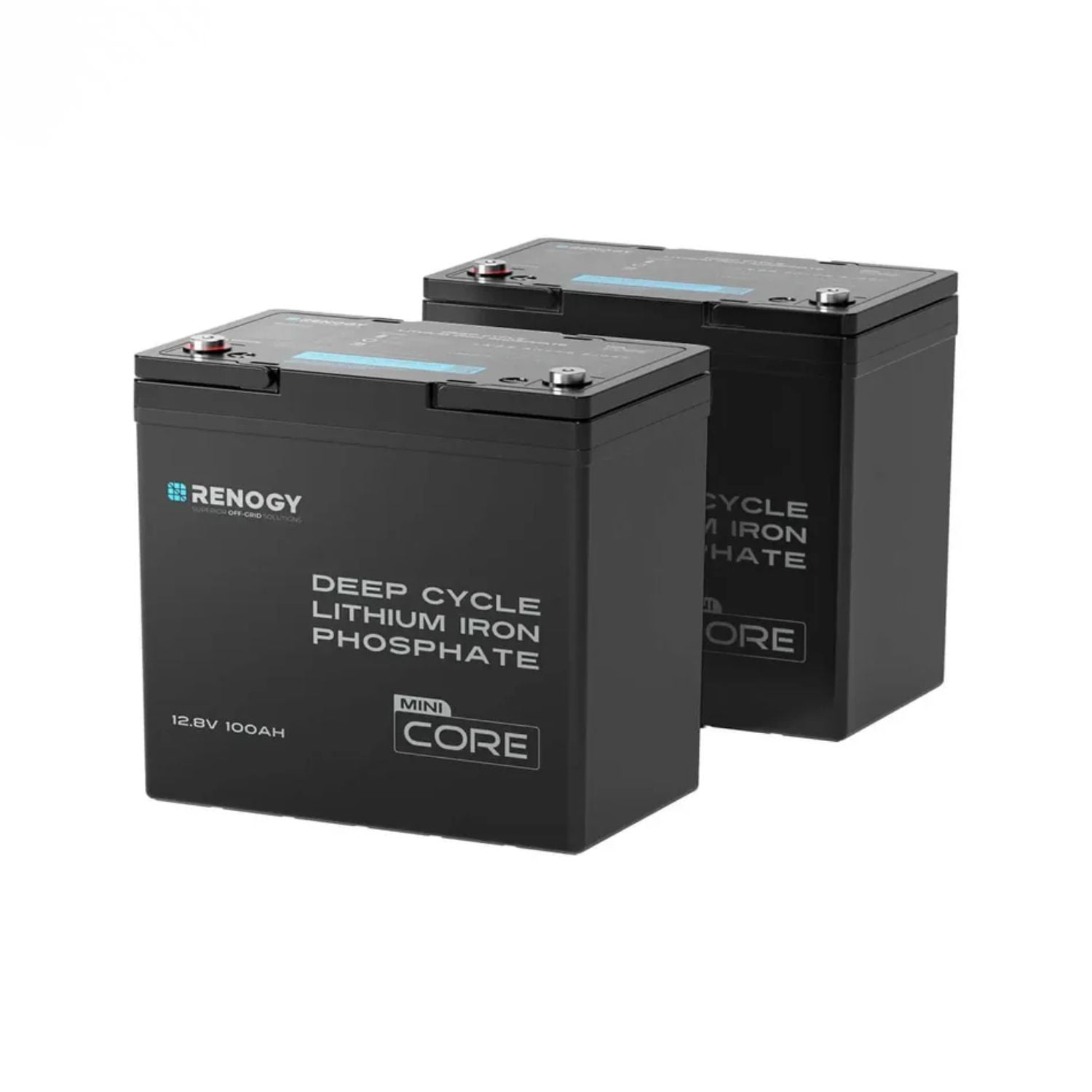

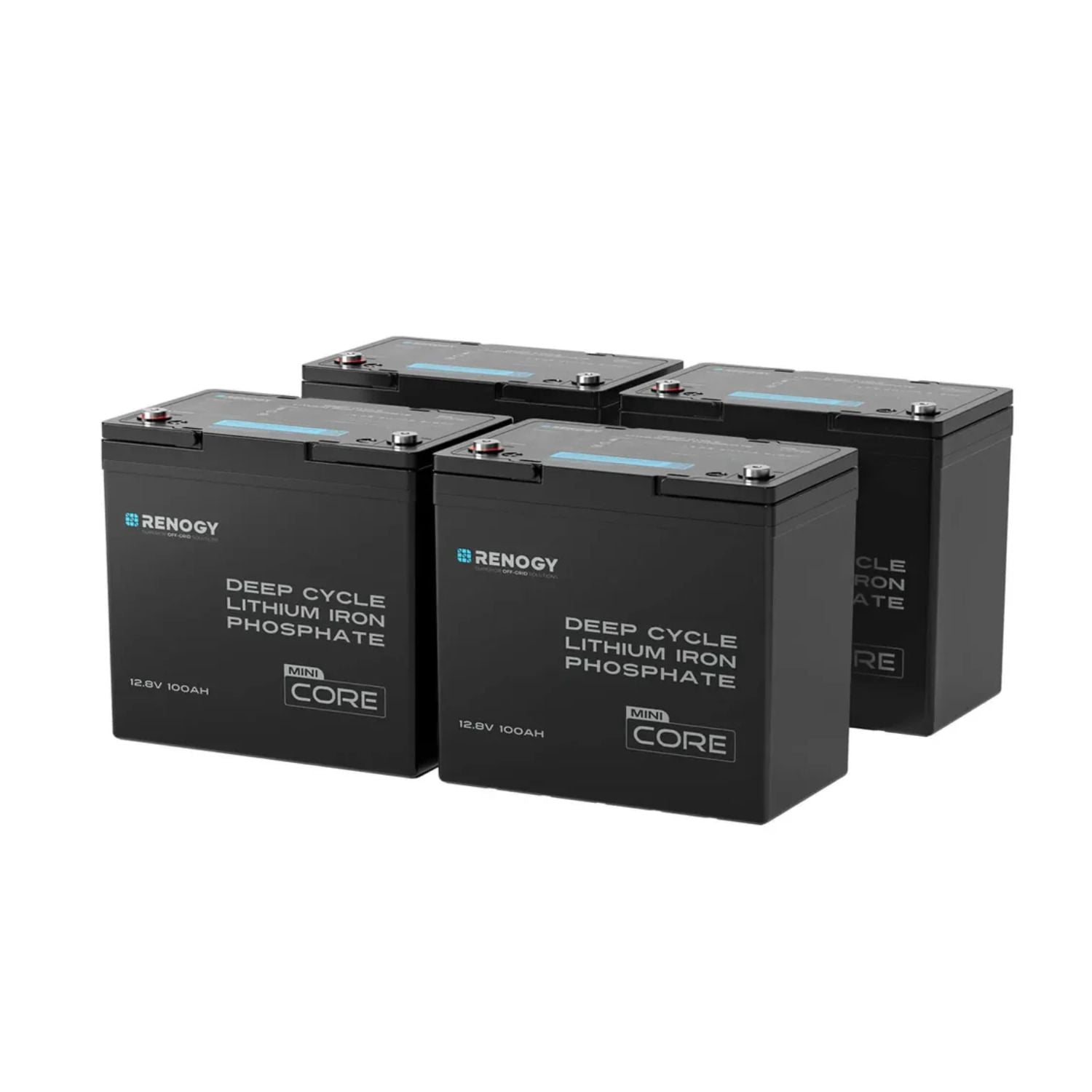

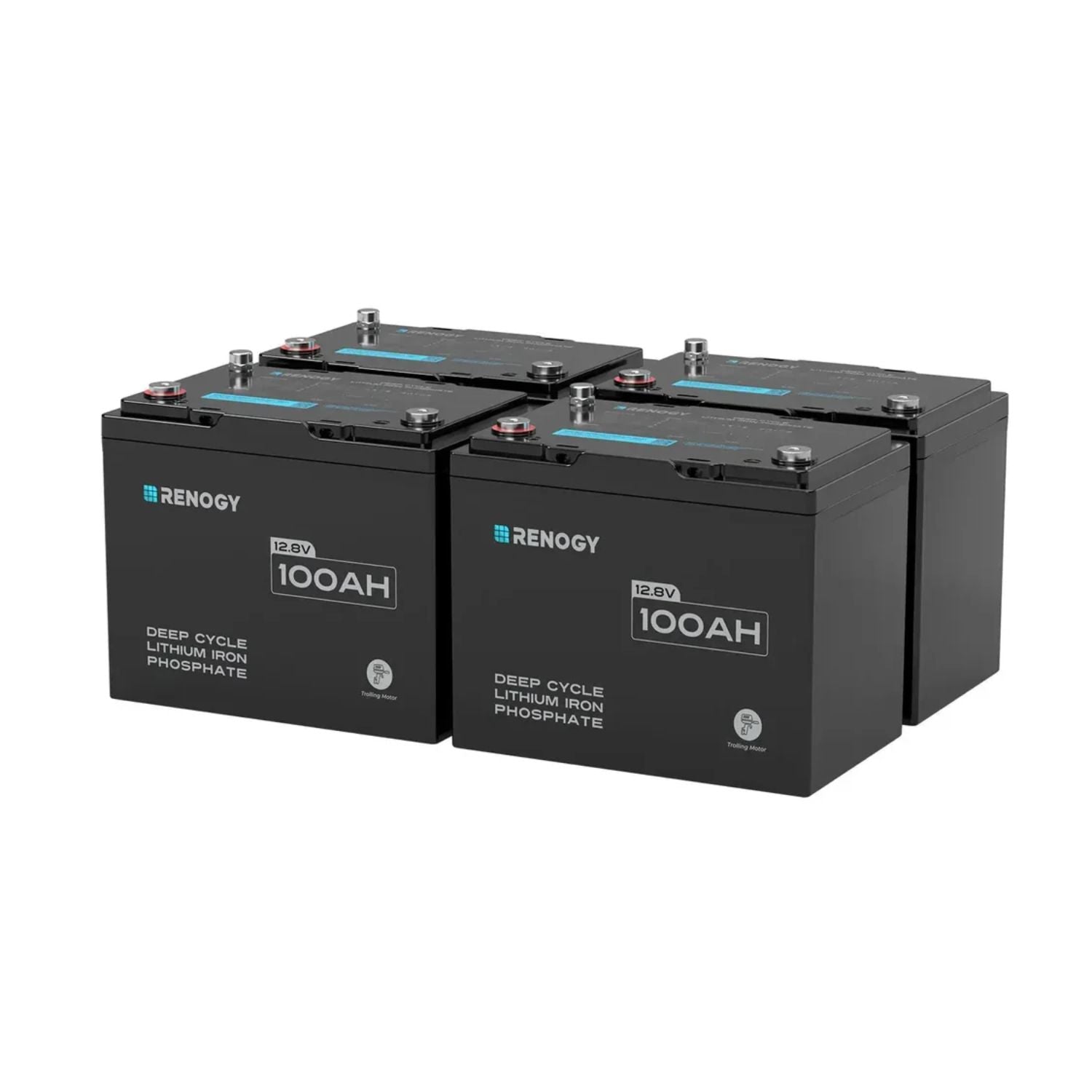

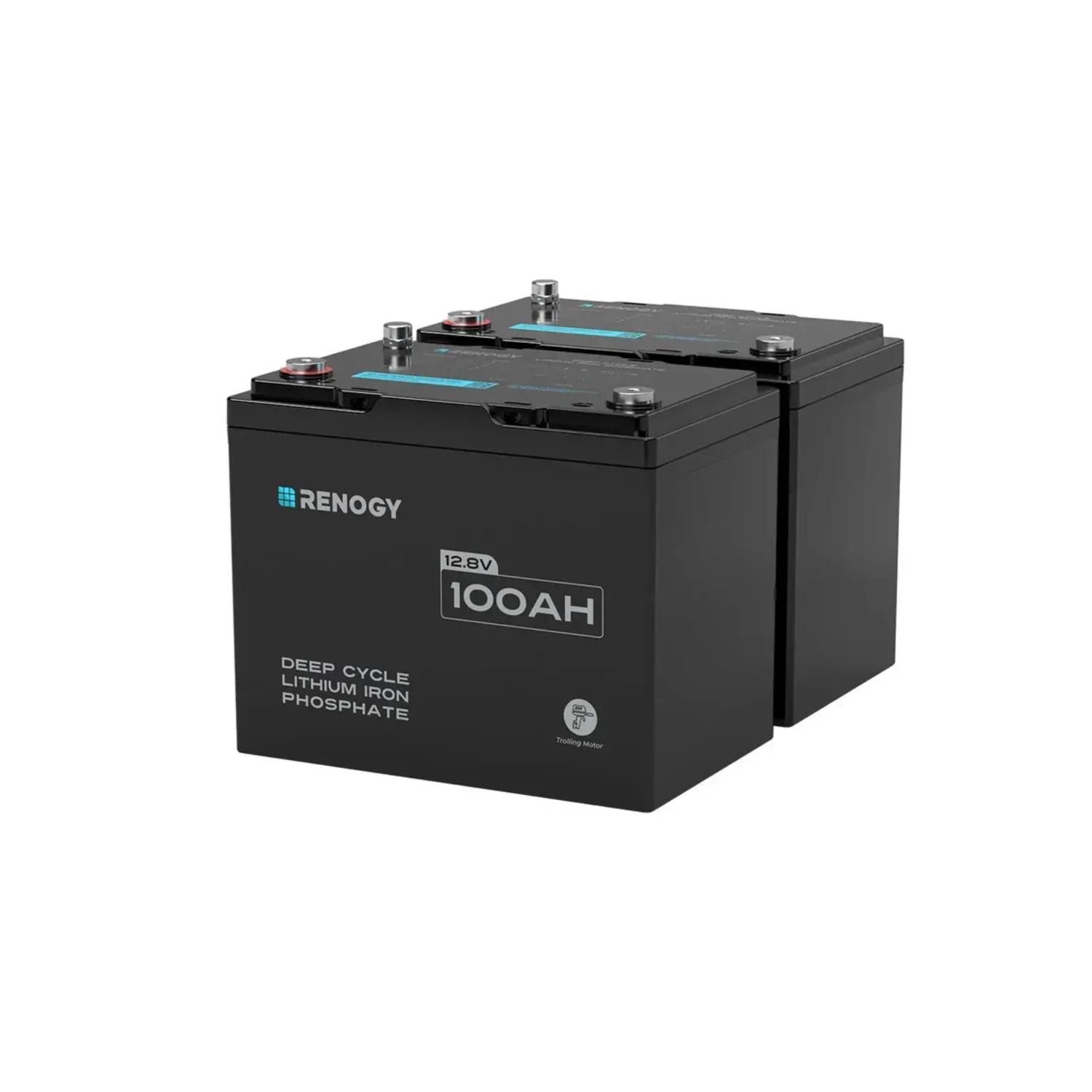

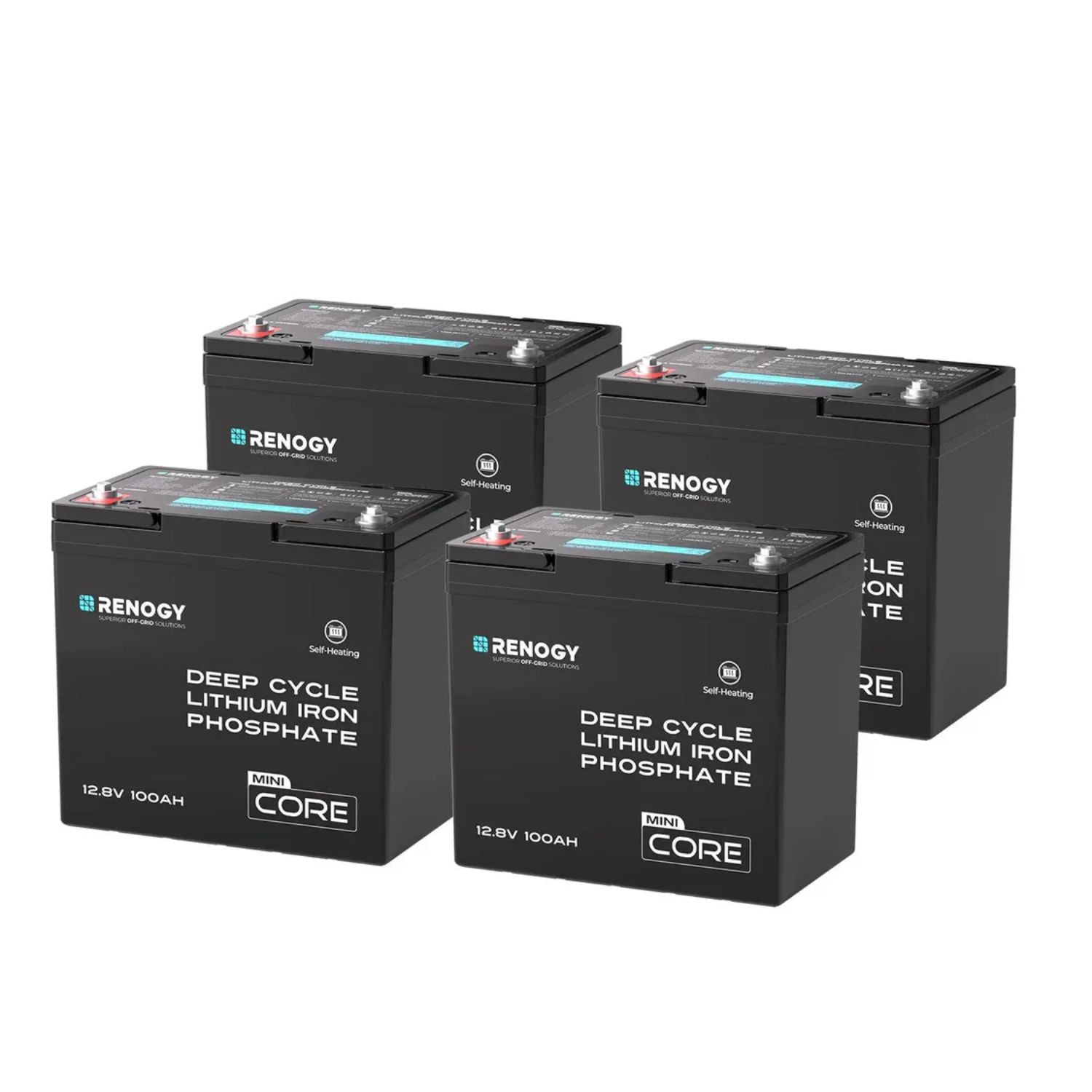

2 Pack and 4 Pack options include 2 or 4 batteries, each with its own accessories.
Compact 100Ah Lithium Power for Tight Spaces
The Renogy CORE Mini 12.8V 100Ah battery packs 1,280Wh into a Group 22NF case, with a self-heating option for cold-weather charging. At Outbound Power, we help customers choose the right battery and charging setup for trailers, boats and vans. If you have questions, our team is happy to help.
Renogy Mini Size 12.8V 100Ah Lithium Iron Phosphate Battery Specifications
|
| 100Ah Mini |
| Model |
RBT12100LFP-M-US |
| Chemistry |
Lithium iron phosphate (LiFePO4) |
| Nominal Voltage |
12.8V |
| Rated Capacity |
100Ah (0.5C, 25°C) |
| Energy |
1,280Wh |
| Cycle Life |
5,000 cycles at 80% DOD, 80% EOL (0.5C, 25°C) |
| Voltage Range |
10V to 14.8V |
| Max Charge Current |
100A |
| Max Discharge Current |
100A |
| Peak Discharge Current |
300A for 5 seconds |
| Self-Heating |
No (low-temperature charge cut-off at 32°F) |
| Charge Temperature Range |
32°F to 122°F (0°C to 50°C) |
| Discharge Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range |
-13°F to 149°F (-25°C to 65°C) |
| Terminal Torque |
88.5 to 106.2 in-lbs (10 to 12 N·m) |
| Weight |
21.8 lbs (9.9 kg) |
| Certifications |
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA |
| 100Ah Mini (Self-Heating, DuoHeat Tech) |
| Model |
RBT12100LFP-H-US |
| Rated Capacity |
100Ah (0.5C, 25°C) |
| Voltage Range |
10V to 14.6V |
| Charge Voltage |
14.6V |
| Max Continuous Charge Current |
100A |
| Max Continuous Discharge Current |
100A |
| Peak Discharge Current |
300A for 10 seconds |
| Cycle Life |
5,000 cycles at 80% DOD |
| Self-Heating |
Dual heating pads, 110W total, on at 41°F (5°C) cell temperature, off at 50°F (10°C) |
| Charge Temperature Range |
-22°F to 131°F (-30°C to 55°C) air temperature |
| Discharge Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range |
-4°F to 113°F (-20°C to 45°C) |
| Terminal Torque |
53.1 to 70.8 in-lbs (6 to 8 N·m) |
| Weight |
21.38 lbs (9.7 kg) |
| Certifications |
MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA |
| Both Versions |
| Size |
Group 22NF |
| Dimensions |
9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm) |
| Connection |
Series and parallel up to 4S4P (20.48kWh max) |
| Terminal Bolt Size |
M8 x 1.25 x 12 mm |
| Operating Humidity |
10% to 95% |
| Bluetooth |
No (optional Renogy 300A Battery Shunt) |
| Protection Rating |
IP65 |
| Warranty |
5-year prorated material and workmanship warranty |
