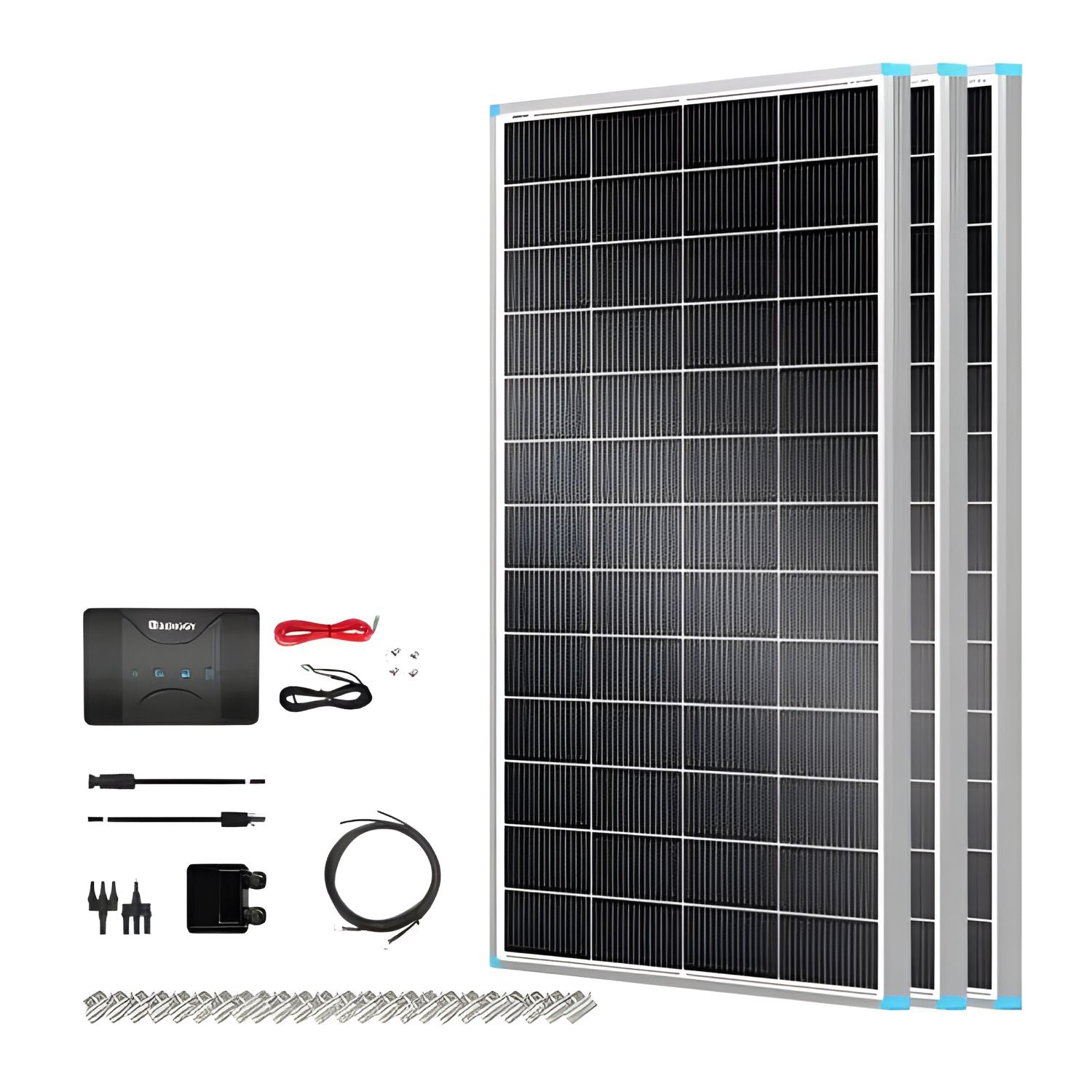

The Renogy Customizable 600W 12V RV Solar Kit pairs three Renogy 16BB N-type 200W panels with Renogy's 12V 50A DC-DC on-board battery charger with MPPT. The charger keeps your RV or van house battery charged from the solar array at camp and from the vehicle's alternator while you drive, all from one compact unit. The kit also includes a Y branch connector pair, a 20-foot adaptor kit, 4 AWG tray cables, a double cable entry gland and Z-bracket mounts.
Three 200W panels can deliver up to 600W in full sun, and the charger's all-in-one negative terminal design consolidates the solar, starter battery and house battery connections for a cleaner, simpler installation. It is an efficient way to add serious charging to a camper, van, boat or caravan.
N-type cells with 16 busbars deliver 20.7% module efficiency and hold up well in heat and low light. A durable aluminum alloy frame handles bumps and vibration on the road.
The charger accepts solar input up to 50V and alternator input, delivering up to 50A (660W) to a 12V house battery at 94% efficiency. It supports AGM, sealed, gel, flooded, lithium and user-defined battery profiles.
The negative terminal design brings the solar array, starter battery and house battery connections together, saving space and installation time.
A 20-foot 10 AWG adaptor kit and 8-foot 4 AWG tray cables connect the system, a double cable entry gland seals the roof penetration and Z brackets secure the panels.
RVs and travel trailers. Charge from the sun at camp and from the tow vehicle on the road.
Camper vans. Combine alternator and solar charging without separate units.
Boats and caravans. Keep house batteries charged from the engine and the sun.
Overland rigs. Support a fridge and auxiliary battery on extended trips.
Versus the Rover 60A version. Renogy's Essential 600W kit uses a Rover 60A MPPT controller that handles higher solar voltage and 24V banks but does not charge from the alternator. This kit adds alternator charging in one unit.
Versus separate solar and DC-DC chargers. Two units cost more and take more space and wiring.
Versus generators. This kit charges silently with no fuel or quiet-hour restrictions.
This may be a good fit if
Yes. The charger draws from the alternator when the engine runs and from the panels whenever there is sun.
No. Two panels in series would exceed the charger's 50V solar input limit. Wire them in parallel.
Only if you want to run 120V AC appliances from the house battery.
The Renogy Customizable 600W 12V RV Solar Kit keeps your house battery charged in the sun and on the road with efficient N-type panels and a 50A DC-DC charger with MPPT. At Outbound Power, we help customers choose batteries and fusing for RV charging systems. If you have questions, our team is happy to help.
Renogy Customizable 600W 12V RV Solar Kit Specifications |
|
|---|---|
| Kit Model | RKIT600RT-D50D3 |
| 16BB N-Type 200W Solar Panel (x3) | |
| Max Power at STC | 200W each (600W total) |
| Open Circuit Voltage (Voc) | 37.44V |
| Short Circuit Current (Isc) | 6.85A |
| Optimum Operating Voltage (Vmp) | 31.03V |
| Optimum Operating Current (Imp) | 6.45A |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
| Module Efficiency | 20.7% |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Dimensions | 49.7 x 30.1 x 1.2 in (1262 x 764 x 30 mm) |
| Weight | 23.4 lbs (10.6 kg) each |
| 50A DC-DC On-Board Battery Charger With MPPT | |
| System Voltage | 12VDC |
| Battery Voltage Range | 9V to 16VDC |
| Maximum Charging Current | 50A |
| Battery Types | AGM/SLD, gel, flooded, lithium, user |
| Charging Efficiency | 94% |
| Max Solar Input Voltage | 30V/50V |
| Max Solar Input Power | 660W at 50A |
| Max Alternator Input Power | 660W at 50A |
| Dimensions | 9.61 x 5.75 x 3.78 in (244 x 146 x 96 mm) |
| Weight | 4.10 lbs (1.86 kg) |
