The Renogy Essential RV Kit N-Type 200W 12V Solar Kit Adds Bluetooth Monitoring and RV-Ready Hardware to 200W of Solar
The Renogy Essential RV Kit N-Type 200W 12V Solar Kit is a step up from a basic starter kit, built for a clean, complete RV roof installation. It includes two Renogy 16BB N-type 100W panels, an Adventurer 30A PWM charge controller with 12V and 24V compatibility, a BT-1 Bluetooth module for monitoring on your phone, a cable entry housing to seal the roof penetration, Y branch connectors, a 30-foot adaptor kit, a 16-foot battery tray cable and Z-bracket mounts.

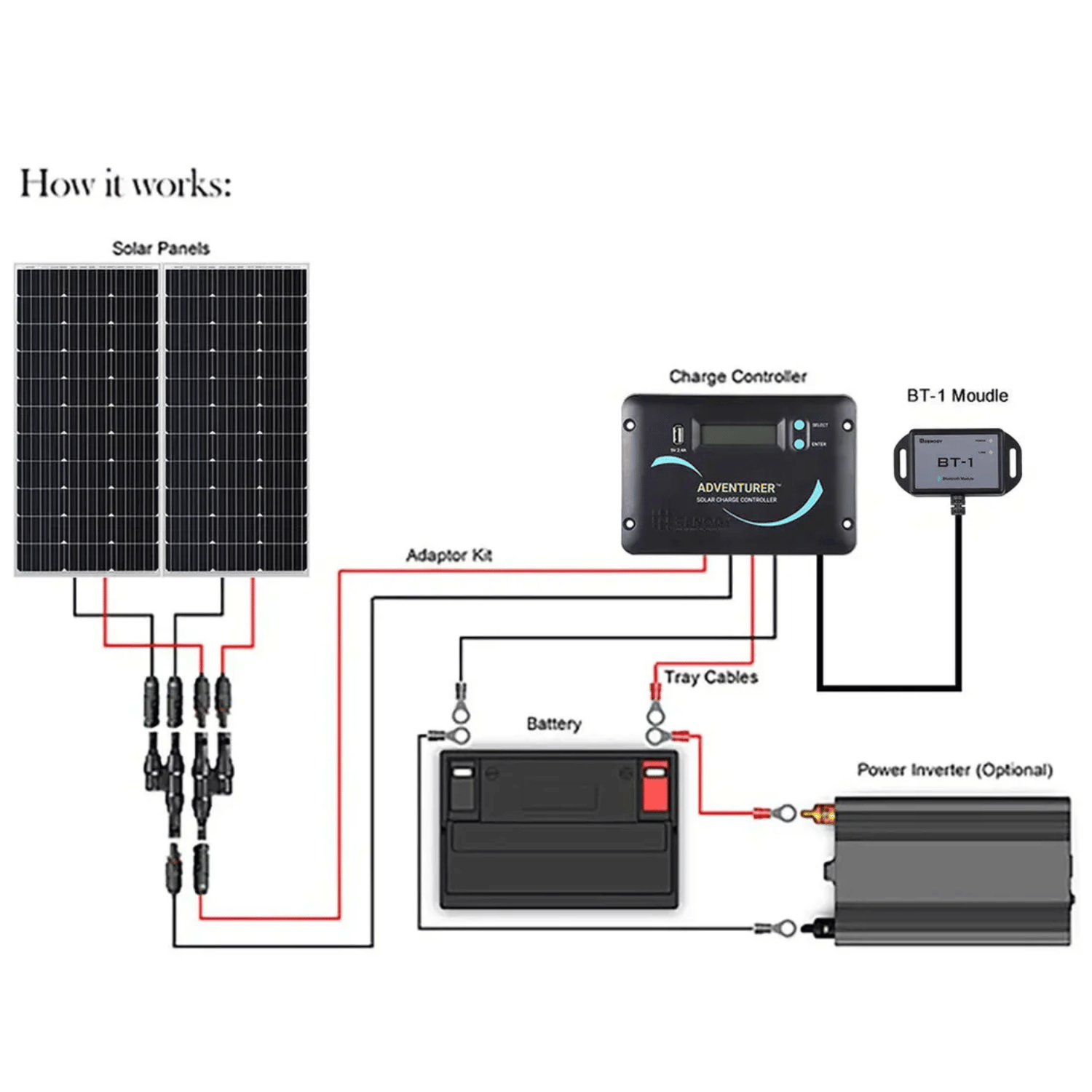

In good sun, 200W of panels can produce roughly 600 to 1,000 watt-hours per day, enough to keep house batteries charged while running lights, fans, a water pump and device chargers. The Adventurer's flush-mount design looks at home on an RV wall, and a clear wiring diagram makes installation straightforward.
Renogy Essential 200W RV Kit Features
Two 16BB N-Type 100W Panels
High-efficiency N-type cells with 16 busbars hold up well in heat and low light. Renogy backs the panels with a 10-year materials and workmanship warranty.
Adventurer 30A PWM Controller
The Adventurer works with 12V and 24V batteries and accepts up to 50V of solar input. Four-stage charging supports sealed, gel, flooded and lithium batteries, and it protects against reverse current, overcharging, short circuits and reversed polarity.
BT-1 Bluetooth Monitoring
The included BT-1 module connects the controller to the Renogy app for real-time monitoring and settings changes from your phone.
RV Roof Hardware
A cable entry housing seals the cable pass-through on the roof, and two sets of Z brackets secure the panels.
Long Cable Runs Covered
The 30-foot 10 AWG adaptor kit and 16-foot 10 AWG tray cable reach from the roof to most RV battery compartments.
Real-World Applications
Travel trailers and fifth wheels. Keep house batteries charged while boondocking or in storage.
Motorhomes and vans. Monitor solar production from the cab with the Bluetooth app.
Truck campers. Add solar without a bulky installation.
Cabins. Power small 12V or 24V systems with app monitoring.
How It Compares to Common Alternatives
Versus the Starter RV Kit. The Starter kit uses a Wanderer controller and shorter cables, with Bluetooth sold separately. The Essential kit adds the wall-mount Adventurer controller, BT-1 module, cable entry housing and longer cables.
Versus MPPT kits. MPPT controllers harvest more energy, especially in cold weather, but cost more. PWM is a cost-effective match for 12V panels in parallel.
Versus generators. Solar charges silently with no fuel, noise or maintenance.
Is This Kit the Right Fit
-
Battery. You will need a 12V or 24V battery. The kit does not include one.
-
Wiring. Wire the panels in parallel with the included Y connectors for a 12V system.
-
Roof space. Plan for two 34.1 x 22.8 inch panels plus clearance around vents and AC units.
This may be a good fit if
- You want a complete RV solar kit with app monitoring
- You want a clean, sealed roof cable entry
- You need long cables from roof to battery
- You want a controller that works with 12V or 24V batteries
Common Questions
What Else Do I Need?
A deep-cycle battery and, if you want to run AC appliances, an inverter.
Can I Monitor the System From My Phone?
Yes. The included BT-1 module connects the Adventurer controller to the Renogy app.
Why Is My System Producing Less Than 200W?
Indirect sunlight, heat, clouds and dirt all reduce output. Keep panels clean and free of shade.

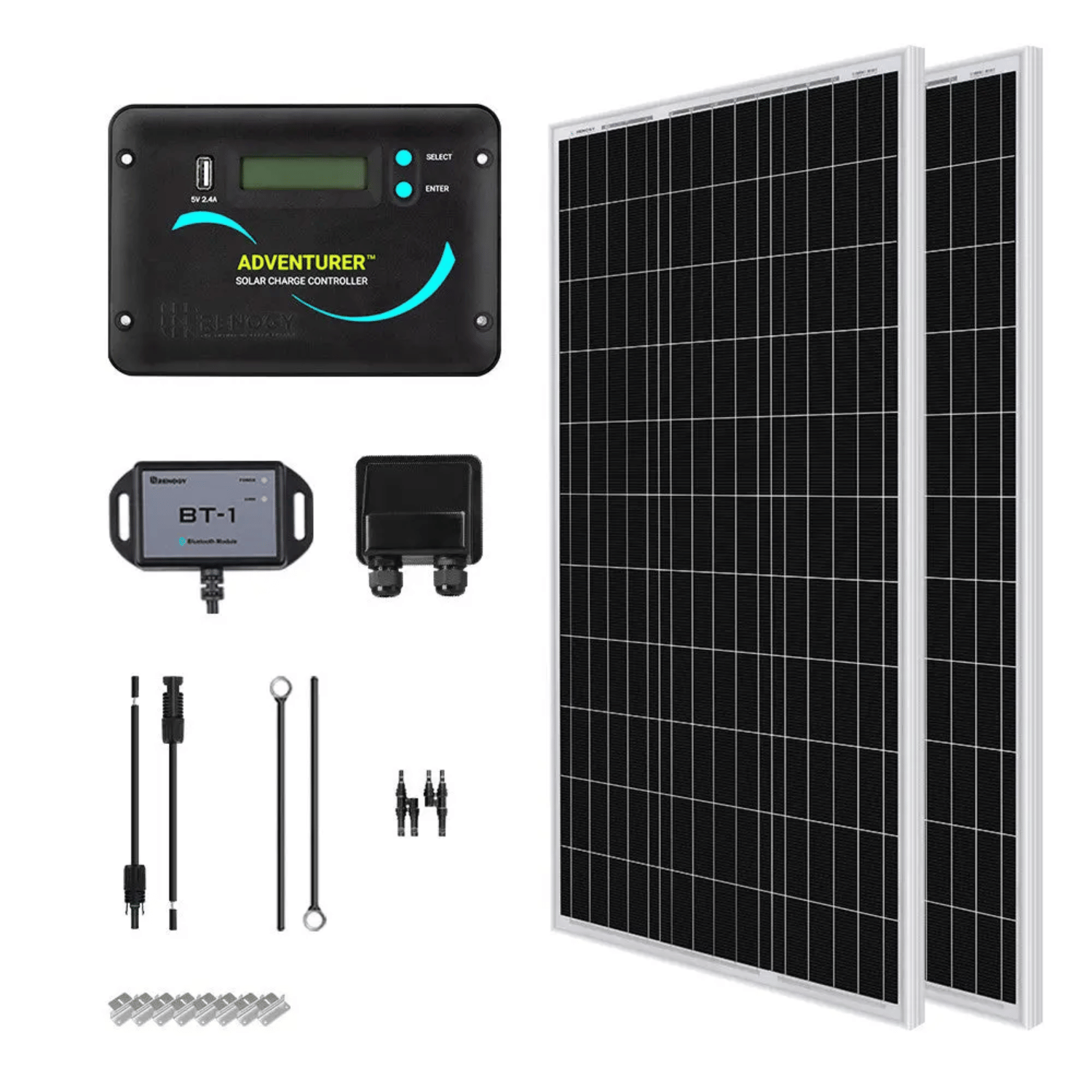

What's Included
- 2 x Renogy 16BB N-Type 100W Solar Panels (RSP100DC)
- 1 x Renogy Adventurer 30A PWM Charge Controller
- 1 x Renogy BT-1 Bluetooth Module
- 1 x 30ft 10 AWG Solar Adaptor Kit
- 1 x 16ft 10 AWG Battery Tray Cable
- 1 x Pair of MC4 Y Branch Connectors
- 2 x Sets of Z Mounting Brackets
- 1 x Cable Entry Housing
A Complete, Monitored 200W RV Solar System
The Renogy Essential RV Kit N-Type 200W 12V Solar Kit brings together efficient panels, a wall-mount controller, Bluetooth monitoring and RV roof hardware for a clean installation. At Outbound Power, we help customers choose batteries and plan RV solar upgrades. If you have questions, our team is happy to help.
Renogy Essential RV Kit N-Type 200W 12V Solar Kit Specifications
|
| Kit Model |
RNG-KIT-RV200D-ADV30 |
| 16BB N-Type 100W Solar Panel (x2) |
| Max Power at STC |
100W each (200W total) |
| Open Circuit Voltage (Voc) |
22.79V |
| Short Circuit Current (Isc) |
5.31A |
| Optimum Operating Voltage (Vmp) |
19.97V |
| Optimum Operating Current (Imp) |
5.01A |
| Operating Temperature |
-40°F to 185°F (-40°C to 85°C) |
| Dimensions |
34.1 x 22.8 x 1.2 in (865 x 578 x 30 mm) |
| Weight |
13.0 lbs (5.9 kg) each |
| Warranty |
10-year materials and workmanship |
| Adventurer 30A PWM Charge Controller |
| Nominal Voltage |
12V / 24V |
| Rated Charge Current |
30A |
| Max Solar Input Voltage (Voc) |
50VDC |
| Battery Types |
Sealed, gel, flooded, lithium |
| Bluetooth |
Via included BT-1 module |
| Dimensions |
6.56 x 4.50 x 1.90 in |
| Weight |
0.6 lbs |
| Cables and Hardware |
| Solar Adaptor Kit |
10 AWG, 30 ft |
| Battery Tray Cable |
10 AWG, 16 ft |
| Y Branch Connectors |
1 pair, MC4 |
| Mounting |
2 sets of Z brackets, cable entry housing |
