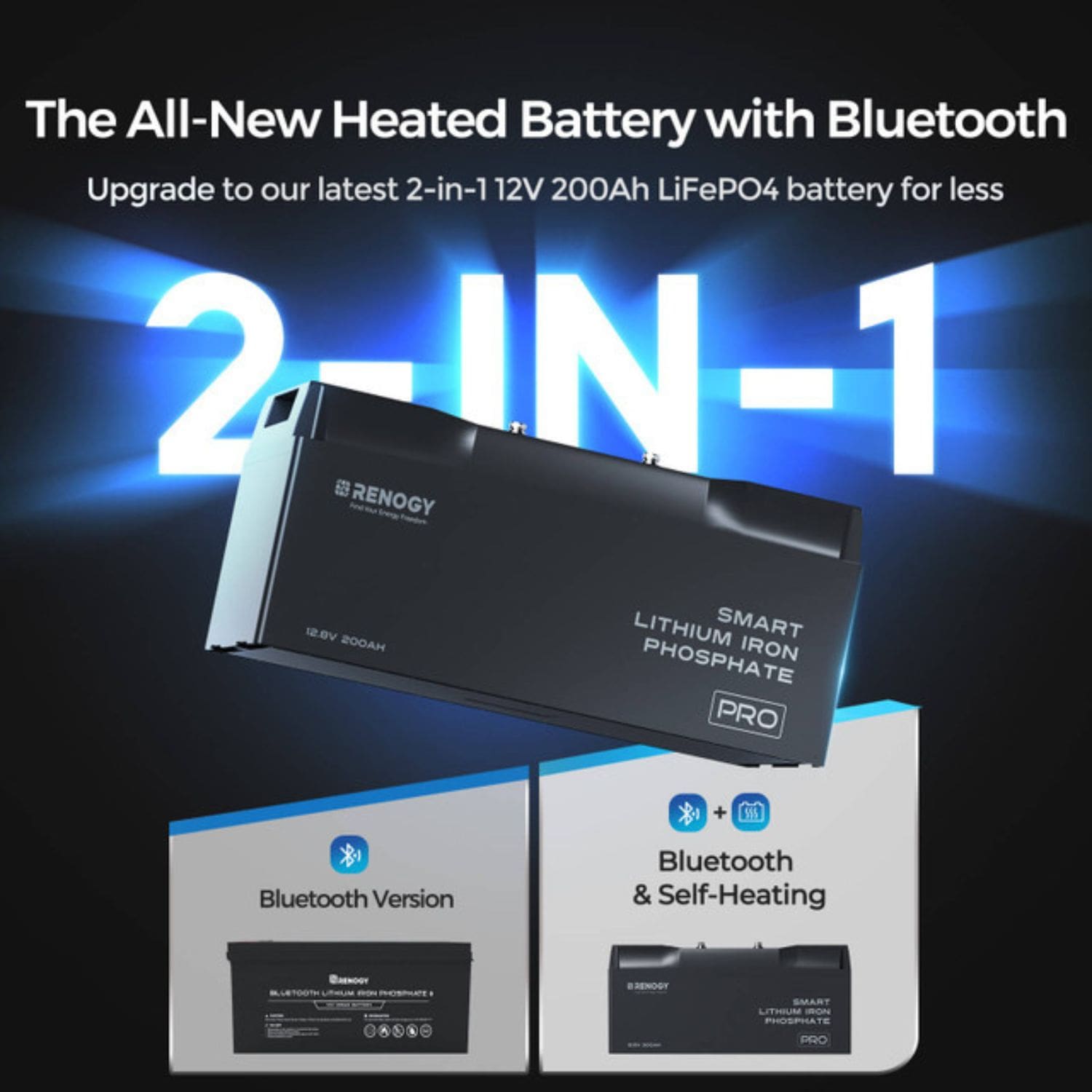

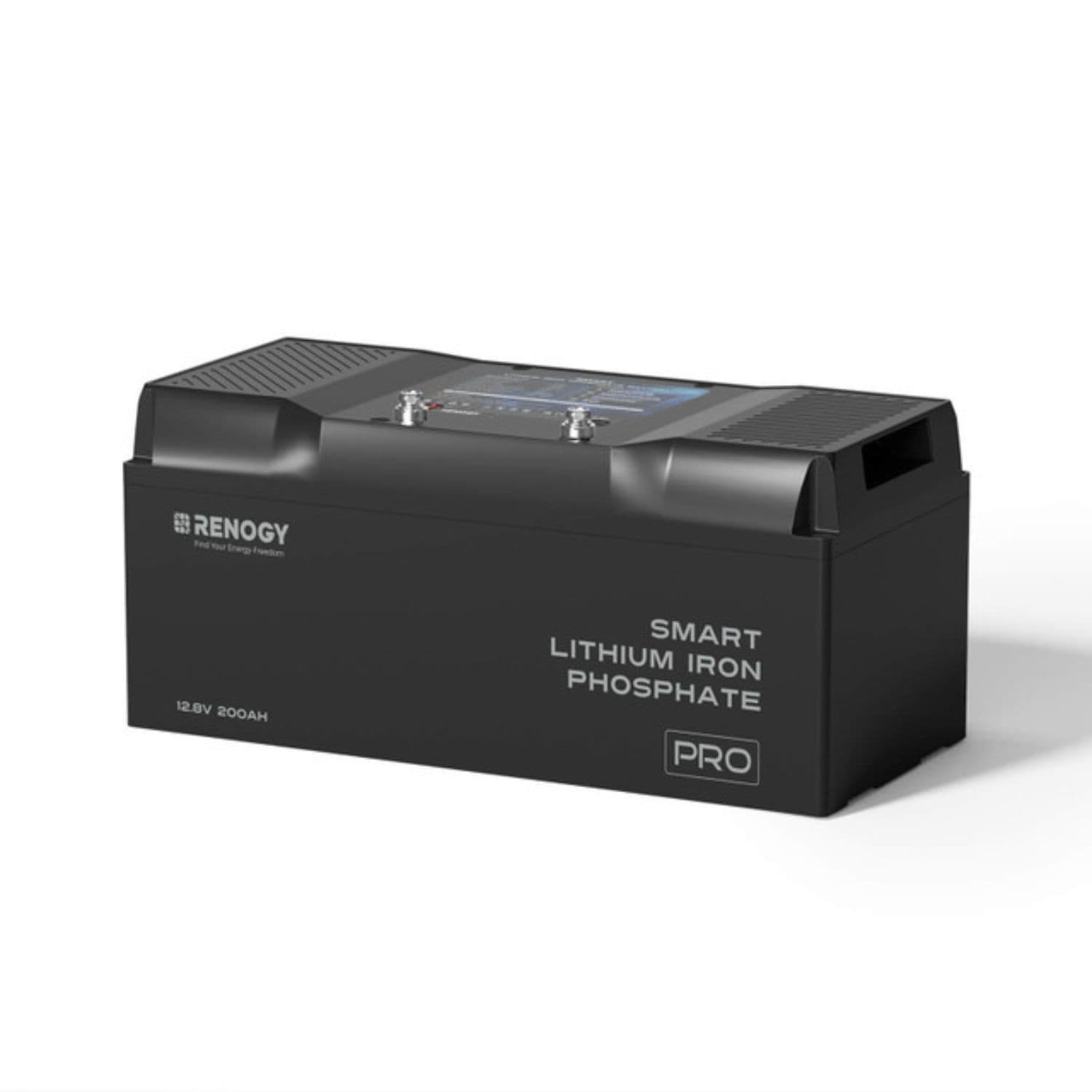

The Renogy PRO Series 12V 200Ah Smart Lithium Battery Combines Self-Heating, Bluetooth and Renogy's Most Complete Safety Design
The Renogy PRO Series 12V 200Ah Self-Heating Smart Lithium Iron Phosphate Battery with Bluetooth is Renogy's safest 12V 200Ah LiFePO4 battery. It stores 2,560Wh, supplies 200A continuously and 270A for 30 seconds, and is rated for 5,000 cycles at 80% depth of discharge. Self-heating keeps it charging in sub-zero weather, and built-in Bluetooth connects it to the Renogy DC Home app.
Renogy calls the PRO's protection a Double Active Safety System. An automotive-grade battery management system provides more than 60 protections and alerts, and self-controlled fuses act as an active backup that can cut the circuit about 40 times faster than conventional passive protection if a MOSFET switch fails. A UL94 V-0 flame-retardant case, IP67 waterproofing and ISO 9227 corrosion resistance round out a battery built for RVs, boats, cabins and all-weather living.
Renogy PRO Series 12V 200Ah Battery Features

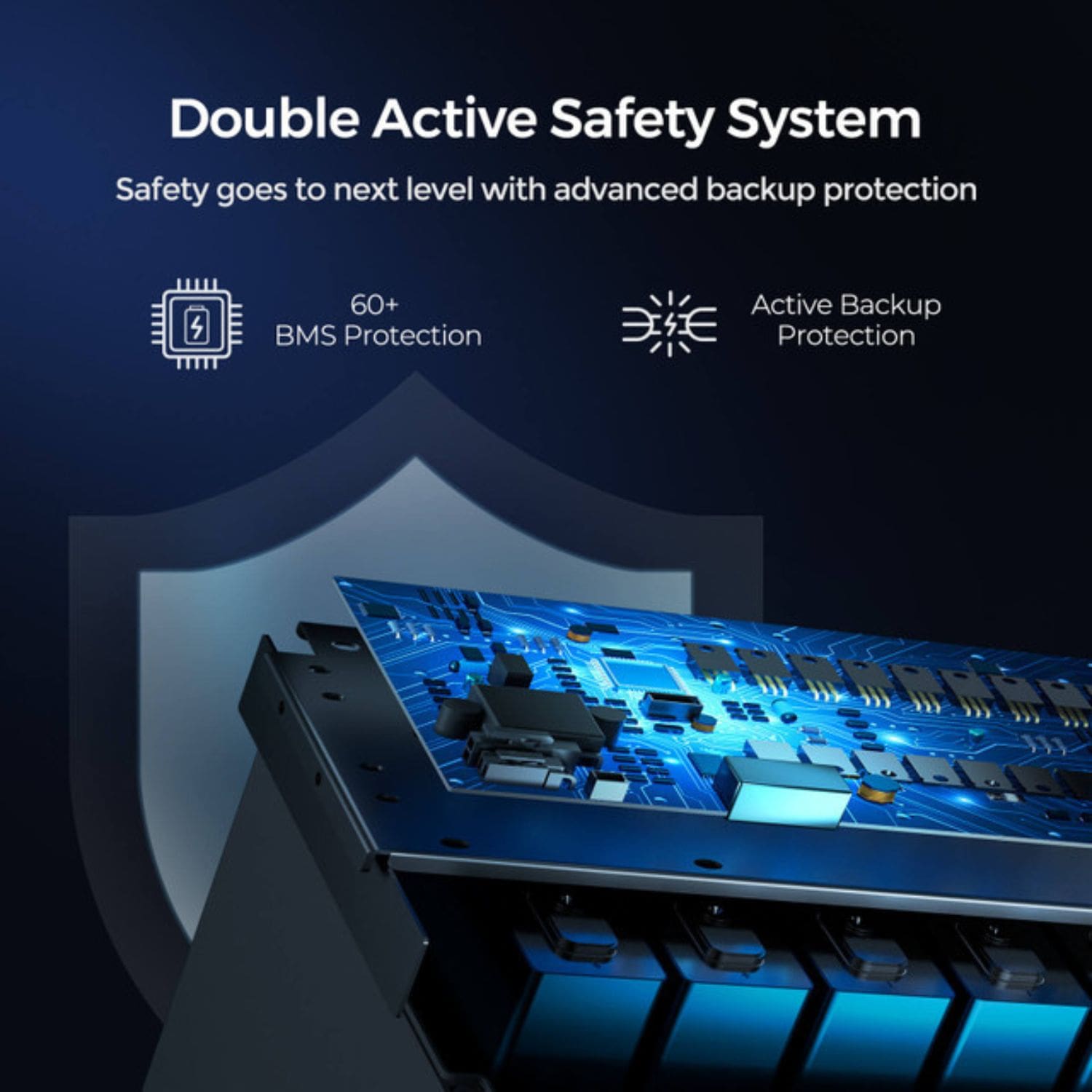

Double Active Safety System
The primary layer is the 60-plus protection BMS, which monitors electrical and thermal conditions and reacts to faults. The secondary layer uses self-controlled fuses that cut off overvoltage and overheating even if other key hardware fails.

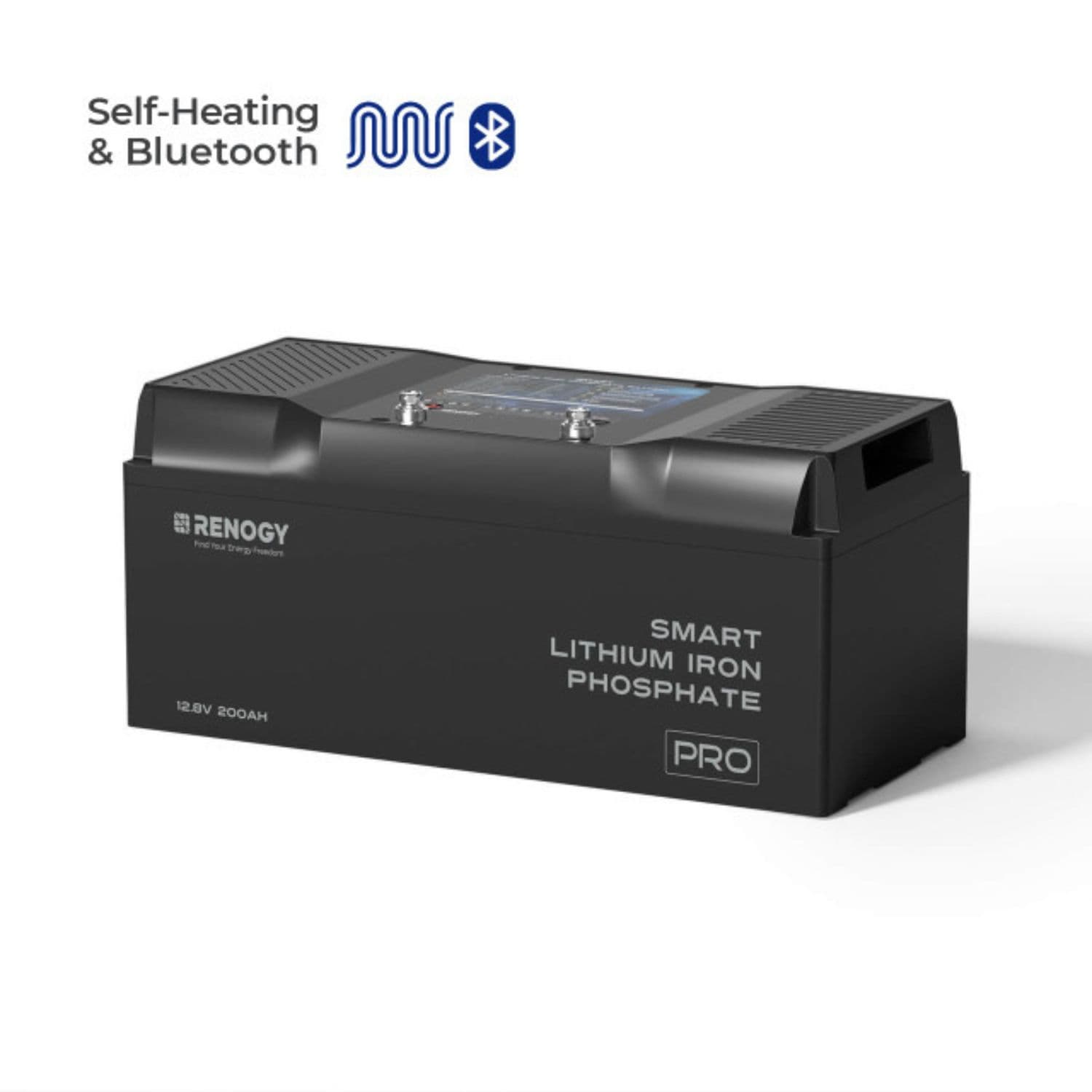

Self-Heating for Cold Weather
The battery heats itself automatically when it receives a charging current greater than 6A, allowing safe charging in sub-zero temperatures. Overheat protection is built in. Renogy recommends its 12V 20A AC-DC LFP charger for winter charging.
Bluetooth and Over-the-Air Updates
Connect to the DC Home app, Renogy ONE M1 or Renogy ONE Core to monitor the battery. The app can also install firmware updates over the air.

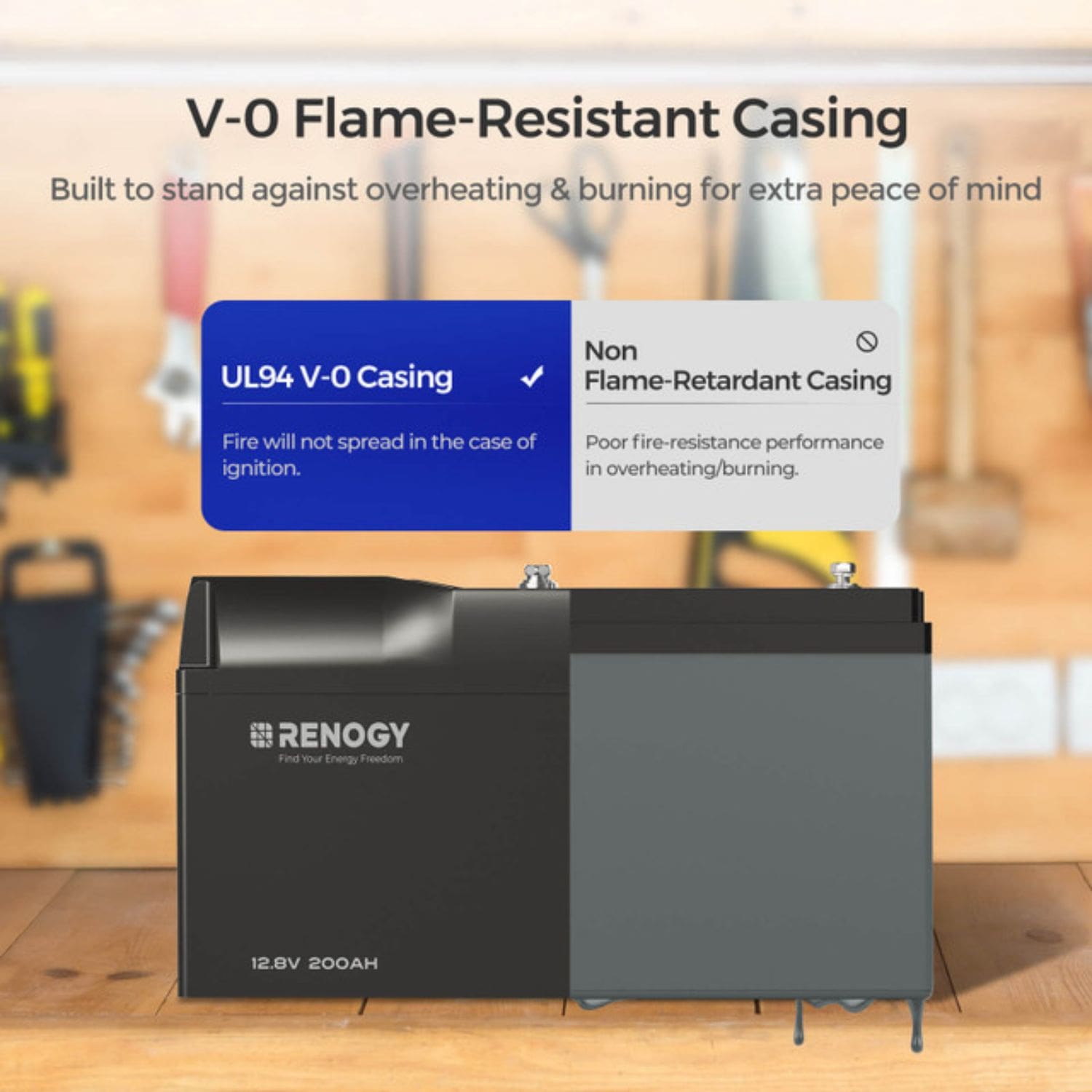

Flame-Retardant, IP67 Case
The PC and ABS case meets UL94 V-0, stopping vertical burning within 10 seconds. IP67 protection keeps out dust and water, and ISO 9227 corrosion testing makes it a strong choice for marine use.
UL-Listed EV-Grade Cells
Class A prismatic cells deliver 5,000 cycles and up to 270A for 30 seconds to start air conditioners and other heavy loads.
Parallel Expansion
Connect up to 8 PRO batteries in parallel for up to 20.48kWh at 12V. The PRO does not support series connection.
Real-World Applications

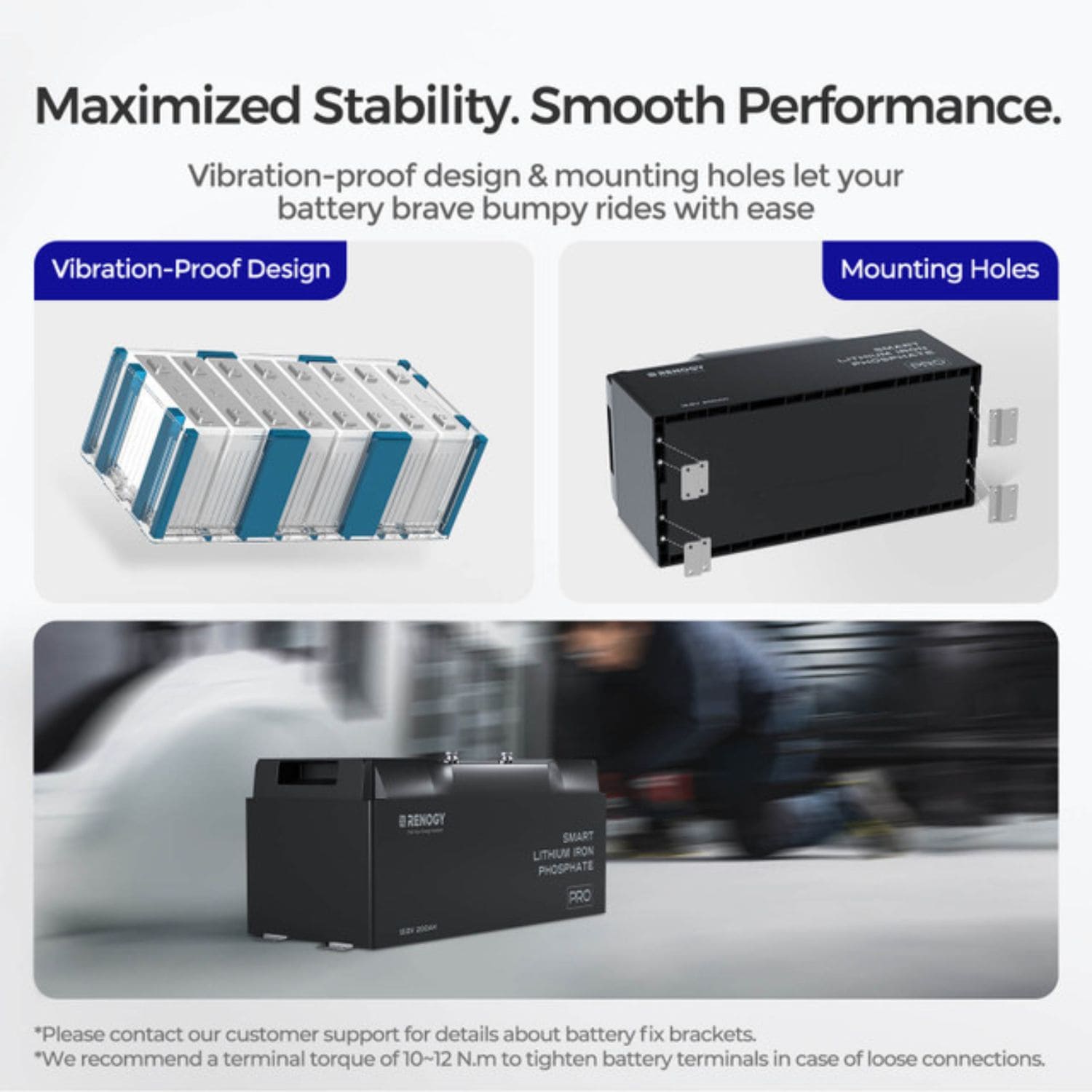

RVs and vans. A vibration-resistant, self-heating house battery for weekend trips or full-time travel.
Boats. IP67 and corrosion resistance suit marine environments. Pair with a Renogy IP67 50A DC-DC charger for charging underway.
Ice fishing and winter camping. Keep fish finders, heaters and lights powered in freezing temperatures.
Cabins and sheds. Store solar power for lights, appliances and tools in remote buildings.
How It Compares to Common Alternatives
Versus the CORE 12V 200Ah Bluetooth battery. The CORE adds Bluetooth and can be wired in series, but it does not heat itself and has an IP65 case. The PRO adds self-heating, IP67, a flame-retardant case, backup fuse protection and a longer warranty.
Versus standard lithium batteries. Most LiFePO4 batteries cannot charge below freezing and have only basic BMS protection. The PRO adds active backup protection and cold-weather charging.
Versus lead-acid batteries. Lead-acid batteries are heavier, need more space for the same usable capacity and last a fraction as long.
Is This Battery the Right Fit
-
System voltage. 12V systems only. The PRO connects in parallel (up to 8) and is not designed for series wiring.
-
Charging. Use a lithium-compatible charger. Self-heating needs more than 6A of charge current.
-
Mounting. Install upright or on its side in a clean, ventilated space. Do not stack it or mount it upside down.
-
Space. The battery measures 18.4 x 8.4 x 8.2 inches and weighs 50.7 lbs.
This may be a good fit if
- You want the most complete safety protection available
- You need to charge in freezing weather
- Your battery will see water, salt or humidity
- You want app monitoring and firmware updates
Common Questions
Can I Connect PRO Batteries in Series?
No. The PRO supports parallel connection only, up to 8 batteries.
What Is Active Backup Protection?
Self-controlled fuses respond instantly to overvoltage and overheating even if other key components fail, acting as a second line of defense behind the BMS.
What Is the Self-Discharge Rate?
Less than 3% per month. The battery does not enter a shelf mode on its own during long storage.
How Should I Prepare Batteries for Parallel Connection?
Fully charge each battery separately, let them rest until their voltages are within 0.1V, then connect them. Do not mix batteries more than six months apart in age or from other brands.
What's Included
- 1 x Renogy PRO Series 12V 200Ah Smart Lithium Iron Phosphate Battery
- 2 x Terminal Bolts (M8 x 1.25 x 12 mm)
- 2 x Long Terminal Bolts (M8 x 1.25 x 16 mm)
- 1 x User Manual

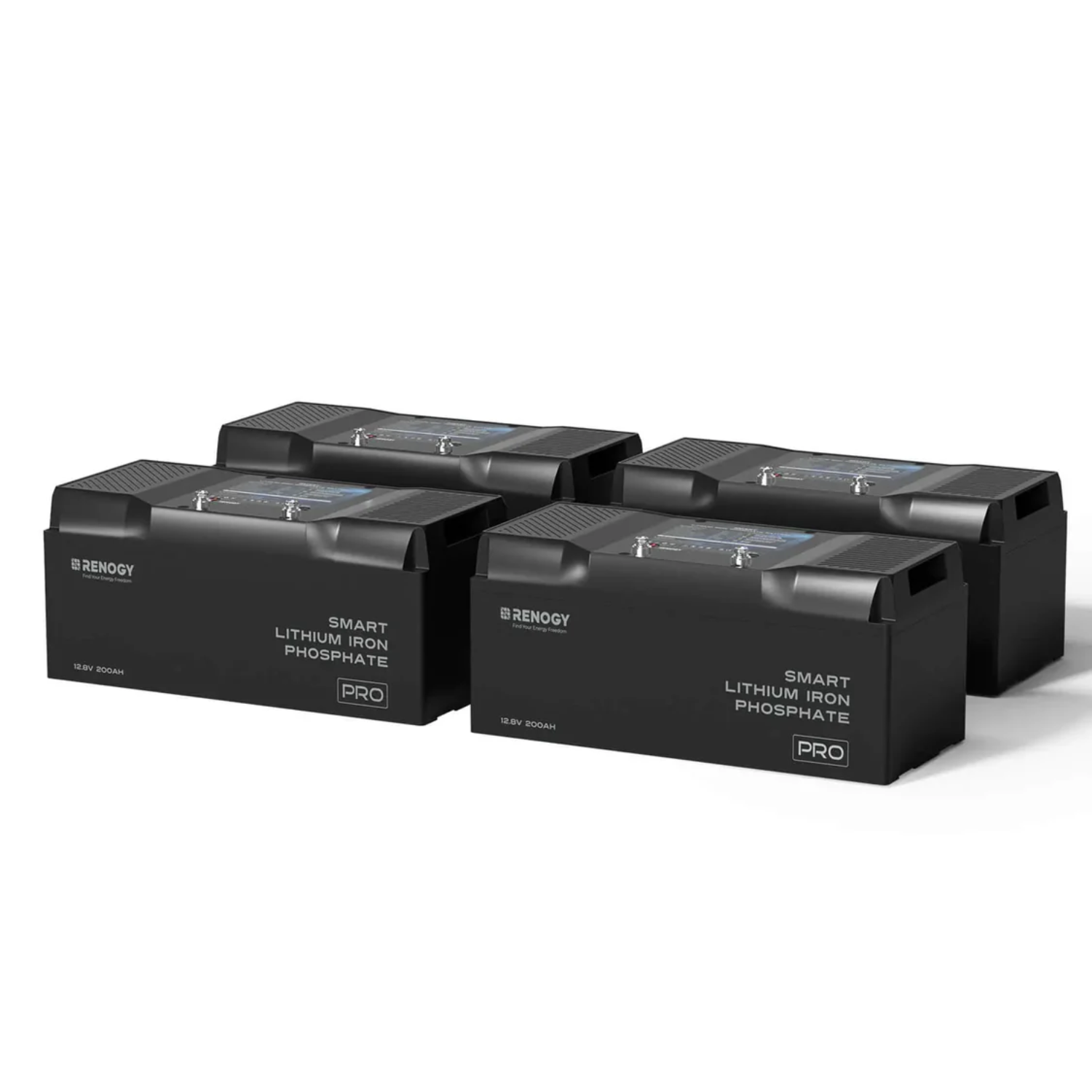

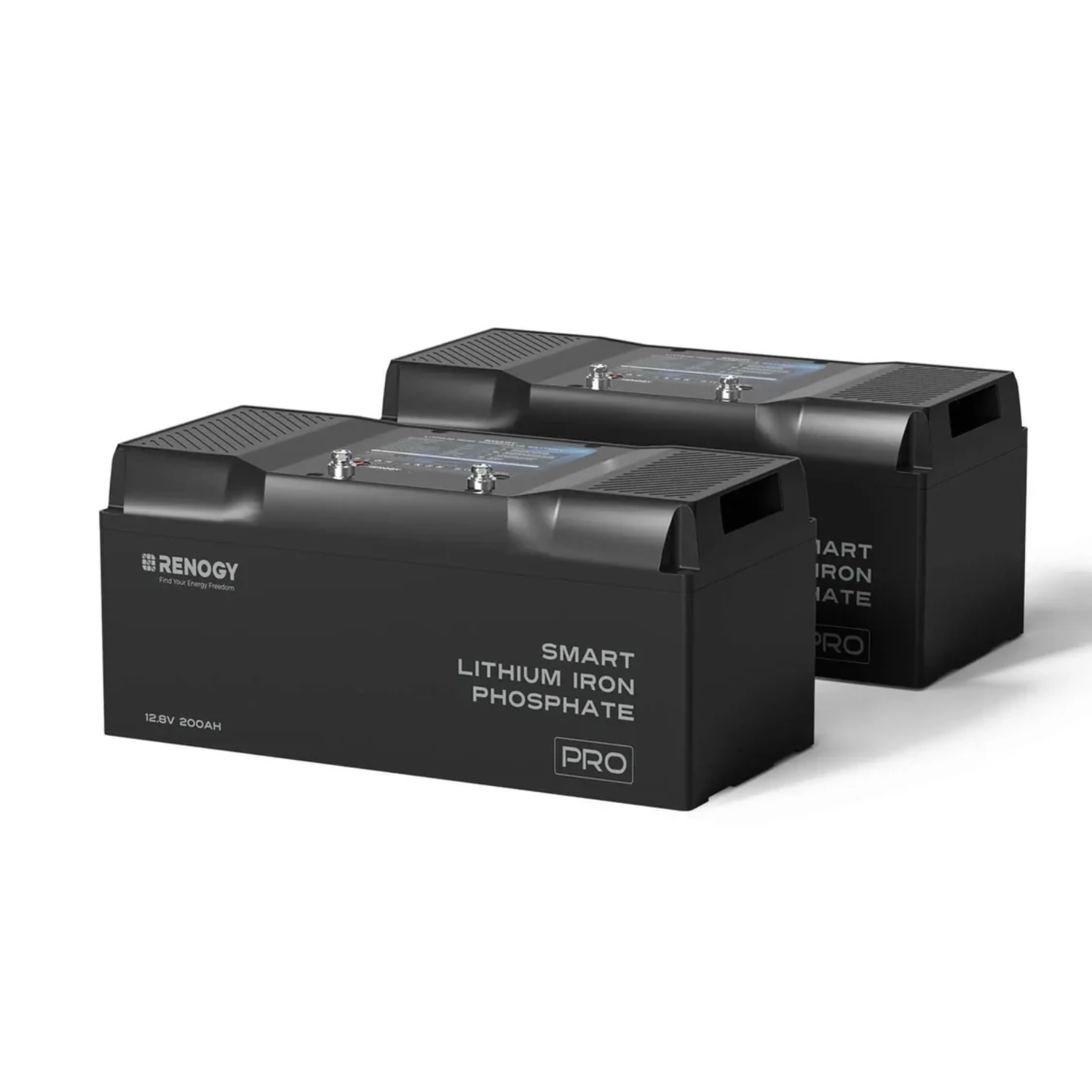

2 Pack and 4 Pack options include 2 or 4 batteries, each with its own accessories.
Renogy's Safest 12V 200Ah Lithium Battery
The Renogy PRO Series 12V 200Ah battery pairs self-heating and Bluetooth with layered safety protection, an IP67 flame-retardant case and a 7-year warranty. At Outbound Power, we help customers size battery banks and choose compatible chargers. If you have questions, our team is happy to help.
Renogy 12V 200Ah Pro Smart Lithium Battery Specifications
|
| Model |
RBT12200LFP-BT-US |
| Chemistry |
Lithium iron phosphate (LiFePO4), EV-grade Class A prismatic cells |
| Nominal Voltage |
12.8V |
| Rated Capacity |
200Ah (0.5C, 25°C) |
| Energy |
2,560Wh |
| Cycle Life |
5,000 cycles at 80% DOD, 80% EOL (0.5C, 25°C) |
| Voltage Range |
10V to 14.8V |
| Max Charge Current |
200A |
| Max Discharge Current |
200A |
| Peak Discharge Current |
270A for 30 seconds |
| BMS |
60+ protections and alerts, plus active backup fuse protection |
| Self-Heating |
Yes, activates with charge current above 6A, with overheat protection |
| Charge Temperature Range |
-4°F to 131°F (-20°C to 55°C) |
| Discharge Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range |
-13°F to 149°F (-25°C to 65°C) |
| Operating Humidity |
10% to 95% |
| Self-Discharge |
Less than 3% per month |
| Connection |
Parallel only, up to 8 batteries |
| Communication |
Bluetooth (DC Home app, Renogy ONE M1, Renogy ONE Core), OTA updates |
| Terminal Bolts |
M8 x 1.25 x 12 mm and M8 x 1.25 x 16 mm |
| Recommended Terminal Torque |
70.8 in-lbs (8 N·m) |
| Housing Material |
PC/ABS |
| Flame Retardancy |
UL94 V-0 |
| Protection Rating |
IP67, ISO 9227 corrosion resistant |
| Dimensions |
18.4 x 8.4 x 8.2 in (467 x 212 x 208 mm) |
| Weight |
50.7 lbs (23 kg) |
| Certifications |
UL, MSDS, UN38.3, FCC, CE, PSE, UKCA |
| Warranty |
7-year prorated material and workmanship warranty |
Renogy PRO Series 12V 200Ah Self-Heating Smart Lithium Iron Phosphate Battery w/Bluetooth Manual
