The Renogy REGO Series 12V 104Ah Super Slim Battery Fits 1,331Wh of Lithium Power Into a 2.4-Inch-Thin Case
The Renogy REGO Series 12V 104Ah Super Slim Lithium Iron Phosphate Battery is just 2.4 inches (61 mm) thin, so it fits behind truck seats, under floors, on canopy walls and in other spaces a standard battery cannot go. It stores 1,331Wh, supplies 200A continuously, enough to run a 2,000W inverter on its own, and is rated for 6,000 cycles at 80% depth of discharge.
Inside are next-generation semi-solid-state LiFePO4 cells with about 70% less liquid electrolyte than conventional cells. Renogy says they heat up nine times more slowly and will not swell or burn even if punctured or crushed. A BMS with more than 60 protections, a self-controlled backup fuse, built-in Bluetooth and CAN, a UL94 V-0 fire-resistant IP67 case and an 8-year warranty make it one of Renogy's most advanced 12V batteries.
Renogy REGO 12V 104Ah Super Slim Battery Features

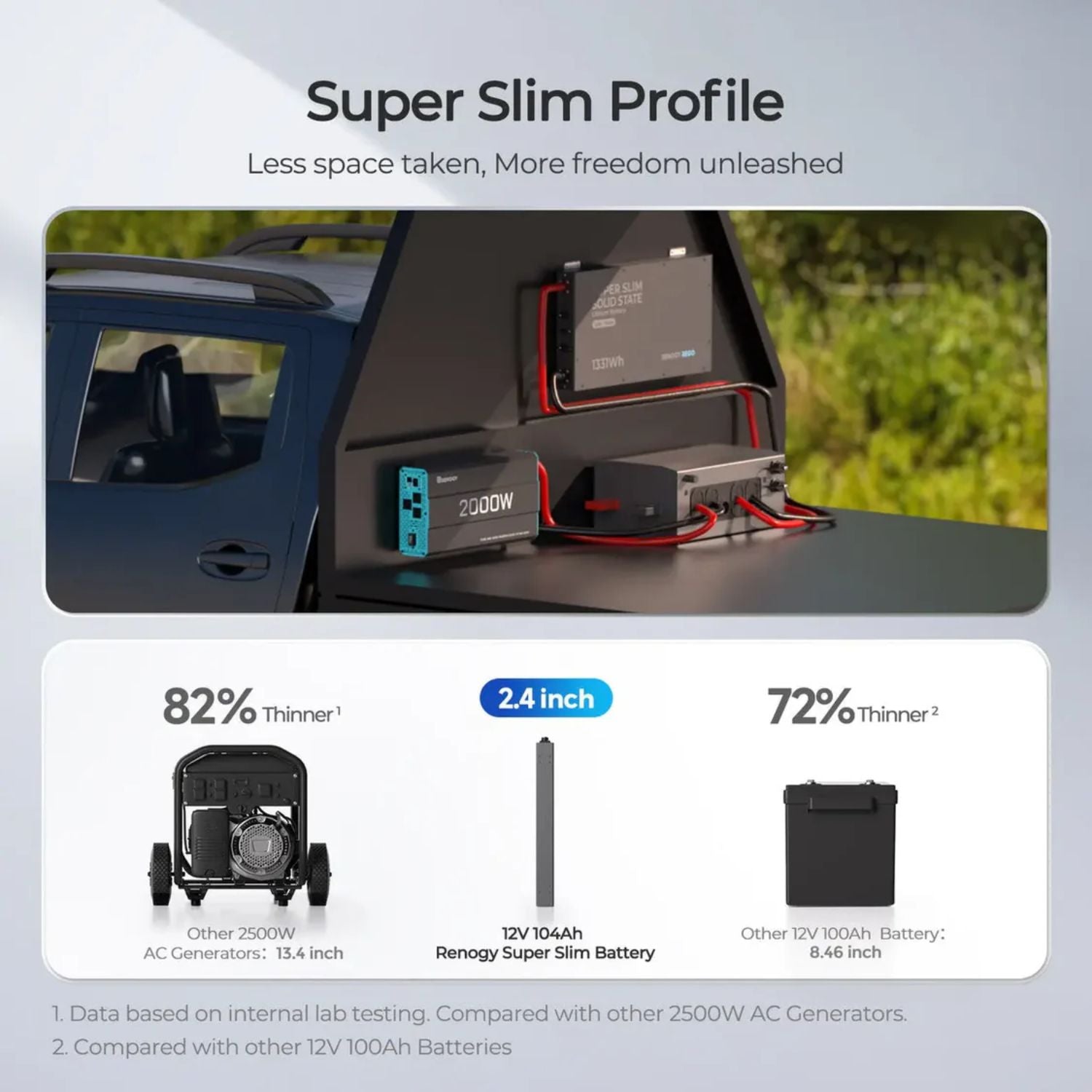

Ultra-Thin for Tight Spaces

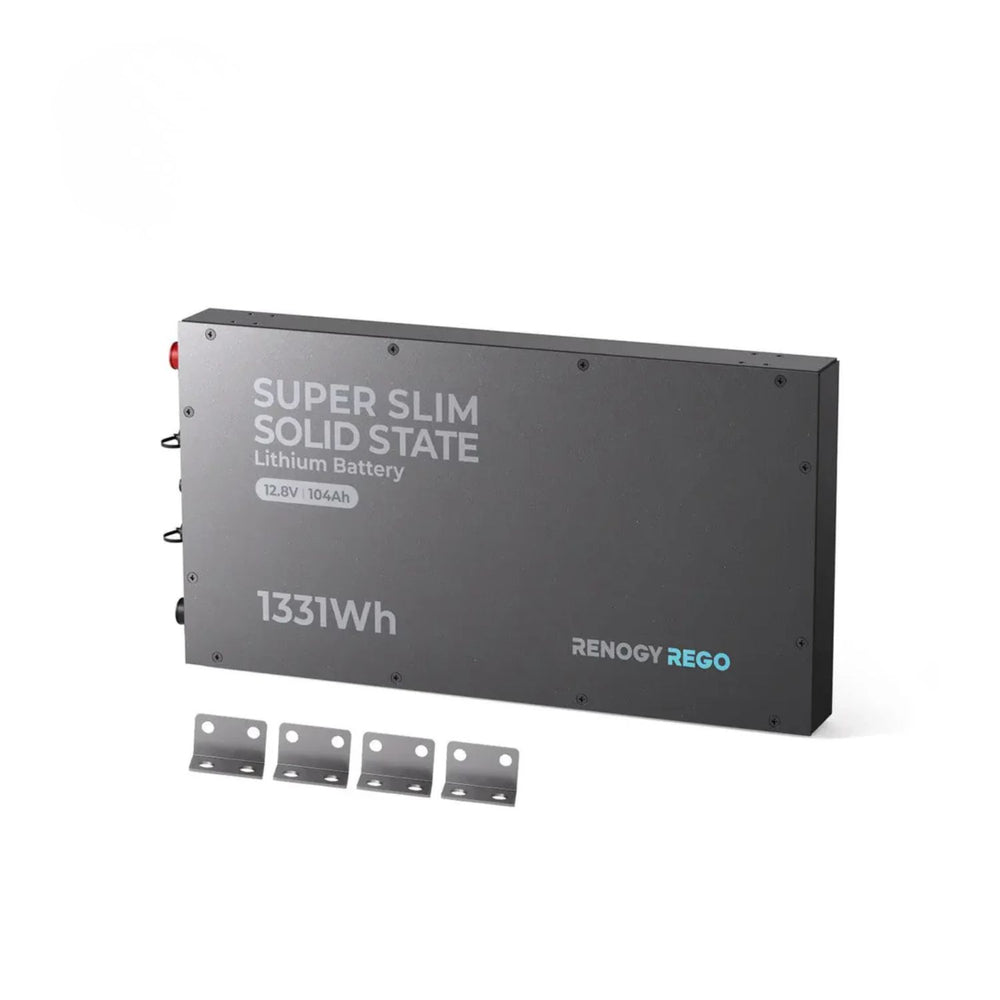

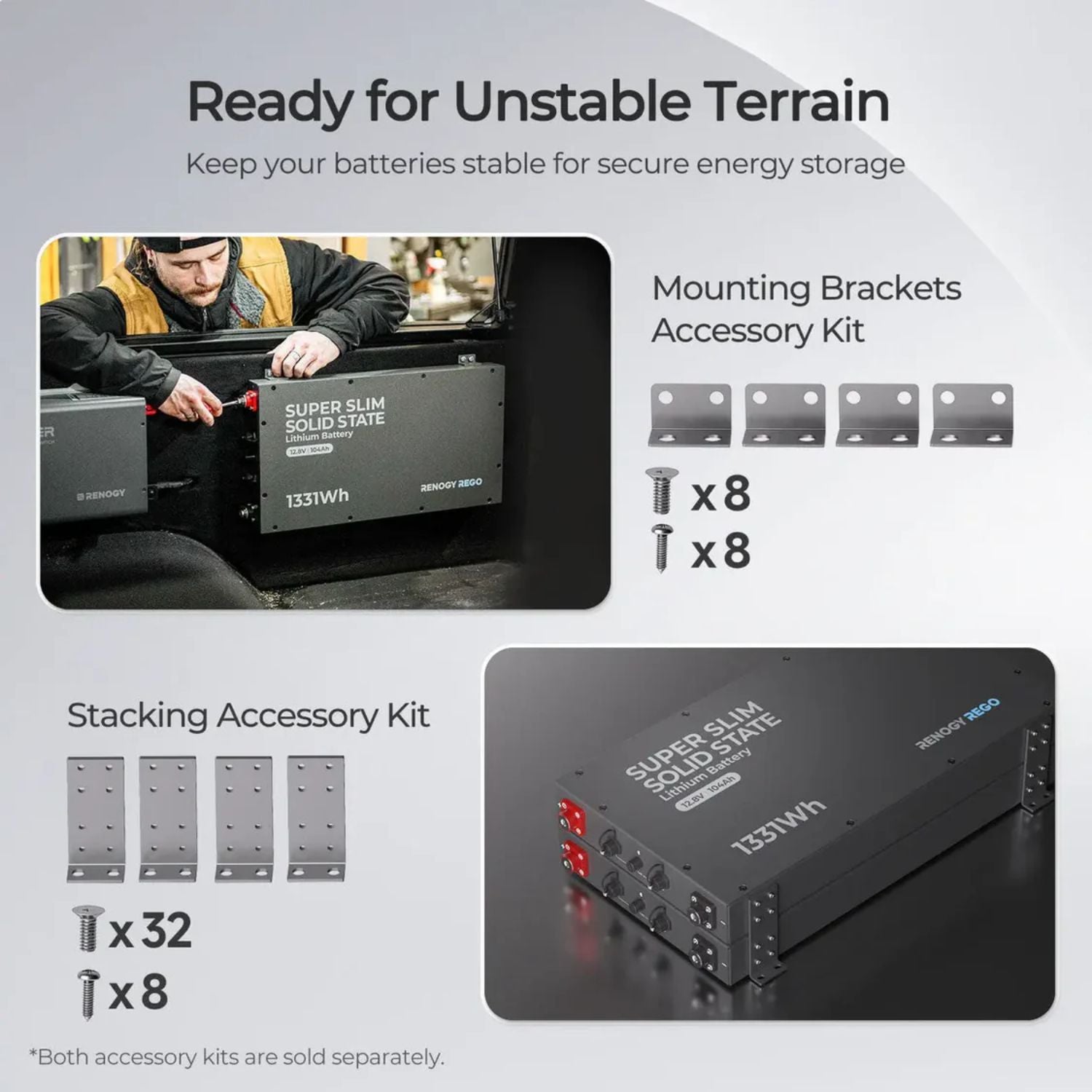

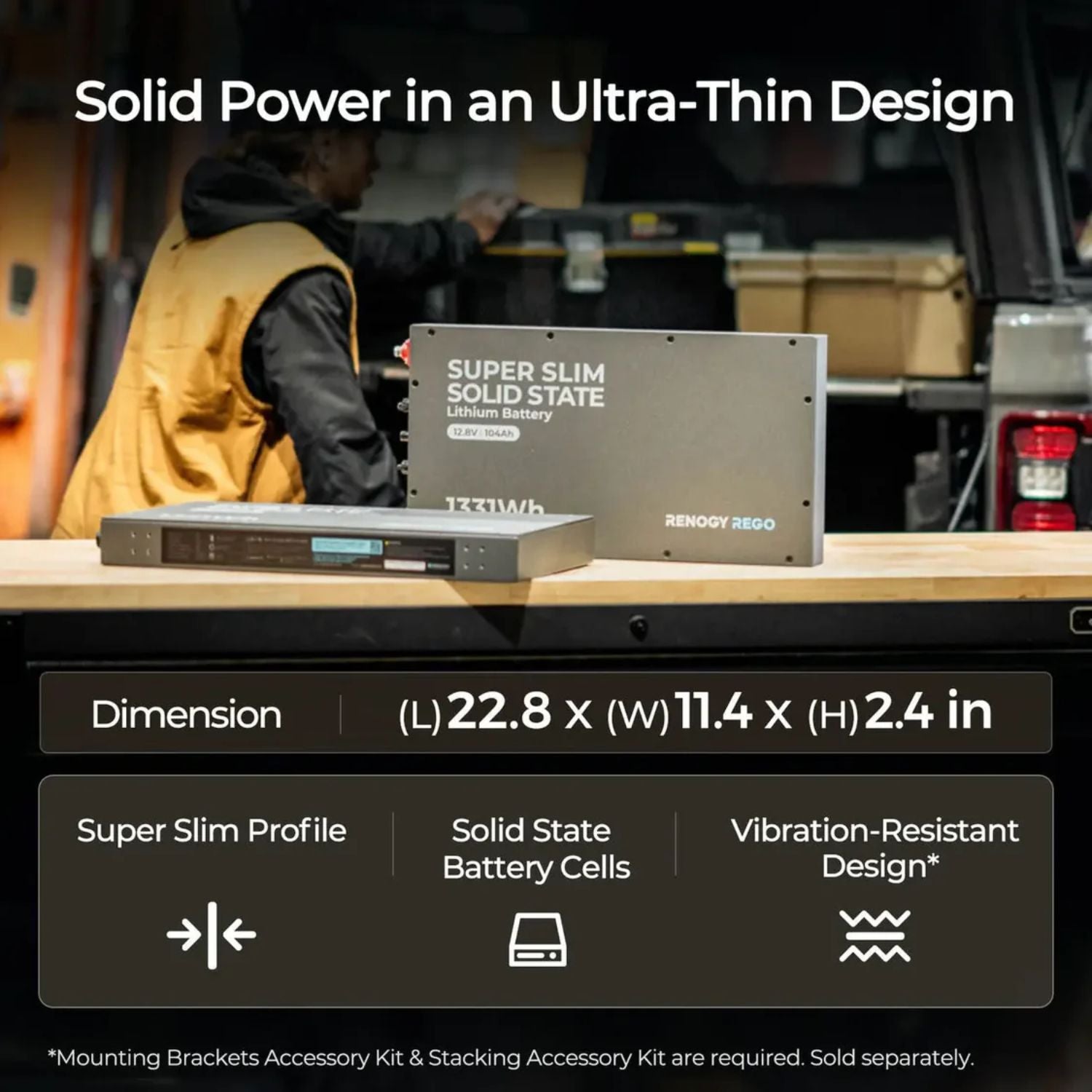

At 22.8 x 11.4 x 2.4 inches and 28.22 lbs, the battery slides into spaces that would never fit a standard group-size battery. The included bracket kit mounts it securely in any orientation that suits your build.

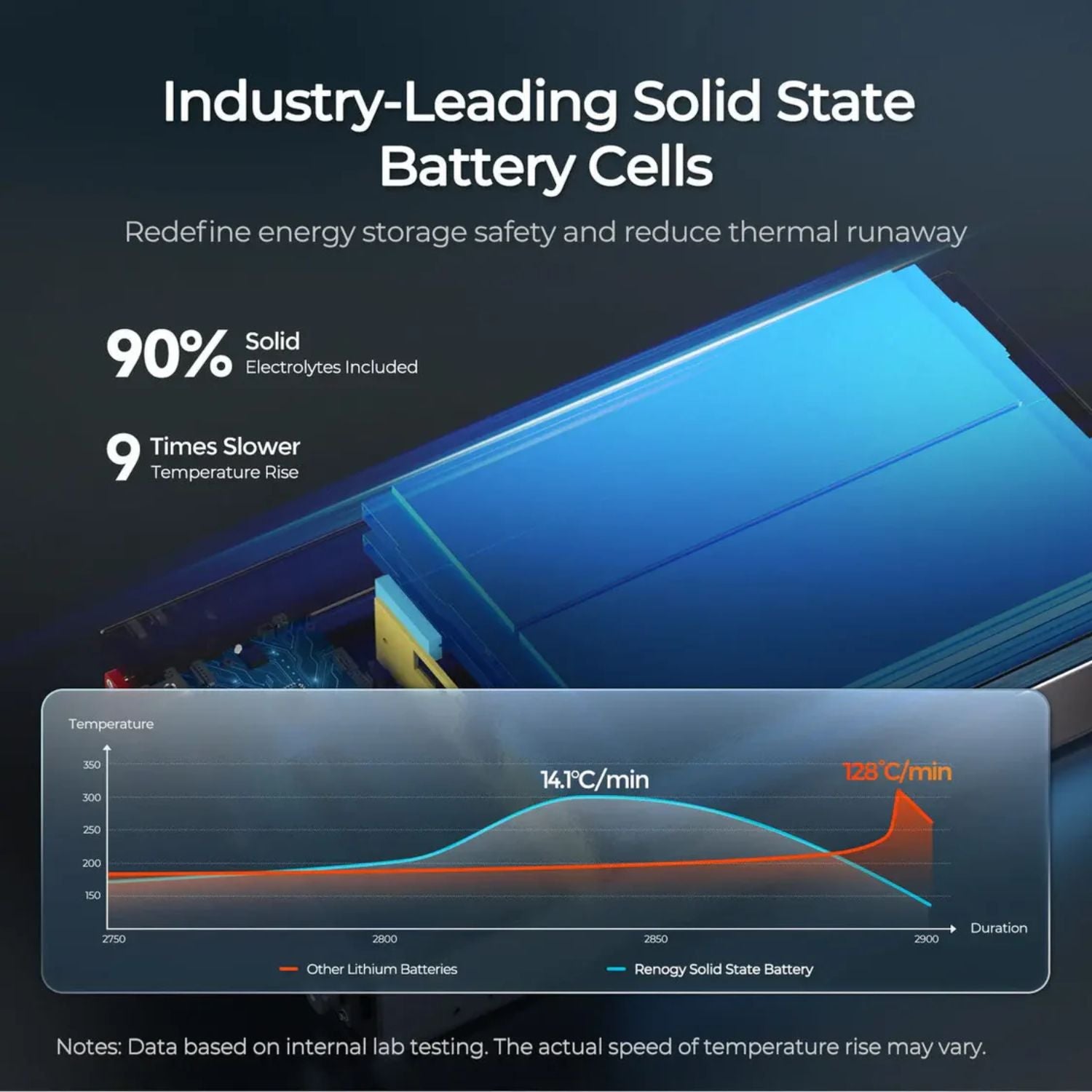

Semi-Solid-State Cells
Reducing liquid electrolyte improves stability and lifespan. The cells resist swelling and fire even when damaged, which matters in a vehicle that sees rough trails.
Charges Down to 14°F
Without any heater, the battery can accept a 10A (0.1C) charge at temperatures down to 14°F (-10°C) without triggering low-temperature protection.
200A Continuous Output
A single battery delivers 200A continuously and 290A for 30 seconds, enough to run a 2,000W inverter for a microwave, induction cooktop or power tools.
Layered Safety
The BMS provides more than 60 protections against overvoltage, short circuits and extreme temperatures. A self-controlled fuse in the Active Backup Protection reacts quickly to overcurrent if other hardware fails.

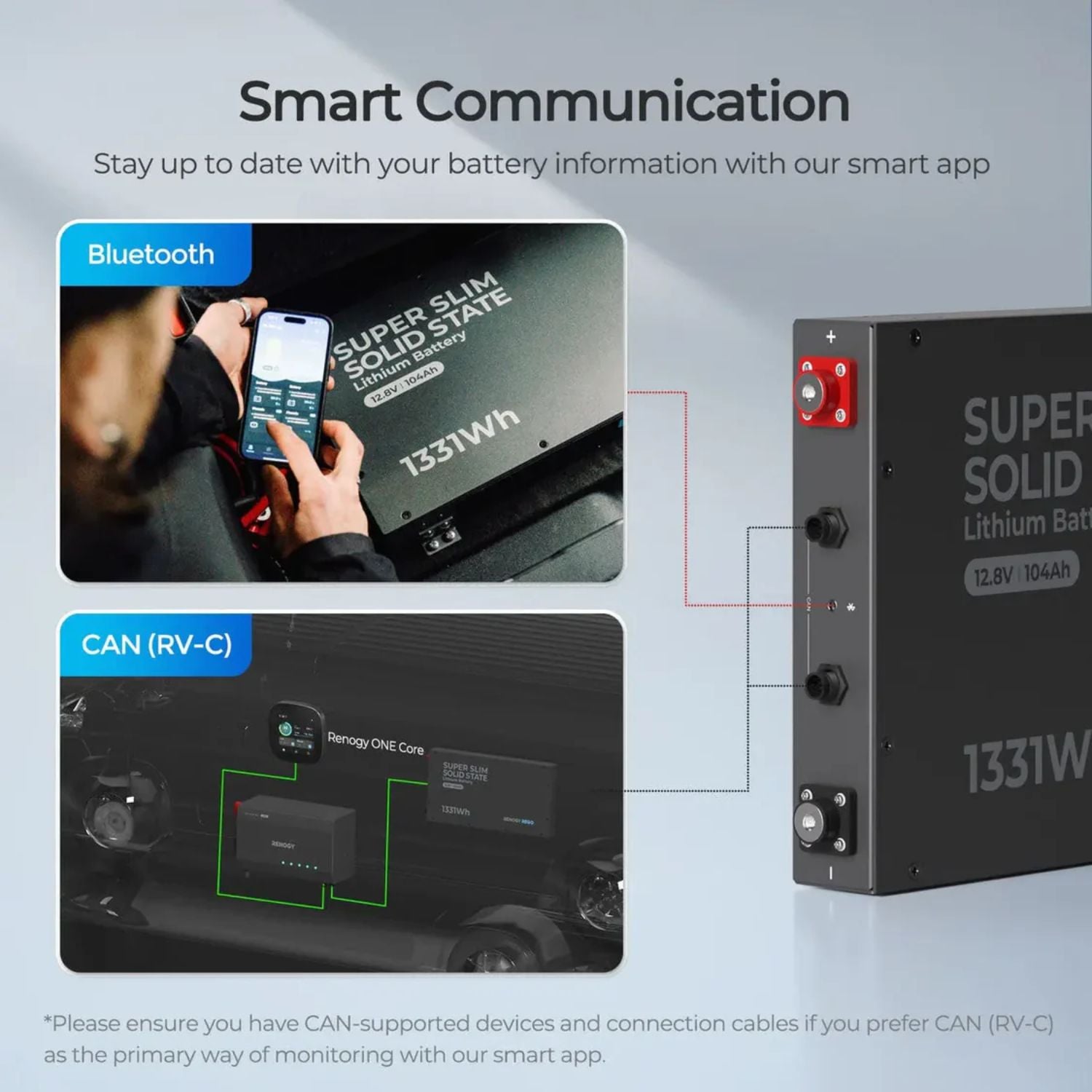

Bluetooth and CAN Communication
Built-in Bluetooth sends live data to the Renogy app, and CAN ports allow communication with compatible devices.
IP67 and Fire Resistant
The UL94 V-0 case resists fire, and IP67 protection allows submersion to 1 meter for 30 minutes.
Real-World Applications
Overlanding and 4x4 builds. Mount the battery on a canopy wall or behind a seat to power a fridge, lights, compressor and chargers.
Truck campers and vans. Free up floor and cabinet space while carrying a full 100Ah-class battery.
RVs. Fit lithium storage under beds, dinettes and steps.
Boats. IP67 protection and slim packaging suit consoles and under-deck spaces.
How It Compares to Common Alternatives
Versus a standard 12V 100Ah battery. Standard batteries are often cheaper, but their tall box shape limits where they fit. The REGO's slim profile opens up installation options.
Versus lead-acid batteries and generators. Lead-acid batteries and gas generators add weight and take up space. This battery is lighter and quieter, and it delivers far more usable energy over its life.
Versus the self-heating REGO version. Renogy also offers a self-heating REGO in the same size that charges down to -4°F. This version charges at reduced current down to 14°F without a heater.
Is This Battery the Right Fit
-
Space. Confirm you have 22.8 x 11.4 inches of mounting area plus clearance around the terminals.
-
Charging. Use a LiFePO4-compatible charger, up to 100A. Below 32°F, charging is limited to 10A down to 14°F.
-

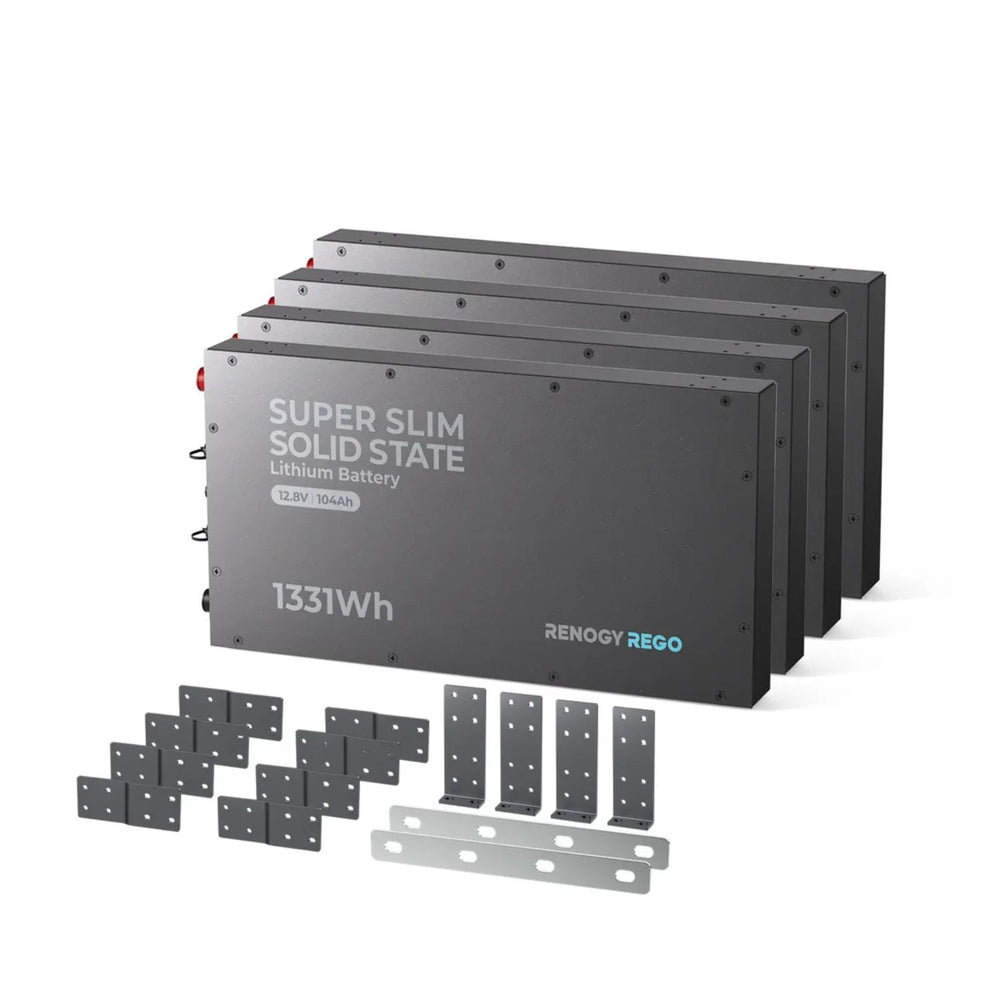

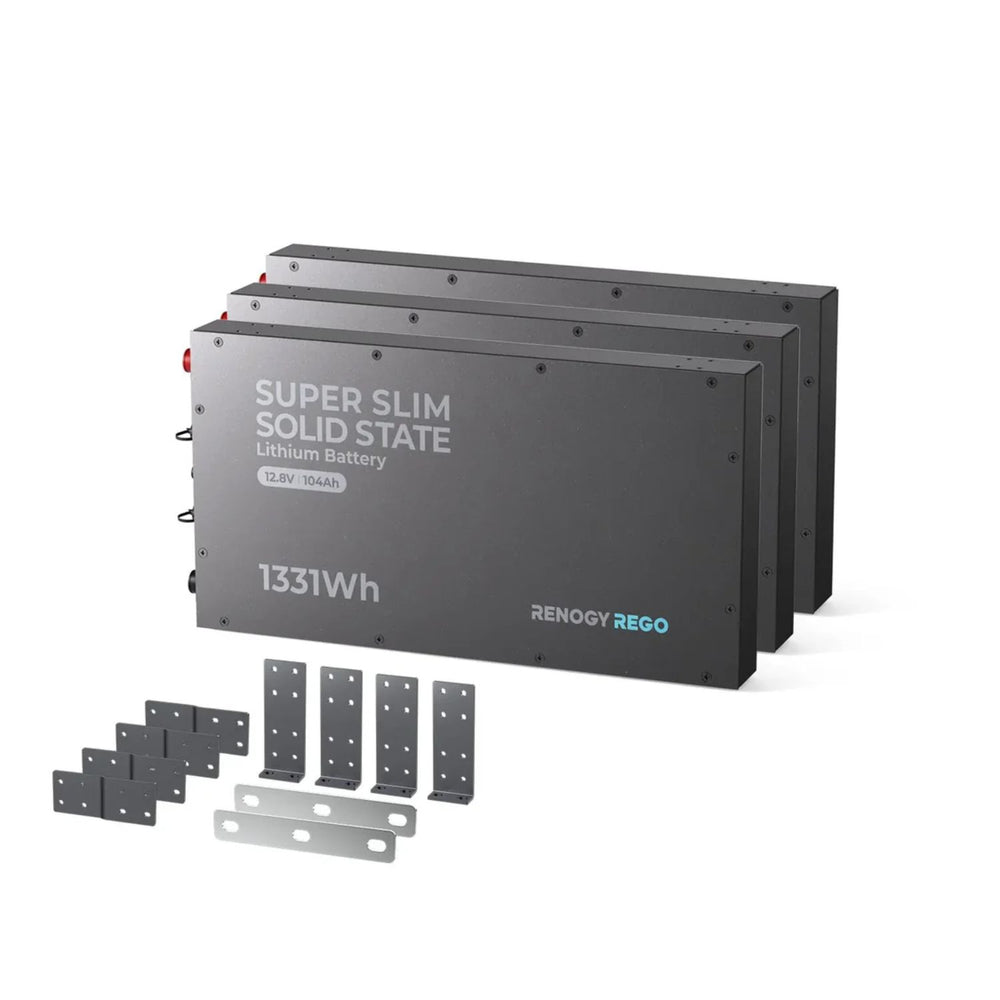

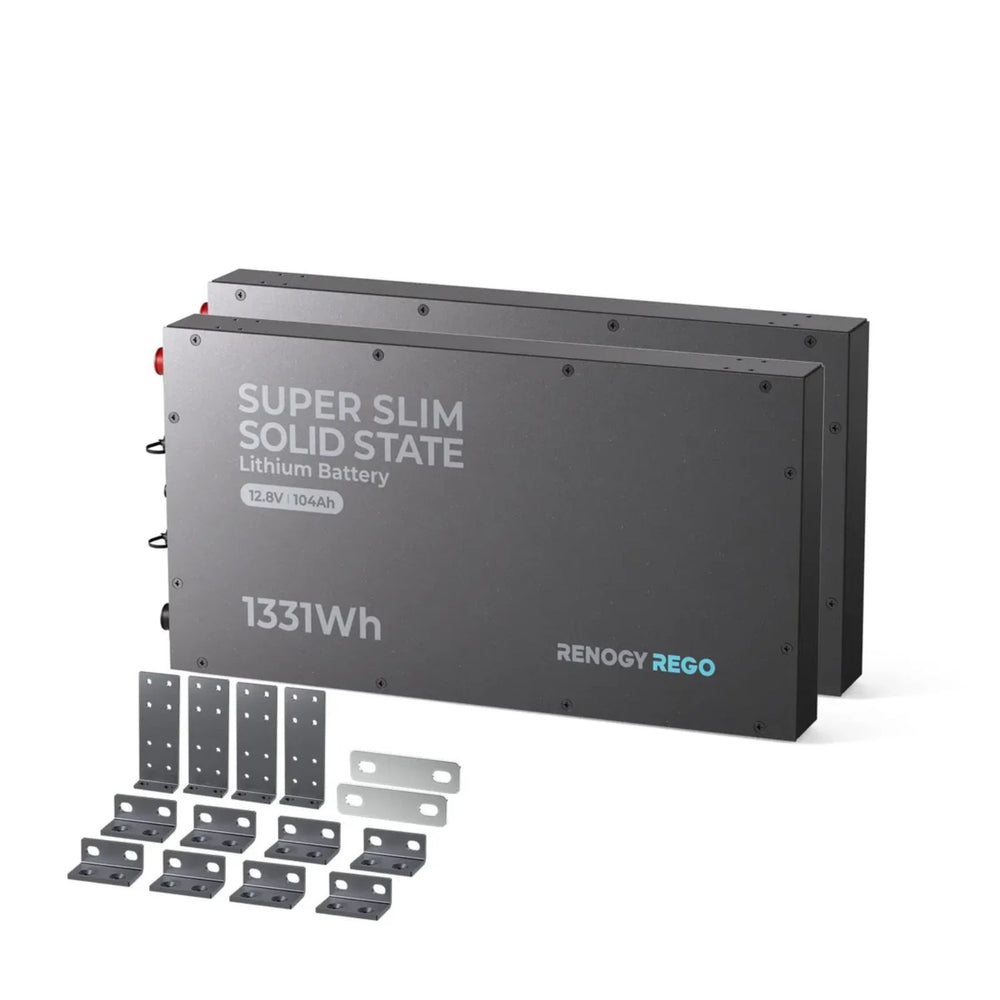

Expansion. Up to 4 in series, 16 in parallel (about 21kWh at 12V) or 4S4P.
-
Inverter size. One battery supports up to about a 2,000W inverter.
This may be a good fit if
- A standard battery will not fit where you need it
- You build overland rigs, truck campers or vans
- You want semi-solid-state safety and long life
- You want Bluetooth monitoring and IP67 protection
Common Questions
Is It Fully Solid-State?
No. Renogy's cells are semi-solid-state, with about 70% less liquid electrolyte than conventional cells.
Can It Really Charge in Freezing Weather?
Yes. It can charge at up to 10A (0.1C) down to 14°F (-10°C) without triggering BMS protection.
Can I Build a 48V System?
Yes. Connect four in series for 48V, or combine strings up to 4S4P.
Is It Waterproof?
Yes. It is rated IP67 and can be submerged to 1 meter (39.37 inches) for up to 30 minutes.
What's Included
- 1 x Renogy REGO 12.8V 104Ah Super Slim Lithium Iron Phosphate Battery
- 2 x Terminal Bolts (M8 x 1.25 x 12 mm)
- 2 x Long Terminal Bolts (M8 x 1.25 x 16 mm)
- 2 x Insulation Sleeves
- 1 x Battery Bracket Kit
- 1 x User Manual
Full-Size Lithium Power in a Slim Package
The Renogy REGO 12V 104Ah Super Slim battery puts 1,331Wh, 200A output and advanced safety into a case thin enough to fit where other batteries cannot. At Outbound Power, we help overlanders, RVers and boaters plan battery and charging systems. If you have questions, our team is happy to help.
Renogy 12V 104Ah Super Slim Battery Specifications
|
| Model |
RBT12104LFP-SSL-BT-US |
| Chemistry |
Lithium iron phosphate (LiFePO4), semi-solid-state cells |
| Nominal Voltage |
12.8V |
| Rated Capacity |
104Ah (0.5C, 25°C) |
| Energy |
1,331Wh |
| Cycle Life |
6,000 cycles at 80% DOD, 80% EOL (0.5C, 25°C) |
| Voltage Range |
10V to 14.8V |
| Max Charge Current |
100A |
| Max Discharge Current |
200A |
| Peak Discharge Current |
290A for 30 seconds |
| Charge Temperature Range |
14°F to 131°F (-10°C to 55°C); 14°F to 32°F at 0.1C (10A) max |
| Discharge Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Operating Humidity |
5% to 95% |
| Connection |
Up to 4 in series, 16 in parallel or 4S4P |
| BMS |
60+ protections plus self-controlled backup fuse |
| Communication |
Bluetooth and CAN |
| Terminal Bolts |
M8 x 1.25 x 12 mm and M8 x 1.25 x 16 mm |
| Recommended Terminal Torque |
70.8 in-lbs (8 N¡m) |
| Flame Retardancy |
UL94 V-0 |
| Protection Rating |
IP67 |
| Dimensions |
22.8 x 11.4 x 2.4 in (579 x 290 x 61 mm) |
| Weight |
28.22 lbs (12.8 kg) |
| Certifications |
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA |
| Warranty |
8-year prorated material and workmanship warranty |
