The Renogy Starter RV Kit N-Type 200W 12V Solar Kit Gives Campers 200W of Solar Charging in One Box

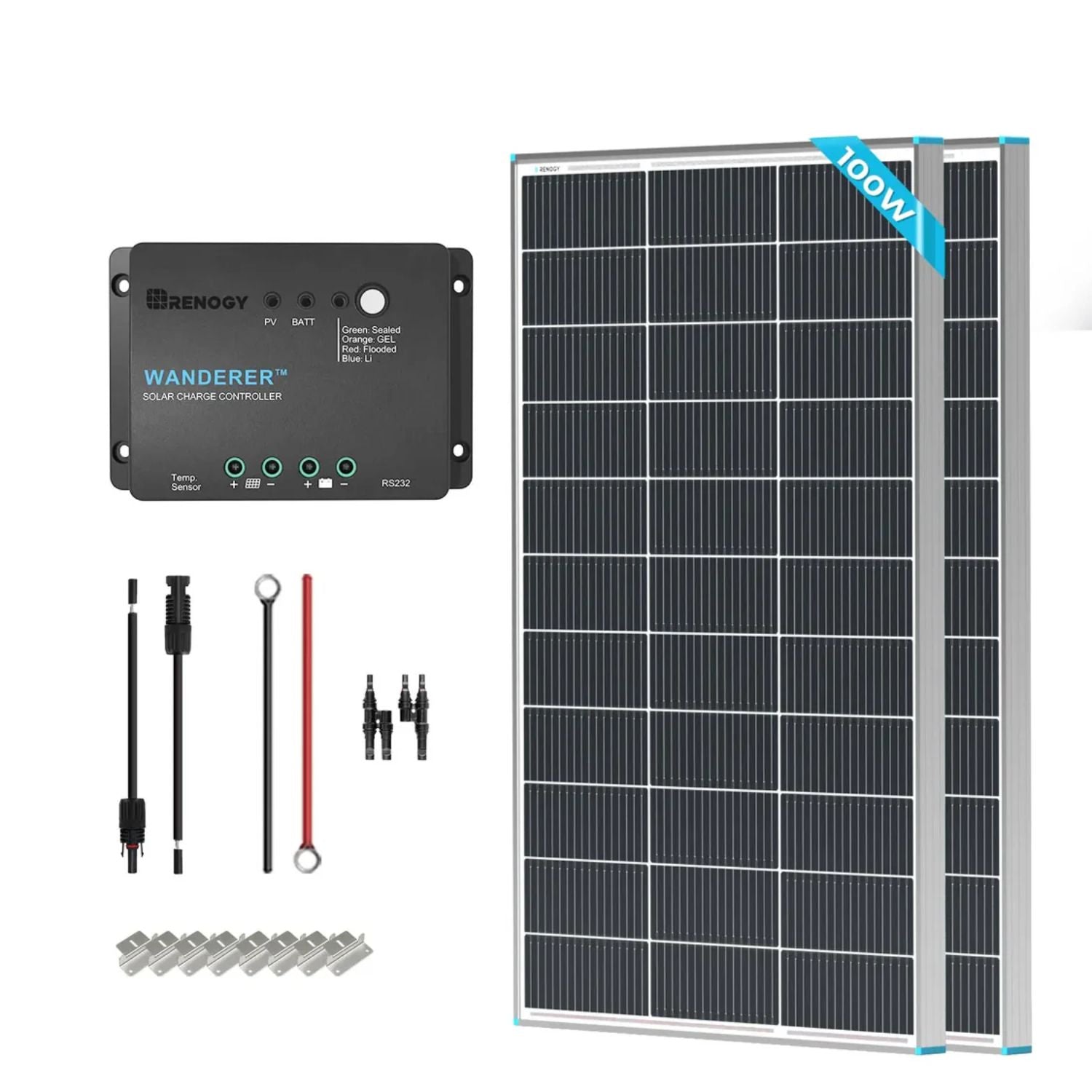

The Renogy Starter RV Kit N-Type 200W 12V Solar Kit pairs two Renogy 16BB N-type 100W solar panels with a Wanderer Li 30A PWM charge controller, Y branch connectors for parallel wiring, a 20-foot solar adaptor kit, an 8-foot battery tray cable and two sets of Z-bracket mounts. It is an easy, affordable way to add solar charging to an RV, camper, van or cabin.

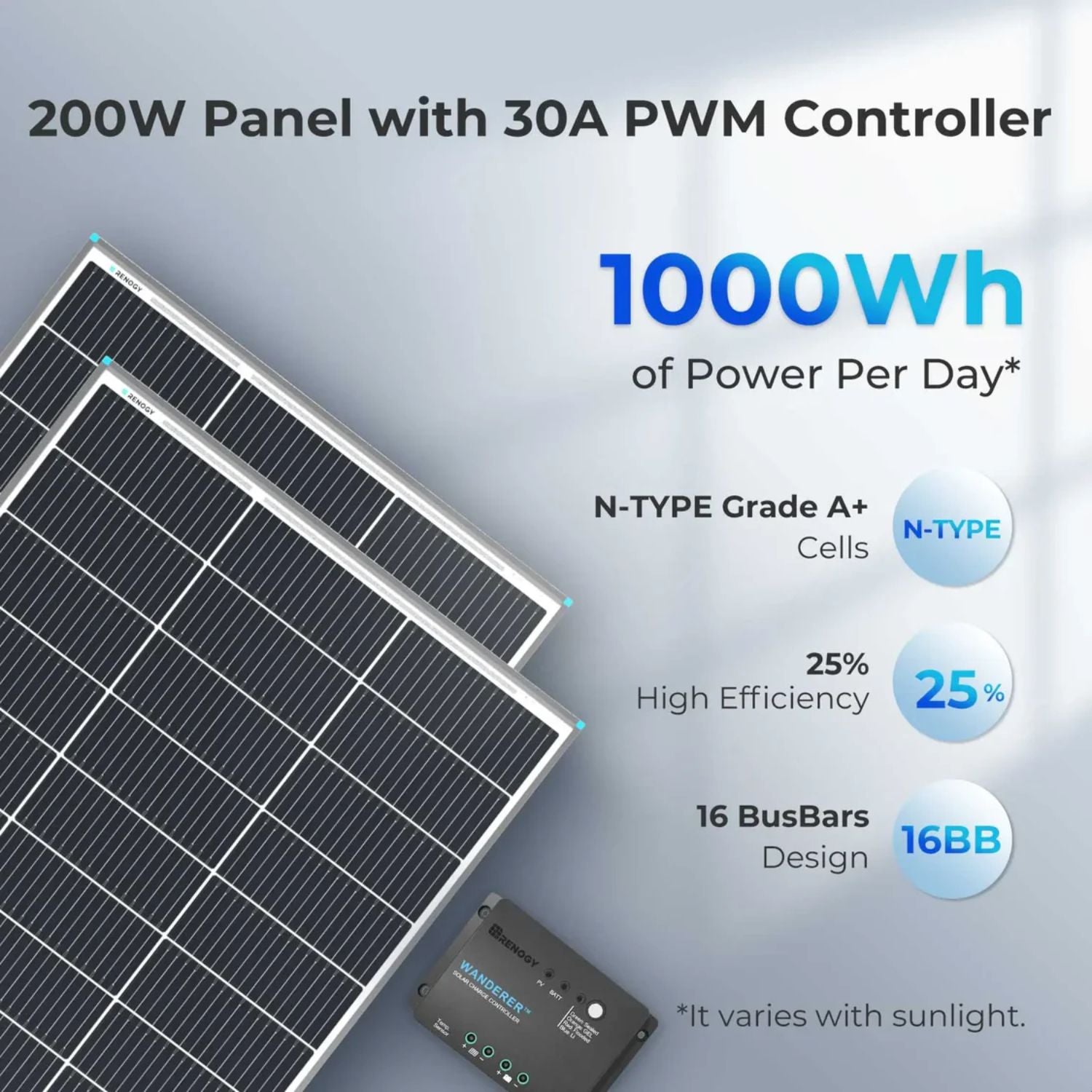

In good sun, 200W of panels can produce roughly 600 to 1,000 watt-hours per day, enough to keep a 12V house battery charged while you run lights, a fan, a water pump and device chargers. The controller supports up to 400W at 12V, so you can double the array later. Add the optional Renogy BT-1 Bluetooth module for real-time monitoring on your phone.
Renogy 200W N-Type Starter RV Kit Features
Two 16BB N-Type 100W Panels

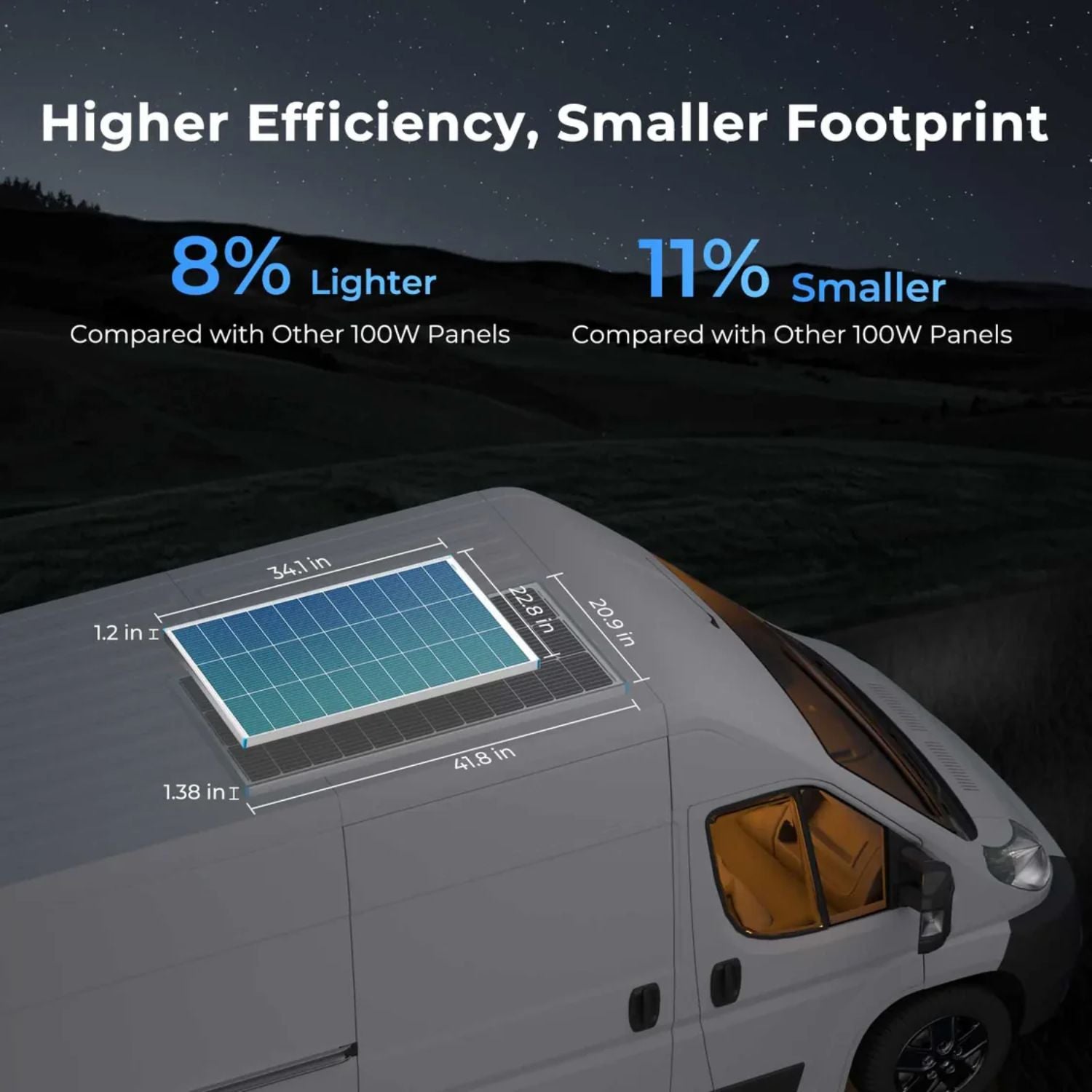

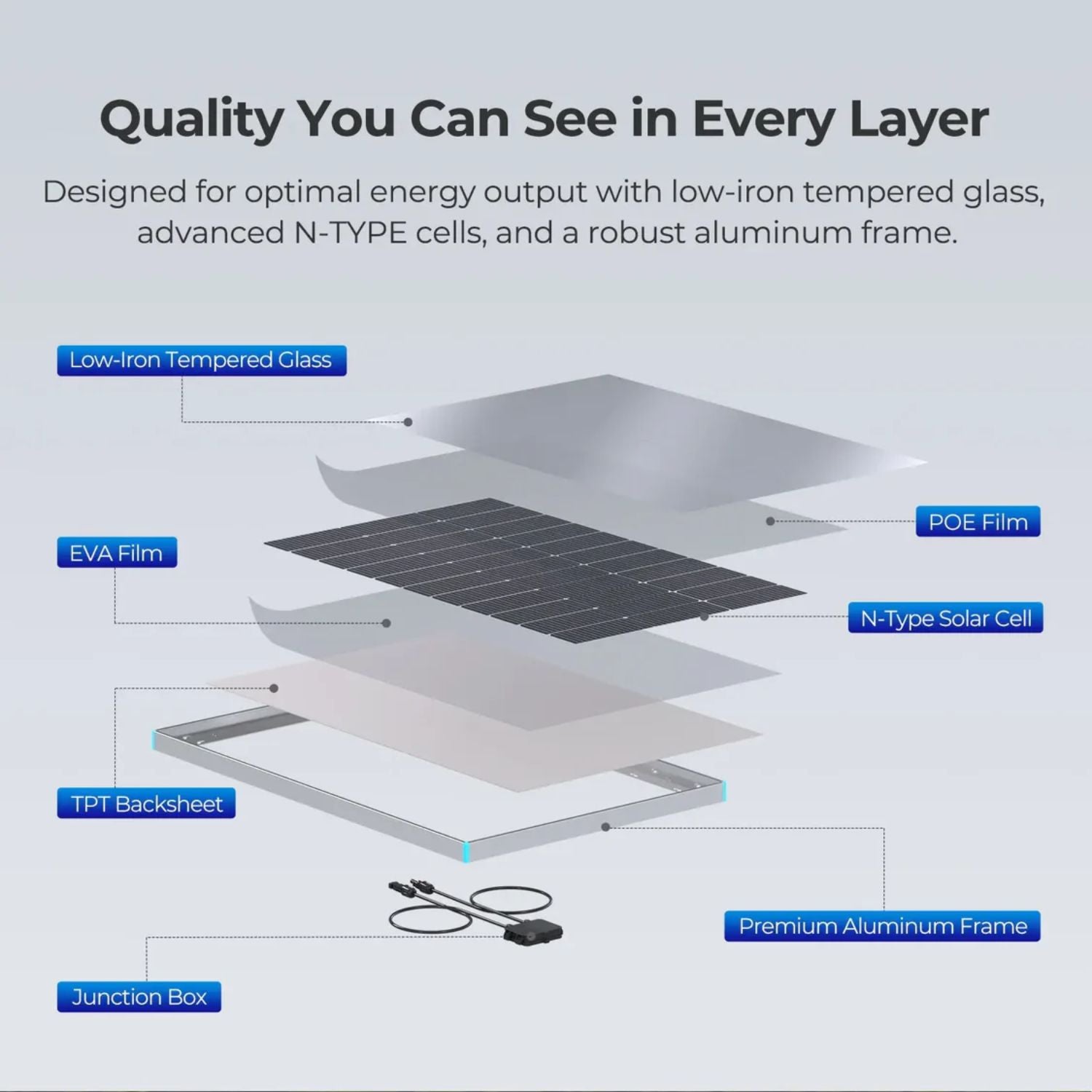

N-type cells with 16 busbars deliver high efficiency and hold up well in heat and low light. Each panel measures 34.1 x 22.8 x 1.2 inches and weighs 13 lbs, a size that fits most RV and trailer roofs.
Wanderer Li 30A PWM Controller

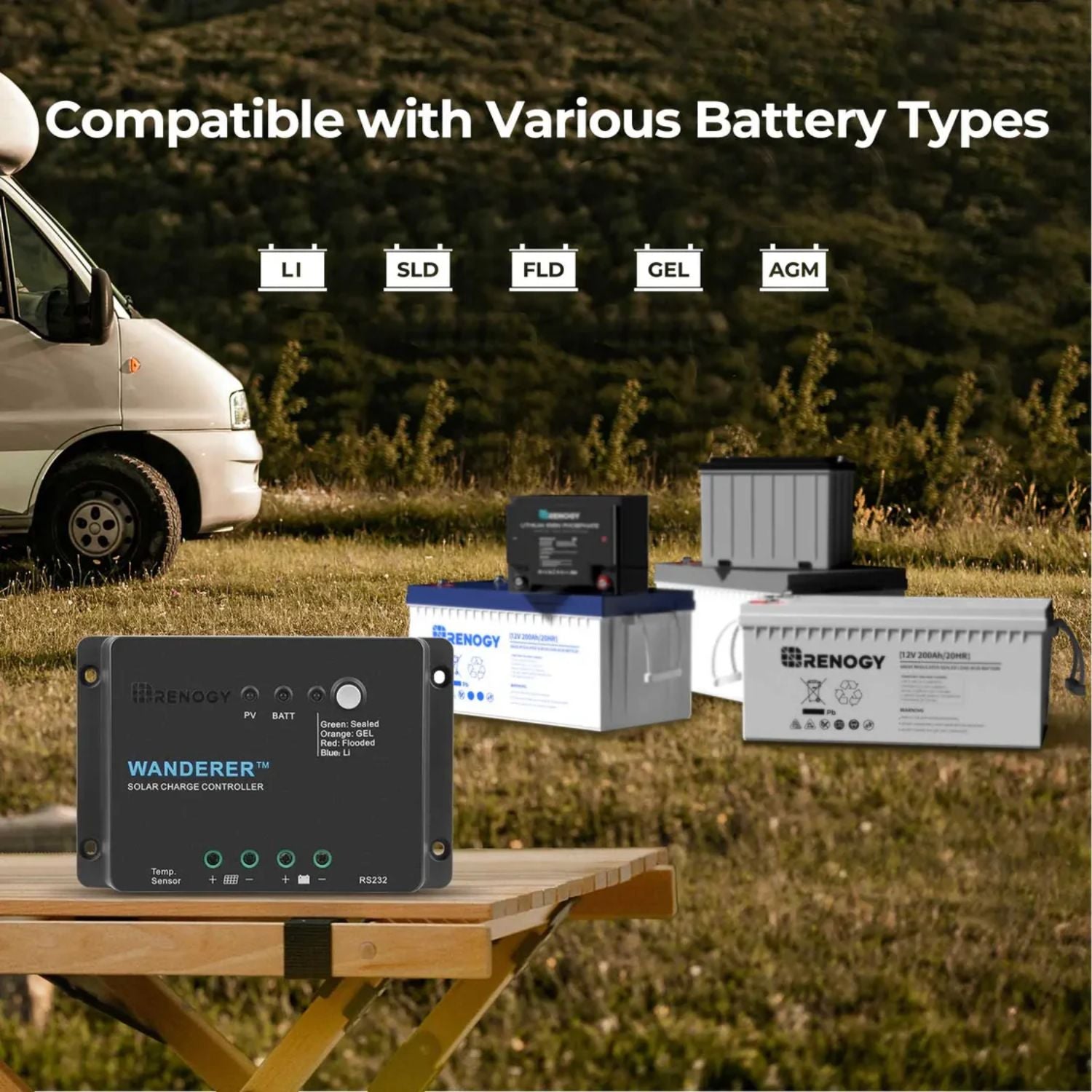

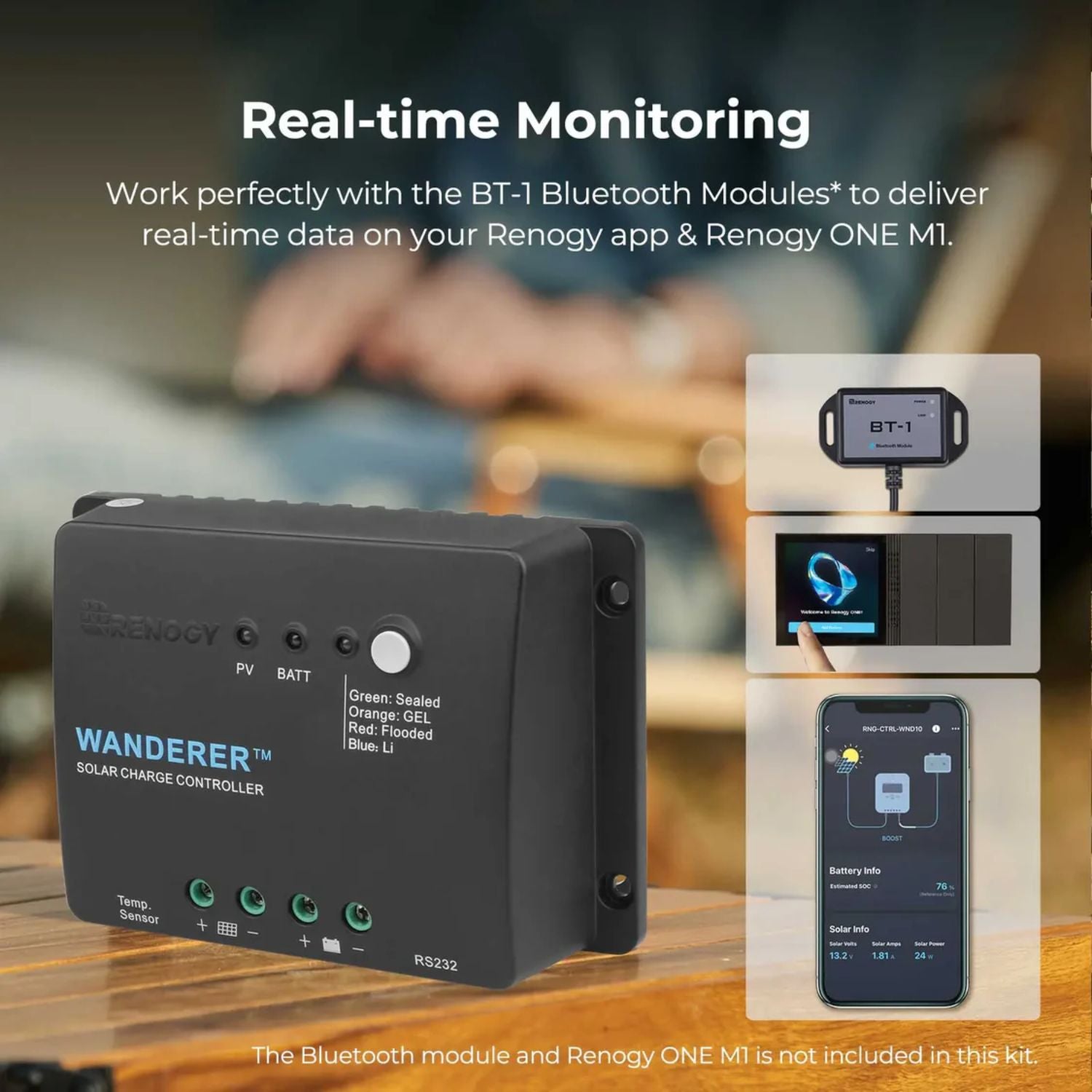

The Wanderer Li manages charging for 12V batteries, including lithium, with built-in protection. Pair it with the optional BT-1 module to monitor the system in the Renogy app.
Parallel Wiring Included
MC4 Y branch connectors combine the two panels in parallel, keeping voltage within the controller's 25V limit.
Complete Cables and Mounts
The 20-foot 10 AWG adaptor kit and 8-foot 10 AWG tray cable connect panels to controller and controller to battery, and two sets of Z brackets secure the panels.

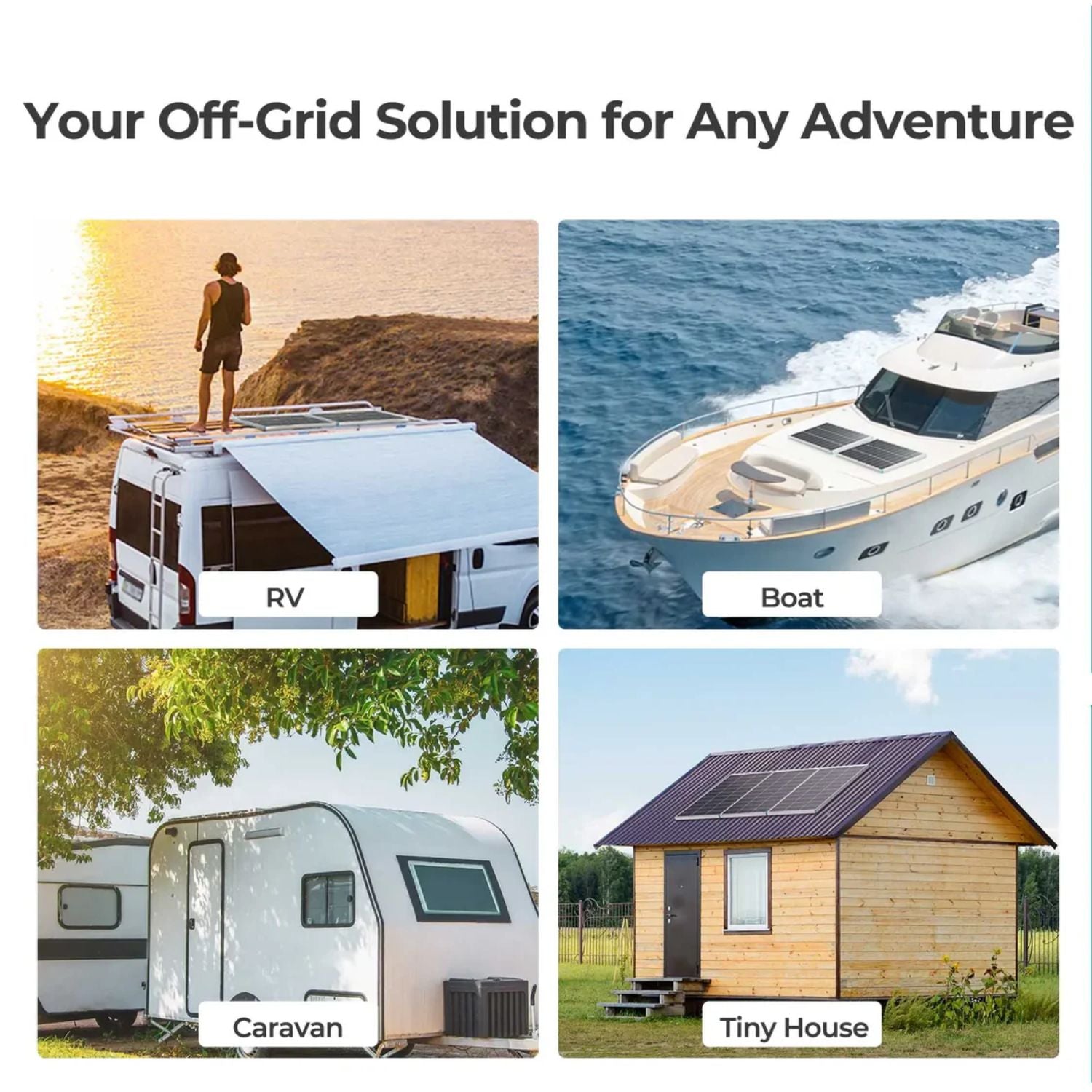

Real-World Applications
RVs and travel trailers. Keep house batteries charged at campgrounds and while boondocking.
Camper vans. Power lights, fans and device charging between drives.
Cabins and sheds. Run small loads from a 12V battery bank.
Boats. Maintain batteries at the dock or on a mooring.
How It Compares to Common Alternatives
Versus the 100W starter kit. This kit doubles daily solar energy with a second panel and the parallel connectors to wire both.
Versus MPPT RV kits. MPPT kits harvest more energy and handle higher-voltage arrays, but cost more. PWM is a cost-effective match for 12V panels wired in parallel.
Versus generators. Solar charges silently with no fuel or maintenance while you camp.
Is This Kit the Right Fit
-
Battery. You will need a 12V battery. The kit does not include one.
-
Wiring. Keep panels in parallel. The Wanderer's maximum PV input is 25V.
-
Roof space. Two panels need about 34.1 x 45.6 inches side by side, plus clearance.
-
Monitoring. The BT-1 Bluetooth module is sold separately.
This may be a good fit if
- You want an affordable RV or camper solar kit
- You need to keep a 12V house battery charged
- You want everything needed to mount and wire two panels
- You may expand to 400W later
Common Questions
What Else Do I Need?
A 12V deep-cycle battery, plus an inverter if you want to run AC appliances.
Can I Expand the System?
Yes. The 30A Wanderer supports up to 400W at 12V, so you can add two more matching panels in parallel.
How Should I Connect the Panels?
Use the included Y branch connectors to wire the panels in parallel, then run the adaptor kit to the controller.
What's Included
- 2 x Renogy 16BB N-Type 100W Solar Panels (RSP100DC)
- 1 x Renogy Wanderer Li 30A PWM Charge Controller
- 1 x 20ft 10 AWG Solar Adaptor Kit
- 1 x 8ft 10 AWG Battery Tray Cable
- 2 x Sets of Z Mounting Brackets
- 1 x Pair of MC4 Y Branch Connectors
Easy 200W Solar for Your RV
The Renogy Starter RV Kit N-Type 200W 12V Solar Kit gives campers two efficient panels, a matched controller and all the wiring and mounts needed to start charging from the sun. At Outbound Power, we help customers pick batteries and plan expansions. If you have questions, our team is happy to help.

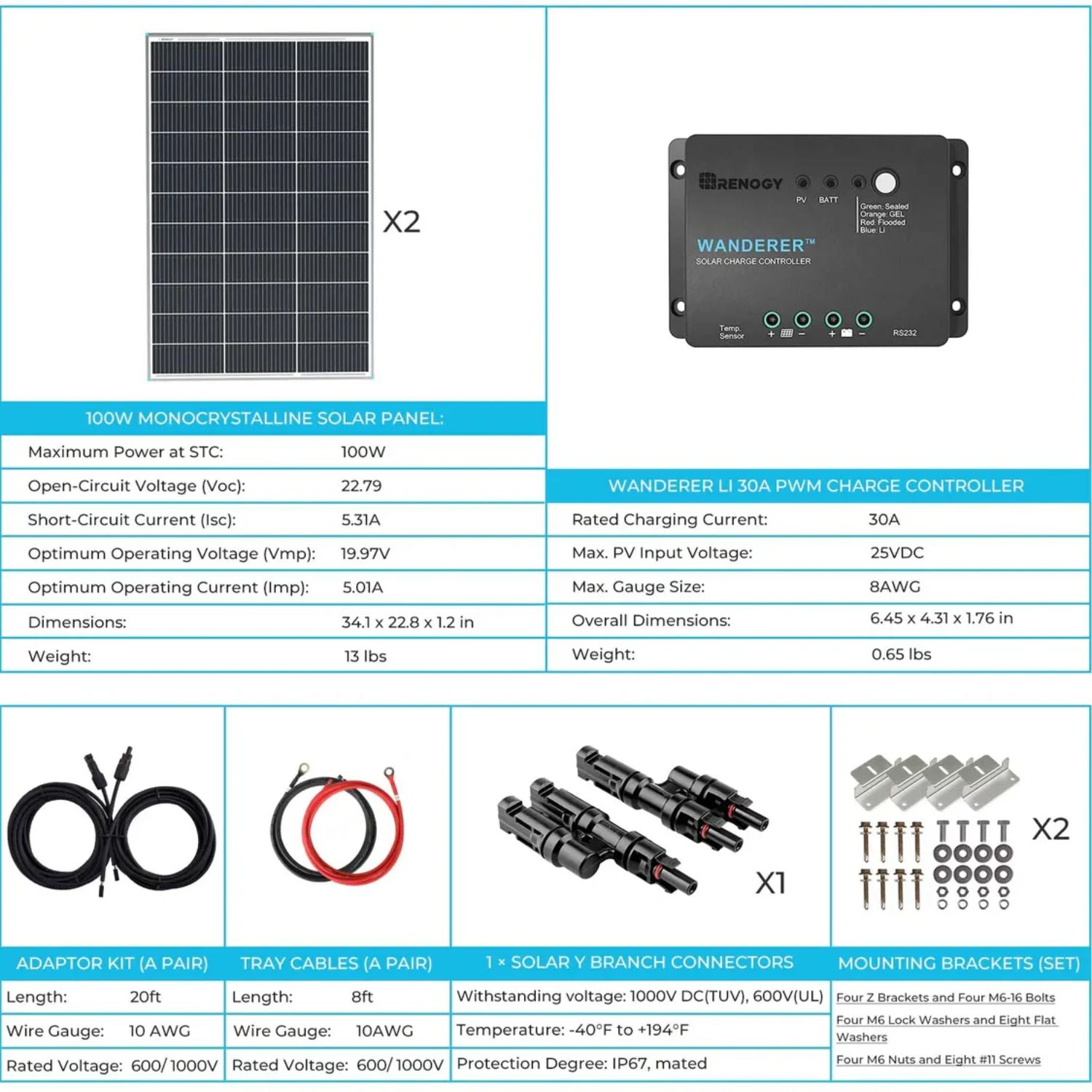

Renogy Starter RV Kit N-Type 200W 12V Solar Kit Specifications
|
| Kit Model |
RNG-KIT-STARTER200D-WND30 |
| 16BB N-Type 100W Solar Panel (x2) |
| Max Power at STC |
100W each (200W total) |
| Open Circuit Voltage (Voc) |
22.79V |
| Short Circuit Current (Isc) |
5.31A |
| Optimum Operating Voltage (Vmp) |
19.97V |
| Optimum Operating Current (Imp) |
5.01A |
| Operating Temperature |
-40°F to 185°F (-40°C to 85°C) |
| Dimensions |
34.1 x 22.8 x 1.2 in (865 x 578 x 30 mm) |
| Weight |
13.0 lbs (5.9 kg) each |
| Wanderer Li 30A PWM Charge Controller |
| Nominal Voltage |
12V |
| Rated Charging Current |
30A |
| Max PV Input Voltage |
25VDC |
| Max PV Input Power |
400W at 12V |
| Max Wire Size |
8 AWG |
| Bluetooth Monitoring |
Optional BT-1 module (sold separately) |
| Dimensions |
6.45 x 4.31 x 1.76 in |
| Weight |
0.65 lbs |
| Cables and Connectors |
| Battery Tray Cable |
10 AWG, 8 ft, 600/1000V rated |
| Solar Adaptor Kit |
10 AWG, 20 ft, 600/1000V rated |
| Y Branch Connectors |
50A rated, 1000V DC (TUV) / 600V (UL), IP67 mated |
