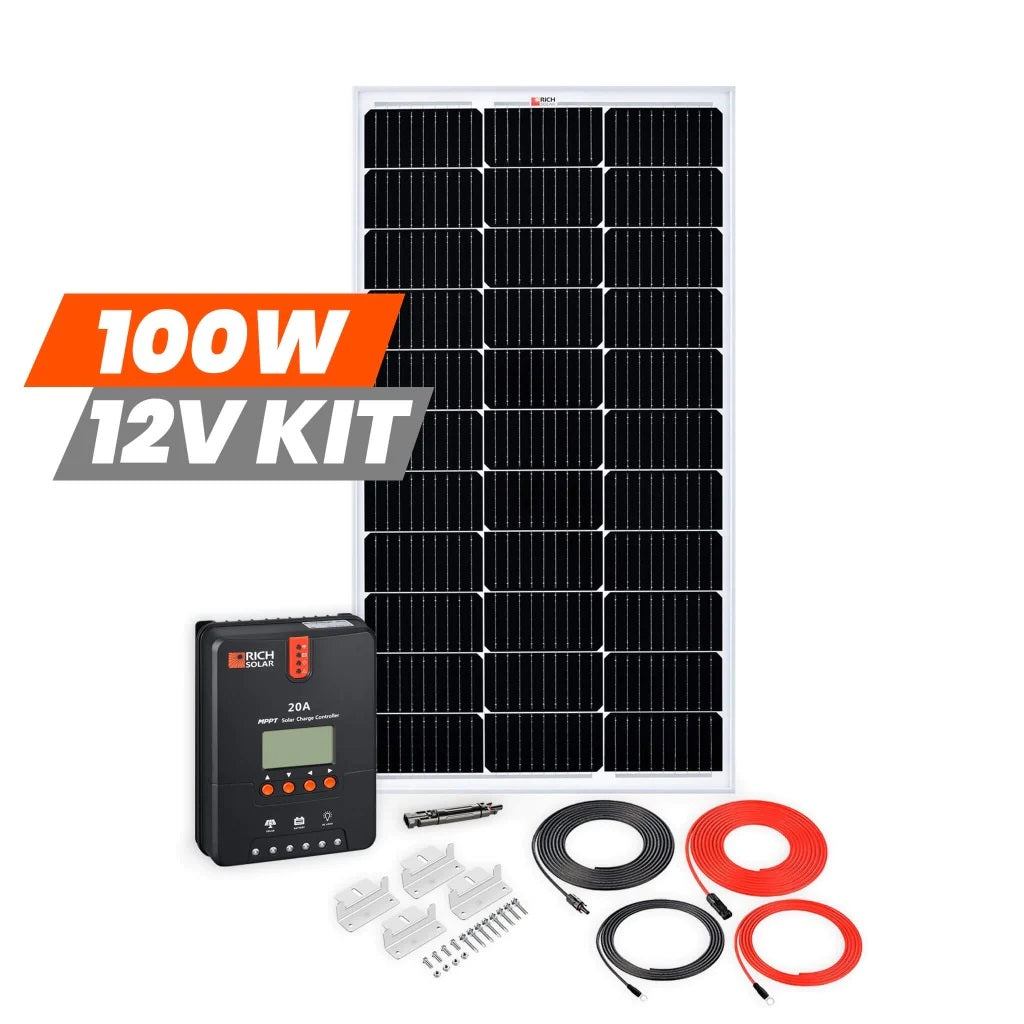

Rich Solar 100 Watt Solar Kit

The Rich Solar 100 Watt Solar Kit Pairs a MEGA 100 Panel With a 20A MPPT Controller for Simple 12V Battery Charging

The Rich Solar 100 Watt Solar Kit is a starter 12V solar charging kit built around one MEGA 100 monocrystalline panel and a 20A MPPT charge controller. Rich Solar rates it at about 0.4kWh of energy per day with 4 peak sun hours, a good match for keeping an RV, trailer, boat, cabin or shed battery charged.

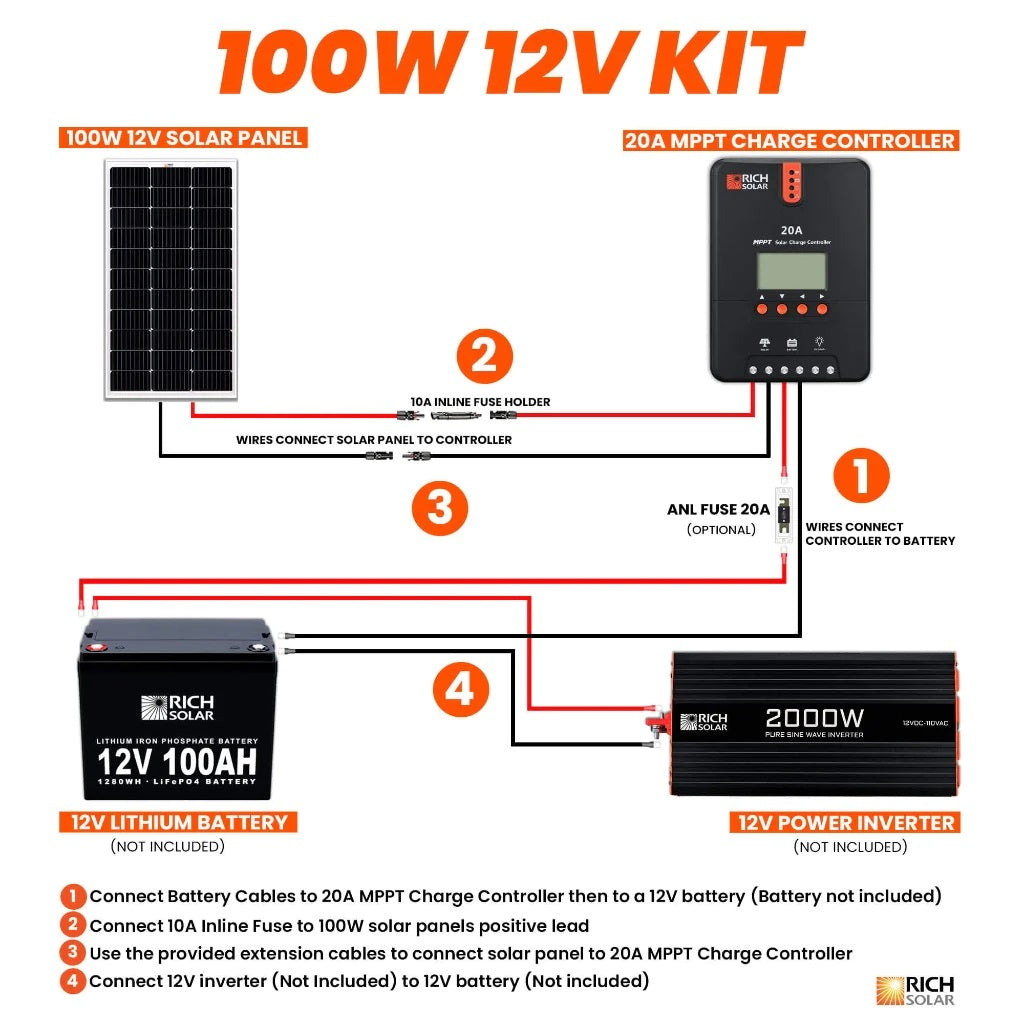

The kit includes everything between the panel and the battery: a 20 ft panel-to-controller cable pair, a 10 ft controller-to-battery cable pair, a set of four Z brackets and a 10A inline fuse. Add a 12V battery, and an inverter if you want AC power, to complete the system.

Rich Solar 100 Watt Solar Kit Features

MEGA 100 Monocrystalline Panel

The MEGA 100 is a 12V panel rated at 100W, with a guaranteed positive power output of 0 to +5W. Strong tempered glass, an aluminum frame and an IP67 rating help it handle tough climates, and it performs well in low light on cloudy days, mornings and evenings.

20A MPPT Charge Controller

The RS-MPPT20 controller reaches up to 99% tracking efficiency and 98% peak conversion efficiency. It automatically detects 12V or 24V systems and charges sealed, gel, flooded and lithium deep cycle batteries. It can also charge over-discharged lithium batteries.

Clear Display and Optional Bluetooth

An LCD screen and multiple LED indicators show system information, customizable parameters and error codes. An RS232 port connects to the BT-1 Bluetooth module, sold separately, for monitoring from your phone.

Full Electronic Protection

The controller protects against reverse polarity, overcharging, over-discharging, overload, short circuits and reverse current. Its die-cast aluminum case dissipates heat efficiently, and the included 10A inline fuse adds circuit protection.

Load Control Built In

The controller has a 20A load output with diverse load control options. You can power small DC loads, such as lights, directly from the controller.

Ready to Mount

The MEGA 100 has pre-drilled holes that fit Z brackets, tilt mounts, pole mounts and ground mounts. A set of four Z brackets comes in the kit for a standard flat-roof install.

Real-World Applications

RVs and travel trailers. Keep house batteries topped up for lights, fans and the water pump while camping.

Boats. Maintain a house or starting battery at the mooring.

Cabins and sheds. Power lighting and small electronics where there is no grid connection.

Battery maintenance. Keep a stored vehicle, trailer or equipment battery charged between uses.

How It Compares to Common Alternatives

Versus buying components separately. The kit bundles a matched panel, controller, cables, brackets and fuse, so you do not need to size wires or source connectors yourself.

Versus a 200W kit. A 200W kit roughly doubles daily harvest. The 100W kit suits smaller battery banks, light daily use and tight roof space.

Versus a PWM kit. An MPPT controller converts excess panel voltage into charging current. It typically harvests more energy than a PWM controller, especially in cool weather.

Is This Kit the Right Fit

• Battery. The kit does not include a battery. The controller charges sealed, gel, flooded and lithium batteries.
• AC power. Add an inverter if you want to run household appliances from the battery.
• Roof space. The MEGA 100 measures 39.0 x 21.3 x 1.2 inches and weighs 13.2 pounds.
• Daily energy. Plan on about 0.4kWh per day with 4 peak sun hours. Actual output depends on location, season, tilt and shading.

This may be a good fit if

• You want a simple, complete solar charging kit for a 12V system
• You run light loads like lights, fans and phone charging
• You have limited roof space
• You want an MPPT controller with a clear display

Common Questions

Does the Kit Include a Battery or Inverter?

No. This is a solar charging kit. It includes the panel, controller, brackets, cables and fuse. The battery and inverter are sold separately.

Can I Use This Kit With a Lithium Battery?

Yes. The 20A MPPT controller is compatible with lithium batteries as well as sealed, gel and flooded types.

Can I Add Another Panel Later?

Yes, as long as the array stays within the controller's 100VDC maximum solar input voltage and 25A maximum PV short-circuit current. Check the controller manual before adding panels.

Does the Controller Have Bluetooth?

Not built in. The RS232 port works with Rich Solar's BT-1 Bluetooth module, which is sold separately.

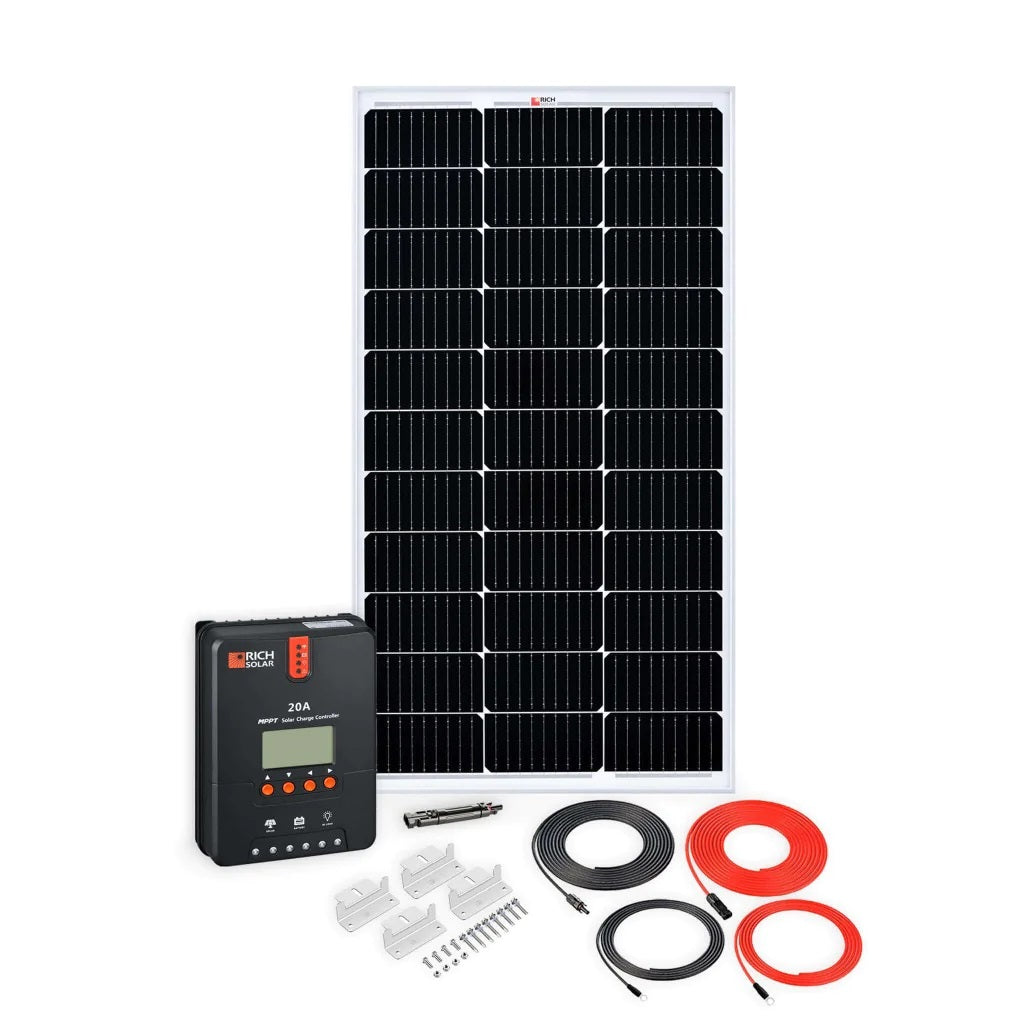

What's Included

• 1 x 100 Watt Monocrystalline Solar Panel (RS-M100)
• 1 x 20A MPPT Solar Charge Controller (RS-MPPT20)
• 1 x 20 ft 10 AWG Solar Cable (Red), Panel to Controller (RS-20101)
• 1 x 20 ft 10 AWG Solar Cable (Black), Panel to Controller (RS-20101)
• 1 x 10 ft 10 AWG Battery Cable (Red), Controller to Battery (RS-1010)
• 1 x 10 ft 10 AWG Battery Cable (Black), Controller to Battery (RS-1010)
• 1 x Mounting Z Bracket Set, 4 Brackets per Set (RS-ZB4C)
• 1 x 10A Inline Fuse Holder With Fuse (RS-SC10F)

An Easy First Step Into Solar

The Rich Solar 100 Watt Solar Kit gives you a MEGA 100 panel, a 20A MPPT controller and all the cables and brackets needed for a clean 12V install. At Outbound Power, we help customers choose the right batteries and inverters to complete their systems. If you have questions, our team is happy to help.
