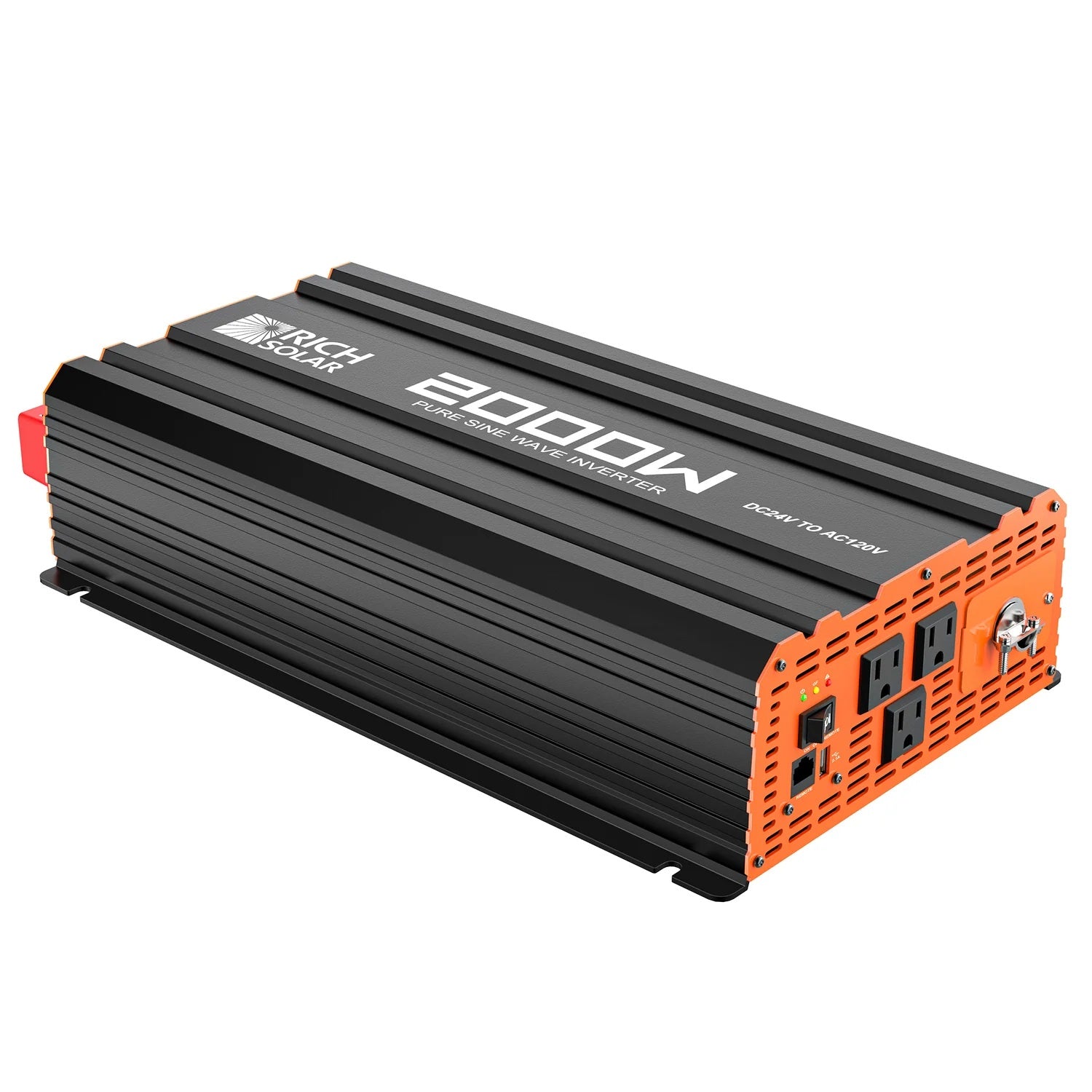

The Rich Solar 2000 Watt 24 Volt Industrial Pure Sine Wave Inverter Delivers Clean 120V Power From 24V Battery Systems
The Rich Solar 2000 Watt 24 Volt Industrial Pure Sine Wave Inverter, sold by Rich Solar as the NOVA PURE MAX 2K (RS-V2P24), converts 24V battery power into 2,000W of continuous 120V AC power with 4,000W of surge capacity. Its pure sine wave output has under 3% total harmonic distortion, which suits household appliances and sensitive electronics alike.
Running from a 24V battery bank means the inverter draws about half the battery current of a comparable 12V inverter, so cables can be smaller and losses lower. The NOVA PURE MAX 2K has three AC outlets, a USB port and an included remote control, and it is ETL listed to UL 458 for use in RVs, trucks, boats and other mobile systems.
Rich Solar 2000 Watt 24 Volt Industrial Pure Sine Wave Inverter Features
2,000W Continuous and 4,000W Surge
The inverter delivers 2,000W of continuous pure sine wave power at 120V and 60Hz, with a 4,000W surge rating for appliances and tools that draw extra power when they start.
Built for 24V Systems
The NOVA PURE MAX 2K runs on 24V deep-cycle batteries and lithium batteries with a BMS. That makes it a direct match for 24V solar systems, 24V truck and bus electrical systems, and 24V battery banks such as the Rich Solar ALPHA 4.
Clean, Stable AC Power
Total harmonic distortion under 3% keeps computers, TVs, chargers and motor-driven appliances running smoothly, without the noise and heat that modified sine wave inverters can cause.
Efficient, Quiet Operation
Rich Solar rates peak efficiency at more than 88%. A thermally controlled cooling fan runs only as hard as needed, keeping the inverter cool and quiet in enclosed spaces.
Outlets, USB and Remote On/Off

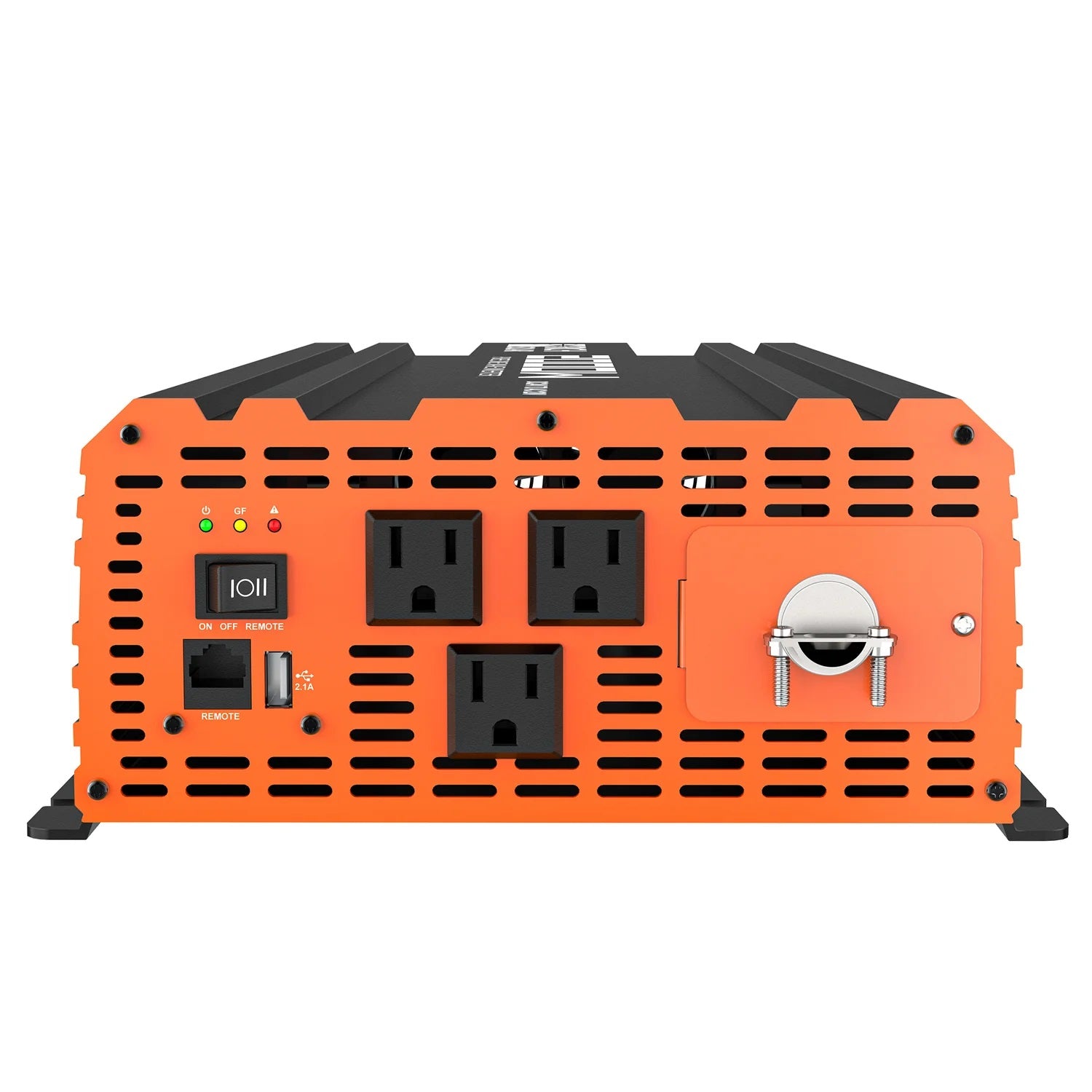

Three 120V AC outlets and a 5V/2.1A USB port power several devices at once. Switch the inverter on and off at the unit or with the included remote control.
Protection and Alerts
Protection covers under-voltage, over-voltage, overload, over-temperature and short circuits, and a built-in DC fuse adds another safeguard. LED indicators show operating status, with audible alerts for low battery and overload.
Real-World Applications
24V RV and camper systems. Run kitchen appliances, TVs and laptops from a 24V lithium house bank.
Trucks and buses with 24V electrics. Add 120V outlets for tools, chargers and cab appliances.
Off-grid cabins. Supply AC power for lights, electronics and small appliances from a 24V solar battery bank.
Boats. Power 120V galley appliances and electronics from a 24V house system.
Mobile workshops. Run saws, drills and compressors within the 2,000W rating.
How It Compares to Common Alternatives
Versus a 12V 2,000W inverter. The Rich Solar NOVA PURE 2K offers the same 2,000W output for 12V systems. On a 24V system, the NOVA PURE MAX 2K draws about half the battery current, which eases cable sizing and fusing.
Versus the NOVA PURE MAX 3K. The 3K version adds 1,000W of continuous output for larger or simultaneous loads. The 2K is a good match for moderate loads and smaller 24V banks.
Versus a modified sine wave inverter. A modified sine wave inverter costs less but may not run some electronics correctly. The NOVA PURE MAX 2K's pure sine wave output avoids that problem.
Is This Inverter the Right Fit
-
Battery voltage. This inverter requires a 24V battery system. For 12V systems, choose the NOVA PURE 2K.
-
Battery current. At 2,000W, a 24V inverter draws more than 80A from the battery. Make sure your battery or BMS can deliver it.
-
Wiring. Use correctly sized battery cables and a fuse or breaker near the battery.
-
Environment. The operating range is 14°F to 122°F. Install the inverter in a dry, ventilated location.
This may be a good fit if
- You have a 24V battery bank or 24V vehicle electrical system
- You need up to 2,000W of clean 120V power
- You run sensitive electronics or motor-driven appliances
- You want a remote on/off switch and a UL 458 listing
Common Questions
Can I Use This Inverter on a 12V Battery?
No. The NOVA PURE MAX 2K is designed for 24V DC input. Use the NOVA PURE 2K for a 12V system.
Does It Work With Lithium Batteries?
Yes. Rich Solar lists 24V deep-cycle batteries and lithium batteries with a BMS as compatible.
Does It Have a Transfer Switch or Charger?
No. It is a stand-alone inverter that converts battery power to AC. Charge the battery bank with solar, an alternator charger or a separate battery charger.
Is the Remote Included?
Yes. A remote control for on/off operation is included.
What's Included
- 1 x Rich Solar NOVA PURE MAX 2K 2000 Watt 24 Volt Pure Sine Wave Inverter (RS-V2P24)
- 1 x Remote Control
Clean AC Power for 24V Systems
The Rich Solar 2000 Watt 24 Volt Industrial Pure Sine Wave Inverter gives 24V RVs, trucks, boats and cabins 2,000W of clean, UL 458 listed power with lower battery current than a 12V setup. At Outbound Power, we help customers match inverters to their 24V battery banks, cabling and solar. If you have questions, our team is happy to help.
Rich Solar 2000 Watt 24 Volt Industrial Pure Sine Wave Inverter Specifications
|
| Model |
NOVA PURE MAX 2K (RS-V2P24) |
| Nominal DC Input Voltage |
24V DC |
| Compatible Batteries |
24V deep-cycle and lithium (BMS) batteries |
| Rated Output Power |
2,000W |
| Surge Power |
4,000W |
| Output Voltage |
120V AC |
| Output Frequency |
60Hz |
| Output Waveform |
Pure sine wave |
| Total Harmonic Distortion |
Under 3% |
| Peak Efficiency |
Over 88% |
| AC Outlets |
3 |
| USB Output |
5V / 2.1A |
| Power Control |
AC on/off switch, remote control (included) |
| Protection |
Under-voltage, over-voltage, overload, over-temperature, short circuit, built-in DC fuse |
| Alerts |
LED status indicators, audible low-battery and overload alarms |
| Cooling |
Thermally controlled fan |
| Operating Temperature |
14°F to 122°F |
| Dimensions |
16.1 x 9.6 x 4.0 in |
| Weight |
10.1 lbs |
| Certifications |
ETL listed (UL 458), FCC, CE, RoHS |
