The Rich Solar 3000 Watt 24 Volt Industrial Pure Sine Wave Inverter Powers Heavy 120V Loads From a 24V Battery Bank
The Rich Solar 3000 Watt 24 Volt Industrial Pure Sine Wave Inverter, sold by Rich Solar as the NOVA PURE MAX 3K (RS-V3P24), converts 24V battery power into 3,000W of continuous 120V AC power with 6,000W of surge capacity. Total harmonic distortion is under 3%, so the output is clean enough for sensitive electronics as well as kitchen appliances and power tools.
A 24V system cuts battery current roughly in half compared with 12V, which is a real advantage at 3,000W. The NOVA PURE MAX 3K has three 120V AC outlets, a 5V/2.1A USB port and an included remote control, and it is ETL listed to UL 458 with FCC, CE and RoHS compliance.
Rich Solar 3000 Watt 24 Volt Industrial Pure Sine Wave Inverter Features
3,000W Continuous and 6,000W Surge
The inverter delivers 3,000W of continuous pure sine wave power at 120V and 60Hz. A 6,000W surge rating helps start motors, compressors and pumps while other appliances keep running.
Lower Current on a 24V System
Running at 24V means roughly half the battery current of a 12V inverter for the same output. That allows smaller cables, smaller fuses and less voltage drop, and it puts less strain on the battery bank. The inverter works with 24V deep-cycle and lithium batteries with a BMS.
Clean Pure Sine Wave Output
Under 3% total harmonic distortion keeps laptops, TVs, battery chargers and motor-driven appliances running as they would on grid power.
Efficient and Quiet
Rich Solar rates peak efficiency at more than 88%. A thermally controlled fan maintains the operating temperature and keeps noise low in campers, cabins and boat cabins.
Outlets, USB and Remote Control

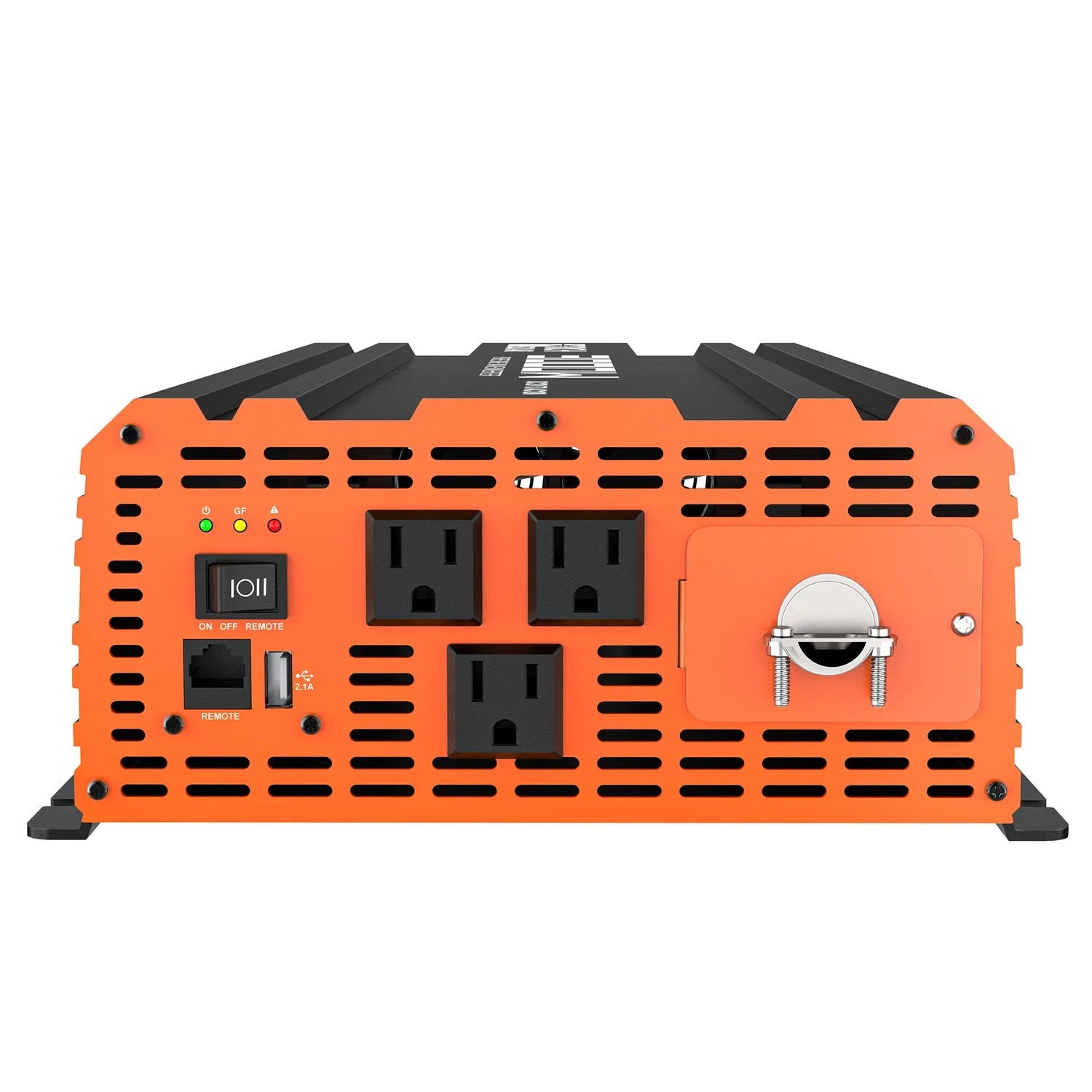

Three 120V AC outlets and a 5V/2.1A USB port serve several devices at once. Use the on/off switch on the unit or the included remote control.
Protection and Status Alerts
The NOVA PURE MAX 3K protects against under-voltage, over-voltage, overload, over-temperature and short circuits, with a built-in DC fuse. LED indicators show operating status, and audible alarms warn of low battery and overload.
Real-World Applications
24V RVs and buses. Run a microwave, induction cooktop and entertainment system from a 24V lithium bank.
Off-grid cabins. Supply a refrigerator, well pump controls, lights and electronics from a 24V solar system.
Trucks and service vehicles. Power tools, compressors and chargers from a 24V electrical system.
Boats. Provide 120V galley and electronics power from a 24V house bank.
Backup power. Run essential household loads from a 24V battery bank during outages.
How It Compares to Common Alternatives
Versus a 12V 3,000W inverter. The Rich Solar NOVA PURE 3K delivers the same output on 12V, but at about twice the battery current. On a 24V system, the NOVA PURE MAX 3K is easier to wire and fuse.
Versus the NOVA PURE MAX 2K. The 2K version provides 2,000W continuous and 4,000W surge in a slightly shorter case. The 3K adds 1,000W of continuous output and 2,000W more surge.
Versus a modified sine wave inverter. Modified sine wave power can make motors run hot and may not suit some electronics. The NOVA PURE MAX 3K produces clean pure sine wave power.
Is This Inverter the Right Fit
-
Battery voltage. This inverter requires a 24V battery system. For 12V, choose the NOVA PURE 3K.
-
Battery current. At 3,000W, a 24V inverter draws well over 100A from the battery. Choose a battery bank and BMS that can supply it.
-
Wiring. Use correctly sized battery cables and a fuse or breaker close to the battery.
-
Environment. The operating range is 14°F to 122°F. Mount the inverter in a dry, ventilated space.
This may be a good fit if
- You have a 24V battery bank or 24V vehicle electrical system
- You need up to 3,000W of clean 120V power
- You want lower battery current than a 12V inverter of the same size
- You want a remote on/off switch and a UL 458 listing
Common Questions
Will This Inverter Run on 12V?
No. It is designed for a 24V DC input. Use the NOVA PURE 3K for 12V systems.
Does It Work With Lithium Batteries?
Yes. Rich Solar lists 24V deep-cycle batteries and lithium batteries with a BMS as compatible.
Does It Include a Transfer Switch or Charger?
No. The NOVA PURE MAX 3K is a stand-alone inverter. Charge your batteries with solar, an alternator charger or a separate battery charger.
Is a Remote Included?

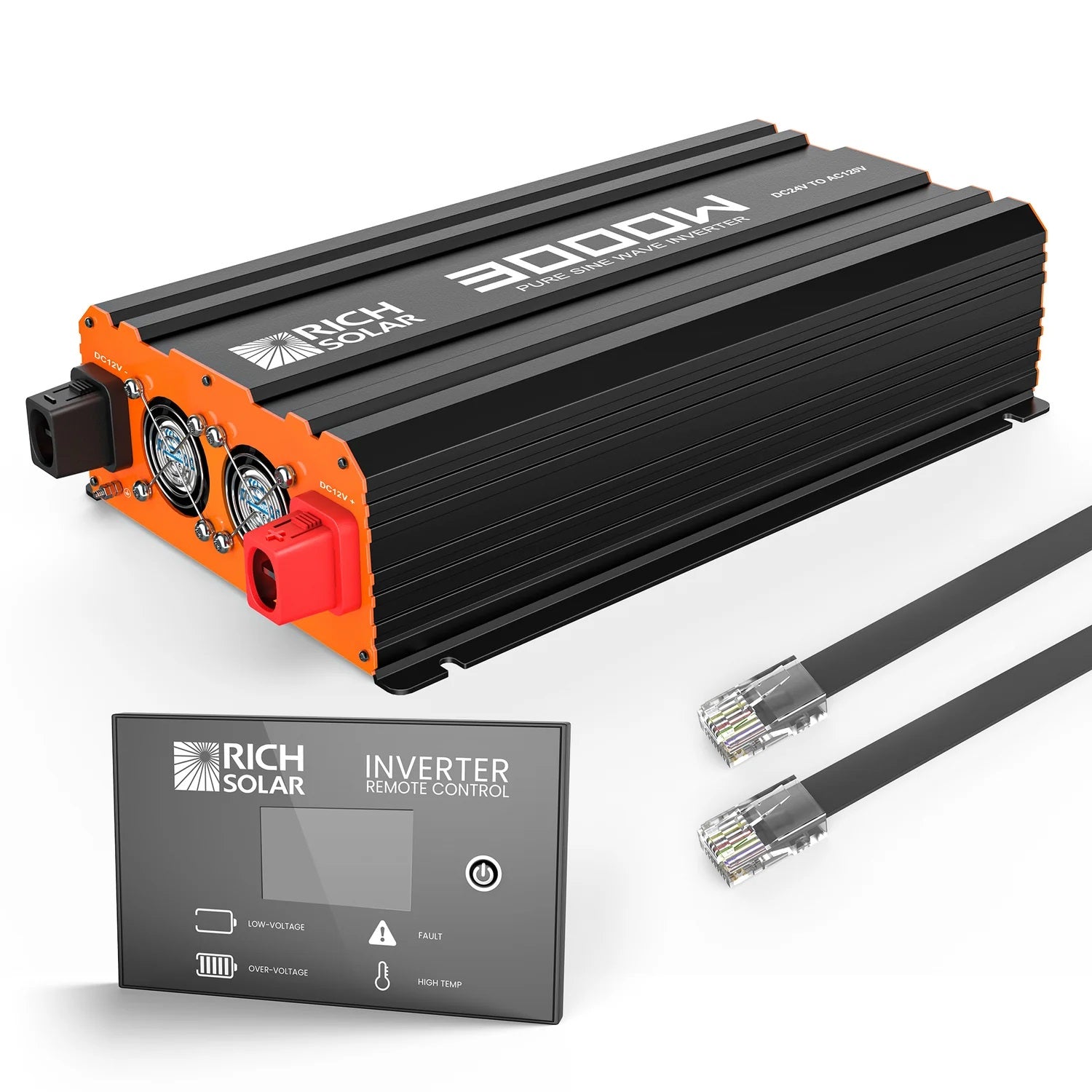

Yes. Rich Solar includes a remote control for on/off operation.
What's Included
- 1 x Rich Solar NOVA PURE MAX 3K 3000 Watt 24 Volt Pure Sine Wave Inverter (RS-V3P24)
- 1 x Remote Control
High-Output AC Power for 24V Systems
The Rich Solar 3000 Watt 24 Volt Industrial Pure Sine Wave Inverter gives 24V RVs, cabins, trucks and boats 3,000W of clean, UL 458 listed power with lower battery current than a 12V setup. At Outbound Power, we help customers size 24V battery banks, cables and fusing for high-power inverters. If you have questions, our team is happy to help.
Rich Solar 3000 Watt 24 Volt Industrial Pure Sine Wave Inverter Specifications
|
| Model |
NOVA PURE MAX 3K (RS-V3P24) |
| Nominal DC Input Voltage |
24V DC |
| Compatible Batteries |
24V deep-cycle and lithium (BMS) batteries |
| Rated Output Power |
3,000W |
| Surge Power |
6,000W |
| Output Voltage |
120V AC |
| Output Frequency |
60Hz |
| Output Waveform |
Pure sine wave |
| Total Harmonic Distortion |
Under 3% |
| Peak Efficiency |
Over 88% |
| AC Outlets |
3 |
| USB Output |
5V / 2.1A |
| Power Control |
AC on/off switch, remote control (included) |
| Protection |
Under-voltage, over-voltage, overload, over-temperature, short circuit, built-in DC fuse |
| Alerts |
LED status indicators, audible low-battery and overload alarms |
| Cooling |
Thermally controlled fan |
| Operating Temperature |
14°F to 122°F |
| Dimensions |
18.7 x 9.6 x 4.0 in |
| Weight |
12.1 lbs |
| Certifications |
ETL listed (UL 458), FCC, CE, RoHS |
