Rich Solar All-in-One Energy Storage System

$6,999.99

Notify me when available

Why Buy From Us?

✔ Authorized Rich Solar Dealer
✔ Fast & Free Shipping
✔ Hassle-Free 30-Day Returns
✔ Financing Available
✔ Price Beat Guarantee
✔ Manufacturer Warranty Included

Condition: New

SKU: RS-A10

Fast & Free Shipping

On all products

Friendly Support

+1 (888) 976-5443

Hassle-Free Returns

Guaranteed for 30 days

100% Secure Checkout

Shop with confidence

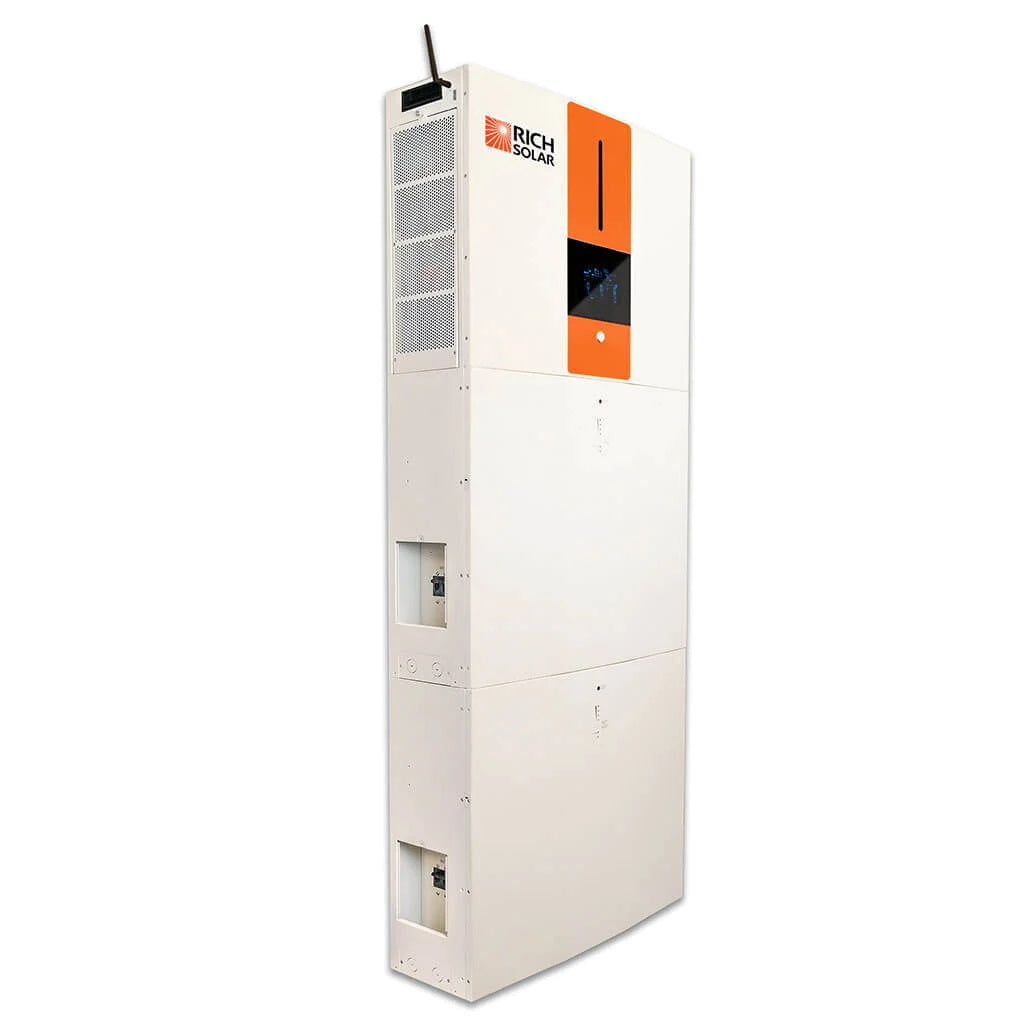

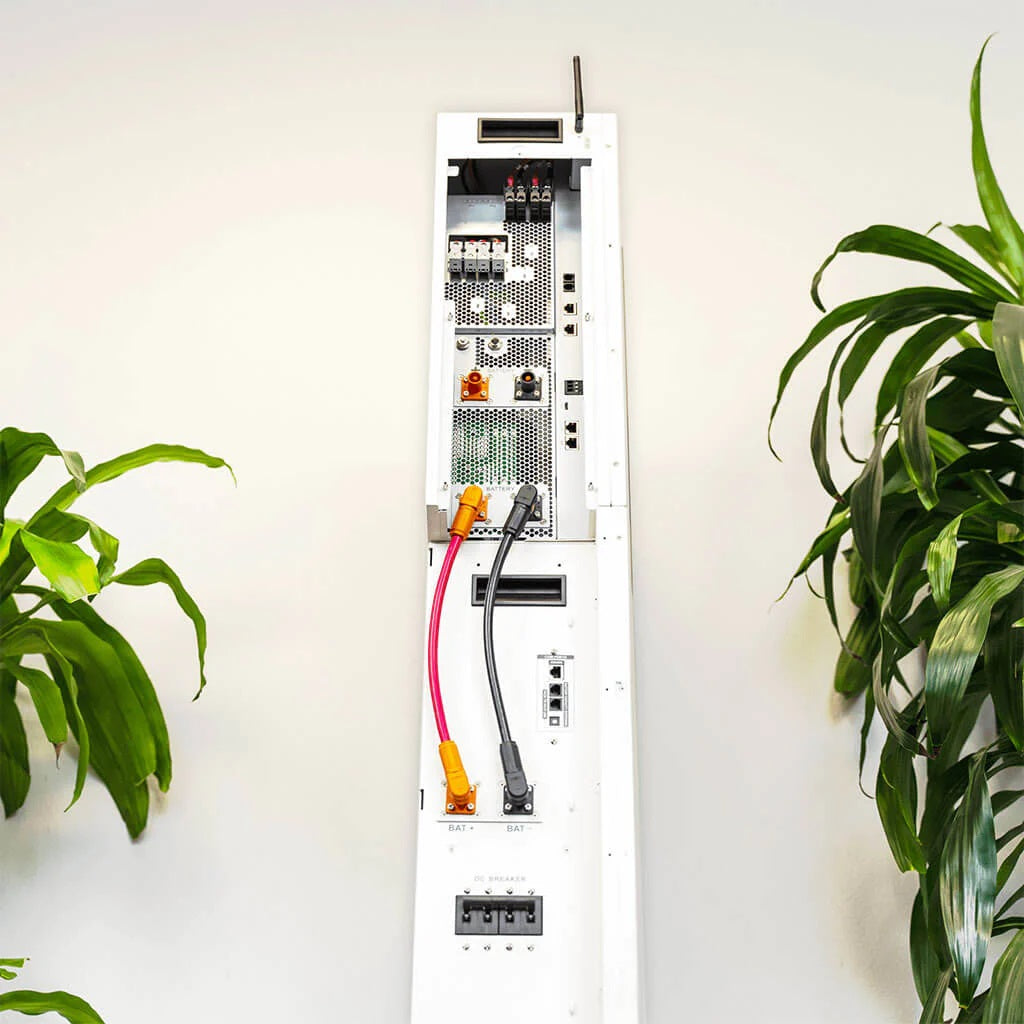

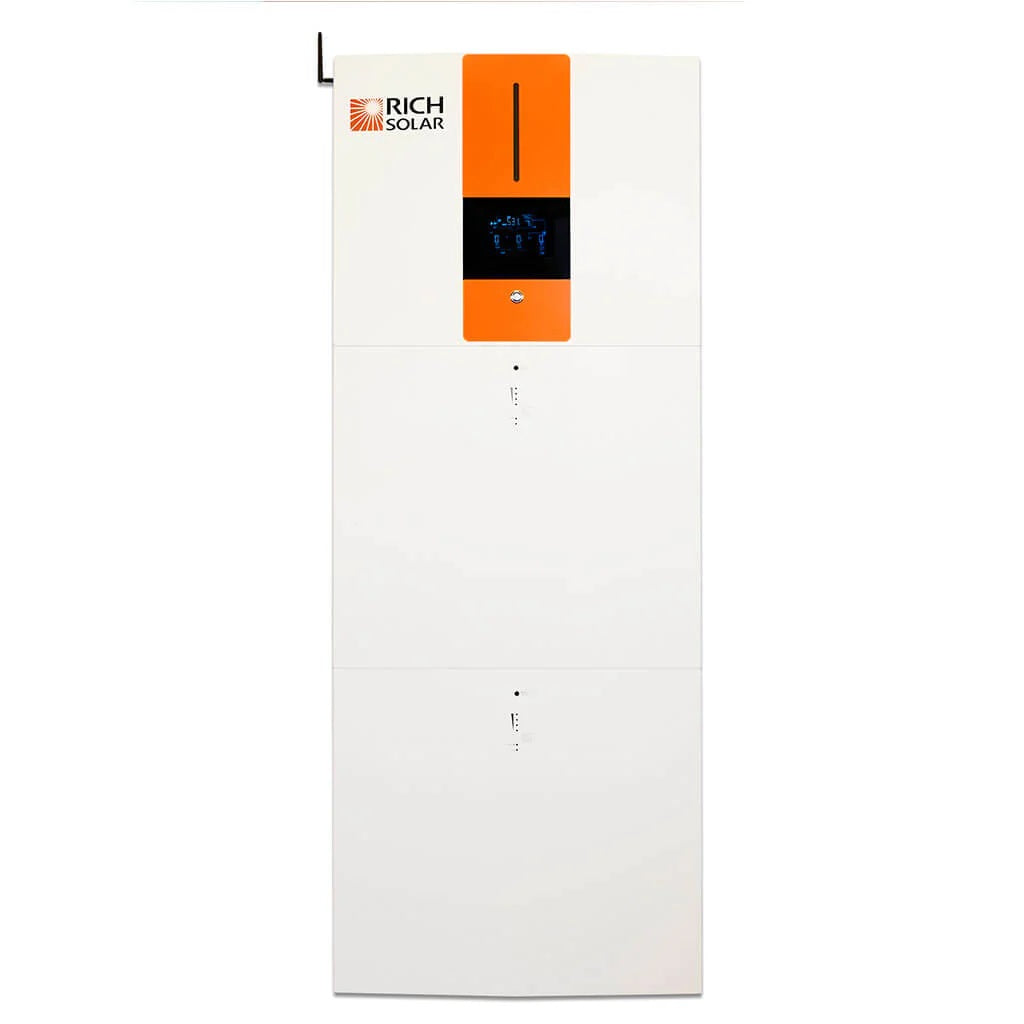

The Rich Solar All-in-One Energy Storage System

The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.

The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.



Rich Solar  All-in-One Energy Storage System Features

  • Pure sine wave output
  • Off-Grid application
  • Programmable supply priority for PV, Battery, or Grid
  • User-adjustable battery charging current
  • Battery independent design
  • Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi

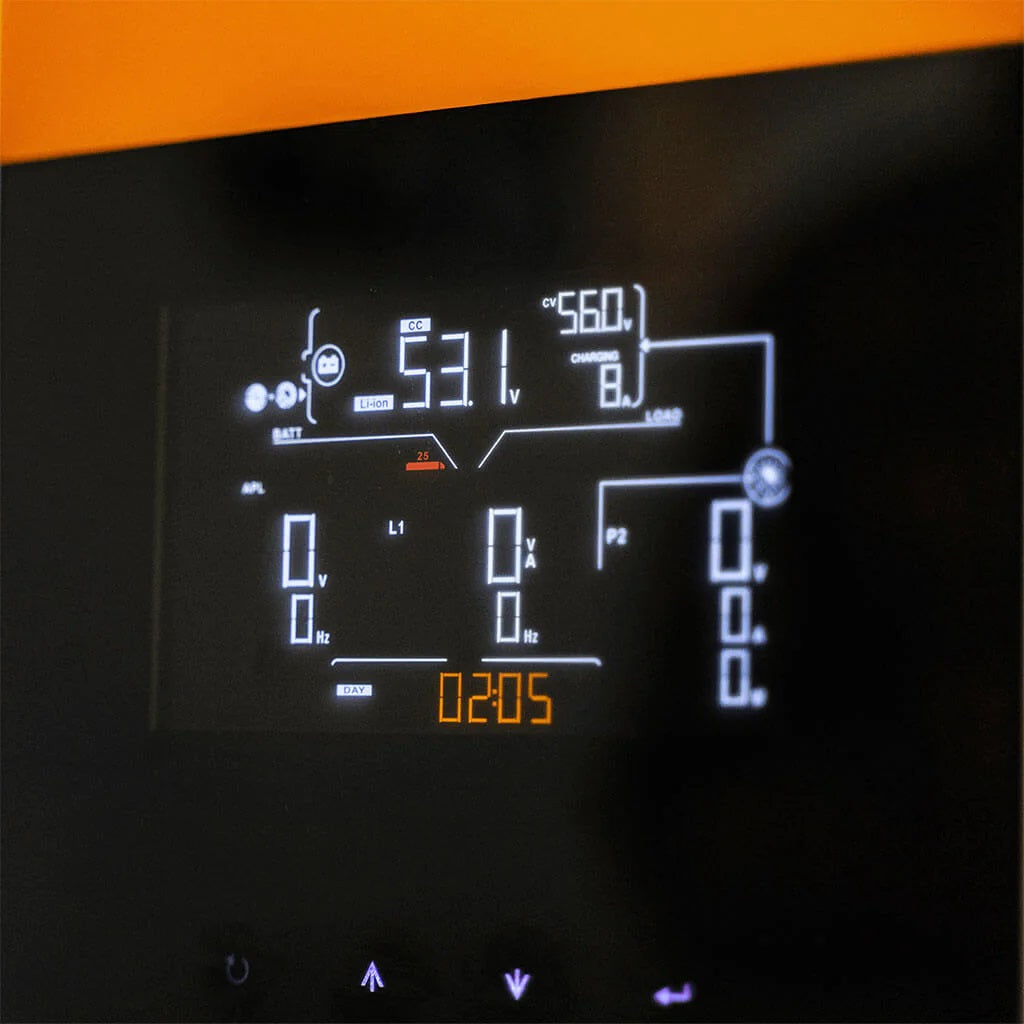

  • Monitoring APP (Android and iOS) for real-time status display and parameter control
  • Built-in 2 MPPT trackers and AC/Solar charger up to 120A
  • Compatible with utility and generator
  • Scalable Li-Ion battery expansion



What's In The Box

  • 1 x RICH SOLAR All-in-One Energy Storage System



25-Year Warranty

  • Rich Solar provides a 25-year output warranty for this solar panel.



Rich Solar All-in-One Energy Storage System Specifications

Model: RS-A10
Maximum PV Input Power: 8000W
Rated Output Power: 6500W
Maximum Charging Power: 6500W



PV INPUT (DC)

MPPT Range @ Operating Voltage: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Solar Charge Current: 120A
Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18 A



AC INPUT

Acceptable Input Voltage Range: 90-140 VAC (For Computers)
80-140 VAC (For Home Appliances)
Maximum AC Input Current: 60A



BATTERY MODE OUTPUT

Nominal Output Voltage: 120 VAC
Maximum Conversion Efficiency (DC/AC): 93%

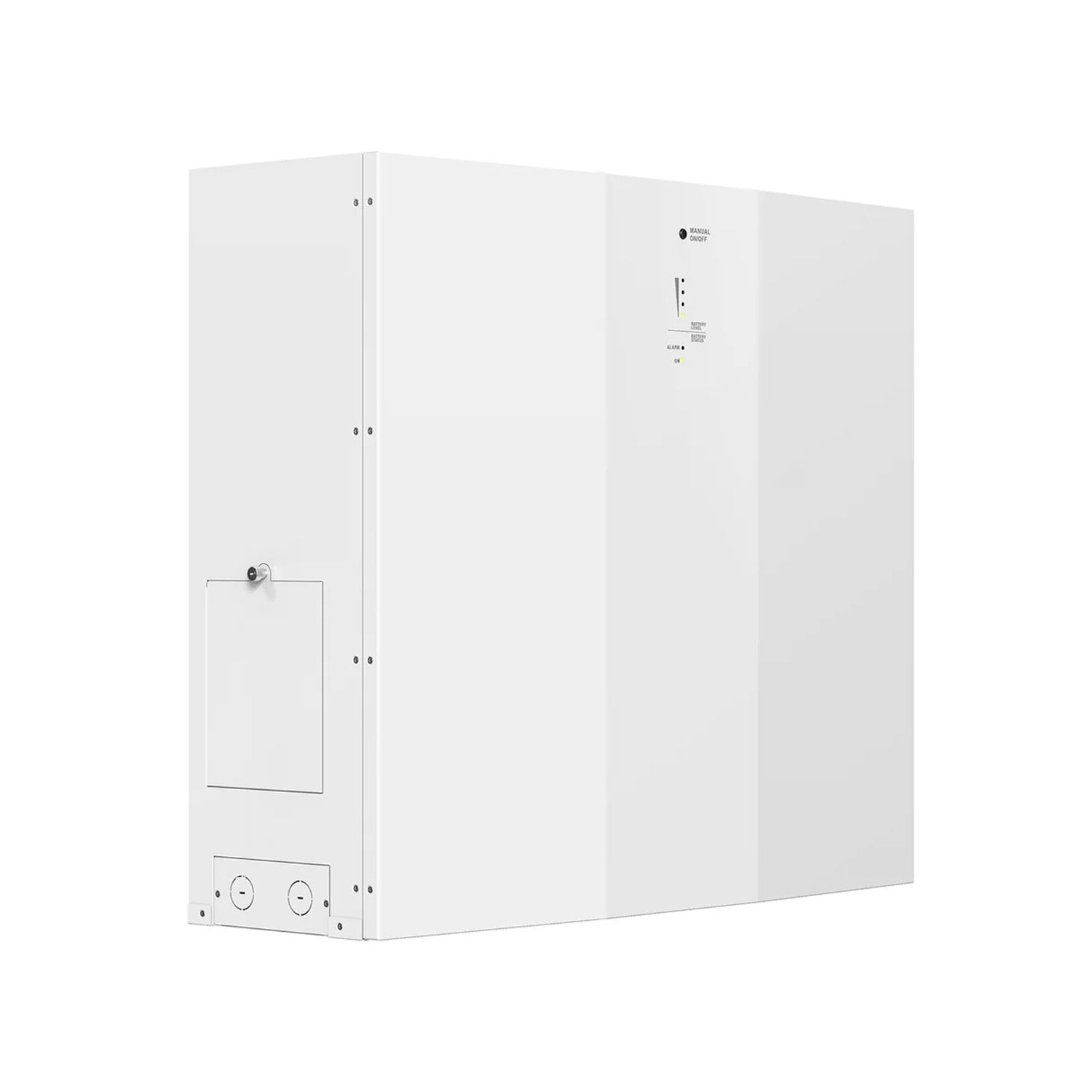

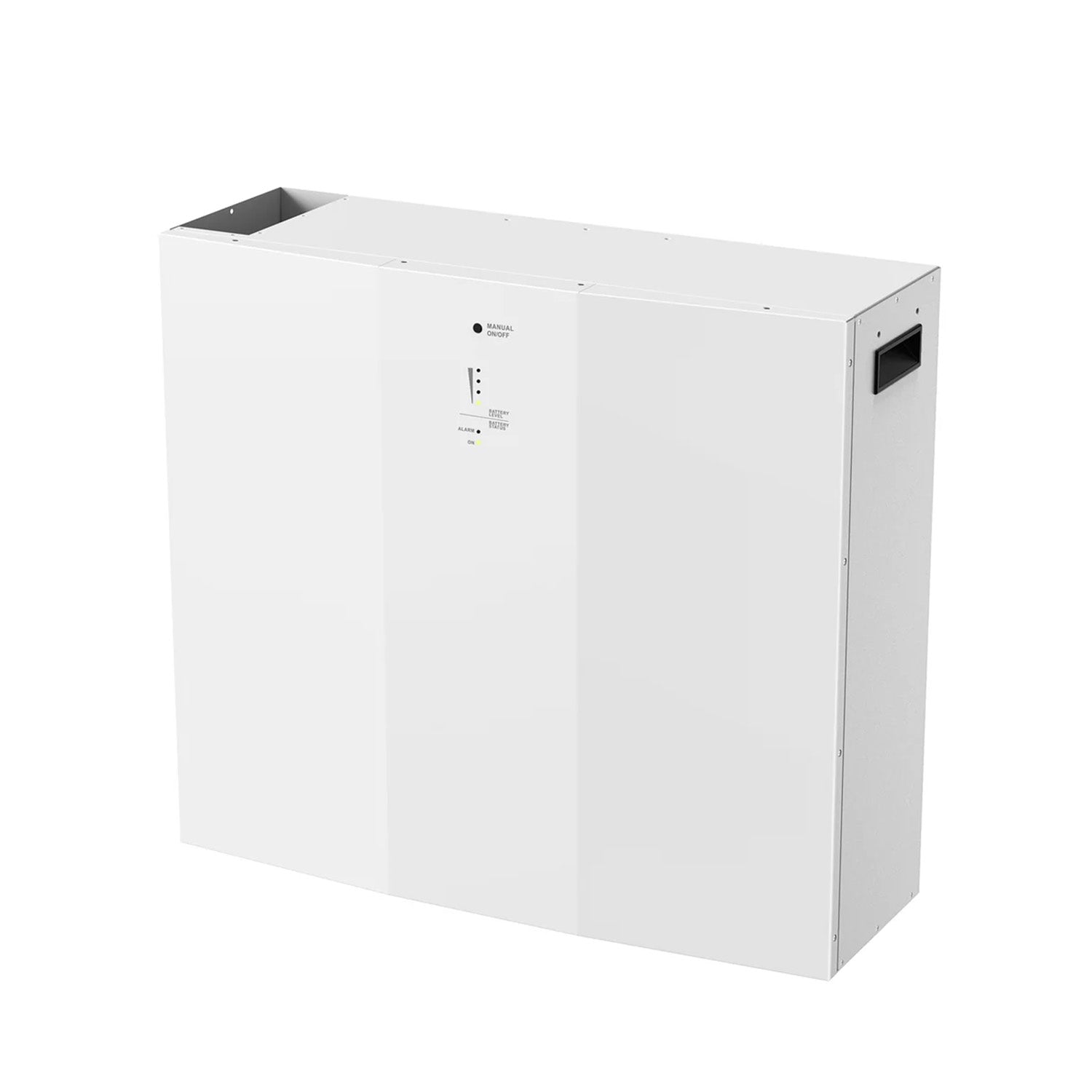

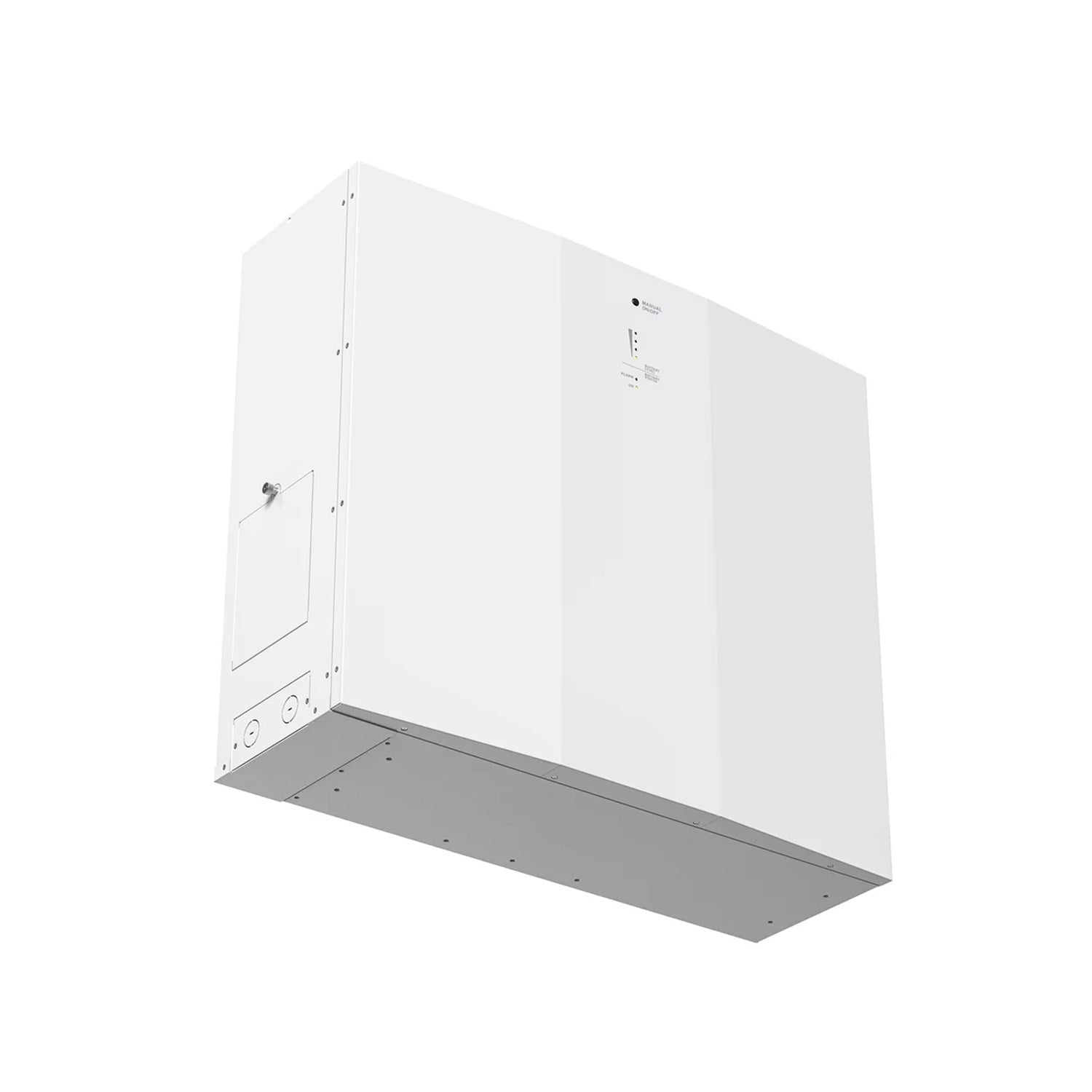

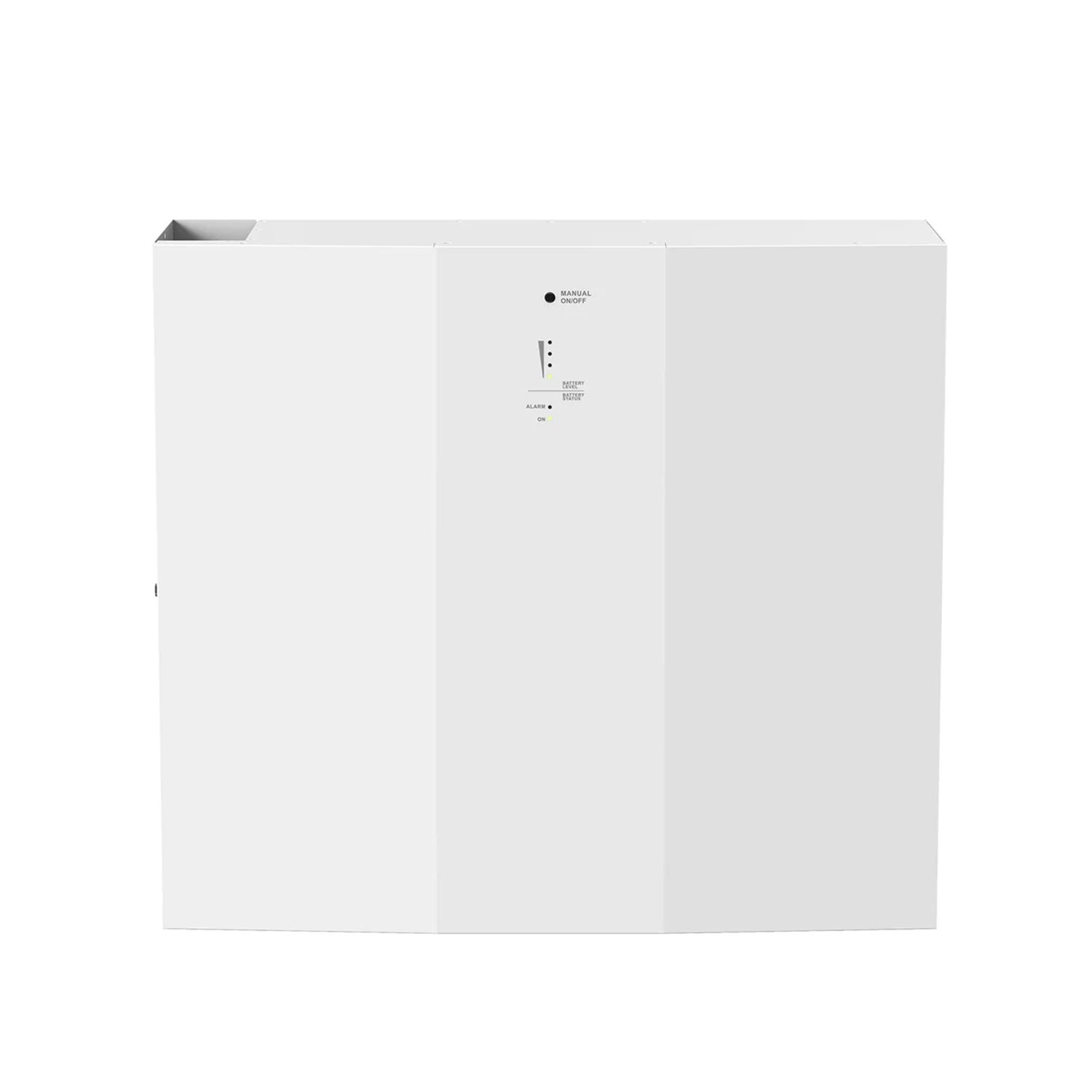

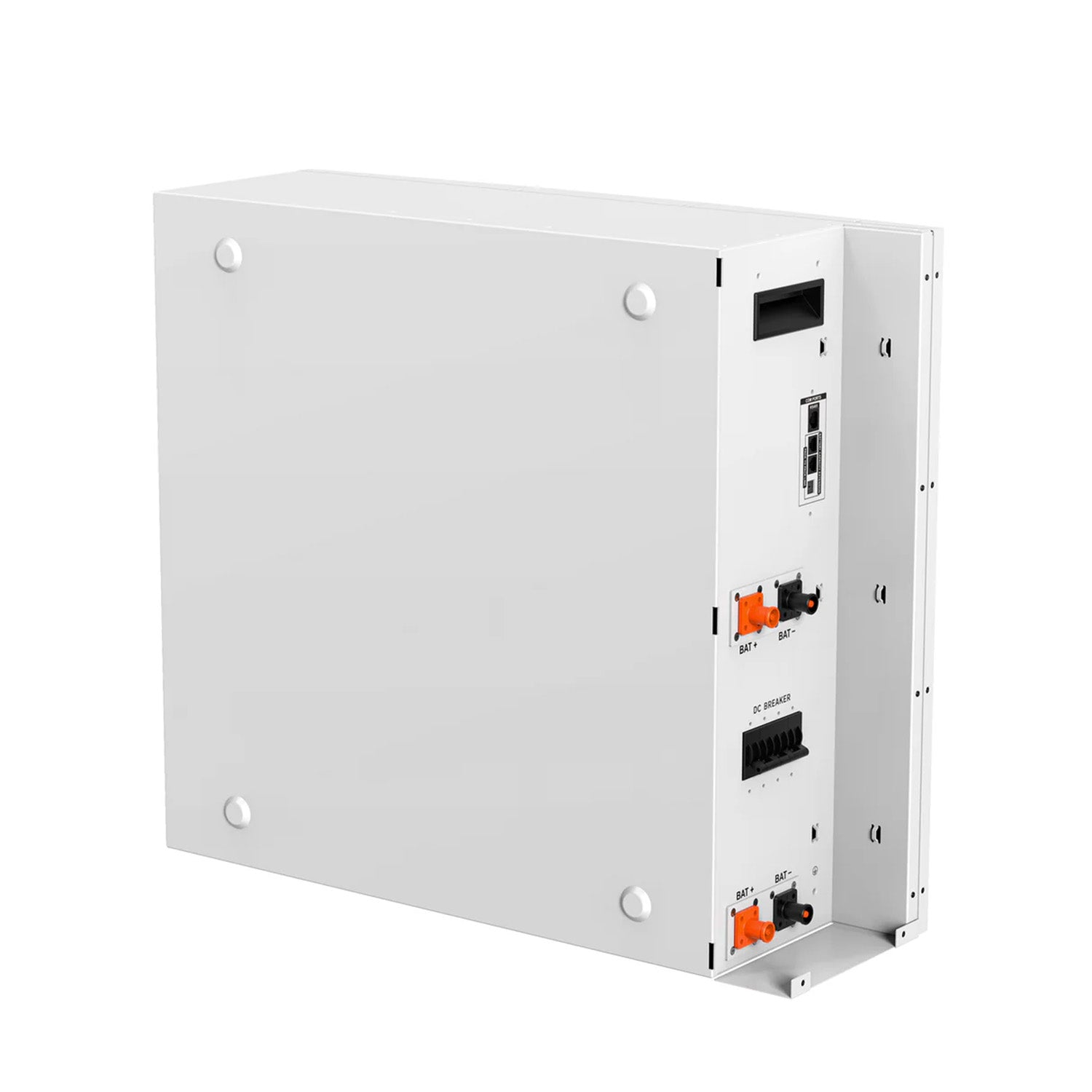

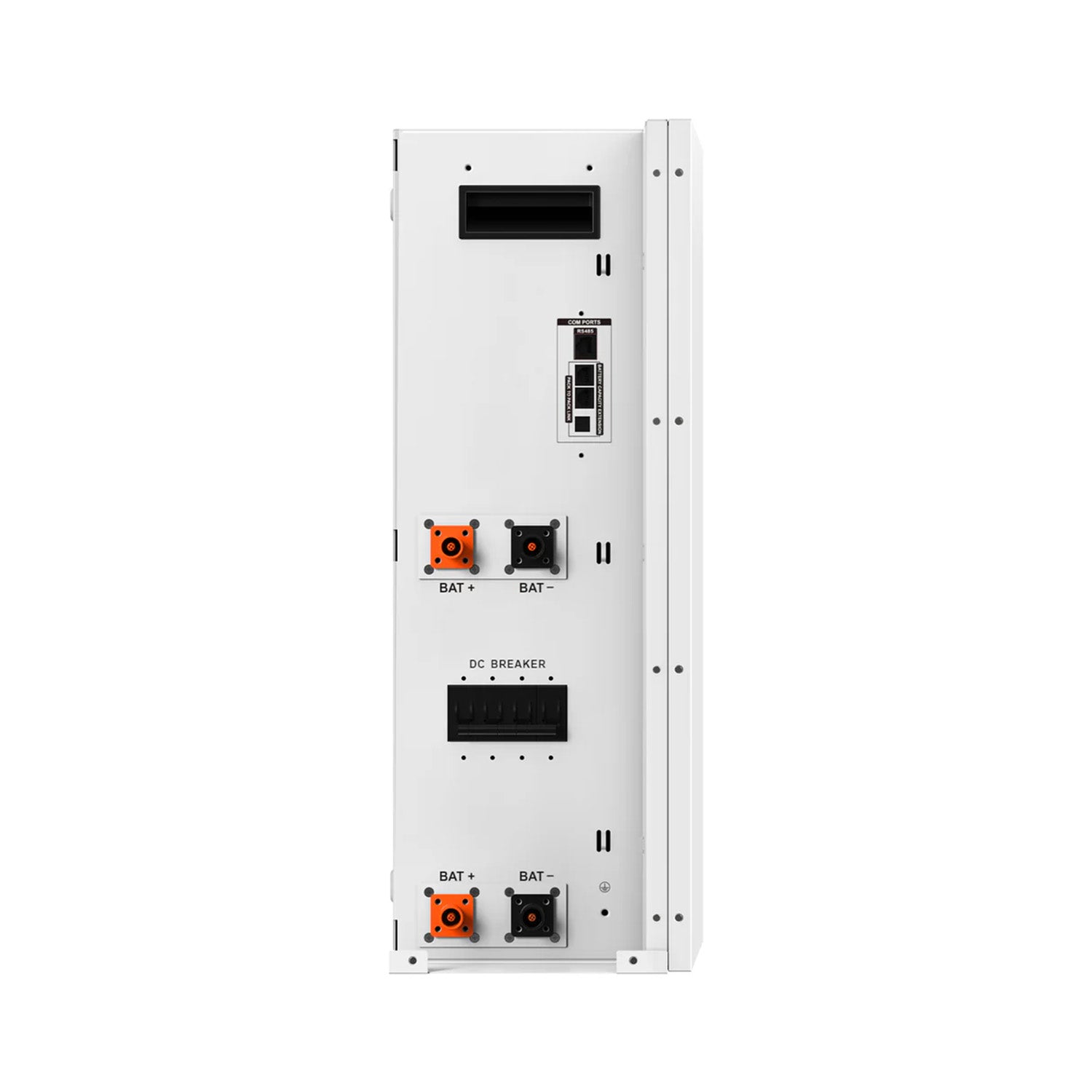

BATTERY

Nominal DC Voltage: 48 VDC
Maximum Charging Current: 120 A
Dimension: (D x W x H): 8.4″ x 24.4″ x 19.7″
Net Weight: 99 lb
Capacity: 5120Wh
Nominal Voltage: 51.2VDC
Full Charge Voltage(FC): 56V
Full Discharge Voltage(FD): 42V
Typical Capacity: 100 Ah
Max Continuous Discharging Current: 120A
Max Discharging Current: 192A at 1 min
Protection: BMS, Breaker
Float Charge Voltage: 52.5V
Charge Current: 20A (0.2C)
Maximum Charge current: 50A (0.5C)
Standard Charge method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
Inner Resistance: ≤20m ohm



ALL IN ONE SYSTEM PHYSICAL

System Dimension (D X W X H): 19.7″ x 26″ x 49.2″
Net Weight: 287 lb



STANDARD

Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

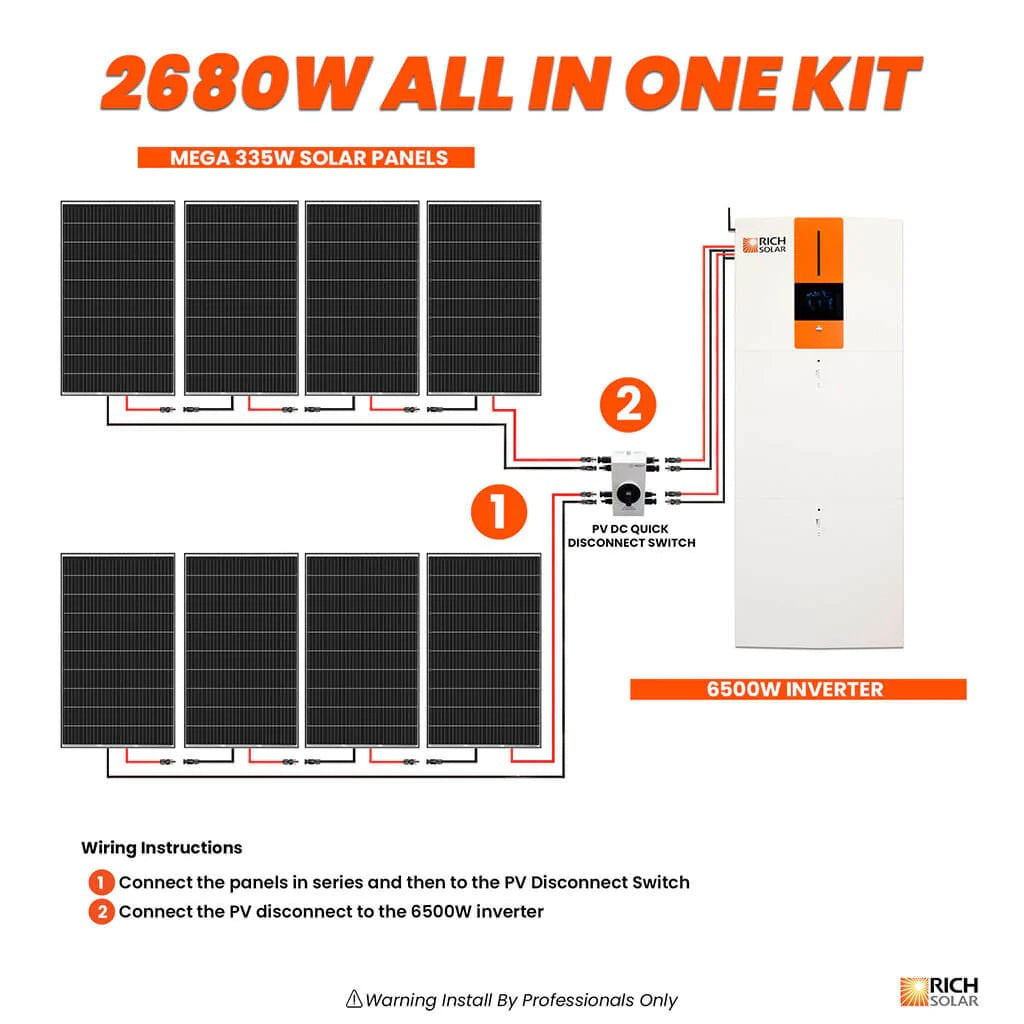

Rich Solar All-in-One Energy Storage System Installation



Rich Solar All-in-One Energy Storage System Manual
