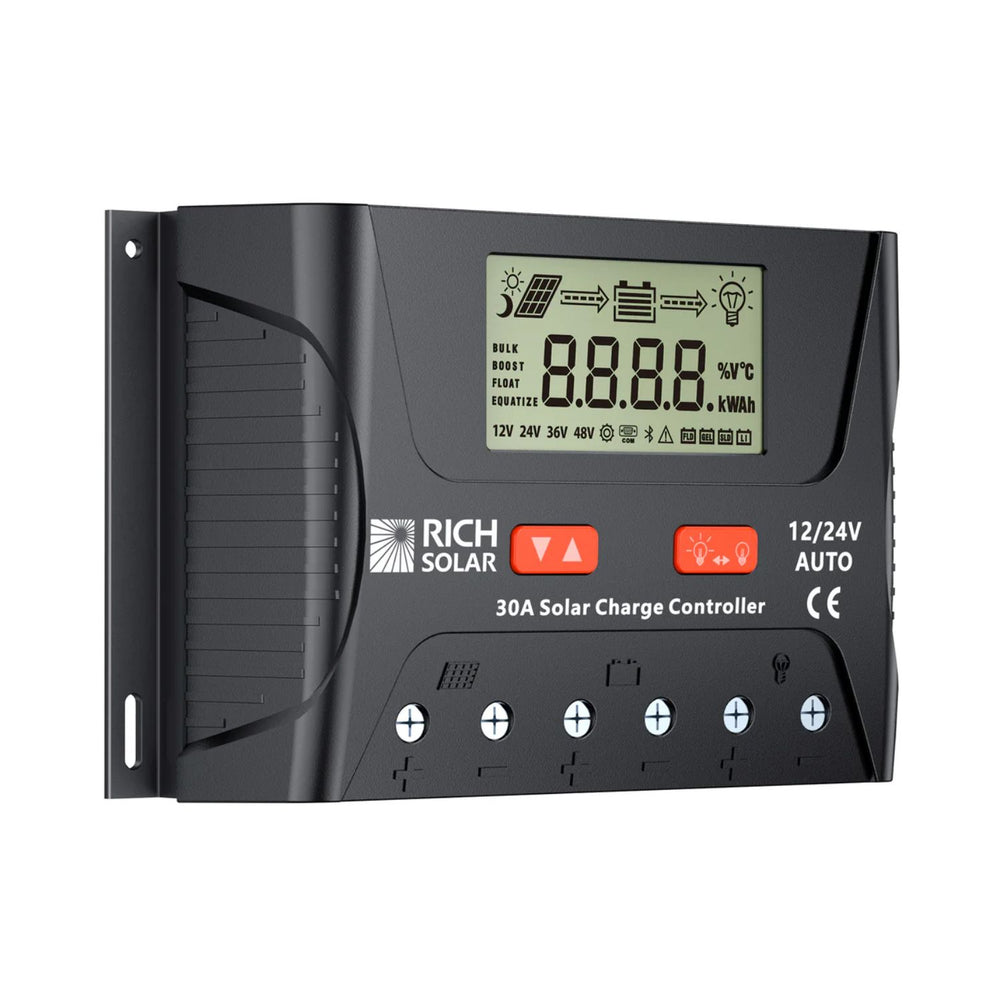

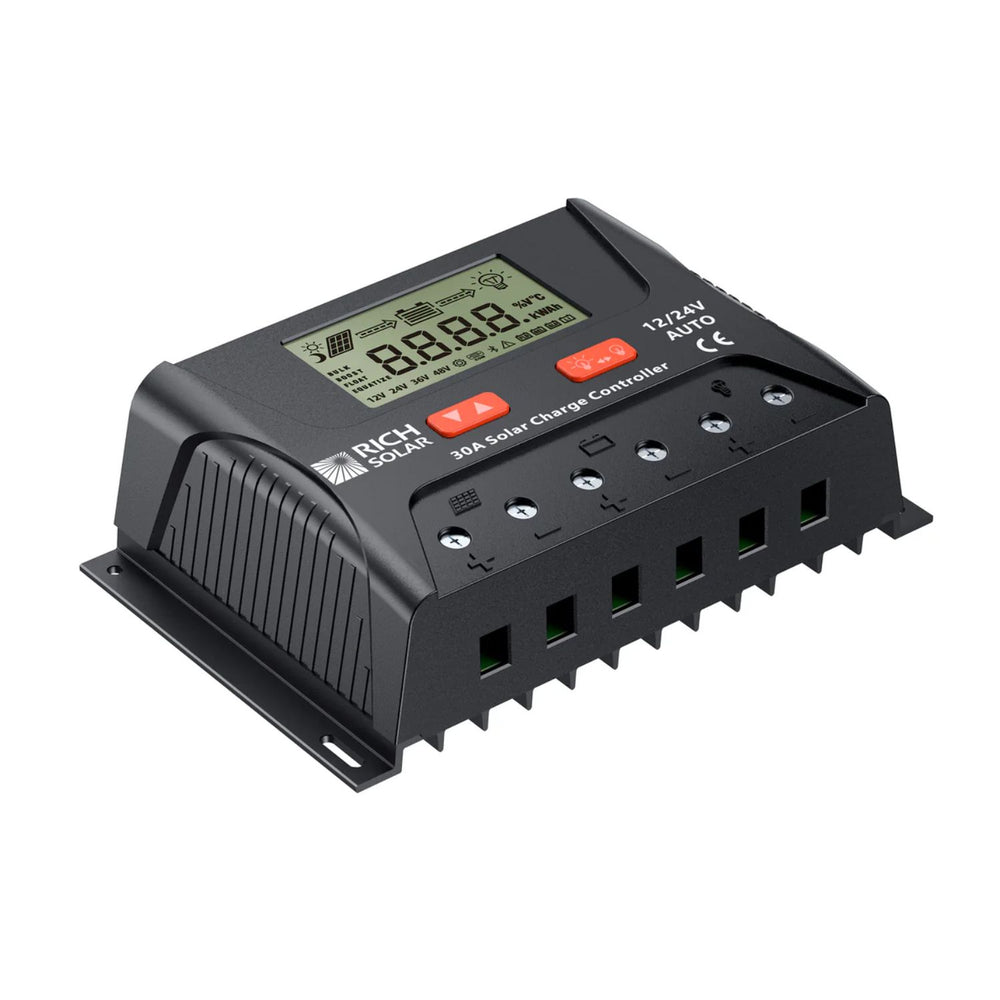

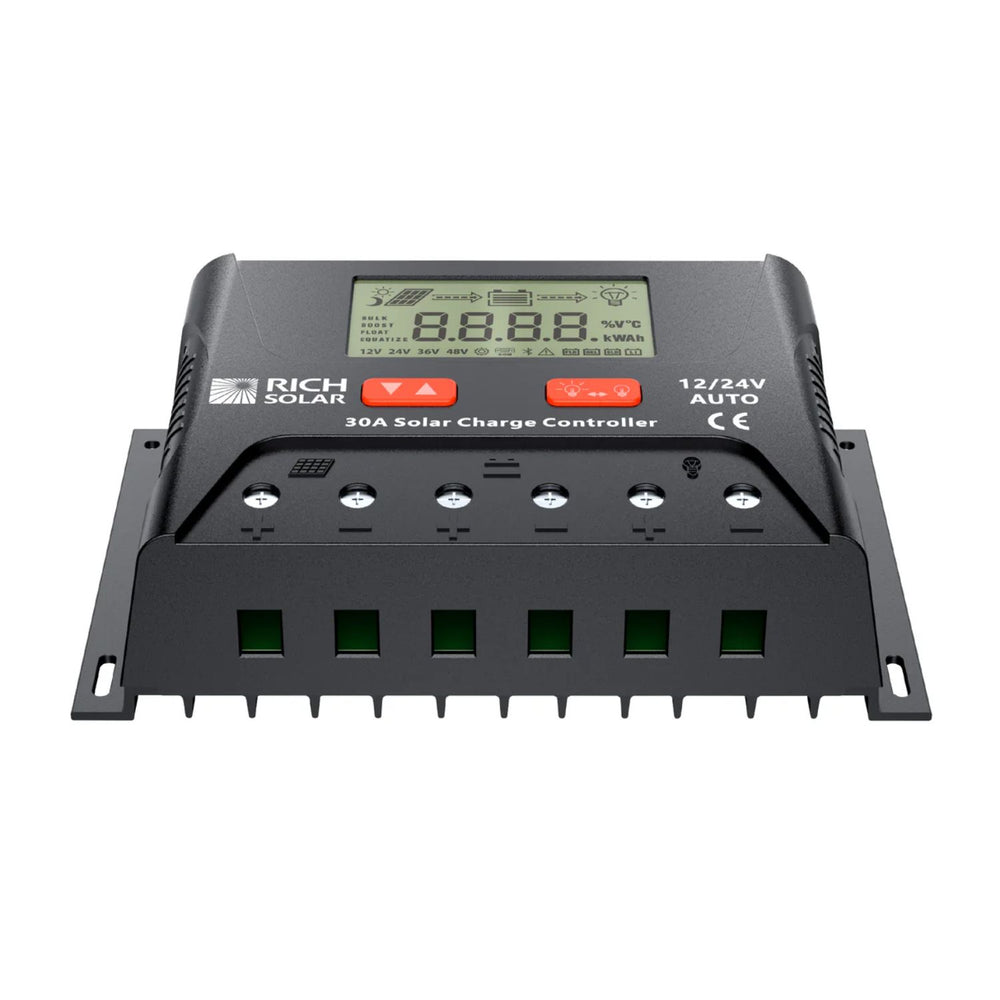

The Rich Solar BRAVO LEGEND 30 Amp PWM Solar Charge Controller Keeps 12V and 24V Batteries Charged With Simple, Certified Protection
The Rich Solar BRAVO LEGEND 30 Amp PWM Solar Charge Controller manages up to 30A of solar charging current and automatically detects 12V or 24V battery systems. It is rated for 450W of solar on a 12V system and 900W on a 24V system, accepts up to 55V of solar input, and is UL 1741 certified.
The controller uses 3-stage PWM charging with automatic temperature compensation, works with sealed, GEL, flooded and lithium batteries, and adds five operating modes for automatic lighting control. At 6.46 x 4.07 x 1.85 inches and 0.86 pounds, it fits easily in an RV compartment, van cabinet or equipment shed.
Rich Solar BRAVO LEGEND 30 Amp PWM Solar Charge Controller Features
3-Stage PWM Charging
The BRAVO LEGEND 30 charges in boost, float and equalization stages. Equalization helps prevent sulfation in lead-acid batteries, and it is skipped for GEL and lithium batteries, which do not need it.
Automatic Temperature Compensation
The controller adjusts charging voltage to the ambient temperature at -3.0 mV per °C per 2V cell. This helps lead-acid batteries charge fully in cold weather without overcharging in the heat. Compensation does not apply to lithium batteries.
12V and 24V Auto Detection
The controller recognizes a 12V or 24V battery system on its own, with manual setup available if you prefer. It supports panel configurations up to 55V of solar input and battery voltages under 34V.
Five Operating Modes
Choose light control with a 10-minute delay, light control plus a 1 to 14 hour timer, manual, debug or normal on. The light control modes let the controller switch connected lighting on at dusk, which is useful for sheds, signs, gates and campsites.
LCD Screen and USB Port

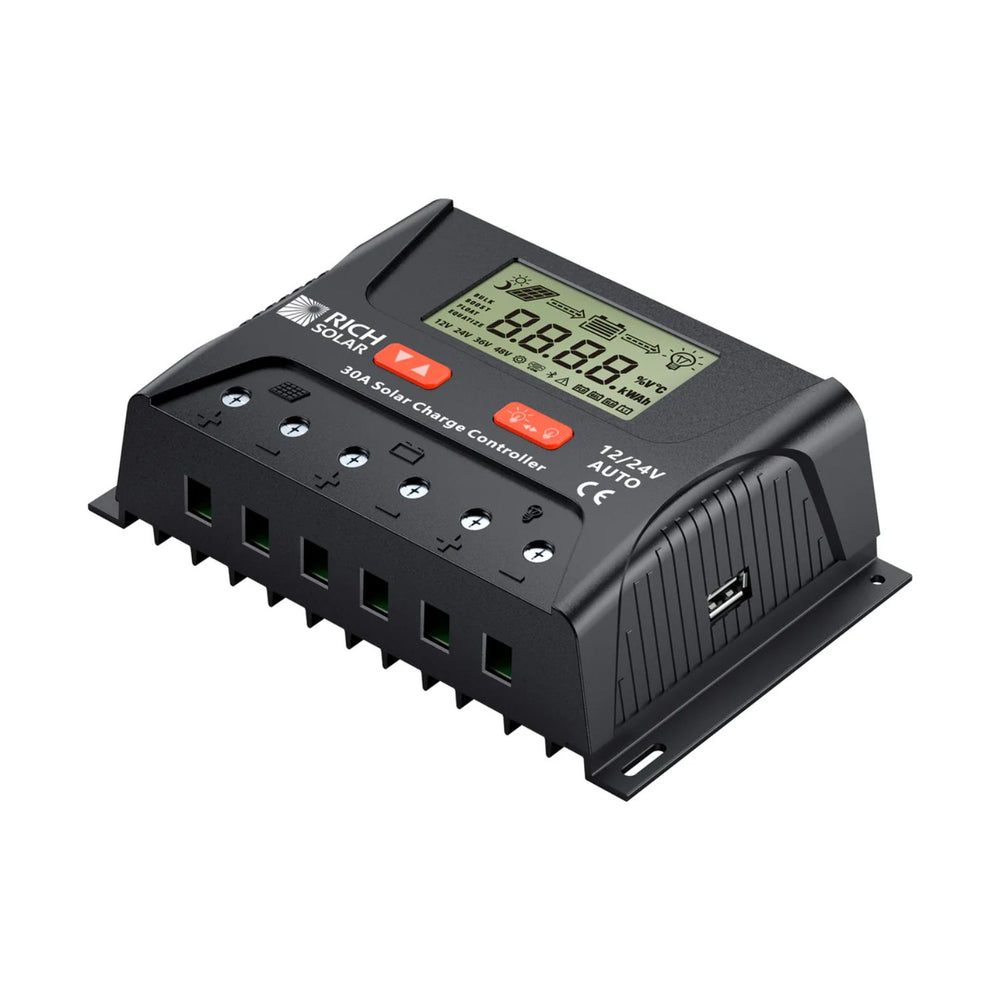

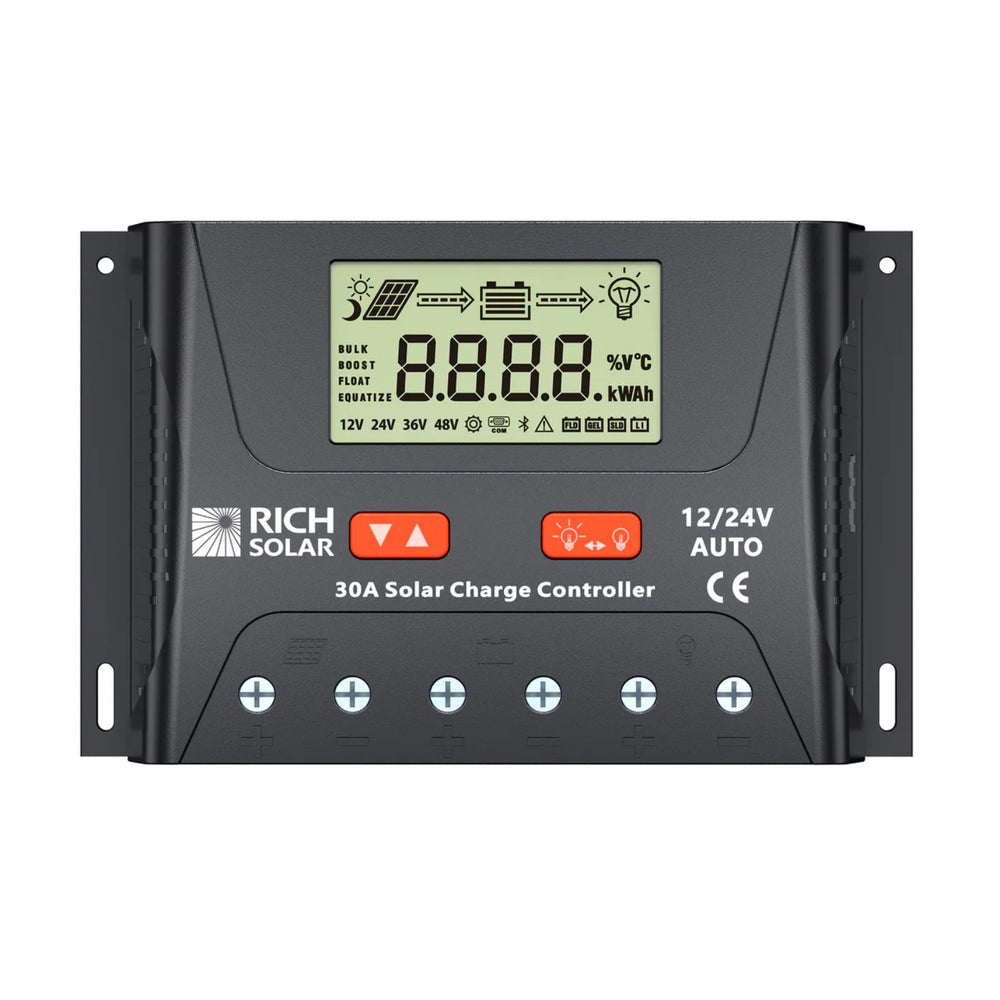

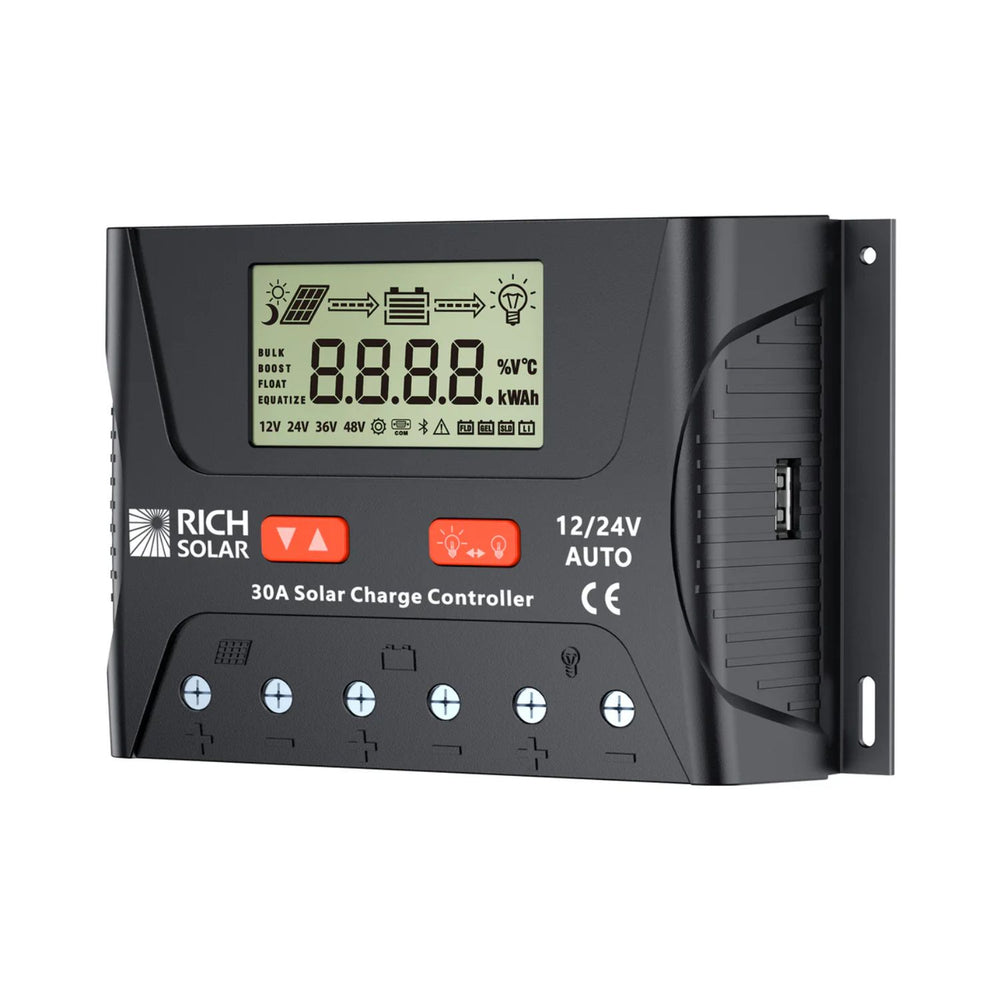

A dot-matrix LCD screen with two buttons shows charging status and lets you change settings. The USB port charges devices, and the load terminals connect lighting controlled by the operating modes.
Electronic and Surge Protection
Built-in protection guards against overcharge, over-discharge, overload, short circuit and reverse polarity. TVS lightning protection helps shield the controller from voltage surges caused by nearby lightning.
UL 1741 Certified
The BRAVO LEGEND 30 is certified to UL 1741, a widely recognized safety standard for power equipment used with solar systems. No-load loss is under 13mA at 12V and under 15mA at 24V, so the controller draws very little power on its own.
Real-World Applications
RVs and travel trailers. Pair the controller with one to four 100W panels to keep a 12V house battery topped up while you camp.
Sheds and workshops. Charge a small battery bank and use the light control modes to run lighting from dusk.
Boats. Maintain a starting or house battery with a small panel at the dock or on a mooring.
Gates, signs and remote equipment. Keep 12V or 24V batteries charged for gate openers, trail cameras and signage.
Starter solar systems. A simple, low-cost controller for a first DIY solar setup.
How It Compares to Common Alternatives
Versus an MPPT controller. An MPPT controller such as the Rich Solar BRAVO 30 converts extra panel voltage into charging current and usually harvests more energy, especially with higher-voltage panels or in cold weather. A PWM controller is simpler and costs less, and it works well when panel voltage is matched to the battery.
Versus connecting a panel directly to a battery. Without a controller, a panel can overcharge a battery and drain it at night. The BRAVO LEGEND 30 regulates charging and protects against overcharge and reverse polarity.
Versus a basic unlisted PWM controller. The BRAVO LEGEND 30 adds UL 1741 certification, temperature compensation, lithium support and lightning surge protection.
Is This Controller the Right Fit
-
Solar size. Plan on up to 450W of solar at 12V or 900W at 24V, with no more than 55V of solar input.
-
Panel match. PWM charging works well with 12V nominal panels on a 12V battery, and with 24V nominal panels or two 12V panels in series on a 24V battery.
-
Grounding. The BRAVO LEGEND 30 is a positive ground controller. Check this against your system's wiring and grounding plan before installing.
-
Location. The IP30 rating protects against solid objects but not water, so mount the controller in a dry, ventilated spot.
This may be a good fit if
- You have a small 12V or 24V solar system with matched panels
- You want a simple, certified controller at a lower cost than MPPT
- You use lead-acid, GEL or lithium batteries
- You want automatic dusk-to-dawn or timed lighting control
Common Questions
Does the BRAVO LEGEND 30 Work With Lithium Batteries?
Yes. Rich Solar lists sealed, GEL, flooded and lithium batteries as compatible. Equalization charging and temperature compensation are turned off for lithium.
Can I Use It on a 24V System?
Yes. The controller detects 12V or 24V automatically and is rated for 900W of solar at 24V. Keep solar input voltage under 55V.
How Many Panels Can I Connect?
Stay within 30A of charging current, 450W of solar at 12V or 900W at 24V, and 55V of solar input voltage. Check your panels' current and open-circuit voltage before wiring.
Can It Be Installed Outdoors?
It is rated IP30, which does not cover water exposure. Install it indoors or inside a dry enclosure.
What's Included
- 1 x Rich Solar BRAVO LEGEND 30 Amp PWM Solar Charge Controller
Simple, Certified PWM Charging
The Rich Solar BRAVO LEGEND 30 Amp PWM Solar Charge Controller gives small 12V and 24V solar systems dependable 3-stage charging, lithium support and UL 1741 certification in a compact package. At Outbound Power, we help customers match controllers to their panels, batteries and wiring. If you have questions, our team is happy to help.
Rich Solar BRAVO LEGEND 30 Amp PWM Solar Charge Controller Specifications
|
| Model |
RS-PWM30P |
| Controller Type |
PWM, 3-stage (boost, float, equalization) |
| Rated Current |
30A |
| System Voltage |
12V/24V auto recognition (manual setup optional) |
| Rated Solar Power |
450W (12V), 900W (24V) |
| Maximum Solar Input Voltage |
Under 55V |
| Maximum Battery Voltage |
Under 34V |
| No-Load Loss |
Under 13mA (12V), under 15mA (24V) |
| Battery Types |
Sealed, GEL, flooded, lithium |
| Temperature Compensation |
-3.0 mV/°C/2V (not used for lithium) |
| Operating Modes |
Light control (10-min delay), light control + timer (1 to 14 h), manual, debug, normal on |
| Display |
Dot-matrix LCD, 2-button control |
| USB Port |
Yes, for charging devices |
| Protection |
Overcharge, over-discharge, overload, short circuit, reverse polarity, TVS lightning protection |
| Grounding |
Positive ground |
| Operating Temperature |
-13°F to 131°F (-25°C to 55°C) |
| Protection Rating |
IP30 |
| Dimensions |
6.46 x 4.07 x 1.85 in (164 x 103 x 47 mm) |
| Weight |
0.86 lbs (0.39 kg) |
| Certifications |
UL 1741 |
