The Rich Solar MEGA 100 Watt Monocrystalline Solar Panel Is a Compact 12V Panel Built for RVs, Vans and Boats

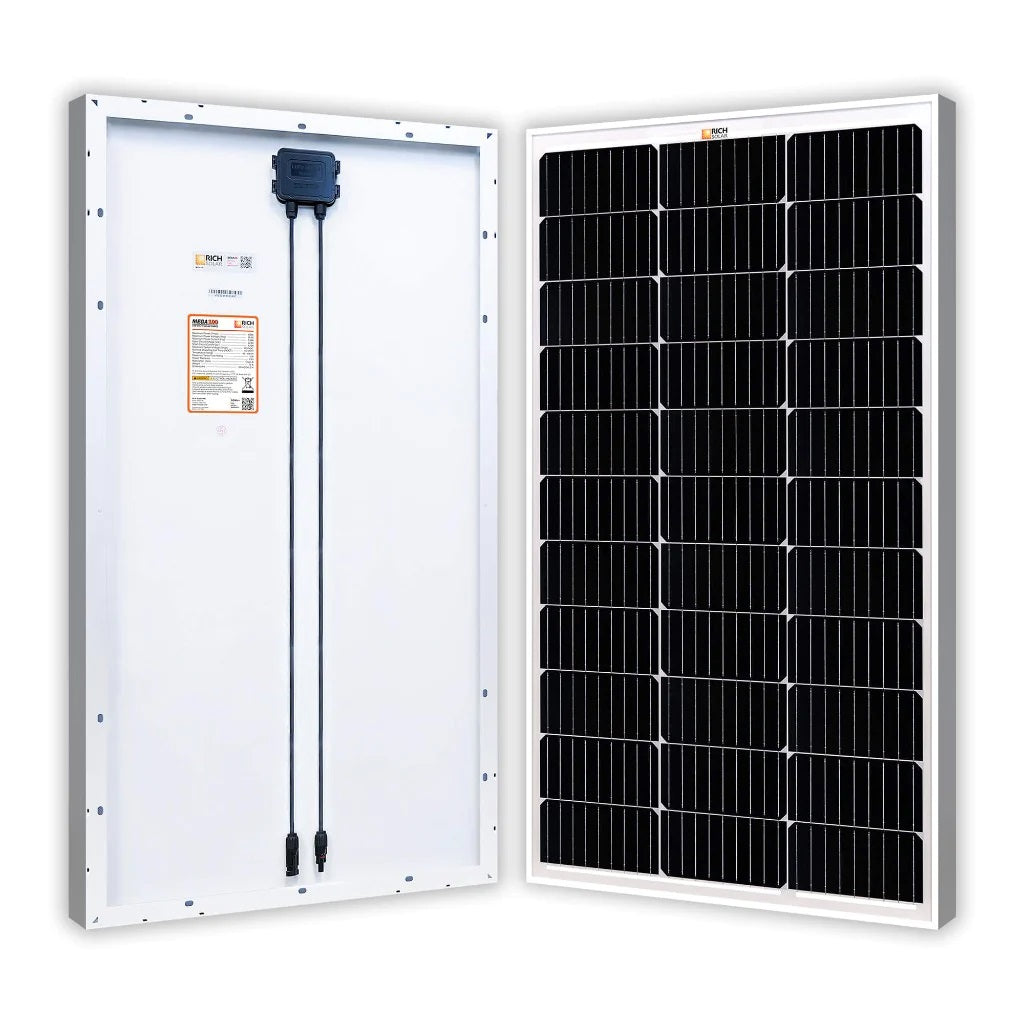

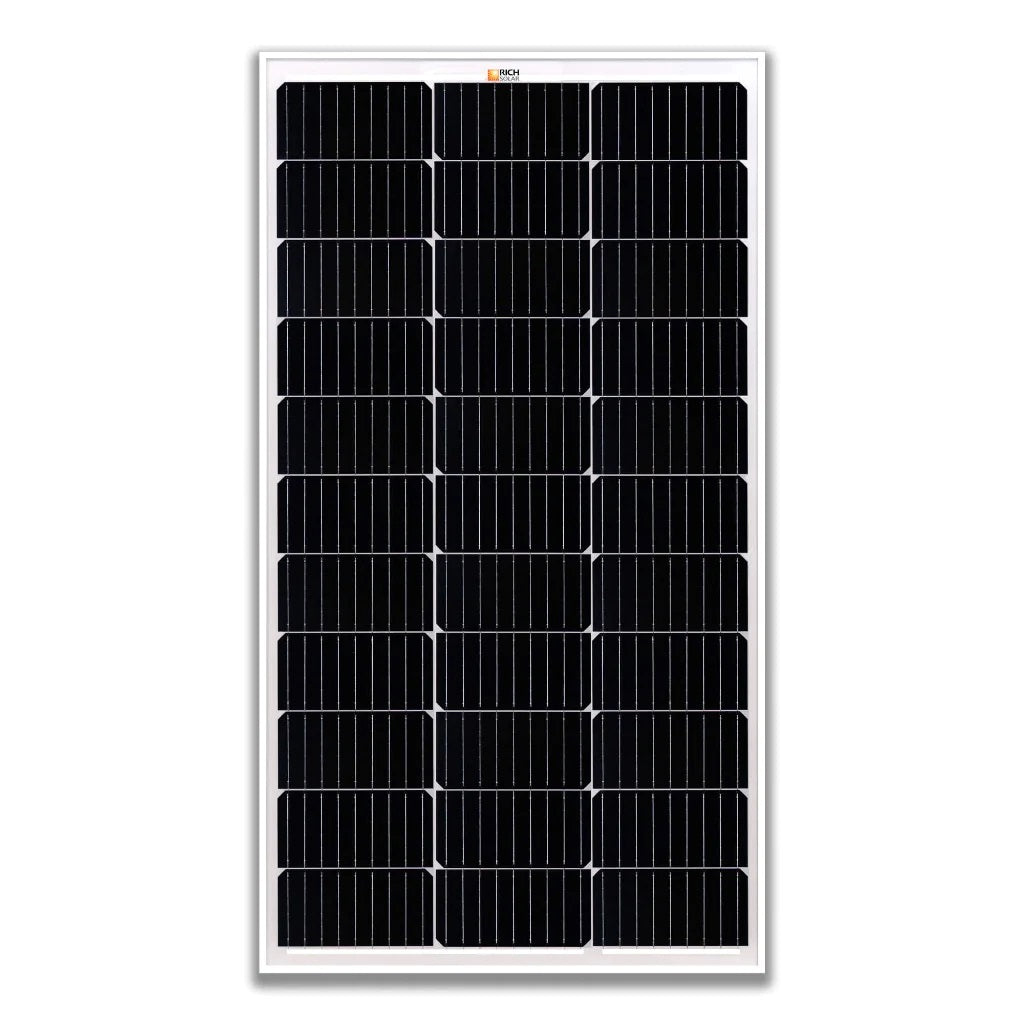

The Rich Solar MEGA 100 Watt Monocrystalline Solar Panel is a rigid 12V panel that delivers 100W from 33 high-efficiency cells in a 39.0 x 21.3 x 1.2 inch frame. At 13.2 pounds, it is light enough for one person to carry onto an RV roof, and it is certified to UL 61730, IEC 61215 and CSA C22.2.
The panel uses 9-busbar monocrystalline cells with up to 22.6% efficiency, AR-coated tempered glass and an IP67 junction box. Pre-attached 3 ft leads with MC4 connectors make it simple to wire to a charge controller or to other panels in series or parallel.
Rich Solar MEGA 100 Watt Monocrystalline Solar Panel Features
High-Efficiency 9-Busbar Cells
Grade A+ monocrystalline cells with nine busbars collect current efficiently and reach up to 22.6% cell efficiency. Rich Solar guarantees a positive power tolerance of 0 to +5W, so each panel delivers at least its rated 100W at standard test conditions.
Strong Low-Light and Partial-Shade Performance
The cells keep producing on cloudy days and in early morning and evening light. Built-in bypass diodes help maintain output when part of the panel is shaded by a roof vent, antenna or tree branch.
Built for Harsh Environments
The 3.2 mm AR-coated tempered glass, TPT backsheet and anodized aluminum frame resist salt, ammonia, sand, heat and humidity. The panel is certified for 2,400 Pa wind loads and 5,400 Pa snow loads, and the IP67 junction box and connectors keep out dust and water.
Tested for Long-Term Reliability
Each panel goes through 100% EL inspection to catch microcracks, and the cells are PID resistant. Rich Solar runs more than 30 in-house tests, including UV exposure, thermal cycling and humidity freeze.
Quick Installation
Fourteen pre-drilled holes fit Z brackets, tilt mounts, side pole mounts and ground mounts. The panel works with both off-grid and on-grid systems.
25-Year Output Warranty
Rich Solar backs the MEGA 100 with a 10-year workmanship warranty and a 25-year output warranty. Output is rated at more than 95% after 5 years, 90% after 10 years and 80% after 25 years.
Real-World Applications
RVs and travel trailers. Mount one or more panels on the roof to keep house batteries charged while you camp off-grid.
Camper vans and truck campers. The compact footprint fits between roof fans and racks.
Boats. Keep starting and house batteries topped up at the dock or on the water. The panel is built to resist salt and humidity.
Cabins, sheds and gates. Power lights, fans, gate openers and monitoring equipment far from the grid.
DIY solar systems. Start with one panel and add more as your battery bank and loads grow.
How It Compares to Common Alternatives
Versus a 200W panel. A 200W panel produces twice the power, but it is about 59 inches long. Two MEGA 100 panels give the same output in a shape that is easier to fit around roof obstacles.
Versus flexible panels. Flexible panels are lighter and can follow curved roofs, but rigid glass panels like the MEGA 100 run cooler, handle snow and wind loads, and carry longer warranties.
Versus the MEGA 100 ONYX. The ONYX version has a black frame and backsheet for a cleaner look on dark roofs. The standard MEGA 100 has a silver frame.
Is This Panel the Right Fit
-

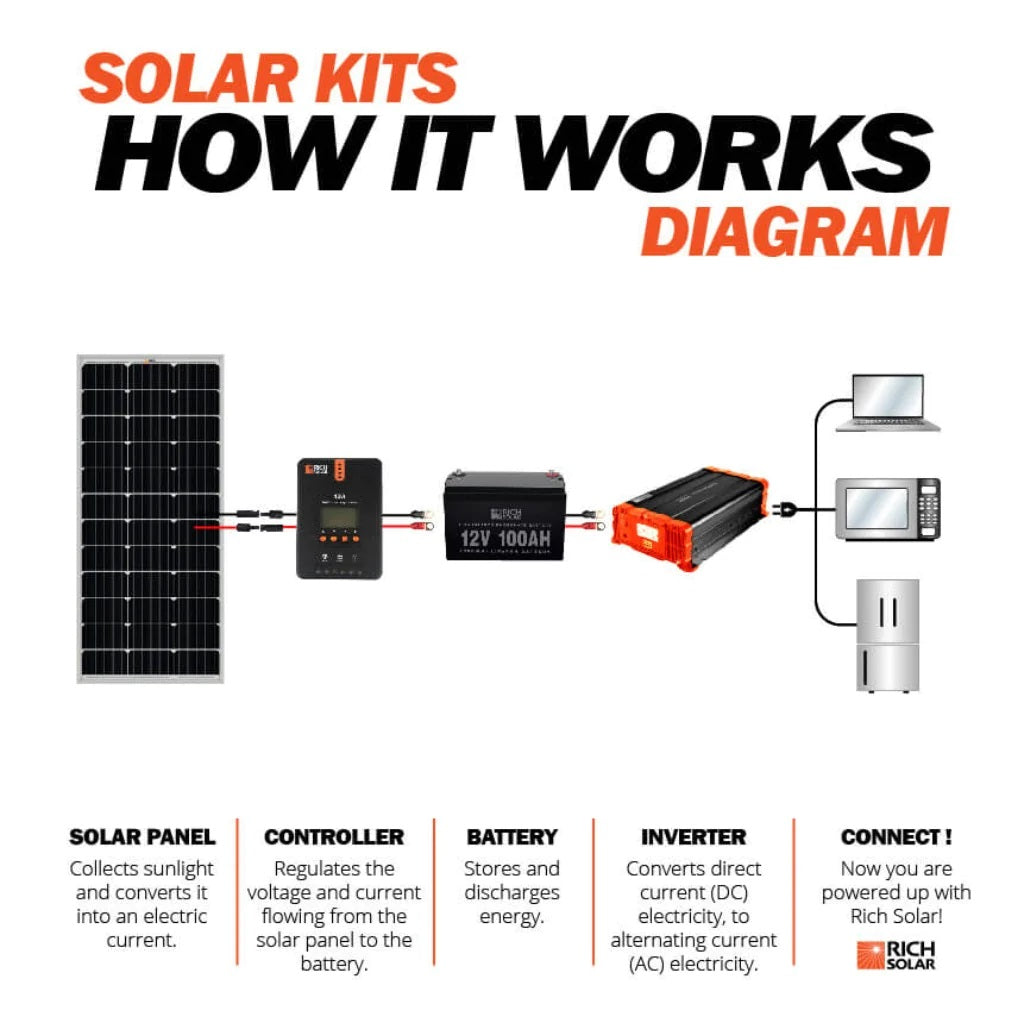

Charge controller. Use a 12V PWM or MPPT charge controller between the panel and your battery.
-
Daily output. Expect roughly 300 to 500Wh per day in good sun, depending on location, season and tilt.
-
Wiring. With a 22.8V open-circuit voltage, panels can be wired in series for an MPPT controller or in parallel for a PWM controller. Stay within your controller's voltage and current limits.
-
Fusing. The maximum series fuse rating is 10A.
This may be a good fit if
- You need a small, rigid 12V panel for an RV, van, boat or cabin
- You have limited roof space or want to work around vents and racks
- You want a panel with UL certification and a 25-year output warranty
- You plan to add more panels over time
Common Questions
Do I Need an Inverter to Charge a Battery?
No. You only need a charge controller to charge a battery. An inverter is needed only if you want to run AC appliances, like a TV or microwave, from the battery.
Can the Panel Drain My Battery at Night?
Not when a solar charge controller is installed. The controller prevents reverse current from flowing back into the panel.
Will It Work in Winter?
Yes. Cool temperatures can actually improve panel efficiency. Keep the panel clear of snow, since any buildup will stop it from producing power.
Does It Require Roof Penetration?
Not always. Many RV installs use mounting brackets bonded with sealant, and the panel can also be ground-mounted.
What's Included
- 1 x Rich Solar MEGA 100 Watt Monocrystalline Solar Panel (1 Panel Option) or 2 x (2 Panels Option)
- 1 x Pair of 12 AWG Panel Leads, 3 ft Each, With MC4 Connectors (Pre-Attached) Per Panel
- 1 x IP67 Junction Box (Built In) Per Panel
Reliable 12V Solar Power in a Compact Panel
The Rich Solar MEGA 100 Watt Monocrystalline Solar Panel delivers efficient, certified solar power in a light, durable frame for RVs, vans, boats and cabins. At Outbound Power, we help customers pair panels with the right charge controllers, batteries and mounting hardware. If you have questions, our team is happy to help.

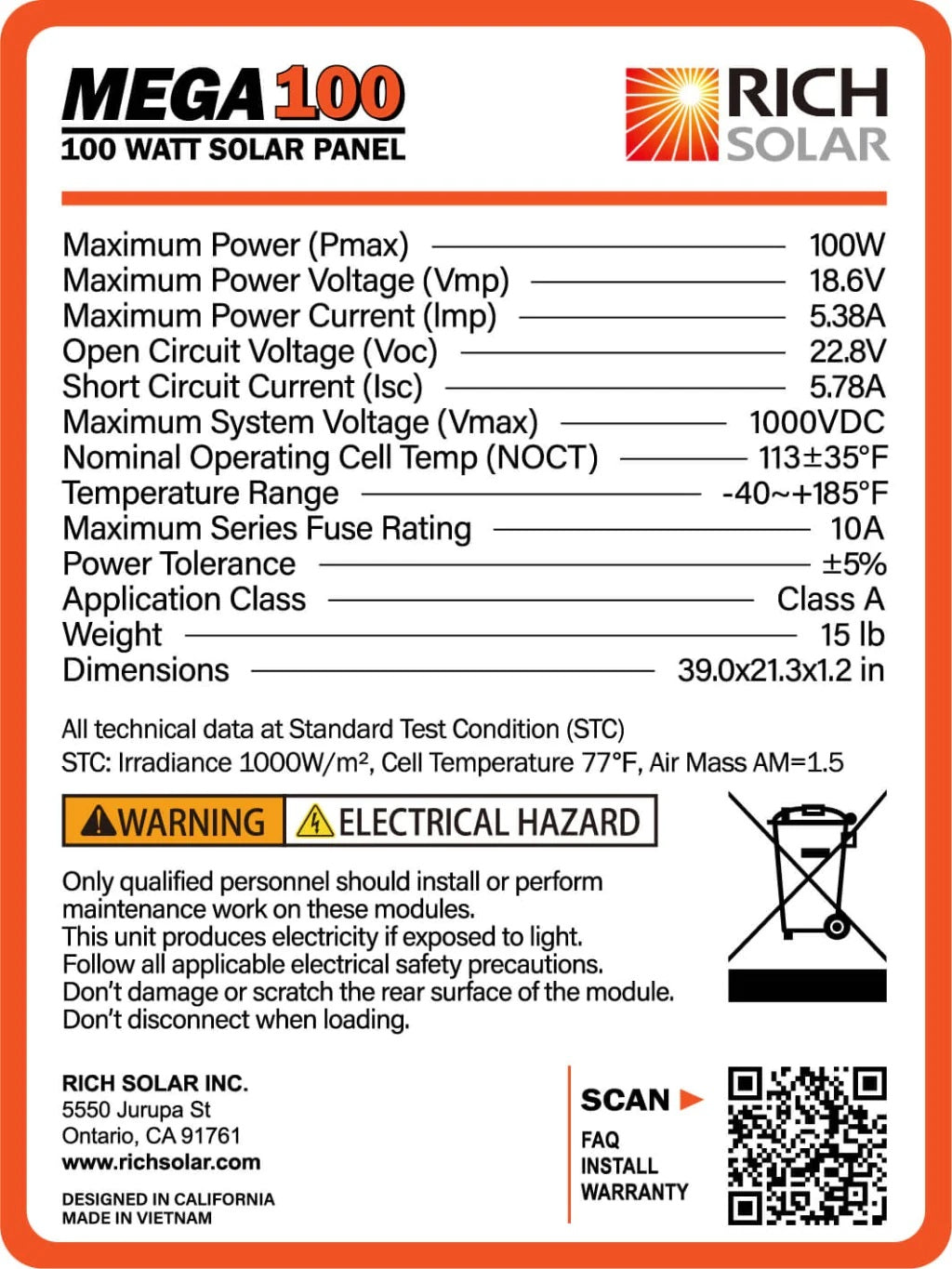

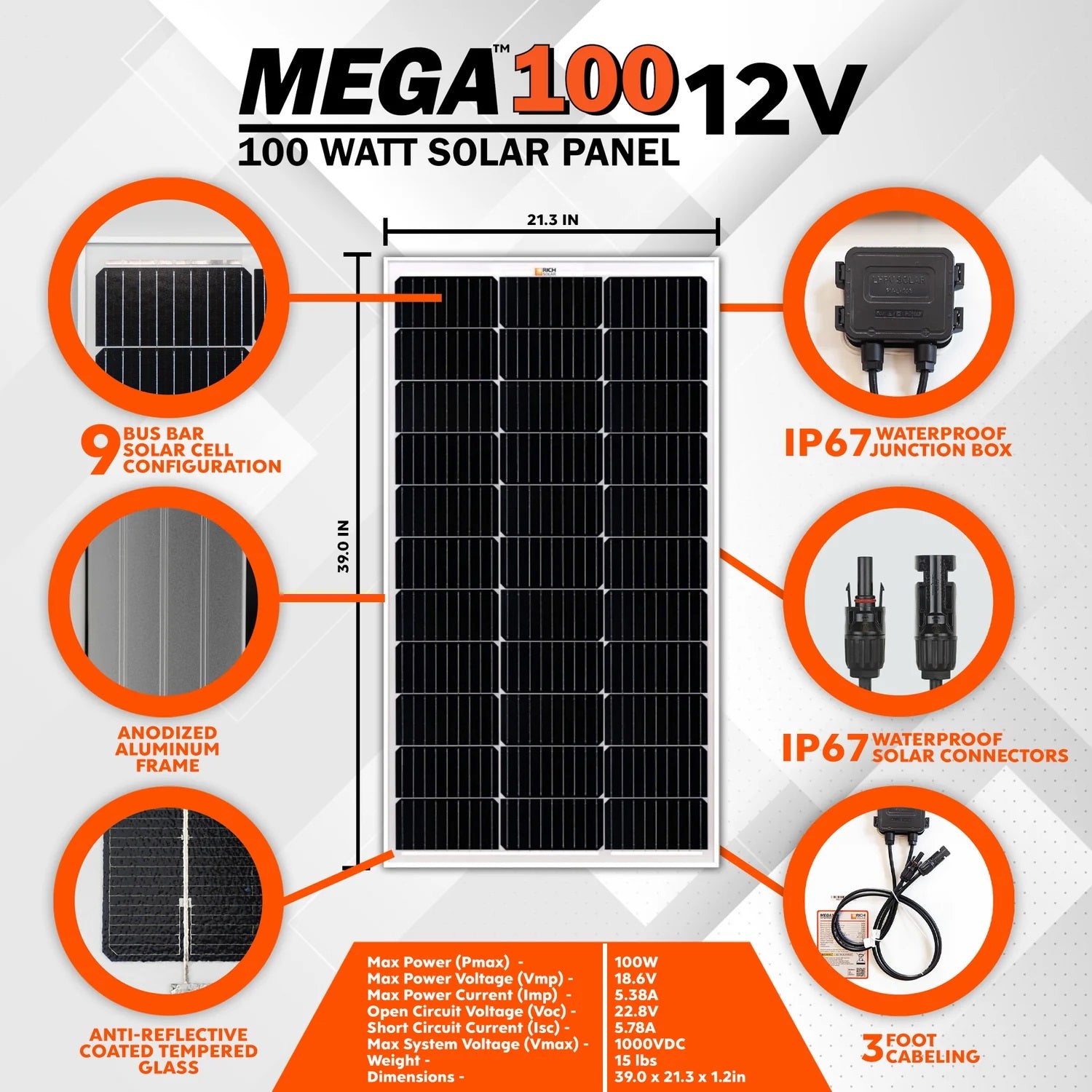

Rich Solar MEGA 100 Watt Monocrystalline Solar Panel Specifications
|
| Model |
RS-M100 |
| Quantity Options |
1 panel (RS-M100) or 2 panels (RS-M100-2) |
| Maximum Power (Pmax) |
100W |
| Power Tolerance |
0 to +5W |
| Cell Type |
Monocrystalline, 9 busbar, 33 cells |
| Cell Efficiency |
Up to 22.6% |
| Maximum Power Voltage (Vmp) |
18.6V |
| Maximum Power Current (Imp) |
5.38A |
| Open Circuit Voltage (Voc) |
22.8V |
| Short Circuit Current (Isc) |
5.78A |
| Maximum System Voltage |
1000VDC |
| Maximum Series Fuse Rating |
10A |
| Operating Temperature |
-40°F to 185°F |
| Wind and Snow Load |
2,400Pa wind, 5,400Pa snow |
| Glass |
3.2 mm AR-coated tempered glass |
| Frame |
Anodized aluminum, 14 pre-drilled mounting holes |
| Junction Box and Connectors |
IP67, MC4 |
| Panel Leads |
12 AWG, 3 ft each |
| Dimensions |
39.0 x 21.3 x 1.2 in |
| Weight |
13.2 lbs |
| Certifications |
UL 61730, IEC 61215, CSA C22.2 |
| Workmanship Warranty |
10 years |
| Power Output Warranty |
25 years (95% at 5 years, 90% at 10 years, 80% at 25 years) |
Rich Solar MEGA 100 Watt Monocrystalline Solar Panel Manual
