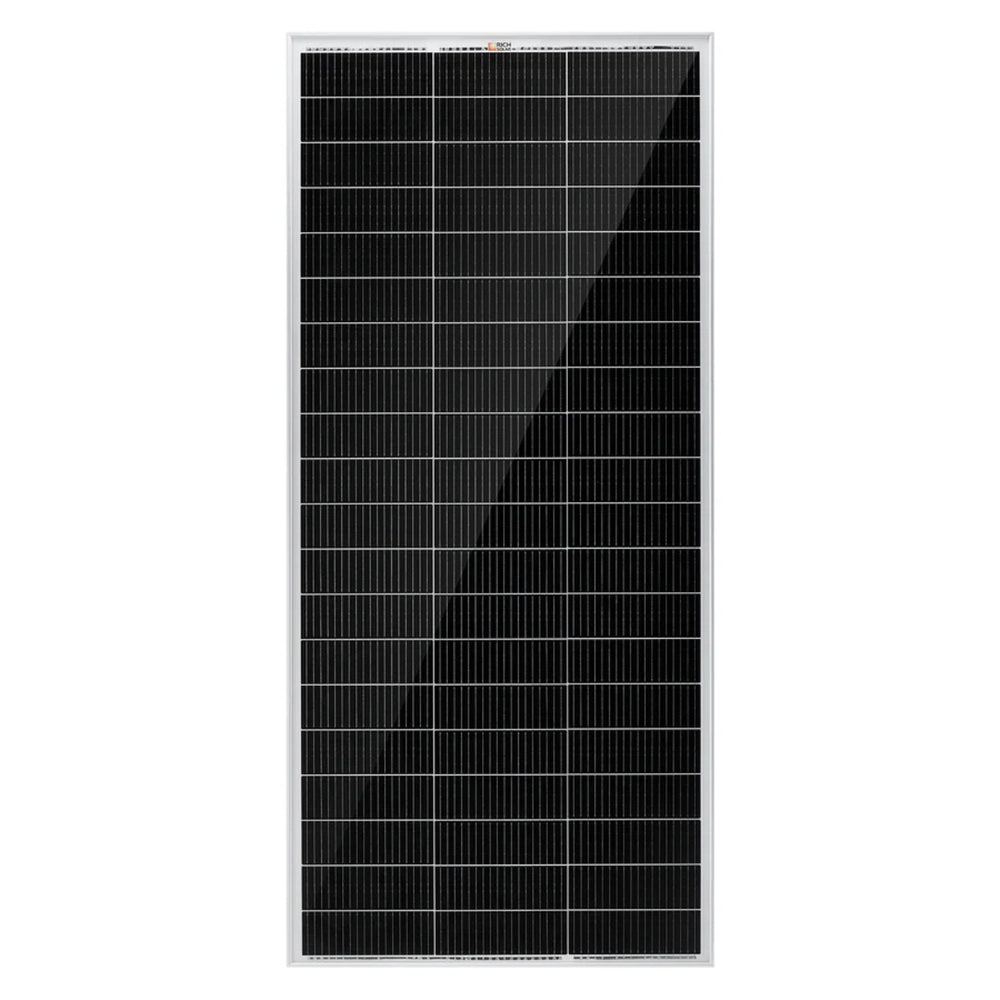

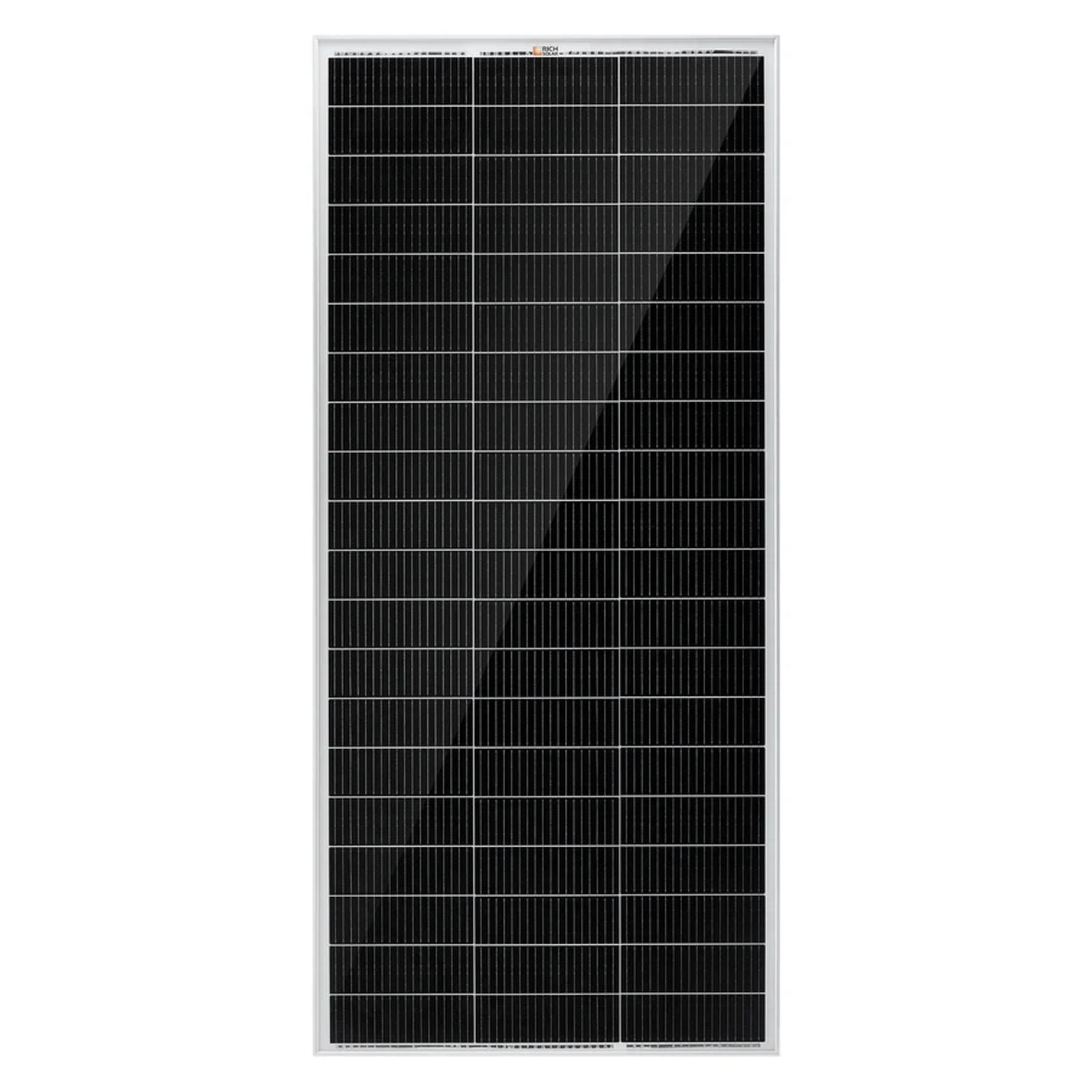

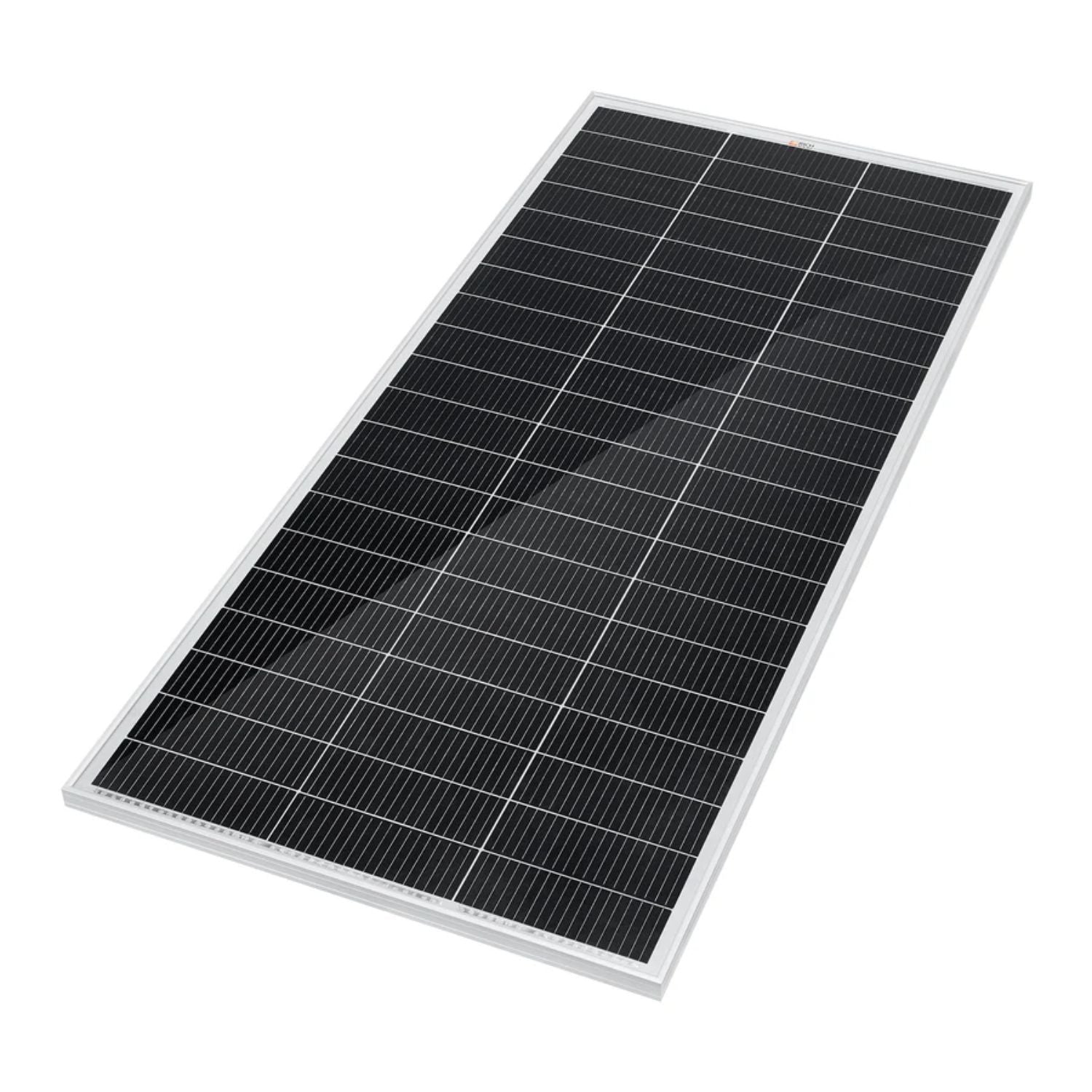

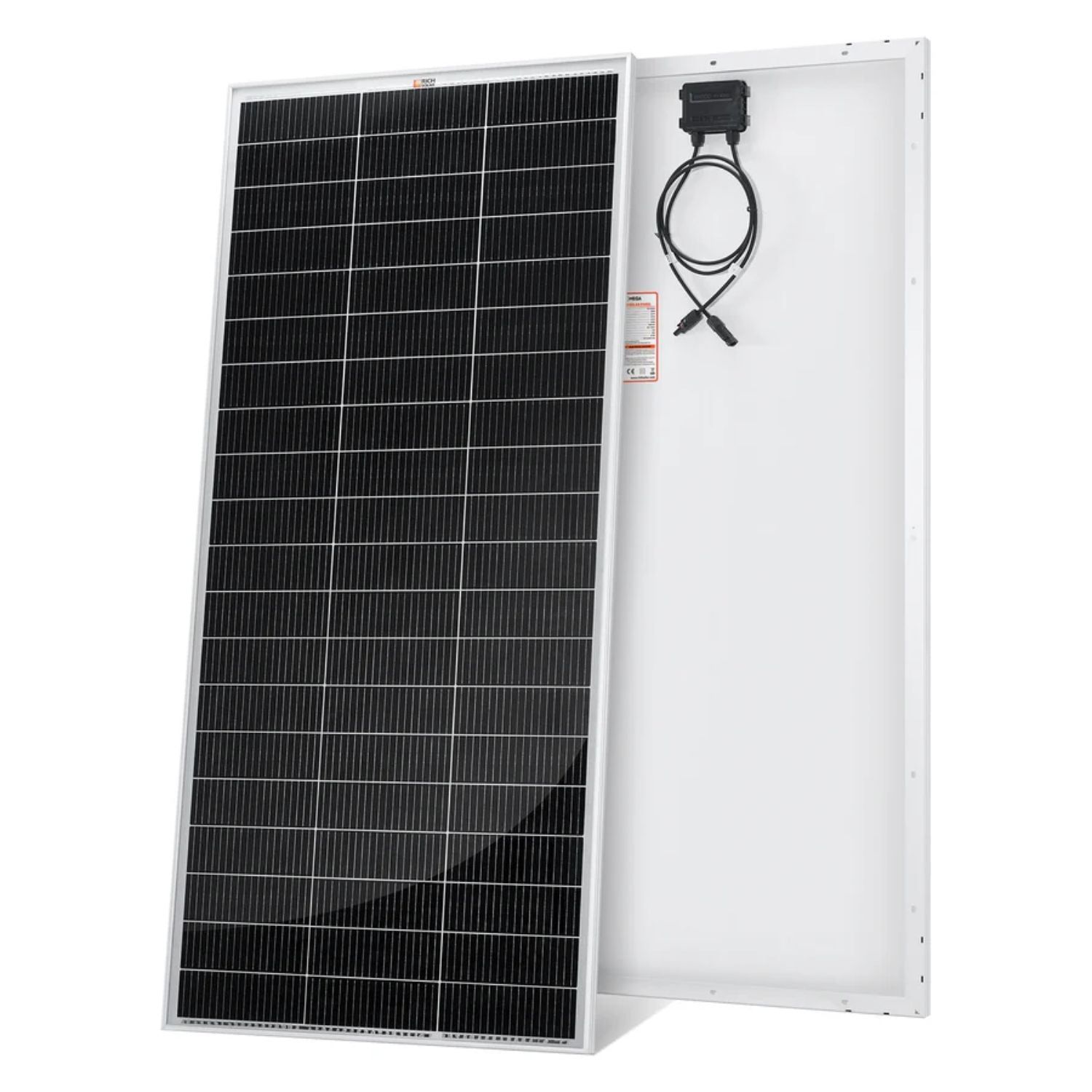

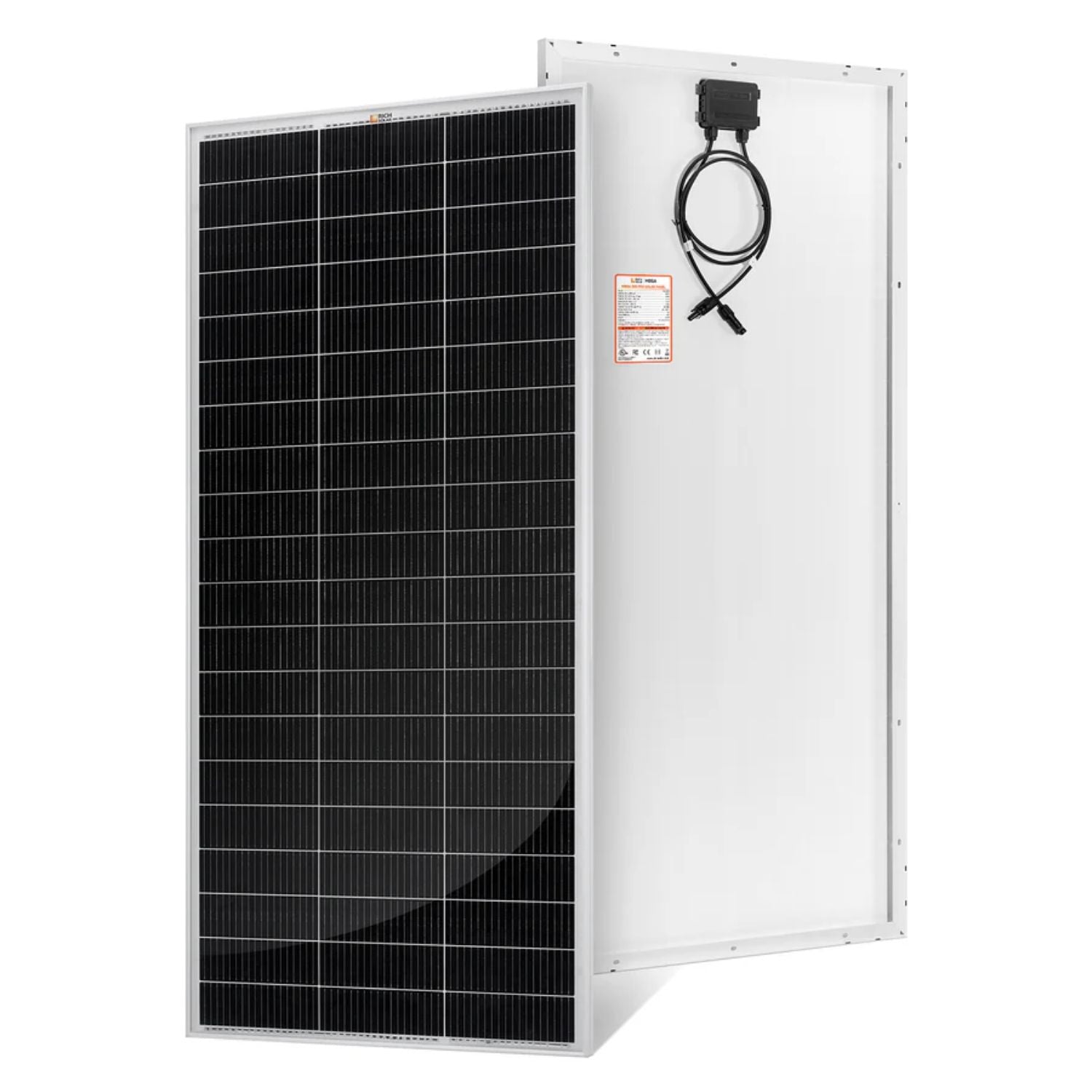

The Rich Solar MEGA 200 PRO Solar Panel is a rigid 24V off-grid panel that delivers 200W from 60 Grade A+ N-Type TOPCon cells with 18 busbars. It measures 58.7 x 26.8 x 1.2 inches, weighs 24 pounds and is certified to UL 61730, IEC 61215 and CSA C22.2.

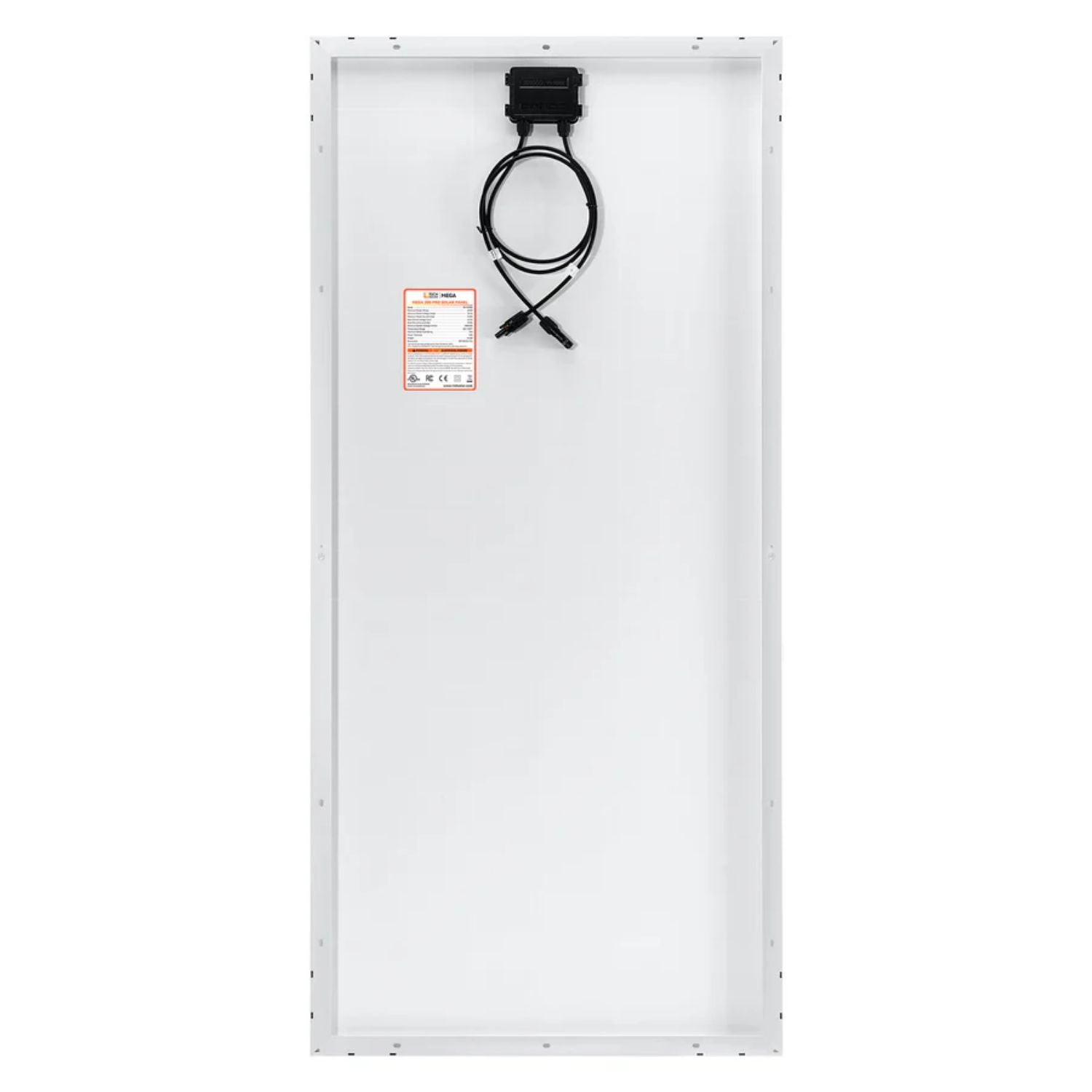

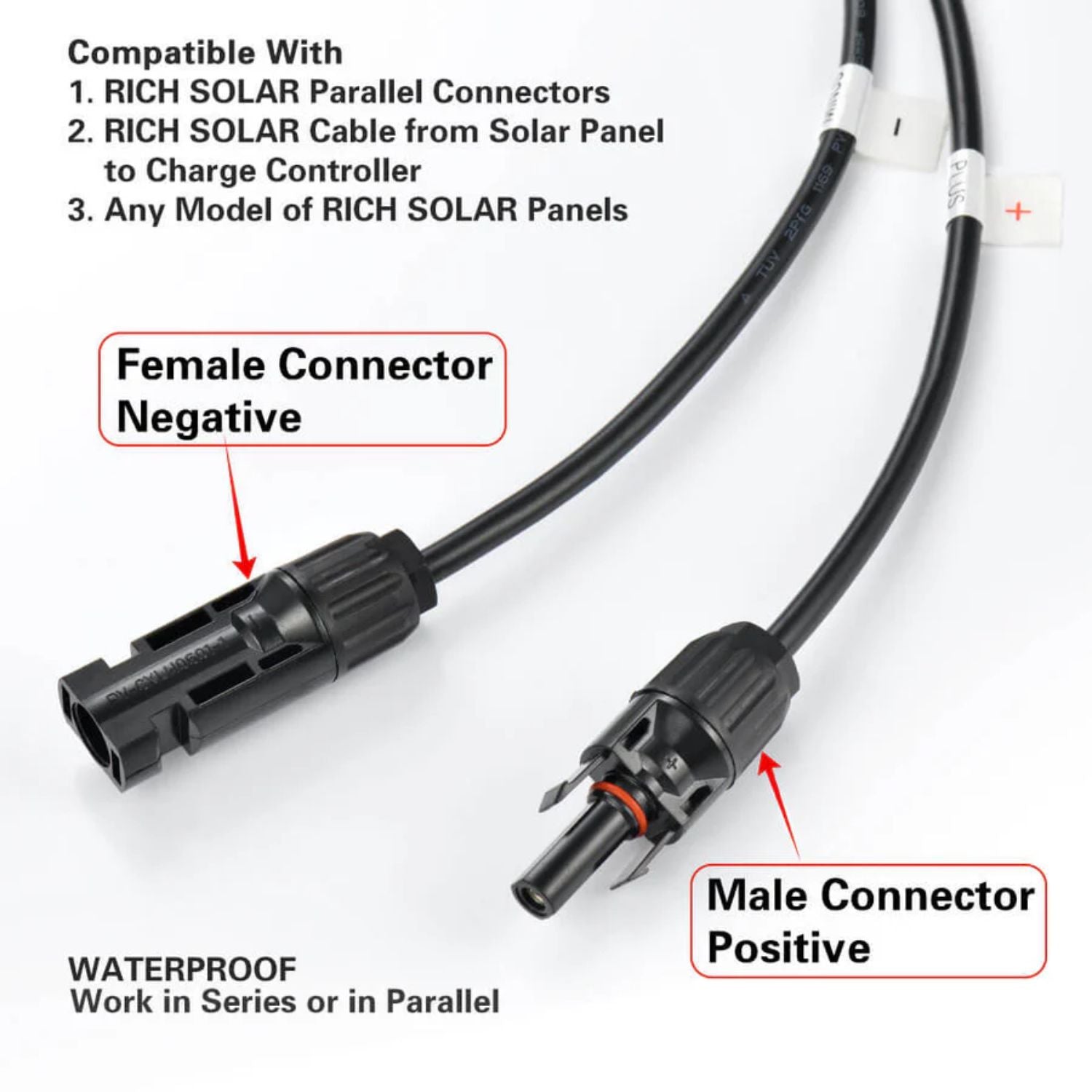

With a 36.3V maximum power voltage and 5.51A maximum power current, the MEGA 200 PRO suits RVs, trailers, cabins and off-grid systems running above 12V. Pre-attached 12 AWG leads, 3 ft each, with IP67 MC4 connectors and an IP67 junction box come built in.

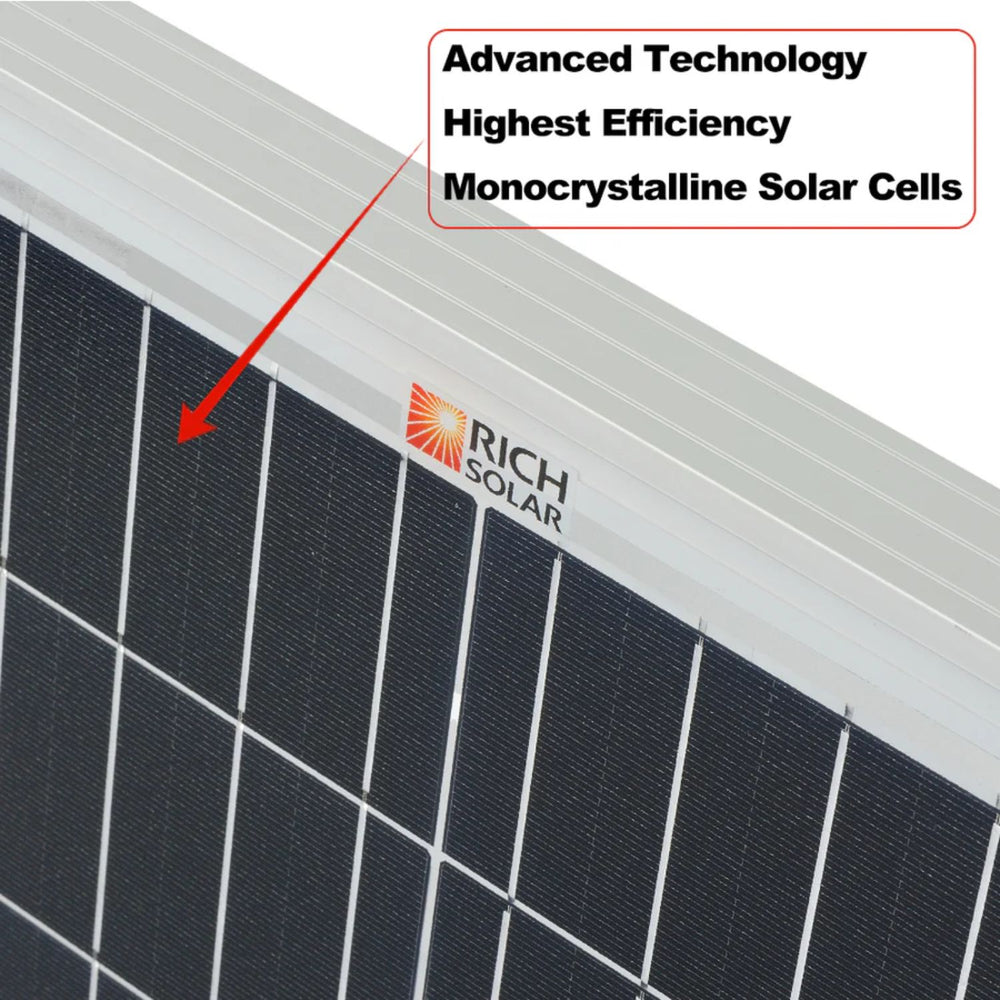

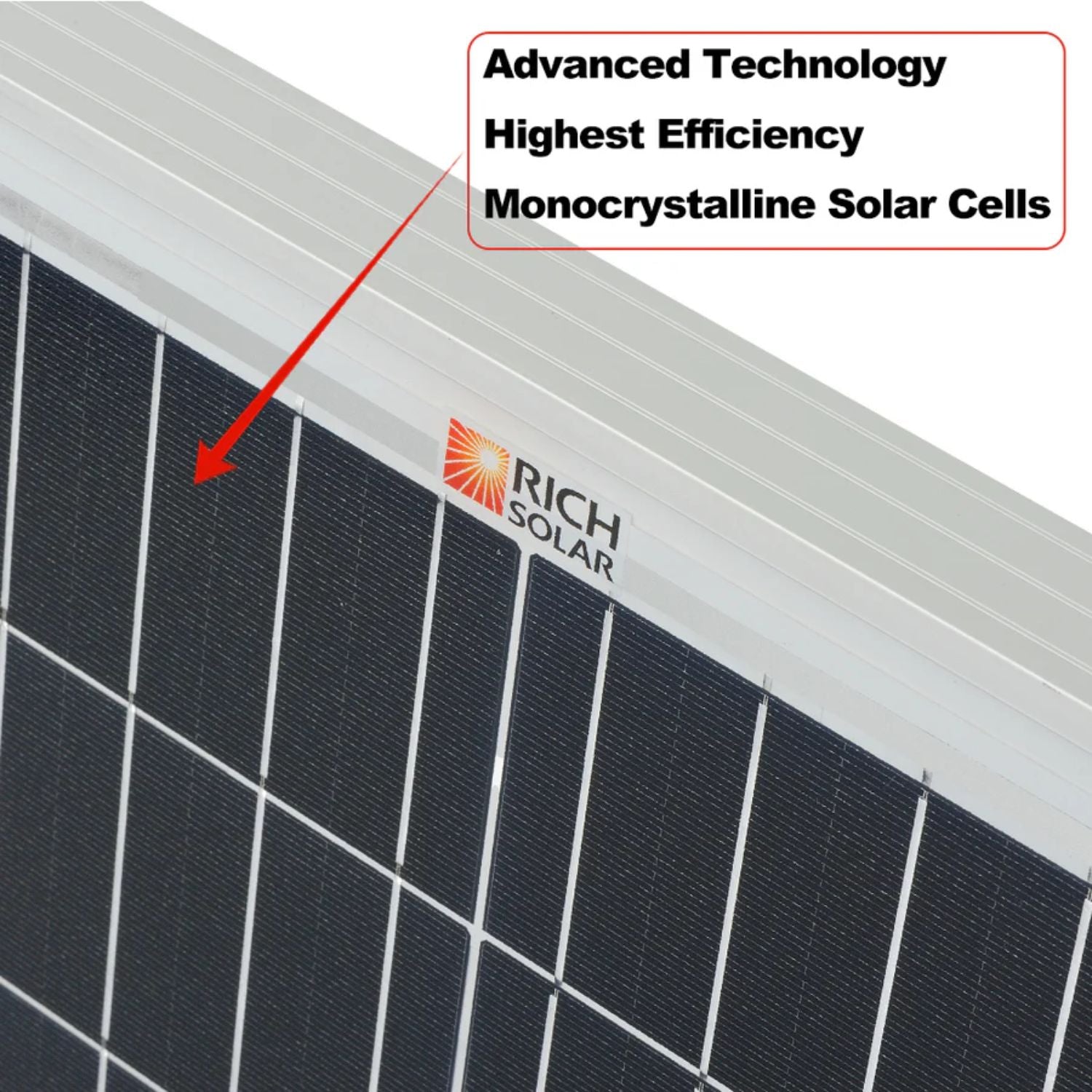

N-Type TOPCon cells offer higher efficiency, better low-light performance and ultra-low degradation for a long lifespan. The 0 to +5W power tolerance means each panel delivers at least its rated 200W at standard test conditions.
For systems above 12V, Rich Solar says one high-voltage panel can replace two standard panels. Fewer panels mean fewer cables and connection points and a faster install.

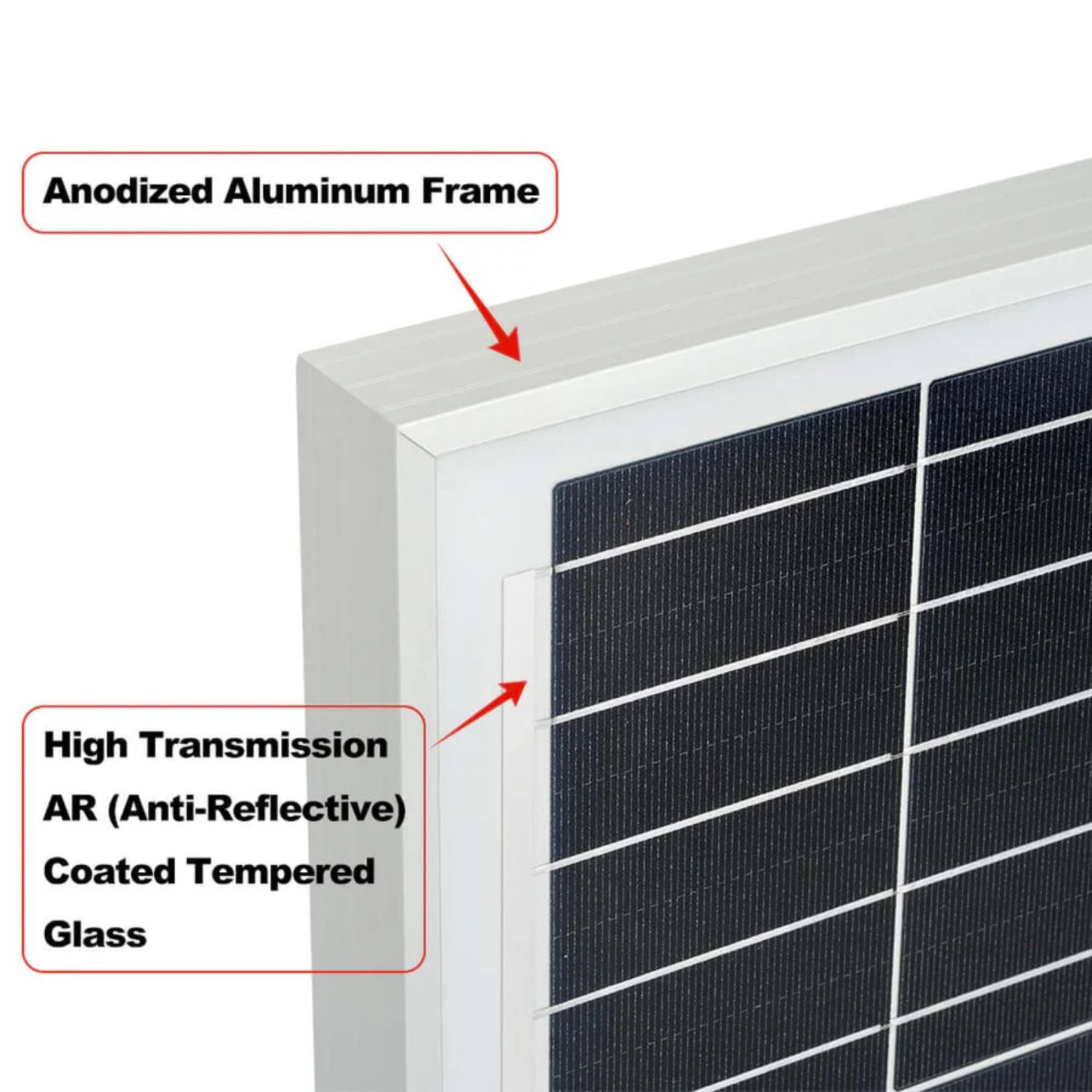

The panel generates stable power on cloudy days and in early morning light, helped by 3.2 mm AR-coated, high-transparency tempered glass.

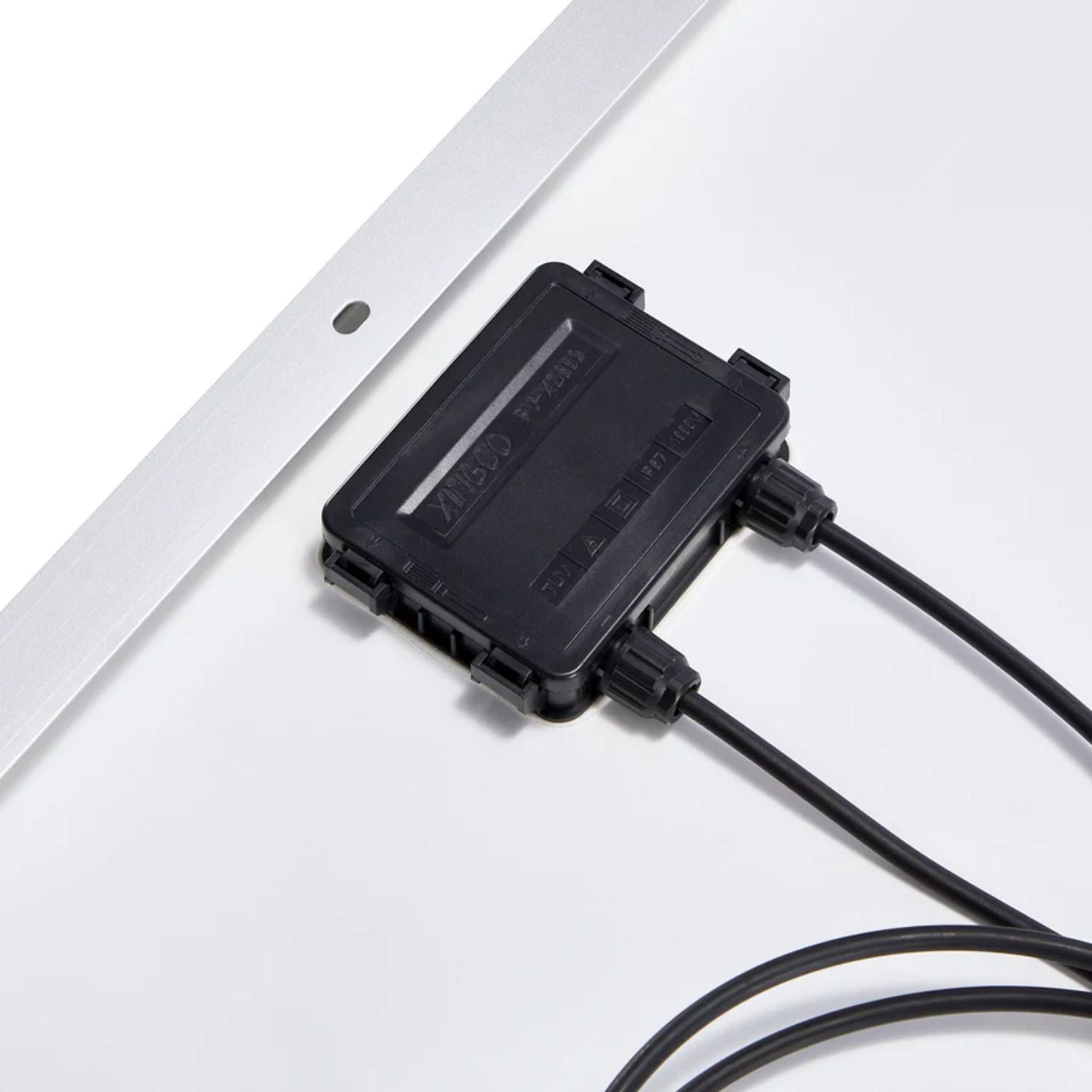

The panel is rated for 5,400 Pa snow loads and 2,400 Pa wind loads and operates from -40°F to 185°F. The sealed IP67 junction box and IP67 MC4 connectors protect against dust and water, and the anodized aluminum frame resists corrosion.
Rich Solar runs more than 30 in-house tests, including UV exposure, thermal cycling and humidity freeze. Every panel is PID resistant and 100% EL inspected to prevent microcracks.

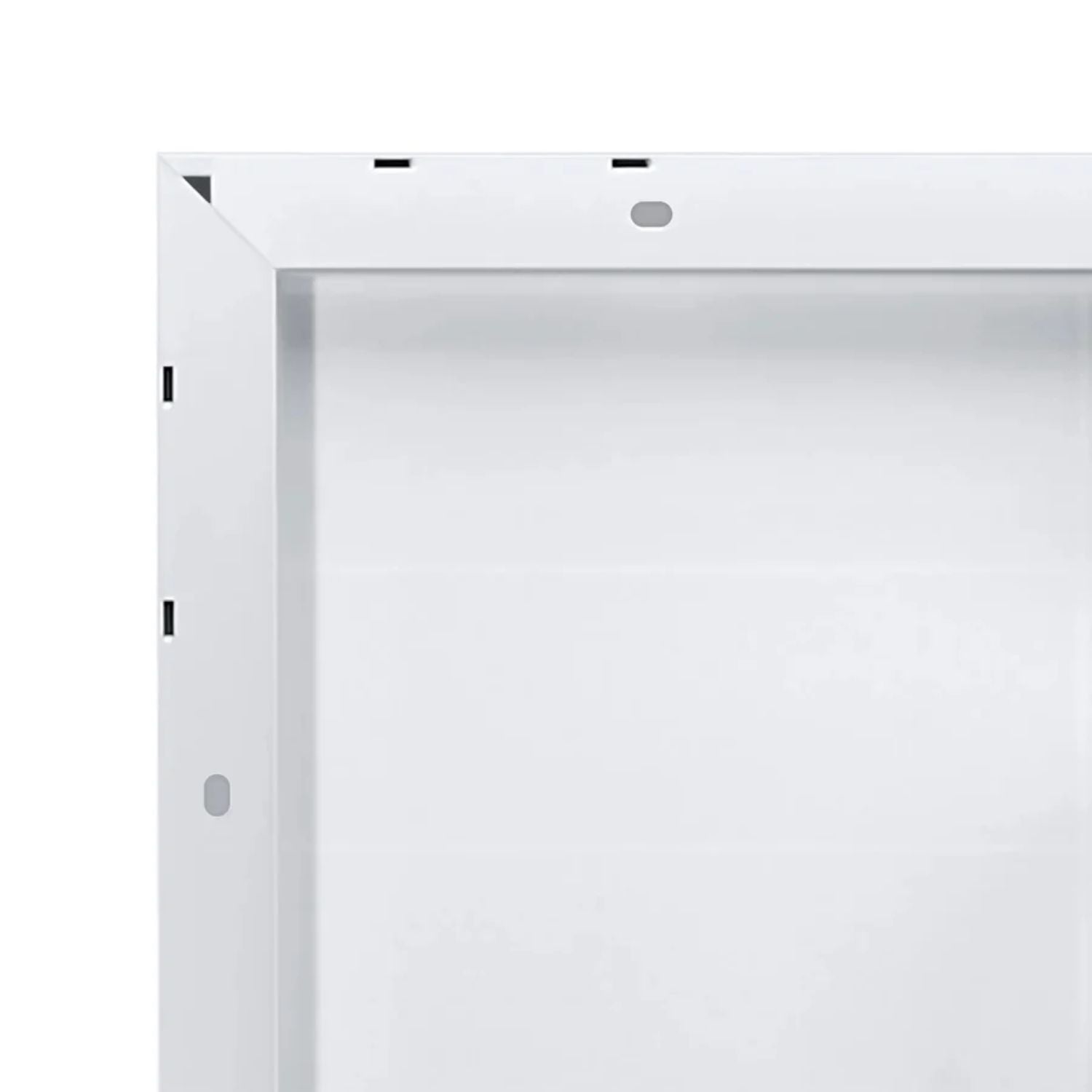

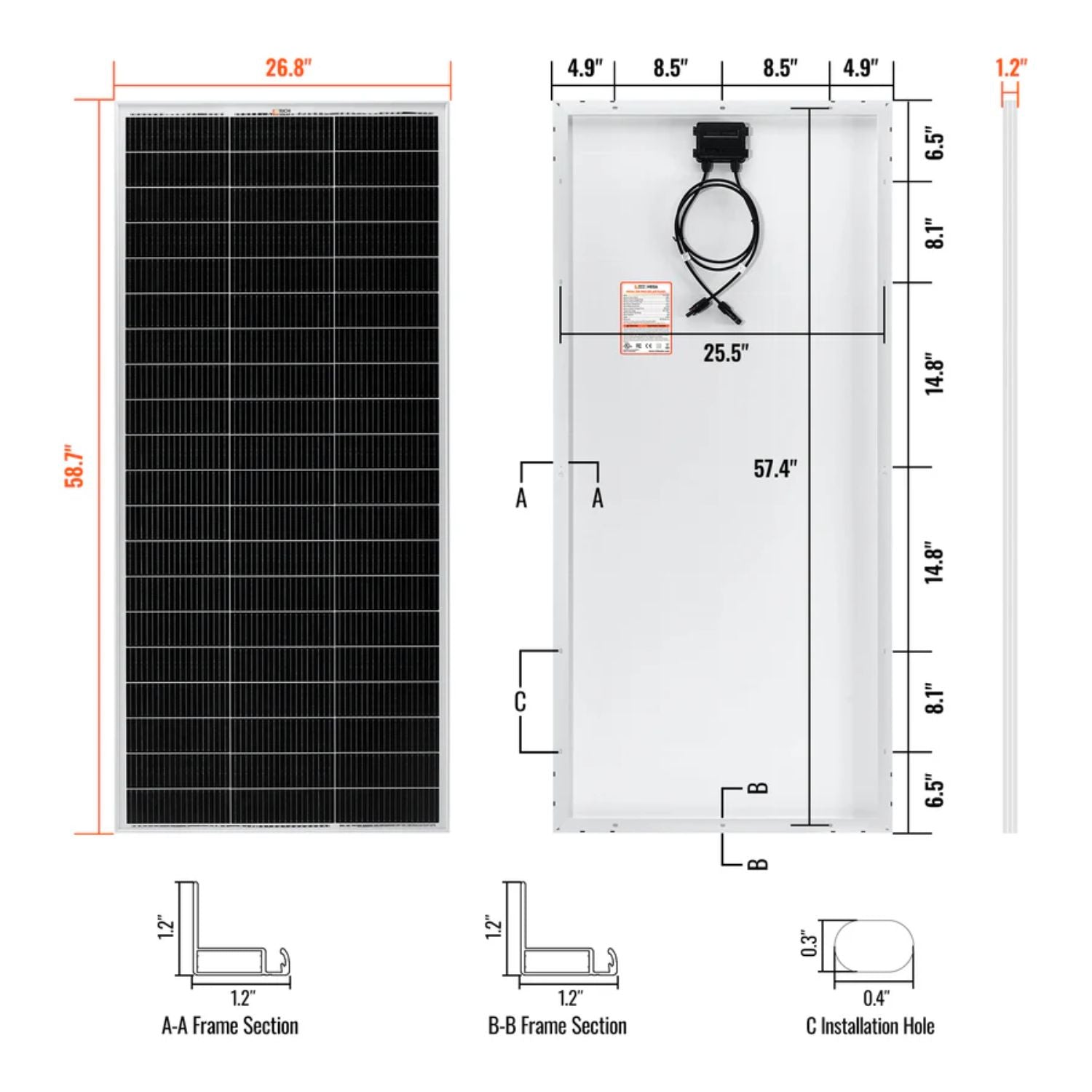

Fourteen pre-drilled holes fit Z brackets, tilt mounts, pole mounts and ground mounts. The panel works with PWM and MPPT controllers and with on-grid and off-grid inverters.
Rich Solar backs the MEGA 200 PRO with a 25-year limited power output warranty and a 10-year workmanship warranty. For MEGA Series panels, output is rated at more than 95% after 5 years, 90% after 10 years and 80% after 25 years.
RVs and trailers. Build a higher-voltage roof array with fewer panels and simpler wiring.
Cabins and sheds. Charge a 24V battery bank for lights, pumps and appliances.
Boats. Rich Solar lists boats among the uses for this panel.
Off-grid homes and larger arrays. Expand a high-wattage system with matched 24V panels.
Versus the 12V MEGA 200. Both share the same 58.7 x 26.8 inch size and 24 pound weight. The MEGA 200 PRO runs at 36.3V and 5.51A instead of 18.4V and 10.9A, which suits higher-voltage systems.
Versus two 100W panels. For systems above 12V, Rich Solar says one high-voltage panel can replace two standard panels, which cuts mounts and connections.
Versus the MEGA 200 PRO ONYX. Both share a Rich Solar spec sheet and the same specifications. The ONYX is the alternate finish.
This may be a good fit if
No. You only need a charge controller to charge a battery. An inverter is needed only to run AC appliances from the battery.
Yes, with an inverter. The inverter converts the battery's DC power to AC power for your appliances.
Only if it is used without a charge controller. Always use a charge controller when charging a battery.
Not always. Panels can often be mounted on the roof using a sealant, or installed on the ground instead.
The Rich Solar MEGA 200 PRO Solar Panel gives RVs, trailers, cabins and off-grid homes efficient N-Type TOPCon power at 24V with fewer panels and connections. At Outbound Power, we help customers pair panels with the right charge controllers, batteries and mounting hardware. If you have questions, our team is happy to help.
Rich Solar MEGA 200 PRO Solar Panel Specifications |
|
|---|---|
| Model | RS-M200P |
| Maximum Power (Pmax) | 200W |
| Nominal System Voltage | 24V |
| Power Tolerance | 0 to +5W |
| Cell Type | N-Type TOPCon, 18 busbar, 60 cells |
| Maximum Power Voltage (Vmp) | 36.3V |
| Maximum Power Current (Imp) | 5.51A |
| Open Circuit Voltage (Voc) | 43.5V |
| Short Circuit Current (Isc) | 5.93A |
| Maximum System Voltage | 1000VDC |
| Maximum Series Fuse Rating | 15A |
| Operating Temperature | -40°F to 185°F |
| Wind and Snow Load | 2,400Pa wind, 5,400Pa snow |
| Glass | 3.2 mm AR-coated tempered glass |
| Frame | Anodized aluminum, 14 pre-drilled mounting holes |
| Junction Box and Connectors | IP67, MC4 |
| Panel Leads | 12 AWG, 3 ft each |
| Dimensions | 58.7 x 26.8 x 1.2 in |
| Package Dimensions | 61 x 2 x 29 in |
| Weight | 24 lbs |
| Certifications | UL 61730, IEC 61215, CSA C22.2 |
| Workmanship Warranty | 10 years |
| Power Output Warranty | 25-year limited (95% at 5 years, 90% at 10 years, 80% at 25 years) |
