The Rich Solar MEGA 200 Watt Portable Solar Panel Briefcase Folds Up to Carry 200W of Solar to Your Campsite, Power Station or Generator

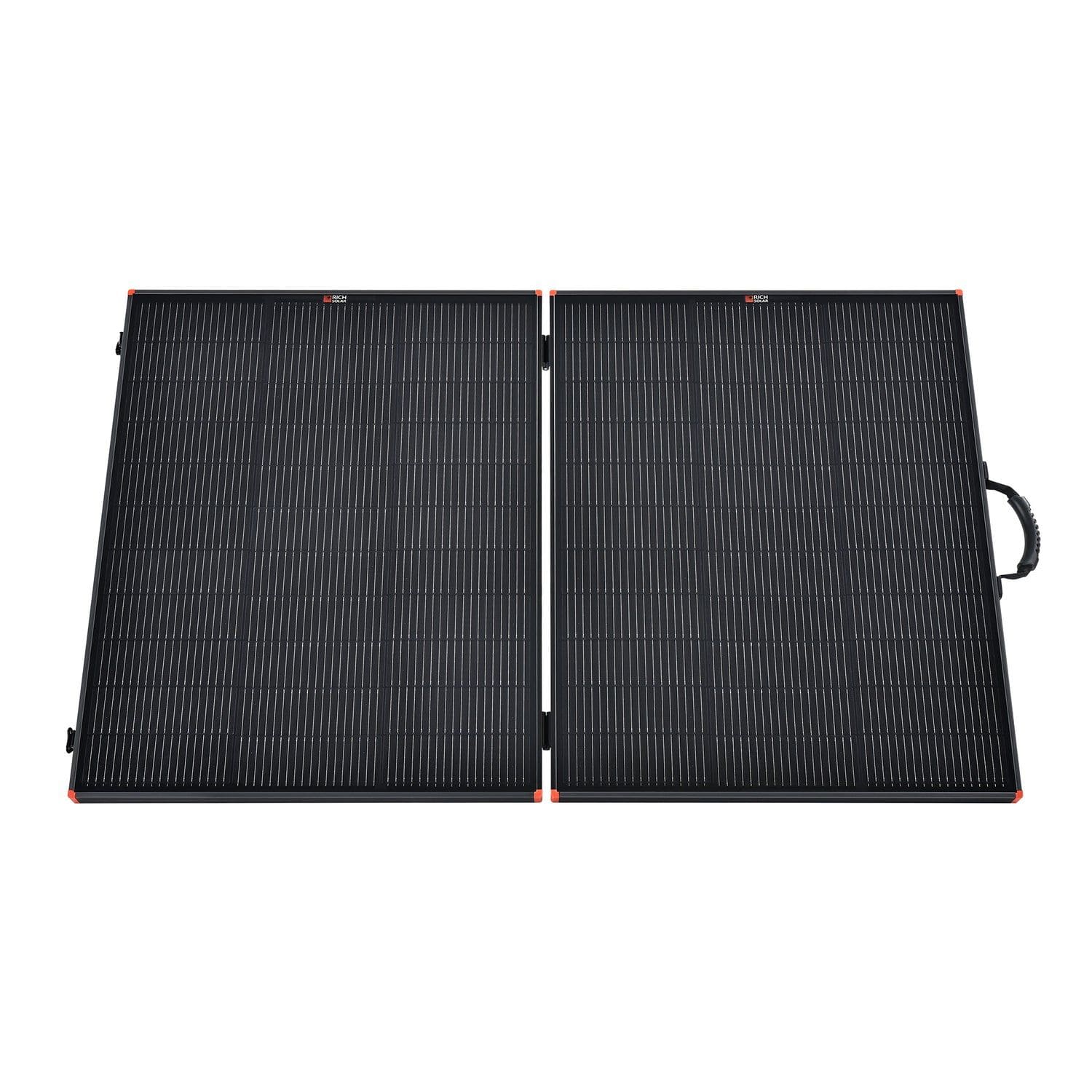

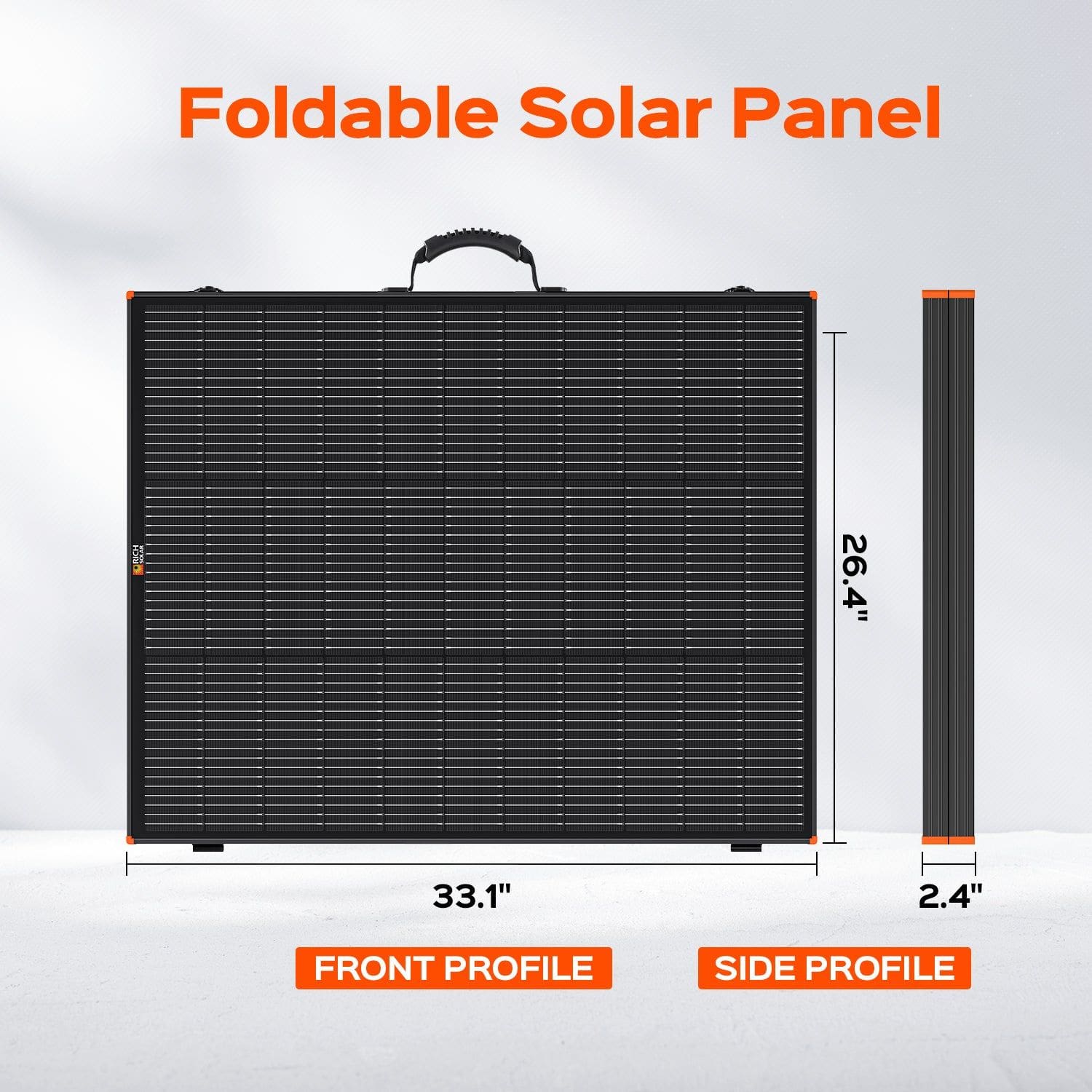

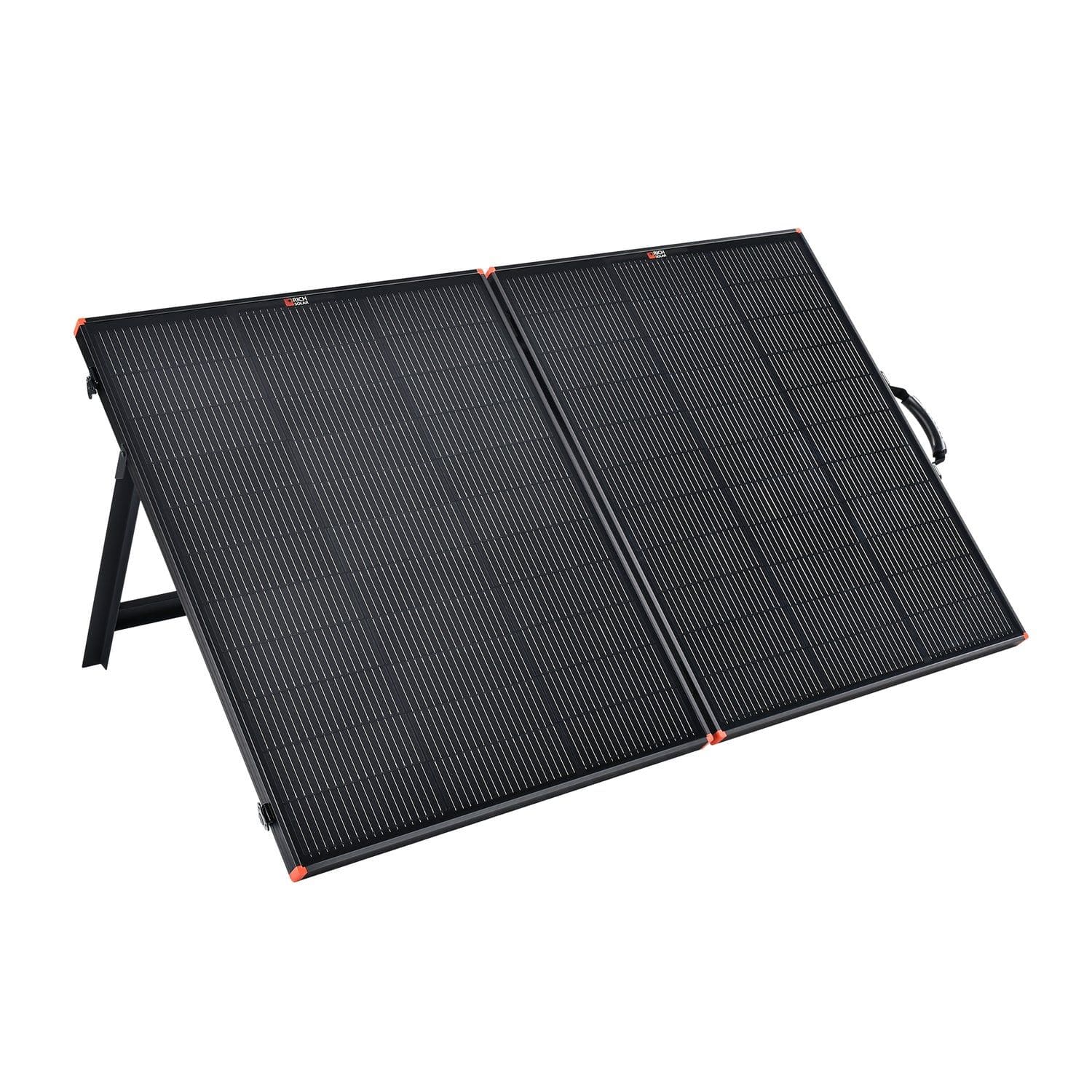

The Rich Solar MEGA 200 Watt Portable Solar Panel Briefcase is a foldable 12V panel that delivers 200W from N-Type TOPCon monocrystalline cells with up to 25.3% cell efficiency and 19.3% module efficiency. It folds to 33.1 x 26.4 x 2.4 inches with a carrying handle, opens to 53.0 x 33.1 inches, and stands on built-in kickstands to face the sun.
The briefcase weighs 26.5 pounds and comes with pre-attached 12 AWG leads, 5 ft each, with MC4 connectors. Rich Solar lists it as compatible with most portable power stations and solar generators, and it carries a 25-year power output warranty.
Rich Solar MEGA 200 Watt Portable Solar Panel Briefcase Features

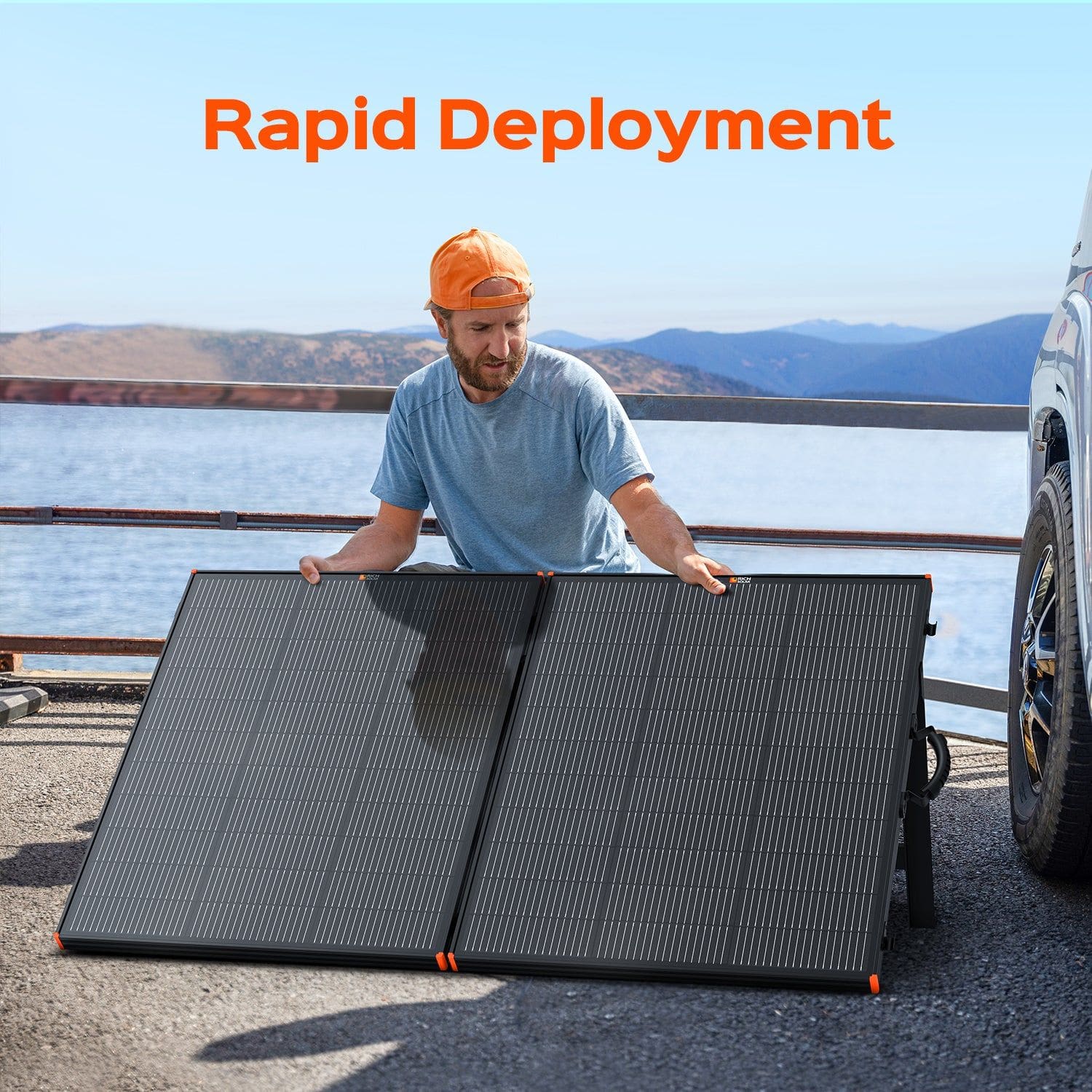

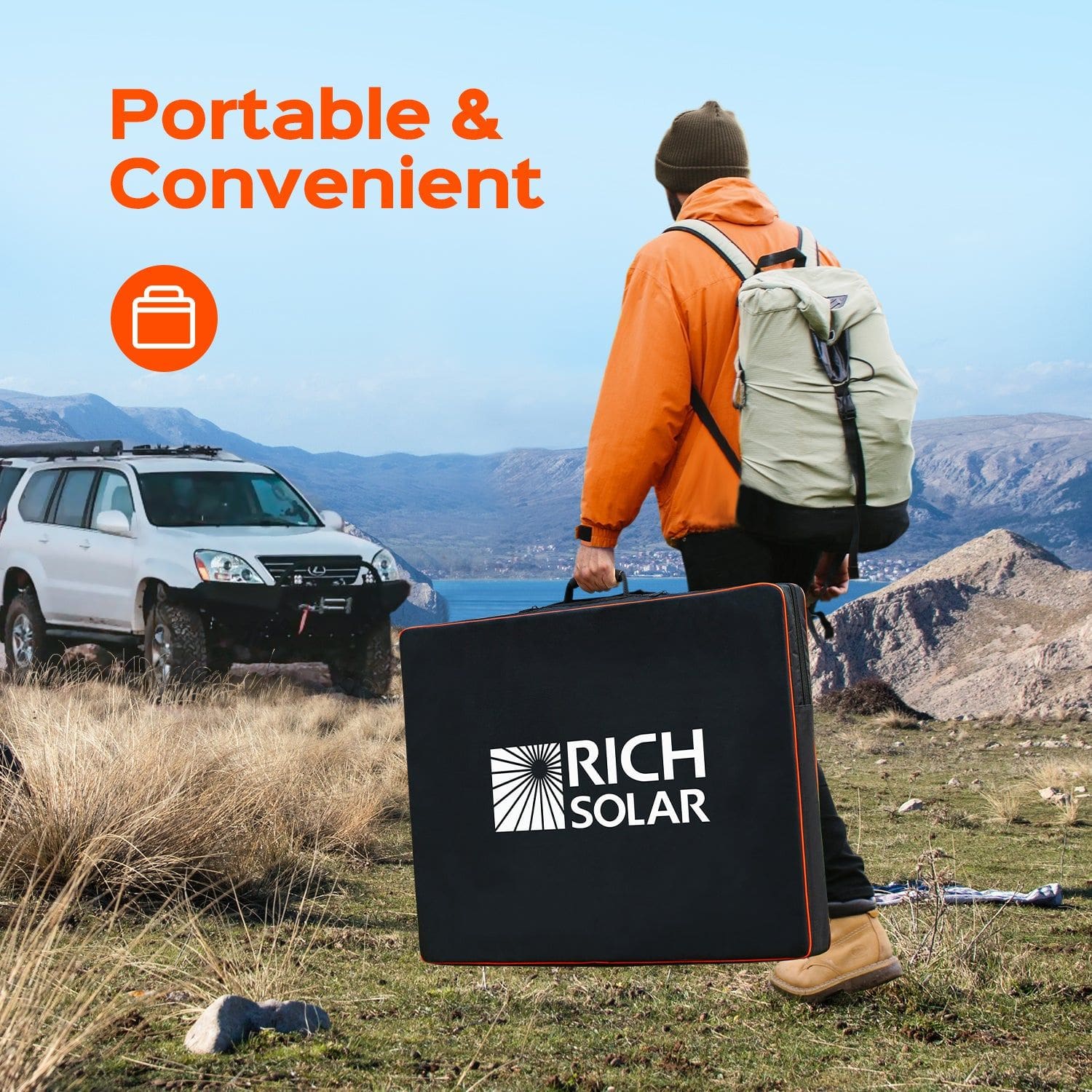

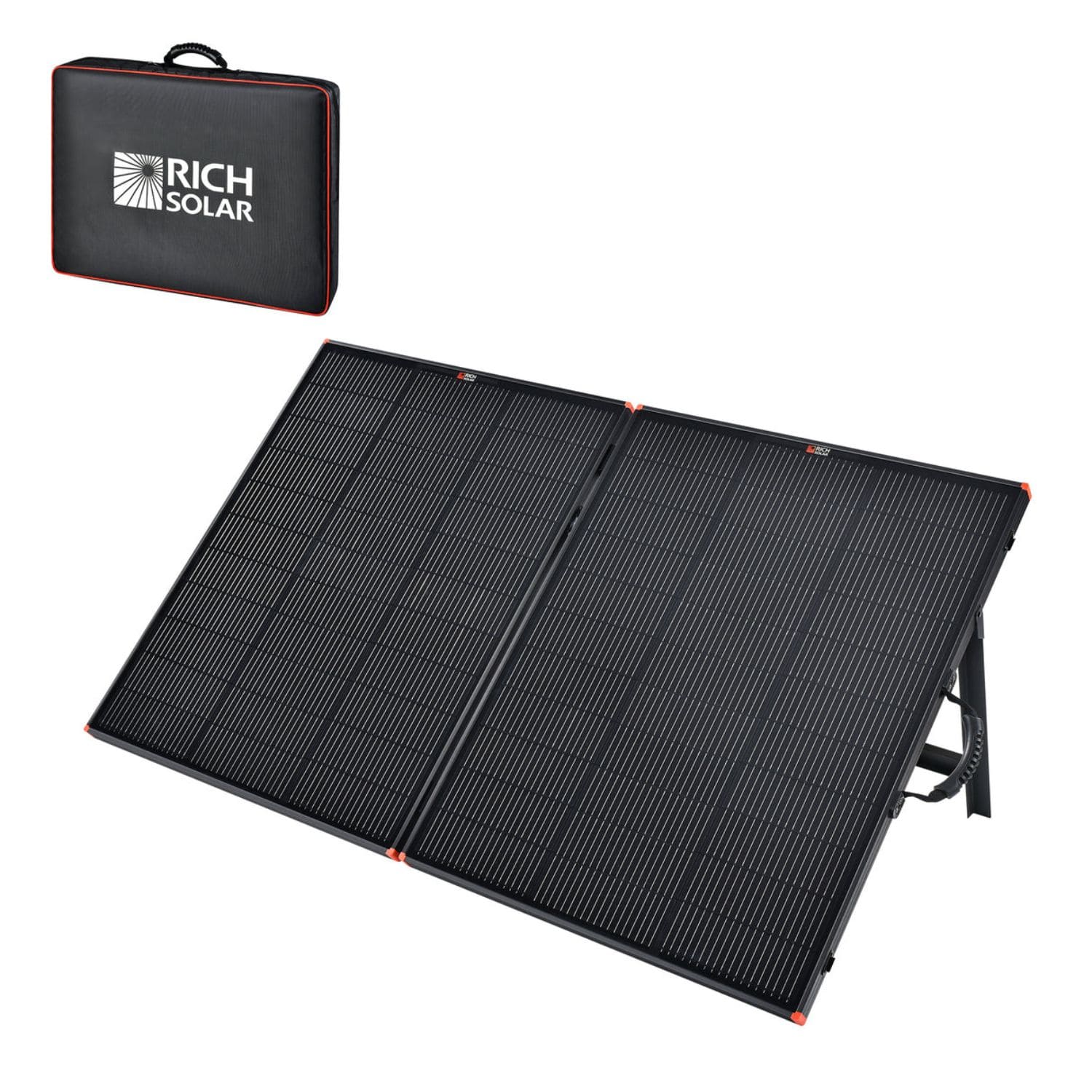

Foldable Briefcase Design

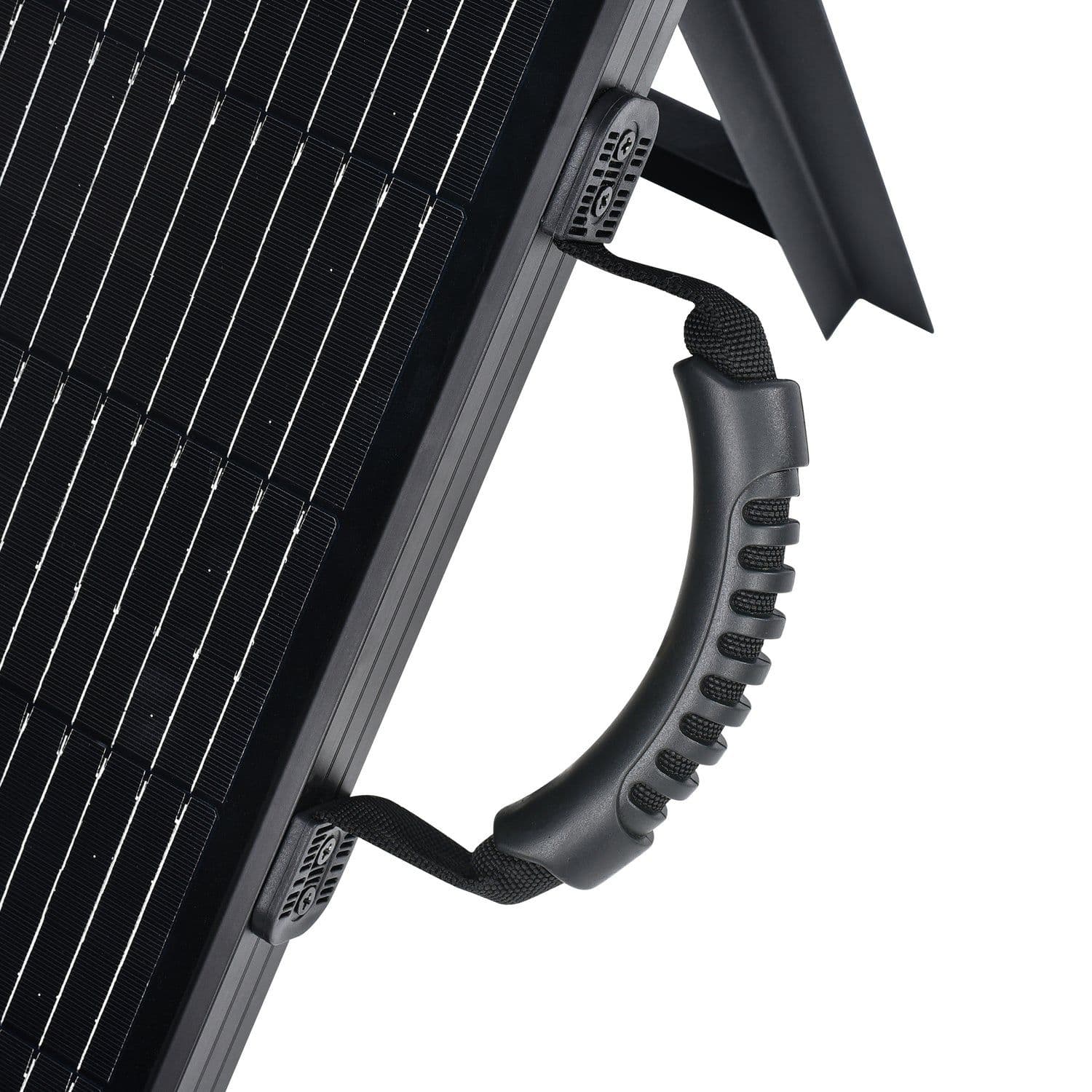

The panel folds in half into a briefcase with a carrying handle, so it packs into a truck bed, RV storage bay or car trunk and sets up quickly.

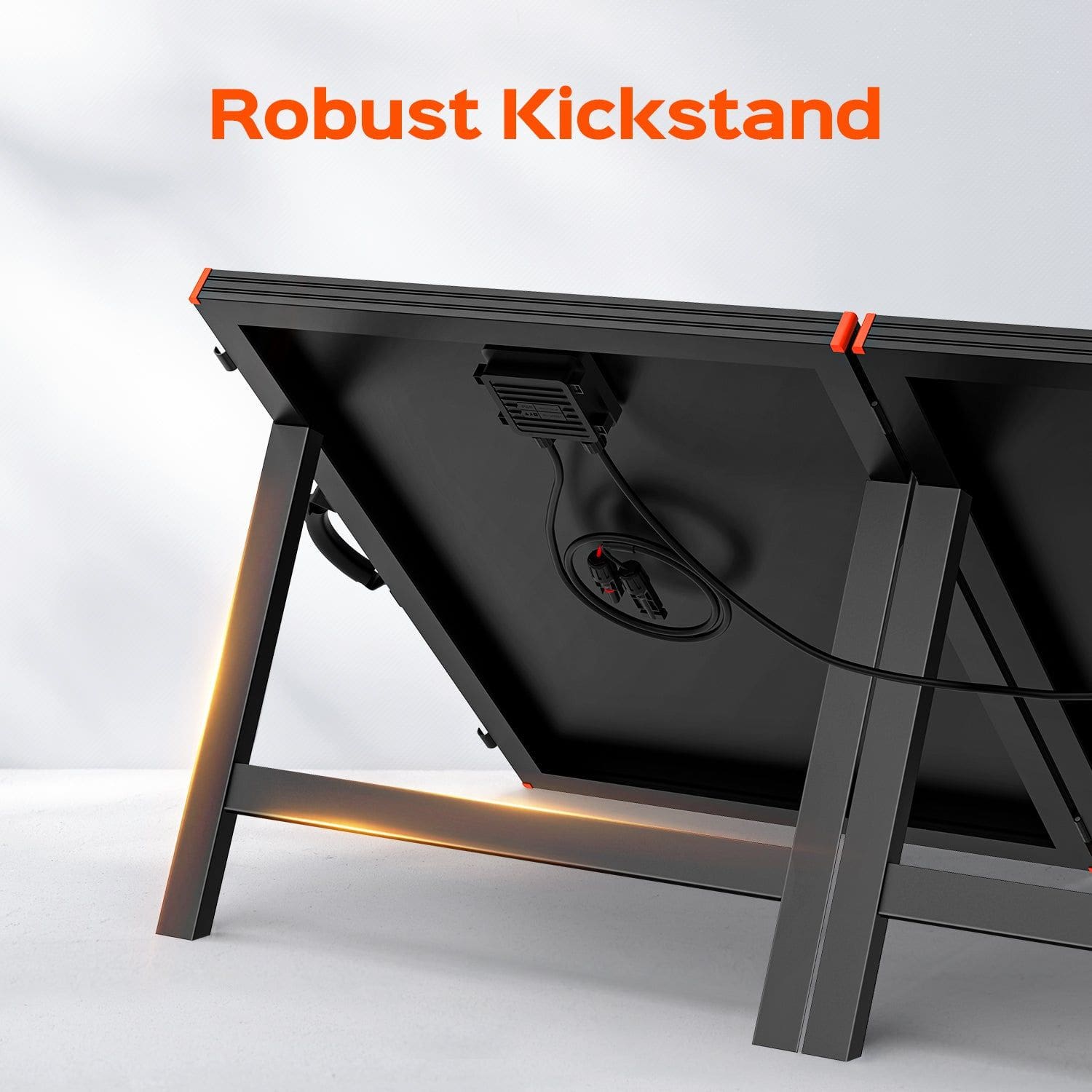

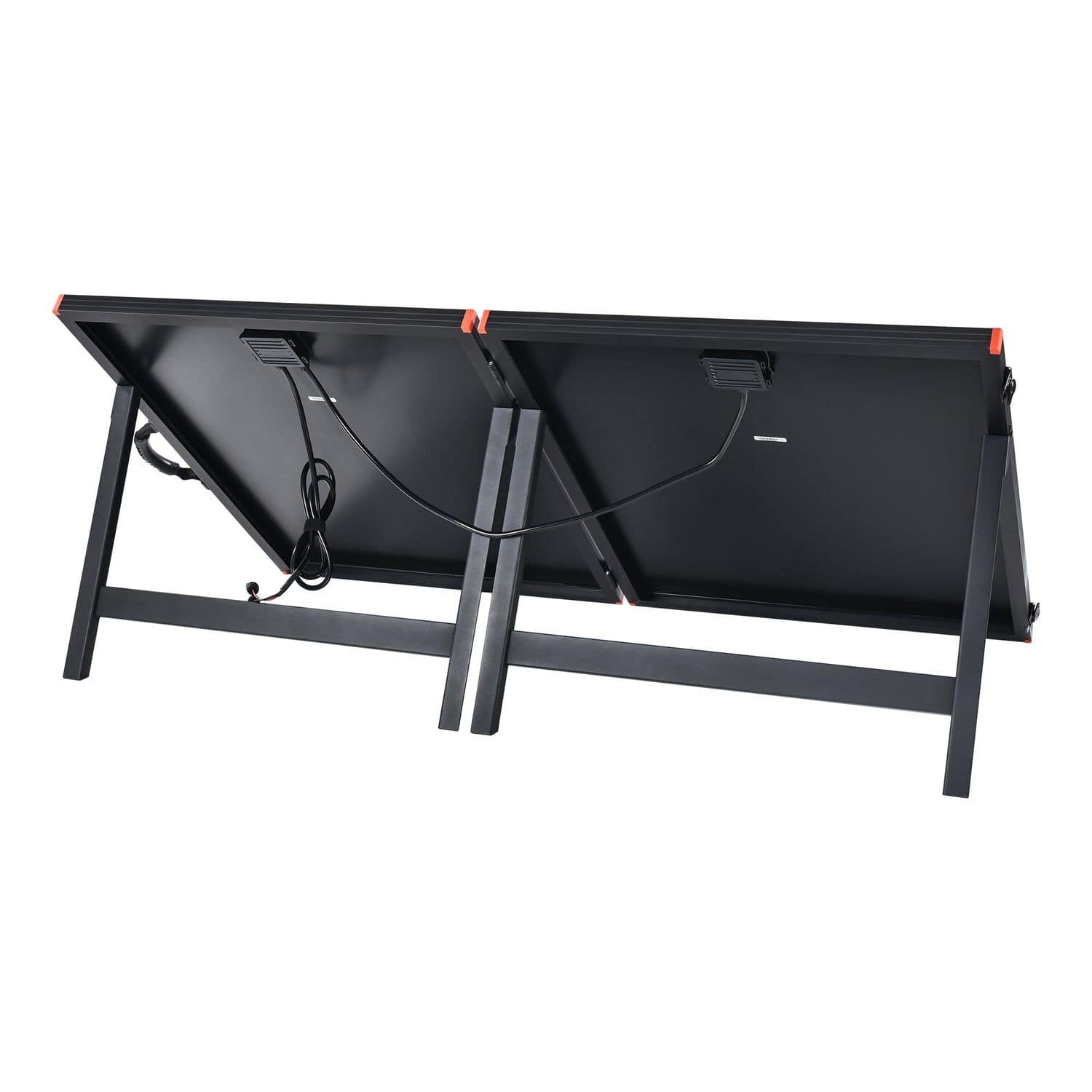

Built-In Kickstands
Kickstands on the back let you prop the panel at an angle toward the sun for better exposure, and move it as the sun crosses the sky.
High-Efficiency N-Type TOPCon Cells
N-Type TOPCon cells with up to 25.3% cell efficiency and 19.3% module efficiency turn more sunlight into charging power for a power station, generator or battery.

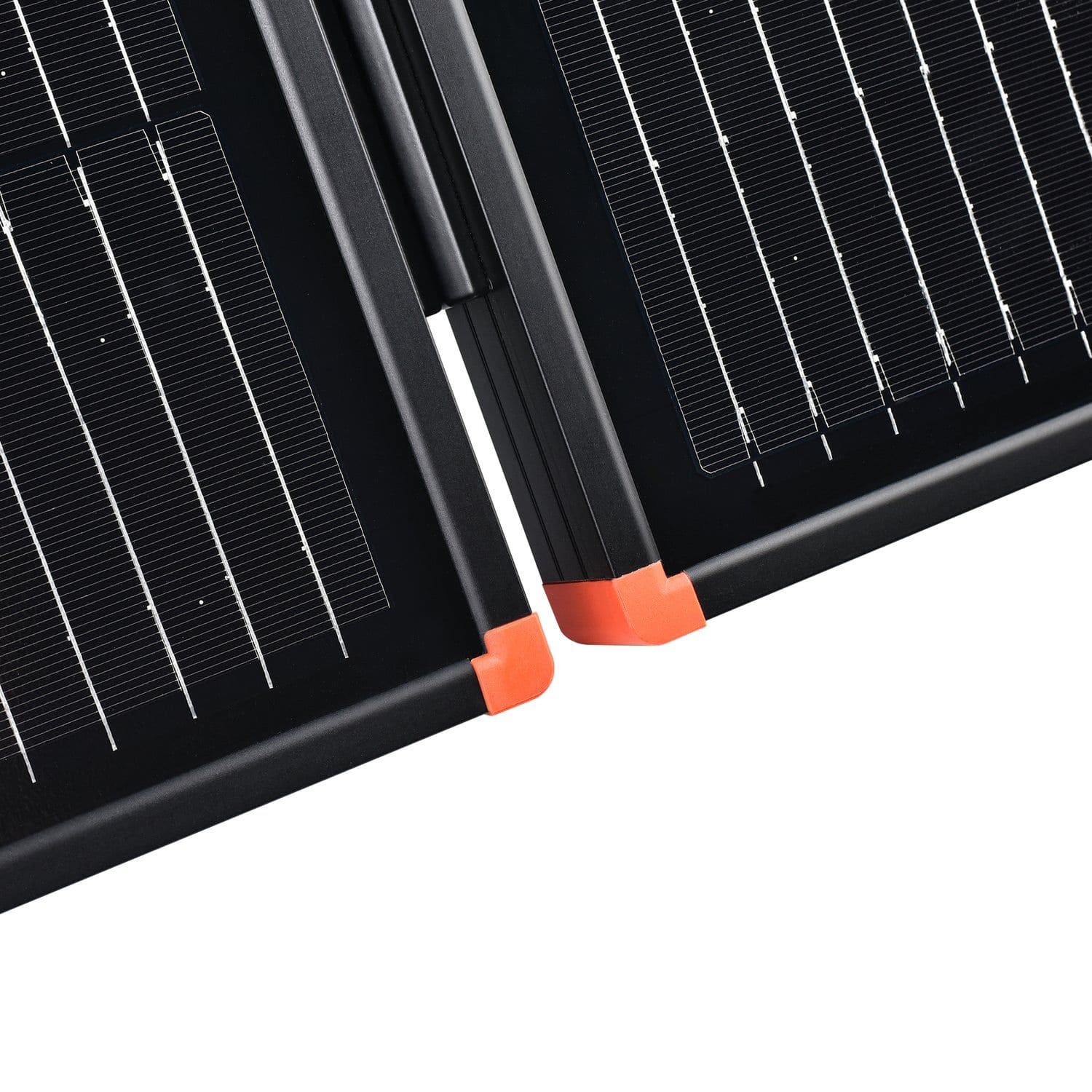

Tempered Glass, Aluminum Frame and Corner Protection
Strong tempered glass and an aluminum frame add durability, and corner protection adds impact resistance while you carry and set up the panel.

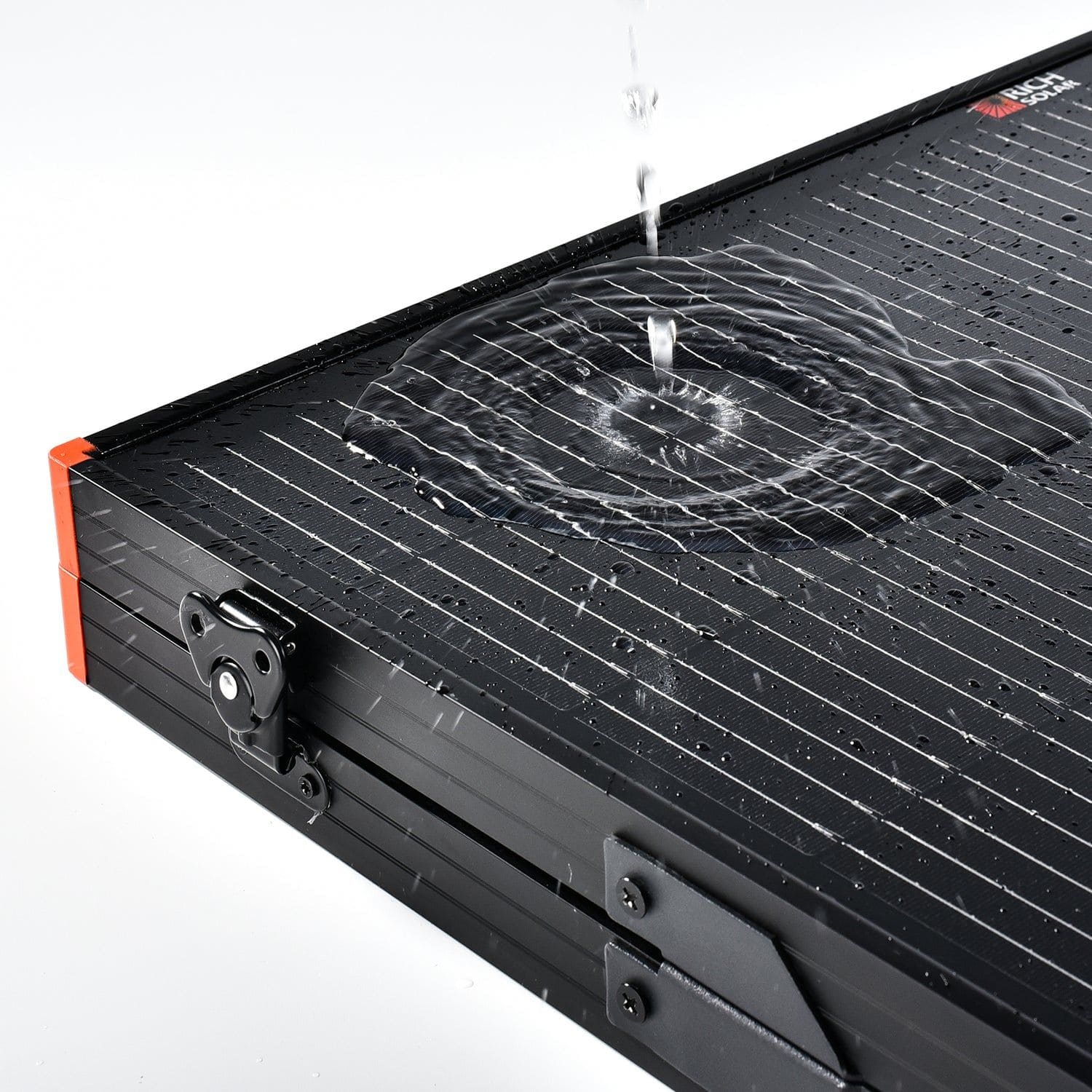

IP67 Weatherproof Design
The IP67 junction box and IP67 connectors give reliable outdoor performance in dust and rain.

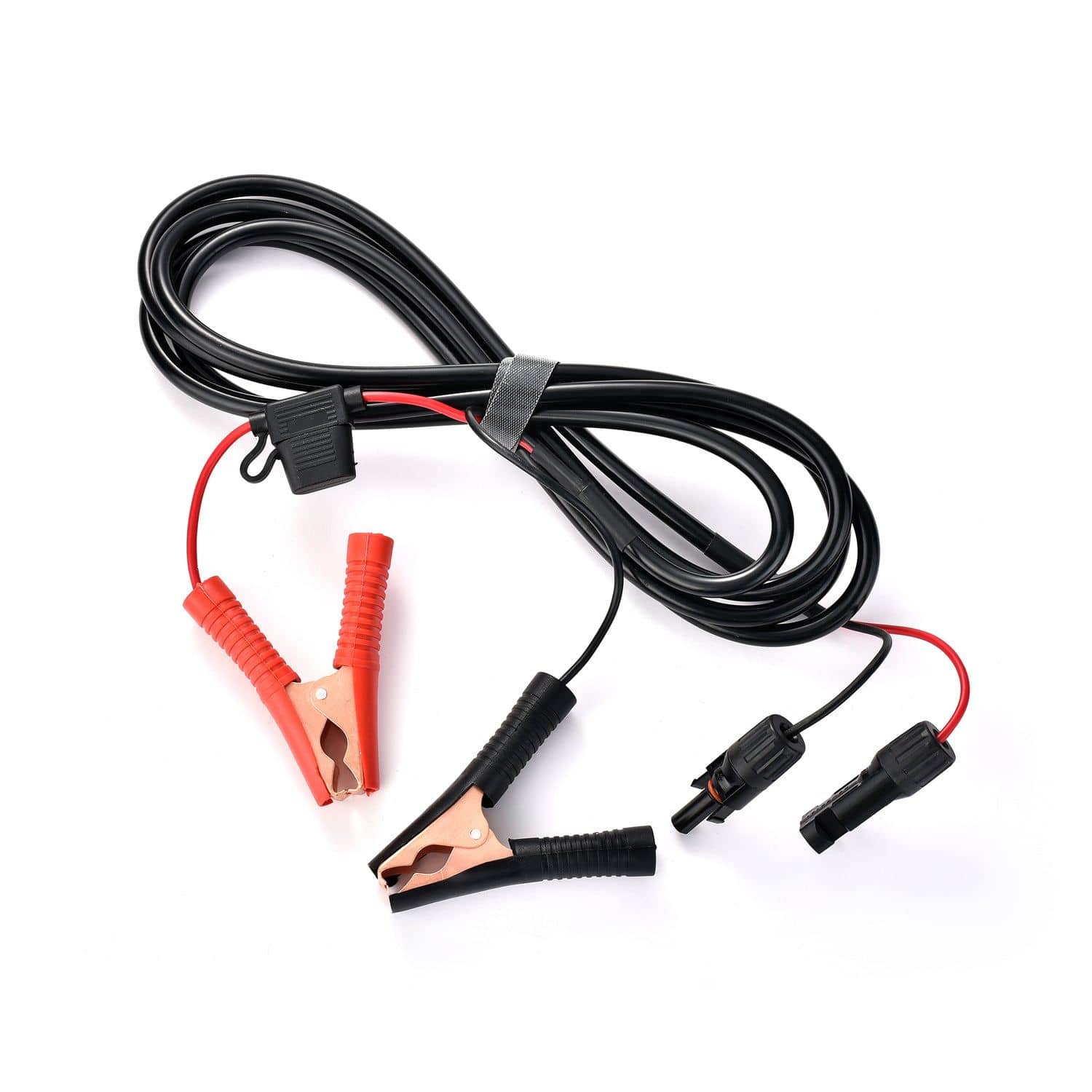

Long 5 ft Leads
Pre-attached 12 AWG leads, 5 ft each, with MC4 connectors give room to place the panel in the sun while the power station stays in the shade.
Real-World Applications
Portable power stations. Recharge a power station at camp, at a job site or during an outage.
Solar generators. Add 200W of solar input to a solar generator for off-grid use.
Camping and RVs. Park in the shade and set the panel out in the sun.
Emergency backup power. Keep a folding panel ready to recharge backup batteries when the grid is down.
How It Compares to Common Alternatives
Versus a roof-mounted panel. A fixed panel stays in place on the roof. The briefcase can be moved into the sun while you park in the shade, and it packs away when you leave.
Versus the MEGA 200 Portable Briefcase Charging Kit. The charging kit adds a charge controller for charging batteries directly. This briefcase is the panel only, for power stations and generators with their own solar input.
Versus a 100W briefcase. A 100W briefcase is smaller and lighter. The MEGA 200 doubles the output for faster recharging of larger power stations.
Is This Panel the Right Fit
-
Power station input. Check that your power station or generator accepts the panel's 23.1V open circuit voltage and 11.5A short circuit current through MC4 or an adapter.
-

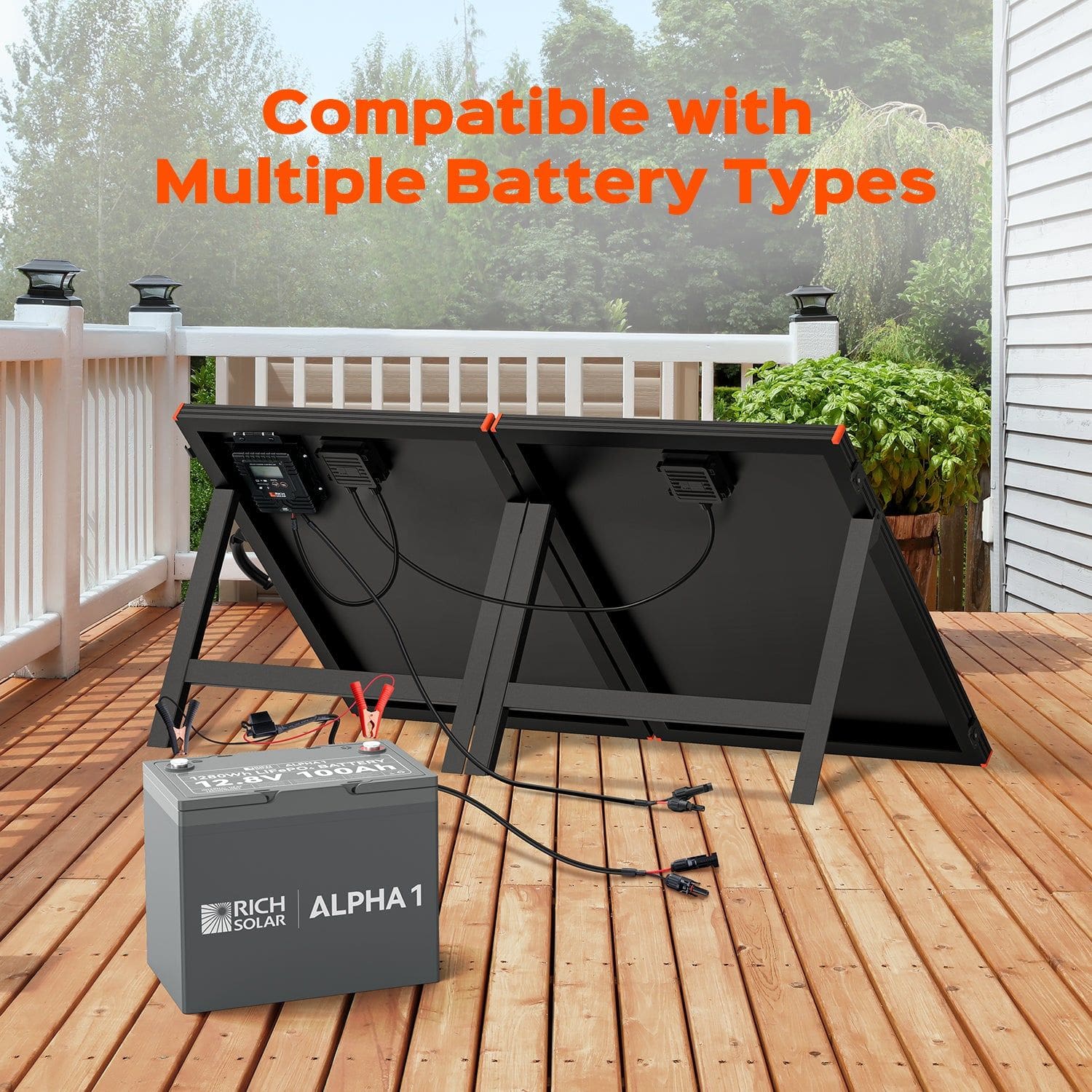

Battery charging. To charge a battery directly, add a charge controller between the panel and the battery.
-
Weight. The briefcase weighs 26.5 pounds folded.
-
Warranty. Rich Solar provides a 25-year power output warranty and a 5-year workmanship warranty.
This may be a good fit if
- You want portable solar for a power station or solar generator
- You camp in shaded spots and want to place the panel in the sun
- You want a panel that folds and carries like a briefcase
- You want a backup charging option for outages
Common Questions
Will It Work With My Power Station?
Rich Solar lists the briefcase as compatible with most portable power stations and solar generators. Check your unit's solar input voltage and current limits.
Does It Include a Charge Controller?
No. This is the panel only. Use a charge controller if you want to charge a battery directly.
How Do I Set It Up?
Unfold the briefcase, open the built-in kickstands, angle the panel toward the sun and connect the MC4 leads.
What Is the Warranty?
Rich Solar provides a 25-year power output warranty and a 5-year workmanship warranty.
What's Included
- 1 x Rich Solar MEGA 200 Watt Portable Solar Panel Briefcase
- 1 x Pair of 12 AWG Panel Leads, 5 ft Each, With MC4 Connectors (Pre-Attached)
- 1 x IP67 Junction Box (Built In)
- 1 x Set of Kickstands and Carrying Handle (Built In)
Take 200W of Solar Wherever You Go
The Rich Solar MEGA 200 Watt Portable Solar Panel Briefcase gives power stations, solar generators and campers a foldable, durable 200W panel that sets up quickly. At Outbound Power, we help customers match portable panels to their power stations, generators and batteries. If you have questions, our team is happy to help.

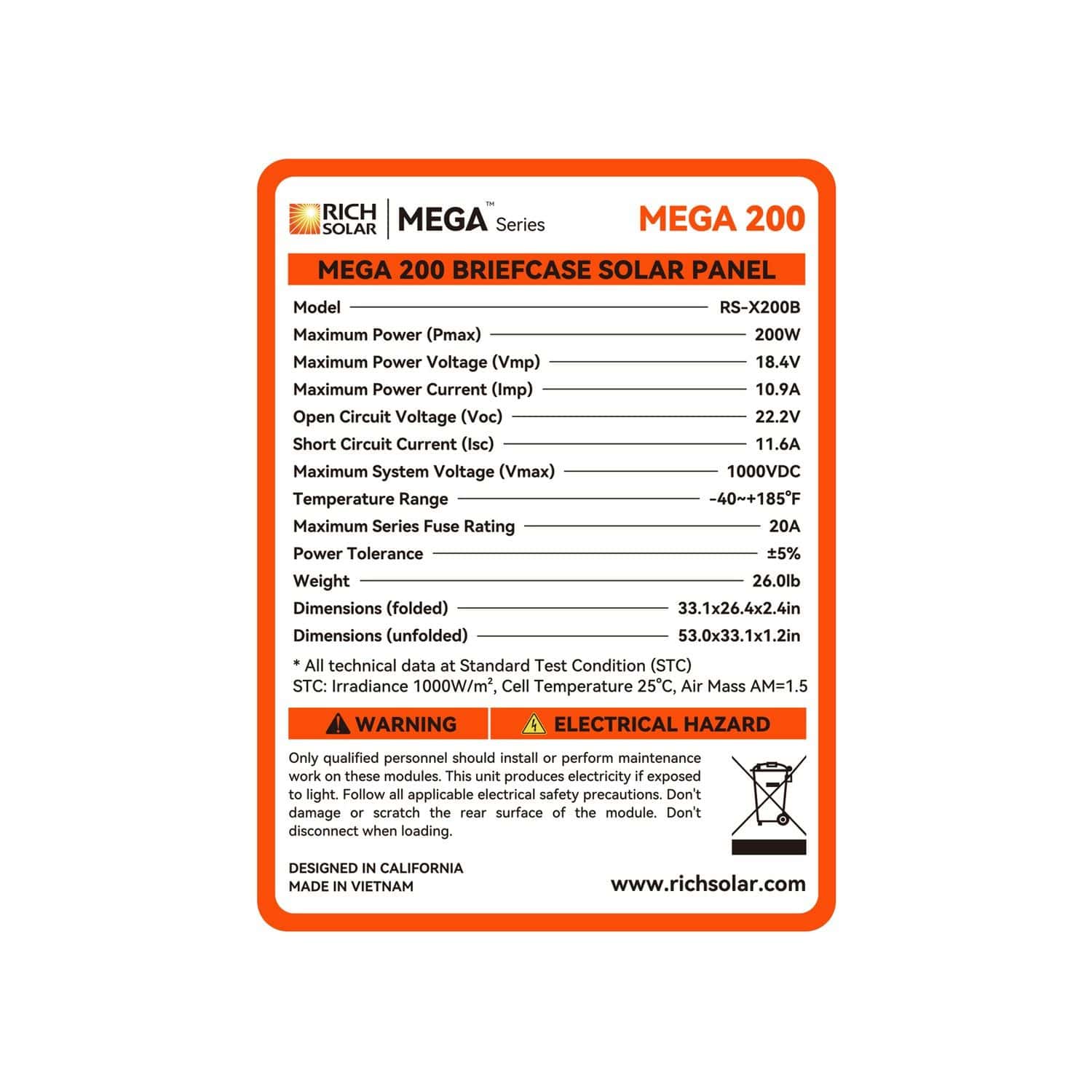

Rich Solar MEGA 200 Watt Portable Solar Panel Briefcase Specifications
|
| Model |
RS-X200B |
| Maximum Power (Pmax) |
200W |
| Nominal System Voltage |
12V |
| Cell Type |
Monocrystalline, N-Type TOPCon |
| Cell Efficiency |
Up to 25.3% |
| Module Efficiency |
19.3% |
| Maximum Power Voltage (Vmp) |
19.8V |
| Maximum Power Current (Imp) |
11.2A |
| Open Circuit Voltage (Voc) |
23.1V |
| Short Circuit Current (Isc) |
11.5A |
| Maximum System Voltage |
1000VDC |
| Construction |
Tempered glass, aluminum frame, corner protection |
| Stand and Handle |
Built-in kickstands, carrying handle |
| Junction Box and Connectors |
IP67, MC4 |
| Panel Leads |
12 AWG, 5 ft each |

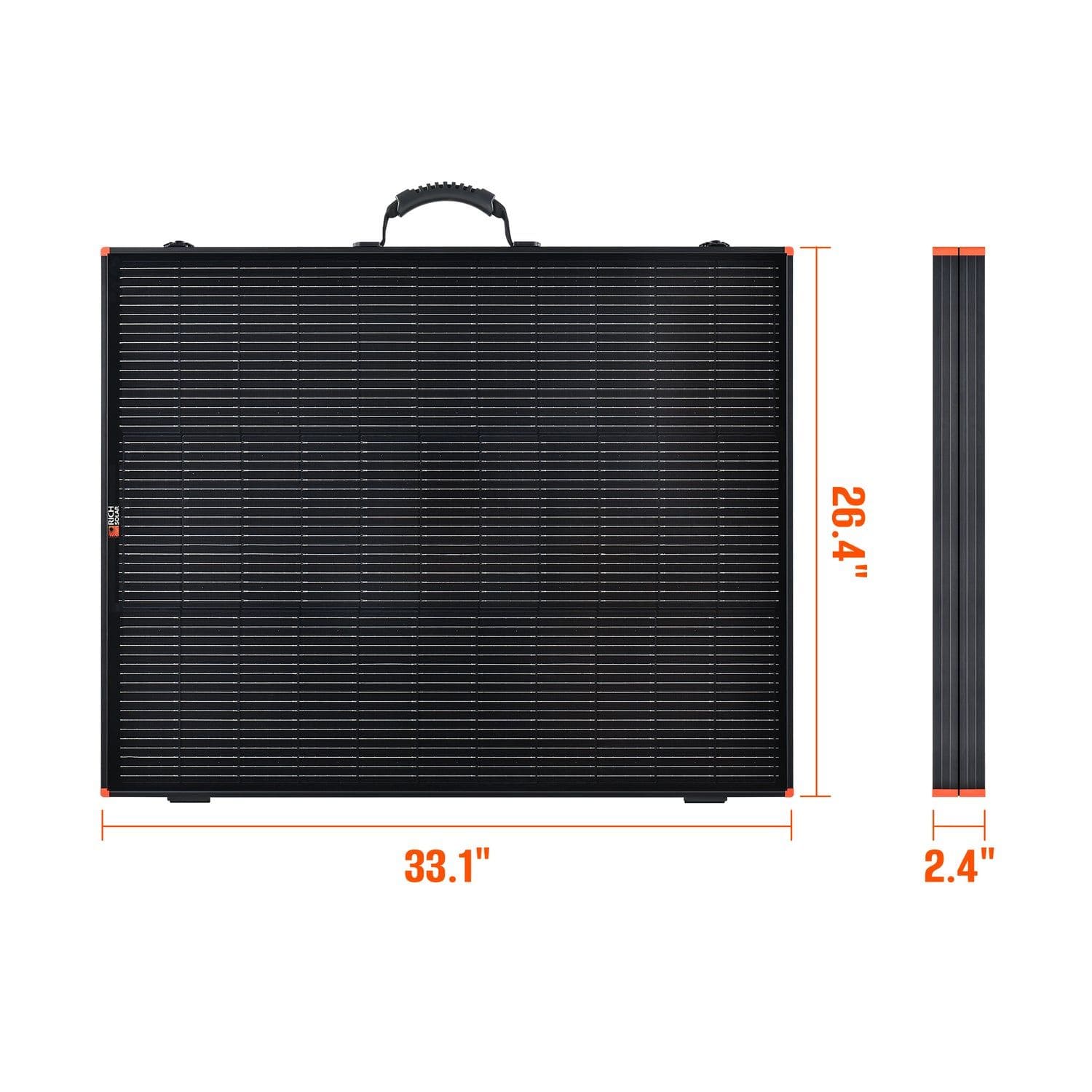

| Dimensions (Folded) |
33.1 x 26.4 x 2.4 in |
| Dimensions (Unfolded) |
53.0 x 33.1 x 1.2 in |
| Weight |
26.5 lbs |
| Workmanship Warranty |
5 years |
| Power Output Warranty |
25 years |
