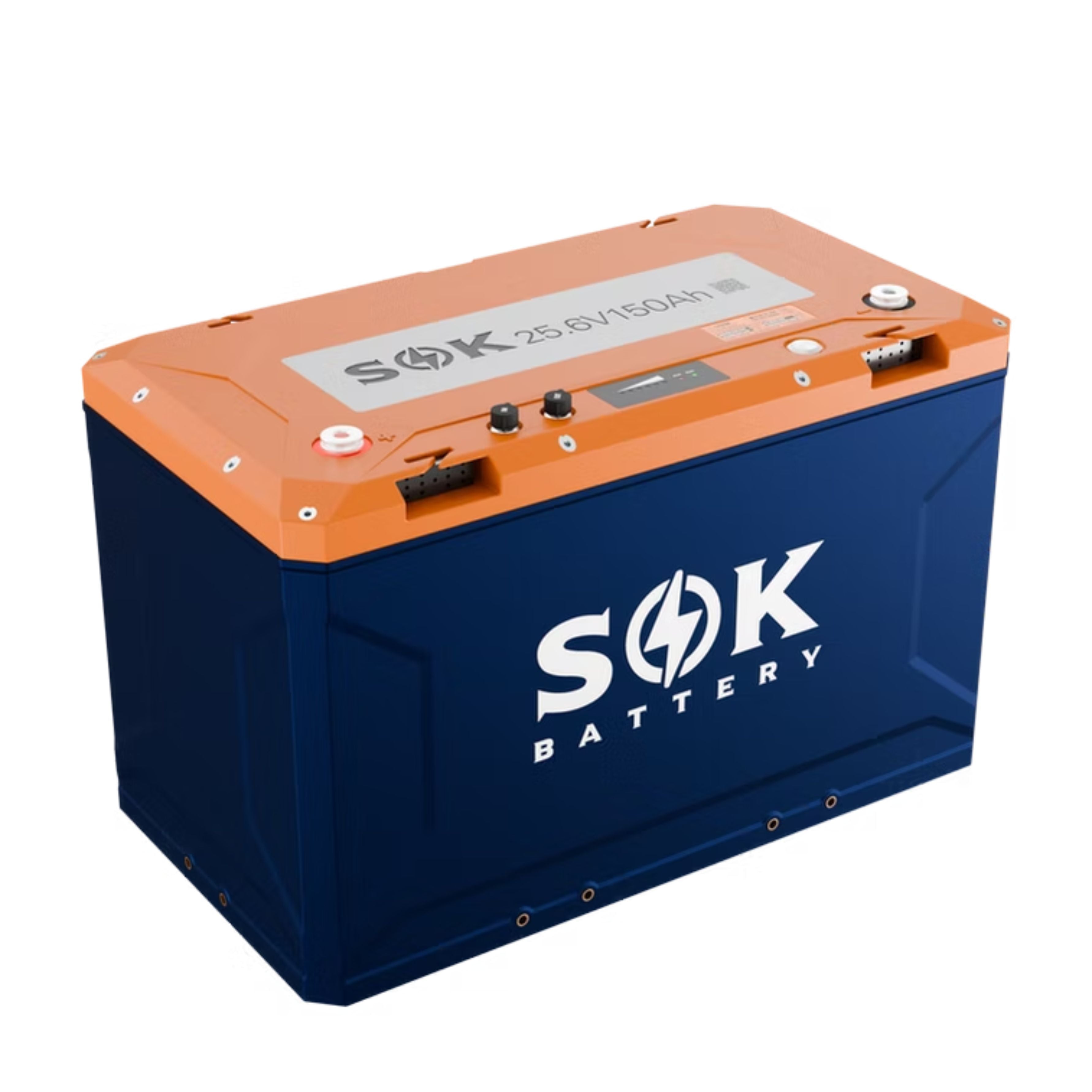

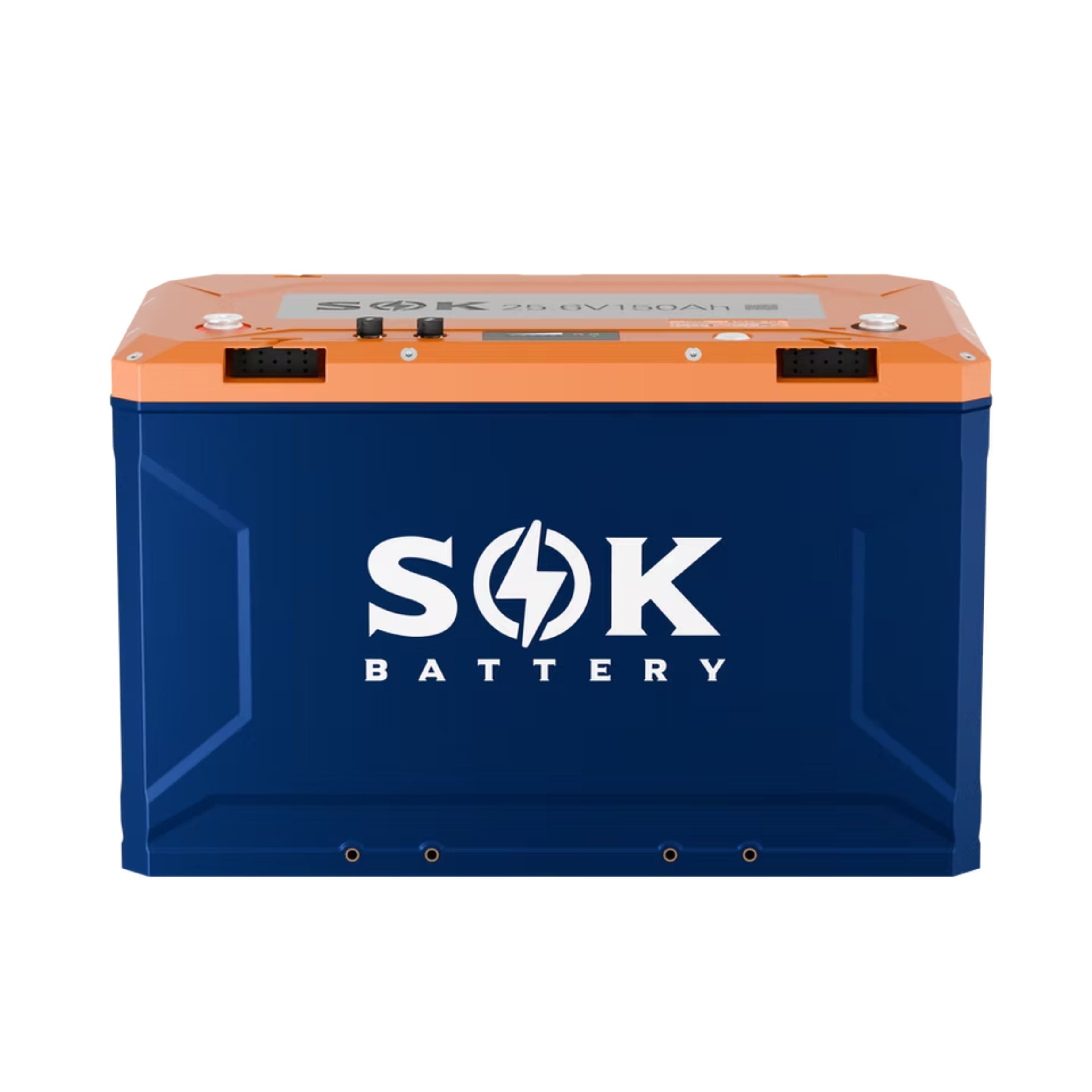

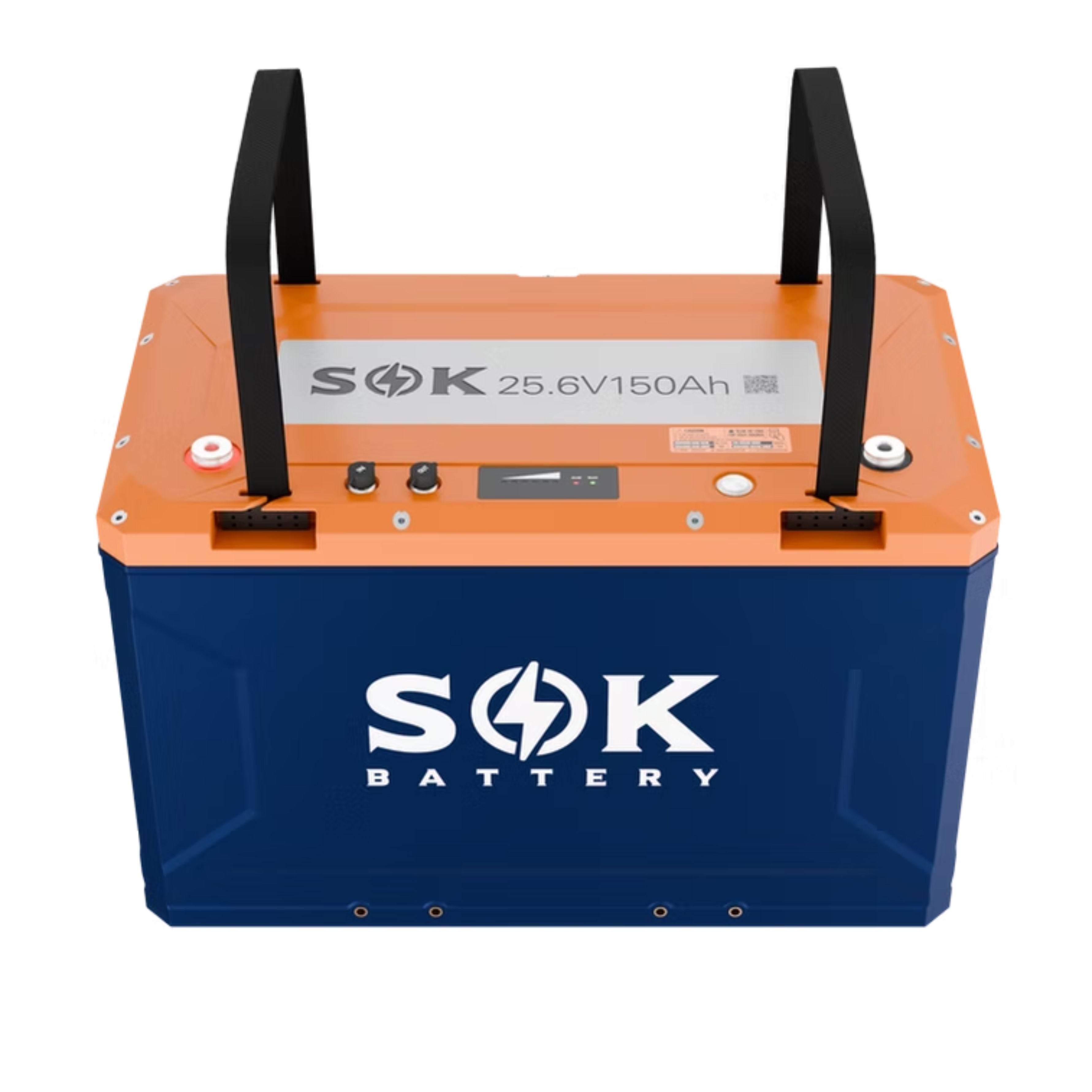

The SOK 24V 150Ah LiFePO4 Battery Provides All-Season, Intelligent Power You Can Trust Anywhere
If you've ever faced a dead battery in freezing weather, or tried to track down a power problem with no view of what's happening inside your system, you already know why the SOK 24V 150Ah LiFePO4 Battery exists. It stores 3,840Wh of energy, warms itself before it charges in the cold, reports its status to your phone and your Victron system, and protects itself with a smart BMS, so you can focus on the trip, the job site or the backup plan you bought it for.
It's built for homeowners who want reliable backup power, RVers heading into cold-weather destinations, boat owners, off-grid users who can't afford surprises and mobile businesses where downtime costs money. At 25.6 volts and 150 amp-hours, one battery covers a lot of ground, and you can add more as your needs grow.
SOK 24V 150Ah LiFePO4 Battery Features
It Talks Directly to Your Victron System
The battery's CAN port connects to Victron GX devices such as the Cerbo GX, and the 2-meter communication cable in the box makes the link. Your Victron system and battery share real-time data, so you can see the battery's status from the GX device. The battery also supports RS485 and the NMEA 2000 protocol.
A Built-In Heater Keeps It Charging in Freezing Weather
Most lithium batteries can't be charged below freezing. This one has a built-in heater that switches on below 32°F and warms the cells, so it can accept a charge in temperatures as low as -4°F. That makes it a good match for winter camping, unheated garages and cold-climate off-grid homes.
Check Battery Health From Your Phone
Built-in Bluetooth links the battery to the SOK Battery app for iOS and Android. You can see voltage, current, state of charge, cell voltages, temperatures and alarm status in real time without buying a separate monitor. An LED state-of-charge indicator shows the charge level at a glance, and an on/off switch lets you shut the battery down for storage or service.
Rain, Dust and Dirt Won't Stop It
The PC+ABS case is rated IP67 for dust and water resistance, so it handles splashes, heavy dust and dirty job sites in RVs, boats and outdoor installations. SOK still advises against submerging the battery or leaving it exposed to direct sun, rain and snow.
Grow From One Battery to a Full Bank
Connect up to 15 batteries in parallel for up to 2,250Ah at 24V, or 2 in series for a 48V system. Series and parallel can't be combined in the same bank. Start with one battery today and add more as your energy needs increase.
Strong Surge Current for Demanding Loads
The battery is rated for a 150A recommended charge current, up to 170A for short periods, and an 800A peak discharge for 10 seconds. That gives inverters, motors and other high-draw loads the start-up current they need.
Built for More Than 4,000 Cycles
Its LiFePO4 cells are rated for more than 4,000 cycles, and self-discharge stays under 3% per month in storage. You get years of regular cycling from one battery, and it holds its charge between trips.
A Built-In Fire Suppressor Adds a Layer of Safety
A gas aerosol fire suppression system inside the case is designed to quickly contain a potential fire. The BMS also guards against over-charge, over-discharge, over-current, short circuits and high or low temperatures, and it stops charging at 158°F and discharging at 167°F.
SOK 24V 150Ah LiFePO4 Battery Warranty
SOK covers the SK24V150PH with a 7-year limited warranty against defects in materials and workmanship under normal use, starting from the date of purchase.
What's Included
- 1 x SOK 24V 150Ah LiFePO4 Battery
- 6 x Mounting Brackets
- 12 x M6 x 12 Screws (for the mounting brackets)
- 12 x M8 x 20 Screws (for the mounting brackets)
- 2 x M8 x 12 Screws
- 2 x M8 x 16 Screws
- 1 x Battery-to-Battery Communication Cable (750 mm)
- 1 x Battery-to-Victron GX Communication Cable (2 m)
- 1 x Communication Terminal Resistor
- 1 x Warranty Card
- 1 x Specification Sheet
- 1 x Factory Quality Test Report
SOK 24V 150Ah LiFePO4 Battery Specifications
|
| Model |
SOK SK24V150PH |
| Electrical |
| Nominal Voltage |
25.6V |
| Nominal Capacity |
150Ah |
| Energy |
3,840Wh |
| Cells |
3.2V 150Ah LiFePO4 |
| Cycle Life |
4,000+ cycles |
| Self-Discharge |
Less than 3% per month |
| Charge |
| Recommended Charge Current |
150A |
| Maximum Charge Current |
170A (10 seconds) |
| Absorption Voltage |
28V |
| BMS Charge Cut-Off Voltage |
Above 29.2V or 3.65V per cell |
| Balancing Voltage |
3,370mV per cell |
| Maximum Batteries in Series |
2 |
| Maximum Batteries in Parallel |
15 |
| Discharge |
| Standard (Continuous) Discharge Current |
150A |
| Maximum Discharge Current |
170A (60 seconds) |
| Peak Discharge Current |
800A (10 seconds) |
| Recommended Low Voltage Disconnect |
21.6V or higher |
| BMS Discharge Cut-Off Voltage |
Below 21.6V |
| Reconnect Voltage |
Above 24.8V |
| Short Circuit Protection |
1,200A, 300µs |
| Temperature |
| Discharge Temperature |
-4 to 140°F (-20 to 60°C) |
| Charge Temperature |
-4 to 122°F (-20 to 50°C), heating turns on below 32°F |
| Recommended Storage Temperature |
23 to 95°F (-5 to 35°C) |
| BMS High Temperature Cut-Off |
Discharge 167°F (75°C), charge 158°F (70°C) |
| Reconnect Temperature |
Discharge 149°F (65°C), charge 140°F (60°C) |
| Mechanical |

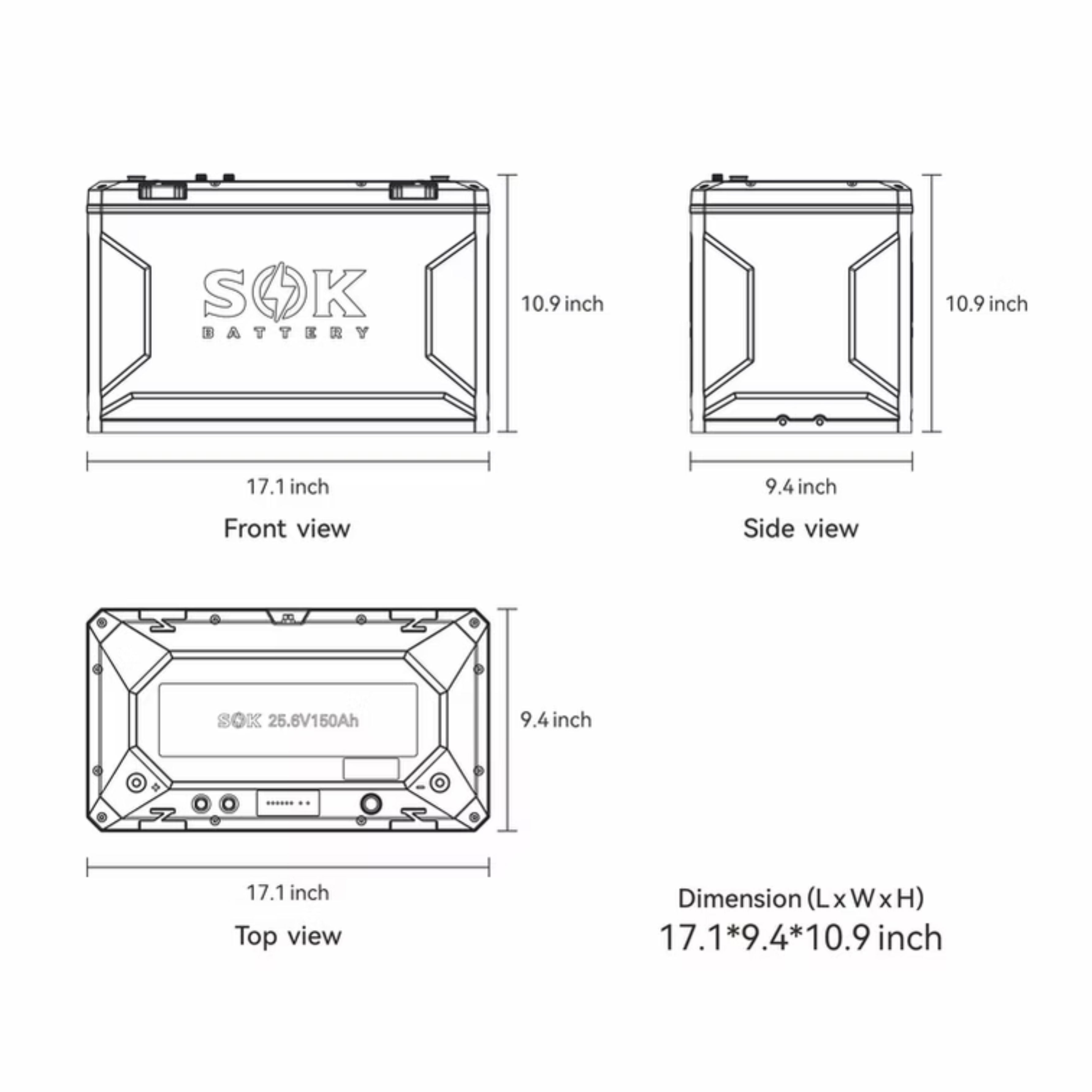

| Dimensions (L × W × H) |
17.1 × 9.4 × 10.9 in |
| Approximate Weight |
70 lb |
| Terminal Type |
M8 |
| Terminal Torque |
80 to 100 in-lb (9 to 11 N·m) |
| Case Material |
PC+ABS |
| Enclosure Protection |
IP67 |
| Communication and Compliance |
| Communication |
CAN (Victron GX devices), RS485, Bluetooth |
| Certifications |
IEC 62619 (cells) |
| Warranty |
7-year limited warranty |
SOK SK24V150PH Manual
