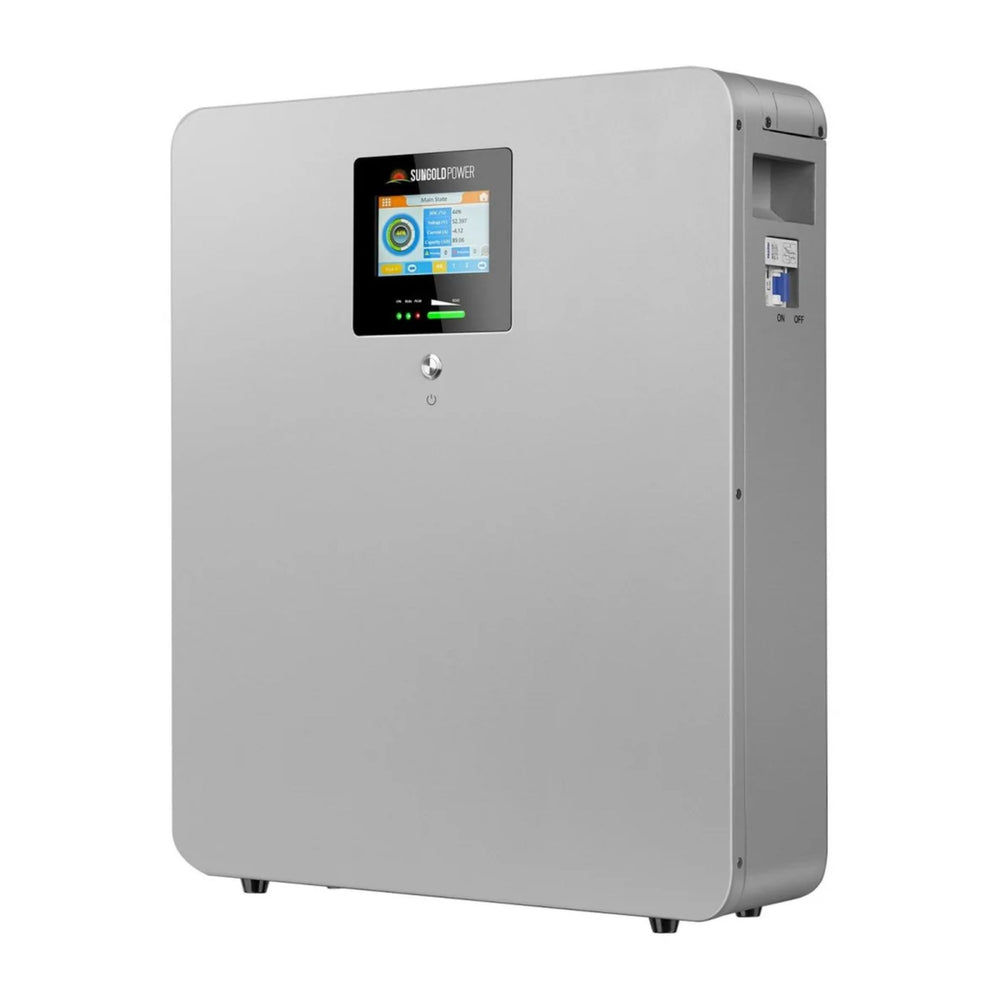

The SunGold CoreX 5 Elite Wall Mounted 48V 100AH Residential Energy Storage Battery Pack Hangs on Your Wall With 5.12kWh and Built-In Wi-Fi and Bluetooth
The SunGold CoreX 5 Elite Wall Mounted 48V 100AH Residential Energy Storage Battery Pack is a 51.2V, 100Ah LiFePO4 battery that stores 5.12kWh in a slim wall-hung case. It uses Tier-1 EVE Energy cells and has a color LCD on the front, plus Wi-Fi and Bluetooth for monitoring from your phone.
It is made for homeowners who want battery storage off the floor. The box includes the wall bracket, expansion bolts, power and communication cables, and rubber feet. Run one pack on its own or connect up to 15 in parallel for more storage.
SunGold CoreX 5 Elite Wall Mounted 48V 100AH Residential Energy Storage Battery Pack Features
Wall-Mount Bracket in the Box
The pack hangs from a wall-mounted bracket that fastens with four expansion bolts. Mounting holes are spaced 328 mm apart horizontally and 300 mm vertically. Rubber feet and a white edge protection strip are also included.
EVE Cells Rated for 5000 Full Cycles
SunGold rates the pack to keep 80% of its capacity after 5000 cycles at 100% depth of discharge. The cells are Tier-1 EVE Energy LiFePO4, and the battery carries a 10-year warranty.
Phone Monitoring Over Wi-Fi or Bluetooth
Use Bluetooth for local control with no account, or bind the pack to your 2.4GHz Wi-Fi network for remote monitoring. The app shows voltage, current, temperature, SOC and SOH, and it can share access with another user through a QR code.
Color LCD Display
The front screen shows SOC, voltage, current, capacity and alarms. You can also view individual cell voltages and temperatures, and switch the display language in the settings menu.
Multi-Layer BMS Protection
The BMS tracks cell voltage, current and temperature in real time and calculates SOC and SOH. It protects against over-voltage, under-voltage, over-current, short circuits, and high or low temperature, and it balances the cells.

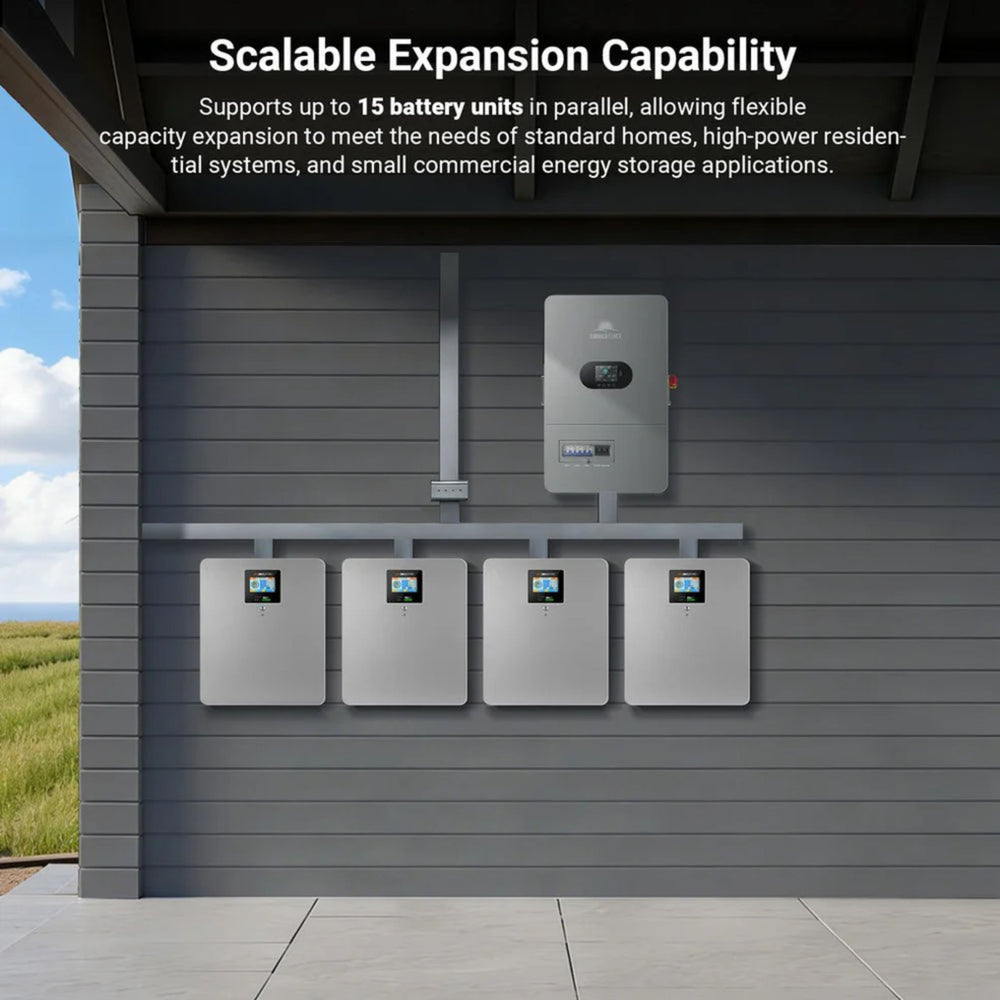

Expand to 15 Packs
Up to 15 packs can run in parallel. Each pack ships with parallel power and communication cables. Keep at least 10 cm between packs, and use a busbar if system current will exceed 100A.
Real-World Applications
Backup power for unstable grids. Keep household circuits running through outages with a compatible 48V inverter.
Solar self-consumption. Store your solar production and use it after sunset in areas with high power prices.
Time-of-use savings. Charge when rates are low and discharge when rates peak.
Homes with limited floor space. Mount the battery on a solid wall and keep the floor clear below it.
How It Compares to Common Alternatives
Versus a server rack battery. A rack battery needs a rack, cabinet or floor space. This pack mounts on a wall with the bracket in the box, and nothing may be placed beneath it.
Versus a battery without app monitoring. Wi-Fi and Bluetooth let you check charge level, alarms and cell data from your phone, at home or away.
Versus a lead-acid battery bank. This pack adds a BMS, inverter communication and remote monitoring, and SunGold rates it for 5000 cycles at 100% depth of discharge.
Is This Wall-Mounted Battery the Right Fit
-
Wall. Solid brick-concrete or concrete wall. Other walls must be flame-retardant and carry about 48kg per pack.
-
Location. Indoors or under a professional rain shelter only. The pack is IP20 rated.
-
Inverter. Requires a 48V inverter with CAN or RS485 communication.
-
Size and weight. 22.05 x 18.9 x 5.39 inches and 105.82 lbs.
-
Wi-Fi. The module works on 2.4GHz networks only.
This may be a good fit if
- You want battery storage on the wall
- You want to check your battery from your phone
- You are adding backup or solar storage at home
- You may add packs later
Common Questions
How Is the CoreX 5 Elite Mounted?
Drill four 14mm holes at least 60mm deep, fasten the bracket with the expansion bolts at 12 N·m, then lift the pack and hang it from the top of the bracket. Keep the bottom edge of the bracket parallel to the floor.
How Do I Connect It to the App?
For local control, open the app and connect over Bluetooth, or scan the Bluetooth QR code on the pack. For remote access, register an account and add the pack to your 2.4GHz Wi-Fi network.
Can I Install More Than One?
Yes. Up to 15 packs can run in parallel, but not in series. Leave at least 10 cm between packs. For systems above 100A, connect the packs with a busbar.
How Do I Put the Battery to Sleep?
Hold the reset button for 3 to 6 seconds. Hold it again for 3 to 6 seconds to wake the BMS.

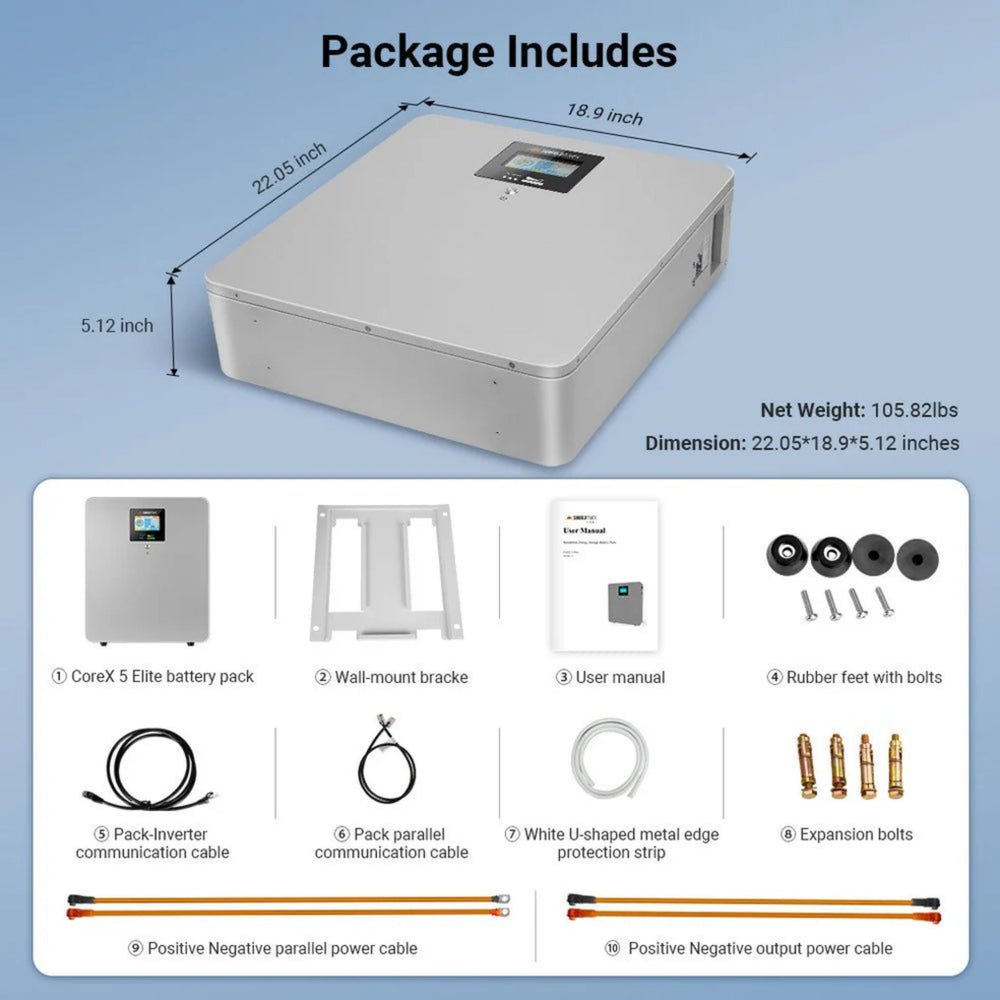

What's Included
SunGold's box list below is for one battery pack. The 2 Batteries and 4 Batteries options ship 2 or 4 of the same battery pack.
- 1 x CoreX 5 Elite Battery Pack
- 1 x Wall-Mounted Bracket
- 4 x Expansion Bolts
- 4 x Rubber Feet With Bolts
- 1 x White U-Shaped Metal Edge Protection Strip (0.6m)
- 1 x Positive Output Power Cable
- 1 x Negative Output Power Cable
- 1 x Positive Parallel Power Cable
- 1 x Negative Parallel Power Cable
- 1 x Pack-Inverter Communication Cable
- 1 x Pack Parallel Communication Cable
- 1 x Product Factory Test Report
- 1 x Product Certificate
- 1 x User Manual
Wall-Hung Home Storage With Phone Monitoring
The SunGold CoreX 5 Elite Wall Mounted 48V 100AH Residential Energy Storage Battery Pack gives a 48V home system 5.12kWh of EVE-cell storage on the wall, with Wi-Fi and Bluetooth monitoring and room for 15 packs. At Outbound Power, we help customers plan home backup and solar storage. If you have questions, our team is happy to help.
SunGold CoreX 5 Elite Wall Mounted Battery Specification
|
| Electrical Characteristics |
| Product Model |
CoreX 5 Elite |
| Configuration |
1P16S |
| Battery Type |
Lithium iron phosphate battery (EVE Energy cells) |
| Rated Capacity |
100Ah |
| Rated Voltage |
51.2V |
| Rated Energy |
5.12kWh |
| Voltage Range |
43.2V~56.8V |
| Charging Current Limit |
20A (on by default, triggers at charge current ≥90A) |
| Standard Charge / Discharge Current |
50A |
| Maximum Charge Current |
95A |
| Maximum Discharge Current |
100A |
| Cycle Life |
80% capacity after 5000 cycles at 100% DOD |
| Communication and Expansion |
| Inverter Communication |
CAN / RS485 |
| Parallel Communication |
RS485 (input and output ports) |
| Debug Port |
RS232 |
| Monitoring |
Color LCD display, Wi-Fi and Bluetooth app |
| Wi-Fi Band |
2.4GHz only |
| Dry Contact |
Yes |
| Max. Parallel Packs |
15 (busbar connection required above 100A system current) |
| Operating Conditions |
| Recommended Temperature Range for Use |
50°F~113°F (10°C~45°C) |
| Operating Temperature |
Charge 39.2°F~131°F (4°C~55°C), Discharge -4°F~131°F (-20°C~55°C) |
| Humidity Range |
5~85% RH, no condensation |
| Storage Temperature |
Within 1 month -4°F~113°F (-20°C~45°C), within 1 year 32°F~95°F (0°C~35°C) |
| Storage Humidity |
<60% RH, no condensation |
| Application Altitude |
≤3000m (~9842.5ft) |
| IP Rating |
IP20 |
| Installation |
Wall-mounted, indoors or in a professional rain shelter |
| Mechanical Characteristics |
| Dimensions (D x W x T) |
22.05 x 18.9 x 5.39 inch (560 x 480 x 137mm) |
| Weight |
105.82 lbs (48 ±2kg net) |
| Wall Bracket Hole Spacing |
328 mm horizontal, 300 mm vertical |
| Warranty |
| Warranty |
10 years |
