The SunGold Power 10kW 48VDC Off-Grid Solar Kit Backs Two Paralleled 5000W Inverters With 20.48kWh of UL9540A Server Rack Storage
The SunGold Power 10kW 48VDC Off-Grid Solar Kit (SGR-10K2M) links two 5000W 48V Wi-Fi model inverters for 10000W of 120V/240V split phase power. Twelve 450W monocrystalline PERC panels supply 5400W of solar, and four SG48100P server rack batteries store 20.48kWh.
The kit is meant for homes that make their own power instead of relying on the grid. SunGold sizes it to run air conditioners, well pumps, refrigerators, TVs, a workshop or an office, and the batteries carry UL1973 and UL9540A certification.
SunGold Power 10kW 48VDC Off-Grid Solar Kit Features

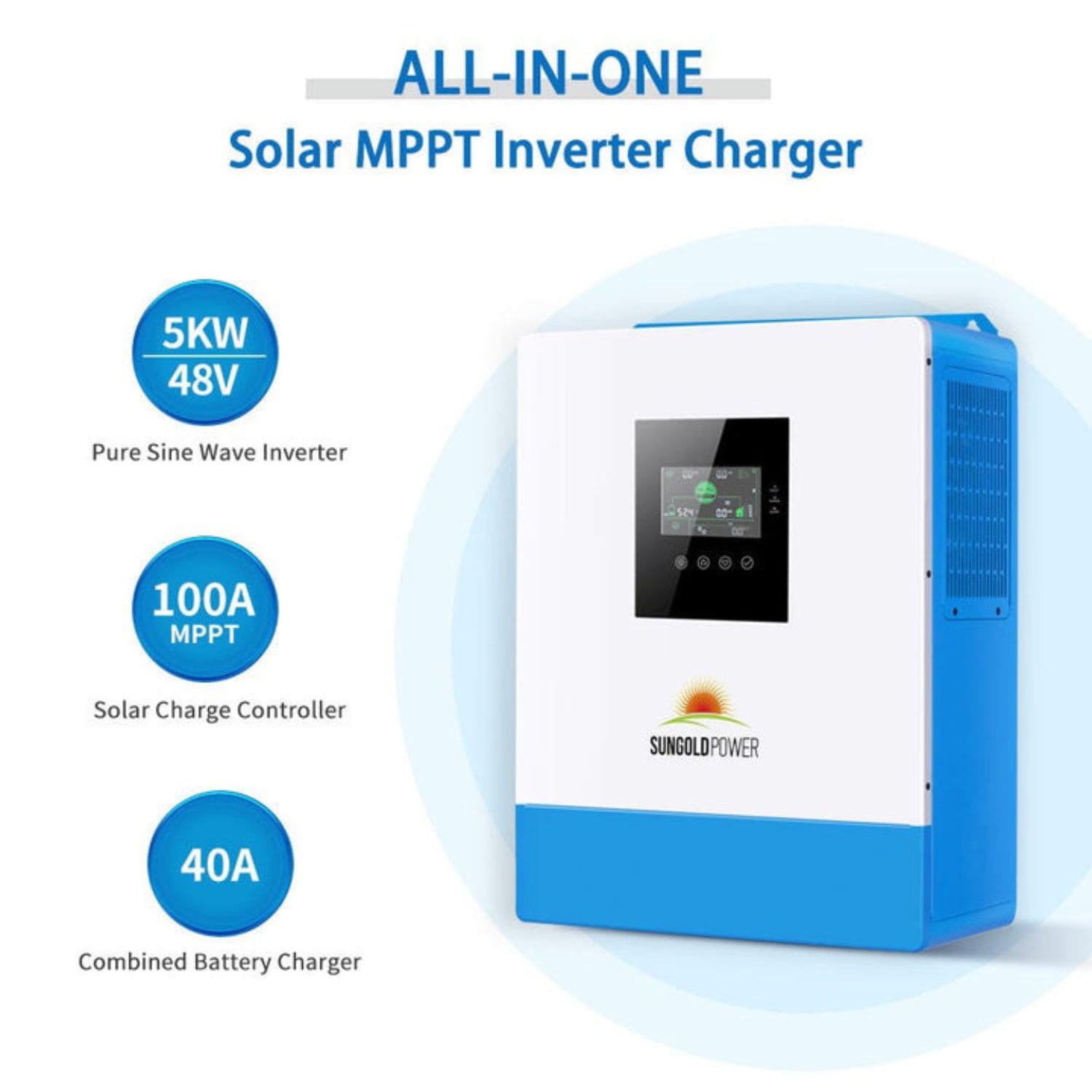

A Matched Pair of 5000W Inverters
Each SPH5048P produces 5000W of 120V pure sine wave power with a 10000VA peak and a 4HP motor rating. Set up in parallel, the pair delivers 120V/240V split phase output for a home panel.

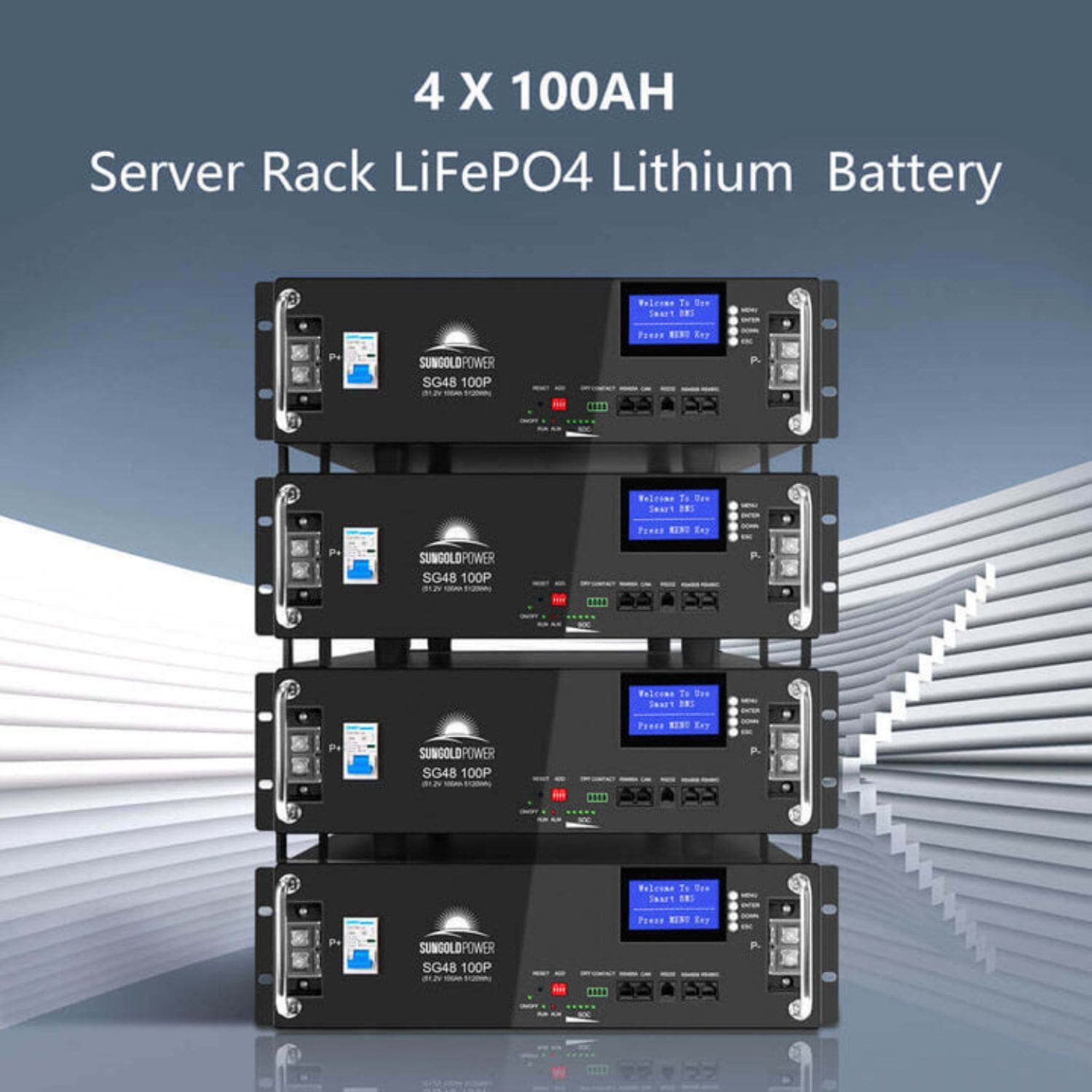

Server Rack Batteries Certified to UL1973 and UL9540A

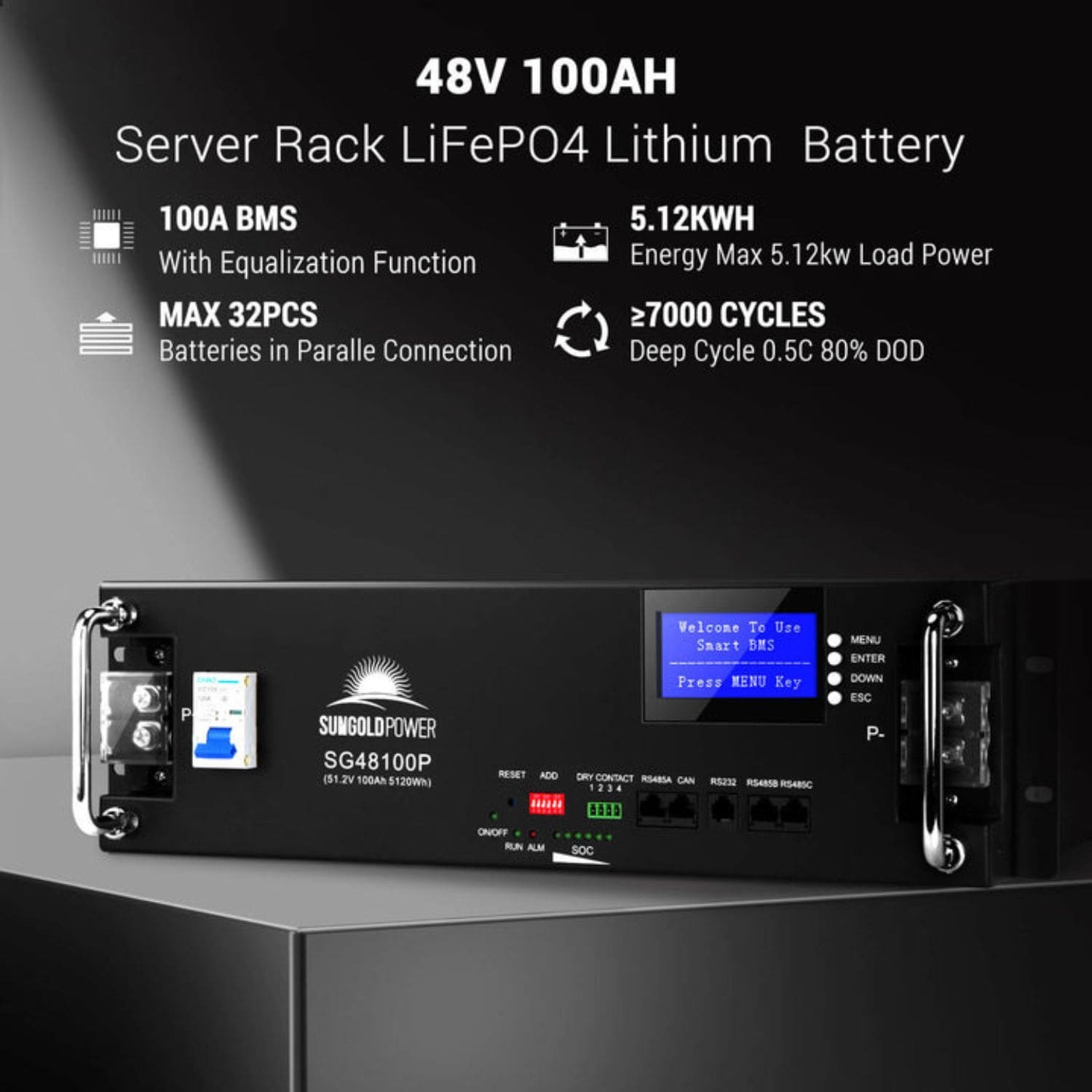

The four SG48100P batteries are 3U, 51.2V 100Ah modules of 5.12kWh each. Each is rated for at least 7000 cycles and a 15-year design life, with an LCD and a BMS that guards against overcharge, deep discharge, overload, overheating and short circuit.

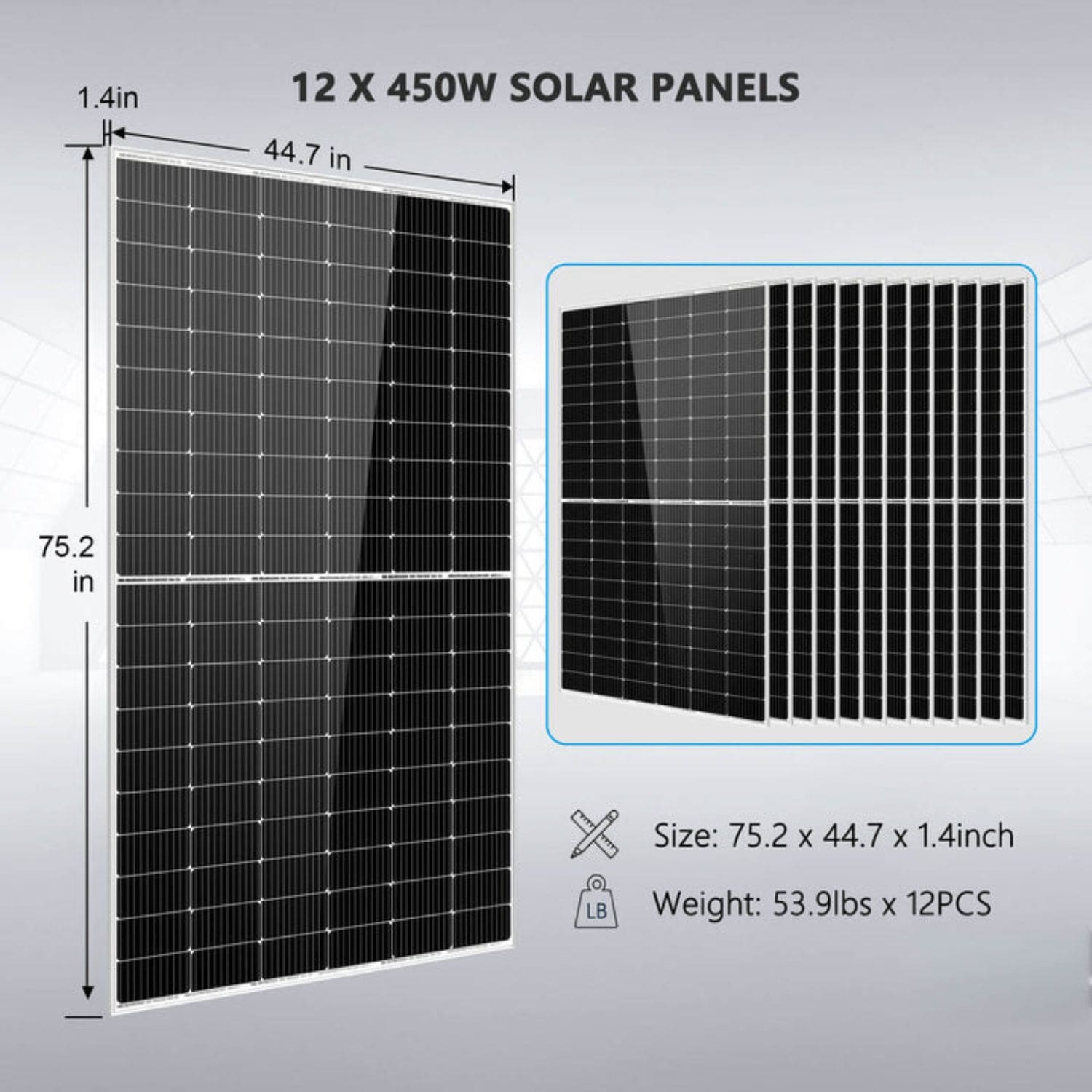

450W Mono PERC Panels
The SG450WM panels reach 20.79% module efficiency with 120 PERC cells, an IP68 junction box and a 2400Pa wind rating. Each panel produces 450W at standard test conditions.
Separate MPPT Controller in Each Inverter
Each inverter takes one string of six panels through its own 25A PV breaker. Its MPPT controller accepts up to 5500W of PV within a 120-450Vdc tracking range and charges at up to 100A.
Battery Communication and Lithium Wake-Up
The inverters talk to battery management systems over RS485. If a lithium battery goes dormant, power from the panels or the AC input can activate it again.
Power Saving Mode
With power saving on, each inverter idles at 20-25W instead of 45-50W. That keeps more stored energy for your loads during quiet hours.
Real-World Applications
Homes without grid service. Generate and store your own power for daily household use.
Cooling and refrigeration. Run air conditioners and refrigerators from split phase output.
Utility rooms. Stack the 3U batteries in a rack beside the inverters.
Workshops and offices. Power tools, computers and lighting from solar and stored lithium power.
How It Compares to Common Alternatives
Versus wall-mounted batteries. Server rack modules stack in a rack or cabinet, so several batteries fit in a small footprint.
Versus bifacial panels. Bifacial panels add output only when light reaches their rear side. These mono PERC panels draw their full 450W rating from the front.
Versus a single large inverter. You can add identical 5000W units one at a time, up to six inverters and 30kW.
Is This Solar Kit the Right Fit
-
Battery rack. The batteries are 3U rack modules. No rack or cabinet is in the kit list.
-
Indoor batteries. The SG48100P is rated IP20, so it belongs in a dry indoor space.
-
Separate arrays. In parallel, each inverter must connect to its own PV array.
-
Parallel setup. The inverters ship in single-unit mode and must be set for split phase parallel operation.
-
Space. Each inverter is 17.3 x 13.8 x 5.1 inches. Each battery is 19.3 x 18.9 x 5.5 inches and weighs around 93 pounds.
This may be a good fit if
- You want UL9540A-certified battery storage
- You have indoor space for a battery rack
- You prefer standard mono PERC panels
- You want to grow in 5000W steps
Common Questions
Is a Battery Rack Included?
No. The kit includes four 3U server rack batteries, the 250A busbar and cables, but no rack or cabinet.
Can I Add Batteries Later?
Yes. The SG48100P supports up to 63 batteries in parallel. Avoid mixing new and old batteries in one bank.
Can I Add More Inverters?
Yes. Up to six identical 5000W inverters can be paralleled for 30kW, in 120V single phase, 120V/240V split phase or 208V three phase.
Can the System Charge From a Generator?
Yes. Each inverter has an AC charger of up to 40A, and solar and AC charging can work together.

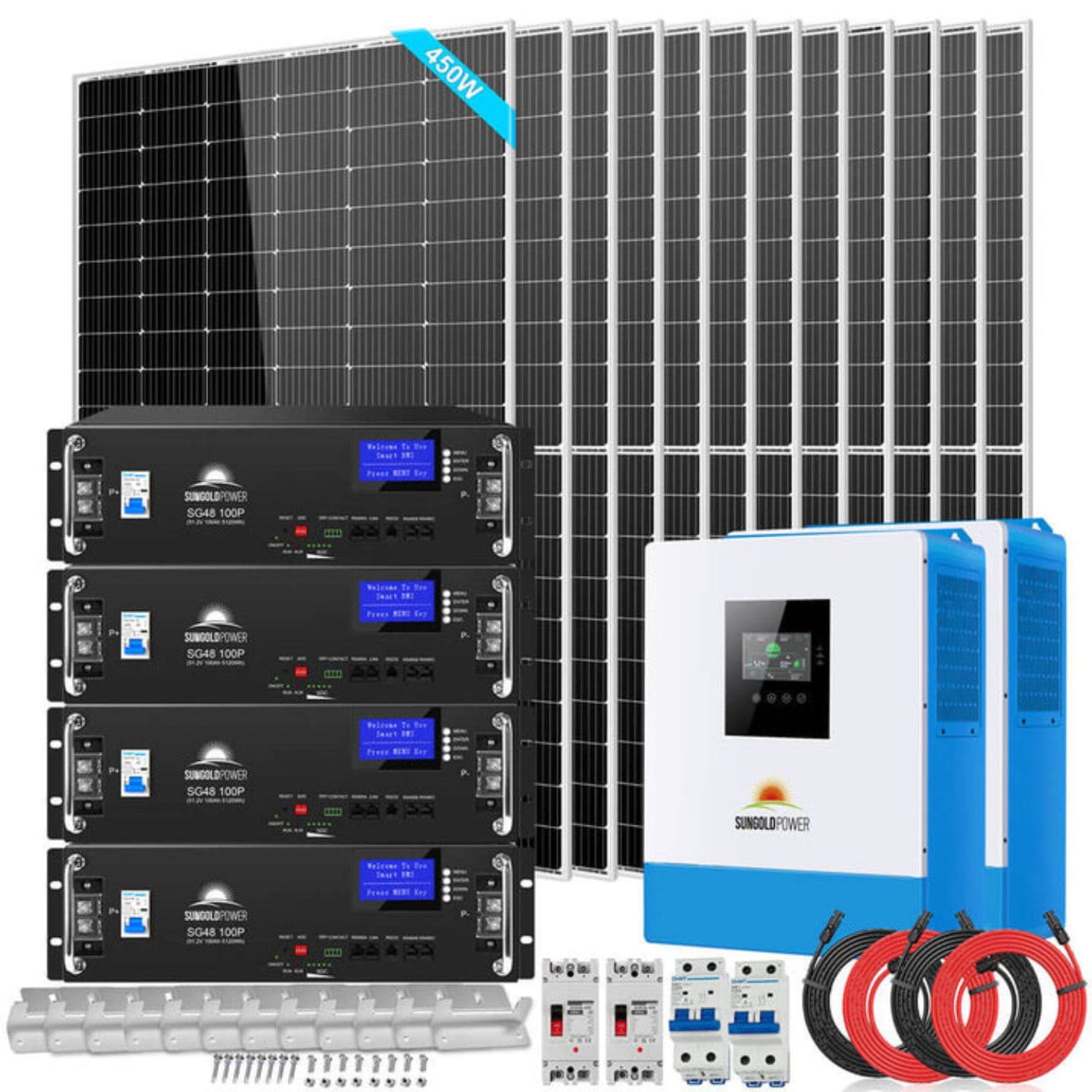

What's Included
- 2 x 5000W 48V DC 120V/240V Output With Wifi Model Inverters
- 12 x 450W Monocrystalline Solar Panels
- 4 x 100Ah 51.2V LiFePO4 Batteries
- 2 Sets x 50 Feet Solar Extension Cables (Inverter PV Input)
- 12 x Sets of Mounting Z-Brackets
- 2 x 160A DC Breakers
- 2 x 25A PV Breakers
- 4 Sets x 4AWG Cables (Breaker to Battery or Inverter Connection)
- 1 Set x 250A Busbar
Rack-Mounted Storage for a 10kW Home
The SunGold Power 10kW 48VDC Off-Grid Solar Kit pairs two paralleled 5000W inverters with 5400W of mono PERC solar and 20.48kWh of certified server rack storage. At Outbound Power, we help customers lay out battery racks and size arrays for off-grid homes. If you have questions, our team is happy to help.
SunGold Power 10kW 48VDC Off-Grid Solar Kit (SGR-10K2M) Specifications
|
| Kit Summary |
| Kit Model |
SGR-10K2M |
| Inverters |
2 x 5000W 48V Wi-Fi model solar inverters in parallel (SPH5048P), 10000W total |
| Battery Bank |
4 x SG48100P 51.2V 100Ah server rack in parallel (20.48kWh) |
| Solar Array |
12 x 450W monocrystalline PERC panels, 2 strings of 6, one per inverter (5400W) |
| System Voltage |
48V DC |
| AC Output |
120V/240V split phase (two inverters in parallel) |
| Inverter Certificate |
UL1741 Listed by ETL |
| Battery Certificates |
UL1973/UL9540A/CE/UN38.3 |
| Solar Panel Certificates |
UL61730/CE/TUV |
| Inverters (SPH5048P, x2, values per unit) |
| Rated Output Power |
5000W |
| Peak Power |
10000VA |
| Rated Output Voltage |
120Vac (100/105/110Vac settable) |
| Loaded Motor Capacity |
4HP |
| Parallel Capability |
Up to 6 units (30kW); split phase or 208V three phase |
| Rated Battery Input Voltage |
48V (minimum start voltage 44V) |
| Battery Voltage Range |
40.0Vdc-60Vdc |
| Max PV Array Power |
5500W |
| Max PV Open-Circuit Voltage |
500Vdc |
| PV Operating Voltage Range |
120-500Vdc |
| MPPT Voltage Range |
120-450Vdc |
| PV Charging Current |
100A |
| AC Charger |
0-40A |
| Hybrid Max Charge Current |
100A |
| AC Input |
110/120Vac, range 90Vac-140Vac |
| Bypass Breaker |
63A |
| Conversion Time |
10ms (typical) |
| Max Efficiency |
92% |
| Idle Consumption |
20-25W (power saving mode), 45-50W (power saving off) |
| Communication |
USB / RS485 (Wi-Fi/GPRS) / dry contact |
| Operating Temperature |
14°F to 131°F (-10°C to 55°C) |
| Dimensions |
17.3 x 13.8 x 5.1 inch |
| Weight |
28.66 lbs |
| Batteries (SG48100P, x4) |
| Nominal Voltage |
51.2V |
| Rated Capacity |
100Ah |
| Energy |
5.12kWh each |
| Standard Charge / Discharge Current |
50A / 50A |
| Max Continuous Charge / Discharge Current |
100A / 100A |
| Cycle Life |
≥7000 (80% DOD) |
| Design Life |
15 years |
| Parallel |
Up to 63 batteries |
| Communication |
RS232 / RS485 / CAN |
| Working Temperature |
Charging 32°F-113°F, discharging -4°F-140°F |
| IP Rating |
IP20 |
| Format |
3U server rack |
| Dimensions |
19.3 x 18.9 x 5.5 inch |
| Weight |
Around 93lb |
| Solar Panels (SG450WM, x12) |
| Peak Power |
450W |
| Max Power Voltage (Vmp) |
34.2V |
| Max Power Current (Imp) |
13.16A |
| Open Circuit Voltage (Voc) |
41.72V |
| Short Circuit Current (Isc) |
13.82A |
| Module Efficiency |
20.79% |
| Cells |
120 (6 x 20) PERC monocrystalline |
| Max System Voltage |
1500V |
| Wind Resistance |
2400Pa |
| Junction Box |
IP68 |
| Operating Temperature |
-40°F to 185°F (-40°C to +85°C) |
| Dimensions |
75.2 x 44.7 x 1.4 inch |
| Weight |
49.2lbs |
