The SunGold Power 10kW 48VDC Off-Grid Solar Kit Puts 6600W of Solar Behind a 10000W Inverter With Four Battery Choices Up to 32.14kWh

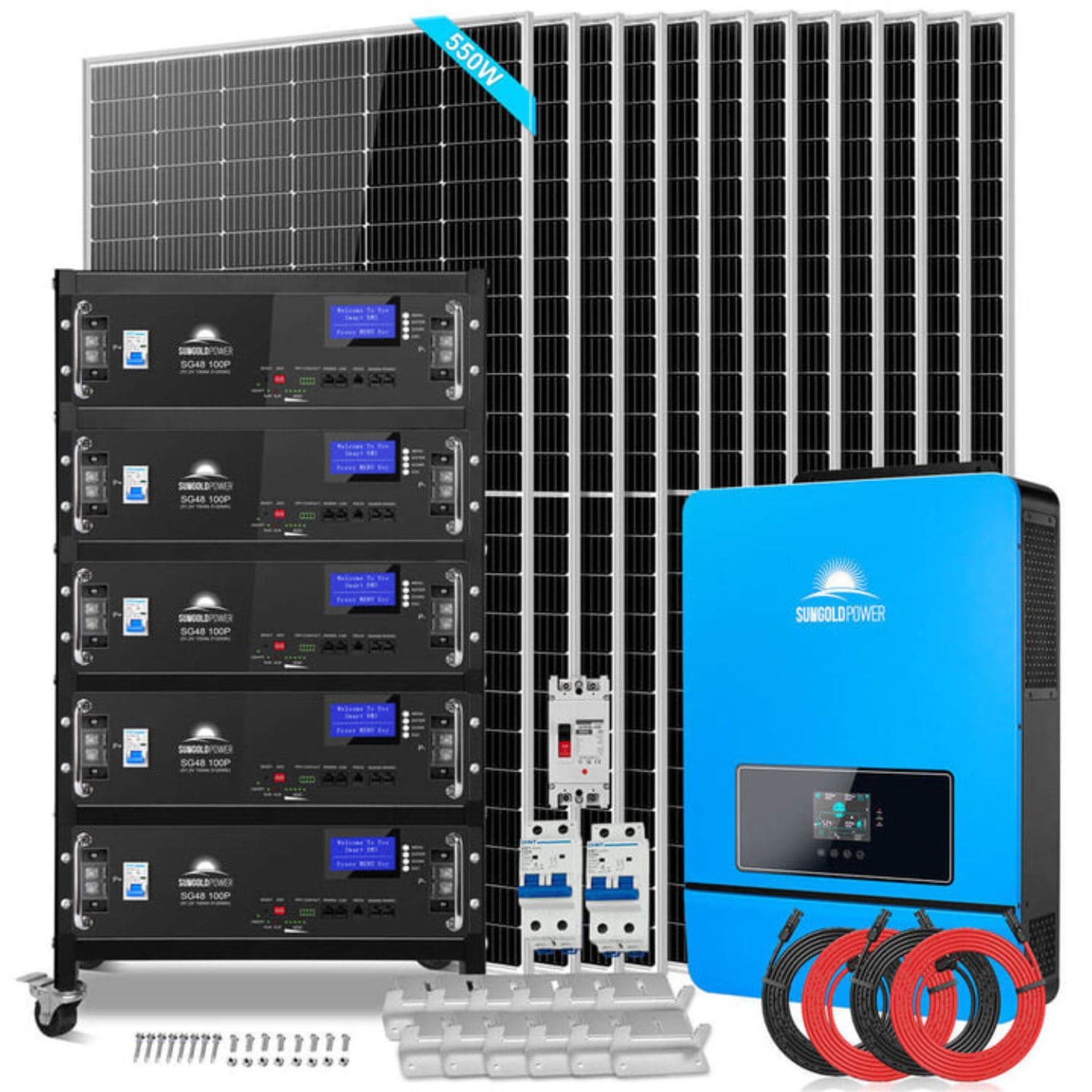

The SunGold Power 10kW 48VDC Off-Grid Solar Kit (SGR-10K25S family) combines a 10000W 48V split phase solar inverter with twelve 550W monocrystalline panels for 6600W of solar. You choose the storage: five server rack batteries in an enclosed cabinet (standard or self-heating, 25.6kWh), two wall-mount batteries (20.48kWh) or two outdoor batteries (32.14kWh).
SunGold estimates the array produces up to 25.6kWh per day with 4 hours of sunlight. The system is built for high-demand loads such as an air conditioner, well pump, refrigerator, power tools and office equipment.
SunGold Power 10kW 48VDC Off-Grid Solar Kit Features
10000W of Split Phase Power

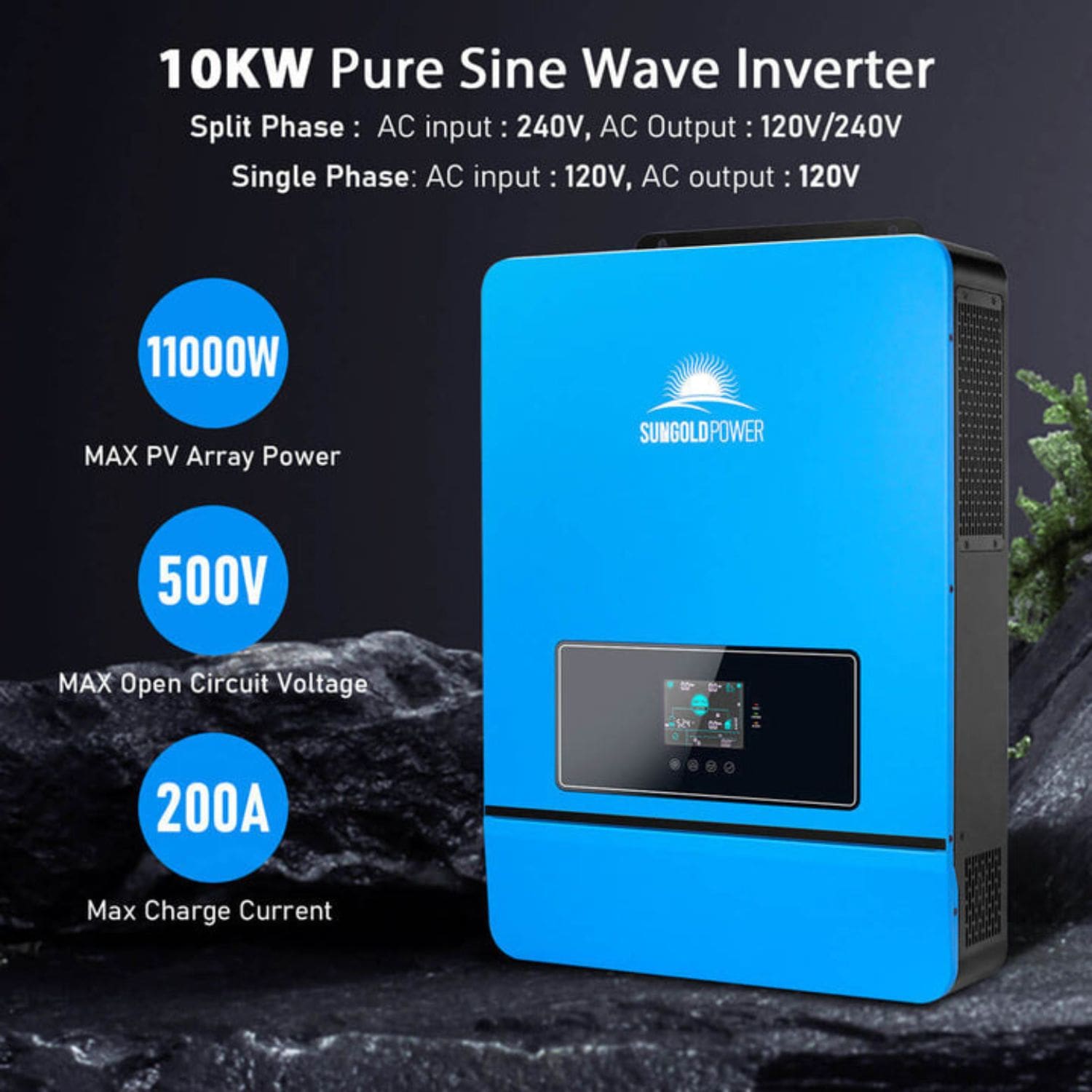

The SPH10048P delivers 10000W rated and 20000W peak with a 6HP loaded motor capacity, at 120/240V split phase or 120V single phase. It is UL 1741 listed by ETL for off-grid solar systems.
6600W From Twelve 550W Panels

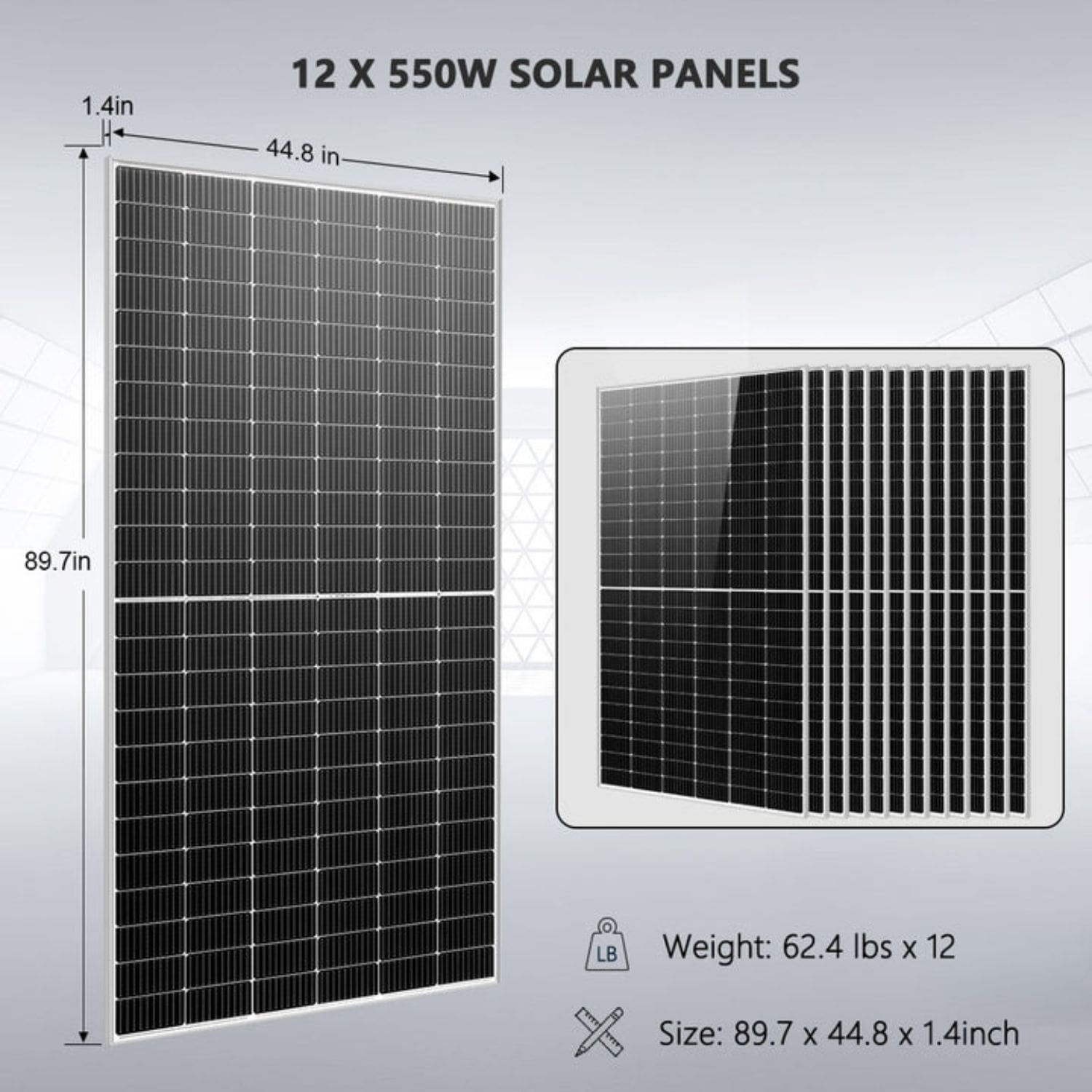

The SG550WM panels run as two strings of six, one per MPPT input, each with its own 25A PV breaker. The inverter accepts up to 11000W of PV, so there is room to add panels.
Five SG48100P Batteries in an Enclosed Cabinet
The SGR-10K25S option stores 25.6kWh in five 5.12kWh server rack batteries inside an enclosed battery cabinet. Each battery is rated for at least 7000 cycles.
Self-Heating SGH48100T Option for Cold Sites
The SGR-10K25T option uses five SGH48100T batteries in the same cabinet. Their heaters switch on between -13°F and 41°F and stop at 53.6°F, and the batteries can charge from 14°F.
Two SG48200T Wall or Floor Units
The SGR-10K20T option uses two 10.24kWh batteries for 20.48kWh, with 9.84kWh usable in each. They mount on a wall or stand on the floor and have touch-screen displays.
Two PowerMax 314 Outdoor Batteries
The SGR-10K32P option links two 16.07kWh PowerMax units with the included parallel cable for 32.14kWh. Their IP65 enclosures are rated for indoor and outdoor installation.
Up to 200A of Hybrid Charging
Solar charging reaches 200A and grid or generator charging reaches 120A, with a 200A hybrid maximum. A generator can top up the bank when solar falls short.
Real-World Applications
High-demand homes. Run an air conditioner, refrigerator and everyday 120V and 240V circuits.
Well pumps and shops. Use the 6HP motor rating for pumps and power tools.
Cold-climate properties. Pick the self-heating option for battery spaces that drop below freezing.
Outdoor battery placement. Choose the PowerMax option when indoor space is tight.
How It Compares to Common Alternatives
Versus the standard SG48100P option. The SGH48100T option holds the same 25.6kWh but adds self-heating, so it charges from 14°F instead of 32°F.
Versus the SG48200T option. Two wall units hold 20.48kWh, 5.12kWh less than the cabinet options, with fewer batteries to connect.
Versus the PowerMax option. Two outdoor-rated units raise storage to 32.14kWh and can sit outside, while the inverter stays indoors.
Is This Solar Kit the Right Fit
-
Indoor inverter. The inverter is IP20 and must be installed indoors.
-
Charging temperature. The SG48100P, SG48200T and PowerMax charge from 32°F; the self-heating SGH48100T charges from 14°F.
-
Battery weight. Each PowerMax weighs 271 pounds and each SG48200T weighs 198.4 pounds.
-
Separate arrays. The two PV inputs must stay independent of each other.
This may be a good fit if
- You run an air conditioner or well pump
- You want to choose your battery format
- Your winters are below freezing
- You plan to expand later
Common Questions
How Much Energy Will This Kit Produce?
SunGold estimates up to 25.6kWh per day with 4 hours of sunlight. Output varies with location, season and shading.
Can I Expand the System?
Yes. Add panels and batteries, or connect up to six identical inverters in 120V single phase, 240V split phase or 208V three phase, for up to 60kW.
Which Options Include a Battery Cabinet?
The SGR-10K25S and SGR-10K25T options each include one enclosed battery cabinet for their five batteries. The SG48200T and PowerMax options do not include one.
What's Included
5 x SG48100P (25.6kWh), SGR-10K25S
- 1 x 10000W 48Vdc 120/240Vac Inverter Up to 6 Units Parallel
- 12 x 550 Watt Monocrystalline Solar Panels
- 5 x 100Ah 51.2V LiFePO4 Battery SG48100P
- 1 x Enclosed Battery Cabinet (5 x 100Ah 51.2V LiFePO4 Batteries)
- 2 Sets x 50 Feet Solar Extension Cables (Inverter PV Input)
- 12 x Sets of Mounting Z-Brackets
- 1 x 300A DC Breaker
- 2 x 25A PV Breakers
- 2 x 2/0 AWG Cables (Breaker to Battery or Inverter Connection)
5 x SGH48100T Self-Heating (25.6kWh), SGR-10K25T
- 1 x 10000W 48Vdc 120/240Vac Inverter Up to 6 Units Parallel
- 12 x 550 Watt Monocrystalline Solar Panels
- 5 x 100Ah 51.2V LiFePO4 Battery Self-Heating SGH48100T
- 1 x Enclosed Battery Cabinet (5 x 100Ah 51.2V LiFePO4 Batteries)
- 2 Sets x 50 Feet Solar Extension Cables (Inverter PV Input)
- 12 x Sets of Mounting Z-Brackets
- 1 x 300A DC Breaker
- 2 x 25A PV Breakers
- 2 x 2/0 AWG Cables (Breaker to Battery or Inverter Connection)
2 x SG48200T (20.48kWh), SGR-10K20T
- 1 x 10000W 48Vdc 120/240Vac Inverter Up to 6 Units Parallel
- 12 x 550 Watt Monocrystalline Solar Panels
- 2 x 200Ah 51.2V LiFePO4 Battery SG48200T
- 2 Sets x 50 Feet Solar Extension Cables (Inverter PV Input)
- 12 x Sets of Mounting Z-Brackets
- 1 x 300A DC Breaker
- 2 x 25A PV Breakers
- 1 x 2/0 AWG Cable (Breaker to Inverter Connection)
2 x PowerMax 314 Outdoor (32.14kWh), SGR-10K32P
- 1 x 10000W 48Vdc 120/240Vac Inverter Up to 6 Units Parallel
- 12 x 550 Watt Monocrystalline Solar Panels
- 2 x PowerMax 51.2V 314Ah Outdoor Energy Storage Battery
- 2 Sets x 50 Feet Solar Extension Cables (Inverter PV Input)
- 1 x Battery Parallel Cable
- 12 x Sets of Mounting Z-Brackets
- 1 x 300A DC Breaker
- 2 x 25A PV Breakers
- 1 x 2/0 AWG Cable (Breaker to Inverter Connection)
Large-Array Power With the Storage You Choose
The SunGold Power 10kW 48VDC Off-Grid Solar Kit pairs 10000W of split phase output with 6600W of solar and 20.48kWh to 32.14kWh of lithium storage. At Outbound Power, we help customers compare battery options and size systems for demanding off-grid homes. If you have questions, our team is happy to help.
SunGold Power 10kW 48VDC Off-Grid Solar Kit (SGR-10K25S) Specifications
|
| Kit Summary |
| Kit Models |
SGR-10K25S / SGR-10K25T / SGR-10K20T / SGR-10K32P |
| Inverter |
1 x 10000W 48V split phase solar inverter (SPH10048P) |
| Battery Bank, SGR-10K25S |
5 x SG48100P 51.2V 100Ah in an enclosed battery cabinet (25.6kWh) |
| Battery Bank, SGR-10K25T |
5 x SGH48100T 51.2V 100Ah self-heating in an enclosed battery cabinet (25.6kWh) |
| Battery Bank, SGR-10K20T |
2 x SG48200T 51.2V 200Ah wall-mounted (20.48kWh) |
| Battery Bank, SGR-10K32P |
2 x PowerMax 314 Outdoor 51.2V 314Ah with parallel cable (32.14kWh) |
| Solar Array |
12 x 550W monocrystalline PERC panels, 2 strings of 6 (6600W) |
| Daily Output |
Up to 25.6kWh per day (4 hours of sunlight) |
| System Voltage |
48V DC |
| AC Output |
120/240Vac split phase or 120V single phase |
| Inverter Certificate |
UL 1741 by ETL for Off Grid Solar System |
| Battery Certificates |
SGR-10K25S: UL1973/UL9540A/CE/UN38.3; SGR-10K25T: UL1973; SGR-10K20T: UL1973/UL9540A; SGR-10K32P: UL1973/UL9540A |
| Solar Panel Certificates |
UL61730/CE/TUV |
| Inverter (SPH10048P) |
| Rated Output Power |
10000W |
| Max Peak Power |
20000W |
| Rated Output Voltage |
120/240Vac (split phase/single phase) |
| Load Capacity of Motors |
6HP |
| Switch Time |
10ms (typical) |
| Parallel Capacity |
Up to 6 units (60kW) |
| Rated Battery Voltage |
48Vdc (range 40-60Vdc) |
| Max MPPT Charging Current |
200A |
| Max Mains/Generator Charging Current |
120A |
| Max Hybrid Charging Current |
200A |
| MPP Trackers |
2 |
| Max PV Array Power |
11000W |
| Max PV Input Current |
22A / 22A |
| Max PV Open Circuit Voltage |
500Vdc |
| MPPT Voltage Range |
125-425Vdc |
| Bypass Overload Current |
63A |
| MPPT Tracking Efficiency |
99.9% |
| Max Battery Inverter Efficiency |
92% |
| Communication |
RS485 / CAN / USB / dry contact |
| Protection Degree |
IP20, indoor only |
| Dimensions |
17.9 x 26 x 5.1 inch |
| Weight |
54lb |

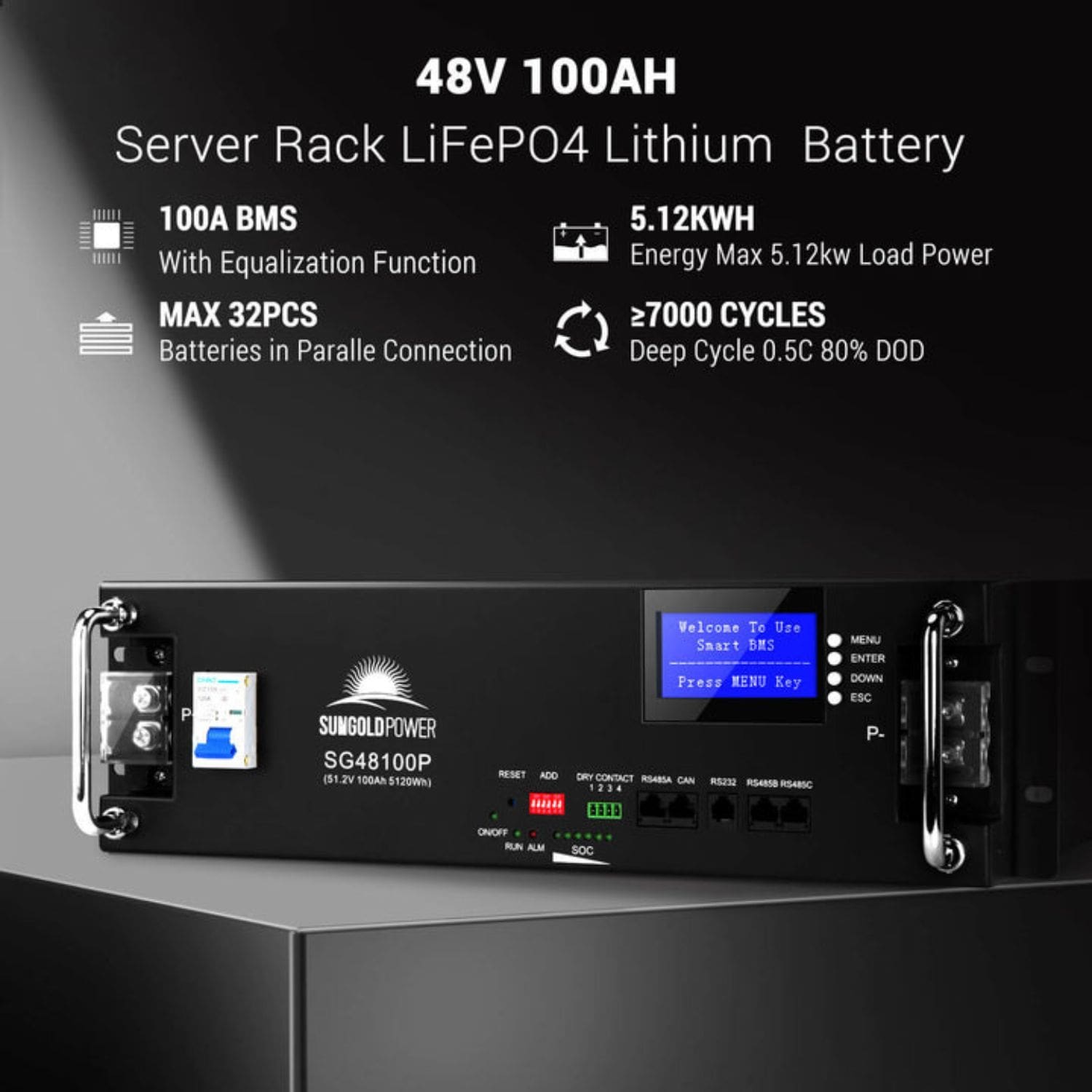

| Battery Option, SG48100P (x5, SGR-10K25S) |
| Nominal Voltage / Capacity |
51.2V / 100Ah |
| Energy |
5.12kWh each |
| Max Continuous Charge / Discharge Current |
100A / 100A |
| Cycle Life |
≥7000 (80% DOD) |
| Working Temperature |
Charging 32°F-113°F, discharging -4°F-140°F |
| Communication |
RS232 / RS485 / CAN |
| Dimensions |
19.3 x 18.9 x 5.5 inch |
| Weight |
Around 93lb |
| Battery Option, SGH48100T Self-Heating (x5, SGR-10K25T) |
| Nominal Voltage / Capacity |
51.2V / 100Ah |
| Nominal Energy |
5.12kWh each |
| Standard / Max Charge Current |
≤50A / 70A |
| Max Discharge Current |
100A |
| Operating Temperature |
Charge 14°F to 122°F, discharge -4°F to 122°F |
| Heating |
On at -13°F to 41°F (-25°C to 5°C), off at 53.6°F (12°C) |
| Parallel |
Up to 32 units |
| Communication |
RS485 / CAN |
| Dimensions |
19.3 x 17.3 x 5.2 inch (490 x 441 x 133mm) |
| Weight |
103lb (~47kg) |
| Battery Option, SG48200T (x2, SGR-10K20T) |
| Rated Voltage / Capacity |
51.2V / 200Ah |
| Nominal Energy |
10.24kWh each |
| Usable Energy |
9.84kWh each |
| Standard / Max Charge Current |
≤100A / 140A |
| Max Discharge Current |
200A |
| Operating Temperature |
Charge 32°F to 122°F, discharge 14°F to 122°F |
| Parallel |
Up to 32 units |
| Mounting |
Wall-mounted or ground |
| Dimensions |
21.1 x 37.2 x 6.8 inch (535 x 944 x 173mm) |
| Weight |
198.4lb (90kg) |
| Battery Option, PowerMax 314 Outdoor (x2, SGR-10K32P) |
| Rated Voltage / Capacity |
51.2V / 314Ah |
| Rated Energy |
16.07kWh each |
| Usable Energy |
15.42kWh each |
| Max Continuous Discharge Rate |
7.68kW each |
| Standard / Max Charge-Discharge Current |
150A / 190A |
| Life Cycle |
8000 cycles (80% DOD, 0.5C, 25°C) |
| Charging / Discharging Temperature |
32-131°F / 14-131°F |
| Parallel |
Up to 16 units |
| Enclosure Rating |
IP65, indoor and outdoor |
| Dimensions |
41.26 x 18.11 x 10.67 inch (1048 x 460 x 271mm) |
| Weight |
271lb (123kg) |
| Solar Panels (SG550WM, x12) |
| Peak Power |
550W |
| Max Power Voltage (Vmp) |
41.00V |
| Max Power Current (Imp) |
13.45A |
| Open Circuit Voltage (Voc) |
49.70V |
| Short Circuit Current (Isc) |
14.03A |
| Module Efficiency |
21.3% |
| Cells |
144 (6 x 24) PERC monocrystalline |
| Max System Voltage |
1500V |
| Junction Box |
IP68 |
| Dimensions |
89.7 x 44.7 x 1.4 inch |
| Weight |
62.4lbs (28.3kg) |
