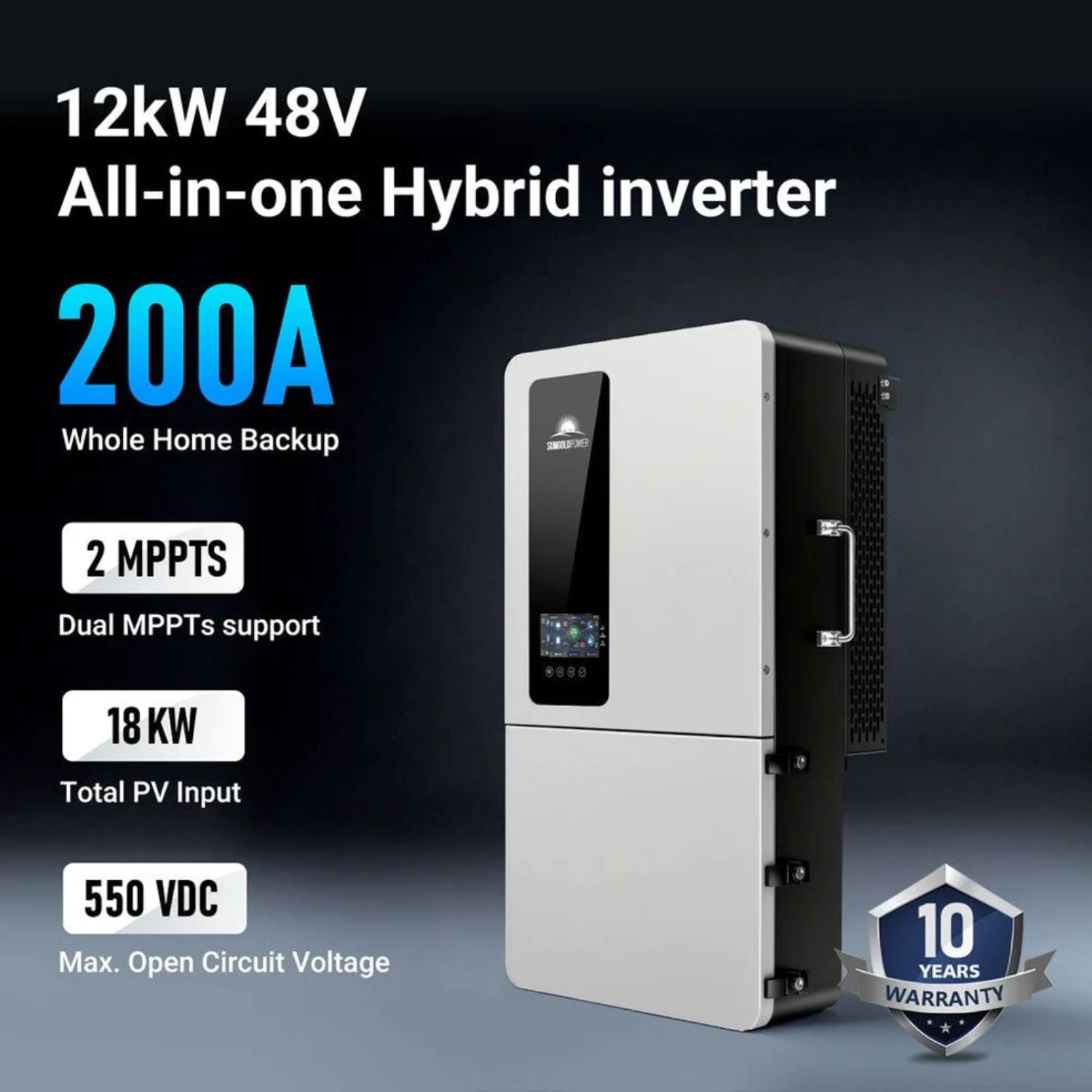

The SunGold Power 12KW 48V All-In-One Hybrid Solar Inverter Delivers 12000W With 200A Grid Pass-Through and Two 9000W Solar Inputs

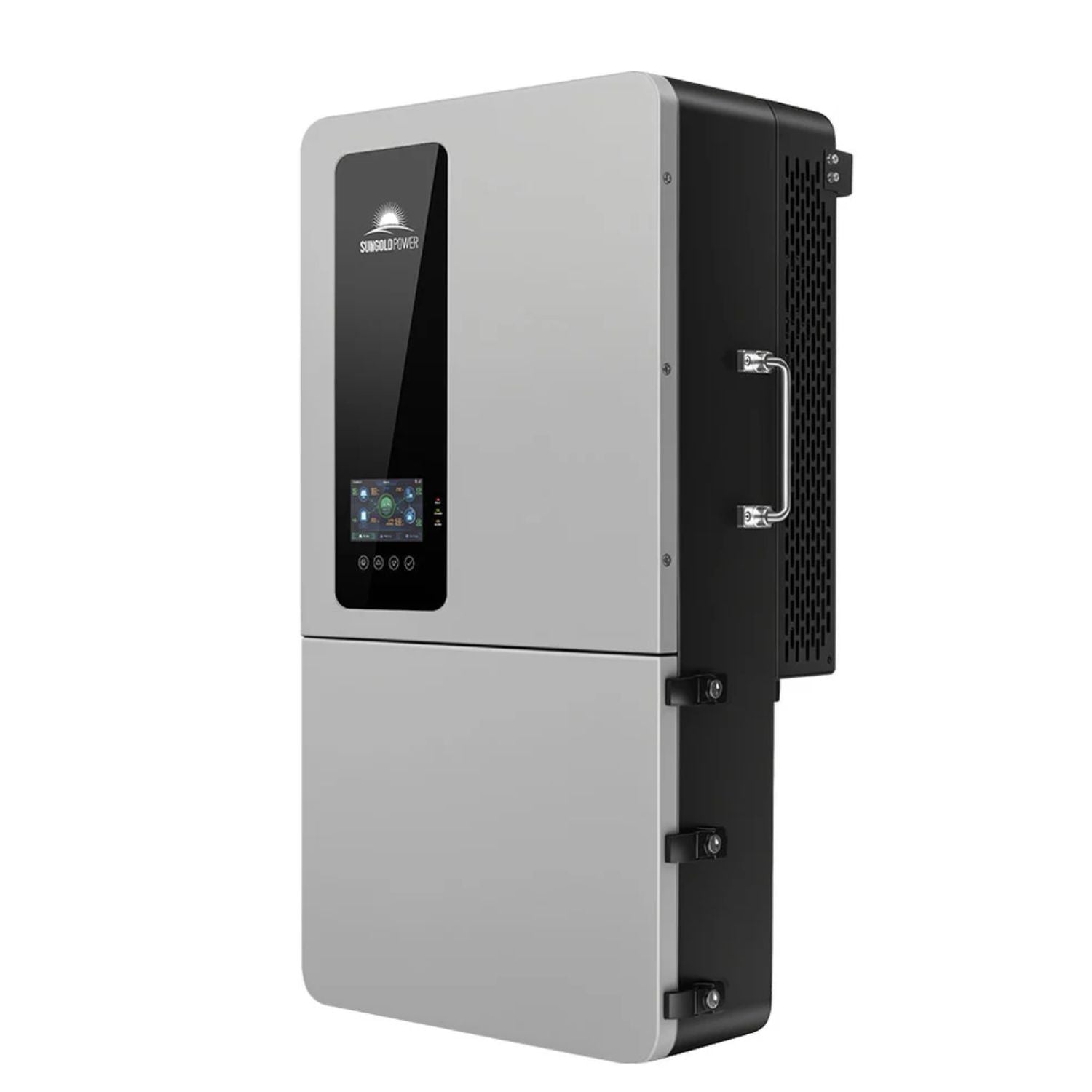

The SunGold Power 12KW 48V All-In-One Hybrid Solar Inverter (model SGS-12K18MAX) is a grid-interactive hybrid inverter built for whole-home backup. It supplies 12000W at 240V split phase, passes up to 200A of grid current through to your home, and accepts up to 18kW of solar on two MPPT inputs. It works in off-grid, grid-tied and hybrid systems.
It runs on a 48V lithium-ion or lead-acid battery with up to 240A of hybrid charging. An IP65 enclosure allows indoor or outdoor mounting, and up to six units can be paralleled for split phase or three-phase systems. It suits homeowners who want solar savings, exports where allowed, and backup in one unit.
SunGold Power 12KW 48V All-In-One Hybrid Solar Inverter Features
12000W at 240V With a 1.5x Peak
Rated output is 12000W at 240V split phase and 10400W at 208V three-phase, with a peak of 1.5 times rated power for 10 seconds and a 6HP motor load rating. Output phase voltage can be set to 100, 105, 110, 115, 120 or 127V.
Two 9000W MPPT Inputs
Each of the two MPPT inputs accepts up to 9000W, 550Vdc open circuit and 32A, with a 125-450Vdc MPPT range and 99.9% tracking efficiency. Together they handle 18kW of PV.
200A Grid and Generator Charging

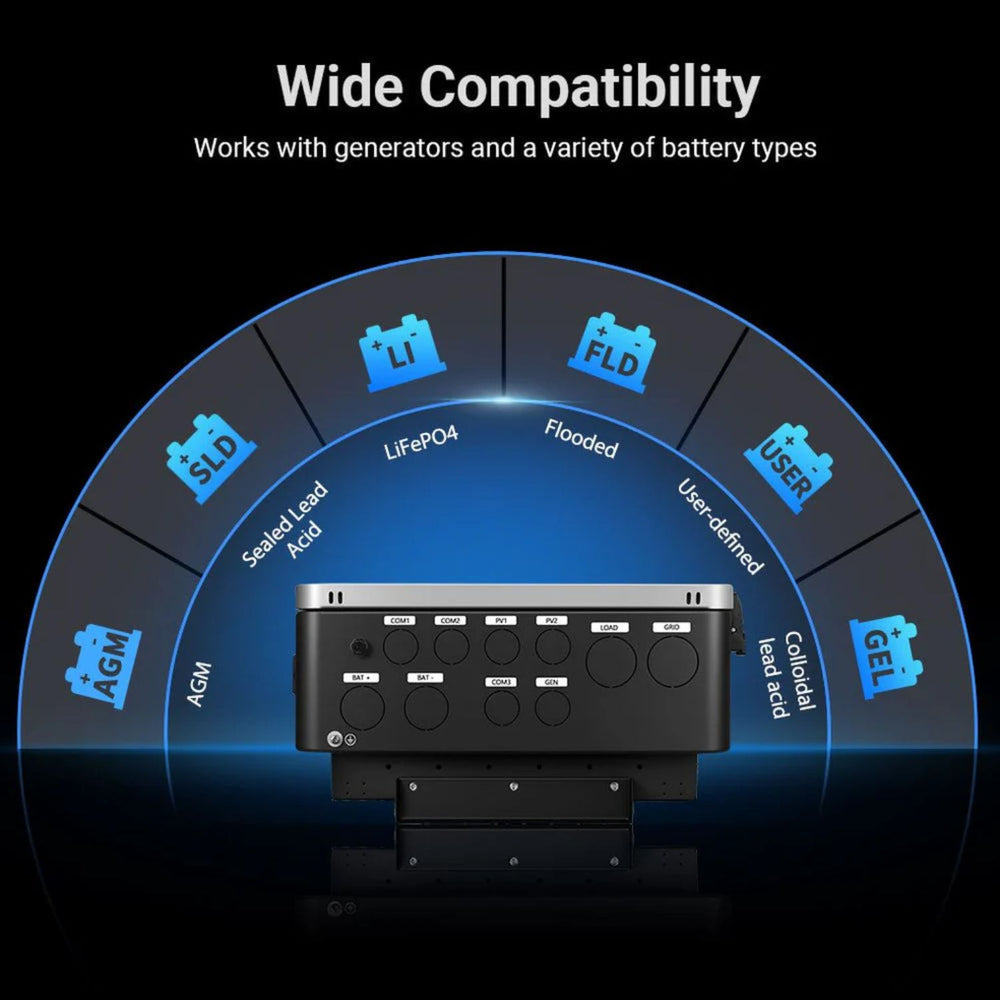

The battery can charge at up to 200A from the grid or a generator, and up to 240A in hybrid charging. The 48V battery port works from 40 to 60Vdc with lithium-ion, lead-acid or user-defined settings, and grid or PV power can wake a dormant lithium battery.
200A Continuous Grid Pass-Through
A 200A continuous grid pass-through rating lets the inverter sit between the utility and your home for whole-home backup. Two included CTs let it track home loads on the grid side as well as the backed-up loads on its load port.

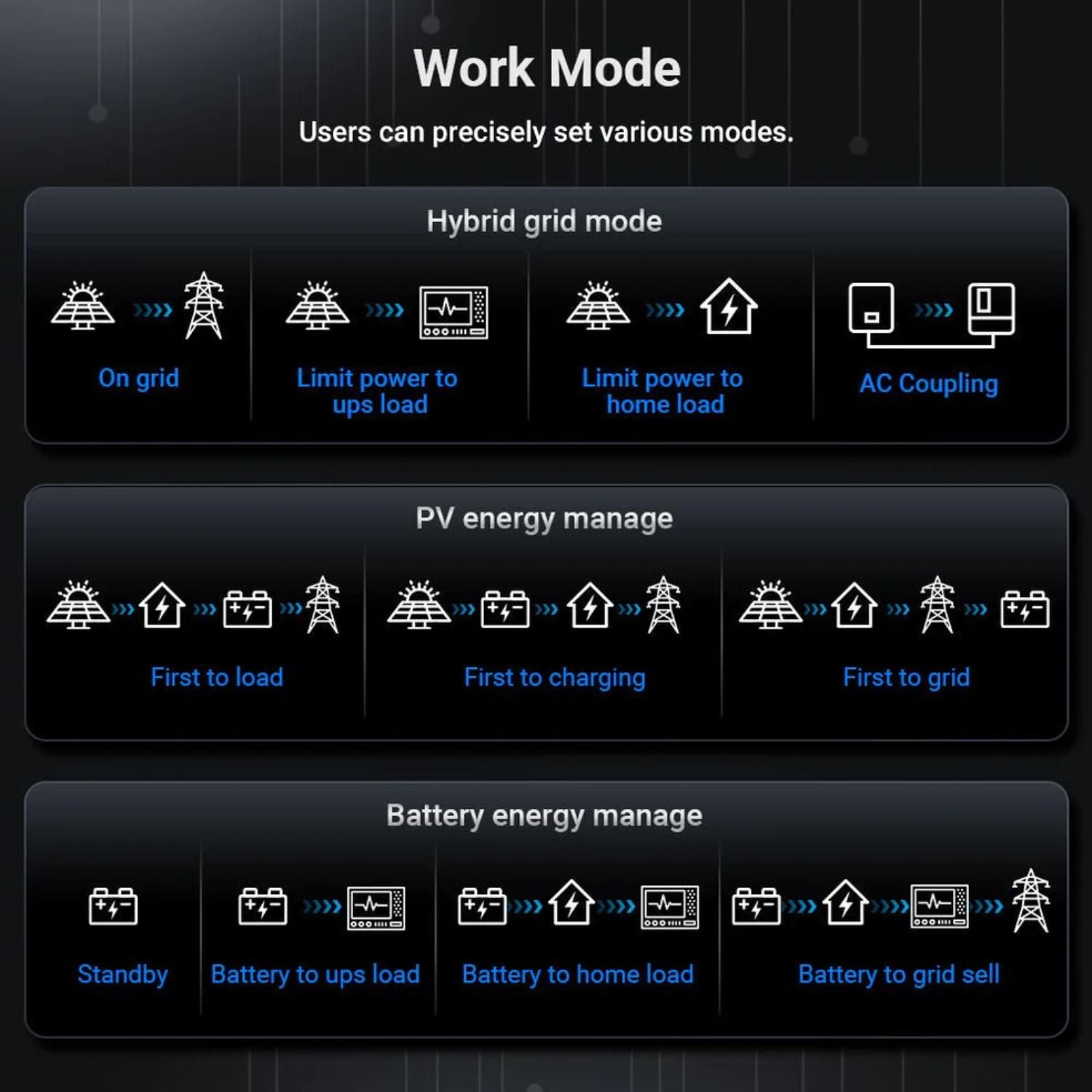

Flexible Grid and Battery Settings
Hybrid grid mode can sell PV energy to the grid, limit power to the backed-up loads or the whole home, or work with an AC-coupled on-grid inverter. You can set PV to go first to load, charging or grid, choose how the battery discharges, and use time-based peak shaving.
Generator, Micro Inverter or Smart Load Port
The generator port defaults to generator input and can be set for micro inverter input or a smart load. When a generator runs, the inverter reduces charging power to keep the generator from overloading.

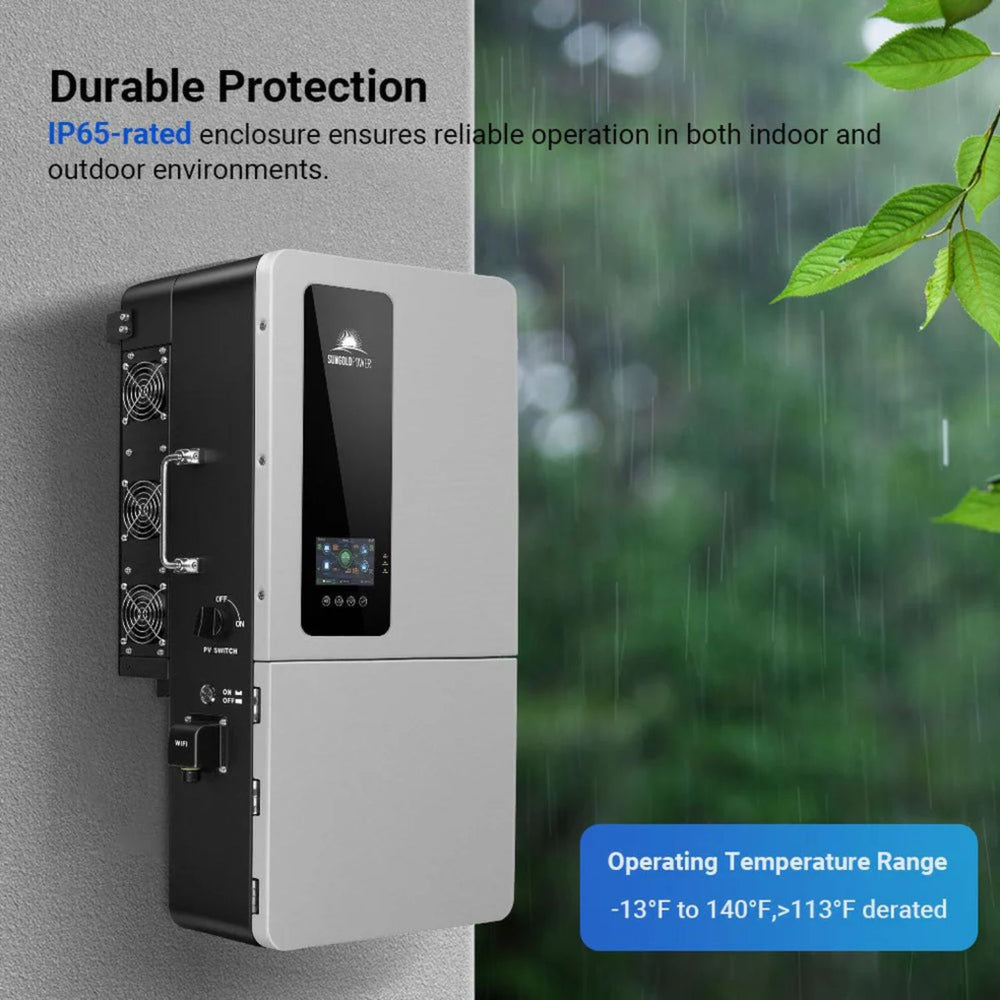

IP65 Enclosure and Built-In Safeguards
The IP65 enclosure is rated for outdoor use from -13°F to 140°F. Protection includes reverse polarity, output over-voltage, over-current, ground fault monitoring and DC arc-fault circuit protection, with optional PV arc detection and leakage protection settings.

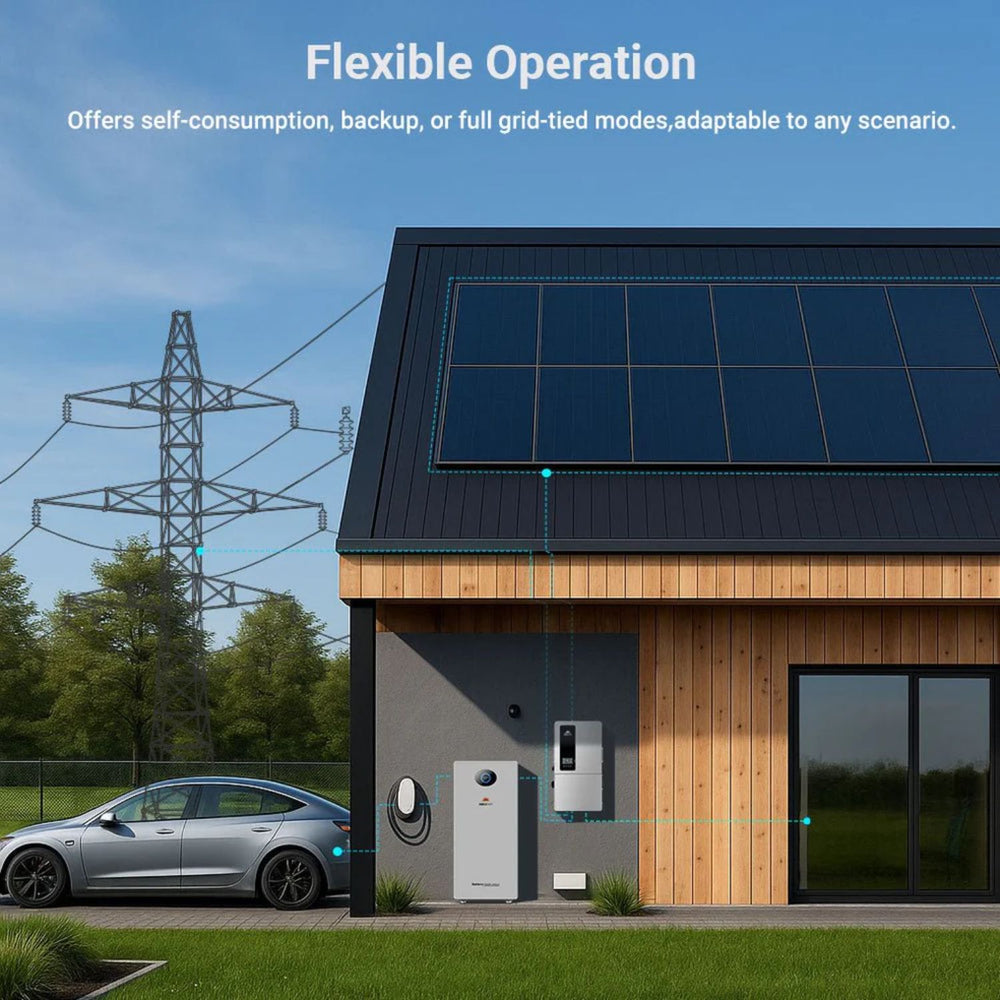

Real-World Applications
Whole-home backup. Pass utility power through to the home and switch to battery and solar when the grid fails.
Grid-tied homes that export. Sell surplus PV to the grid, or limit exports to match utility rules.
Time-of-use rate plans. Use peak shaving to run on the battery when rates are high and charge when rates are low.
Homes with microinverters. Connect existing micro inverters to the generator port.
208V three-phase sites. Combine units for 120/208V three-phase output.
How It Compares to Common Alternatives
Versus SunGold's 12KW off-grid inverter. SunGold's 12KW off-grid model is an indoor unit for stand-alone systems. This hybrid adds grid-interactive certifications, 200A grid pass-through and an IP65 enclosure for outdoor mounting.
Versus the 8K and 10K models in this series. SunGold builds this series in 8kW, 10kW and 12kW versions. The 12KW is rated for 270A of battery current, against 240A for the 8K and 10K models.
Versus separate components. One unit replaces an inverter, two charge controllers, a battery charger and a transfer switch, with one screen and one settings menu.
Is This Hybrid Inverter the Right Fit
-
Battery. Requires a 48V lithium-ion or lead-acid battery within 40-60Vdc. The manual calls for 70mm² (00 AWG) battery cable.
-
Solar array. Two independent arrays, each up to 9000W, 550Vdc and 32A.
-
Service wiring. Grid wiring uses 70mm² (00 AWG) cable with a 2P-200A breaker, and the generator input uses 3 AWG with a 2P-100A breaker.
-
Location. Outdoor rated, but SunGold recommends a cool, ventilated spot out of direct sunlight, such as under the eaves.
-
Size and weight. 33.07 x 17.32 x 10.24 inches and 105.82 lbs.
This may be a good fit if
- You want whole-home backup with grid export
- Your home has 200A service
- You run a 48V lithium or lead-acid battery
- You need UL 1741 and IEEE 1547.1 listing
Common Questions
Can It Sell Power Back to the Grid?
Yes. In the on grid setting, PV energy can be exported. You can also limit output to the backed-up loads or the whole home so that no electricity is sold.
Can I Add It to a Home With Microinverters?
Yes. The generator port can be set to micro inverter input, and the AC coupling mode connects an on-grid inverter to the hybrid.
Does It Support Three-Phase Power?
Yes. Two inverters can form an unbalanced three-phase output, and three or six inverters form a balanced 120/208V three-phase system.
Which Certifications Does It Carry?
It carries UL1741, IEEE1547.1-2020, CEC Rule 21, HECO and CEC Listed certifications. Its safety standards also include UL1699B DC arc-fault protection and CSA C22.2 #107.1.

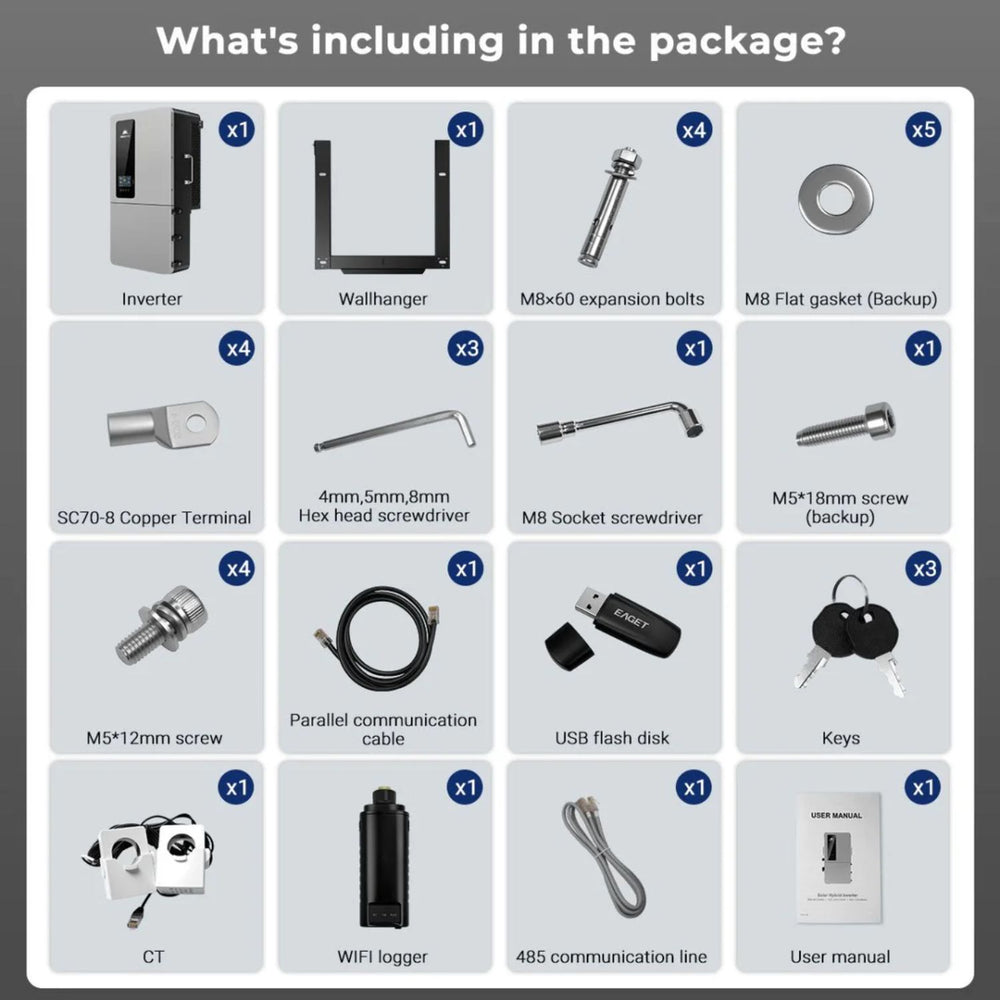

What's Included
- 1 x SunGold Power 12KW 48V All-In-One Hybrid Solar Inverter (SGS-12K18MAX)
- 1 x Wall Hanger
- 4 x SC70-8 Copper Terminals
- 4 x M5*12mm Screws
- 1 x M5*18mm Screw (Backup)
- 4 x M8×60 Expansion Bolts
- 5 x M8 Flat Gaskets (Backup)
- 2 x CT
- 1 x Parallel Communication Cable
- 1 x WiFi Logger
- 1 x 485 Communication Line
- 1 x M8 Socket Screwdriver
- 3 x Hex Head Screwdrivers (4mm, 5mm, 8mm)
- 3 x Keys
- 1 x USB Flash Disk
- 1 x User Manual
- 1 x Warranty Card
- 1 x Quality Certificate
- 1 x Outgoing Inspection Report
Whole-Home Backup With Grid Export Built In
The SunGold Power 12KW 48V All-In-One Hybrid Solar Inverter combines 12000W of split phase output, 18kW of solar input and 200A grid pass-through in one IP65 unit for 48V batteries. At Outbound Power, we help customers plan whole-home backup, grid-tied storage and solar arrays. If you have questions, our team is happy to help.
SunGold Power 12KW 48V All-In-One Hybrid Solar Inverter Specifications
|
| Model |
SGS-12K18MAX |
| Inverter Output |
| Rated Output Power |
12000W at 240V; 10400W at 208V |
| Max. Peak Power |
1.5 times rated power (10s) |
| Rated Output Voltage |
120/240Vac (split phase); 120/208V (three-phase) |
| Output Phase Voltage Settings |
100V, 105V, 110V, 115V, 120V, 127V |
| Load Motor Capacity |
6HP |
| Rated AC Frequency |
50/60Hz |
| Waveform |
Pure Sine Wave |
| Parallel Capacity |
Up to 6 units |
| Battery |
| Battery Type |
Li-ion / Lead-acid / User defined |
| Rated Battery Voltage |
48Vdc |
| Voltage Range |
40-60Vdc |
| Max. Grid Charging Current |
200A |
| Max. Generator Charging Current |
200A |
| Max. Hybrid Charging Current |
240A |
| PV Input |
| Number of MPPT Trackers |
2 |
| Max. PV Array Power |
9000W / 9000W |
| Max. Input Current |
32A / 32A |
| Short Circuit Current (Isc) |
40A / 40A |
| Max. Open Circuit Voltage |
550Vdc / 550Vdc |
| MPPT Voltage Range |
125-450Vdc / 125-450Vdc |
| MPPT Tracking Efficiency |
99.9% |
| Grid / Generator Input |
| Input Voltage Range |
90-140Vac |
| Frequency Range |
50/60Hz |
| Continuous Grid Pass-Through Current |
200A |
| Protection |
| Integrated |
Reverse polarity protection, DC switch rating for each MPPT, output over-voltage protection varistor, output over-current protection, ground fault monitoring, grid monitoring |
| Interface |
| Communication Ports |
RS485 / CAN / USB / Dry contact |
| External Modules (Optional) |
Wi-Fi / GPRS |
| General Data |
| Dimensions |
33.07 x 17.32 x 10.24 in (840 x 440 x 260 mm) |
| Weight |
105.82 lbs (48 kg) |
| Protection Degree |
IP65 |
| Operating Temperature Range |
-13°F to 140°F, derated above 113°F (-25 to 60°C, derated above 45°C) |
| Noise |
<60dB |
| Self-Consumption |
<100W |
| Cooling Method |
Heat sink + intelligent fan cooling |
| Warranty |
10 years |
| Certified Specifications |
| Certificates |
UL1741 & IEEE1547.1-2020, CEC Rule 21, HECO, CEC Listed |
| Safety Standards |
UL 1741 SB, DC Arc-Fault Circuit Protection, UL1699B:2018, CSA C22.2 #107.1, California Rule 21, IEEE1547:2018, IEEE 1547.1:2020, Hawaiian HECO SRD-IEEE-1547.1:2020 Ed.2.0 |
| EMC |
UL / FCC 15 Class B |
| RoHS |
Yes |
