The SunGold Power 12KW Hybrid Inverter and PowerMax ESS Bundle Gives Your Home 200A Whole-Home Backup With 16.07kWh to 96.42kWh of Outdoor-Rated Storage
This energy storage bundle pairs the SGS-12K18MAX 12KW 48V all-in-one hybrid inverter with PowerMax 314 Outdoor 51.2V 314Ah LiFePO4 batteries. Choose one inverter with one, two or three batteries, or two inverters with four or six batteries, for 16.07kWh to 96.42kWh of storage.
It is built for whole-home backup, solar self-consumption and energy independence. The inverter supports up to 18kW of PV input, a 200A grid pass-through and grid-tied, off-grid and backup operation, and both the inverter and the batteries carry an IP65 rating for indoor or outdoor installation.
SunGold Power 12KW Hybrid Inverter and PowerMax ESS Bundle Features

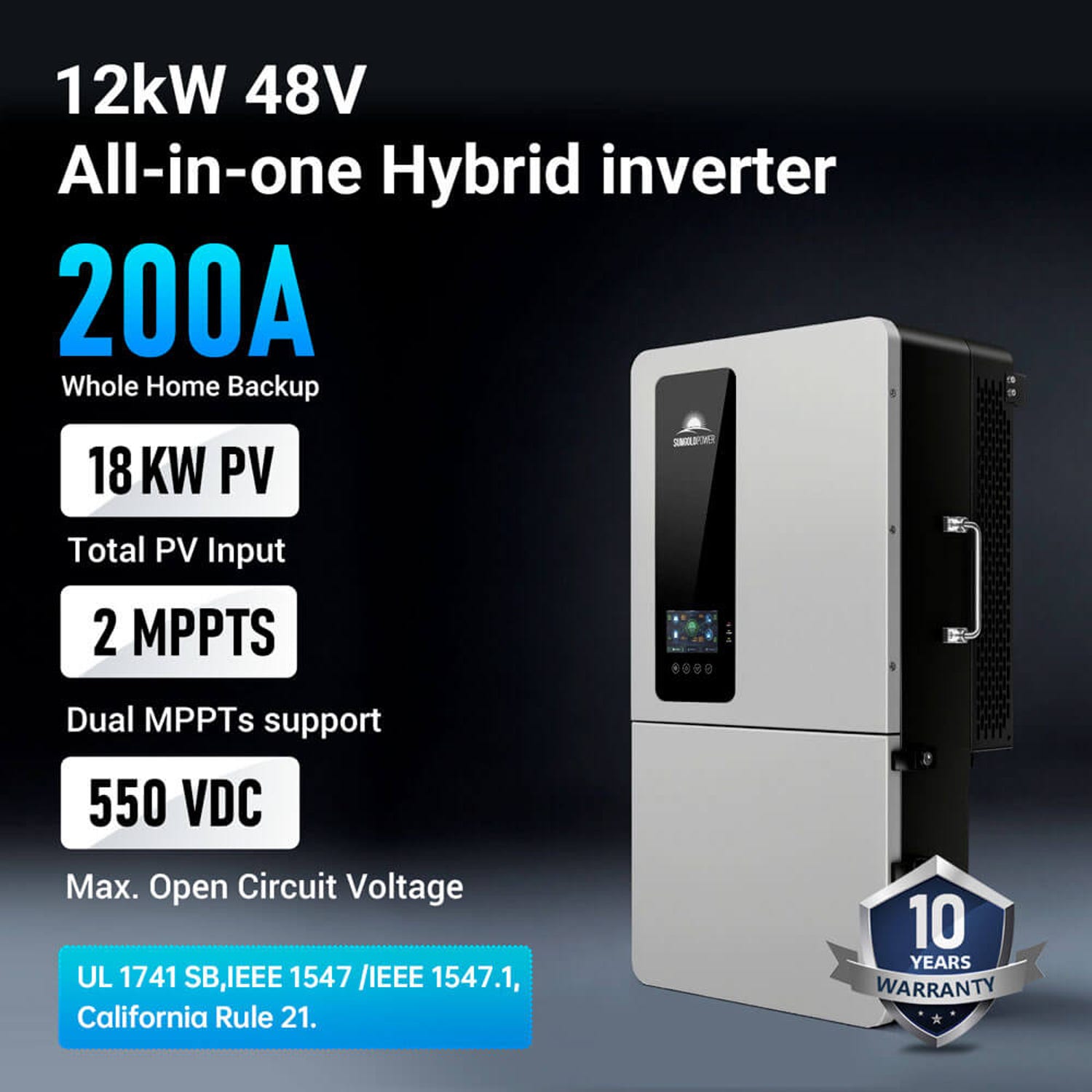

12000W Split-Phase Output With 200A Whole-Home Pass-Through
Each SGS-12K18MAX delivers 12000W at 240V split-phase, or 10400W at 120/208V three-phase, with a peak of 1.5 times rated power for 10 seconds and a 6HP motor load rating. The 200A continuous grid pass-through lets the system sit in line with your whole home and keep critical loads powered when the grid goes down.
Up to 18kW of Solar on Two MPPTs
Two MPPT trackers each take up to 9000W of PV array power and 32A of input current, for 18kW per inverter. The MPPT range is 125-450Vdc with a 550Vdc maximum open-circuit voltage, and SunGold rates tracking efficiency at 99.9%.
Grid-Tied, Zero-Export or Off-Grid Operation
You can sell surplus solar to the grid, limit power to your backed-up loads with no export, or run fully off-grid. The inverter also supports AC coupling with an existing on-grid inverter, and timed charge and discharge for peak shaving under time-of-use rates. Grid profiles include California Rule 21, HECO for Hawaii, and UL 1741 with IEEE 1547.1 for the rest of the United States.

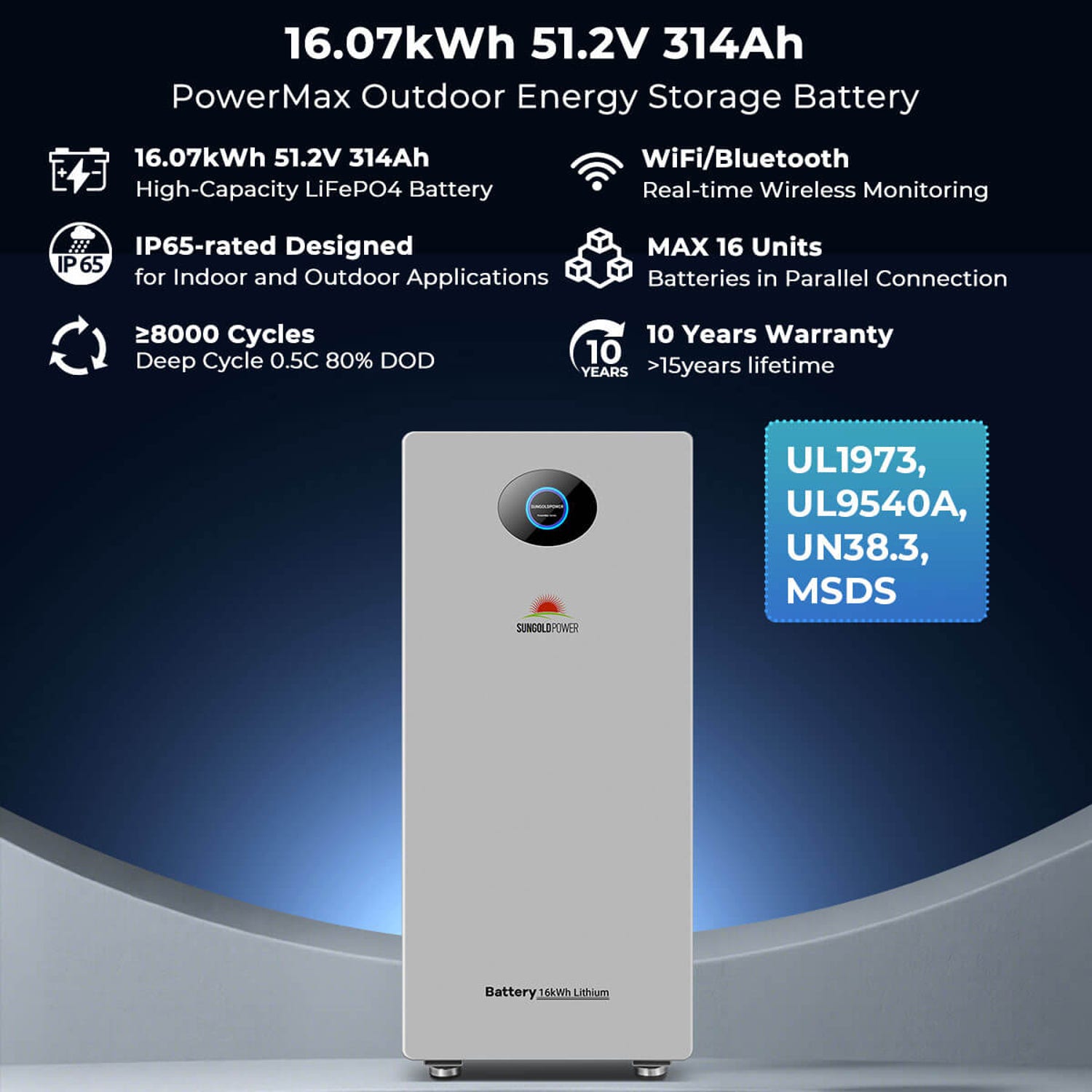

16.07kWh PowerMax Outdoor Batteries
Each PowerMax 314 Outdoor battery stores 16.07kWh, with 15.42kWh usable and more than 96% depth of discharge. It delivers 7.68kW of continuous power, with 150A standard and 190A maximum charge and discharge current. SunGold rates it for 8000 cycles at 80% DOD, 0.5C and 25°C.
Built for Indoor or Outdoor Installation
The inverter and the battery are both IP65 rated against dust and water. The inverter operates from -13°F to 140°F, derated above 113°F, and the battery discharges from 14°F to 131°F and charges from 32°F to 131°F.
Direct Inverter and Battery Communication
The SGS-12K18MAX and PowerMax batteries communicate directly over RS485 and CAN for coordinated, real-time energy management. Each battery has a touch screen, a built-in breaker, and WiFi and Bluetooth for app monitoring.

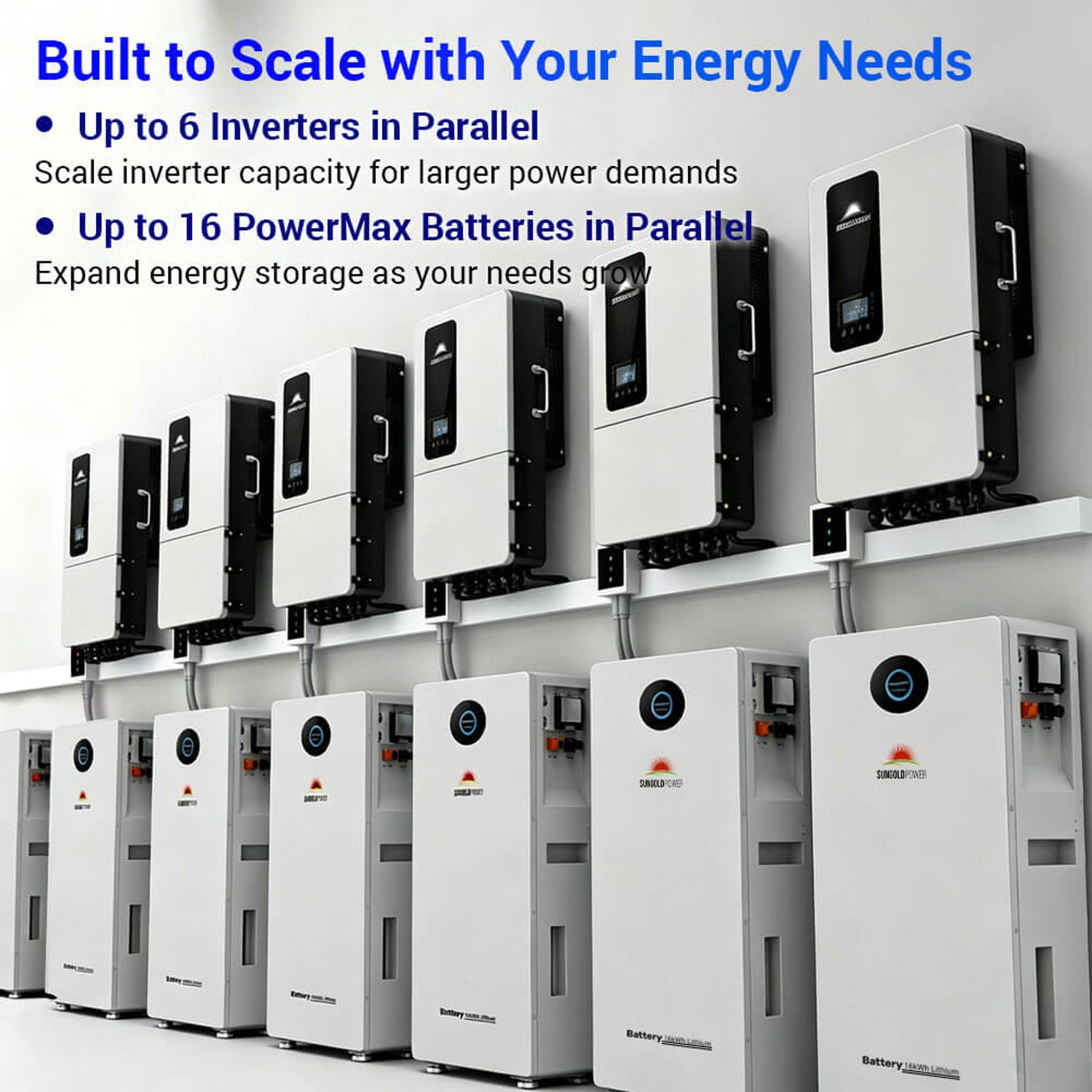

Room to Expand
Up to 6 inverters can run in parallel, scaling output to 72kW, and up to 16 PowerMax batteries can be connected in parallel. Start with the size you need now and add capacity later.
Real-World Applications
Whole-home backup. Keep refrigerators, lights, fans and air conditioners running during outages through the 200A pass-through.
Solar self-consumption. Store daytime solar and use it in the evening instead of buying grid power.
Time-of-use savings. Charge when grid power is cheap and discharge during peak-rate hours.
Off-grid homes and farms. Run a property on solar and batteries, with a generator input for backup charging.

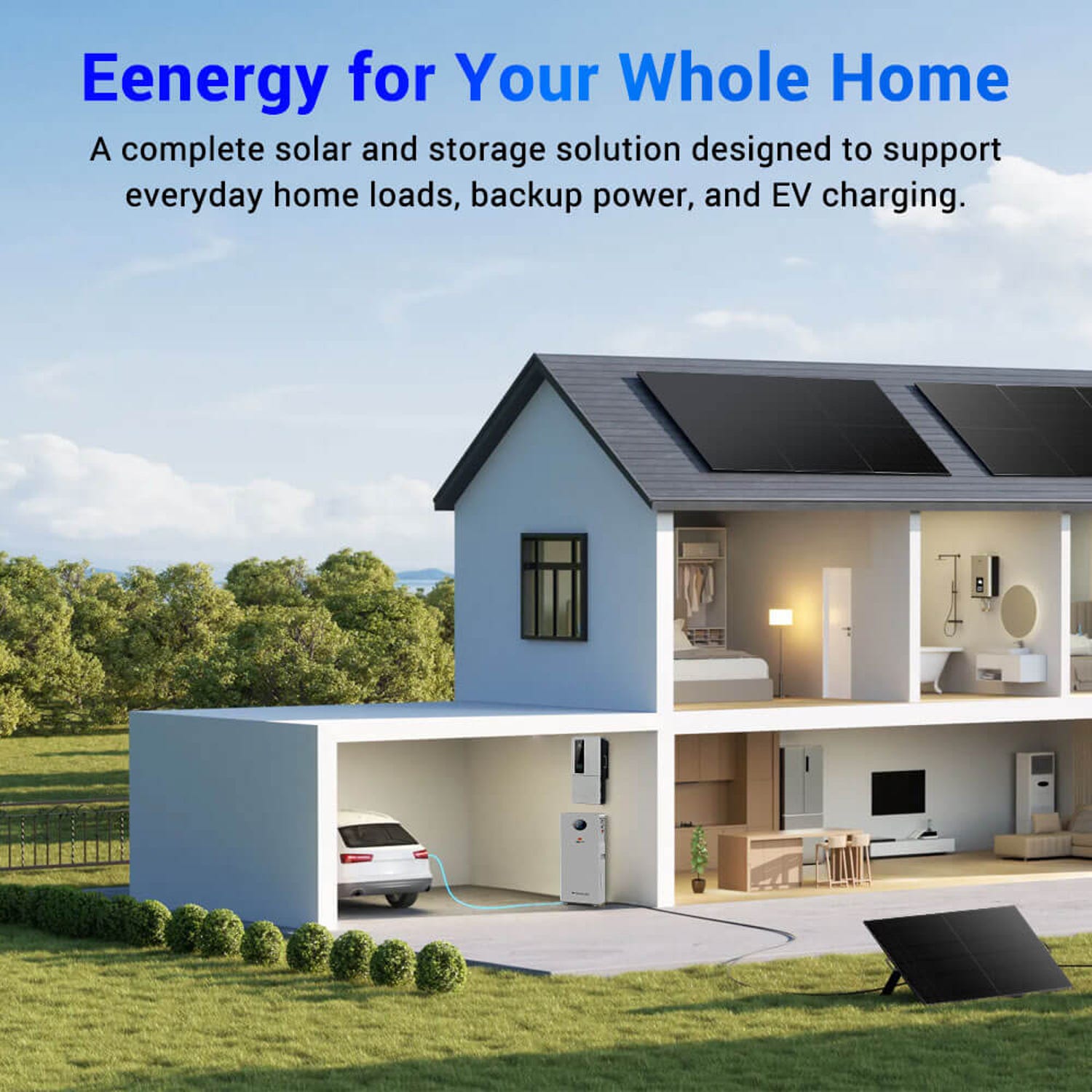

EV charging at home. Support everyday home loads, backup power and EV charging from one system.
Practical Comparison
SunGold Power 12KW ESS Bundle Versus Buying the Inverter Alone
The bundle pairs the inverter with batteries that are designed to communicate with it over RS485 and CAN. You get a matched system in one order instead of sourcing a compatible 48V battery separately.
SunGold Power 12KW ESS Bundle Versus Grid-Tied Solar Without Storage
A grid-tied system without batteries shuts down in an outage. This bundle stores solar energy, can still sell surplus power to the grid, and switches to battery power when the grid is lost.
One Inverter Versus Two Inverters
The single-inverter options deliver 12000W of output with up to three batteries. The two-inverter options run in parallel for twice the output and twice the solar input, with four or six batteries for larger homes.
Buyer Guidance
Sizing Your System
Choose the battery count from how many hours of backup you need, and the inverter count from your peak load. Each inverter needs its own PV strings within 550Vdc open-circuit voltage and 32A per MPPT. When several batteries run in parallel, SunGold calls for a bus bar, which is not listed in this bundle, so plan for it with your installer.
Installation and Weight
Each inverter weighs 105.82 lbs and measures 33.07 x 17.32 x 10.24 inches. Each battery weighs 271 lbs and measures 41.26 x 18.11 x 10.67 inches, so plan for freight delivery and help to place it. Installation should be done by a qualified electrician, with 00 AWG battery and AC cable and a 2P-200A grid breaker per inverter.
This May Be A Good Fit If
- You want whole-home backup with a 200A pass-through
- You plan to sell solar to the grid or run zero-export
- You need an outdoor-rated inverter and battery
- You may add batteries or inverters later
Common Questions
Can the System Be Installed Outdoors?
Yes. Both the SGS-12K18MAX inverter and the PowerMax 314 Outdoor battery are IP65 rated for indoor and outdoor use. Keep the inverter out of direct sunlight, for example under the eaves.
What Certifications Do the Inverter and Battery Have?
The inverter is listed to UL 1741 SB, UL 1699B DC arc-fault protection, CSA C22.2 No. 107.1, California Rule 21, IEEE 1547:2018, IEEE 1547.1:2020 and the Hawaiian HECO SRD. The batteries are certified to UL 1973 and tested to UL 9540A.
How Much Usable Energy Does Each Battery Hold?
Each PowerMax 314 Outdoor is rated 16.07kWh, with 15.42kWh of usable energy.
What Warranty Comes With the Bundle?
SunGold shows a 10-year warranty for both the SGS-12K18MAX inverter and the PowerMax battery.
What's Included

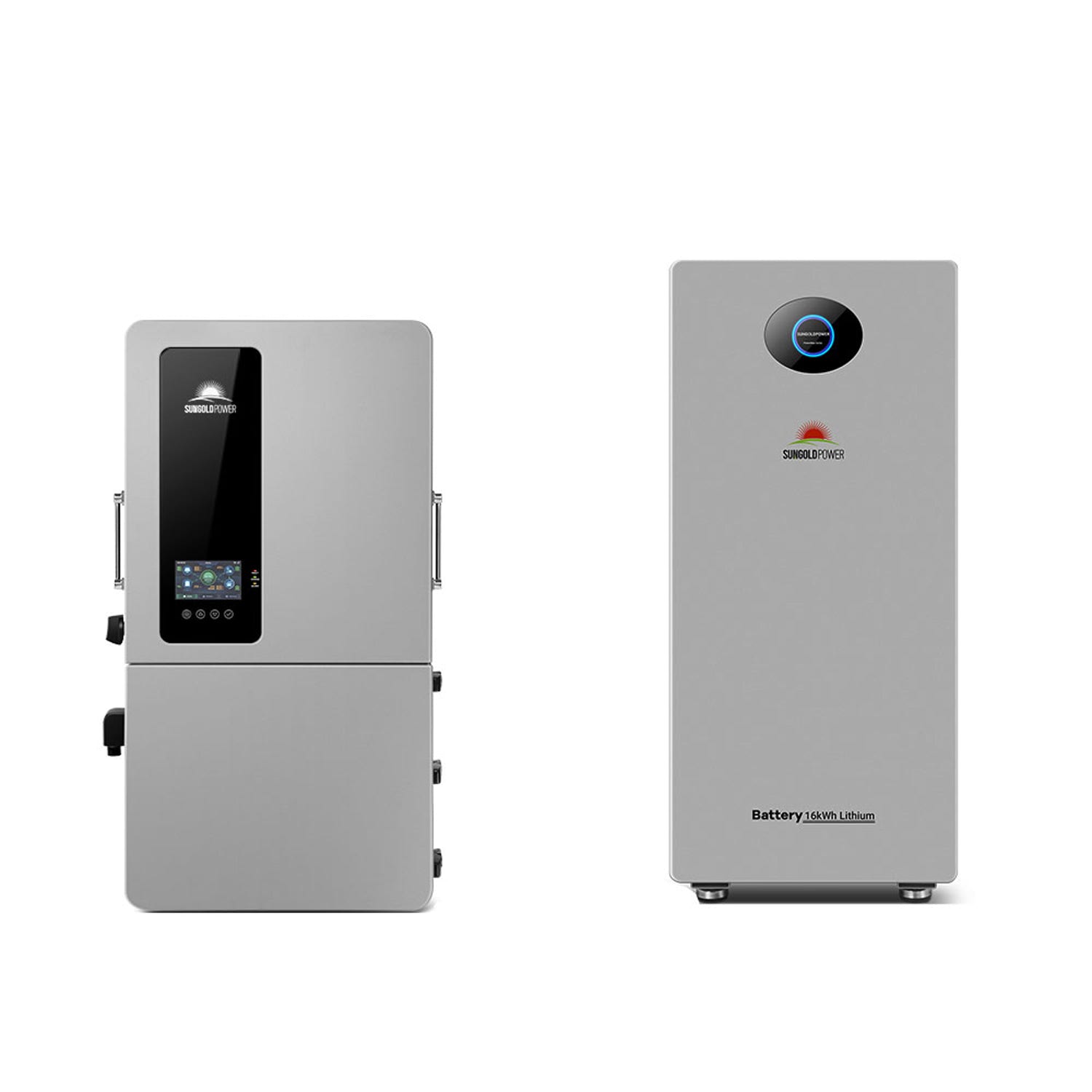

1 x SGS-12K18MAX + 1 x PowerMax 314 Outdoor (16.07kWh)
- 1 x SGS-12K18MAX 12kW 48V All-In-One Hybrid Solar Inverter
- 1 x PowerMax 314 Outdoor 51.2V 314Ah 16.07kWh LiFePO4 Battery

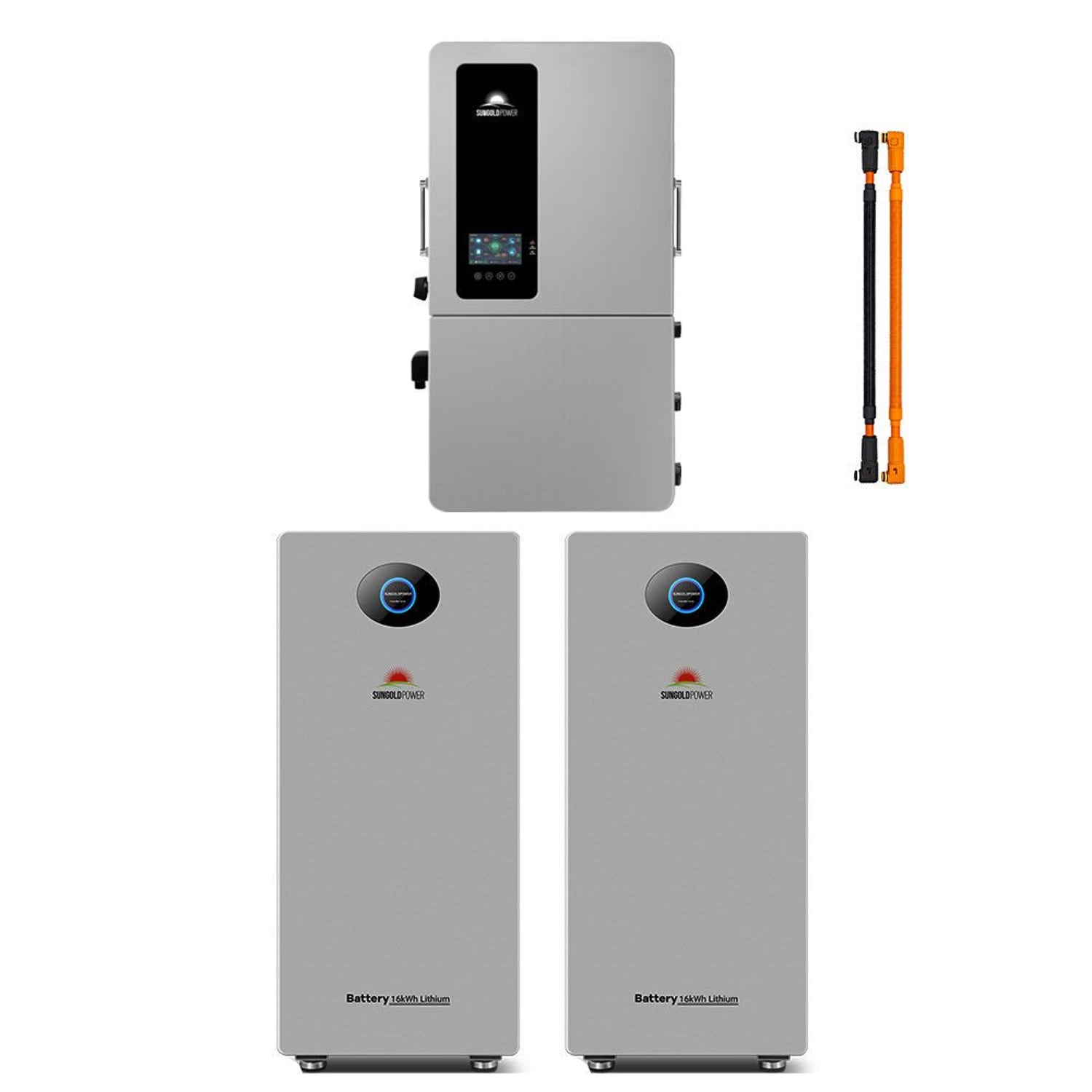

1 x SGS-12K18MAX + 2 x PowerMax 314 Outdoor (32.14kWh)
- 1 x SGS-12K18MAX 12kW 48V All-In-One Hybrid Solar Inverter
- 2 x PowerMax 314 Outdoor 51.2V 314Ah 16.07kWh LiFePO4 Battery

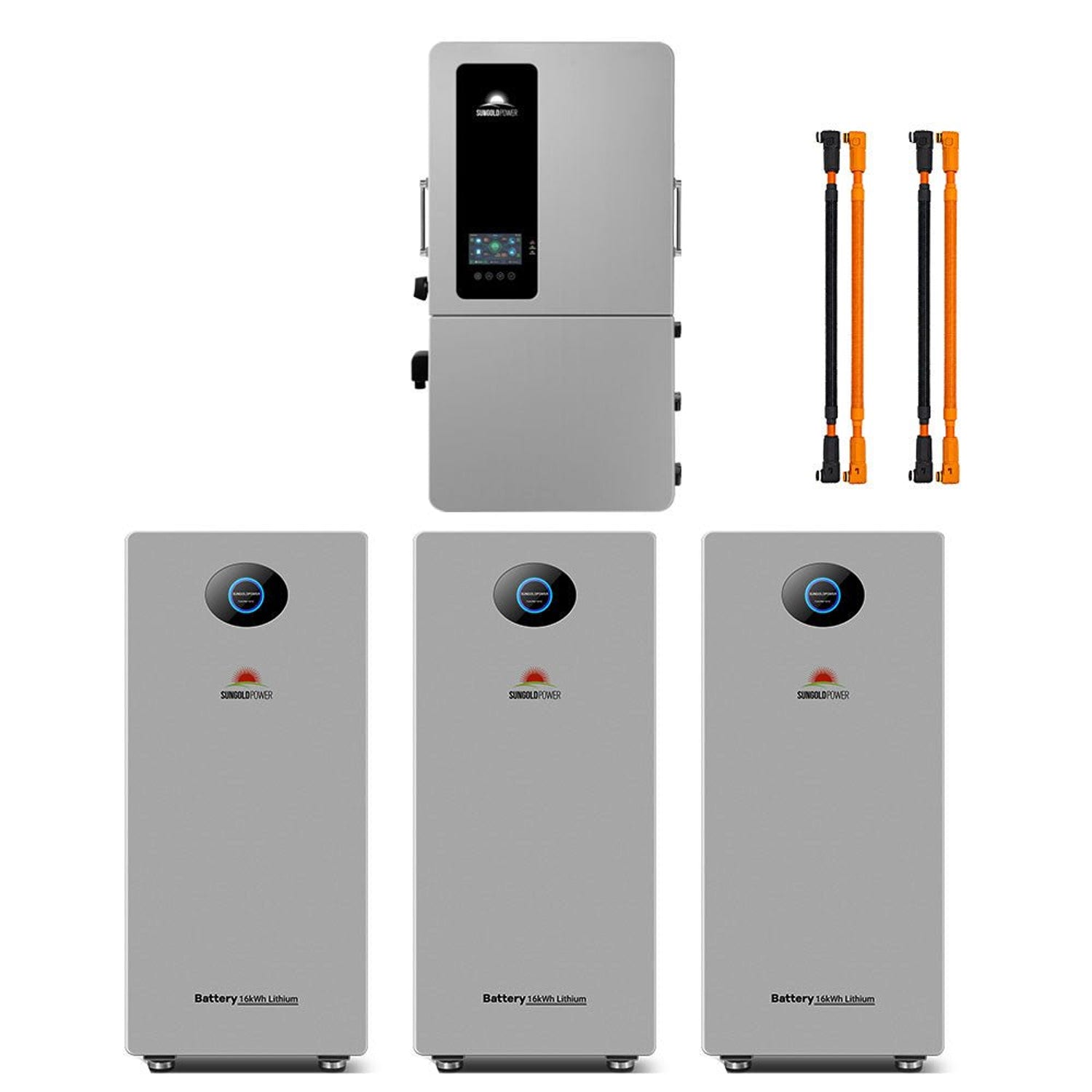

1 x SGS-12K18MAX + 3 x PowerMax 314 Outdoor (48.21kWh)
- 1 x SGS-12K18MAX 12kW 48V All-In-One Hybrid Solar Inverter
- 3 x PowerMax 314 Outdoor 51.2V 314Ah 16.07kWh LiFePO4 Battery

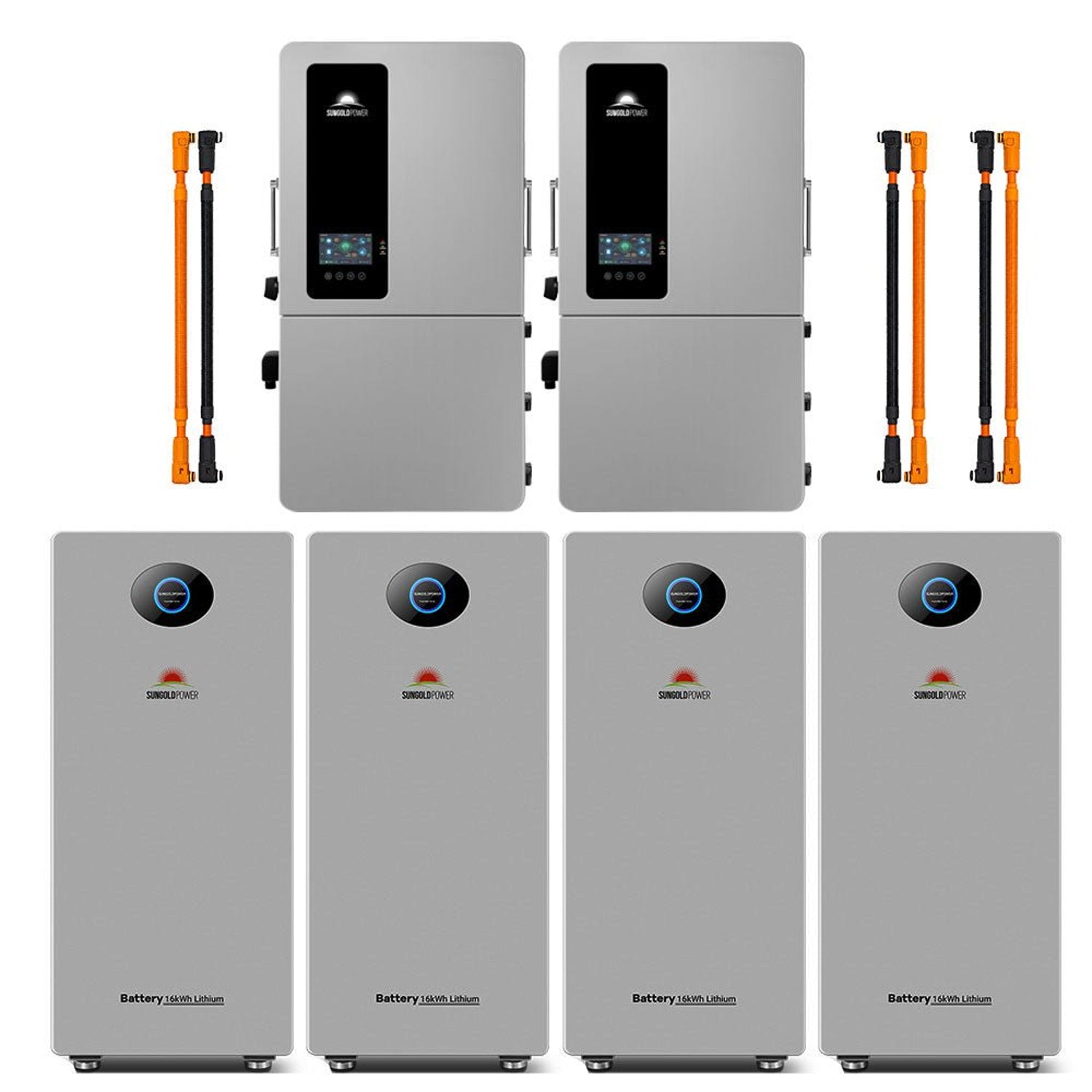

2 x SGS-12K18MAX + 4 x PowerMax 314 Outdoor (64.28kWh)
- 2 x SGS-12K18MAX 12kW 48V All-In-One Hybrid Solar Inverter
- 4 x PowerMax 314 Outdoor 51.2V 314Ah 16.07kWh LiFePO4 Battery

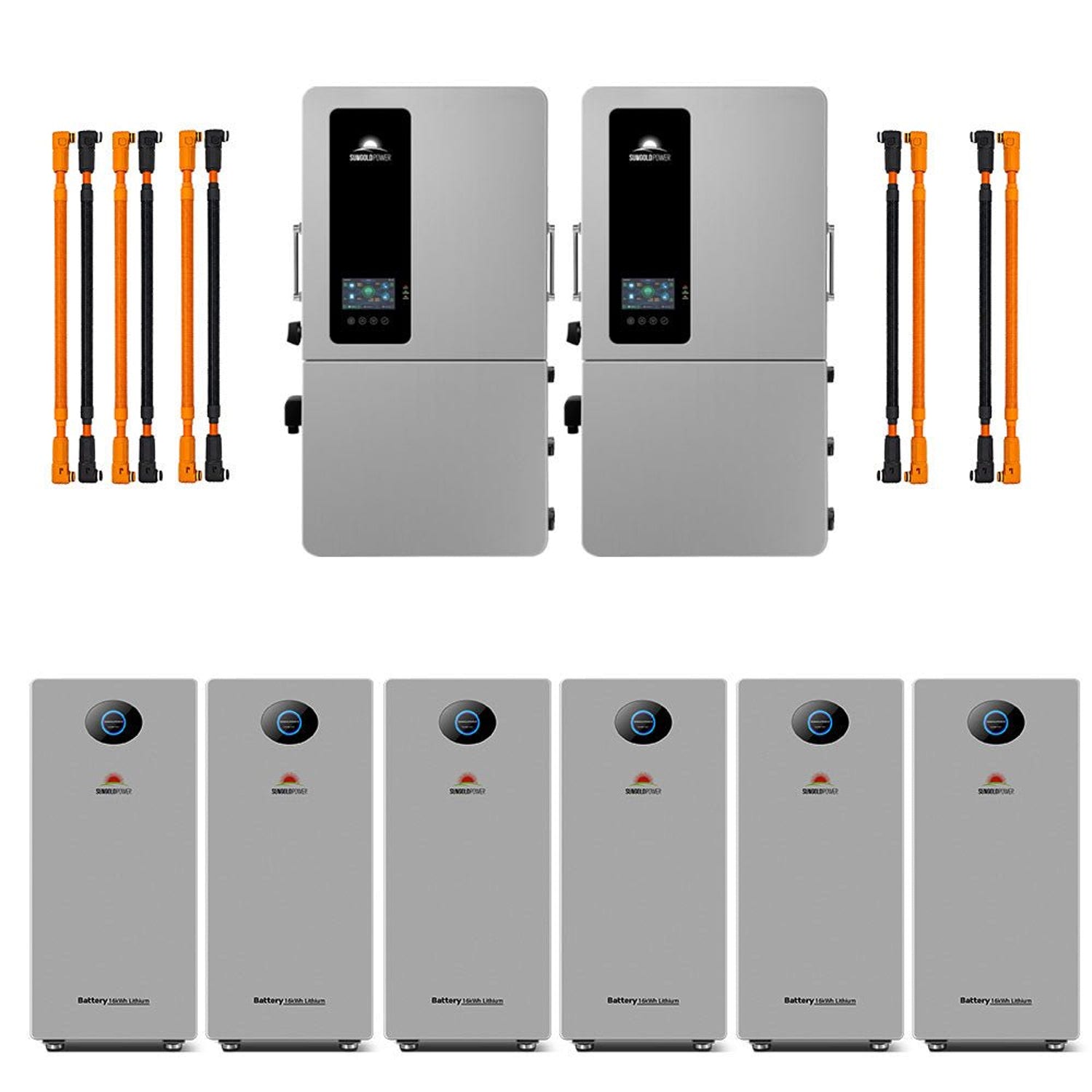

2 x SGS-12K18MAX + 6 x PowerMax 314 Outdoor (96.42kWh)
- 2 x SGS-12K18MAX 12kW 48V All-In-One Hybrid Solar Inverter
- 6 x PowerMax 314 Outdoor 51.2V 314Ah 16.07kWh LiFePO4 Battery
Whole-Home Backup Sized to Your Needs
The SunGold Power 12KW 48V Hybrid Inverter and PowerMax Outdoor Battery ESS Bundle combines 200A whole-home backup, up to 18kW of solar input per inverter and 16.07kWh to 96.42kWh of IP65-rated LiFePO4 storage. At Outbound Power, we help customers choose the right inverter and battery count for their homes and loads. If you have questions, our team is happy to help.
SunGold Power 12KW 48V Hybrid Inverter and PowerMax Outdoor Battery ESS Bundle Specifications
|
| System Options |
| 1 Inverter + 1 Battery |
16.07kWh |
| 1 Inverter + 2 Batteries |
32.14kWh |
| 1 Inverter + 3 Batteries |
48.21kWh |
| 2 Inverters + 4 Batteries |
64.28kWh |
| 2 Inverters + 6 Batteries |
96.42kWh |
| Inverter Output (SGS-12K18MAX, Per Unit) |
| Rated Output Power |
12000W @240V; 10400W @208V |
| Max. Peak Power |
1.5 times rated power (10s) |
| Rated Output Voltage |
120/240Vac (split-phase); 120/208V (three-phase) |
| Output Phase Voltage Settings |
100, 105, 110, 115, 120 or 127V |
| Load Motor Capacity |
6HP |
| Rated AC Frequency |
50/60Hz |
| Waveform |
Pure sine wave |
| Parallel Capacity |
6 units |
| Inverter Battery Input |
| Battery Type |
Li-ion, lead-acid, user defined |
| Rated Battery Voltage |
48Vdc |
| Voltage Range |
40-60Vdc |
| Max. Grid Charging Current |
200A |
| Max. Generator Charging Current |
200A |
| Max. Hybrid Charging Current |
240A |
| Inverter PV Input |
| MPPT Trackers |
2 |
| Max. PV Array Power |
9000W / 9000W |
| Max. Input Current |
32A / 32A |
| Short-Circuit Current (Isc) |
40A / 40A |
| Max. Open-Circuit Voltage |
550Vdc / 550Vdc |
| MPPT Voltage Range |
125-450Vdc |
| MPPT Tracking Efficiency |
99.9% |
| Inverter Grid and Generator Input |
| Input Voltage Range |
90-140Vac |
| Frequency Range |
50/60Hz |
| Continuous Grid Pass-Through Current |
200A |
| Inverter General Data |
| Dimensions |
33.07 x 17.32 x 10.24 in (840 x 440 x 260 mm) |
| Weight |
105.82 lbs (48 kg) |
| Protection Degree |
IP65 |
| Operating Temperature Range |
-13°F to 140°F, derated above 113°F (-25 to +60°C, derated above 45°C) |
| Noise |
<60dB |
| Self-Consumption |
<100W |
| Cooling Method |
Heat sink + intelligent fan cooling |
| Communication Ports |
RS485, CAN, USB, dry contact |
| External Modules (Optional) |
Wi-Fi, GPRS |
| Inverter Certifications |
UL 1741 SB, DC Arc-Fault Circuit Protection, UL 1699B:2018, CSA C22.2#107.1, California Rule 21, IEEE 1547:2018, IEEE 1547.1:2020, Hawaiian HECO SRD-IEEE-1547.1:2020 Ed.2.0 |
| Battery (PowerMax 314 Outdoor, Per Unit) |
| Battery Type |
LFP (LiFePO4) |
| Rated Voltage |
51.2V |
| Voltage Range |
44.8-57.6Vdc |
| Rated Capacity |
314Ah |
| Rated Energy |
16.07kWh |
| Usable Energy |
15.42kWh |
| Max. Depth of Discharge |
>96% |
| Rated DC Power |
7.68kW |
| Standard Charge / Discharge Current |
150A / 150A |
| Max. Charge / Discharge Current |
190A / 190A |
| Peak Charge / Discharge Current |
220A (3s) |
| Breaker Current |
240A |
| Cycle Life |
8000 cycles (80% DOD, 0.5C, 25°C) |
| Max. Batteries in Parallel |
16 |
| Communication |
CAN, RS485, USB, WiFi, Bluetooth |
| Screen |
Touch screen |
| Charging Temperature |
32-131°F (0-55°C) |
| Discharging Temperature |
14-131°F (-10-55°C) |
| Enclosure Rating |
IP65, indoor and outdoor |
| Cooling Method |
Natural cooling |
| Dimensions |
41.26 x 18.11 x 10.67 in (1048 x 460 x 271 mm) |
| Weight |
271 lbs (123 kg) |
| Battery Certifications |
UL 1973, UL 9540A, UN38.3 |
