The SunGold Power 12kW Hybrid Solar Kit With PowerMax Battery Pairs Bifacial Solar and Outdoor LiFePO4 Storage for 200A Whole-Home Backup
This kit brings together the SGS-12K18MAX 12kW 48V all-in-one hybrid inverter, a full array of bifacial N-type solar panels and one to three PowerMax 314 Outdoor 16.07kWh LiFePO4 batteries. Choose 20 x 450W panels or 18 x 590W panels, with 16.07kWh, 32.14kWh or 48.21kWh of storage.
It is built for homeowners who want to cut grid use, keep the house running in an outage and have room to grow. The inverter handles grid-tied, zero-export and off-grid operation, and both the inverter and the batteries are IP65 rated for indoor or outdoor installation.
SunGold Power 12kW Hybrid Solar Kit With PowerMax Battery Features

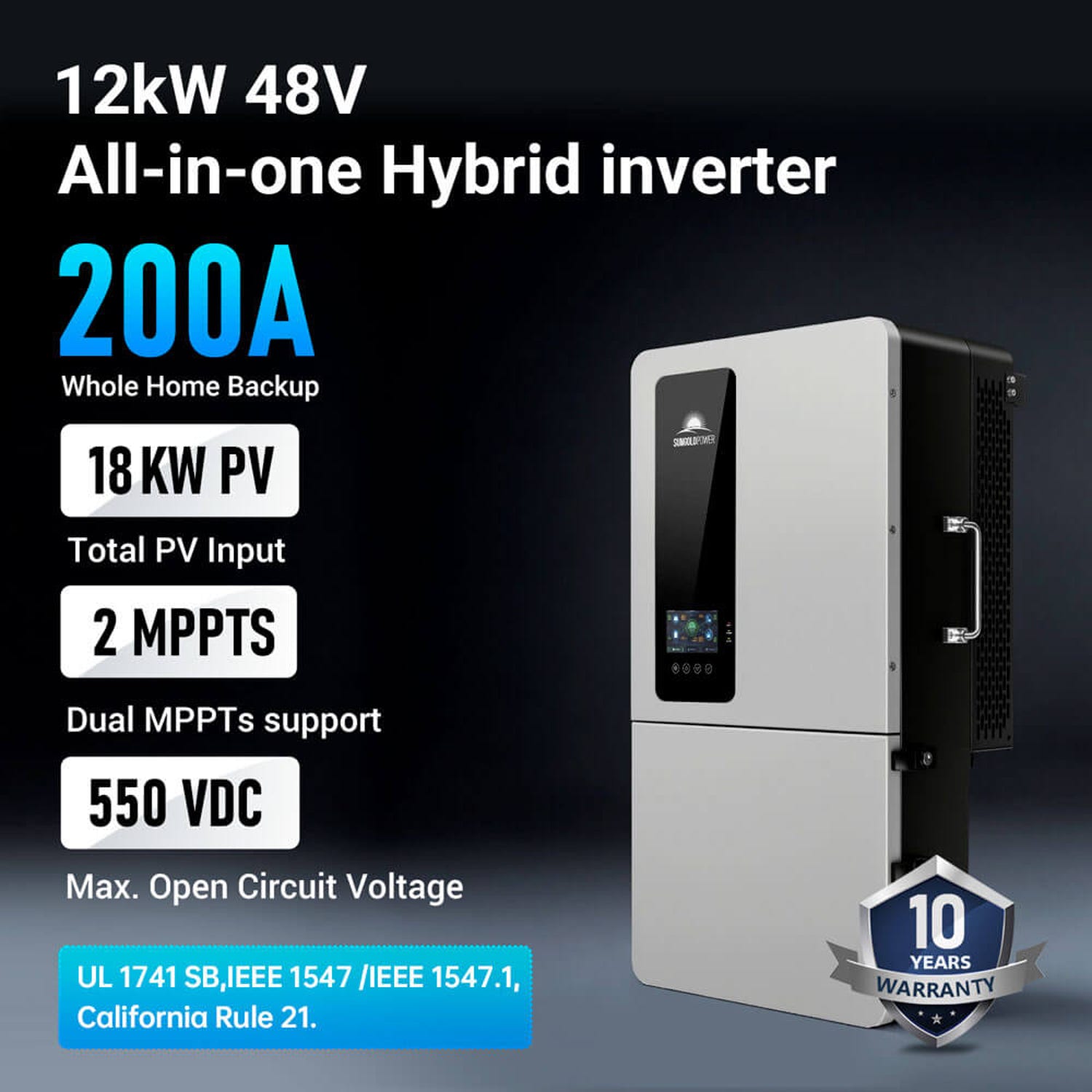

12000W Hybrid Inverter With a 200A Pass-Through
The SGS-12K18MAX delivers 12000W of 120/240V split-phase output with a peak of 1.5 times rated power for 10 seconds. Its 200A grid pass-through supports whole-home backup, and it can sell surplus solar, run zero-export, or AC couple with an existing grid-tied inverter. It is listed to UL 1741 SB, IEEE 1547 and California Rule 21.
A Matched Array on Two MPPTs
The 450W option wires 20 panels as two strings of 10, and the 590W option wires 18 panels as two strings of 9, one string per MPPT through a 25A PV breaker. Each MPPT accepts up to 9000W and 32A with a 550Vdc maximum, so the array stays inside the inverter's limits.

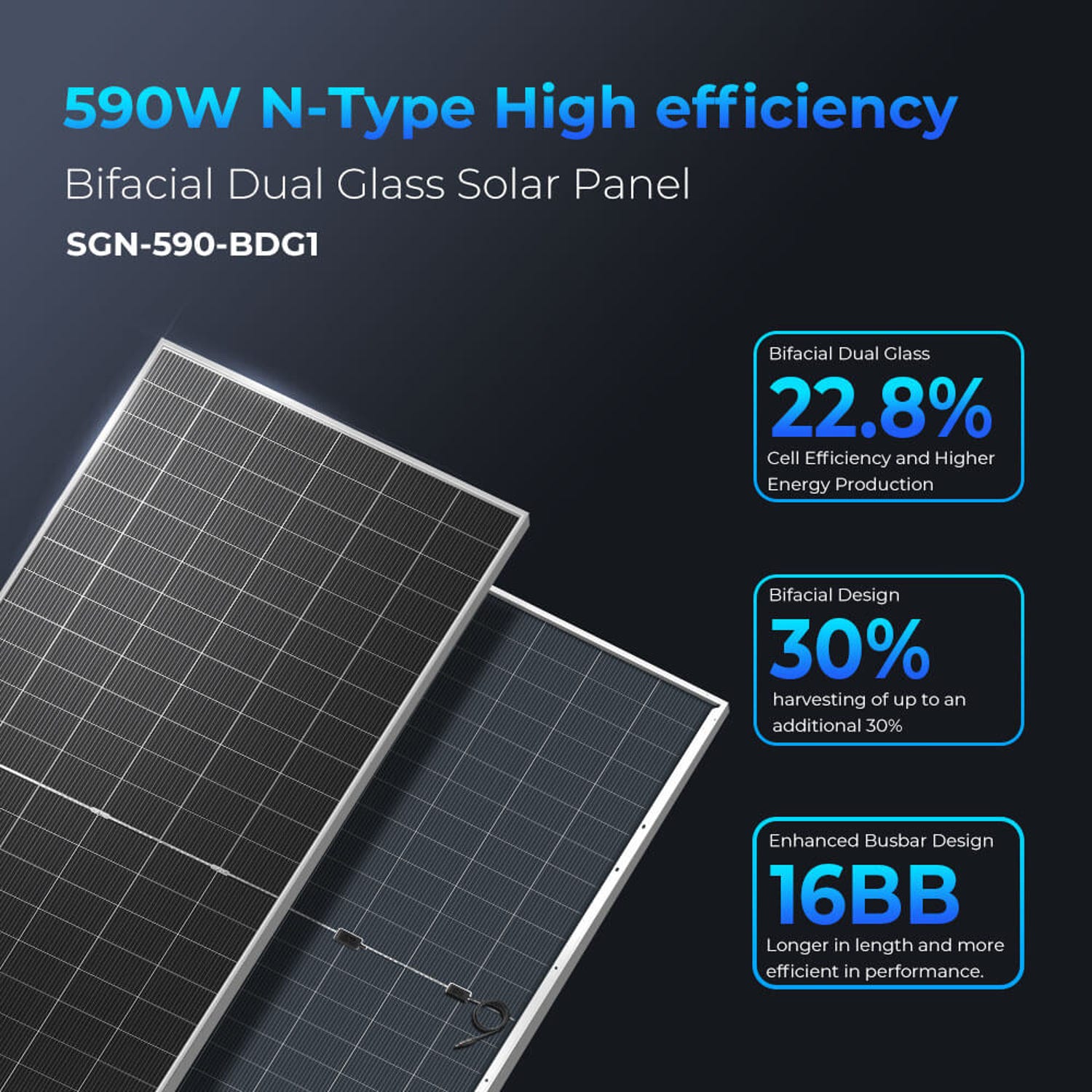

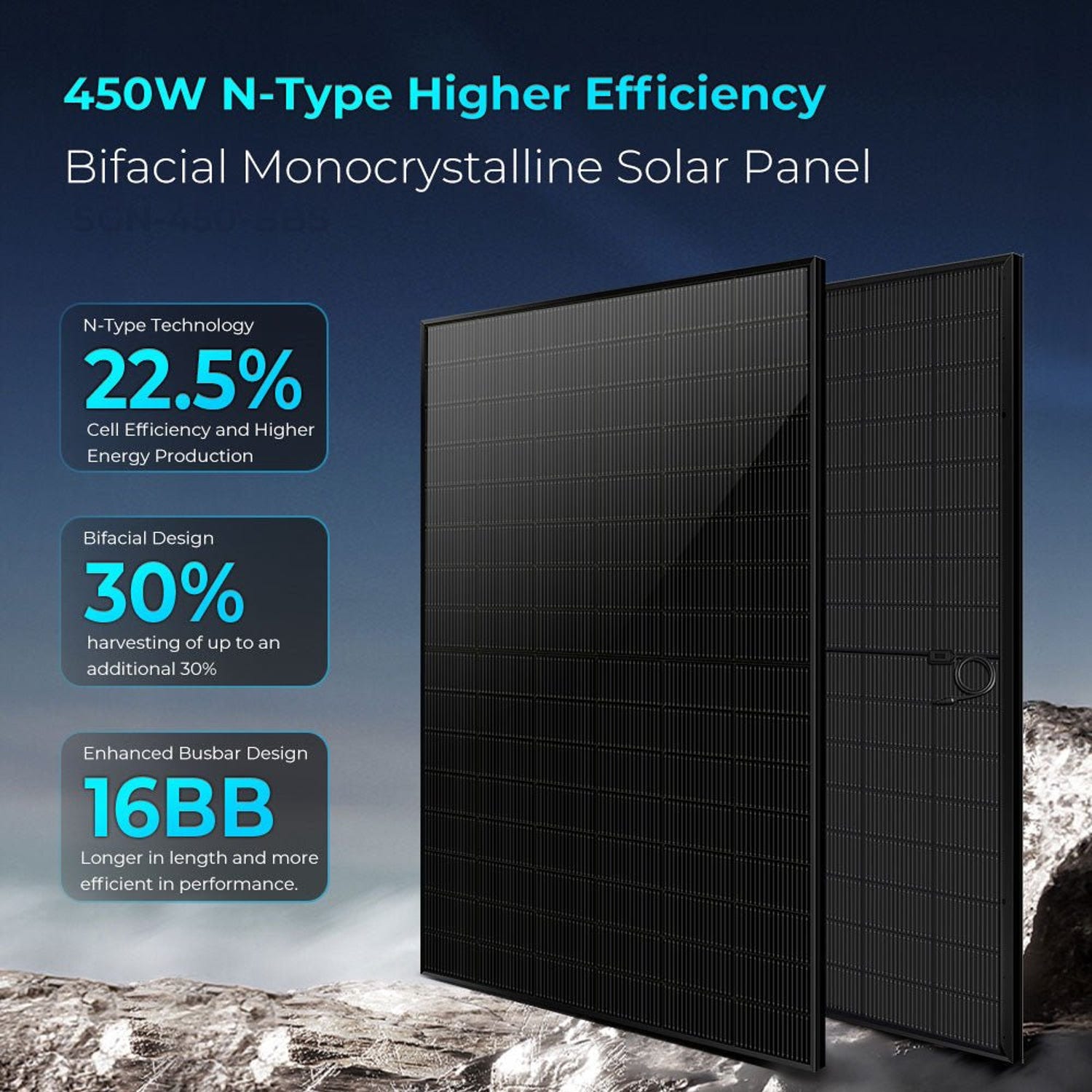

Bifacial N-Type Dual Glass Panels
Both panel models are N-type bifacial dual glass modules that SunGold says can harvest up to 30% more energy from the rear side. The 450W SGN-450-BDG5 has 22.5% module efficiency and a black frame, and the 590W SGN-590-BDG1 has 22.8% module efficiency. Both are UL 61730 certified and CEC Listed, with a 30-year linear power warranty.

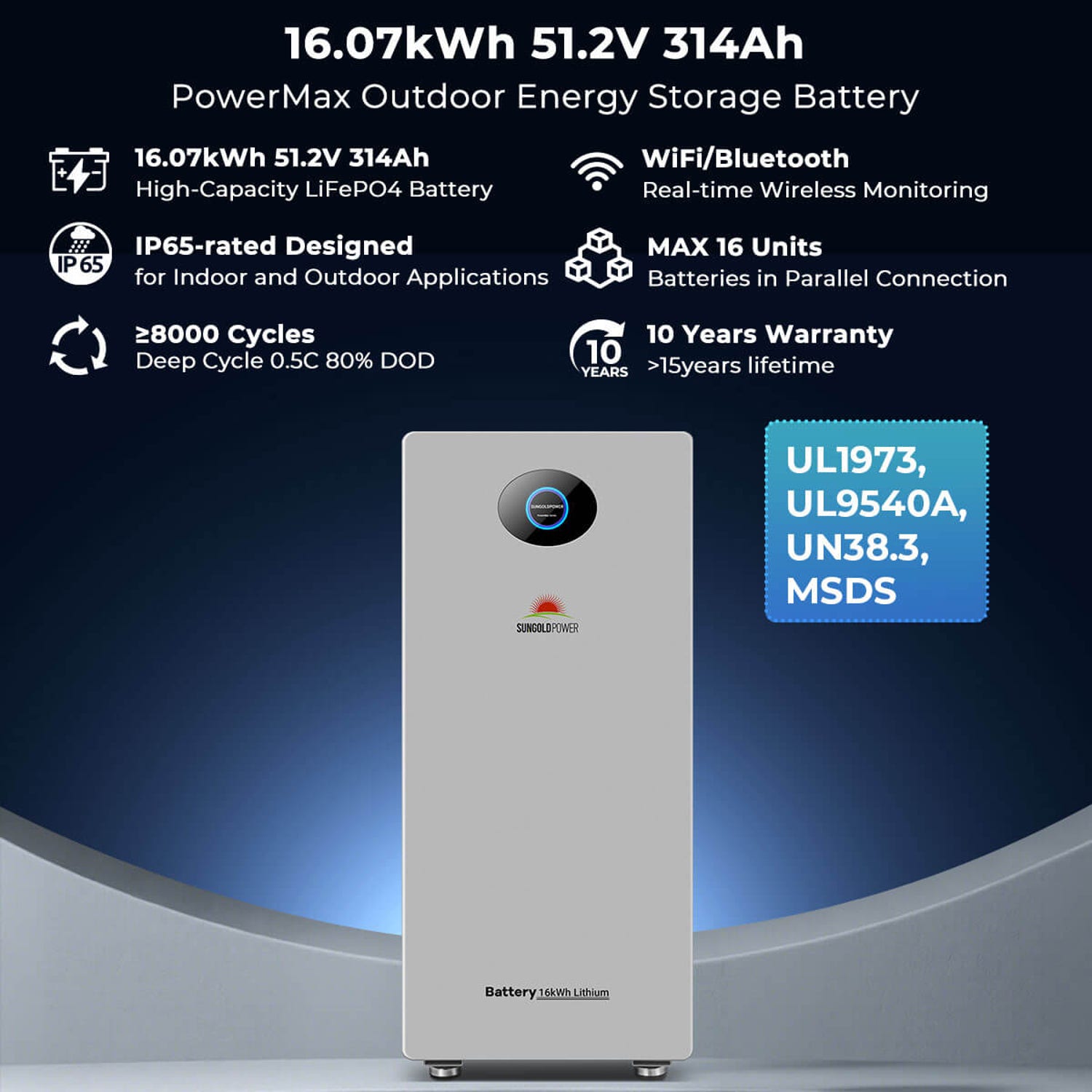

16.07kWh PowerMax Outdoor Batteries
Each PowerMax 314 Outdoor battery stores 16.07kWh, with 15.42kWh usable and 7.68kW of continuous power. SunGold rates it for 8000 cycles at 80% DOD, and up to 16 batteries can run in parallel. The batteries are certified to UL 1973 and tested to UL 9540A.
Parallel Battery Hardware Included
The two- and three-battery options add 4/0 AWG battery cables, a 300A DC breaker and a 400A bus bar, so the batteries connect to the inverter through one protected DC run.
Time-of-Use Control and Monitoring
Timed charge and discharge lets you use battery power during peak-rate hours. The inverter and batteries communicate over RS485 and CAN, with WiFi and Bluetooth app monitoring.
Real-World Applications
Whole-home backup. Keep refrigerators, lights, fans and air conditioners running through an outage.
Lower power bills. Use stored solar in the evening and during peak-rate hours.
Off-grid properties. Run a home on solar and batteries, with a generator input for backup charging.
Practical Comparison
450W Panel Option Versus 590W Panel Option
The 450W option uses 20 panels for 9000W of solar, each 69.37 x 44.65 inches and 53.35 lbs. The 590W option uses 18 larger panels for 10620W, each 89.69 x 44.65 inches and 69.45 lbs. Choose 450W panels for easier handling, or 590W panels for more output from fewer modules.
SunGold Power 12kW Hybrid Solar Kit Versus Grid-Tied Solar Without Storage
A grid-tied system without batteries shuts down in an outage. This kit stores solar energy and keeps your loads running when the grid is lost.
Buyer Guidance
Choosing the Battery Count
One battery gives 16.07kWh for essential loads. Two or three batteries give 32.14kWh or 48.21kWh for longer outages or more evening use.
Installation Planning
Each battery weighs 271 lbs and the inverter 105.82 lbs, so plan for freight delivery and help to place them. A qualified electrician should install the system, following SunGold's wiring diagram for your option. Racking and mounting hardware for the panels are not included.
This May Be A Good Fit If
- You want whole-home backup with a 200A pass-through
- You have roof or ground space for 18 to 20 large panels
- You want outdoor-rated equipment
- You may add batteries later
Common Questions
Can I Sell Power Back to the Grid?
Yes. The inverter has an on-grid mode that exports surplus solar, plus zero-export modes that keep all power on site.
Can the Inverter and Batteries Be Installed Outdoors?
Yes. Both are IP65 rated. Keep the inverter out of direct sunlight, for example under the eaves.
Can I Add Batteries Later?
Yes. Up to 16 PowerMax batteries can run in parallel, using a bus bar.
What's Included

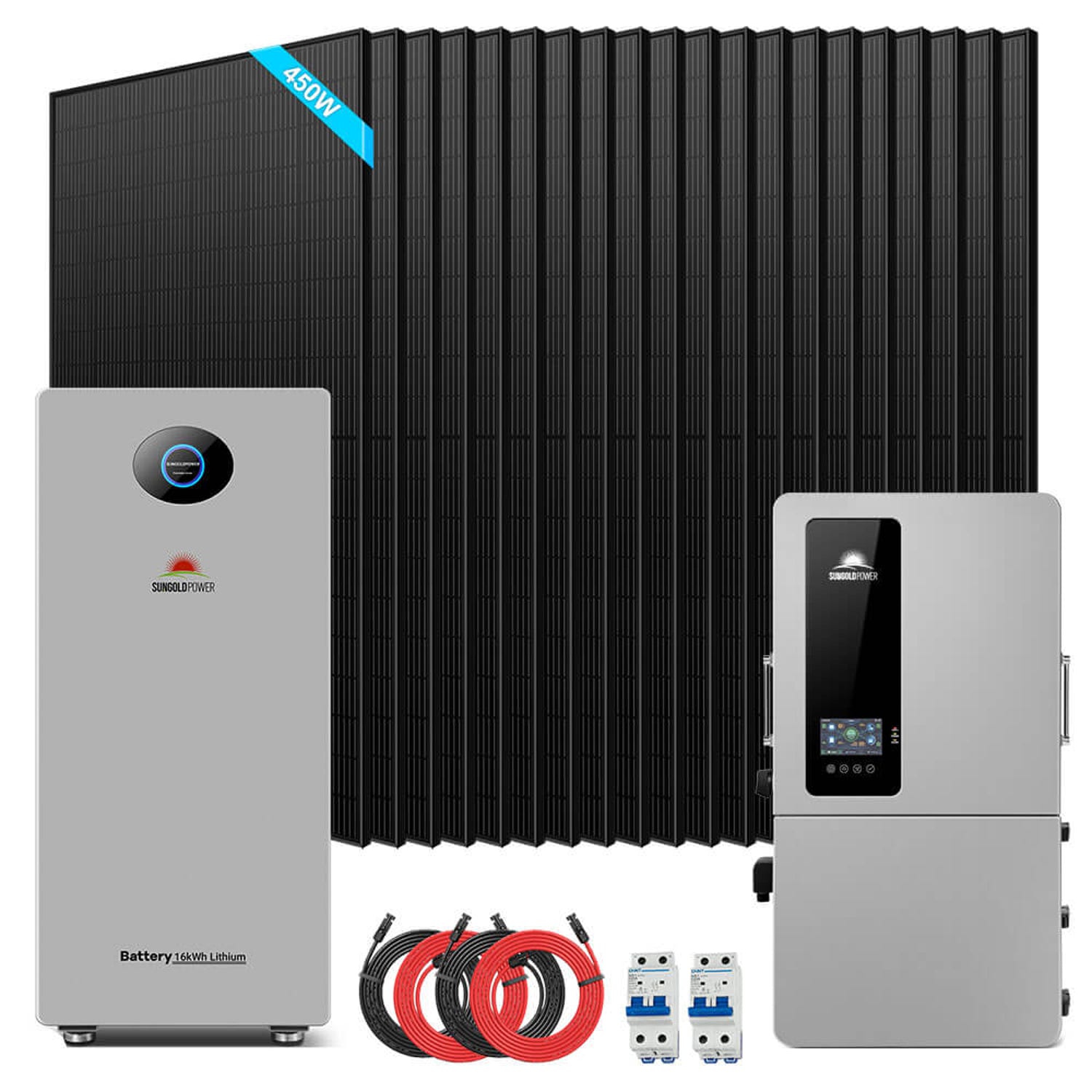

20 x 450W Bifacial Panels + 1 x PowerMax 314 Outdoor (16.07kWh)
- 1 x 12kW 48V All-In-One Hybrid Solar Inverter
- 20 x 450 Watt Bifacial N-Type Monocrystalline Solar Panels
- 1 x PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
- 2 x 50 Feet Solar Extension Cables (Inverter PV Input)
- 2 x 25A PV Breakers

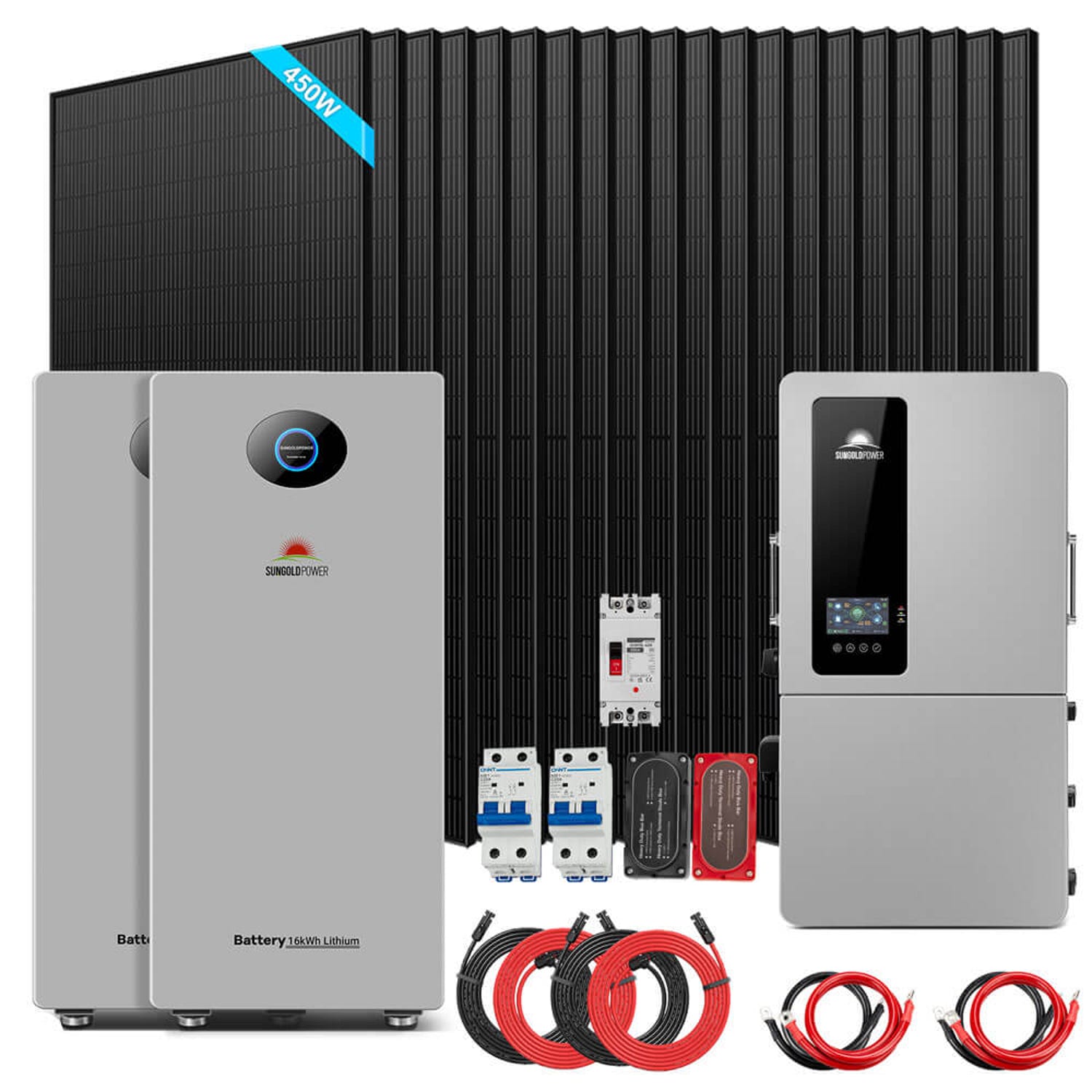

20 x 450W Bifacial Panels + 2 x PowerMax 314 Outdoor (32.14kWh)
- 1 x 12kW 48V All-In-One Hybrid Solar Inverter
- 20 x 450 Watt Bifacial N-Type Monocrystalline Solar Panels
- 2 x PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
- 2 x 50 Feet Solar Extension Cables (Inverter PV Input)
- 2 x 4/0 AWG Battery Cables
- 2 x 25A PV Breakers
- 1 x 300A DC Breaker
- 1 x 400A Bus Bar

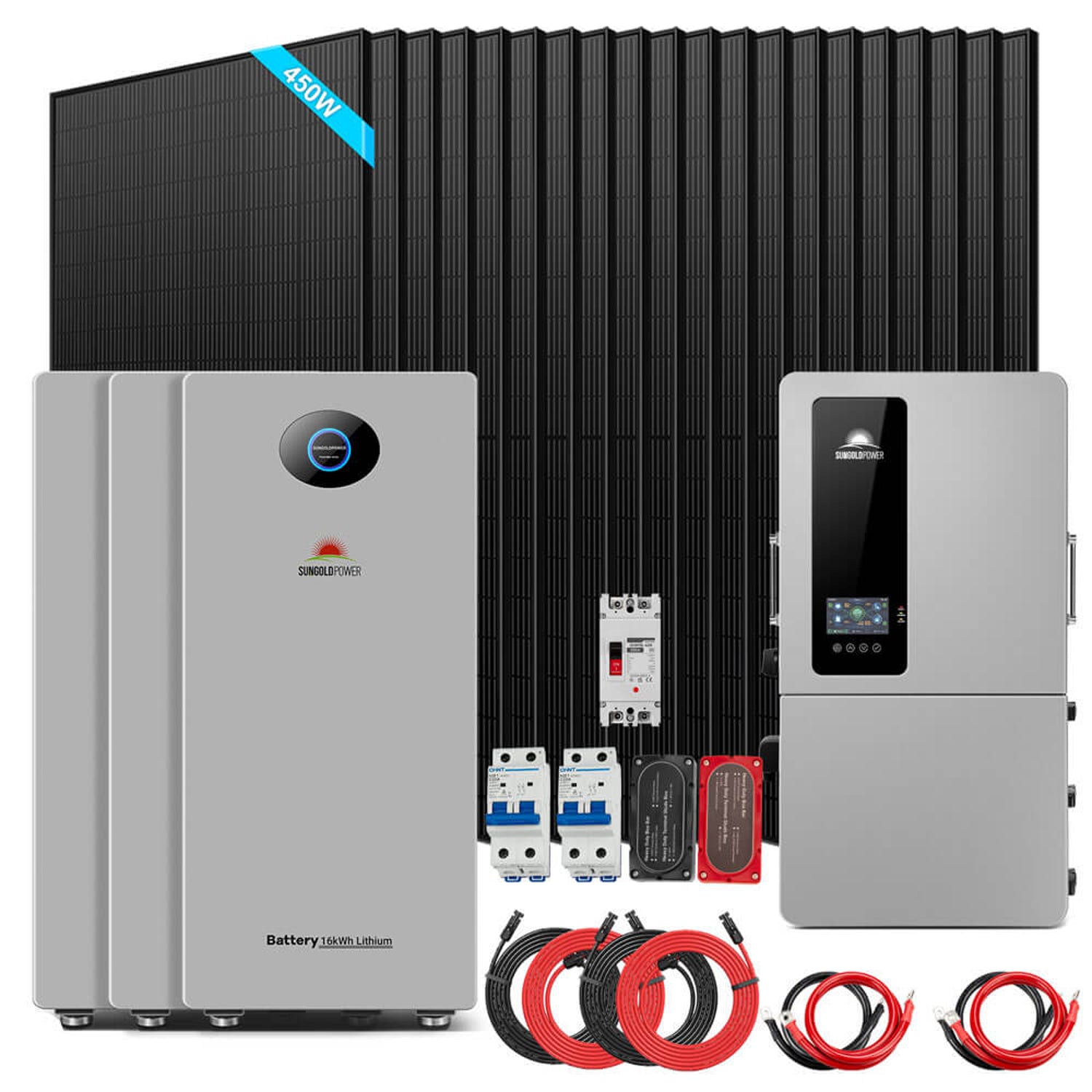

20 x 450W Bifacial Panels + 3 x PowerMax 314 Outdoor (48.21kWh)
- 1 x 12kW 48V All-In-One Hybrid Solar Inverter
- 20 x 450 Watt Bifacial N-Type Monocrystalline Solar Panels
- 3 x PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
- 2 x 50 Feet Solar Extension Cables (Inverter PV Input)
- 2 x 4/0 AWG Battery Cables
- 2 x 25A PV Breakers
- 1 x 300A DC Breaker
- 1 x 400A Bus Bar

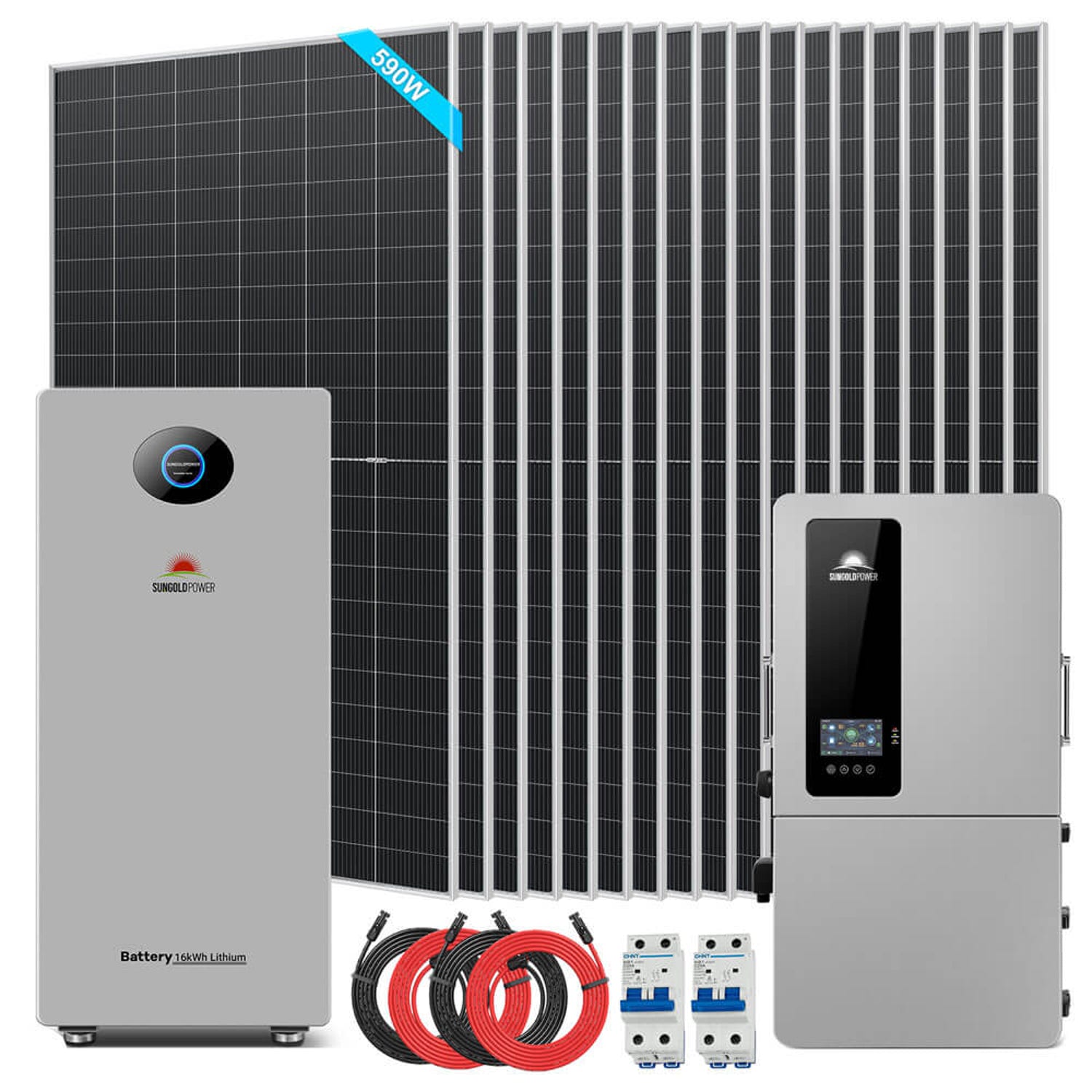

18 x 590W Bifacial Panels + 1 x PowerMax 314 Outdoor (16.07kWh)
- 1 x 12kW 48V All-In-One Hybrid Solar Inverter
- 18 x 590 Watt Bifacial N-Type Monocrystalline Solar Panels
- 1 x PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
- 2 Sets x 50 Feet Solar Extension Cables (Inverter PV Input)
- 2 x 25A PV Breakers

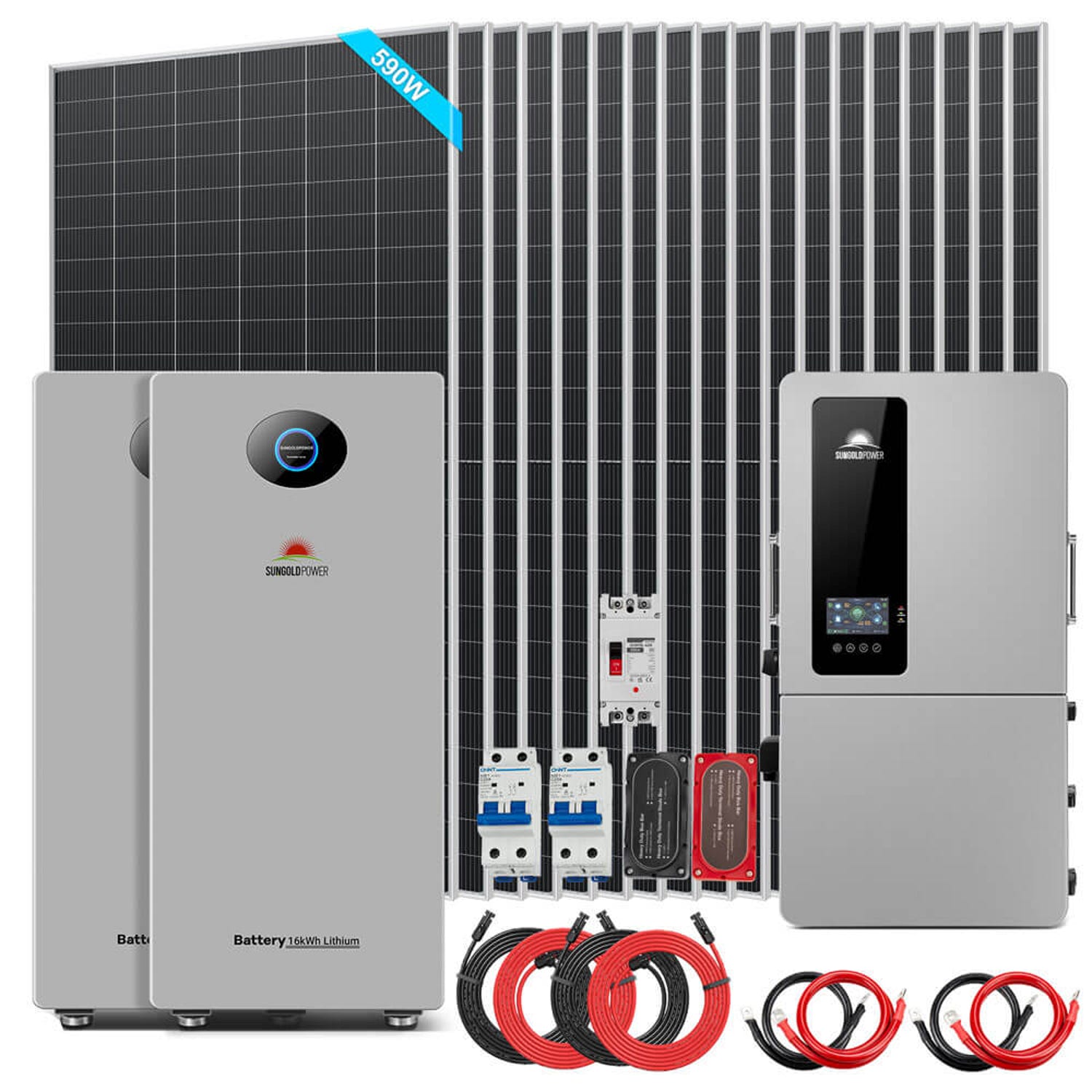

18 x 590W Bifacial Panels + 2 x PowerMax 314 Outdoor (32.14kWh)
- 1 x 12kW 48V All-In-One Hybrid Solar Inverter
- 18 x 590 Watt Bifacial N-Type Monocrystalline Solar Panels
- 2 x PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
- 2 x 50 Feet Solar Extension Cables (Inverter PV Input)
- 2 x 4/0 AWG Battery Cables
- 2 x 25A PV Breakers
- 1 x 300A DC Breaker
- 1 x 400A Bus Bar

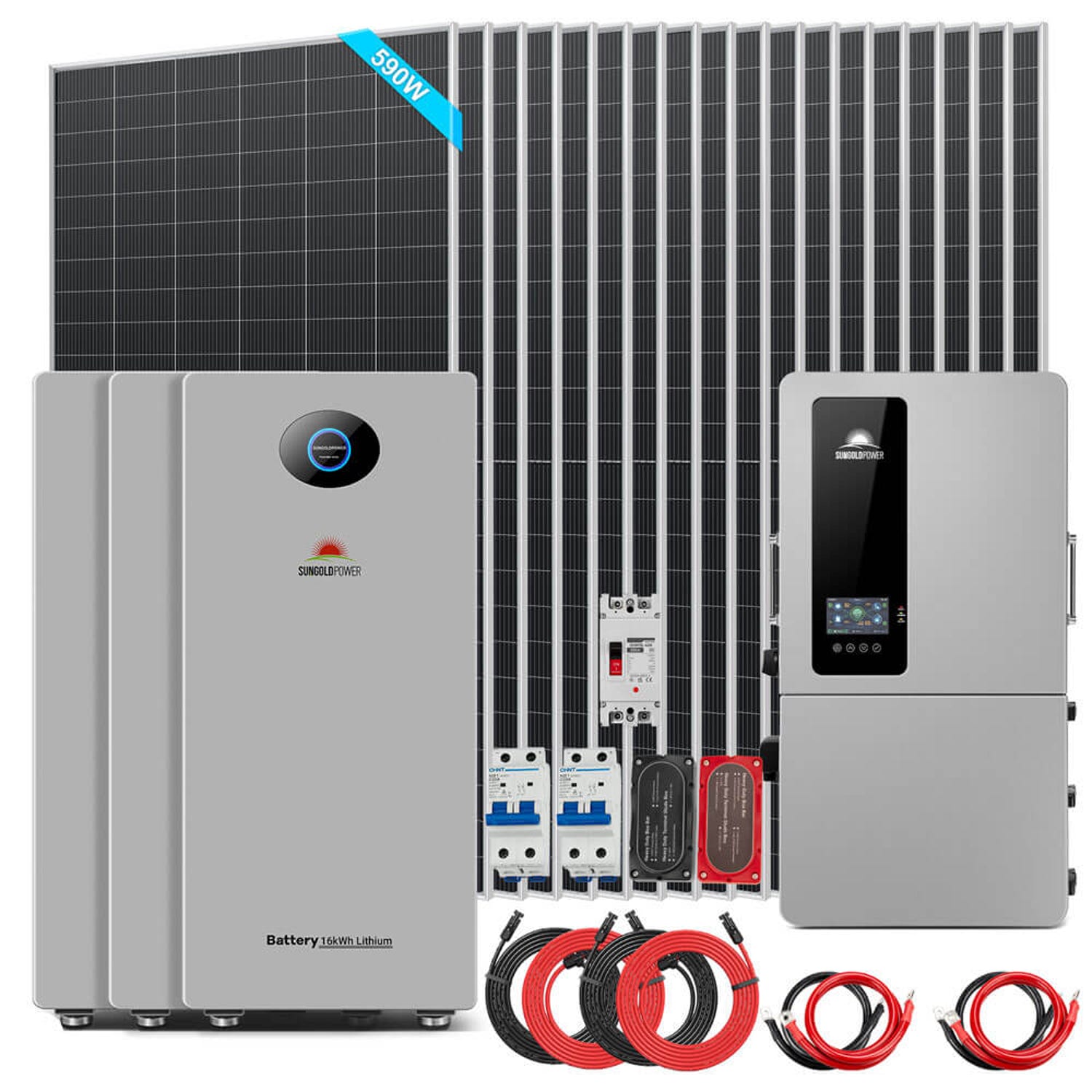

18 x 590W Bifacial Panels + 3 x PowerMax 314 Outdoor (48.21kWh)
- 1 x 12kW 48V All-In-One Hybrid Solar Inverter
- 18 x 590 Watt Bifacial N-Type Monocrystalline Solar Panels
- 3 x PowerMax 51.2V 314Ah 16.07kWh Outdoor LiFePO4 Battery
- 2 x 50 Feet Solar Extension Cables (Inverter PV Input)
- 2 x 4/0 AWG Battery Cables
- 2 x 25A PV Breakers
- 1 x 300A DC Breaker
- 1 x 400A Bus Bar
Solar, Storage and Backup in One Kit
The SunGold Power 12kW 48V Hybrid Solar Kit With PowerMax Outdoor Battery combines a 12000W hybrid inverter, a bifacial solar array and up to 48.21kWh of IP65-rated LiFePO4 storage with a 200A pass-through for whole-home backup. At Outbound Power, we help customers choose the panel and battery option that fits their home and roof. If you have questions, our team is happy to help.
SunGold Power 12kW 48V Hybrid Solar Kit With PowerMax Outdoor Battery Specifications
|
| Kit Options |
| 450W Panel Options |
20 x 450W SGN-450-BDG5 (9000W), wired as 2 strings of 10 |
| 590W Panel Options |
18 x 590W SGN-590-BDG1 (10620W), wired as 2 strings of 9 |
| Battery Options |
1, 2 or 3 x PowerMax 314 Outdoor (16.07kWh, 32.14kWh or 48.21kWh) |
| Inverter (SGS-12K18MAX) |
| Rated Output Power |
12000W @240V; 10400W @208V |
| Max. Peak Power |
1.5 times rated power (10s) |
| Rated Output Voltage |
120/240Vac (split-phase); 120/208V (three-phase) |
| Load Motor Capacity |
6HP |
| Rated Battery Voltage |
48Vdc (40-60Vdc) |
| Max. Grid / Generator / Hybrid Charging Current |
200A / 200A / 240A |
| MPPT Trackers |
2 |
| Max. PV Array Power |
9000W / 9000W |
| Max. PV Input Current |
32A / 32A |
| Max. Open-Circuit Voltage |
550Vdc |
| MPPT Voltage Range |
125-450Vdc |
| MPPT Tracking Efficiency |
99.9% |
| Continuous Grid Pass-Through Current |
200A |
| Parallel Capacity |
6 units |
| Protection Degree |
IP65 |
| Operating Temperature Range |
-13°F to 140°F, derated above 113°F |
| Dimensions |
33.07 x 17.32 x 10.24 in (840 x 440 x 260 mm) |
| Weight |
105.82 lbs (48 kg) |
| Communication Ports |
RS485, CAN, USB, dry contact |
| Certifications |
UL 1741 SB, DC Arc-Fault Circuit Protection, UL 1699B:2018, CSA C22.2#107.1, California Rule 21, IEEE 1547:2018, IEEE 1547.1:2020, Hawaiian HECO SRD-IEEE-1547.1:2020 Ed.2.0 |
| Battery (PowerMax 314 Outdoor, Per Unit) |
| Battery Type |
LFP (LiFePO4) |
| Rated Voltage |
51.2V |
| Rated Capacity |
314Ah |
| Rated Energy |
16.07kWh |
| Usable Energy |
15.42kWh |
| Max. Depth of Discharge |
>96% |
| Rated DC Power |
7.68kW |
| Max. Charge / Discharge Current |
190A / 190A |
| Cycle Life |
8000 cycles (80% DOD, 0.5C, 25°C) |
| Max. Batteries in Parallel |
16 |
| Communication |
CAN, RS485, USB, WiFi, Bluetooth |
| Enclosure Rating |
IP65, indoor and outdoor |
| Charging Temperature |
32-131°F (0-55°C) |
| Discharging Temperature |
14-131°F (-10-55°C) |
| Dimensions |
41.26 x 18.11 x 10.67 in (1048 x 460 x 271 mm) |
| Weight |
271 lbs (123 kg) |
| Certifications |
UL 1973, UL 9540A, UN38.3 |
| 450W Panel (SGN-450-BDG5, Per Panel) |
| Maximum Power (STC) |
450W |
| Module Efficiency |
22.5% |
| Open Circuit Voltage (Voc) |
35.03V |
| Short Circuit Current (Isc) |
16.05A |
| Maximum Power Voltage / Current |
30.08V / 14.97A |
| Bifacial Output (13.5% Rear Irradiance) |
499W |
| Cells |
96 N-type monocrystalline |
| Dimensions |
69.37 x 44.65 x 1.38 in (1762 x 1134 x 35 mm) |
| Weight |
53.35 lbs (24.2 kg) |
| Frame |
Black anodized aluminum alloy |
| 590W Panel (SGN-590-BDG1, Per Panel) |
| Maximum Power (STC) |
590W |
| Module Efficiency |
22.8% |
| Open Circuit Voltage (Voc) |
52.35V |
| Short Circuit Current (Isc) |
13.90A |
| Maximum Power Voltage / Current |
44.40V / 13.29A |
| Bifacial Output (13.5% Rear Irradiance) |
654W |
| Cells |
144 N-type monocrystalline |
| Dimensions |
89.69 x 44.65 x 1.38 in (2278 x 1134 x 35 mm) |
| Weight |
69.45 lbs (31.5 kg) |
| Frame |
Anodized aluminum alloy |
| Panel Ratings (Both Models) |
| Glass |
2.0mm anti-reflection front, 2.0mm heat strengthened back |
| Bifaciality |
80±10% |
| Temperature Coefficient of Pmax |
-0.29%/K |
| Maximum System Voltage |
1500V |
| Mechanical Loading |
5400 Pa front, 2400 Pa rear |
| Hailstone Test |
35mm (450W); 40mm (590W) |
| Junction Box |
IP68 rated (3 diodes) |
| Certifications |
UL 61730 (certified by ETL), CEC Listed |
| Warranty |
12-year product quality and process; 30-year linear power (87.4% at year 30) |
