The SunGold Power 16KW 48V All-In-One Solar Charge Inverter Delivers 120/240V Split-Phase Power for Whole-Home Solar and Backup

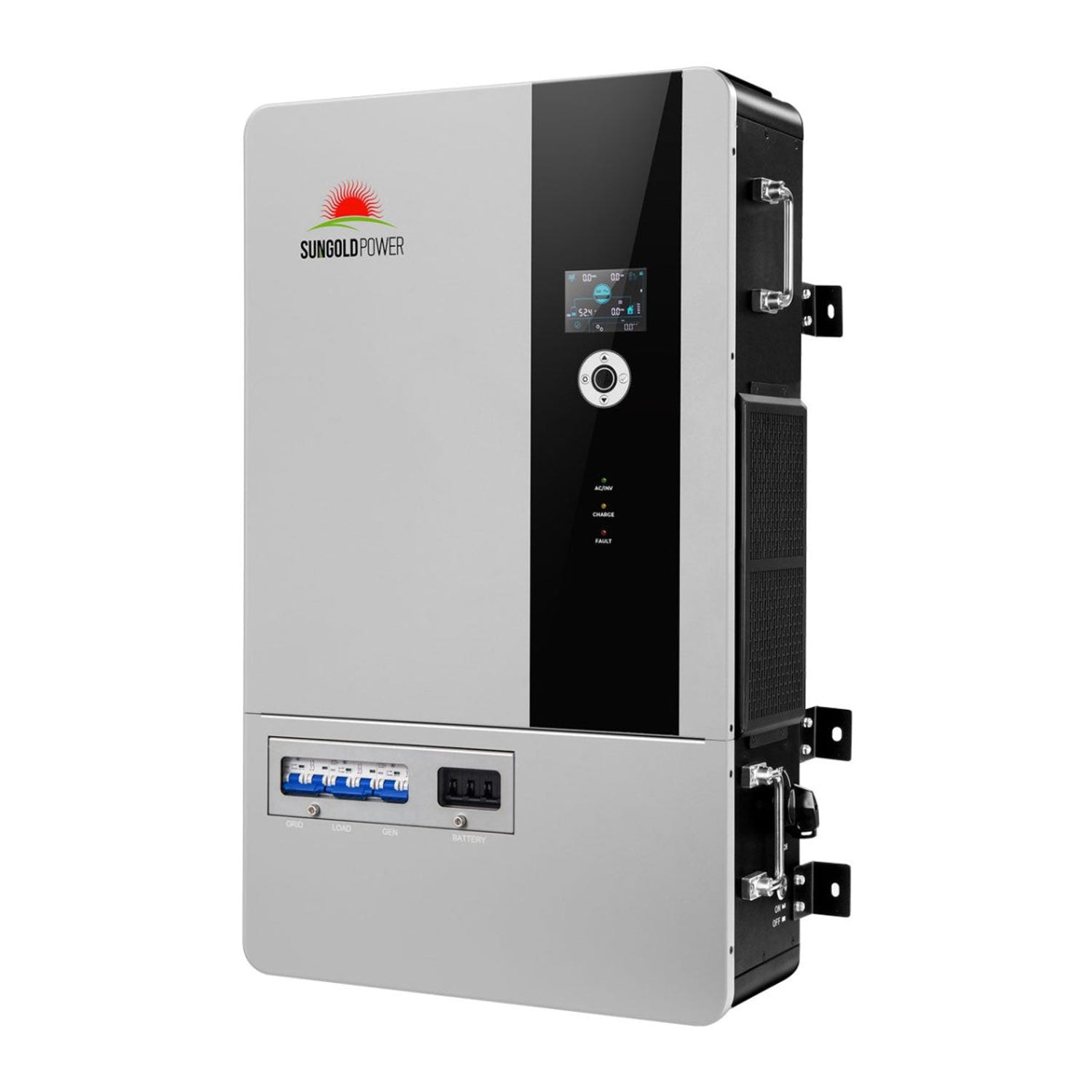

The Freedom Pro 16K-48 is a 48V all-in-one solar charge inverter with 16000W of rated split-phase output. It combines a pure sine wave inverter, two MPPT solar inputs with up to 24000W of PV array power, a 300A battery charger, grid and generator inputs and built-in breakers in one wall-mounted unit.
It is built for large homes, farms, workshops and light commercial buildings that need 120V and 240V power from solar and batteries. It is certified by Intertek to UL 1741 and CSA C22.2 No. 107.1 as a stand-alone inverter, and up to 6 units can run in parallel.
SunGold Power 16KW 48V All-In-One Solar Charge Inverter Features
16000W Split-Phase Output for 120V and 240V Loads
The inverter delivers 120V on each leg and 240V between legs, at 50/60Hz. Rated output is 16000W, or 66.7A, with a peak of 2 times rated power for 10 seconds and a motor load capacity of 9HP. That covers 240V loads such as air conditioners, water pumps, dryers, electric ranges and Level 2 EV chargers.

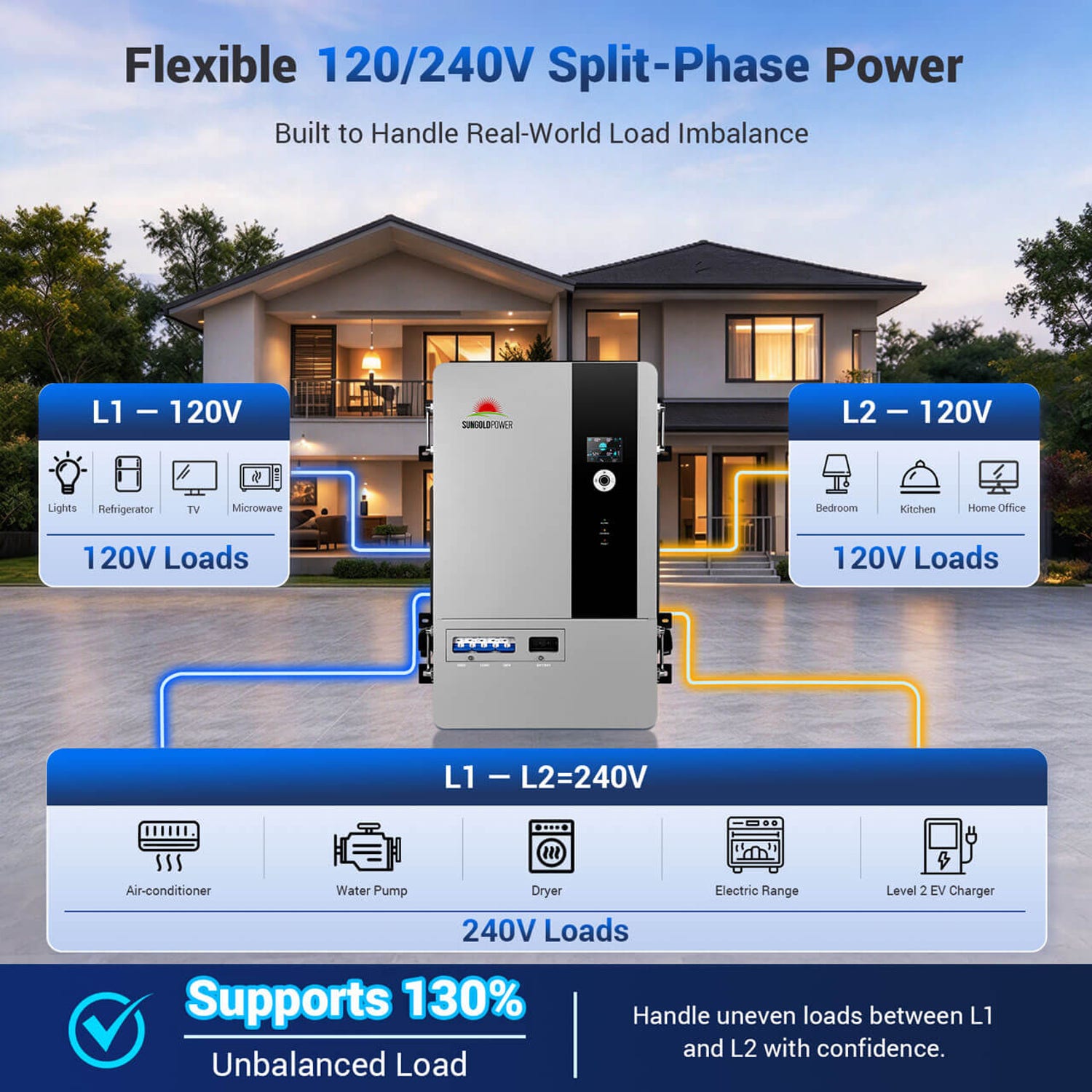

130% Unbalanced Load Support
Home circuits rarely load both legs evenly. The inverter supports 130% unbalanced load, so it can handle uneven 120V loads between L1 and L2.

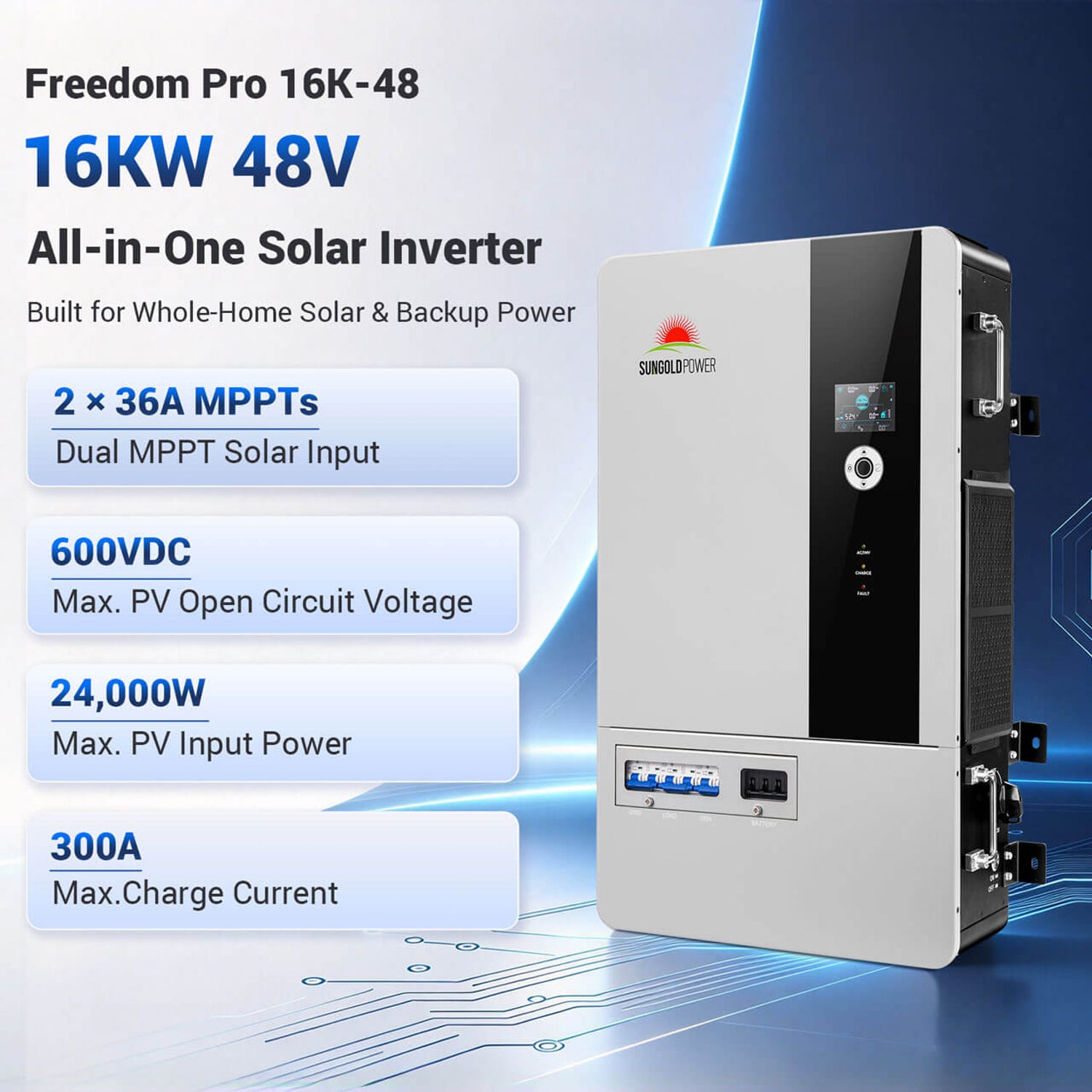

Two 36A MPPTs With Up to 24000W of PV
Each of the 2 MPPT trackers takes up to 12KW of PV array power and 36A of input current. The MPPT range is 120-550Vdc with a 600Vdc maximum open-circuit voltage, and SunGold rates the trackers at 99% efficiency. Two inputs let you run two strings or roof faces at their own operating points.
300A Charging for Lithium and Lead-Acid Batteries

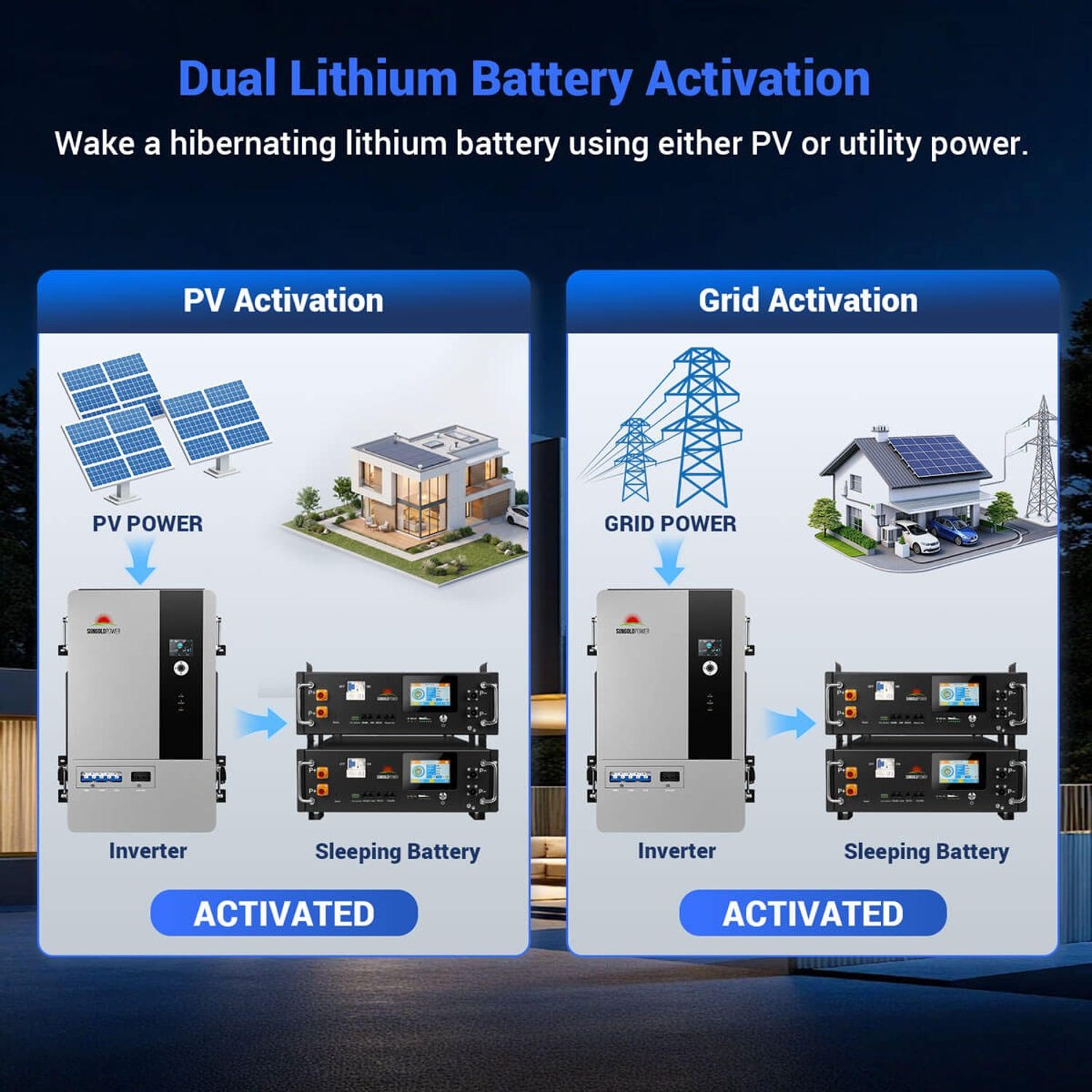

The 48V battery input works from 40 to 60Vdc with up to 300A of charge and discharge current. It supports lithium-ion, sealed, gel and flooded lead-acid batteries and a user-defined profile, and it follows the BMS of a connected lithium battery. Dual activation wakes a hibernating lithium battery from either PV or utility power.
Uninterrupted Power With Bypass and Generator Inputs
The inverter switches between utility bypass and inverter output with a typical switch time of 10 ms, and the grid input is rated for up to 100A. A generator input charges the batteries and supports the loads, and without a generator that port can be set as a smart load output.
Built-In Protection, AFCI and Rapid Shutdown
Protection covers the battery, AC output short circuit, overload, overtemperature and PV overvoltage. SunGold lists built-in AFCI, GFCI and rapid shutdown, and states that the rapid shutdown system complies with 2017 and 2020 NEC 690.12 when paired with APsmart RSD units at the modules.
Scheduling, Monitoring and Energy-Saving Mode

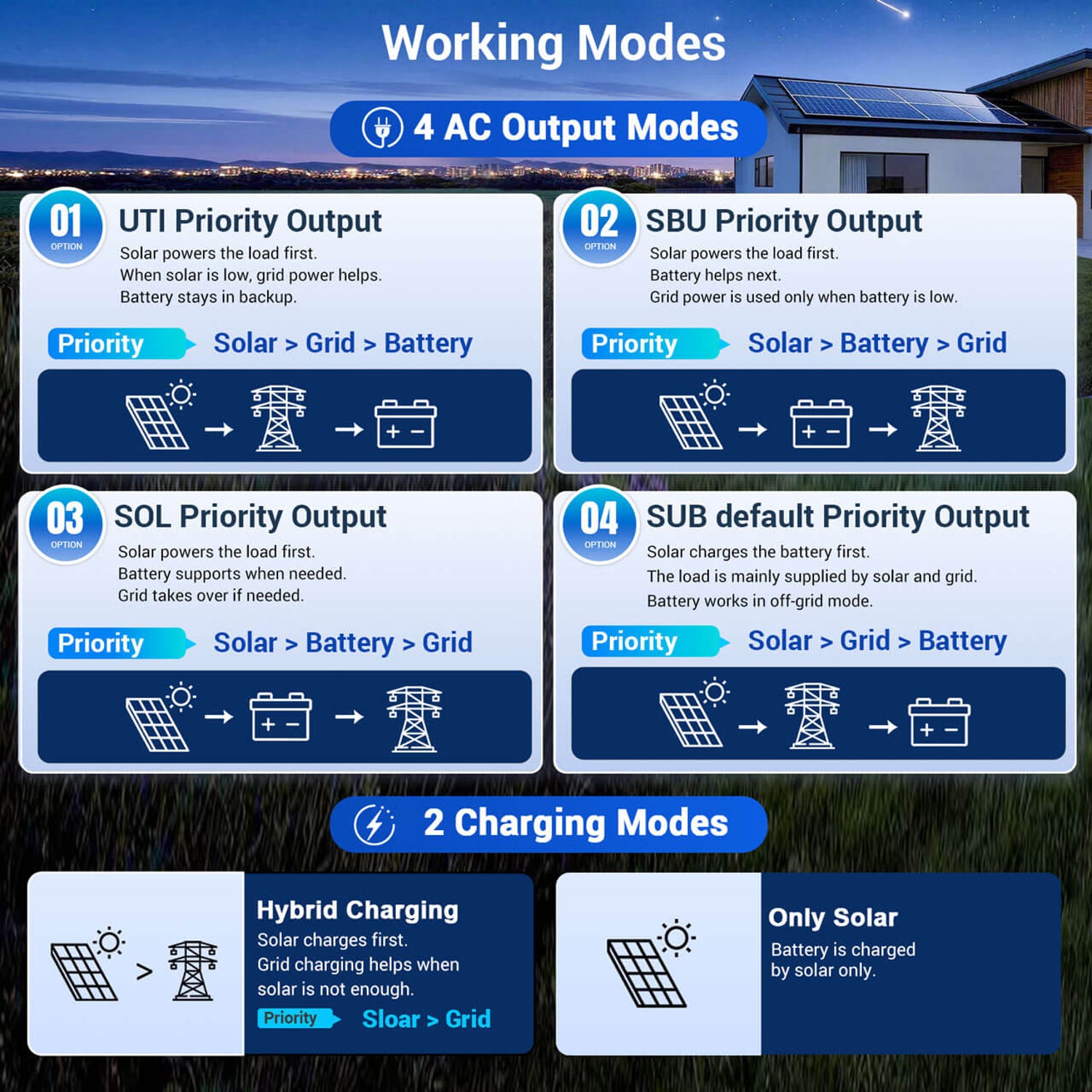

Four AC output priority modes and two charging modes, solar only or solar plus grid, set how power flows. Timed charge and discharge lets you plan around time-of-use rates, and an energy-saving mode reduces no-load losses. The LCD shows a live power flow diagram, and the included WiFi module connects to the mobile app.
Real-World Applications
Whole-home solar and backup. Run 120V circuits and 240V appliances from solar and a 48V battery bank.
Farms and workshops. Power water pumps, tools and shop equipment on 120/240V split-phase power.
EV charging at home. Supply a Level 2 EV charger from the 240V output.
Larger and three-phase systems. Parallel up to 6 units, from 16KW to 96KW, in split-phase or three-phase configurations.
Practical Comparison
SunGold Power 16KW Inverter Versus Separate Components
A component system needs a separate inverter, battery charger, charge controllers and breakers, each mounted and wired on its own. The Freedom Pro 16K-48 puts them in one cabinet with the breakers already installed.
SunGold Power 16KW Inverter Versus 120V-Only Inverters
A 120V-only inverter cannot run 240V loads such as well pumps, dryers and ranges. This unit supplies 120/240V split-phase power from one inverter.
SunGold Power 16KW Inverter Versus Grid-Tied String Inverters
A grid-tied string inverter without batteries has no stored energy for an outage. This inverter charges a 48V battery bank from solar, the grid or a generator and keeps your loads running when utility power is lost.
Buyer Guidance
Indoor Installation and Wiring
The inverter is IP20 rated for indoor use only. Mount it on a solid wall out of direct sunlight, in a dry, ventilated space between 14°F and 131°F; output is derated above 113°F. It weighs 105 lbs and measures 24.5 x 33.61 x 8.48 inches. SunGold specifies 000 AWG battery cable with a 2P-350A breaker, 10 AWG cable with a 2P-45A breaker for each PV input, and 2 AWG cable for the grid, generator and load circuits.
PV String Limits
Keep each string's open-circuit voltage at or below 600V and its current within 36A per MPPT. When inverters run in parallel, each unit needs its own PV array.
This May Be A Good Fit If
- You need 120/240V split-phase power for a large home or shop
- You plan a 48V battery bank with up to 300A of charge current
- You want to start with one inverter and add units later
- You can install the inverter indoors
Common Questions
Is the Freedom Pro 16K-48 UL Certified?
Yes. Intertek lists the Freedom Pro 16K-48 as an all-in-one solar charge inverter (stand-alone inverter) to UL 1741 and CSA C22.2 No. 107.1.
Can It Run 240V Appliances?
Yes. L1 to L2 is 240V, which runs loads such as air conditioners, water pumps, dryers, electric ranges and Level 2 EV chargers.
How Many Units Can Run in Parallel?

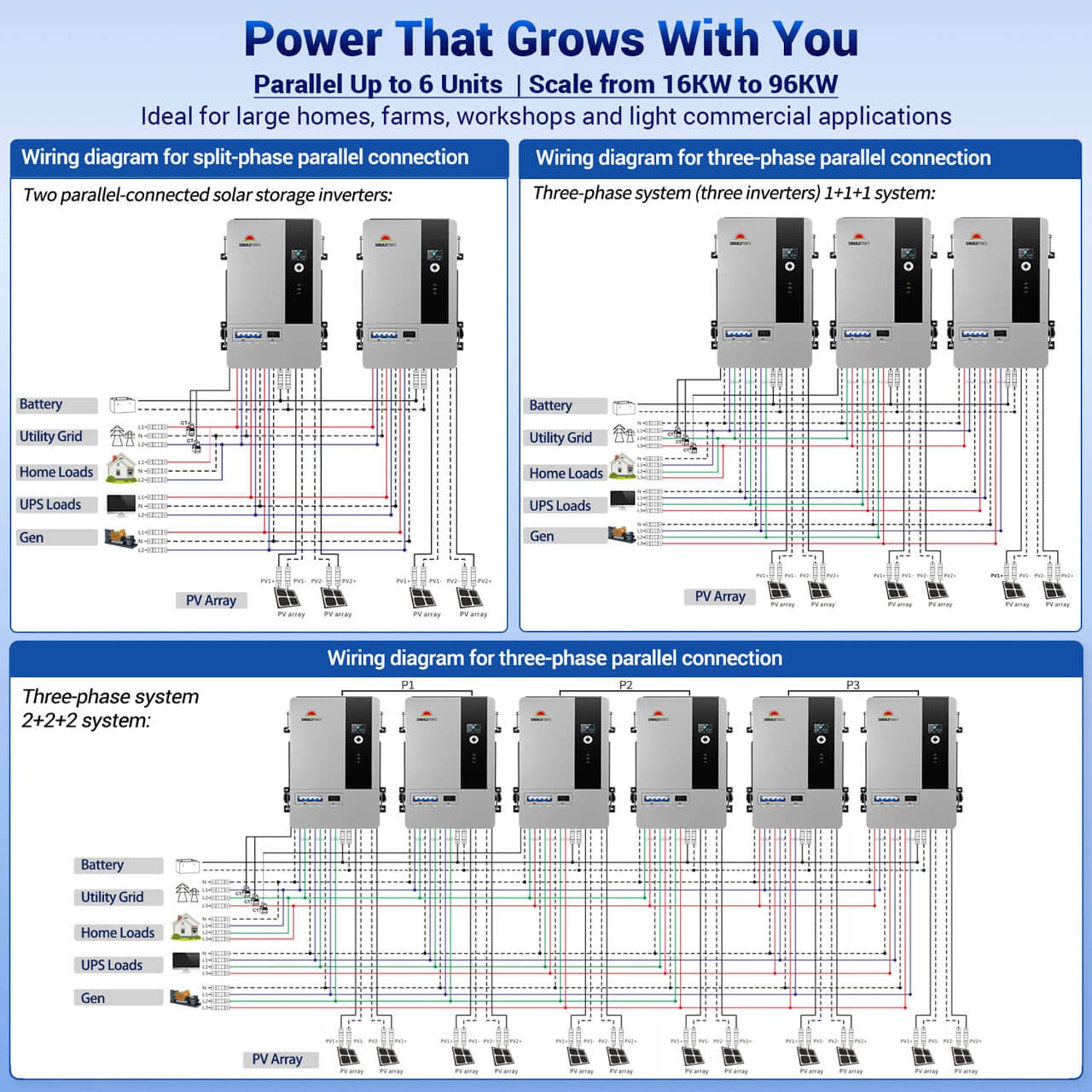

Up to 6 units can run in parallel, from 16KW to 96KW of output. SunGold shows split-phase and three-phase parallel wiring, and a parallel communication cable comes with each inverter.

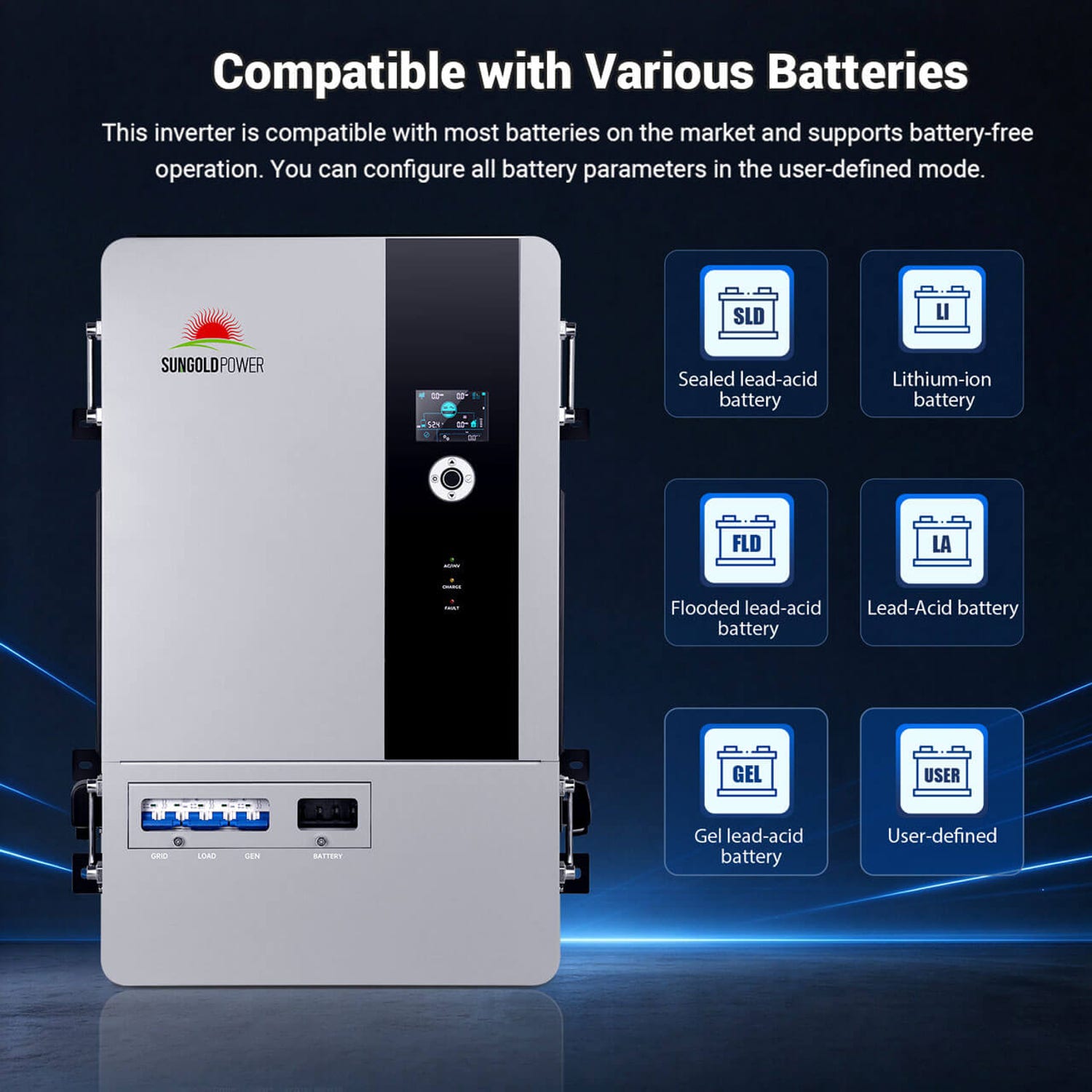

Which Batteries Can I Use?
It works with lithium-ion, sealed lead-acid, flooded lead-acid and gel batteries, plus a user-defined profile where you set every battery parameter.

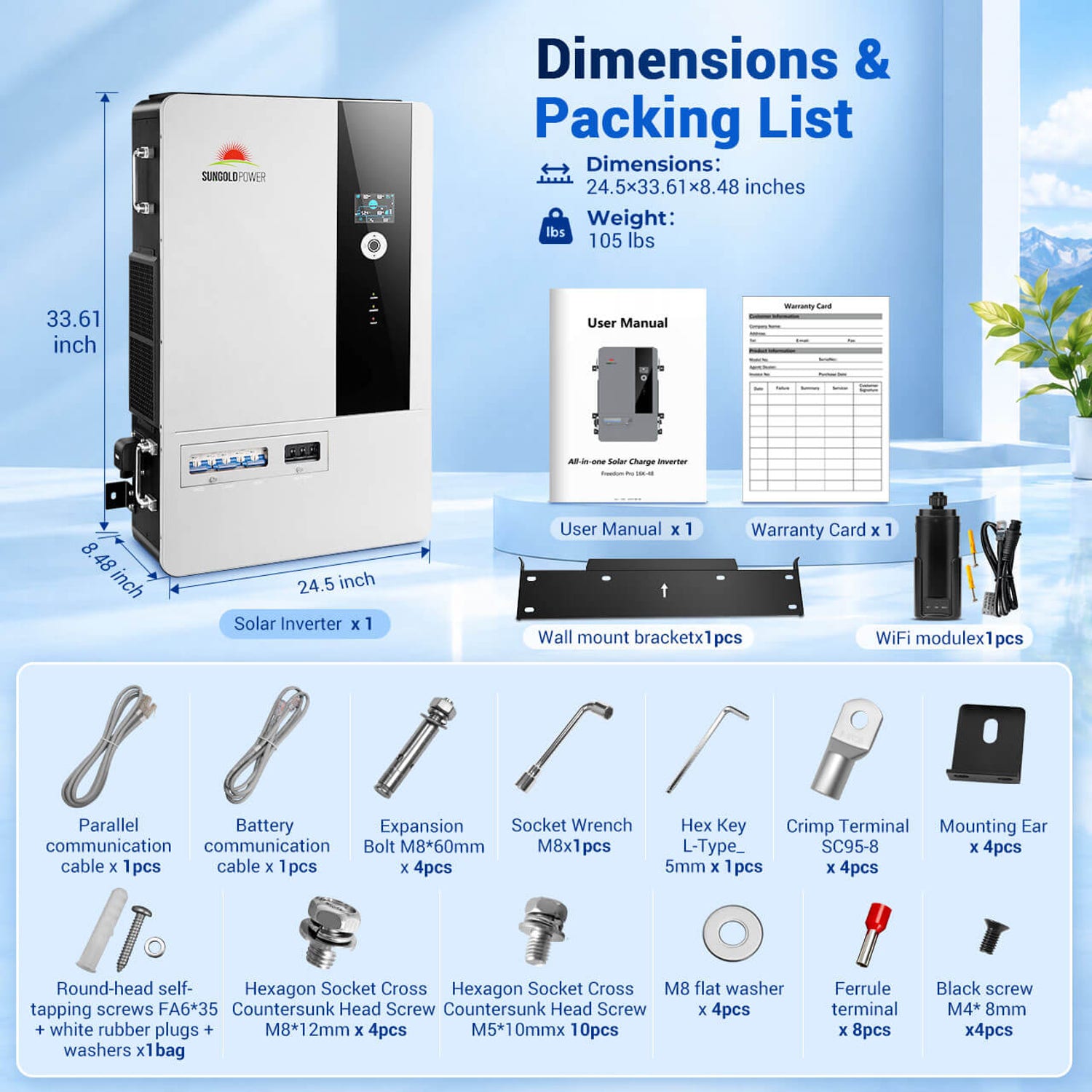

What's Included
- 1 x Freedom Pro 16K-48 Solar Inverter
- 1 x User Manual
- 1 x Warranty Card
- 1 x Wall Mount Bracket
- 1 x WiFi Module
- 1 x Parallel Communication Cable
- 1 x Battery Communication Cable
- 4 x Expansion Bolt M8*60mm
- 1 x Socket Wrench M8
- 1 x Hex Key L-Type 5mm
- 4 x Crimp Terminal SC95-8
- 4 x Mounting Ear
- 1 x Bag of Round-Head Self-Tapping Screws FA6*35 With White Rubber Plugs and Washers
- 4 x Hexagon Socket Cross Countersunk Head Screw M8*12mm
- 10 x Hexagon Socket Cross Countersunk Head Screw M5*10mm
- 4 x M8 Flat Washer
- 8 x Ferrule Terminal
- 4 x Black Screw M4*8mm
Split-Phase Power That Grows With You
The SunGold Power 16KW 48V All-In-One Solar Charge Inverter gives you 16000W of 120/240V output, two 36A MPPT inputs, 300A battery charging and room to grow to 6 units in parallel. At Outbound Power, we help customers size inverters, battery banks and solar arrays for homes, farms and shops. If you have questions, our team is happy to help.
SunGold Power 16KW 48V All-In-One Solar Charge Inverter Specifications
|
| Inverter Output |
| Model |
Freedom Pro 16K-48 |
| Rated Output Power |
16000W |
| Max. Peak Power |
2 times rated power, 10s |
| Max. Apparent Power |
16000VA |
| Rated Output Voltage |
120Vac/240Vac (L1+L2+N+PE) |
| Phase Voltage Settings (L-N) |
100-127Vac (120Vac default) |
| Rated Output Current |
66.7A |
| Motor Load Capacity |
9HP |
| Unbalanced Load Support |
130% |
| Rated Output Frequency |
50/60Hz |
| Waveform |
Pure sine wave |
| Switch Time |
10 ms (typical) |
| Battery |
| Battery Type |
Li-ion, lead-acid, user defined |
| Rated Battery Voltage |
48Vdc |
| Battery Voltage Range |
40-60Vdc |
| Max. Grid/Generator Charging Current |
300A |
| Max. Charging/Discharging Current |
300A |
| Charging Curve |
3 stages / equalization |
| Li-ion Charging Strategy |
Self-adaption to BMS |
| PV Input |
| MPPT Trackers |
2 |
| Max. PV Array Power |
12KW + 12KW |
| Max. PV Input Current |
36A + 36A |
| PV Short-Circuit Current |
50A + 50A |
| Max. PV Open-Circuit Voltage |
600Vdc / 600Vdc |
| MPPT Operating Voltage Range |
120-550Vdc / 120-550Vdc |
| MPPT Efficiency |
99% |
| Grid and Generator Input |
| Rated Input Voltage |
120Vac/240Vac (L1+L2+N+PE) |
| Input Voltage Range |
85-140Vac / 170-280Vac |
| Rated Input Frequency |
50/60Hz |
| Bypass Overload Current (Grid) |
100A |
| Protection |
| Protection Functions |
Battery protection, AC output short-circuit, overload, overtemperature, PV overvoltage |
| Built-In Safety |
AFCI, GFCI, rapid shutdown (RSD) |
| General Data |
| Parallel Capacity |
1-6 units |
| Dimensions |
24.5 x 33.61 x 8.48 in |
| Weight |
105 lbs |
| Protection Degree |
IP20, indoor use only |
| Operating Temperature Range |
14-131°F, derated above 113°F |
| Noise |
<60dB |
| Cooling Method |
Intelligent air cooling |
| Communication |
| Internal Interface |
RS485, CAN, WiFi, dry contact |
| External Module |
WiFi module (included); 4G stick optional |
| Certifications |
| Certification |
UL 1741 and CSA C22.2 No. 107.1 (Intertek ETL, stand-alone inverter) |
| EMC |
EN61000-6-1, EN61000-6-3, FCC 15 Class B |
